3. Remove bolts (x2) from GPS tuner to bracket (see Fig.
2).
4. Disconnect harness connections and remove GPS tuner.
Installation
1. Position GPS tuner to bracket and install bolts (x2).
2. Connect harness multiplugs.
3. Position base plate and secure with bolts (x4).
4. Install RH rear wheel arch liner (see Workshop Manual procedure 01.02.HB Wheel Arch Liner - Rear - RH -
Renew).
Multi Media Module-Renew
Removal
1. Disconnect vehicle battery.
2. Remove LH rear pillar upper panel assembly (see
Workshop Manual procedure 01.05.BG Panel Assembly
- Rear Pillar - Upper - LH - Renew).
3. Release boot carpet LH side rear (see Workshop Manual
procedure 01.05.FM Carpet Assembly - Side Front - LH
- Renew).
4. Disconnect multiplug (x1) tailgate switch.
5. Release tailgate switch harness from stud.
6. Remove bolts (x3) securing multi media module to body.
7. Remove module and disconnect multiplugs (x3).
8. Remove screws (x4) bracket to multi media module.
Installation
1. Install bracket to module.
2. Secure harness and connect multiplug (x1) boot switch.
3. Connect multiplugs (x3) module.
4. Install module.
5. Install LH rear pillar upper panel assembly (see Workshop Manual procedure 01.05.BG Panel Assembly
- Rear Pillar - Upper - LH - Renew). 6. Install boot carpet (see Workshop Manual procedure
01.05.FM Carpet Assembly - Side Front - LH - Renew).
7. Connect vehicle battery.
Fig. 2
Repair Operation Time (ROT)

Antenna (15.02)
Vehicle Entertainment (15.00)
May 2007 Workshop Manual 15-2-1
Vehicle Entertainment (15.00)
Antenna (15.02)
Maintenance
ICE System Antenna-Renew
Removal
1. Battery isolation switch ‘OFF’.
2. Remove RH rear wheel arch liner (see Workshop Manual procedure 01.02.HB Wheel Arch Liner - Rear -
RH - Renew). 3. Remove bolts (x2) securing AM antenna to body (see Fig.
1).
4. Remove nut securing AM antenna earth connection to body.
5. Release AM antenna cable from clips (x4).
6. Remove bolts (x4) securing tuner base plate to wheel arch (note position of earth lead) (see Fig. 2).
Repair Operation Time (ROT)
Repair Operation Time (ROT)
Fig. 1
Fig. 2
$
$

Antenna (15.02)
Vehicle Entertainment (15.00)15-2-2 Workshop Manual May 2007

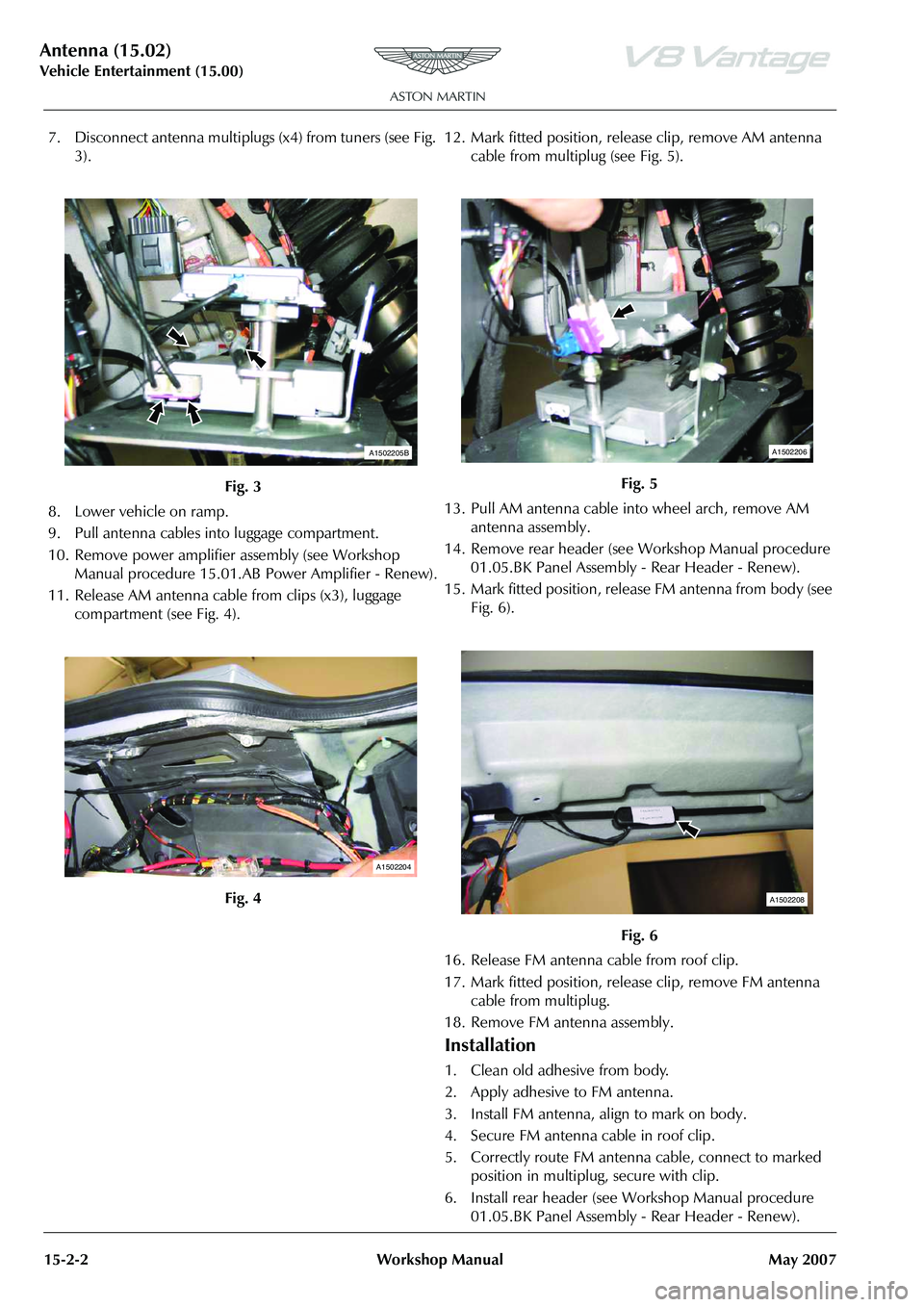

7. Disconnect antenna multiplugs (x4) from tuners (see Fig.
3).
8. Lower vehicle on ramp.
9. Pull antenna cables into luggage compartment.
10. Remove power amplifier assembly (see Workshop Manual procedure 15.01.AB Power Amplifier - Renew).
11. Release AM antenna cable from clips (x3), luggage compartment (see Fig. 4). 12. Mark fitted position, release clip, remove AM antenna
cable from multiplu g (see Fig. 5).
13. Pull AM antenna cable into wheel arch, remove AM antenna assembly.
14. Remove rear header (see Workshop Manual procedure 01.05.BK Panel Assembly - Rear Header - Renew).
15. Mark fitted position, release FM antenna from body (see Fig. 6).
16. Release FM antenna cable from roof clip.
17. Mark fitted position, release clip, remove FM antenna cable from multiplug.
18. Remove FM antenna assembly.
Installation
1. Clean old adhesive from body.
2. Apply adhesive to FM antenna.
3. Install FM antenna, align to mark on body.
4. Secure FM antenna cable in roof clip.
5. Correctly route FM antenna cable, connect to marked position in multiplug, secure with clip.
6. Install rear header (see Workshop Manual procedure 01.05.BK Panel Assembly - Rear Header - Renew).
Fig. 3
Fig. 4
$%
$
Fig. 5
Fig. 6
$
$

Antenna (15.02)
Vehicle Entertainment (15.00)
May 2007 Workshop Manual 15-2-3
7. Position AM antenna to body , install and torque tighten
bolts (x2).
8. Position AM antenna earth connector, install and torque tighten nut.
9. Route AM antenna cable through grommet into luggage compartment.
10. Correctly route AM antenna cable, connect to marked position in multiplug, secure with clip.
11. Feed multiplugs into wheel arch and connect to tuner assemblies.
12. Secure antenna cables in clips (x3), luggage compartment.
13. Install power amplifier assembly (see Workshop Manual procedure 15.01.AB Power Amplifier - Renew).
14. Raise vehicle on ramp.
15. Position tuner base plate, position earth lead, install and torque tighten bolts (x4).
16. Install RH rear wheel arch liner (see Workshop Manual procedure 01.02.HB Wheel Arch Liner - Rear - RH -
Renew).
17. Lower vehicle on ramp.
18. Battery isolation switch ‘ON’.

Antenna (15.02)
Vehicle Entertainment (15.00)15-2-4 Workshop Manual May 2007

May 2007 Workshop Manual 16-1-1
Vacuum Distribution (16.00)
Contents
Body Vacuum System (16.01) ..............................16-1-2Description ............................................................. 1-2

Body Vacuum System (16.01)
Vacuum Distribution (16.00)16-1-2 Workshop Manual May 2007
Vacuum Distribution (16.00)
Body Vacuum System (16.01)
Description
The exhaust system consists of four twin-branch manifold a ssemblies which direct exhaust gases through two under-floor
catalysts (before feeding) via under-floor pipework to a two-stage rear silencer.
The two-stage rear silencer directionally varies the flow of exhaust gas to give acceptable exhaust noise levels at low engine
speeds and reduce exhaust back pressure for engine protection at high engine speeds.
The exhaust valves are linked and operated via the engines ECU by means of a vacuum distribution system consisting of
an electrically operated pump, solenoid, va cuum storage tank and connecting pipework.
An illustration of the vacuum dist ribution system can be seen above.
9DFXXP3XPS
6ROHQRLGDQG7DQN
9DFXXP'LVWULEXWLRQ3LSH:RUN
/HIW+DQG
([KDXVW9DOYH
5LJKW+DQG
([KDXVW9DOYH 6LOHQFHU
