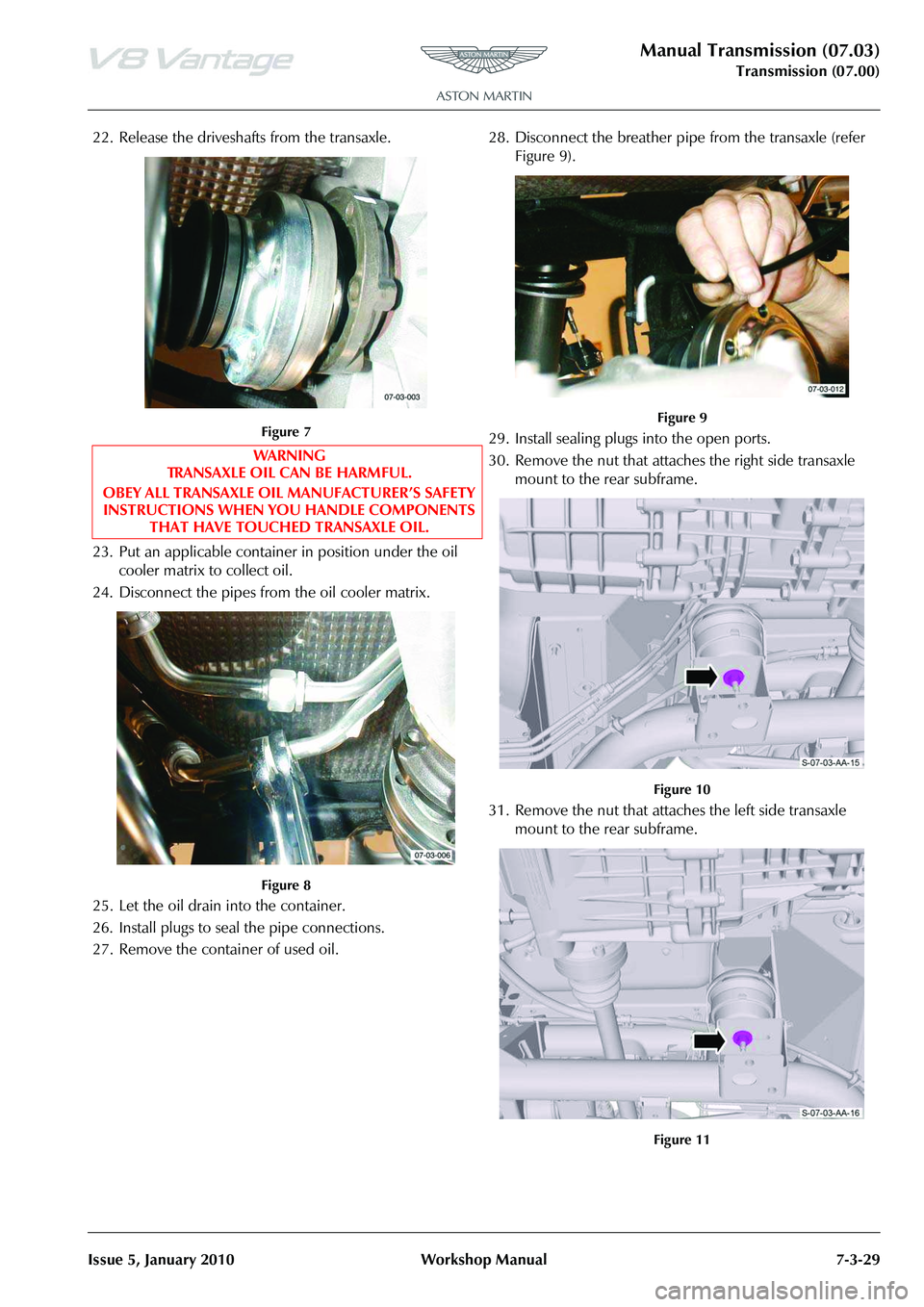

22. Release the driveshafts from the transaxle.
Figure 7
23. Put an applicable container in position under the oil cooler matrix to collect oil.
24. Disconnect the pipes from the oil cooler matrix.
Figure 8
25. Let the oil drain into the container.
26. Install plugs to seal the pipe connections.
27. Remove the container of used oil. 28. Disconnect the breather pipe from the transaxle (refer
Figure 9).
Figure 9
29. Install sealing plugs into the open ports.
30. Remove the nut that attaches the right side transaxle mount to the rear subframe.
Figure 10
31. Remove the nut that attaches the left side transaxle mount to the rear subframe.
Figure 11
WA R N I N G
TRANSAXLE OIL CAN BE HARMFUL.
OBEY ALL TRANSAXLE OIL MANUFACTURER’S SAFETY INSTRUCTIONS WHEN YOU HANDLE COMPONENTS THAT HAVE TOUCHED TRANSAXLE OIL.

Manual Transmission (07.03)
Transmission (07.00)7-3-30 Workshop Manual Issue 5, January 2010
32. Release the reservoir hose from the two clips.
Figure 12
33. Remove the two bolts that attach the reservoir to the transaxle bracket.
34. Use a cable tie to attach the reservoir to the transaxle.
35. Put a transmission jack below the transaxle (refer to Figure 12).
Figure 13
36. Adjust the height of the tran smission jack until it holds
the transaxle.
37. Remove and discard the four bolts that attach the right side transaxle mount bracket to the transaxle. (see
Figure 14).
Figure 14
38. Remove and discard the four bolts that attach the left side transaxle mount bracket to the transaxle.
Figure 15
39. Remove the transaxle mount assemblies.
Figure 16
40. Use an applicable strap to attach the transaxle to the transmission jack.
41. Lower the transaxle on the transmission jack by approximately 420 mm.
42. Disconnect the hydraulic pipe for the clutch.
Figure 17
!
!

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-31
43. Disconnect the electrical connector from the wiring
harness for the torque tube.
44. Remove the bolt that attaches the bracket for the electrical connector.
45. Move the bracket for the electrical connector away.
46. Remove the bolt that attaches the transaxle ground cable to the transaxle Automatic Shift Mechanism (ASM)
pump.
47. Disconnect the electrical connector from the ASM
pump.
48. Release the wiring harness for the ASM pump from the two clips that attach it to the transxle.
49. Identify and disconnect the five electrical connectors from the transaxle.
50. Disconnect the electrical connector from the selector
position sensor.
51. Remove the bolt that attaches the ground cable eyelet to the transaxle.
52. Put the wiring harness under the hydraulic pipe for the clutch, and move it away from the transaxle.
53. Put a transmission jack belo w the torque tube (refer to
Figure 18).
Figure 18
54. Adjust the height of the tran smission jack until it holds
the torque tube.
55. Remove the eight bolts that attach the torque tube to the transaxle.
Figure 19
56. Move the transaxle rearwards to give clearance between the torque tube and the transaxle.
57. Carefully lower the transaxle on the transmission jack to remove the transaxle from the vehicle.
Figure 20
58. Clean the mating faces of the component.
Install
1. Move the transaxle and transm ission jack into position
below the vehicle.
2. Remove the filler plug for the transaxle oil.
3. Do a level check of the transaxle oil.
4. Install and tighten the filler plug for the transaxle oil.
5. Use the transmission jack to adjust the height of the transaxle to align the transaxle with the torque tube.
6. Lower the transmission jack away from the torque tube.
7. Install and tighten the eight bolts that attach the torque tube to the transaxle.
8. Put the wiring harness for the transaxle into position.
9. Install the ground cable eyelet to the transaxle.
10. Install and tighten the bolt that attaches the ground cable eyelet to the transaxle.
11. Connect the electrical connector to the selector position sensor.
12. Connect the five electrical connectors to the transaxle.
13. Install the wiring harness for the ASM pump to the two clips that attach it to the transaxle.
14. Connect the electrical connector to the ASM pump.
15. Install the transaxle ground cable to the transaxle ASM pump.
16. Install and tighten the bolt that attaches the transaxle ground cable to the transaxle ASM pump.
17. Put the bracket for the electrical connector into position.
18. Install and tighten the bolt that attaches the bracket for the electrical connector.
WARNING
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE
TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN OCCUR.
WARNING
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE
TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN
OCCUR.

Manual Transmission (07.03)
Transmission (07.00)7-3-32 Workshop Manual Issue 5, January 2010
19. Connect the electrical connector to the wiring harness for the torque tube.
20. Connect the hydraulic pipe for the clutch.
21. Adjust the height of the transmission jack to lift the transaxle into the correct position.
22. Remove the strap from the transaxle and the transmission jack.
23. Install the transaxle mount assemblies.
Figure 21
24. Install and tighten the four bolts that attach the left side transaxle mount bracket to the transaxle.
Figure 22
25. Install and tighten the four bolts that attach the right side transaxle mount bracket to the transaxle.
Figure 23
26. Remove and discard the cable tie to release the reservoir from the transaxle.
27. Put the reservoir into position on the transaxle bracket.
28. Install and tighten the two bolts that attach the reservoir to the transaxle bracket.
29. Install the reservior hose into the two clips.
30. Lower the transmission jack to align the transaxle mounts to the rear subframe.
31. Move the transmission ja ck away from the vehicle.
32. Install and tighten the nut that attaches the left side transaxle mount to the rear subframe.
33. Install and tighten the nut that attaches the right side transaxle mount to the rear subframe.
34. Remove and discard the seal ing plugs from the transaxle
and the breather pipe.
35. Connect the breather pipe to the transaxle.
36. Remove and discard the sealing plugs from the oil cooler matrix and the pipes.
37. Connect and tighten the pipes to the oil cooler matrix.
38. Put the driveshafts into position on the transaxle shaft flanges. Align the marks on the flanges that you made
during removal.
39. Install and torque the six new bolts that attach the left side driveshaft flange to the transaxle flange. If
necessary, turn the driveshaft to get access to all of the
bolts.
40. Install and torque the six new bolts that attach the right side driveshaft flange to the transaxle flange. If
necessary, turn the driveshaft to get access to all of the
bolts.
41. Put the ground cable into position.
42. Install and tighten the nut that attaches the ground cable to the body.
Note: Put the three driveshaft bolt plates in position when
you install the bolts in the step that follows.
Note: Put the three driveshaft bolt plates in position when
you install the bolts in the step that follows.

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-33
43. Install the tunnel reinforcement plate.
44. Install and torque the eight bolts that attach the tunnel reinforcement plate to the body.
45. Install floor heatshield.
46. Install and tighten the four bolts that attach the floor heat shield to the body.
47. Install the exhaust front mount.
48. Clean the component mating faces.
49. Apply an applicable sealant to the component mating faces.
50. Install the exhaust centre pipe.
51. Install and tighten the four bolts that attach the exhaust centre pipe to the exhaust front mount.
52. Put the clamps into position on the exhaust pipes.
53. Loosely install the four bolts that attach the exhaust centre pipe to the rear silencer.
54. Align the exhaust assembly.
55. Tighten the two clamps that attach the exhaust centre pipe to the catalytic converters.
56. Install the cross brace.
Figure 24
57. Install and torque the four bolts that attach the cross brace to the rear subframe.
Figure 25
58. Remove the strap that attaches the vehicle to the lift.
59. Lower the vehicle until the wheels are approximately 10 mm above the ground.
60. Connect the battery ground cable.
61. Bleed the clutch system.
62. Use AMDS to do an ASM self-tune.
63. Start the engine, select first gear and allow the wheels to turn for 10 seconds.
64. Lift the vehicle.
65. Remove the fill plug for the transaxle oil.
66. Make sure that the transaxle oil is level with the opening for the transaxle oil. Add more oil if necessary.
67. Install and tighten the fill plug for the transaxle oil.
68. Do a check of the ASM fluid level.
69. Install the rear undertray (refer to Workshop Procedure 01.02.PB - Rear Undertray)
Removal
1. Position vehicle on ramp.
2. Remove rear undertray (see Workshop Manual procedure 01.02.PB Undertray - Rear - Renew).
3. Position container to collect transaxle oil.
4. Remove transaxle drain plug and drain oil.
WA R N I N G
THE EXHAUST CENTRE PIPE IS HEAVY. GET THE AID
OF ONE MORE PERSON
TO DO THE STEP THAT FOLLOWS.
Repair Operation Time (ROT)

Manual Transmission (07.03)
Transmission (07.00)7-3-34 Workshop Manual Issue 5, January 2010
5. Loosen and disconnect oil c ooler pipes and allow oil in
the oil cooler system to drain into container.
6. Remove filler plug.
7. Discard sealing washers (x2).
Install
1. Clean drain and filler plugs.
2. Install new sealing washers to filler and drain plugs.
3. Install drain plug and tighten to correct torque.
4. Install oil cooler pipes and tighten unions to correct torque.
5. Fill transaxle with the correct grade and quantity of oil.
6. Install filler plug and tighten to the correct torque.
7. Install rear undertray (see Workshop Manual procedure 01.02.PB Undertray - Rear - Renew).
8. Lower vehicle on ramp.
9. Road test vehicle.
10. Position vehicle on ramp.
11. Check and top-up transaxle oil level.
12. Lower vehicle on ramp.
Transaxle Assembly-Renew
Removal
1. Remove transaxle assembly (see Workshop Manual procedure 07.03.AA Transaxle Assembly - Manual -
Remove for Access & Refit).
2. Attach slings to transaxle and connect suitable hoist.
3. With assistance, remove transaxle from lifter and position on work bench.
4. Lower hoist and remove slings.
5. Position container and drain transaxle oil. 6. Remove bolt securing oi
l cooler pipes bracket to
transaxle (see Figure 1).
7. Loosen and disconnect oi l cooler pipe unions and
remove oil cooler pipe assembly (see Fig 2).
WAR NI NG
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS
SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH TRANSAXLE OIL.
WAR NI NG
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS
SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH TRANSAXLE OIL.
WAR NI NG
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS
SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH TRANSAXLE OIL.
Repair Operation Time (ROT)
Figure 1
WAR NI NG
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH
TRANSAXLE OIL.
Figure 2
Caution
Plug oil cooler connections to prevent ingress of dirt or
moisture into the system.

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-35
8. Remove reverse light switch from transaxle (see Fig, 3).
9. Remove bolts (x3) from selector cable bracket to transaxle and collect bracket (see Figure 4).
10. Remove nuts (x2) from select or levers (x2) to transaxle
(see Figure 5).
Install
1. Clean reverse light switch, oil cooler pipes, selector levers and selector cable bracket. 2. Install selector levers (x2) and install and torque tighten
nuts (x2).
3. Install selector cable bracket and install and torque tighten bolts (x3).
4. Install and torque tighten reverse light switch.
5. Install oil cooler pipe assembly.
6. Install and torque tighten oil cooler pipe unions and support bracket bolt.
7. Fill transaxle with the specified oil to the correct level.
8. Attach slings to transaxle and connect hoist.
9. With assistance, remove transaxle from workbench and position on lifter.
10. Install transaxle assembly (see Workshop Manual procedure 07.03.AA Transaxle Assembly - Manual -
Remove for Access & Refit).
11. Install road wheel(s).
12. Test drive vehicle.
13. Raise vehicle on ramp and check transaxle oil level.
14. Lower vehicle on ramp.
Figure 3
Figure 4
Figure 5
WA R N I N G
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. TO AVOID PERSONAL INJURY OR DAMAGE TO THE TRANSAXLE, HANDLING OF THE TRANSAXLE ASSEMBLY IS A TWO
PERSON OPERATION.
WA R N I N G
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. TO AVOID PERSONAL INJURY OR DAMAGE TO THE TRANSAXLE,
HANDLING OF THE TRANSAXLE ASSEMBLY IS A TWO PERSON OPERATION.
WA R N I N G
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. TO AVOID
PERSONAL INJURY OR DAMAGE TO THE TRANSAXLE, HANDLING OF THE TRANSAXLE ASSEMBLY IS A TWO PERSON OPERATION.

Manual Transmission (07.03)
Transmission (07.00)7-3-36 Workshop Manual Issue 5, January 2010
