2010 ASTON MARTIN V8 VANTAGE Workshop Manual

Bumpers (01.19)
Body System (01.00)
May 2007 Workshop Manual 1-13-1
Body System (01.00)
Bumpers (01.19)
Front Bumper
Rear Bumper
01-19-002
Bumper Armature Exhaust Bracket
and Finisher
Bumper Mounting
Brackets
01-19-003

Bumpers (01.19)
Body System (01.00)1-13-2 Workshop Manual May 2007
Specifications
Maintenance
Front Bumper Cover - Renew
Removal
1. Raise vehicle on ramp.
2. Remove front number plate and plinth (see Workshop Manual procedure 01.19.BD Licence Plate - Plinth
Assembly - Front - Renew).
3. Remove valance (see Workshop Manual procedure 01.19.AF Panel - Front Valance - Renew).
4. Remove screws (x2) securing front of undertray to bumper (see Figure 1).
5. Remove screws (x5) LH front wheel arch liner to bumper.
6. Remove screws (x5) RH front wheel arch liner to bumper.
7. Remove bolts (x3 securing LH air box to mounting brackets.
8. Remove bolts (x3 securing RH air box to mounting brackets. 9. Remove bolts (x6) securing bumper to front wing (see
Figure 2)
.
10. With assistance, release bumper from clips (x2) and
remove bumper (see Figure 3).
11. Remove mesh (clips x8).
Installation
1. Install mesh (clips x8).
2. With assistance position bumper and secure in clips (x2).
3. Install bolts (x6) bumper to front wing.
4. Install bolts (x3 securing RH air box to mounting brackets.
5. Install bolts (x3 securing LH air box to mounting brackets.
6. Install screws (x5) LH front wheel arch liner to bumper.
7. Install screws (x5) RH front wheel arch liner to bumper.
8. Install screws (x2) securing front undertray to bumper.
Torque Figures
DescriptionNm
Front Bumper to bumper bracket 4-5
Rear Bumper to Bumper Bracket 2-3
Repair Operation Time (ROT)
01-19-005
Figure 2
Figure 3
Remove Bolts x6
Front Bumper
01-19-001
01-19-004

Bumpers (01.19)
Body System (01.00)
May 2007 Workshop Manual 1-13-3
9. Install number plate and plinth (see Workshop Manual procedure 01.19.BD Licence Plate - Plinth Assembly -
Front - Renew).
10. Install valance (see Workshop Manual procedure 01.19.AF Panel - Front Valance - Renew).
11. Lower vehicle on ramp.
Rear Bumper Cover - Renew
Removal
1. Raise vehicle on ramp.
2. Remove number plate.
3. Remove LH rear lamp assembly (see Workshop Manual procedure 17.03.AB Lamp Assembly (Rear) - LH
Renew).
4. Remove RH rear lamp assembly (see Workshop Manual procedure 17.03.BB XREF: 280 Lamp Assembly (Rear) -
RH Renew).
5. Remove wheel arch liner LH (see Workshop Manual procedure 01.02.JB Wheel Arch Liner - Rear - RH -
Renew).
6. Remove wheel arch liner RH (see Workshop Manual procedure 01.02.HB Wheel Arch Liner - Rear - LH -
Renew).
7. Remove tyre mobility kit from the rack.
8. Remove torx bolts located behind carpets to rear wings (x2).
9. Remove bolts (x2) in rear light recess.
10. Remove bolts securing bumper to wheel arch (6).
11. Remove bolts (x4) securing bumper to brackets.
12. With assistance Release bumper from body.
13. Release fir trees securing harness to bumper (x6).
14. Release remaining harness clips from bumper (x6).
15. Disconnect multiplugs to parking aid sensors (x2).
16. Disconnect multiplugs to license plate lamps (x2).
17. Remove nuts (x6) securing exhaust finishers to bumper.
18. Remove number plate light assembly (clips x5).
19. Remove parking aid sensors (x2)
20. Remove screw retaining clips (x13)
Installation
1. Install screw retaining clips x13.
2. Install parking aid sensors x2.
3. Install number pl ate light assembly
4. Install exhaust finishers to bumper.
5. With assistance position bumper to body.
6. Connect multiplugs to license plate lamps X2.
7. Connect multiplug to parking aid sensors.
8. Secure harness to bumper (f ir trees x6 and clips x6)
9. Install bumper bolts to brackets and body (x10). 10. Install tyre mobility kit to rack.
11. Install number plate.
12. Install RH rear lamp asse
mbly (see Workshop Manual
procedure 17.03.BB Lamp Assembly (Rear) - RH
Renew).
13. Install LH rear lamp assembly (see Workshop Manual procedure 17.03.AB Lamp Assembly (Rear) - LH
Renew).
14. Install wheel arch liner LH (see Workshop Manual procedure 01.02.JB Wheel Arch Liner - Rear - RH -
Renew).
15. Install RH wheel arch li ner (see Workshop Manual
procedure 01.02.HB Wheel Arch Liner - Rear - RH -
Renew).
16. Lower vehicle on ramp.
Repair Operation Time (ROT)

Bumpers (01.19)
Body System (01.00)1-13-4 Workshop Manual May 2007

Restraining Devices (01.20)
Body System (01.00)

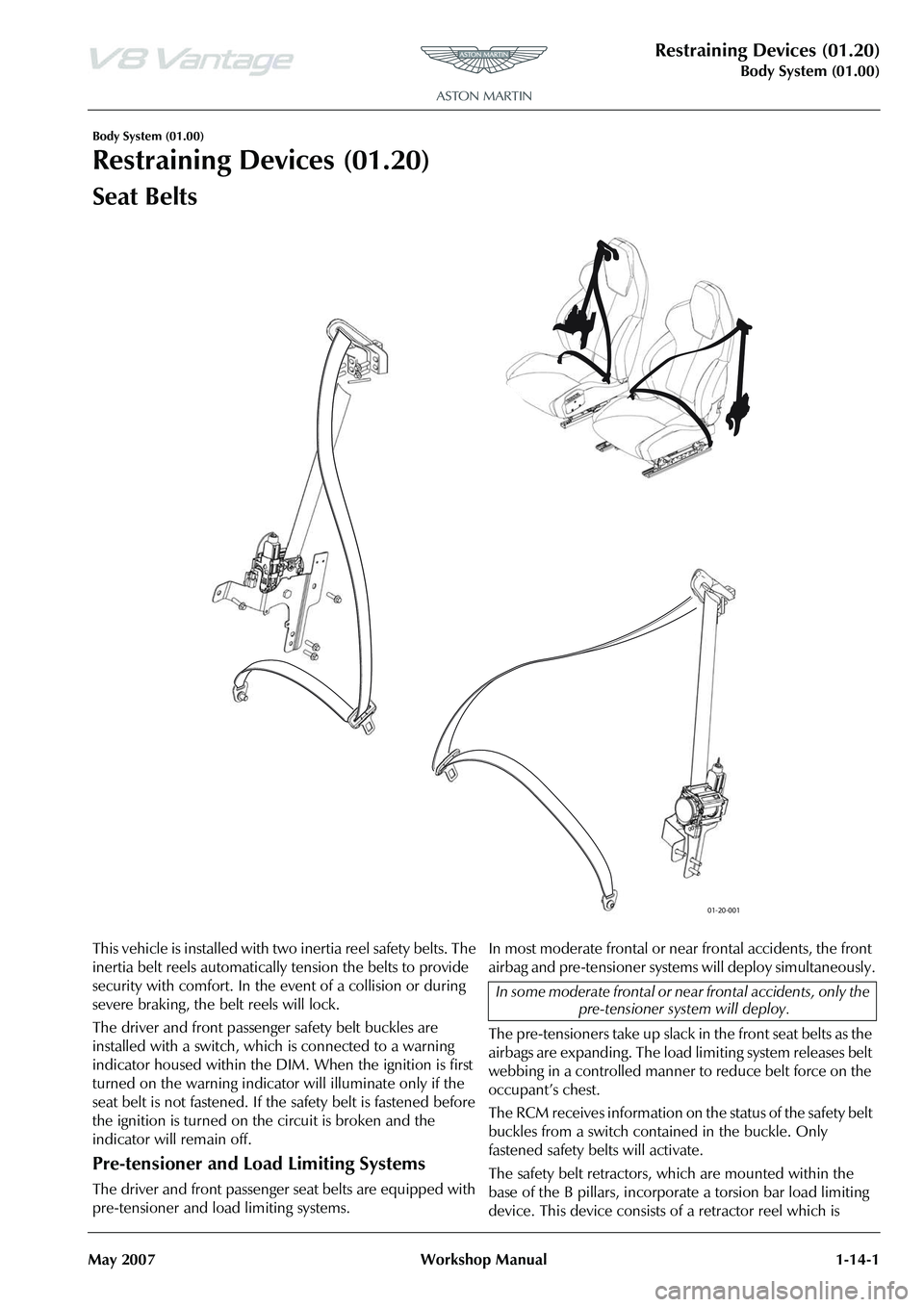

May 2007 Workshop Manual 1-14-1
Body System (01.00)
Restraining Devices (01.20)
Seat Belts
This vehicle is installed with two inertia reel safety belts. The
inertia belt reels automatically tension the belts to provide
security with comfort. In the event of a collision or during
severe braking, the belt reels will lock.
The driver and front passenger safety belt buckles are
installed with a switch, which is connected to a warning
indicator housed within the DIM. When the ignition is first
turned on the warning indicator will illuminate only if the
seat belt is not fastened. If the safety belt is fastened before
the ignition is turned on the circuit is broken and the
indicator will remain off.
Pre-tensioner and Load Limiting Systems
The driver and front passenger seat belts are equipped with
pre-tensioner and load limiting systems. In most moderate frontal or near frontal accidents, the front
airbag and pre-tensioner syst
ems will deploy simultaneously.
The pre-tensioners take up slack in the front seat belts as the
airbags are expanding. The load limiting system releases belt
webbing in a controlled manner to reduce belt force on the
occupant’s chest.
The RCM receives information on the status of the safety belt
buckles from a switch contained in the buckle. Only
fastened safety belts will activate.
The safety belt retractors, which are mounted within the
base of the B pillars, incorporate a torsion bar load limiting
device. This device consists of a retractor reel which is



In some moderate frontal or ne ar frontal accidents, only the
pre-tensioner system will deploy.

Restraining Devices (01.20)
Body System (01.00)1-14-2 Workshop Manual May 2007
mounted onto a spindle (torsion bar) which once the sensor
has locked the retractor reel and a predetermined load is
applied, twists and allows additional webbing into the
system. The deceleration force required to initiate this
sequence is approximately th e same as that required to
initiate airbag deployment. The torsion bar load limiting
device will only react if the safety belt is in use at the time of
the impact.
Emergency Locking Retractor (ELR)
The retractors in all seat posi tions feature ELR. During any
period of sudden deceleration, or under lateral load when
cornering at speed, a sensor weight within the safety belt
retractor moves a locking pawl against the teeth on the
retractor reel, which then locks the retractor preventing any
further release of webbing. As soon as the load applied onto
the retractor through the safety belt webbing is removed the
locking pawl releases the retractor reel and normal
movement is returned to the retractor.
Automatic Locking Retractor (ALR)
Automatic locking retractors (ALR) are installed to all
passenger seat positions.
The safety belt webbing on these are clearly marked to show
their operating feature. To initiate the ALR system, fasten the
safety belt into it’s buckle and pull all of the webbing from
the retractor, as the safety belt is released the retractor locks
allowing travel in only one plane thus producing a fixed
length restraint and preventing the safety belt from
introducing slack, making any child seat it may be restraining
secure. The ALR system of the retractor is disengaged by
releasing the safety belt and allowing the safety belt to fully
retract onto the reel. Caution
It should be considered th at during any event that
utilizes the full capability of the safety belts, the
webbing may have been elongated and the torsion bar may have twisted. For this reason, if a vehicle is
involved in an accident which results in the deployment of the airbag(s), all the safety belts that were in use at
the time of the accident MUST be renewed.

Restraining Devices (01.20)
Body System (01.00)
May 2007 Workshop Manual 1-14-3
Airbag System
The airbag system is designed to provide increased collision
protection for front seat occu pants in addition to that
provided by the safety belt system. Safety belt use is
necessary to obtain the best occupant protection and to
receive the full advantages of the airbag system.
This vehicle is equipped with dr iver, passenger, side impact
airbags and seat belt pretensioners, which are electrically
controlled an RCM (Restraints Control Module).
The driver and passenger airbags (A) only deploy in a serious
front collision. The side airbags (B (one airbag in each front
seat)) only deploy according to which side has been
impacted in a serious side collision.
The purpose of the driver, passenger and side airbags is to
provide additional protection for the front seat occupants in
the event of a serious impact (front or side impacts). The
airbags are supplementary to the seat belts.
Airbag Deployment
The noise and gas associated with the deployment of the
airbags are not injurious to health.
Driver airbag Module
The driver airbag module is installed in the steering wheel,
the cover forming the outer surface of the steering wheel
boss. The cover has a split line moulded into its surface
allowing the airbag to exit through the cover when the
system deploys.
No routine maintenance is required and there are no
serviceable parts. The driver airbag module is replaced as an
assembly.
Passenger Airbag Module
The passenger airbag module is located above the glove
compartment behind a deployment panel.
The passenger airbag deployment panel hinges up out of the
way during airbag deployment.
The passenger airbag module is replaced as an assembly.
There is no routine maintenance required and there are no
serviceable parts.
Side Airbag Module
A side impact airbag module is mounted in the outboard
bolster of each front seat and uses compressed argon to
inflate. It provides protection for the thorax (the part of the
torso between the neck and the abdomen). In a side airbag
module deployment situation, the airbag module deploys
from behind a hard trim panel.
Clockspring
The airbag clockspring continuously transfers electrical
signals from the driver airbag module to the airbag sensor.
The airbag clockspring is mounted on the steering column,
behind the steering wheel and does not contain any
serviceable components. Ensure that the steering wheel is
locked in the central position before commencing any work
on the steering column, wheel or airbag.
Control Module
The primary purpose of the RCM is to discriminate between
an event that warrants an airbag system deployment and an
R P
N
D
WAR NI N G
AIRBAGS INFLATE RAPIDLY AND WITH
CONSIDERABLE FORCE, THERE IS THEREFORE A RISK OF DEATH OR SERIOUS INJURY SUCH AS
FRACTURES, FACIAL AND EY E INJURIES OR INTERNAL
INJURIES, PARTICULARLY TO OCCUPANTS WHO ARE NOT PROPERLY RESTRAINED BY SEAT BELTS OR ARE NOT SITTING CORRECTLY WHEN THE AIRBAGS
DEPLOY. THE RISK OF IN JURY FROM A DEPLOYING
AIRBAG IS GREATEST CLOSE TO THE TRIM COVERING THE AIRBAG.
WAR NI N G
THE WHOLE SEQUENCE OF AIRBAG DEPLOYMENT,
FROM SENSING THE IMPACT TO FULL INFLATION OF THE AIRBAG TAKES PLACE IN A FRACTION OF A SECOND.

Restraining Devices (01.20)
Body System (01.00)1-14-4 Workshop Manual May 2007
event that does not. The RCM governs the operation of the
whole system and performs continual system diagnostics.
Information on the severity of an impact is received from the
impact sensors.
Variations in the deployment of the front airbag modules are
dependent on the status of the front safety belt buckles.
Dual Inflation Technology
When activated, the airbags will deploy at either a normal or
reduced level of inflation, depending on crash severity.
Various sensors determine the direction and severity of an
impact. The system analyses this information then deploys
the appropriate airbags.
Impact Sensors
Side Impact - Side impact sensors are mounted to the base
of each B-pillar and within each door. In the event of a side
impact, the RCM processes the impact data sent by the side
impact sensor against stored data. The RCM will deploy the
side airbag on the side the deployment request was initiated
and the seat belt pretensioner.
Front Impact - Front impact sensors (x2) are located under
the grill opening panel.
The SRS module processes the impact data sent by the front
impact sensor against stored data, and deploys the front
airbags, and the seat belt pretensioners.
Passenger Airbag Deactivation
The passenger airbag can be deactivated using the PAD
(Passenger Airbag Deactivation) switch. Switching the
passenger airbag off allows children under the age of 12 to
be carried safely in the passenger seat. The PAD switch is
located at the passenger end of the instrument panel and is
accessible when the pa ssenger door is open.
Maintenance
Driver’s Airbag Module - Renew
Removal
1. Disconnect vehicle battery.
2. Allow a two minute power down period to de-activate
airbag system.
3. Rotate steering wheel to access and remove bolts (x2) from driver's airbag module to steering wheel (see
Figure 1).
4. Release driver's airbag mo dule, disconnect multiplugs
(x2) and remove airbag module (see Figure 2).
Installation
1. Position driver's airbag mo dule and connect multiplugs
(x2).
2. Install bolts (x2) and tighten.
3. Connect vehicle battery.
LH Front Seat Belt - Renew
Removal
1. Remove front seat (see Workshop Manual procedure 01.10.AB Seat Assembly - Front - LH - Remove for
Access and Refit).
Note
Please see the Owner’s Guid e for the full deactivation
procedure.
Warning
Unnecessary deactivation of the passenger airbag is
dangerous. The passenger will not receive the added
protection from the airbag and serious injuries or even
death could occur. With the exception of installing a child seat on the passenge r seat, do not turn the
passenger airbag deactiva tion switch to the off
position.
Warning
Never place a child in a child seat or on a booster
cushion in the passenger seat if the airbag is active.
Repair Operation Time (ROT)
Figure 1
Figure 2
Repair Operation Time (ROT)
ItemCode
Front Seat Belt-Renew LH01.20.BA
