2010 ASTON MARTIN V8 VANTAGE Workshop Manual

Convertible Roof (01.17)
Body System (01.00)

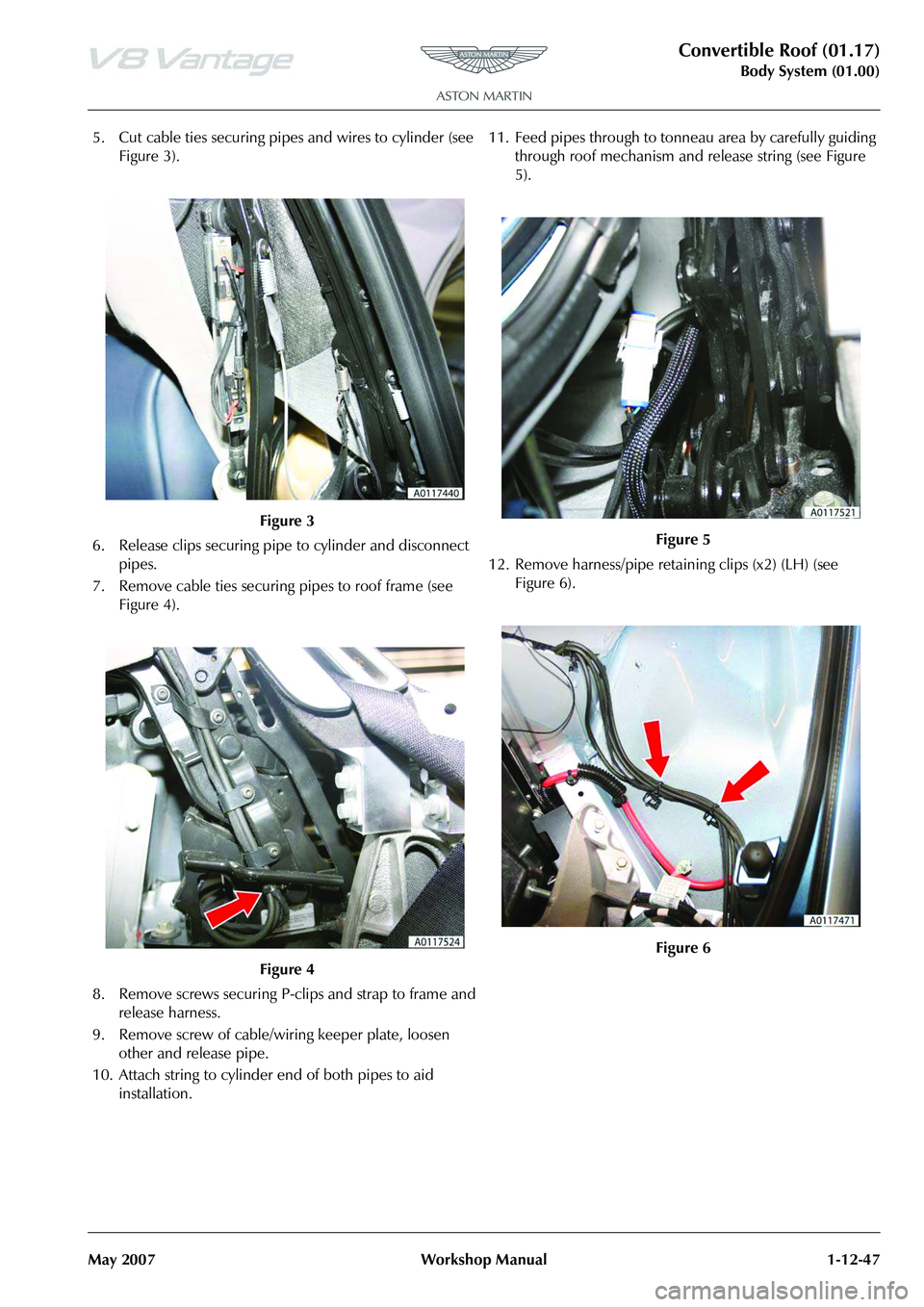

May 2007 Workshop Manual 1-12-47
5. Cut cable ties securing pipes and wires to cylinder (see Figure 3).
6. Release clips securing pipe to cylinder and disconnect pipes.
7. Remove cable ties securing pipes to roof frame (see
Figure 4).
8. Remove screws securing P- clips and strap to frame and
release harness.
9. Remove screw of cable/wiri ng keeper plate, loosen
other and release pipe.
10. Attach string to cylinder end of both pipes to aid installation. 11. Feed pipes through to tonneau area by carefully guiding
through roof mechanism and re lease string (see Figure
5).
12. Remove harness/pipe retaining clips (x2) (LH) (see Figure 6).
Figure 3
Figure 4
Figure 5
Figure 6

Convertible Roof (01.17)
Body System (01.00)1-12-48 Workshop Manual May 2007
13. Remove harness/pipe retaining clips (x9) behind ROPS units (see Figure 7).
14. Remove harness/pipe retaining clips (x3) LH side (see Figure 8). 15. Remove trim clip and releas
e tonneau lining stiffening
rod (see Figure 9).
16. Release velcro and move tonneau well liner aside to expose lower cylinder fixi ng and pump casing.
17. Release cylinder lower retaining clip and disconnect cylinder from body (see Figure 10).
18. Remove cylinder pivot bracket from body (bolts x3).
Figure 7
Figure 8
Figure 9
Figure 10

Convertible Roof (01.17)
Body System (01.00)

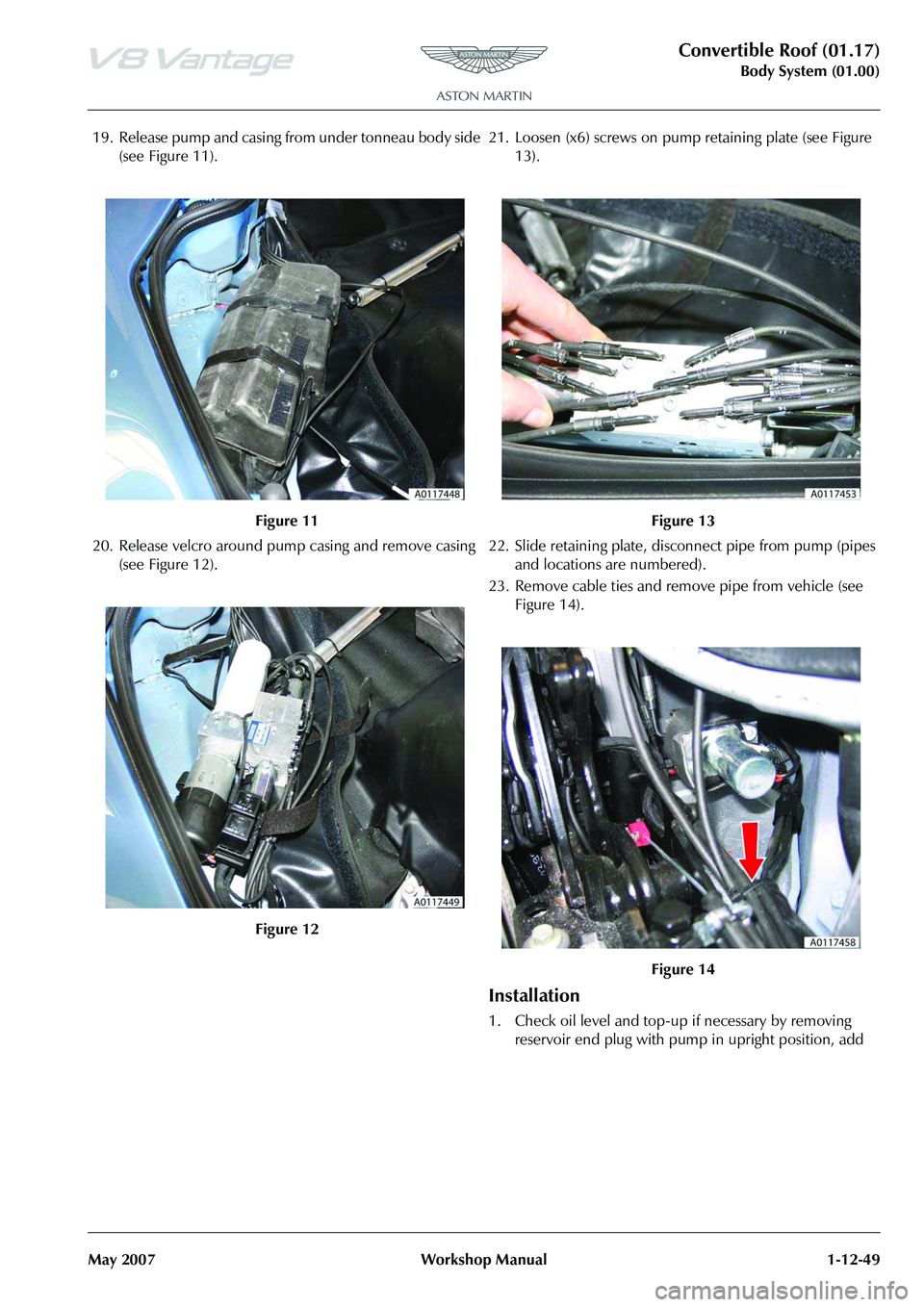

May 2007 Workshop Manual 1-12-49
19. Release pump and casing from under tonneau body side (see Figure 11).
20. Release velcro around pump casing and remove casing (see Figure 12). 21. Loosen (x6) screws on pump
retaining plate (see Figure
13).
22. Slide retaining plate, disconnect pipe from pump (pipes and locations are numbered).
23. Remove cable ties and remove pipe from vehicle (see Figure 14).
Installation
1. Check oil level and top-up if necessary by removing reservoir end plug with pump in upright position, add
Figure 11
Figure 12
Figure 13
Figure 14

Convertible Roof (01.17)
Body System (01.00)1-12-50 Workshop Manual May 2007
small quantity of oil replace plug and re-check level (see
Figure 1).
2. Install pipe to approximate route on vehicle and install cable ties.
3. Clean pipe and install pipe to pump then slide retaining plate into place and tighten screws (pipes and locations
are numbered).
4. Install pump casing and secure velcro.
5. Install pump and casing under tonneau onto location posts.
6. Install cylinder pivot bracket and connect cylinder to bracket.
7. Move tonneau well liner arou nd lower cylinder fixing
and pump casing and secure velcro.
8. Install trim clip and positi on tonneau lining stiffening
rod.
9. Install harness/pipe retaining clips (x9) behind ROPS units.
10. Install harness/pipe retaining clips LH (x2).
11. Install harness/pipe retaining clips RH (x3).
12. Attach pipes to guide stri ng, feed pipes through roof
frame and remove string.
13. Position pipes to cylinder and secure with clips.
14. Secure pipes and wires to cylinder with cable ties
15. Install pipe under keeper plate, install and tighten
screws.
16. Install new clips securing pipes to roof frame.
17. Install lower cover.
18. Connect battery.
19. Install Wind deflector (see Workshop Manual procedure 01.17.DA Wind Deflector - Renew).
20. Restore roof and tonneau to original positionRH Front Hydraulic Cylinder Pipe -
Renew
Removal
1. Operate roof to halfway position with tonneau open then support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
2. Remove wind deflector (see Workshop Manual procedure 01.17.DA Wind Deflector - Renew).
3. Disconnect battery.
Figure 1
Repair Operation Time (ROT)
ItemCode
Front Hydraulic Cylinder Pipe-Renew RH01.17.CQ
WAR NI NG
APPROXIMATELY 20 SECONDS AFTER THE OPEN/
CLOSE OPERATION HAS BEEN INTERRUPTED THE
ROOF MAY SUDDENLY DROP DUE TO LOSS OF
HYDRAULIC PRESSURE. IF THIS HAPPENS ENSURE NO
BODY PARTS ARE CLOSE TO THE ROOF MECHANISM.
IF THE ROOF REQUIRES MAINTENANCE, SUPPORT
PROPERLY USING SUITABLE PROPS AND STRAPS.
Figure 1

Convertible Roof (01.17)
Body System (01.00)

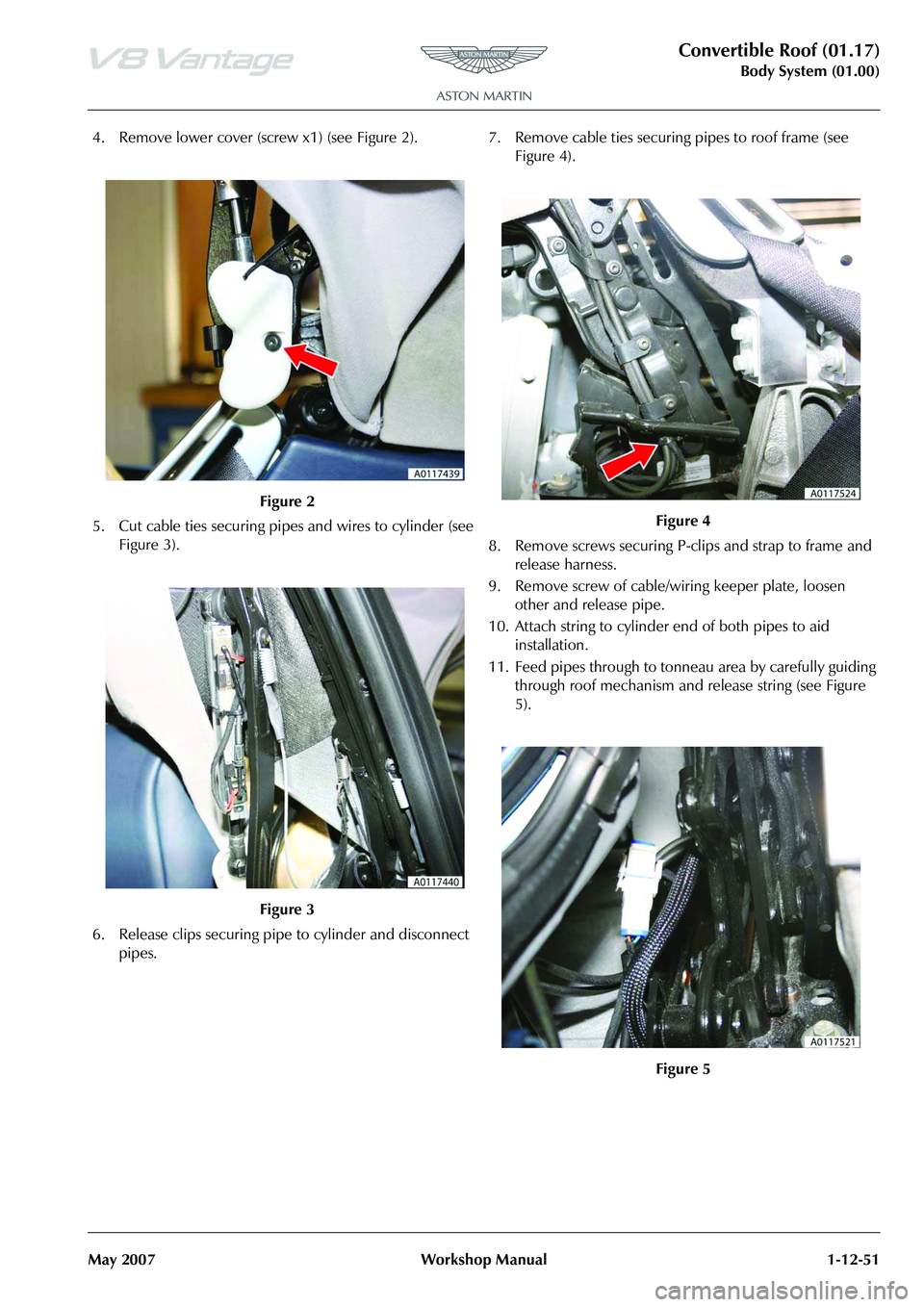

May 2007 Workshop Manual 1-12-51
4. Remove lower cover (screw x1) (see Figure 2).
5. Cut cable ties securing pipes and wires to cylinder (see Figure 3).
6. Release clips securing pipe to cylinder and disconnect pipes. 7. Remove cable ties securing
pipes to roof frame (see
Figure 4).
8. Remove screws securing P- clips and strap to frame and
release harness.
9. Remove screw of cable/wiring keeper plate, loosen other and release pipe.
10. Attach string to cylinder end of both pipes to aid
installation.
11. Feed pipes through to tonneau area by carefully guiding through roof mechanism and re lease string (see Figure
5).
Figure 2
Figure 3
Figure 4
Figure 5

Convertible Roof (01.17)
Body System (01.00)1-12-52 Workshop Manual May 2007
12. Remove harness/pipe retaining clips (x3) LH side (see Figure 6).
13. Remove trim clip and releas e tonneau lining stiffening
rod (see Figure 7). 14. Cut cable tie securing valve to bracket (see Figure 8).
15. Release valve from support bracket, the bracket may
need bending slightly.
16. Loosen screw, slide retaining plate to release pipe and remove pipe (see Figure 9).
Installation
1. Fit pipe to approximate position.
2. Clean pipe, connect pipe to valve, slide retaining plate
and tighten screw.
3. Install valve to support bracket, reposition bracket.
4. Install cable tie securing valve to bracket. Ensure no pipes or wiring will foul roof mechanism
5. Install trim clip and position tonneau lining stiffening rod.
6. Install harness/pipe retaining clips RH (x3).
7. Attach pipes to guide string, feed pipes through roof frame and remove string.
Figure 6
Figure 7
Figure 8
Figure 9

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-53
8. Position pipes to cylinder and secure with clips.
9. Secure pipes and wires to cylinder with cable ties
10. Install pipe under keeper plate, install and tighten screws
11. Install new clips securi ng pipes to roof frame.
12. Install lower cover.
13. Install wind deflector (see Workshop Manual procedure
01.17.DA Wind Deflector - Renew).
14. Connect battery.
15. Restore roof and tonneau to original position
RH Rear Hydraulic Cylinder Pipe -
Renew
Removal
1. Operate roof to halfway position with tonneau open then support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
2. Disconnect battery. 3. Remove lower cover (screw
x1) (see Figure 2).
4. Cut cable ties securing pipes and wires to cylinder (see Figure 3).
5. Release clips securing pipe to cylinder and disconnect pipes.
Repair Operation Time (ROT)
Figure 2
Figure 3

Convertible Roof (01.17)
Body System (01.00)1-12-54 Workshop Manual May 2007
6. Remove cable ties securing pipes to roof frame (see Figure 4).
7. Remove screws securing P-clips and strap to frame and release harness.
8. Remove screw of cable/wiring keeper plate, loosen other and release pipe.
9. Attach string to cylinder end of both pipes to aid installation.
10. Feed pipes through to tonneau area by carefully guiding through roof mechanism and release string (see Figure
5). 11. Remove harness/pipe retaining clips (x3) LH side (see
Figure 6).
12. Remove trim clip and releas e tonneau lining stiffening
rod (see Figure 7).
13. Release velcro and move tonneau well liner aside to expose lower cylinder fixing and pump casing.
Figure 4
Figure 5
Figure 6
Figure 7
