2010 ASTON MARTIN V8 VANTAGE Workshop Manual

Power Conversion (03.11)
Engine (03.00)
May 2007 Workshop Manual 3-11-37
10. Remove and discard O-ring seal from pulley (see Figure
2).
Figure 2
Installation
1. Clean crankshaft pulley, locking ring and mating face on crankshaft.
2. Lubricate and install new O-ring seal in crankshaft pulley.
3. Install crankshaft pulley, locking ring and new pulley bolt.
4. Torque tighten crankshaft pulley bolt. Remove special tool (303-1185) from crankcase.
5. Install inspection cover to lower crankcase, install and tighten bolts (x2).
6. Install drive belt on pulleys.
7. Install drive belt tensioner, install and torque tighten bolt.
8. Release tensioner and install drive belt onto idler pulley.
9. Install engine assembly (see Workshop Manual procedure 03.00.AA Engi ne Assembly - Renew).
Crankshaft Front Oil Seal-Renew (with
Engine Removed
)
Removal
1. Remove crankshaft pulley (see Workshop Manual
procedure 03.11.DP Pulley Assembly - Crankshaft
Damper - Renew With Engine Removed). 2. Install tool (303-1190) into
crankshaft front oil seal (see
Figure 1).
Figure 1
3. Tighten centre bolt of tool (303-1190) and withdraw oil seal from timing cover (see Figure 2).
Figure 2
4. Remove seal from special tool.
Installation
1. Clean oil seal aperture in timing cover.
2. Do NOT remove protector from oil seal.
Repair Operation Time (ROT)
A0311321
Caution
Make sure the crankshaft front oil seal mating faces are clean and dry.
Caution
Do not remove the crankshaft front oil seal protector
until the oil seal is correctly installed.
A0311246
A0311246A

Power Conversion (03.11)
Engine (03.00)3-11-38 Workshop Manual May 2007
3. Position new oil seal (fitted dry). Install oil seal in timing
cover using tool (303-750) (see Figure 3).
Figure 3
4. Remove crankshaft oil seal protector.
5. Install crankshaft pulle y (see Workshop Manual
procedure 03.11.DP Pulley Assembly - Crankshaft
Damper - Renew With Engine Removed).
Crankshaft Rear Oil Seal-Renew (with
Engine Removed
)
Removal
1. Remove engine assembly (see Workshop Manual
procedure 03.00.AA Engi ne Assembly - Renew).
2. Remove bolts (x2), inspection cover to lower crankcase, remove cover.
3. Install tool (303-1185) to restrain flywheel, install and tighten bolts (x2).
4. Remove bolts (x6), clutch cover to flywheel.
5. Release clutch cover from dowels (x3), remove clutch cover, collect drive plate.
6. Remove and discard bolts (x8), flywheel to crankshaft flange.
7. Remove bolts (x2), collect tool (303-1185).
8. Release flywheel from dowel, remove flywheel.
9. Position tool (303-1189) to crankshaft flange, screw in
alignment bolts (x2) 1.5 turns (only).
10. Use tool and pierce holes (x3) in oil seal through holes in special tool for self-tapping screws
11. Install and tighten self-tapping screws (x3) into oil seal.
12. Tighten centre bolt of tool (303-1189) and withdraw crankshaft oil seal.
13. Remove oil seal from special tool, discard oil seal.
Installation
1. Clean oil seal aperture in cylinder block.
2. Ensure that oil seal protector is positioned correctly and install oil seal onto crankshaft flange.
3. Install tool (303-1189) to crankshaft, position nuts on
tool against oil seal.
4. Ensure that oil seal and special are parallel to rear of engine.
5. To install oil seal, tighten nuts alternately on tool (303- 1189) until oil seal correctly seated.
6. Remove special tool from crankshaft.
7. Check that the oil seal is located correctly.
8. Clean flywheel and mating face on crankshaft.
9. Install flywheel, align to dowel on crankshaft flange.
10. Install new bolts (x8), install tool (303-1185) to restrain flywheel. Torque tighten bolts (x8) in the correct
sequence.
11. Clean clutch cover and drive plate.
12. Install clutch assembly on flywheel, align to dowels (x3).
13. Install bolts (x6), install clutch alignment tool, evenly torque tighten bolts (x6) in a diagonal sequence.
Remove clutch alignment tool.
14. Remove bolts (x2), collect tool (303-1185).
15. Install inspection cover, install and torque tighten bolts (x2).
16. Install engine assembly (see Workshop Manual procedure 03.00.AA Engine Assembly - Renew).
Repair Operation Time (ROT)
A0311247
Caution
Do not use any lubricant on cr ankshaft oil seals or seal
protectors. Make sure all co mponents are clean and dry
Caution
Alternate nut tightening to correctly seat the crankshaft rear oil seal.

Air Charging (03.12)
Engine (03.00)
Issue 4, November 2008 Workshop Manual 3-12-1
Engine (03.00)
Air Charging (03.12)
Maintenance
Remove
1. Raise the vehicle and make it safe.
2. Remove the front road wheel at the side of the air filter
to be removed.
3. Apply protective tape to the wheelarch area of the front wing to prevent damage.
4. Remove the front outside screw that attaches the valance.
Repair Operation Time (ROT)
Repair Operation Time (ROT)

Air Charging (03.12)
Engine (03.00)3-12-2 Workshop ManualIssue 4, November 2008
5. Move the valance away to get access to the wheelarch
liner attachment screws (refer to Figure 1).
Figure 1 - Front Wheelarch Liner Attachment (Right side shown)
6. Remove the five screws (1) that attach the wheelarch liner to the bumper.
7. Remove the three M6 Torx screws (2) that attach the wheelarch liner to the front undertray.
8. Remove the three screws (3) that attach the wheelarch liner to the front valance.
9. Move the wheelarch liner away to get access to the air filter box.
10. Remove the seven self-tapping screws that attach the base of the air cleaner.
11. Remove the the base of the air cleaner.
12. Remove the air filter element.
Installation
1. Clean the air cleaner box and base.
2. Install the air filter element.
3. Remove the the base of the air cleaner.
4. Install the seven self-tapping screws that attach the base of the air cleaner.
5. Put the wheelarch liner back into position.
6. Install the three screws (3) that attach the wheelarch liner to the front valance (refer to Figure 1).
7. Install the three M6 Torx screws (2) that attach the wheelarch liner to the front undertray.
8. Install the five screws (1) that attach the wheelarch liner to the bumper.
9. Make sure that the valance is in the correct position.
10. Install the front outside screw that attaches the valance.
11. Remove the protective tape from the wheelarch.
12. Install the front road wheel.
13. Lower the vehicle.
Engine Air Cleaner Assembly - Remove
and Install
Remove
1. Raise the vehicle and make it safe.
2. Remove the front road wheel at the side for the air filter box to be removed.
3. Apply protective tape to the wheelarch area of the front wing to prevent damage.
4. Remove the front outside screw that attaches the valance.
5. Move the valance away to get access to the wheelarch liner attachment screws (refer to Figure 1).
Figure 1 - Front Wheelarch Liner Attachment (Right side shown)
6. Remove the five screws (1) that attach the wheelarch liner to the bumper.
7. Remove the three M6 Torx screws (2) that attach the wheelarch liner to the front undertray.
8. Remove the three screws (3) that attach the wheelarch liner to the front valance.
9. Move the wheelarch liner away to get access to the air filter box.
10. Remove the self-tapping screw that attaches the mass air-flow meter to the air filter box.
11. Disconnect the mass air-flow meter from the air filter box.
12. Disconnect the air inlet duct from the air filter box .
13. Remove the three M6 screws that attach the air filter box.
14. Remove the air filter box.
Install
1. Put the air filter box in position.
2. Install the three M6 screws that attach the air box.
3. Connect the air inlet duct to the air filter box.
4. Connect the mass air-flow meter to the air filter box
Repair Operation Time (ROT)
ItemCode
Engine Air Cleaner Assembly - Right
Side - Remove and Install 03.12.DJ
Engine Air Cleaner Assembly - Left Side
- Remove and Install 03.12.DH

Air Charging (03.12)
Engine (03.00)
Issue 4, November 2008 Workshop Manual 3-12-3
5. Install the self-tapping screw that attaches the mass air-
flow meter to the air filter box.
6. Put the wheelarch liner back into position.
7. Install the three screws (3) that attach the wheelarch liner to the front valance (refer to Figure 1).
8. Install the three M6 Torx screws (2) that attach the wheelarch liner to the front undertray.
9. Install the five screws (1) th at attach the wheelarch liner
to the bumper.
10. Make sure that the valance is in the correct position.
11. Install the front outside screw that attaches the valance.
12. Remove the protective tape from the wheelarch.
13. Install the front road wheel.
14. Lower the vehicle.

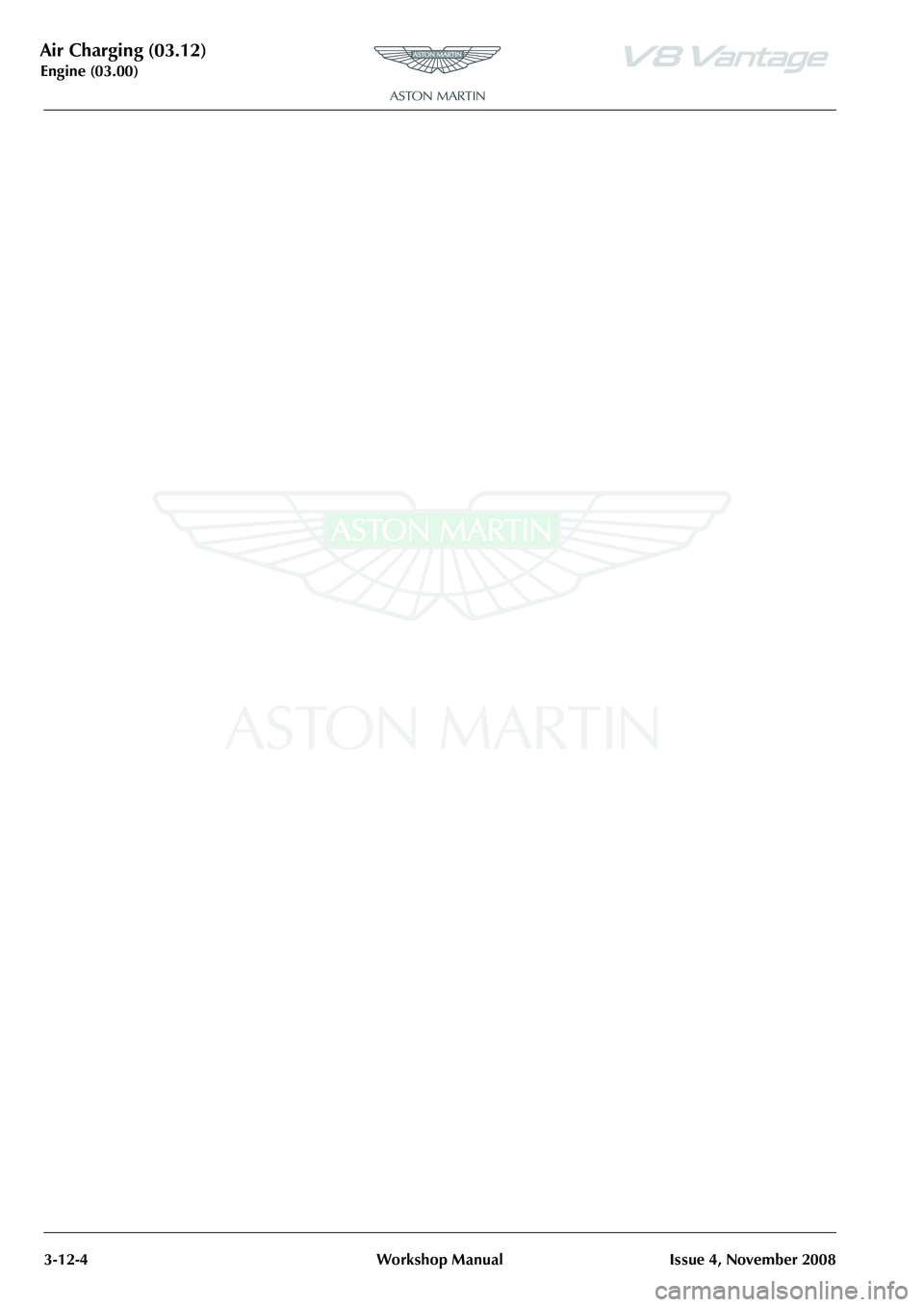

Air Charging (03.12)
Engine (03.00)3-12-4 Workshop ManualIssue 4, November 2008

Evaporative Emissions (03.13)
Engine (03.00)
May 2007 Workshop Manual 3-13-1
Engine (03.00)
Evaporative Emissions (03.13)
Description
The evaporative loss system prevents escape of fuel vapours
into the atmosphere.
Fuel vapour is displaced from the fuel tank during filling.
Vapour is also displaced due to fuel evaporation in higher
temperatures. Displaced fuel vapour is absorbed in the
carbon canister filter located on top of the fuel tank.
During normal engine running, absorbed fuel vapour is
purged from the carbon canisters and mixed with the normal
fuel/air charge in the inlet manifold.
System Operation
Displaced fuel vapour leaves the fuel tank via the normally
open fill level vent valve and the roll over valves. It passes
through the carbon canister where fuel hydrocarbons are
absorbed. Clean air leaves the system via the normally open
canister vent valve. This valve is only closed during
diagnostic pressure testing of the fuel system.
During normal engine ru nning, the single vapour
management valve in the engine bay is periodically opened
allowing fresh air flow into th e open canister vent valve,
through the carbon canister, through the vapour
management valve and into the primary inlet manifold. This
fresh air flow progressively purg es any absorbed fuel vapour
from the carbon canister.

Evaporative Emissions (03.13)
Engine (03.00)3-13-2 Workshop Manual May 2007
