7. Release velcro around pump casing and remove casing (see Figure 6).
8. Disconnect pump multiplug (see Figure 7). 9. Disconnect pump multiplug (see Figure 8).
10. Remove end cover (locating tabs x2).
11. Disconnect pump lucar conne
ctors (x2) (see Figure 9).
Figure 6
Figure 7
Figure 8
Figure 9

Convertible Roof (01.17)
Body System (01.00)1-12-16 Workshop Manual May 2007
12. Loosen (x6) screws retain ing plate (see Figure 10).
13. Slide retaining plate, disconnect pipes and remove pump (pipes and locations are numbered).
Installation
1. Check pump hydraulic oil le vel and top-up if required
(see Figure 1).
2. Clean pipes and install pipes to pump.
3. Slide retaining plate into place and tighten screws (pipes and locations are numbered).
4. Connect motor lucar connectors (x2).
5. Install end cover (locating tabs x2).
6. Connect pump multiplug.
7. Connect pump multiplug.
8. Install motor under tonneau body side ensuring the roof can be operated without pipes or wires fouling and
insulate with cloth if required. 9. Install cylinder pivot bracket and connect cylinder to
bracket.
10. Operate roof from fully shut to fully open then to halfway position with tonneau open and support roof
when hydraulic pressure drop s with suitable straps and
support tonneau cover with suitable prop.
11. Disconnect cylinder and remove cylinder pivot bracket.
12. Check pump and pipes for leaks.
13. Remove pump from tonneau bodyside and check oil level. If top up necessary remove reservoir end plug with
pump in upright position, add small quantity of oil
replace plug and re-check level.
14. Install pump casing and secure velcro.
15. Install pump and casing under tonneau onto location posts.
16. Install cylinder pivot bracket and connect cylinder to bracket.
17. Move tonneau well liner arou nd lower cylinder fixing
and motor casing and secure velcro.
18. Install trim clip and positi on tonneau lining stiffening
rod.
19. Restore roof and tonneau to original positionHydraulic Lock Valve - Renew
Removal
1. Operate roof to halfway position with tonneau open and support roof when hydraulic pressure drops with
suitable straps and support tonneau cover with suitable
prop (see Figure 1).
Figure 10
Figure 1
Repair Operation Time (ROT)
ItemCode
Hydraulic Lock Valve-Renew 01.17.AV
WAR NI NG
APPROXIMATELY 20 SECONDS AFTER THE OPEN/
CLOSE OPERATION HAS BEEN INTERRUPTED THE ROOF MAY SUDDENLY DROP DUE TO LOSS OF
HYDRAULIC PRESSURE. IF THIS HAPPENS ENSURE NO
BODY PARTS ARE CLOSE TO THE ROOF MECHANISM. IF THE ROOF REQUIRES MAINTENANCE, SUPPORT
PROPERLY USING SUITABLE PROPS AND STRAPS.

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-17
2. Cut cable tie securing valve to bracket (see Figure 2).
3. Release valve from support bracket, the bracket may need bending slightly. 4. Disconnect multiplug (see Figure 3).
5. Mark pipe fitted positions, loosen screw, slide retaining
plate to release pipes and disconnect pipes (x2).
6. Turn valve over and mark pipe fitted position, loosen screw, slide retaining plate to release pipes, disconnect
pipes (x2) and remove valve (see Figure 4).
Installation
1. Clean pipes, note fitted posi tion, connect pipes to valve,
slide retaining plate and tighten screw.
2. Turn valve over, clean pipes, note fitted position, connect pipes to valve, slide retaining plate and tighten
screw.
3. Connect multiplug.
4. Install valve to support br acket, reposition bracket.
5. Install cable tie securing valve to bracket (ensure no pipes or wiring will foul roof mechanism).
6. Restore roof and tonneau to original position.
Figure 1
Figure 2
Figure 3
Figure 4

Convertible Roof (01.17)
Body System (01.00)1-12-18 Workshop Manual May 2007
RH/LH Front Cantrail Seal - Spare Part -
Renew
Removal
1. Remove header trim (see Workshop Manual procedure 01.05.BB Panel Assembly - Header - Renew).
2. Mark position of nuts (x2) to aid installation.
3. Remove nuts (x2) secu ring seal holder to hood
mechanism and remove seal from holder.

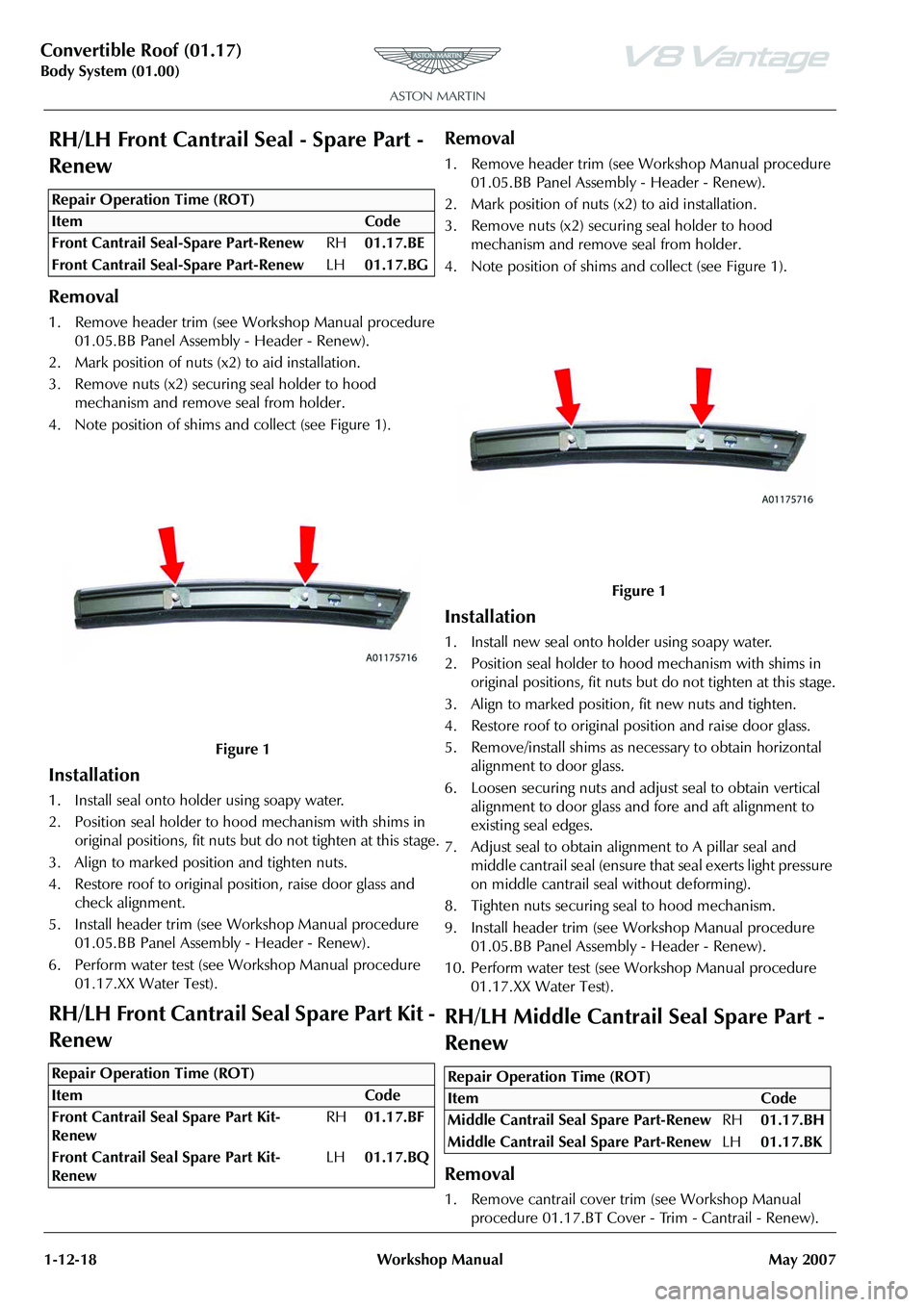

4. Note position of shims and collect (see Figure 1).
Installation
1. Install seal onto holder using soapy water.
2. Position seal holder to hood mechanism with shims in original positions, fit nuts but do not tighten at this stage.
3. Align to marked position and tighten nuts.
4. Restore roof to original position, raise door glass and check alignment.
5. Install header trim (see Workshop Manual procedure 01.05.BB Panel Assembly - Header - Renew).
6. Perform water test (see Workshop Manual procedure
01.17.XX Water Test).
RH/LH Front Cantrail Seal Spare Part Kit -
Renew
Removal
1. Remove header trim (see Workshop Manual procedure 01.05.BB Panel Assembly - Header - Renew).
2. Mark position of nuts (x2) to aid installation.
3. Remove nuts (x2) secu ring seal holder to hood
mechanism and remove seal from holder.
4. Note position of shims and collect (see Figure 1).
Installation
1. Install new seal onto holder using soapy water.
2. Position seal holder to hood mechanism with shims in
original positions, fit nuts but do not tighten at this stage.
3. Align to marked position, fit new nuts and tighten.
4. Restore roof to original position and raise door glass.
5. Remove/install shims as necessary to obtain horizontal alignment to door glass.
6. Loosen securing nuts and adju st seal to obtain vertical
alignment to door glass and fore and aft alignment to
existing seal edges.
7. Adjust seal to obtain alignment to A pillar seal and middle cantrail seal (ensure that seal exerts light pressure
on middle cantrail seal without deforming).
8. Tighten nuts securing seal to hood mechanism.
9. Install header trim (see Workshop Manual procedure 01.05.BB Panel Assembly - Header - Renew).
10. Perform water test (see Workshop Manual procedure 01.17.XX Water Test).
RH/LH Middle Cantrail Seal Spare Part -
Renew
Removal
1. Remove cantrail cover trim (see Workshop Manual procedure 01.17.BT Cover - Trim - Cantrail - Renew).
Repair Operation Time (ROT)
Repair Operation Time (ROT)
Figure 1
Repair Operation Time (ROT)
ItemCode
Middle Cantrail Se al Spare Part-Renew RH01.17.BH
Middle Cantrail Se al Spare Part-Renew LH01.17.BK

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-19
2. Mark position of nuts (x2) to aid installation (see Figure
1).
3. Remove nuts (x2) securing seal holder to hood mechanism and remove seal from holder.
4. Note position of shims and collect.
Installation
1. Install seal onto holder using soapy water.
2. Position seal holder to hood mechanism with shims in original positions, fit nuts but do not tighten at this stage.
3. Align to marked position and tighten nuts.
4. Restore roof to original position, raise door glass and check alignment.
5. Install cantrail cover tr im (see Workshop Manual
procedure 01.17.BT Cover - Trim - Cantrail - Renew).
6. Perform water test (see Workshop Manual procedure 01.17.XX Water Test).
RH/LH Middle Cantrail Seal Spare Part
Kit - Renew
Removal
1. Remove cantrail cover trim (see Workshop Manual procedure 01.17.BT Cover - Trim - Cantrail - Renew). 2. Mark position of nuts (x2) to aid installation (see Figure
1).
3. Remove nuts (x2) securing seal holder to hood mechanism and remove seal from holder.
4. Note position of shims and collect.
Installation
1. Install seal onto holder using soapy water.
2. Position seal holder to hood mechanism with shims in original positions, fit nuts bu t do not tighten at this stage.
3. Align to marked position and tighten nuts.
4. Restore roof to original position and raise door glass.
5. Remove/install shims as nece ssary to obtain vertical
alignment to door glass and fore and aft alignment to
existing seal edges.
6. Adjust seal to obtain alignment to front seal and rear seal (ensure that seal exerts light pressure on seals without
deforming).
7. Tighten nuts securing seal to hood mechanism.
8. Install cantrail cover trim (see Workshop Manual procedure 01.17.BT Cover - Trim - Cantrail - Renew).
9. Perform water test (see Workshop Manual procedure 01.17.XX Water Test).
Figure 1
Repair Operation Time (ROT)
Figure 1

Convertible Roof (01.17)
Body System (01.00)1-12-20 Workshop Manual May 2007
Rear Seal Spare Part Assembly Kit -
Renew
Removal
1. Operate roof to halfway position (support roof when hydraulic pressure drops with suitable straps) (see Figure
1).
2. Remove 2 screws securing seal retaining brackets to rear seal assembly, remove brackets (see Figure 2).
3. Remove remaining 26 screws securing rear seal assembly to tension bow, rest seal assembly on tonneau
(note fitted position of tension springs).
4. Remove RH cant rail trims (see Workshop Manual procedure 01.17.BT Cover - Trim - Cantrail - Renew). 5. Remove LH cant rail trims (see Workshop Manual
procedure 01.17.BT Cover - Trim - Cantrail - Renew).
6. Mark position of B-post trim bolts.
7. Remove 4 bolts securing B-post trims to roof (see Figure 3).
8. Drill out 6 pop-rivets securi ng rear seal assembly to B-
posts (see Figure 4).
Repair Operation Time (ROT)
Figure 3
Figure 4

Convertible Roof (01.17)
Body System (01.00)
May 2007 Workshop Manual 1-12-21
9. Release water pocket from seal, remove rear seal assembly (see Figure 5).
Installation
1. Insert long straight leg of seal carrier into B-post seal
towards joint with tension bo w (ensure seal anchors are
wrapped around carrier - both sides).
2. Slide carrier to end of seal (ensure carrier is tightly fitted
against seal, including corners - both sides).
3. Press seal over full length of carrier (ensure seal inner
top anchor and seal lower anchors are fully engaged
with carrier - both sides).
4. Check ends of seal are flush with ends of carrier (both sides).
5. Fully roll seal top anchor lip onto carrier (ensure any gaps between seal and carrier are at open end of seal -
both sides).
6. Affix (super glue) whole length of seal top anchor lip to carrier (both sides).
7. At each end of the tension bow seal, measure 135mm from the end of the Velcro and mark with black pen.
8. Insert each end of seal retainer into seal at black pen marks.
9. Align seal evenly along retainer, fully push fit home centre of seal onto retainer.
10. Working outwards from cent re position, fully push fit
home seal onto retainer.
11. Working inwards from ends, fully push fit home seal onto retainer.
12. Position seal assembly across tonneau and rear quarters.
13. Insert water pockets to seal, place a drop of super glue at each end of water pockets.
14. Crimp seal to secure water pocket in place.
15. Secure seal assembly to B-posts with pop-rivets, starting with lower rivet.
16. Align and install B-post trims, secure with bolts. 17. Install LH cant rail tr
ims (see Workshop Manual
procedure 01.17.BT Cover - Trim - Cantrail - Renew).
18. Install RH cant rail trims (see Workshop Manual procedure 01.17.BT Cover - Trim - Cantrail - Renew).
19. Align and install seal asse mbly to tension bow, ensure
brackets and spring clips are correctly positioned, secure
with screws.
LH Fully Automatic Latching Kit - Renew
Removal
1. Remove left-hand header latch flex shaft (see Workshop Manual procedure 01.17.EF Flex Shaft - LH - Renew).
2. Mark mounting position of latching kit (see Figure 1).
3. Remove 3 nuts and 1 screw securing latching kit to roof.
Figure 5
Repair Operation Time (ROT)

Convertible Roof (01.17)
Body System (01.00)1-12-22 Workshop Manual May 2007
4. Remove C-clip securing tie rod to roof hinge, release tie rod (see Figure 2).
5. Cut cable tie securing latch sensor harness to latch motor bracket (see Figure 3).
6. Disconnect latch sensor multiplug.
7. Remove latching kit from studs.
Installation
1. Ensure header motor and latch are in fully open position prior to installation.
2. Align and install latching kit, secure with nuts and screw.
3. Connect latch sensor multiplug.
4. Secure latch sensor harness to latch motor bracket with
cable tie.
5. Attach tie rod, secure with C-clip.
6. Install left-hand header latch flex shaft (see Workshop Manual procedure 01.17.EF Flex Shaft - LH - Renew).
RH Fully Automatic Latching Kit - Renew
Removal
1. Remove right-hand header latch flex shaft (see Workshop Manual procedure 01.17.EG Flex Shaft - RH
- Renew).
2. Mark mounting position of latching kit (see Figure 1).
3. Remove 3 nuts and 1 screw securing latching kit to roof.
4. Remove C-clip securing tie ro d to roof hinge, release tie
rod (see Figure 2).
5. Remove latching kit from studs.
Installation
1. Ensure header motor and latc h are in fully open position
prior to installation.
Figure 2
Figure 3
Repair Operation Time (ROT)
ItemCode
Fully Automatic Latching Kit-Renew RH01.17.BP
Figure 1
Figure 2
