2010 ASTON MARTIN V8 VANTAGE Workshop Manual

Manual Transmission (07.03)
Transmission (07.00)

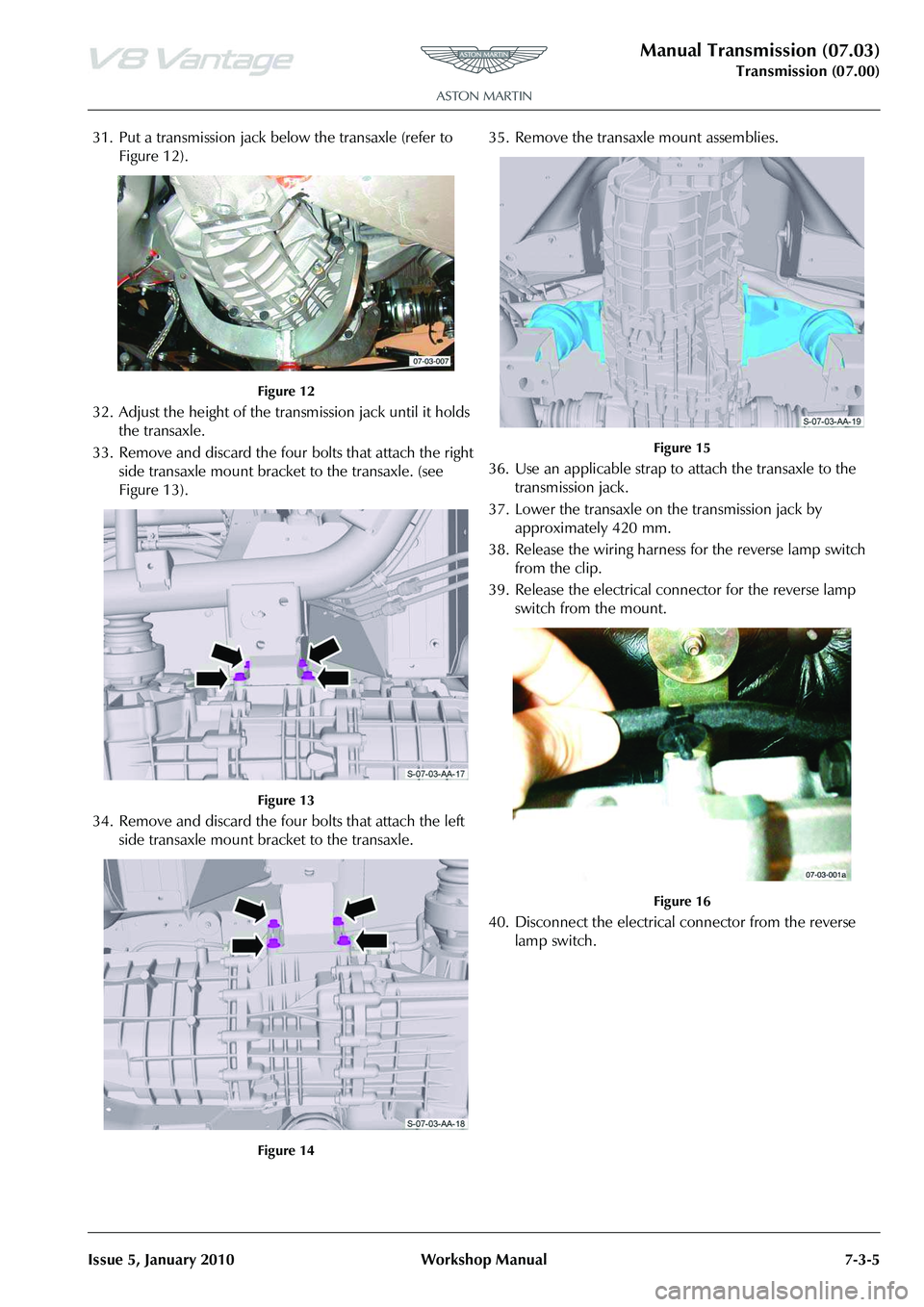

Issue 5, January 2010 Workshop Manual 7-3-5
31. Put a transmission jack be low the transaxle (refer to
Figure 12).
Figure 12
32. Adjust the height of the tran smission jack until it holds
the transaxle.
33. Remove and discard the four bolts that attach the right
side transaxle mount bracket to the transaxle. (see
Figure 13).
Figure 13
34. Remove and discard the four bolts that attach the left side transaxle mount bracket to the transaxle.
Figure 14
35. Remove the transaxle mount assemblies.
Figure 15
36. Use an applicable strap to attach the transaxle to the transmission jack.
37. Lower the transaxle on the transmission jack by approximately 420 mm.
38. Release the wiring harness for the reverse lamp switch from the clip.
39. Release the electrical connector for the reverse lamp switch from the mount.
Figure 16
40. Disconnect the electrical connector from the reverse lamp switch.

Manual Transmission (07.03)
Transmission (07.00)7-3-6 Workshop Manual Issue 5, January 2010
41. Use the special tool to release the gear selector cables from the ball joints.
Figure 16
42. Release the gear selector cables from the bracket.
Figure 17
Put a transmission jack in position below the torque tube.
Figure 18
43. Adjust the height of the transmission jack to hold the torque tube. 44. Remove the eight bolts that attach the torque tube to
the transaxle.
Figure 19.
45. Move the transaxle rearward to give clearance between the torque tube and the transaxle
46. Carefully lower the transaxle on the transmission jack to
remove the transaxle from the vehicle.
Figure 20
47. Clean the mating faces of the components.
Install
1. Move the transaxle on th e transmission jack, into
position below the vehicle.
2. Use the transmission jack to adjust the height of the transaxle to align the transaxle with the torque tube.
3. Install and torque the eight bolts that attach the torque tube to the transaxle.
4. Lower the transmission jack away from the torque tube.
5. Connect the gear selector cables to the ball joints.
6. Install the gear selector cables into the bracket.
WAR NI NG
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE
AID OF ONE MORE PERSON WHEN YOU MOVE THE
TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN OCCUR.
WAR NI NG
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE
TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN
OCCUR.

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-7
7. Connect the electrical connector to the reverse lamp switch.
8. Install the electrical connector for the reverse lamp switch into the mount.
9. Install the wiring harness for the reverse lamp switch to the clip.
10. Adjust the height of the transmission jack to lift the transaxle into the correct position.
11. Remove the strap from the transaxle and the transmission jack.
12. Install the transaxle mount assemblies.
Figure 21
13. Install and torque the four bolts that attach the left side transaxle mount bracket to the transaxle.
Figure 22
14. Install and torque the four bolts that attach the right side transaxle mount bracket to the transaxle.
Figure 23
15. Lower the transmission jack to align the transaxle mounts to the rear subframe.
16. Move the transmission jack away from the vehicle.
17. Install and tighten the nut that attaches the left side transaxle mount to the rear subframe.
18. Install and tighten the nut that attaches the right side transaxle mount to the rear subframe.
19. Remove and the sealing plugs from the transaxle and the breather pipe.
20. Connect breather pipe to the transaxle.
21. Remove and discard the sealing plugs from the oil cooler matrix and the pipes.
22. Connect and tighten the pipes to the oil cooler matrix.
23. Put the driveshafts into position on the transaxle shaft flanges. Align the marks on the flanges that you made
during removal.
24. Install and torque the six new bolts that attach the left side driveshaft flange to the transaxle flange. If
necessary, turn the driveshaft to get access to all of the
bolts.
25. Install and torque the six new bolts that attach the right side driveshaft flange to the transaxle flange. If
necessary, turn the driveshaft to get access to all of the
bolts.
26. Put the ground cable into position.
27. Install and tighten the nut that attaches the ground cable to the body.
28. Install the tunnel reinforcement plate.
29. Install and torque the eight bolts that attach the tunnel reinforcement plate to the body.
30. Install floor heatshield.
31. Install and tighten the four bolts that attach the floor heat shield to the body.
Note: Put the three driveshaft bolt plates in position when
you install the bolts in the step that follows.
Note: Put the three driveshaft bolt plates in position when
you install the bolts in the step that follows.

Manual Transmission (07.03)
Transmission (07.00)7-3-8 Workshop Manual Issue 5, January 2010
32. Install the exhaust front mount.
33. Clean the component mating faces.
34. Apply an applicable sealant to the component mating faces.
35. Install the exhaust centre pipe.
36. Install and tighten the four bolts that attach the exhaust centre pipe to the exhaust front mount.
37. Put the clamps into position on the exhaust pipes.
38. Loosely install the four bolts that attach the exhaust centre pipe to the rear silencer.
39. Align the exhaust assembly.
40. Tighten the two clamps that attach the exhaust centre pipe to the catalytic converters.
41. Install the cross brace.
Figure 24
42. Install and torque the four bolts that attach the cross brace to the rear subframe.
Figure 25
43. Remove the strap that attaches the vehicle to the lift.
44. Lower the vehicle until the wheels are 10 mm above the ground. 45. Connect the battery ground cable.
46. Start the engine.
47. Select first gear and let the wheels to turn for 10
seconds.
48. Stop the engine.
49. Lift the vehicle.
50. Remove the fill plug for the transaxle oil.
51. Make sure that the transaxle oil is level with the opening for the transaxle oil. Add more oil if necessary.
52. Install and tighten the fill plug for the transaxle oil.
53. Install the rear undertray (refer to Workshop Manual
procedure 01.02.PB - Rear Undertray).
Complete Sportshift Hydraulic Kit-Renew
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp and secure with straps.
3. Remove road wheel(s).
4. Remove rear exhaust silencer assembly (see Workshop Manual procedure 09.00.KA Muffler & Bypass Valve
Assembly - Remove for Access & Refit).
5. Roadster Only - Remove centre undertray (see
Workshop Manual procedure 01.02.MB Undertray -
Centre - Renew).
6. Remove bolts (x4), subframe cross brace.
7. Remove centre exhaust mounting bolts (x4).
8. Loosen clamp nuts (x2), release centre pipe from both catalysts.
9. Remove centre pipe and rear exhaust pipes as an
assembly.
WAR NI NG
THE EXHAUST CENTRE PIPE IS HEAVY. GET THE AID OF ONE MORE PERSON
TO DO THE STEP THAT FOLLOWS.
WAR NI NG
TRANSAXLE OIL CAN BE HARMFUL.
OBEY ALL TRANSAXLE OIL MANUFACTURER’S SAFETY INSTRUCTIONS WHEN YO U HANDLE COMPONENTS
THAT HAVE TOUCHED TRANSAXLE OIL.
Repair Operation Time (ROT)
ItemCode
Complete Sportshift Hydraulic Kit-
Renew 07.03.AB
WAR NI NG
ALWAYS DISCONNECT THE BATTERY EARTH (- VE)
TERMINAL FIRST.
WAR NI NG
WHEN YOU LIFT THE VEHICLE ON A 'TWO POST' LIFT MAKE SURE THAT YOU USE A STRAP TO HOLD THE REAR END OF THE VEHICLE TO THE RAMP. IF YOU
DO NOT, THE VEHICLE CAN FALL OFF THE RAMP AND CAUSE PERSONAL INJURY OR DEATH.
Caution
When using a ‘two post’ vehicle ramp, remove the
screws that secure the rear section of the wheel arch
liner to body. Hold back the rear section of the wheel
arch liner to correctly position the foot of the vehicle lift.

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-9
10. Remove bolts/washers (x4), tunnel heatshield to body, remove heatshield.
11. Remove bolts (x8), shear plate to body, remove shear plate.
12. Remove bolt securing earth lead to transaxle.
13. Mark drive shaft to differential flanges for assembly purposes.
14. Remove and discard Allen bolts (x12), collect plates (x6), drive shaft flanges to transaxle.
15. Position drain container to collect oil spillage.
16. Loosen unions and disconnect oil cooler pipes (x2) from
transaxle interconnecting pipe s. Plug pipe connections
(x4).
17. Remove drain container.
18. Disconnect transaxle breather pipe.
19. Release reservoir hose from mounting bracket (Clips x2).
20. Remove bolt from reservoir bracket, release and remove clamp, tie reservoir aside (see Figure 1).
21. Remove nuts (x2), hydramounts to subframe mountings.
22. Position hydraulic lift er to support transaxle.
23. Remove and discard bolts (x8, 4 each side), mounting brackets to transaxle. Remove mounting brackets with
hydramounts.
24. Release drive shafts from transaxle and position aside. 25. Lower transaxle sufficiently to access harness to
subframe clip, release harness to subframe clip (see
Figure 2).
26. Lower transaxle to approx. 420mm from fitted position and retain on hydraulic lifter (see Figure 3).
WA R N I N G
TRANSAXLE OIL CAN BE HARMFUL.
OBEY ALL TRANSAXLE OIL MANUFACTURER’S SAFETY INSTRUCTIONS WHEN YOU HANDLE COMPONENTS
THAT HAVE TOUCHED TRANSAXLE OIL.
Caution
Plug oil cooler connections to prevent ingress of dirt or moisture into the system.
Figure 1
!
Figure 2
WA R N I N G
THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE
TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN OCCUR.
Figure 3
!
!

Manual Transmission (07.03)
Transmission (07.00)7-3-10 Workshop Manual Issue 5, January 2010
27. Disconnect pump multiplug (see Figure 4).
28. Remove ground eye from pump body (bolt x1)(see Figure 5).
29. Remove pump from transaxle (bolts x2) (see Figure 6). 30. Disconnect dry break quick-
fit connector from torque
tube pipe (see Figure 7).
31. Remove gear position sensor (screws x4).
32. Disconnect gear position sensor from multiplug (see
Figure 8).
33. Release harness clip from shifter casing.
34. Remove shifter unit (bolts x6, nut x1) and release from dowels (x2) (s ee Figure 9).
35. Release hoses from support clips (x3).
Figure 4
Figure 5
Figure 6
!

!
!
Figure 7
Figure 8
Figure 9
!
!
!

Manual Transmission (07.03)
Transmission (07.00)
Issue 5, January 2010 Workshop Manual 7-3-11
36. Mark and disconnect valve-block connectors positions. Disconnect multiplugs (x5) (see Figure 10).
37. Remove bolt valve block to transaxle (see Figure 11).
38. Remove nuts (x3) securing valve block to transaxle and remove Sportshift hydrau lic kit (see Figure 12).
Install
1. Install Sportshift hydraulic ki t valve block to stud and fit
nuts.
2. Install bolt valve block to transaxle. 3. Connect multiplugs (x5) to valve block.
4. Connect dry break quick-fit connector to torque tube
pipe.
5. Install pump to transaxle.
6. Install ground eye to pump body.
7. Connect pump multiplug.
8. Clean mating faces and install new shifter unit gasket to dowels.
9. Ensure alignment of selector mechanism with shifter unit
and install shifter unit.
10. Install harness clip into shifter casing.
11. Secure hoses to support clip.
12. Connect gear position sensor to multiplug.
13. Install gear position sensor (screws x4).
14. Raise transaxle, install harness clip to subframe.
15. Connect transaxle breather pipe.
16. Raise transaxle to fitted position. Install transaxle mounting brackets and hydramounts, install and torque
tighten new bolts (x8).
17. Align hydramounts to subframe, lower lifter, install and torque nuts. Remove lifter.
18. Position reservoir to bracket and fit clamp (bolt x1).
19. Position reservoir hose and secure clips.
20. Remove plugs, connect and torque oil cooler unions.
21. Apply thread lock to new Allen bolts.
22. Align drive shafts to transaxle flanges, clean and install plates (x6), install and torque tighten Allen bolts (x12).
23. Position earth lead to transaxle, install and torque tighten bolt.
24. Install shear plate, install bolts (x8), tighten bolts to correct torque.
25. Install tunnel heatshield, install bolts/washers (x4),
tighten bolts to correct torque.
26. Install centre and rear exha ust pipe assembly, align to
both catalysts. tighten clamp nuts to correct torque.
27. Install bolts (x4) into centre mounting.
28. Install subframe cross brace, install bolts (x4) and torque.
29. Install rear exhaust silencer assembly (see Workshop Manual procedure 09.00.KA Muffler & Bypass Valve
Assembly - Re move for Access & Refit).
30. Roadster Only - Install centre undertray (see Workshop
Manual procedure 01.02.MB Undertray - Centre -
Renew).
31. Install road wheel(s).
32. Lower vehicle on ramp, remove securing straps.
Figure 10
Figure 11
Figure 12
!
!
!
WA R N I N G
OBSERVE ALL TRANSAXLE OIL MANUFACTURERS
SAFETY INSTRUCTIONS WHEN HANDLING
COMPONENTS THAT HAVE BEEN IN CONTACT WITH
TRANSAXLE OIL.
New Allen bolts should have a thread lock coating.

Manual Transmission (07.03)
Transmission (07.00)7-3-12 Workshop Manual Issue 5, January 2010
33. Connect vehicle battery.
34. Bleed clutch (see Workshop Manual procedure 08.00.AE Clutch Hy draulic System - Sportshift - Bleed).
35. Test drive vehicle.
36. Raise vehicle on ramp; check transaxle and Sportshift
fluid.Complete Shifter Assembly-Renew-
Roadster Only
Removal
1. Disconnect vehicle battery.
2. Remove Gear position sensor (see Workshop Manual procedure 07.03.AL Sensor - Transmission Assembly -
Sportshift - Renew).
3. Release harness clip from shifter casing.
4. Remove and discard clips (x2) securing hoses into shifter assembly and disconnect hoses (see Figure 1).
5. Remove shifter unit (bolts x6, nut x1) and release from dowels (x2) (s ee Figure 2).
WAR NI NG
ALWAYS CONNECT THE BATTERY EARTH (+VE)
TERMINAL FIRST.
WAR NI NG
TRANSAXLE OIL CAN BE HARMFUL.
OBEY ALL TRANSAXLE OIL MANUFACTURER’S SAFETY INSTRUCTIONS WHEN YOU HANDLE COMPONENTS
THAT HAVE TOUCHED TRANSAXLE OIL.
Repair Operation Time (ROT)
ItemCode
Complete Shifter Assembly-Renew 07.03.AC
WAR NI NG
ALWAYS DISCONNECT THE BATTERY EARTH (- VE) TERMINAL FIRST.
Figure 1
WAR NI NG
TRANSAXLE OIL CAN BE HARMFUL.
OBEY ALL TRANSAXLE OIL MANUFACTURER’S SAFETY INSTRUCTIONS WHEN YO U HANDLE COMPONENTS
THAT HAVE TOUCHED TRANSAXLE OIL.
!
!
