2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

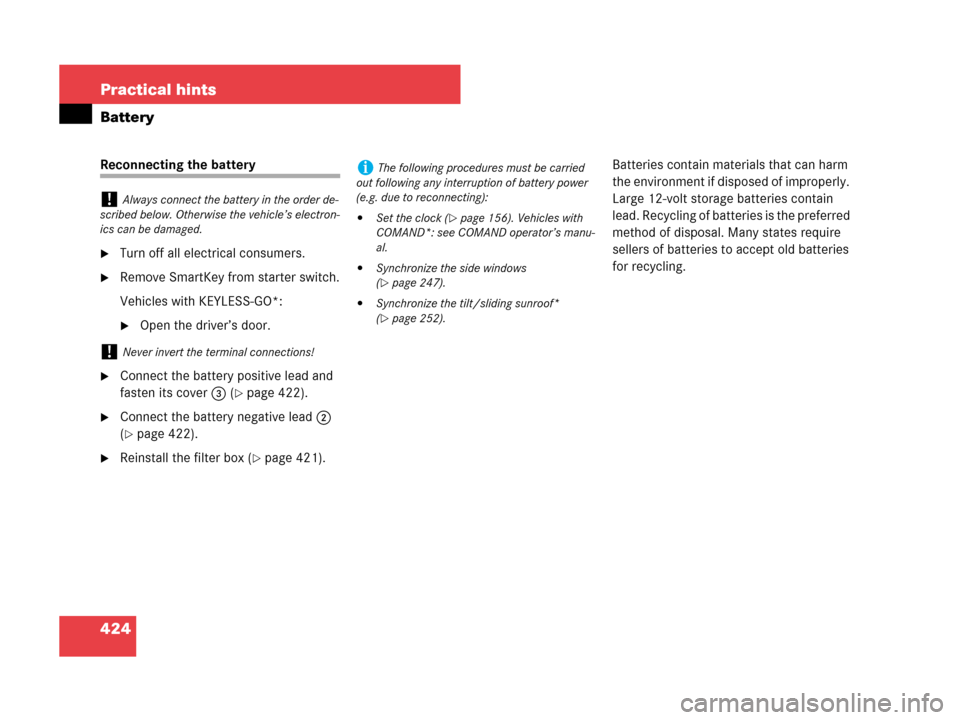

424 Practical hints
Battery
Reconnecting the battery
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Open the driver’s door.
Connect the battery positive lead and
fasten its cover3 (
page 422).
Connect the battery negative lead 2
(
page 422).
Reinstall the filter box (page 421).Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
!Always connect the battery in the order de-
scribed below. Otherwise the vehicle’s electron-
ics can be damaged.
!Never invert the terminal connections!
iThe following procedures must be carried
out following any interruption of battery power
(e.g. due to reconnecting):

Set the clock (page 156). Vehicles with
COMAND*: see COMAND operator’s manu-
al.

Synchronize the side windows
(
page 247).

Synchronize the tilt/sliding sunroof*
(
page 252).

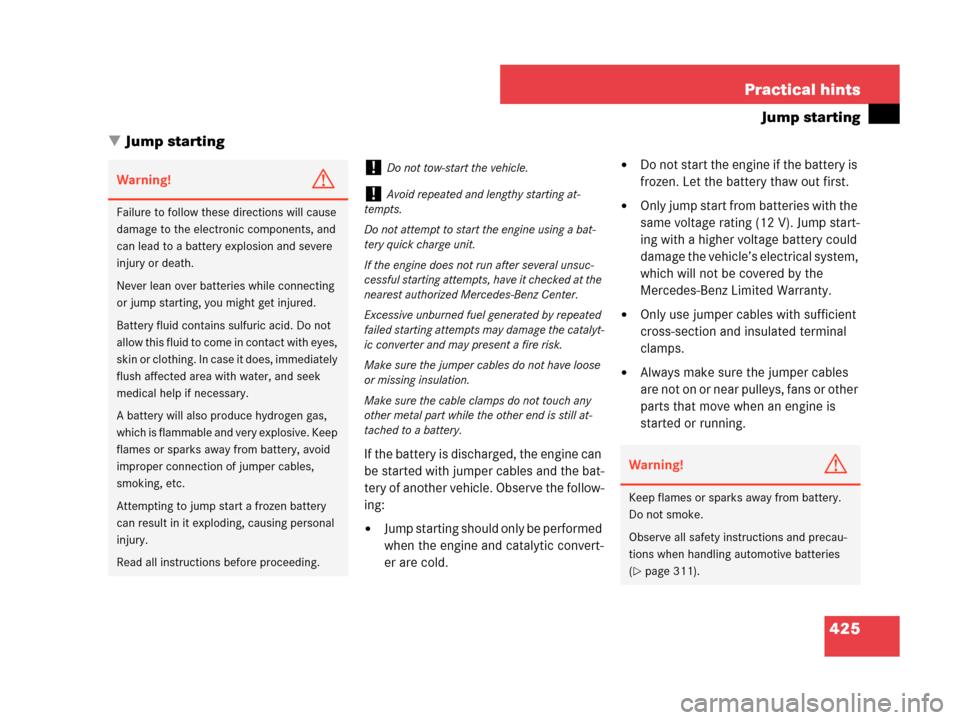

425 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a higher voltage battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.

Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when an engine is
started or running.
Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Do not tow-start the vehicle.
!Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If the engine does not run after several unsuc-
cessful starting attempts, have it checked at the
nearest authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 311).

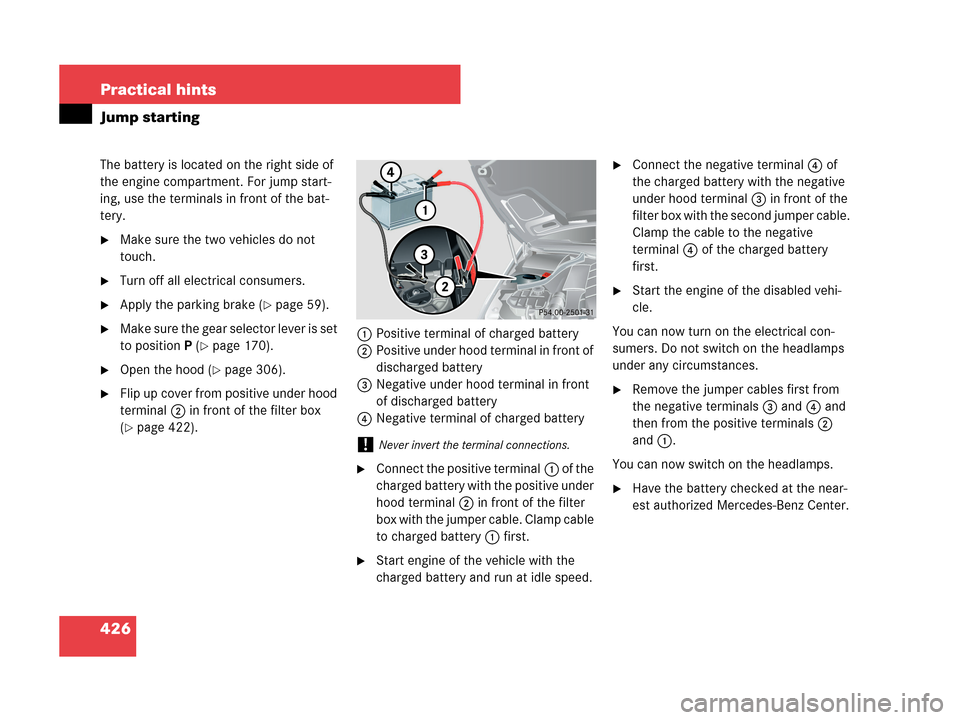

426 Practical hints
Jump starting
The battery is located on the right side of
the engine compartment. For jump start-
ing, use the terminals in front of the bat-
tery.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply the parking brake (page 59).
Make sure the gear selector lever is set
to positionP (
page 170).
Open the hood (page 306).
Flip up cover from positive under hood
terminal2 in front of the filter box
(
page 422).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative under hood terminal in front
of discharged battery
4Negative terminal of charged battery
Connect the positive terminal1 of the
charged battery with the positive under
hood terminal 2 in front of the filter
box with the jumper cable. Clamp cable
to charged battery1 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect the negative terminal4 of
the charged battery with the negative
under hood terminal 3 in front of the
filter box with the second jumper cable.
Clamp the cable to the negative
terminal4 of the charged battery
first.
Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not switch on the headlamps
under any circumstances.
Remove the jumper cables first from
the negative terminals3 and4 and
then from the positive terminals2
and1.
You can now switch on the headlamps.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
!Never invert the terminal connections.

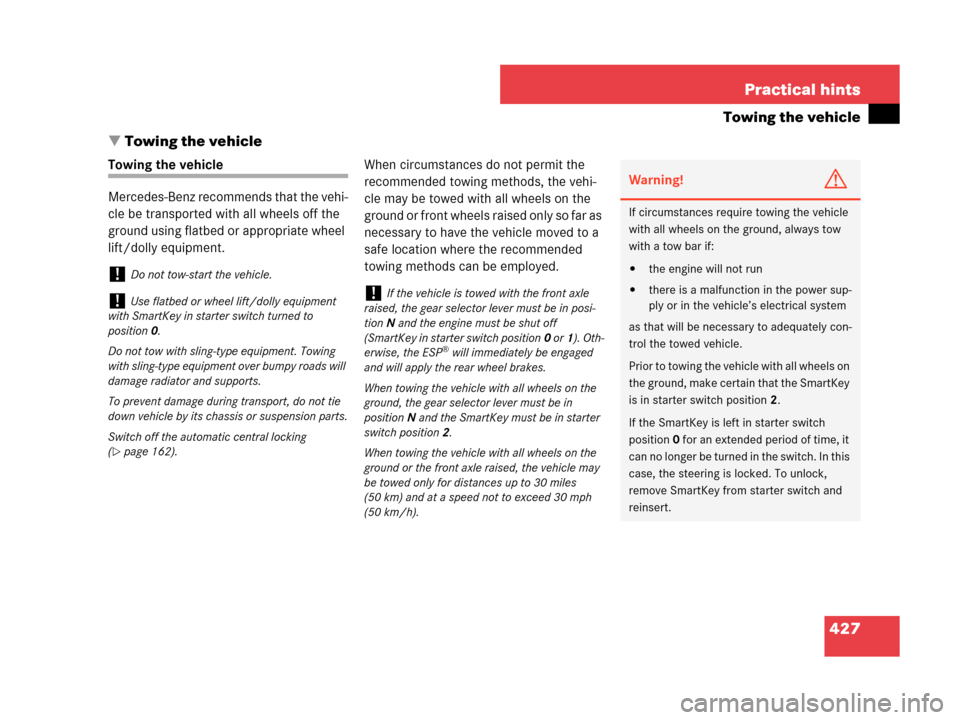

427 Practical hints
Towing the vehicle
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment.When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Do not tow-start the vehicle.
!Use flatbed or wheel lift/dolly equipment
with SmartKey in starter switch turned to
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Switch off the automatic central locking
(
page 162).
!If the vehicle is towed with the front axle
raised, the gear selector lever must be in posi-
tion N and the engine must be shut off
(SmartKey in starter switch position0 or1). Oth-
erwise, the ESP
® will immediately be engaged
and will apply the rear wheel brakes.
When towing the vehicle with all wheels on the
ground, the gear selector lever must be in
positionN and the SmartKey must be in starter
switch position2.
When towing the vehicle with all wheels on the
ground or the front axle raised, the vehicle may
be towed only for distances up to 30 miles
(50 km) and at a speed not to exceed 30 mph
(50 km/h).
Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position2.
If the SmartKey is left in starter switch
position 0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.

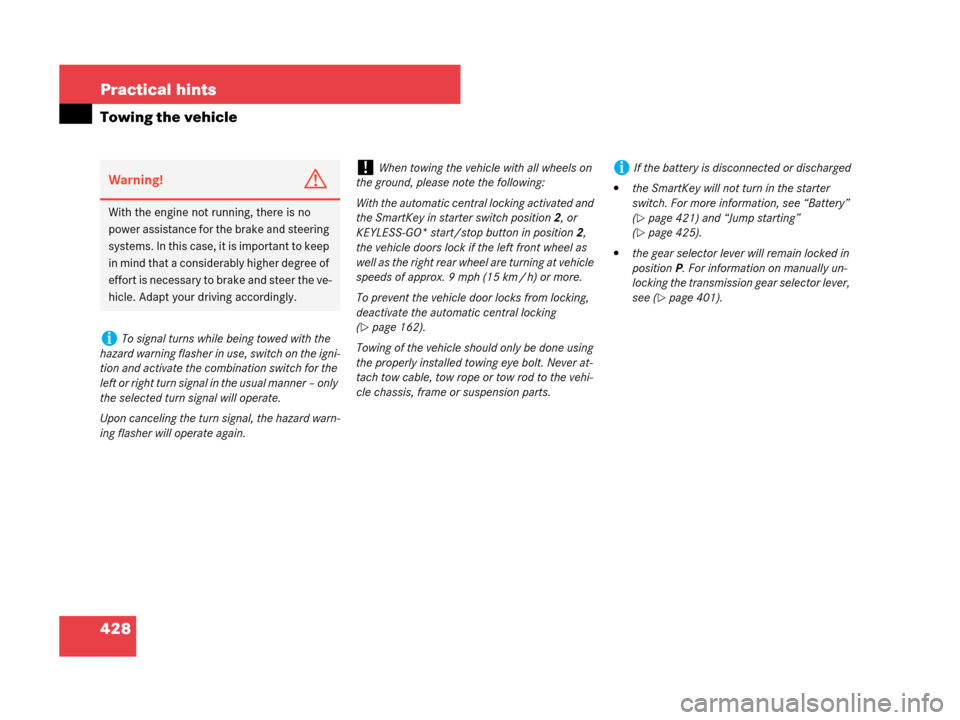

428 Practical hints
Towing the vehicle
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
iTo signal turns while being towed with the
hazard warning flasher in use, switch on the igni-
tion and activate the combination switch for the
left or right turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
!When towing the vehicle with all wheels on
the ground, please note the following:
With the automatic central locking activated and
the SmartKey in starter switch position2, or
KEYLESS-GO* start/stop button in position2,
the vehicle doors lock if the left front wheel as
well as the right rear wheel are turning at vehicle
speeds of approx. 9 mph (15 km / h) or more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking
(
page 162).
Towing of the vehicle should only be done using
the properly installed towing eye bolt. Never at-
tach tow cable, tow rope or tow rod to the vehi-
cle chassis, frame or suspension parts.
iIf the battery is disconnected or discharged

the SmartKey will not turn in the starter
switch. For more information, see “Battery”
(
page 421) and “Jump starting”
(
page 425).

the gear selector lever will remain locked in
positionP. For information on manually un-
locking the transmission gear selector lever,
see (
page 401).

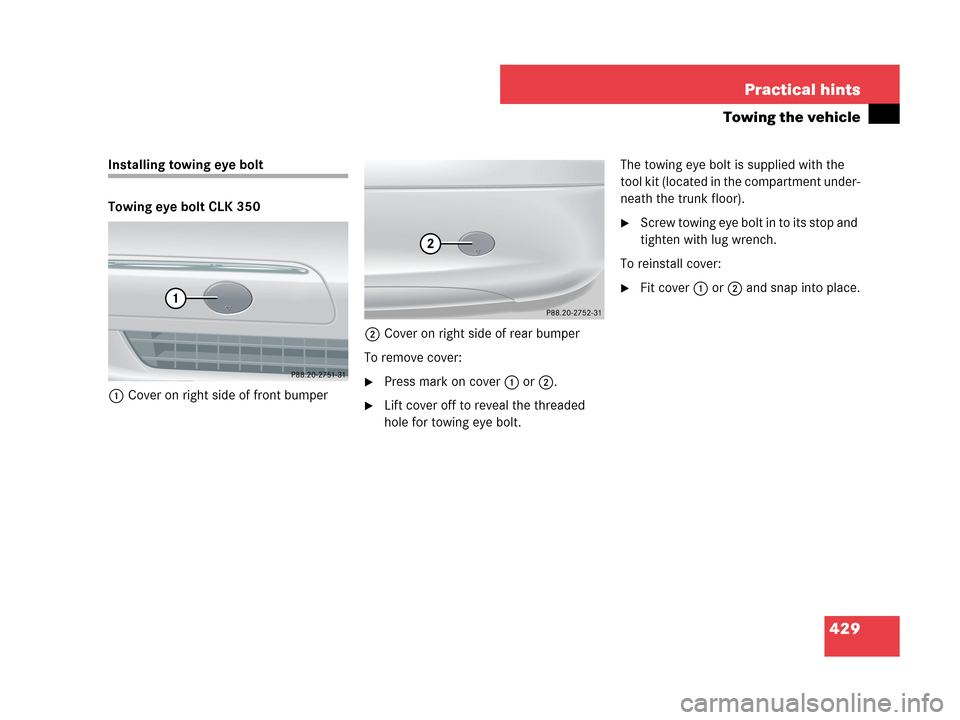

429 Practical hints
Towing the vehicle
Installing towing eye bolt
Towing eye bolt CLK 350
1Cover on right side of front bumper2Cover on right side of rear bumper
To remove cover:
Press mark on cover 1 or 2.
Lift cover off to reveal the threaded
hole for towing eye bolt.The towing eye bolt is supplied with the
tool kit (located in the compartment under-
neath the trunk floor).
Screw towing eye bolt in to its stop and
tighten with lug wrench.
To reinstall cover:
Fit cover 1 or 2 and snap into place.

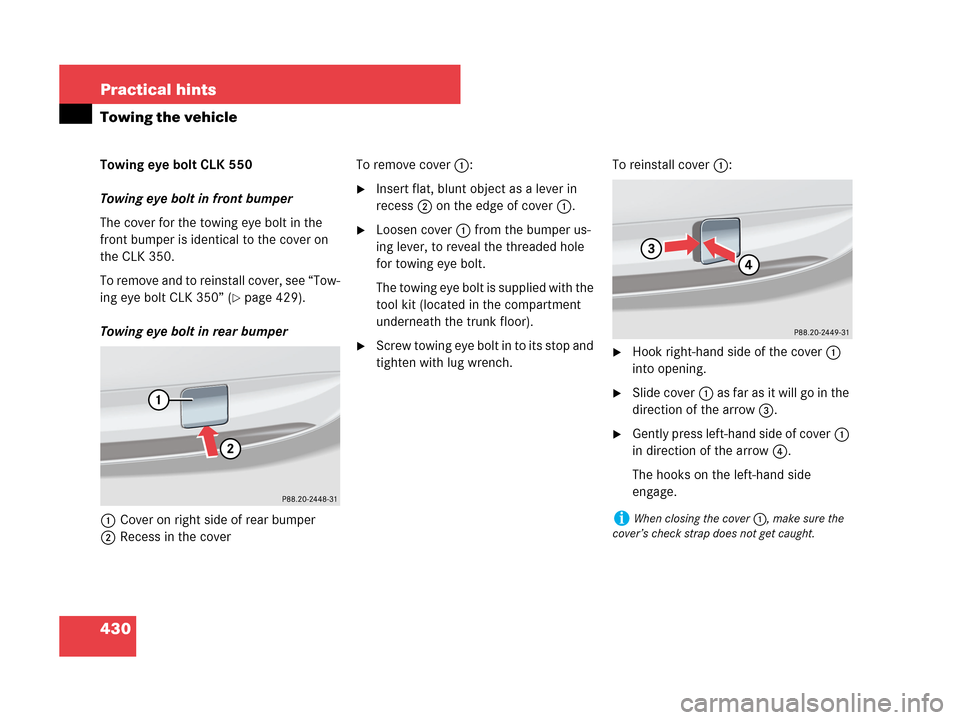

430 Practical hints
Towing the vehicle
Towing eye bolt CLK 550
Towing eye bolt in front bumper
The cover for the towing eye bolt in the
front bumper is identical to the cover on
the CLK 350.
To remove and to reinstall cover, see “Tow-
ing eye bolt CLK 350” (
page 429).
Towing eye bolt in rear bumper
1Cover on right side of rear bumper
2Recess in the coverTo remove cover 1:
Insert flat, blunt object as a lever in
recess 2 on the edge of cover 1.
Loosen cover 1 from the bumper us-
ing lever, to reveal the threaded hole
for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment
underneath the trunk floor).
Screw towing eye bolt in to its stop and
tighten with lug wrench.To reinstall cover 1:Hook right-hand side of the cover1
into opening.
Slide cover1 as far as it will go in the
direction of the arrow3.
Gently press left-hand side of cover1
in direction of the arrow4.
The hooks on the left-hand side
engage.
iWhen closing the cover1, make sure the
cover’s check strap does not get caught.

431 Practical hints
Fuses
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Center.
The following aids are available to help you
replace fuses.

Fuse chart
The fuse chart is located in the main
fuse box in the passenger compart-
ment (
page 432). The fuse chart ex-
plains the fuse allocation and fuse
amperages.

Spare fuses
Spare fuses are located in the vehicle
tool kit in the spare wheel well
(
page 395).

Fuse extractor
The fuse extractor is located in the cov-
er of the auxiliary fuse box in the trunk
(
page 434).The electrical fuses are located in different
fuse boxes:

in the passenger compartment on the
driver’s side (
page 432)

on the driver’s side of the engine com-
partment (
page 433)

in the trunk (page 434)
Before replacing fuses:
Apply the parking brake (page 59).
Make sure the gear selector lever is set
to position P (
page 170).
Turn off all electrical consumers.
Turn off the engine (page 60).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Open the driver’s door.
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an
authorized Mercedes-Benz Center
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart.
Any Mercedes-Benz Center will be glad to advise
you on this subject.
