2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

176 Controls in detail

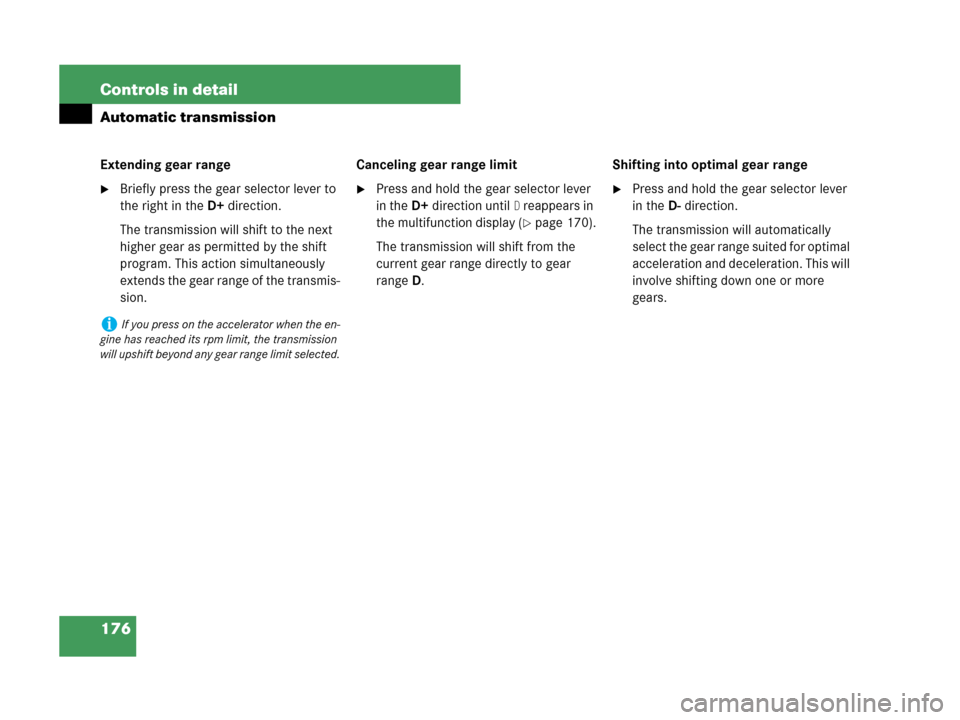

Automatic transmission
Extending gear range
Briefly press the gear selector lever to
the right in theD+direction.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmis-
sion.Canceling gear range limitPress and hold the gear selector lever
in theD+direction until
D reappears in
the multifunction display (
page 170).
The transmission will shift from the
current gear range directly to gear
rangeD.Shifting into optimal gear range
Press and hold the gear selector lever
in theD-direction.
The transmission will automatically
select the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more
gears.
iIf you press on the accelerator when the en-
gine has reached its rpm limit, the transmission
will upshift beyond any gear range limit selected.

177 Controls in detail
Automatic transmission

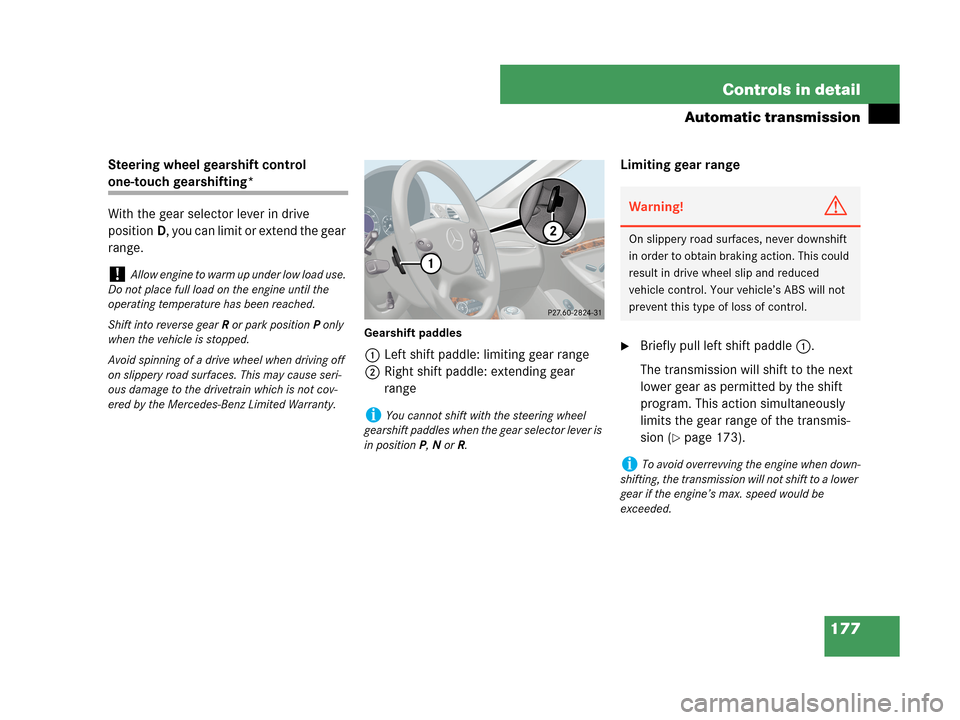

Steering wheel gearshift control
one-touch gearshifting*
With the gear selector lever in drive
positionD, you can limit or extend the gear
range.
Gearshift paddles
1Left shift paddle: limiting gear range
2Right shift paddle: extending gear
rangeLimiting gear rangeBriefly pull left shift paddle1.
The transmission will shift to the next
lower gear as permitted by the shift
program. This action simultaneously
limits the gear range of the transmis-
sion (
page 173).
!Allow engine to warm up under low load use.
Do not place full load on the engine until the
operating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel when driving off
on slippery road surfaces. This may cause seri-
ous damage to the drivetrain which is not cov-
ered by the Mercedes-Benz Limited Warranty.
iYou cannot shift with the steering wheel
gearshift paddles when the gear selector lever is
in positionP,N orR.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
iTo avoid overrevving the engine when down-
shifting, the transmission will not shift to a lower
gear if the engine’s max. speed would be
exceeded.

178 Controls in detail
Automatic transmission

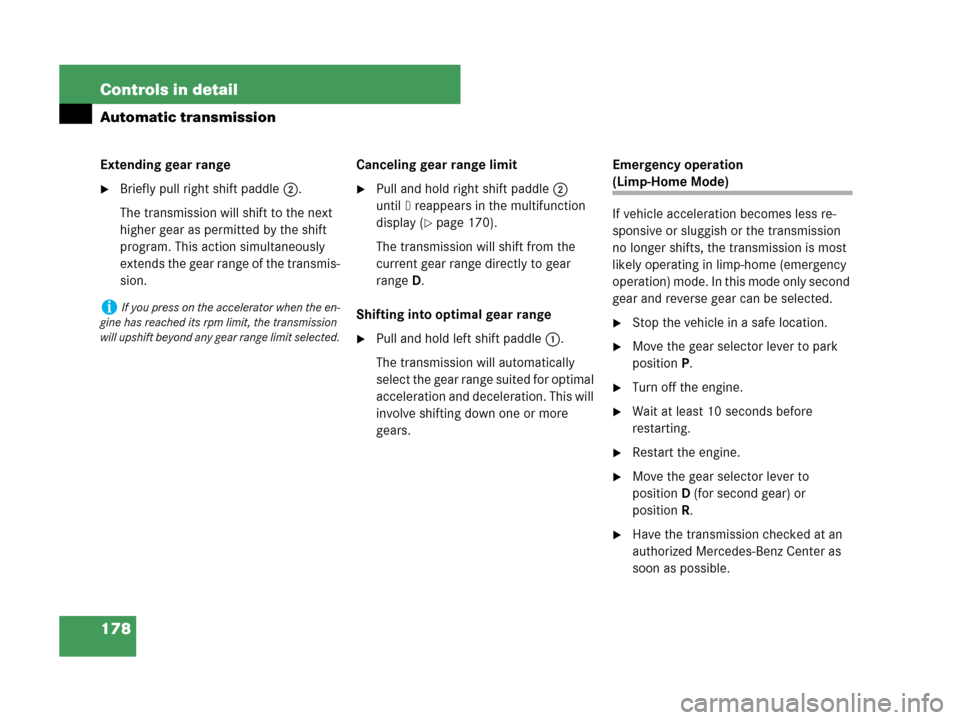

Extending gear range
Briefly pull right shift paddle2.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmis-
sion.Canceling gear range limitPull and hold right shift paddle2
until
D reappears in the multifunction
display (
page 170).
The transmission will shift from the
current gear range directly to gear
rangeD.
Shifting into optimal gear range
Pull and hold left shift paddle1.
The transmission will automatically
select the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more
gears.Emergency operation
(Limp-Home Mode)
If vehicle acceleration becomes less re-
sponsive or sluggish or the transmission
no longer shifts, the transmission is most
likely operating in limp-home (emergency
operation) mode. In this mode only second
gear and reverse gear can be selected.
Stop the vehicle in a safe location.
Move the gear selector lever to park
positionP.
Turn off the engine.
Wait at least 10 seconds before
restarting.
Restart the engine.
Move the gear selector lever to
positionD (for second gear) or
positionR.
Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
iIf you press on the accelerator when the en-
gine has reached its rpm limit, the transmission
will upshift beyond any gear range limit selected.

179 Controls in detail

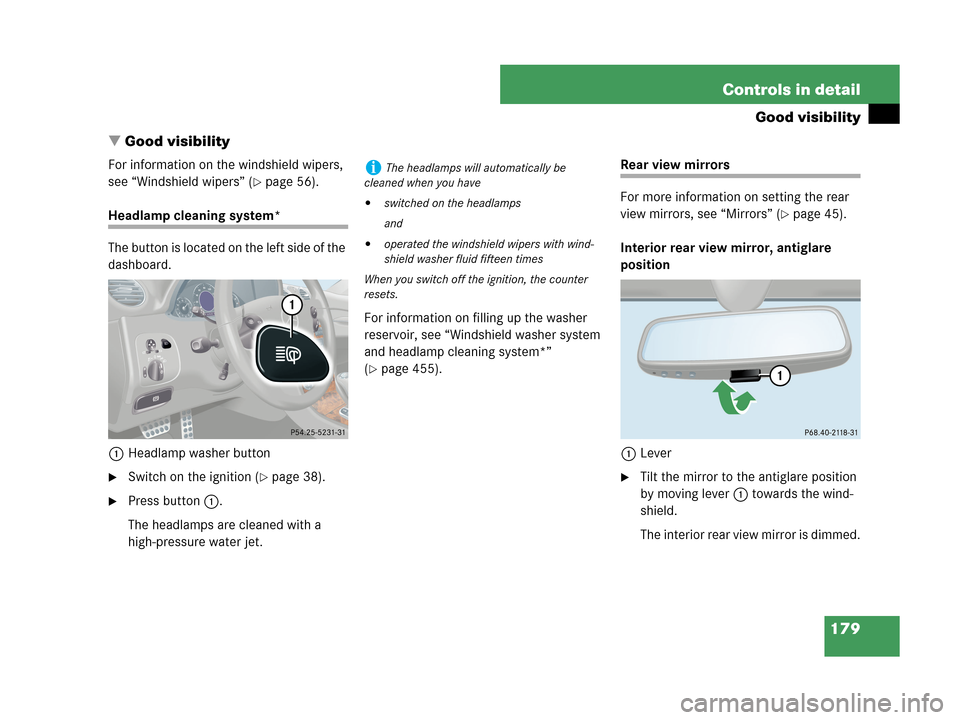

Good visibility
Good visibility
For information on the windshield wipers,
see “Windshield wipers” (
page 56).
Headlamp cleaning system*
The button is located on the left side of the
dashboard.
1Headlamp washer button
Switch on the ignition (page 38).
Press button1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 455).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 45).
Interior rear view mirror, antiglare
position
1Lever
Tilt the mirror to the antiglare position
by moving lever1 towards the wind-
shield.
The interior rear view mirror is dimmed.
iThe headlamps will automatically be
cleaned when you have

switched on the headlamps
and

operated the windshield wipers with wind-
shield washer fluid fifteen times
When you switch off the ignition, the counter
resets.

180 Controls in detail
Good visibility

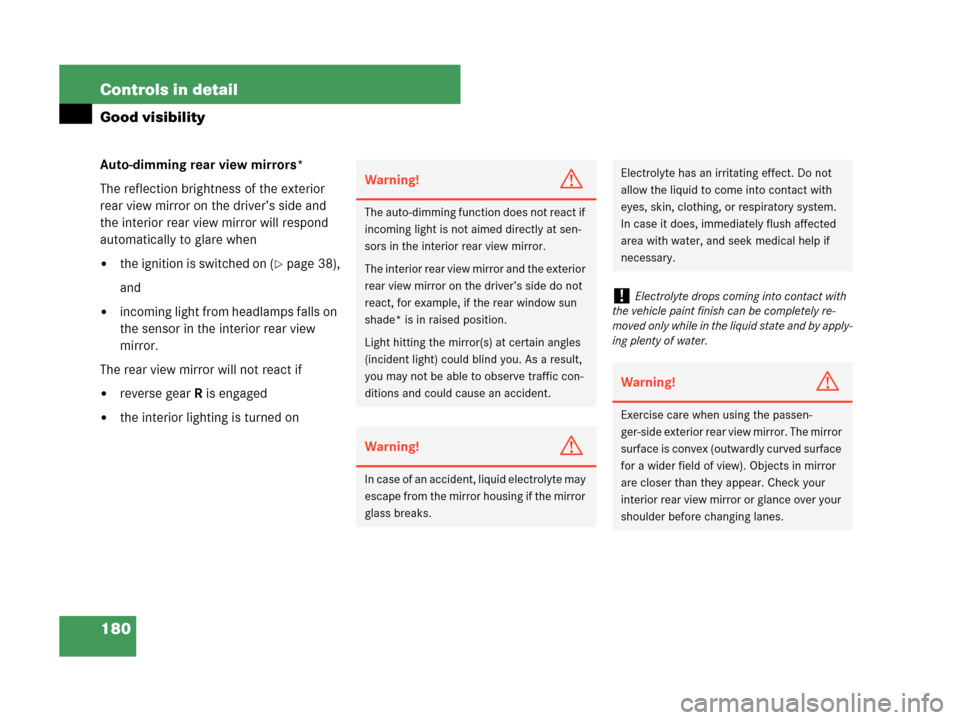

Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when

the ignition is switched on (page 38),
and

incoming light from headlamps falls on
the sensor in the interior rear view
mirror.
The rear view mirror will not react if

reverse gearR is engaged

the interior lighting is turned on
Warning!G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun
shade* is in raised position.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic con-
ditions and could cause an accident.
Warning!G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact with
the vehicle paint finish can be completely re-
moved only while in the liquid state and by apply-
ing plenty of water.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.

181 Controls in detail
Good visibility

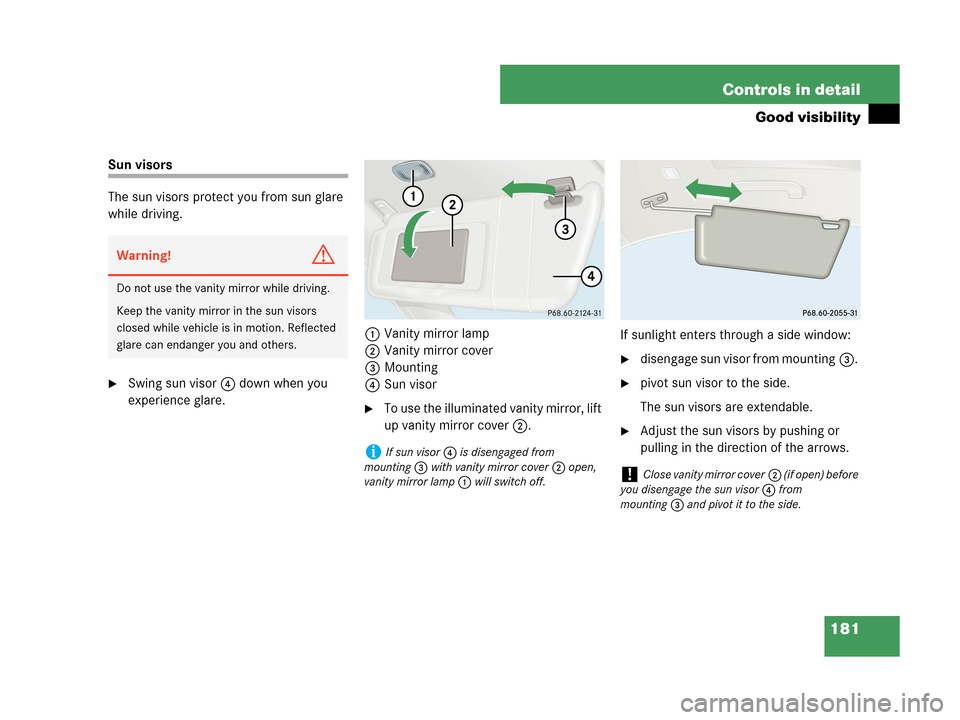

Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visor4 down when you
experience glare.1Vanity mirror lamp
2Vanity mirror cover
3Mounting
4Sun visor
To use the illuminated vanity mirror, lift
up vanity mirror cover2.If sunlight enters through a side window:
disengage sun visor from mounting3.
pivot sun visor to the side.
The sun visors are extendable.
Adjust the sun visors by pushing or
pulling in the direction of the arrows.
Warning!G
Do not use the vanity mirror while driving.
Keep the vanity mirror in the sun visors
closed while vehicle is in motion. Reflected
glare can endanger you and others.
iIf sun visor4 is disengaged from
mounting3 with vanity mirror cover2 open,
vanity mirror lamp1 will switch off.
!Close vanity mirror cover2 (if open) before
you disengage the sun visor4 from
mounting3 and pivot it to the side.

182 Controls in detail
Good visibility

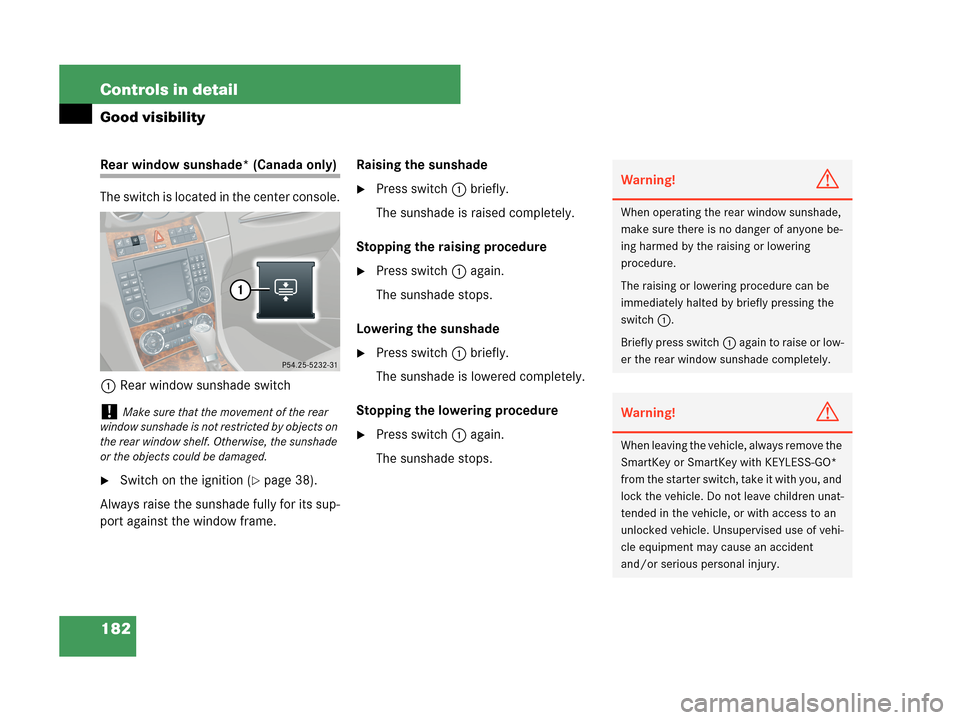

Rear window sunshade* (Canada only)
The switch is located in the center console.
1Rear window sunshade switch
Switch on the ignition (page 38).
Always raise the sunshade fully for its sup-
port against the window frame.Raising the sunshade
Press switch1 briefly.
The sunshade is raised completely.
Stopping the raising procedure
Press switch1 again.
The sunshade stops.
Lowering the sunshade
Press switch1 briefly.
The sunshade is lowered completely.
Stopping the lowering procedure
Press switch1 again.
The sunshade stops.
!Make sure that the movement of the rear
window sunshade is not restricted by objects on
the rear window shelf. Otherwise, the sunshade
or the objects could be damaged.
Warning!G
When operating the rear window sunshade,
make sure there is no danger of anyone be-
ing harmed by the raising or lowering
procedure.
The raising or lowering procedure can be
immediately halted by briefly pressing the
switch1.
Briefly press switch1 again to raise or low-
er the rear window sunshade completely.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

183 Controls in detail
Good visibility

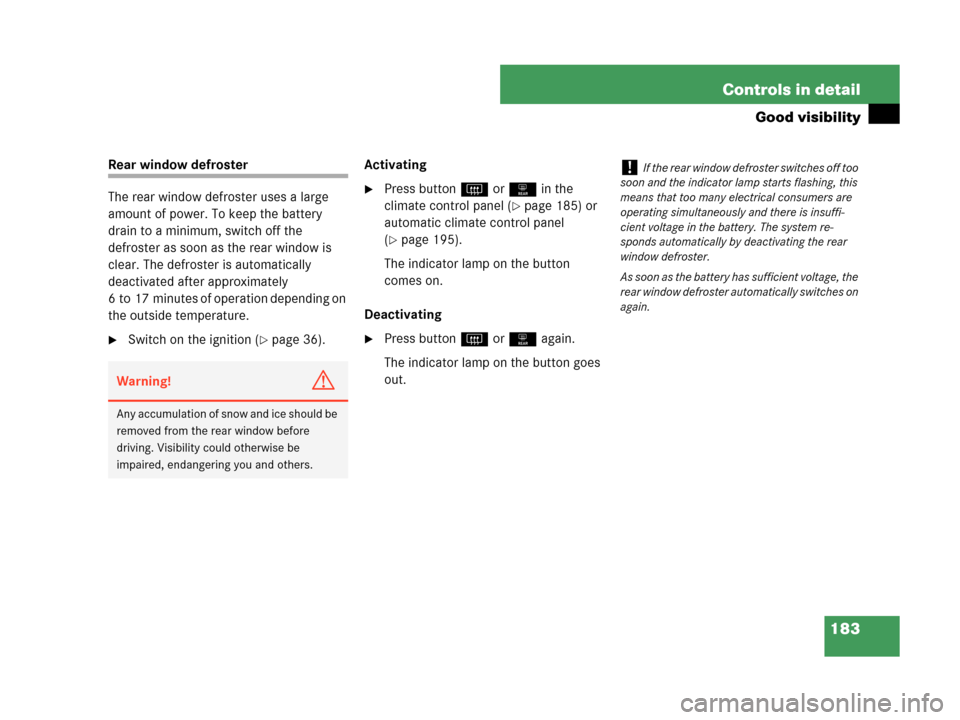

Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the
defroster as soon as the rear window is
clear. The defroster is automatically
deactivated after approximately
6 to 17 minutes of operation depending on
the outside temperature.
Switch on the ignition (page 36).Activating
Press buttonF or1 in the
climate control panel (
page 185) or
automatic climate control panel
(
page 195).
The indicator lamp on the button
comes on.
Deactivating
Press buttonF or1 again.
The indicator lamp on the button goes
out.
Warning!G
Any accumulation of snow and ice should be
removed from the rear window before
driving. Visibility could otherwise be
impaired, endangering you and others.
!If the rear window defroster switches off too
soon and the indicator lamp starts flashing, this
means that too many electrical consumers are
operating simultaneously and there is insuffi-
cient voltage in the battery. The system re-
sponds automatically by deactivating the rear
window defroster.
As soon as the battery has sufficient voltage, the
rear window defroster automatically switches on
again.
