2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

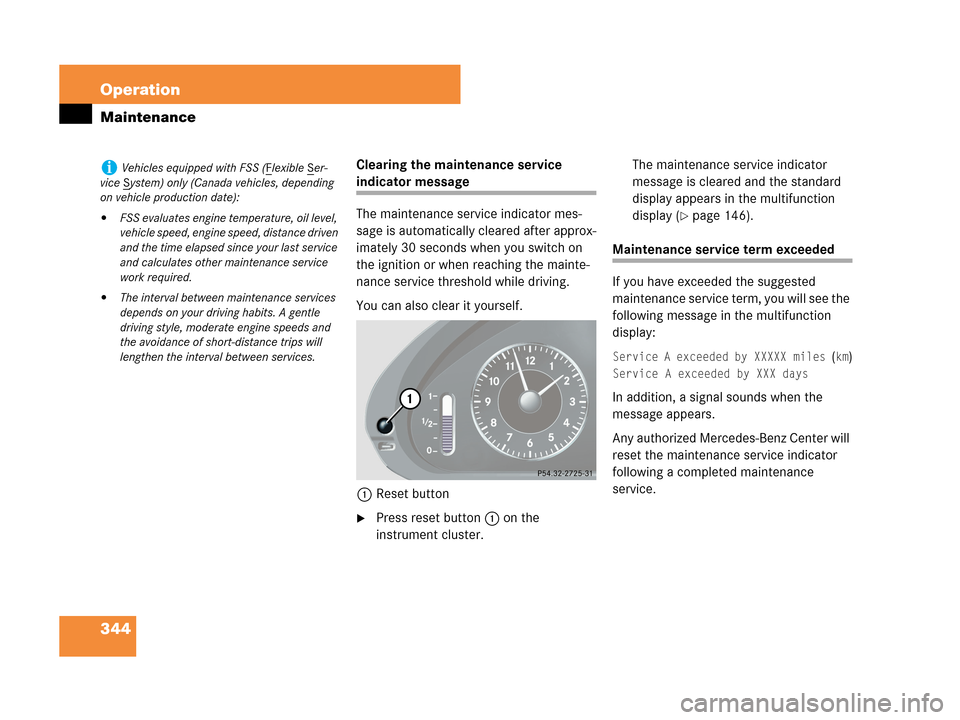

344 Operation
Maintenance
Clearing the maintenance service
indicator message
The maintenance service indicator mes-
sage is automatically cleared after approx-
imately 30 seconds when you switch on
the ignition or when reaching the mainte-
nance service threshold while driving.
You can also clear it yourself.
1Reset button
Press reset button 1 on the
instrument cluster.The maintenance service indicator
message is cleared and the standard
display appears in the multifunction
display (
page 146).
Maintenance service term exceeded
If you have exceeded the suggested
maintenance service term, you will see the
following message in the multifunction
display:
Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
In addition, a signal sounds when the
message appears.
Any authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
iVehicles equipped with FSS (Flexible Ser-
vice S
ystem) only (Canada vehicles, depending
on vehicle production date):

FSS evaluates engine temperature, oil level,
vehicle speed, engine speed, distance driven
and the time elapsed since your last service
and calculates other maintenance service
work required.

The interval between maintenance services
depends on your driving habits. A gentle
driving style, moderate engine speeds and
the avoidance of short-distance trips will
lengthen the interval between services.

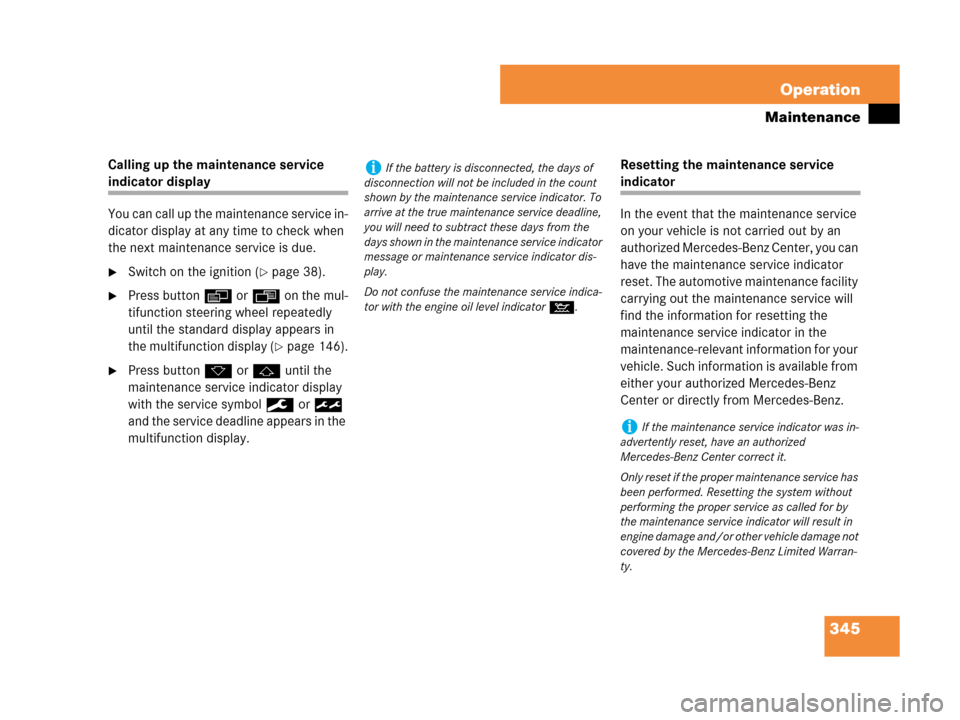

345 Operation
Maintenance
Calling up the maintenance service
indicator display
You can call up the maintenance service in-
dicator display at any time to check when
the next maintenance service is due.
Switch on the ignition (page 38).
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display appears in
the multifunction display (
page 146).
Press buttonkorjuntil the
maintenance service indicator display
with the service symbol9or½
and the service deadline appears in the
multifunction display.Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz.iIf the battery is disconnected, the days of
disconnection will not be included in the count
shown by the maintenance service indicator. To
arrive at the true maintenance service deadline,
you will need to subtract these days from the
days shown in the maintenance service indicator
message or maintenance service indicator dis-
play.
Do not confuse the maintenance service indica-
tor with the engine oil level indicator:.
iIf the maintenance service indicator was in-
advertently reset, have an authorized
Mercedes-Benz Center correct it.
Only reset if the proper maintenance service has
been performed. Resetting the system without
performing the proper service as called for by
the maintenance service indicator will result in
engine damage and/or other vehicle damage not
covered by the Mercedes-Benz Limited Warran-
ty.

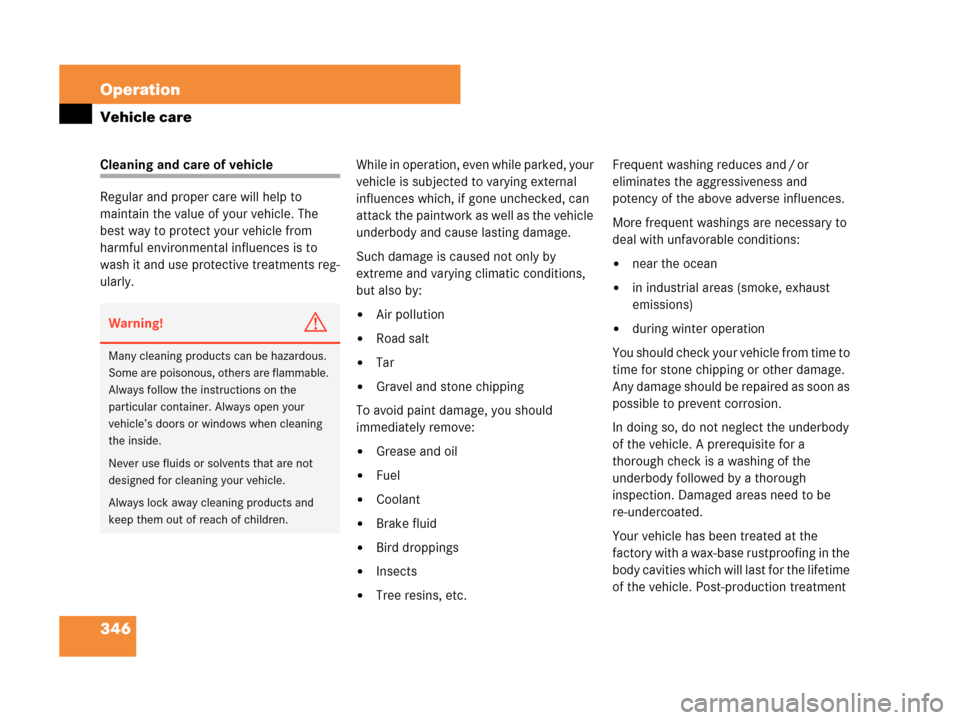

346 Operation
Vehicle care
Cleaning and care of vehicle
Regular and proper care will help to
maintain the value of your vehicle. The
best way to protect your vehicle from
harmful environmental influences is to
wash it and use protective treatments reg-
ularly.While in operation, even while parked, your
vehicle is subjected to varying external
influences which, if gone unchecked, can
attack the paintwork as well as the vehicle
underbody and cause lasting damage.
Such damage is caused not only by
extreme and varying climatic conditions,
but also by:

Air pollution

Road salt

Tar

Gravel and stone chipping
To avoid paint damage, you should
immediately remove:

Grease and oil

Fuel

Coolant

Brake fluid

Bird droppings

Insects

Tree resins, etc.Frequent washing reduces and / or
eliminates the aggressiveness and
potency of the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions:

near the ocean

in industrial areas (smoke, exhaust
emissions)

during winter operation
You should check your vehicle from time to
time for stone chipping or other damage.
Any damage should be repaired as soon as
possible to prevent corrosion.
In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a
thorough check is a washing of the
underbody followed by a thorough
inspection. Damaged areas need to be
re-undercoated.
Your vehicle has been treated at the
factory with a wax-base rustproofing in the
body cavities which will last for the lifetime
of the vehicle. Post-production treatment Warning!G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the
particular container. Always open your
vehicle’s doors or windows when cleaning
the inside.
Never use fluids or solvents that are not
designed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.

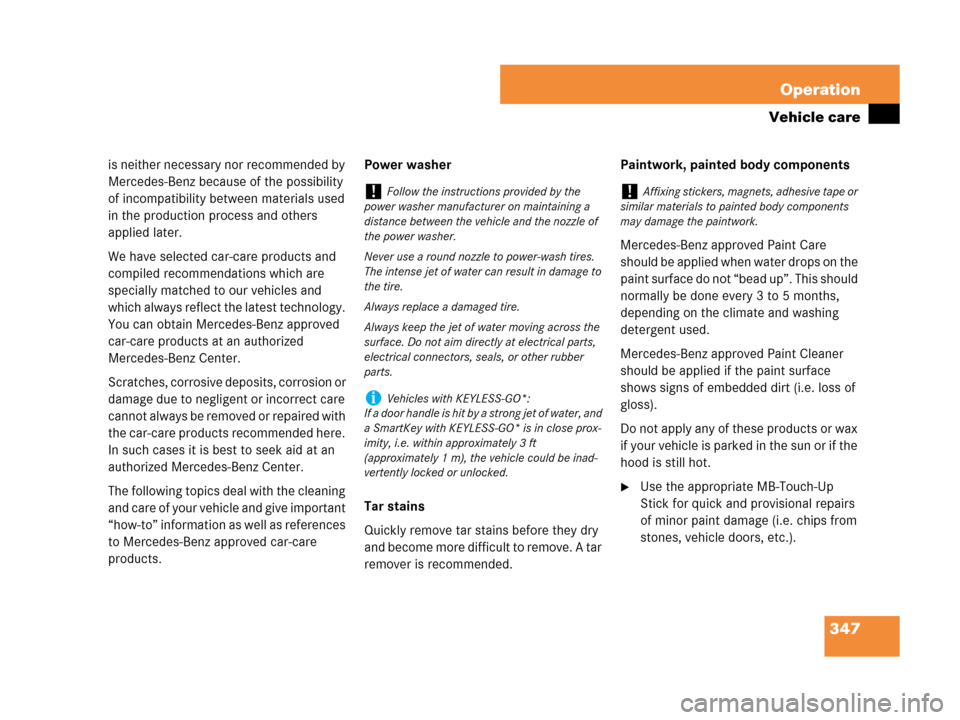

347 Operation
Vehicle care
is neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others
applied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at an authorized
Mercedes-Benz Center.
Scratches, corrosive deposits, corrosion or
damage due to negligent or incorrect care
cannot always be removed or repaired with
the car-care products recommended here.
In such cases it is best to seek aid at an
authorized Mercedes-Benz Center.
The following topics deal with the cleaning
and care of your vehicle and give important
“how-to” information as well as references
to Mercedes-Benz approved car-care
products.Power washer
Tar stains
Quickly remove tar stains before they dry
and become more difficult to remove. A tar
remover is recommended.Paintwork, painted body components
Mercedes-Benz approved Paint Care
should be applied when water drops on the
paint surface do not “bead up”. This should
normally be done every 3 to 5 months,
depending on the climate and washing
detergent used.
Mercedes-Benz approved Paint Cleaner
should be applied if the paint surface
shows signs of embedded dirt (i.e. loss of
gloss).
Do not apply any of these products or wax
if your vehicle is parked in the sun or if the
hood is still hot.
Use the appropriate MB-Touch-Up
Stick for quick and provisional repairs
of minor paint damage (i.e. chips from
stones, vehicle doors, etc.).
!Follow the instructions provided by the
power washer manufacturer on maintaining a
distance between the vehicle and the nozzle of
the power washer.
Never use a round nozzle to power-wash tires.
The intense jet of water can result in damage to
the tire.
Always replace a damaged tire.
Always keep the jet of water moving across the
surface. Do not aim directly at electrical parts,
electrical connectors, seals, or other rubber
parts.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of water, and
a SmartKey with KEYLESS-GO* is in close prox-
imity, i.e. within approximately 3 ft
(approximately 1 m), the vehicle could be inad-
vertently locked or unlocked.
!Affixing stickers, magnets, adhesive tape or
similar materials to painted body components
may damage the paintwork.

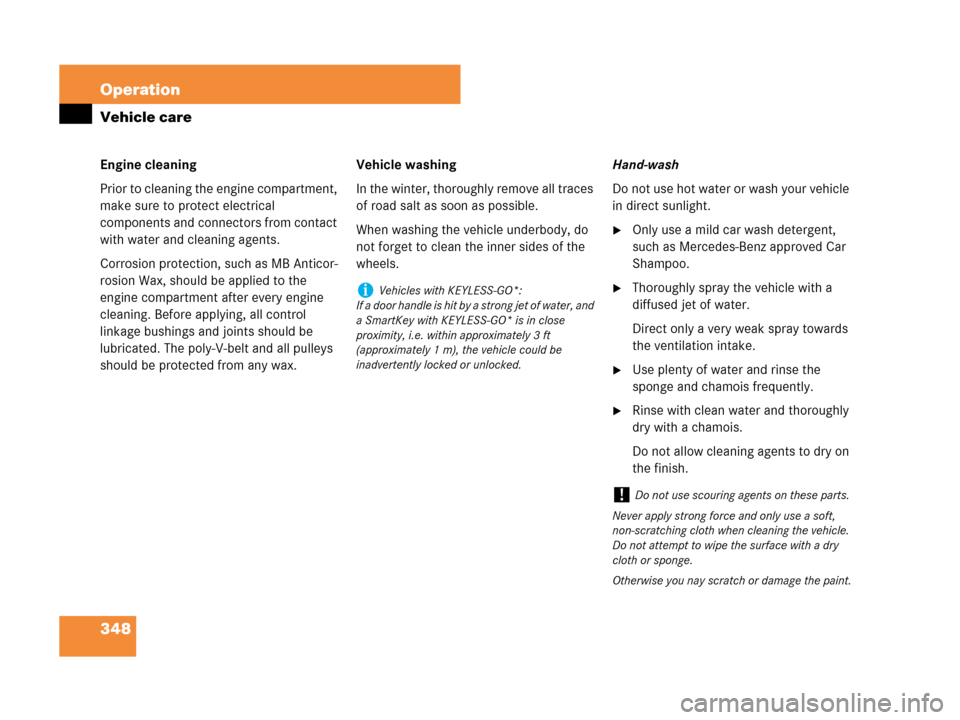

348 Operation
Vehicle care
Engine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical
components and connectors from contact
with water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the
engine compartment after every engine
cleaning. Before applying, all control
linkage bushings and joints should be
lubricated. The poly-V-belt and all pulleys
should be protected from any wax. Vehicle washing
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the vehicle underbody, do
not forget to clean the inner sides of the
wheels.Hand-wash
Do not use hot water or wash your vehicle
in direct sunlight.
Only use a mild car wash detergent,
such as Mercedes-Benz approved Car
Shampoo.
Thoroughly spray the vehicle with a
diffused jet of water.
Direct only a very weak spray towards
the ventilation intake.
Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clean water and thoroughly
dry with a chamois.
Do not allow cleaning agents to dry on
the finish.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of water, and
a SmartKey with KEYLESS-GO* is in close
proximity, i.e. within approximately 3 ft
(approximately 1 m), the vehicle could be
inadvertently locked or unlocked.
!Do not use scouring agents on these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the vehicle.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you nay scratch or damage the paint.

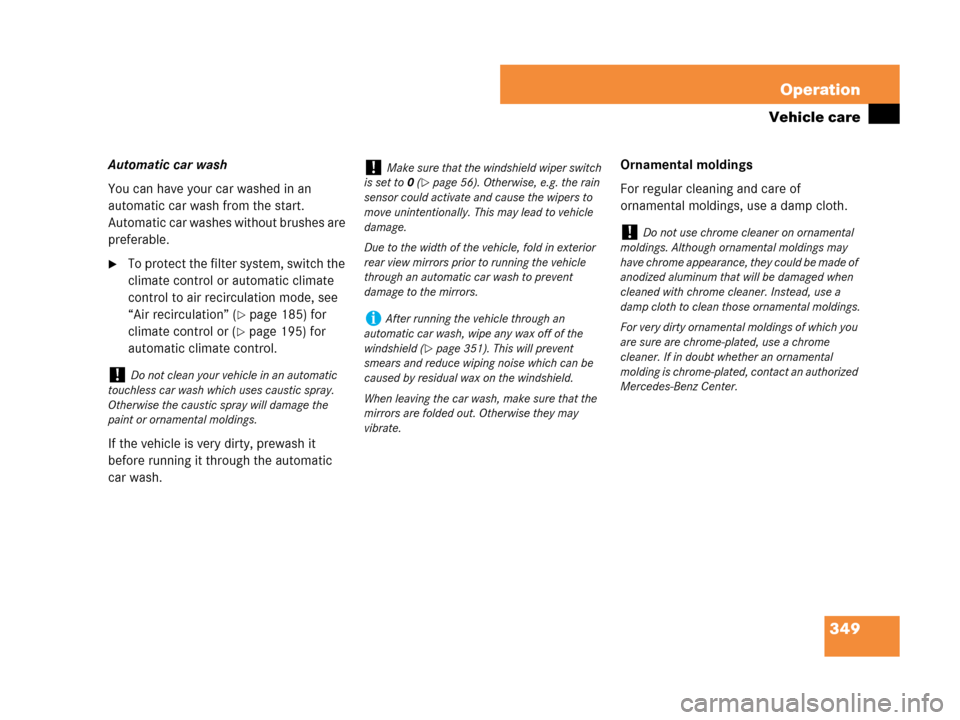

349 Operation
Vehicle care
Automatic car wash
You can have your car washed in an
automatic car wash from the start.
Automatic car washes without brushes are
preferable.
To protect the filter system, switch the
climate control or automatic climate
control to air recirculation mode, see
“Air recirculation” (
page 185) for
climate control or (
page 195) for
automatic climate control.
If the vehicle is very dirty, prewash it
before running it through the automatic
car wash.Ornamental moldings
For regular cleaning and care of
ornamental moldings, use a damp cloth.
!Do not clean your vehicle in an automatic
touchless car wash which uses caustic spray.
Otherwise the caustic spray will damage the
paint or ornamental moldings.
!Make sure that the windshield wiper switch
is set to0 (
page 56). Otherwise, e.g. the rain
sensor could activate and cause the wipers to
move unintentionally. This may lead to vehicle
damage.
Due to the width of the vehicle, fold in exterior
rear view mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
iAfter running the vehicle through an
automatic car wash, wipe any wax off of the
windshield (
page 351). This will prevent
smears and reduce wiping noise which can be
caused by residual wax on the windshield.
When leaving the car wash, make sure that the
mirrors are folded out. Otherwise they may
vibrate.
!Do not use chrome cleaner on ornamental
moldings. Although ornamental moldings may
have chrome appearance, they could be made of
anodized aluminum that will be damaged when
cleaned with chrome cleaner. Instead, use a
damp cloth to clean those ornamental moldings.
For very dirty ornamental moldings of which you
are sure are chrome-plated, use a chrome
cleaner. If in doubt whether an ornamental
molding is chrome-plated, contact an authorized
Mercedes-Benz Center.

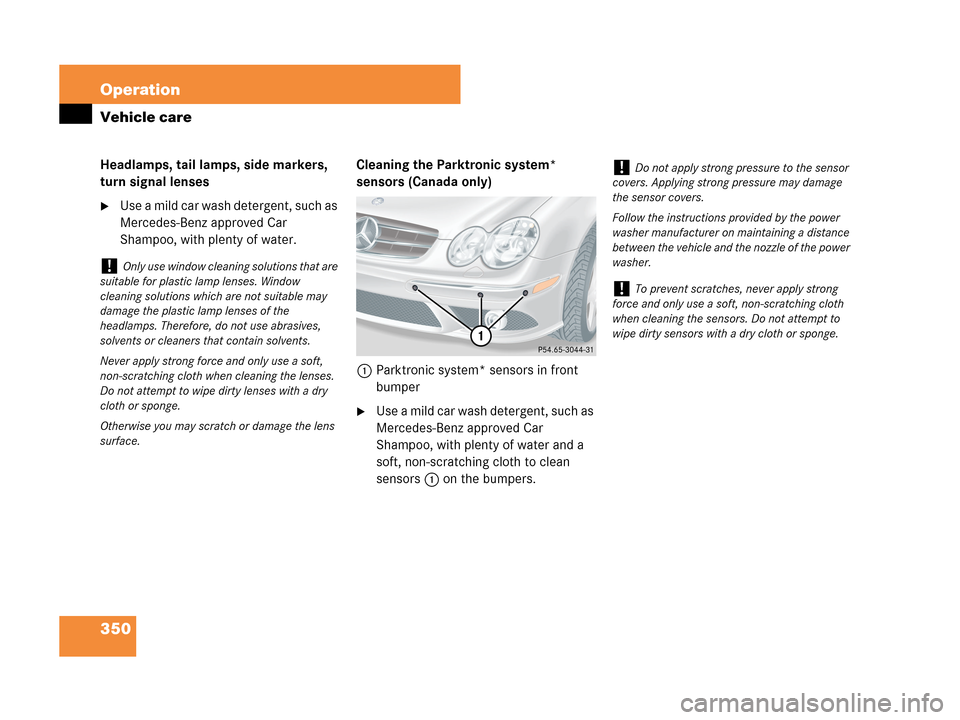

350 Operation
Vehicle care
Headlamps, tail lamps, side markers,
turn signal lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car
Shampoo, with plenty of water.Cleaning the Parktronic system*
sensors (Canada only)
1Parktronic system* sensors in front
bumper
Use a mild car wash detergent, such as
Mercedes-Benz approved Car
Shampoo, with plenty of water and a
soft, non-scratching cloth to clean
sensors1 on the bumpers.
!Only use window cleaning solutions that are
suitable for plastic lamp lenses. Window
cleaning solutions which are not suitable may
damage the plastic lamp lenses of the
headlamps. Therefore, do not use abrasives,
solvents or cleaners that contain solvents.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the lenses.
Do not attempt to wipe dirty lenses with a dry
cloth or sponge.
Otherwise you may scratch or damage the lens
surface.
!Do not apply strong pressure to the sensor
covers. Applying strong pressure may damage
the sensor covers.
Follow the instructions provided by the power
washer manufacturer on maintaining a distance
between the vehicle and the nozzle of the power
washer.
!To prevent scratches, never apply strong
force and only use a soft, non-scratching cloth
when cleaning the sensors. Do not attempt to
wipe dirty sensors with a dry cloth or sponge.

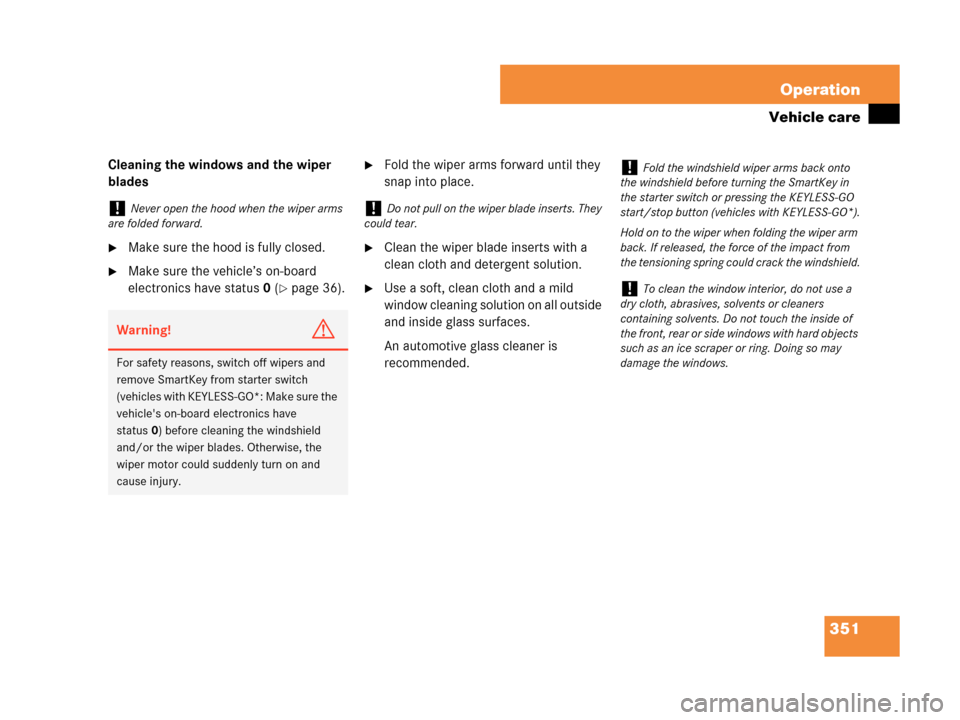

351 Operation
Vehicle care
Cleaning the windows and the wiper
blades
Make sure the hood is fully closed.
Make sure the vehicle’s on-board
electronics have status0 (
page 36).
Fold the wiper arms forward until they
snap into place.
Clean the wiper blade inserts with a
clean cloth and detergent solution.
Use a soft, clean cloth and a mild
window cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is
recommended.
!Never open the hood when the wiper arms
are folded forward.
Warning!G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle's on-board electronics have
status0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.
!Do not pull on the wiper blade inserts. They
could tear.
!Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners
containing solvents. Do not touch the inside of
th e f ron t, re ar o r s ide w indo ws w it h h ard ob jec ts
such as an ice scraper or ring. Doing so may
damage the windows.
