2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

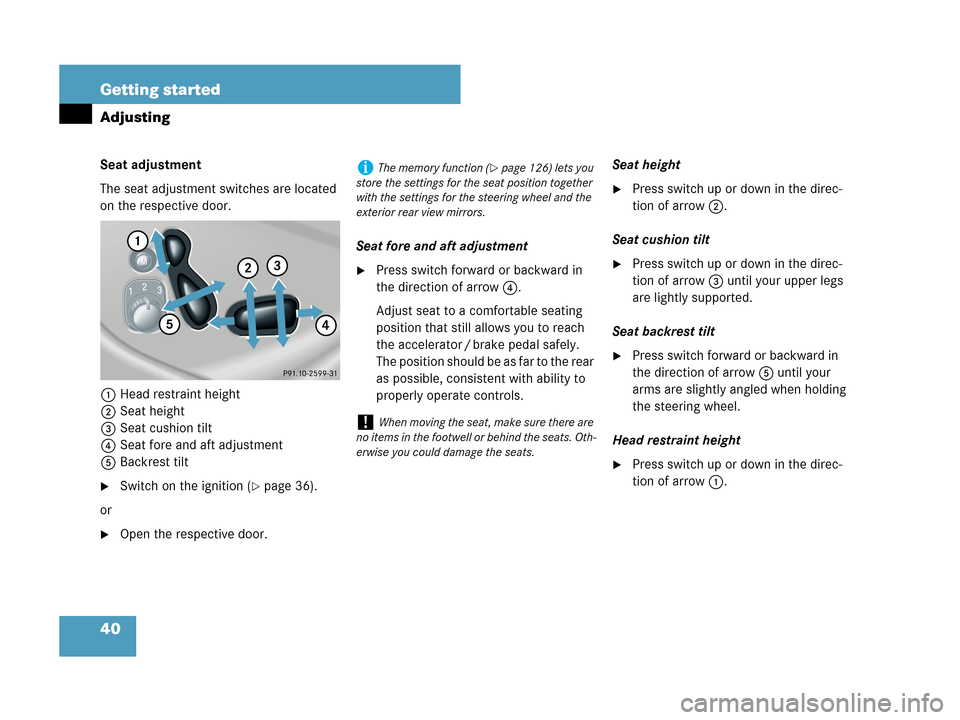

40 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
on the respective door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (page 36).
or
Open the respective door.Seat fore and aft adjustment
Press switch forward or backward in
the direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat height
Press switch up or down in the direc-
tion of arrow2.
Seat cushion tilt
Press switch up or down in the direc-
tion of arrow3 until your upper legs
are lightly supported.
Seat backrest tilt
Press switch forward or backward in
the direction of arrow5 until your
arms are slightly angled when holding
the steering wheel.
Head restraint height
Press switch up or down in the direc-
tion of arrow1.
iThe memory function (page 126) lets you
store the settings for the seat position together
with the settings for the steering wheel and the
exterior rear view mirrors.
!When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.

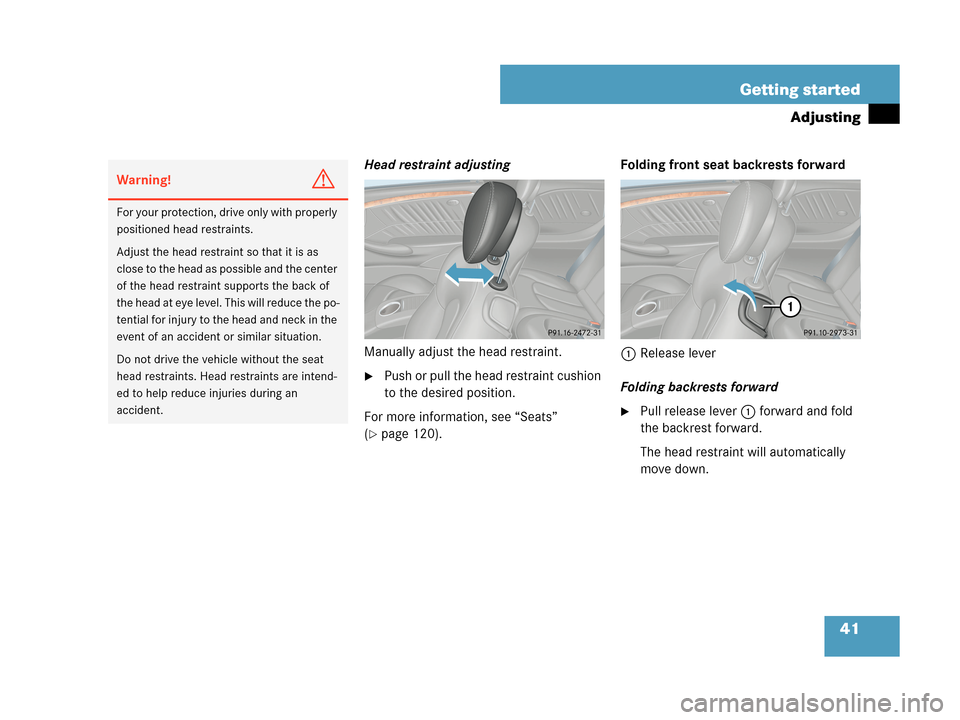

41 Getting started
Adjusting
Head restraint adjusting
Manually adjust the head restraint.
Push or pull the head restraint cushion
to the desired position.
For more information, see “Seats”
(
page 120).Folding front seat backrests forward
1Release lever
Folding backrests forward
Pull release lever1 forward and fold
the backrest forward.
The head restraint will automatically
move down.
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.

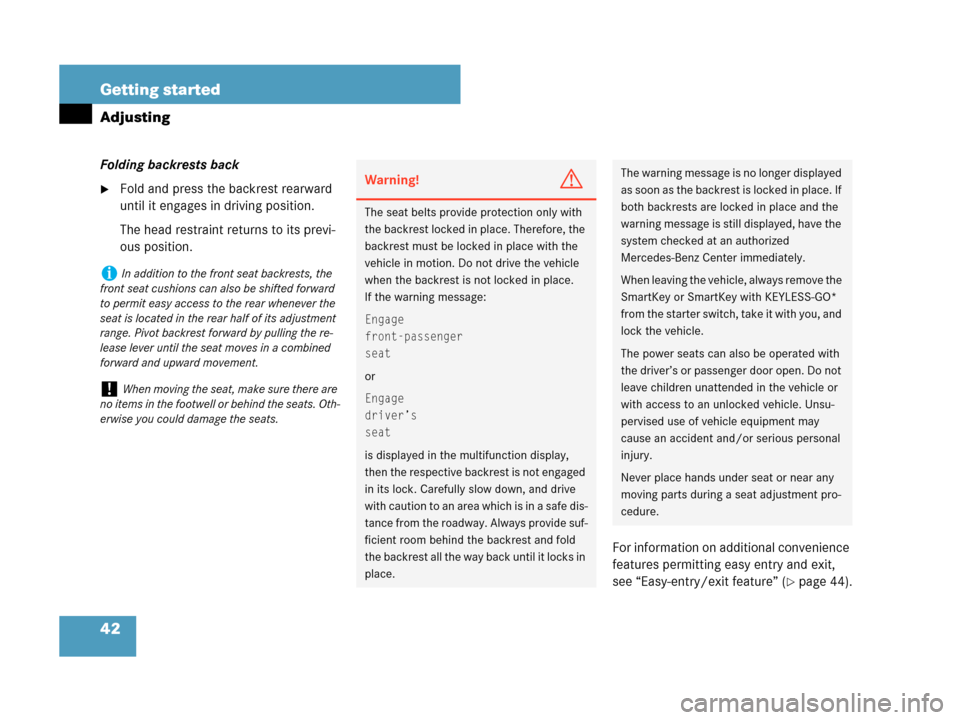

42 Getting started
Adjusting
Folding backrests back
Fold and press the backrest rearward
until it engages in driving position.
The head restraint returns to its previ-
ous position.
For information on additional convenience
features permitting easy entry and exit,
see “Easy-entry/exit feature” (
page 44).
iIn addition to the front seat backrests, the
front seat cushions can also be shifted forward
to permit easy access to the rear whenever the
seat is located in the rear half of its adjustment
range. Pivot backrest forward by pulling the re-
lease lever until the seat moves in a combined
forward and upward movement.
!When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.
Warning!G
The seat belts provide protection only with
the backrest locked in place. Therefore, the
backrest must be locked in place with the
vehicle in motion. Do not drive the vehicle
when the backrest is not locked in place.
If the warning message:
Engage
front-passenger
seat
or
Engage
driver’s
seat
is displayed in the multifunction display,
then the respective backrest is not engaged
in its lock. Carefully slow down, and drive
with caution to an area which is in a safe dis-
tance from the roadway. Always provide suf-
ficient room behind the backrest and fold
the backrest all the way back until it locks in
place.
The warning message is no longer displayed
as soon as the backrest is locked in place. If
both backrests are locked in place and the
warning message is still displayed, have the
system checked at an authorized
Mercedes-Benz Center immediately.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Never place hands under seat or near any
moving parts during a seat adjustment pro-
cedure.

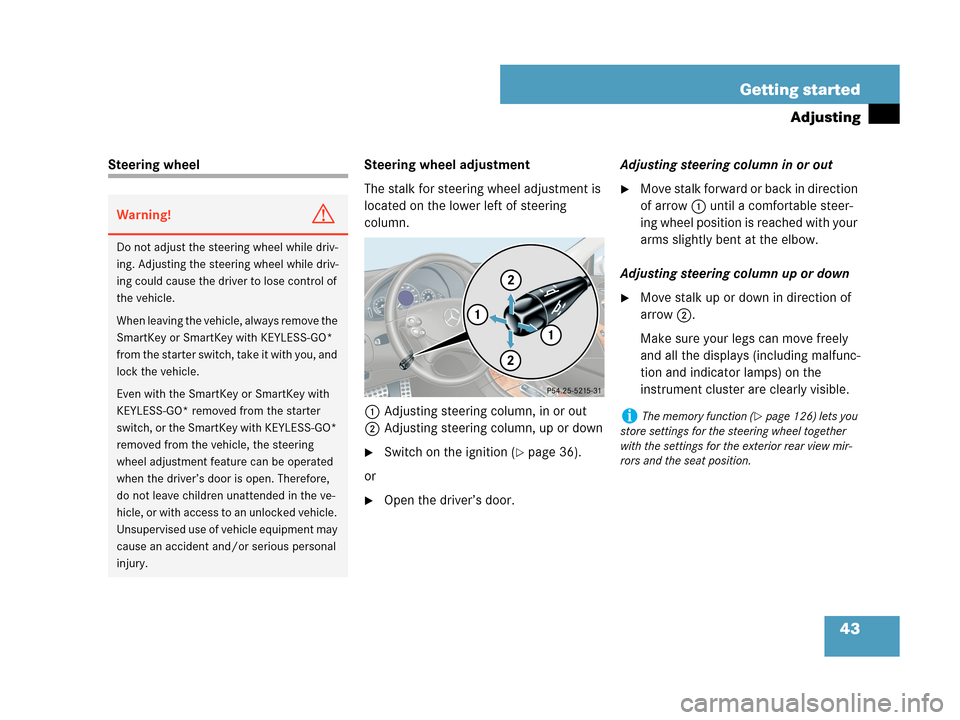

43 Getting started
Adjusting
Steering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the lower left of steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (page 36).
or
Open the driver’s door.Adjusting steering column in or out
Move stalk forward or back in direction
of arrow 1 until a comfortable steer-
ing wheel position is reached with your
arms slightly bent at the elbow.
Adjusting steering column up or down
Move stalk up or down in direction of
arrow 2.
Make sure your legs can move freely
and all the displays (including malfunc-
tion and indicator lamps) on the
instrument cluster are clearly visible.
Warning!G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch, or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
iThe memory function (page 126) lets you
store settings for the steering wheel together
with the settings for the exterior rear view mir-
rors and the seat position.

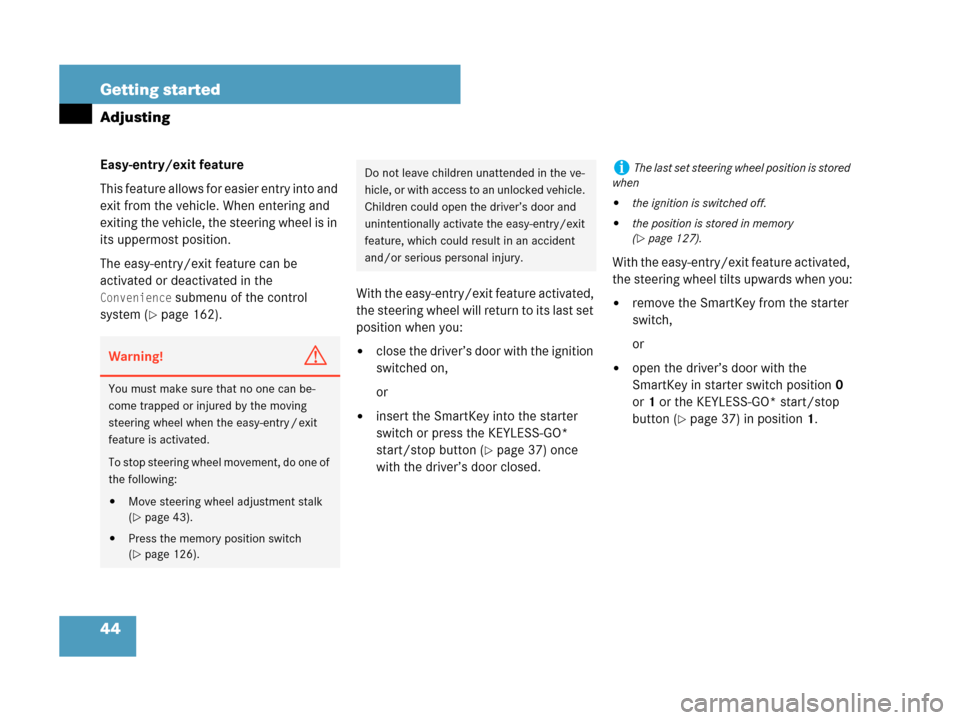

44 Getting started
Adjusting
Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the
Convenience submenu of the control
system (
page 162).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:

close the driver’s door with the ignition
switched on,
or

insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 37) once
with the driver’s door closed.With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:

remove the SmartKey from the starter
switch,
or

open the driver’s door with the
SmartKey in starter switch position0
or1 or the KEYLESS-GO* start/stop
button (
page 37) in position1.
Warning!G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel when the easy-entry / exit
feature is activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk
(
page 43).

Press the memory position switch
(
page 126).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.iThe last set steering wheel position is stored
when

the ignition is switched off.

the position is stored in memory
(
page 127).

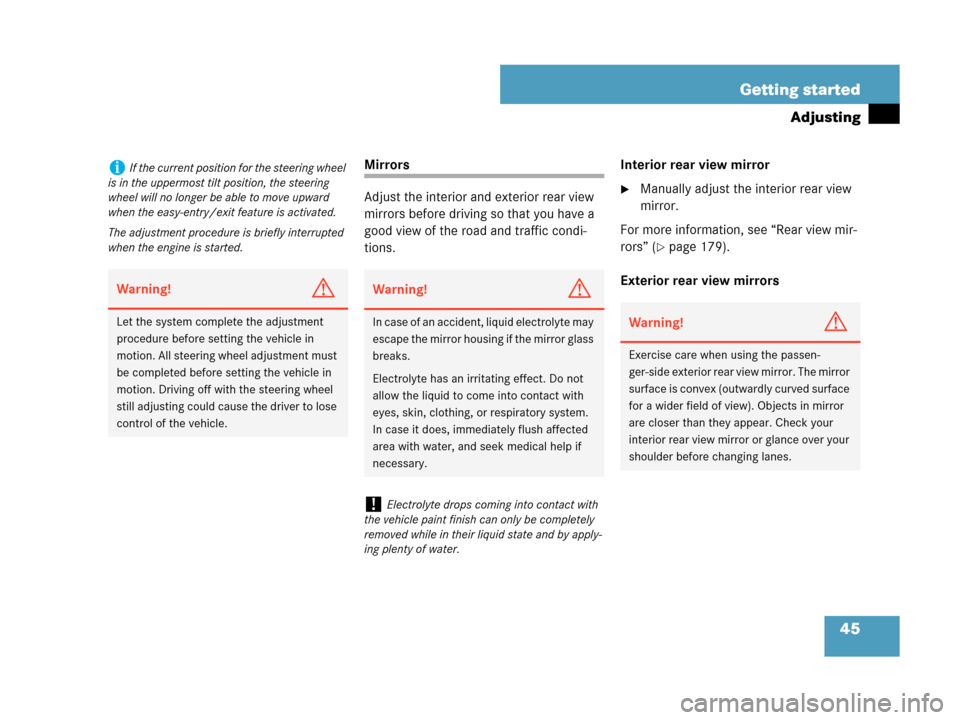

45 Getting started
Adjusting
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 179).
Exterior rear view mirrors
iIf the current position for the steering wheel
is in the uppermost tilt position, the steering
wheel will no longer be able to move upward
when the easy-entry/exit feature is activated.
The adjustment procedure is briefly interrupted
when the engine is started.
Warning!G
Let the system complete the adjustment
procedure before setting the vehicle in
motion. All steering wheel adjustment must
be completed before setting the vehicle in
motion. Driving off with the steering wheel
still adjusting could cause the driver to lose
control of the vehicle.
Warning!G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact with
the vehicle paint finish can only be completely
removed while in their liquid state and by apply-
ing plenty of water.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.

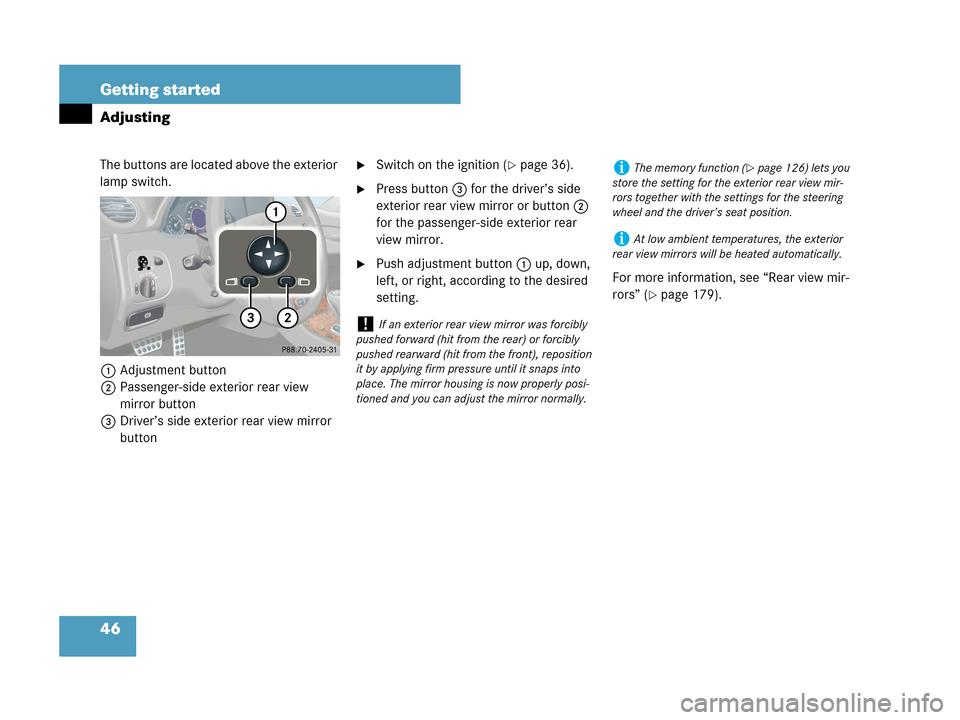

46 Getting started
Adjusting
The buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
buttonSwitch on the ignition (page 36).
Press button3 for the driver’s side
exterior rear view mirror or button2
for the passenger-side exterior rear
view mirror.
Push adjustment button1 up, down,
left, or right, according to the desired
setting.For more information, see “Rear view mir-
rors” (
page 179).
!If an exterior rear view mirror was forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), reposition
it by applying firm pressure until it snaps into
place. The mirror housing is now properly posi-
tioned and you can adjust the mirror normally.
iThe memory function (page 126) lets you
store the setting for the exterior rear view mir-
rors together with the settings for the steering
wheel and the driver’s seat position.
iAt low ambient temperatures, the exterior
rear view mirrors will be heated automatically.

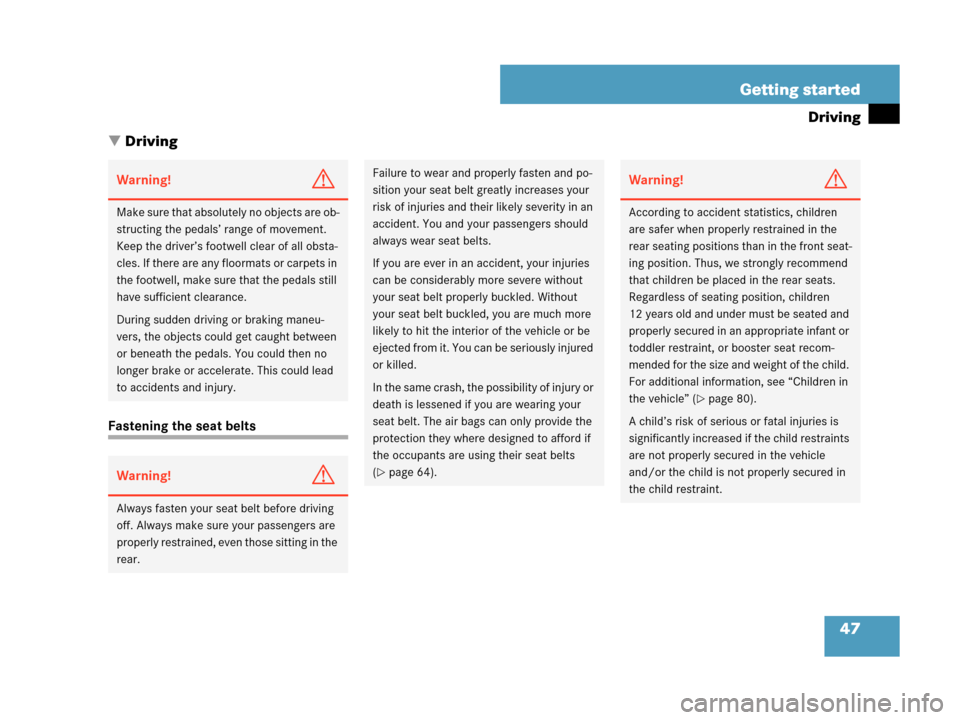

47 Getting started
Driving
Driving
Fastening the seat belts
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
or beneath the pedals. You could then no
longer brake or accelerate. This could lead
to accidents and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they where designed to afford if
the occupants are using their seat belts
(
page 64).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 80).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
