2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

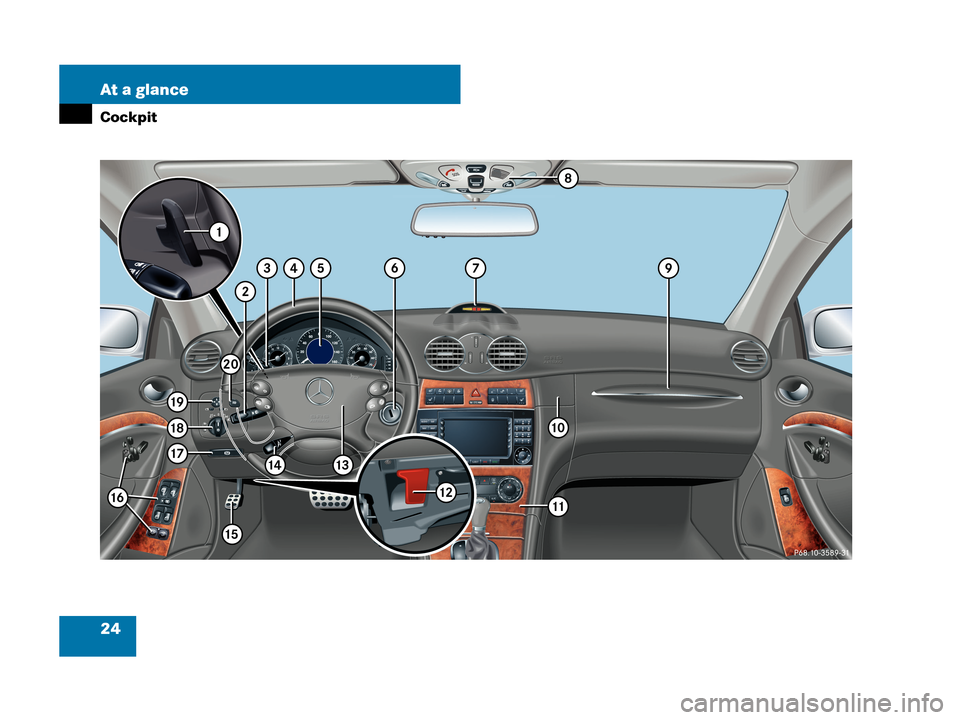

24 At a glance
Cockpit

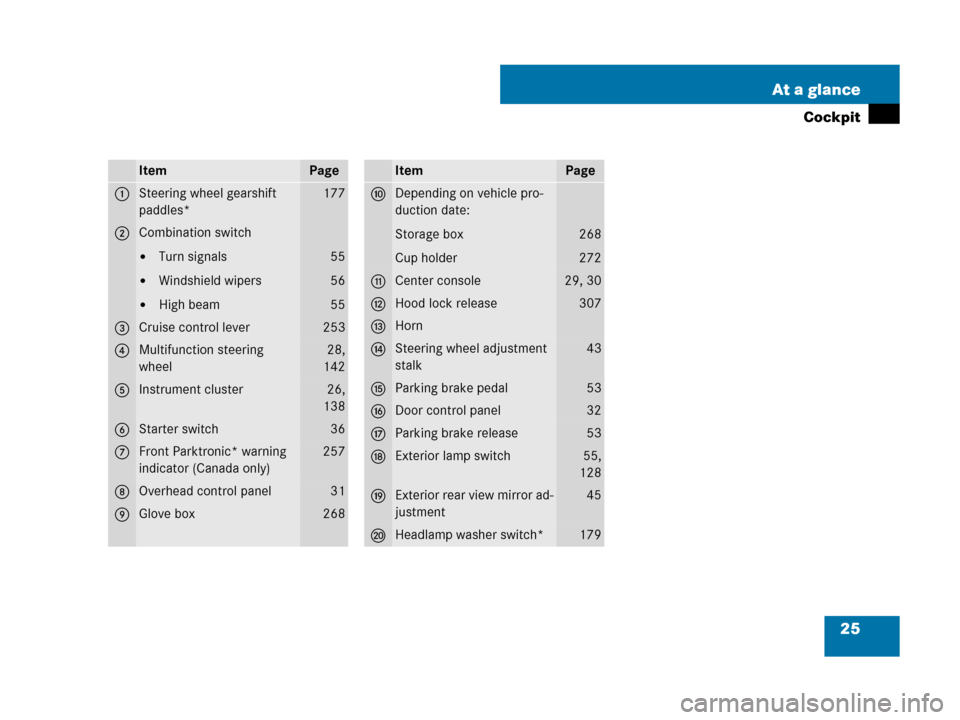

25 At a glance
Cockpit
ItemPage
1Steering wheel gearshift
paddles*177
2Combination switch

Turn signals

Windshield wipers

High beam
55
56
55
3Cruise control lever253
4Multifunction steering
wheel28,
142
5Instrument cluster26,
138
6Starter switch36
7Front Parktronic* warning
indicator (Canada only)257
8Overhead control panel31
9Glove box268
ItemPage
aDepending on vehicle pro-
duction date:
Storage box
Cup holder
268
272
bCenter console29, 30
cHood lock release307
dHorn
eSteering wheel adjustment
stalk43
fParking brake pedal53
gDoor control panel32
hParking brake release53
jExterior lamp switch55,
128
kExterior rear view mirror ad-
justment45
lHeadlamp washer switch*179

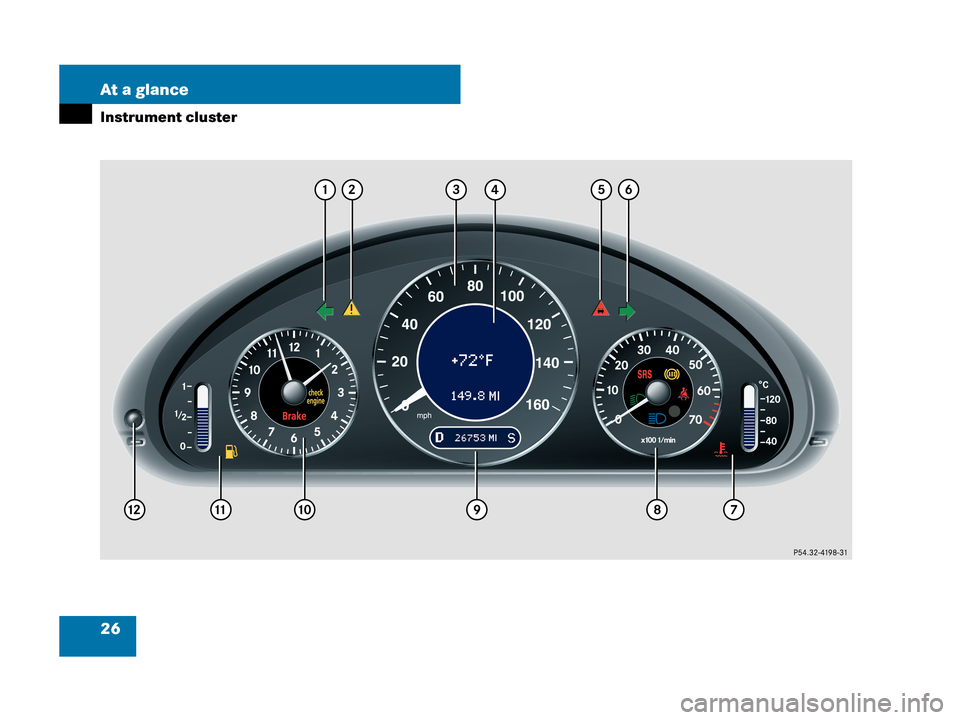

26 At a glance
Instrument cluster

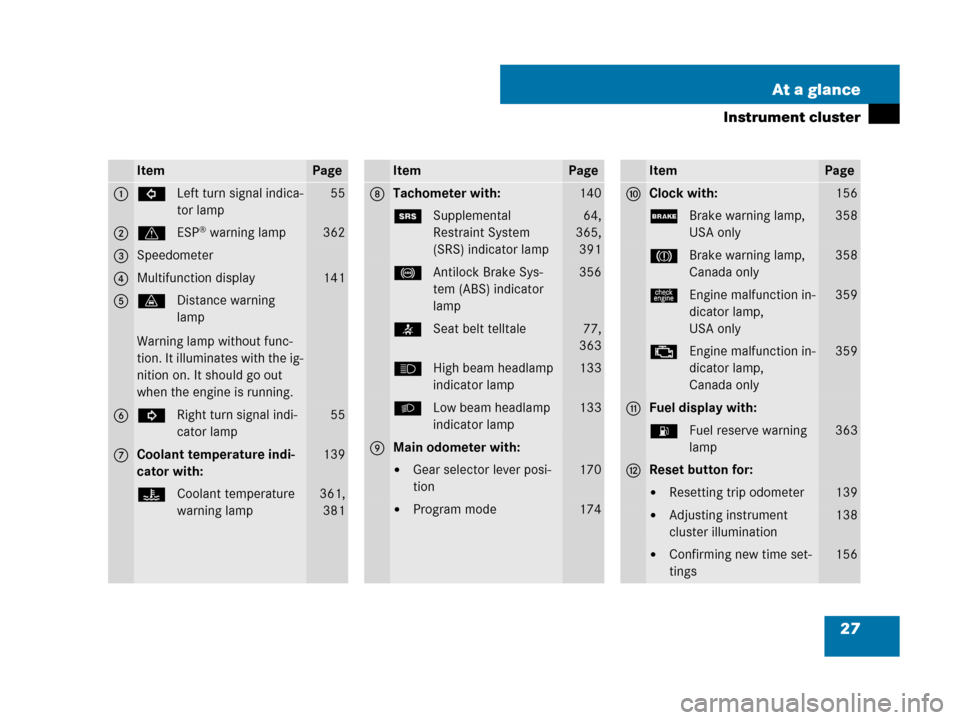

27 At a glance
Instrument cluster
ItemPage
1LLeft turn signal indica-
tor lamp55
2vESP® warning lamp362
3Speedometer
4Multifunction display141
5lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the ig-
nition on. It should go out
when the engine is running.
6KRight turn signal indi-
cator lamp55
7Coolant temperature indi-
cator with:139
•Coolant temperature
warning lamp361,
381
ItemPage
8Tachometer with:140
1Supplemental
Restraint System
(SRS) indicator lamp64,
365,
391
-Antilock Brake Sys-
tem (ABS) indicator
lamp356
363
AHigh beam headlamp
indicator lamp133
BLow beam headlamp
indicator lamp133
9Main odometer with:

Gear selector lever posi-
tion170

Program mode174
ItemPage
aClock with:156
;Brake warning lamp,
USA only358
3Brake warning lamp,
Canada only358
úEngine malfunction in-
dicator lamp,
USA only359
±Engine malfunction in-
dicator lamp,
Canada only359
bFuel display with:
AFuel reserve warning
lamp363
cReset button for:

Resetting trip odometer139

Adjusting instrument
cluster illumination138

Confirming new time set-
tings156

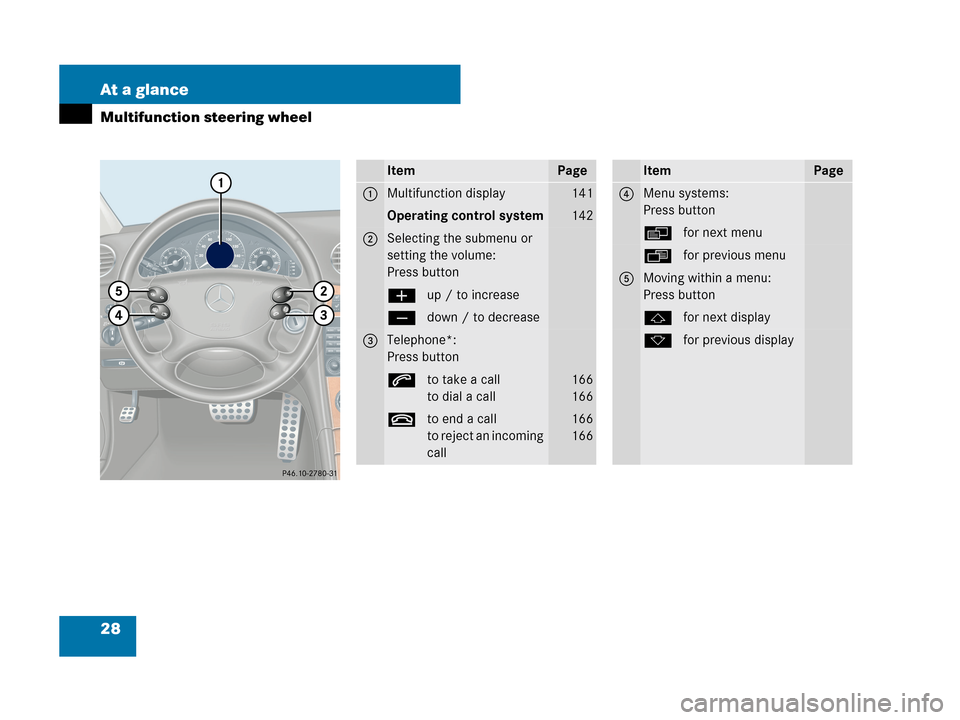

28 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display141
Operating control system142
2Selecting the submenu or
setting the volume:
Press button
æup / to increase
çdown / to decrease
3Telephone*:
Press button
sto take a call
to dial a call166
166
tto end a call
to reject an incoming
call166
166
ItemPage
4Menu systems:
Press button
èfor next menu
ÿfor previous menu
5Moving within a menu:
Press button
jfor next display
kfor previous display

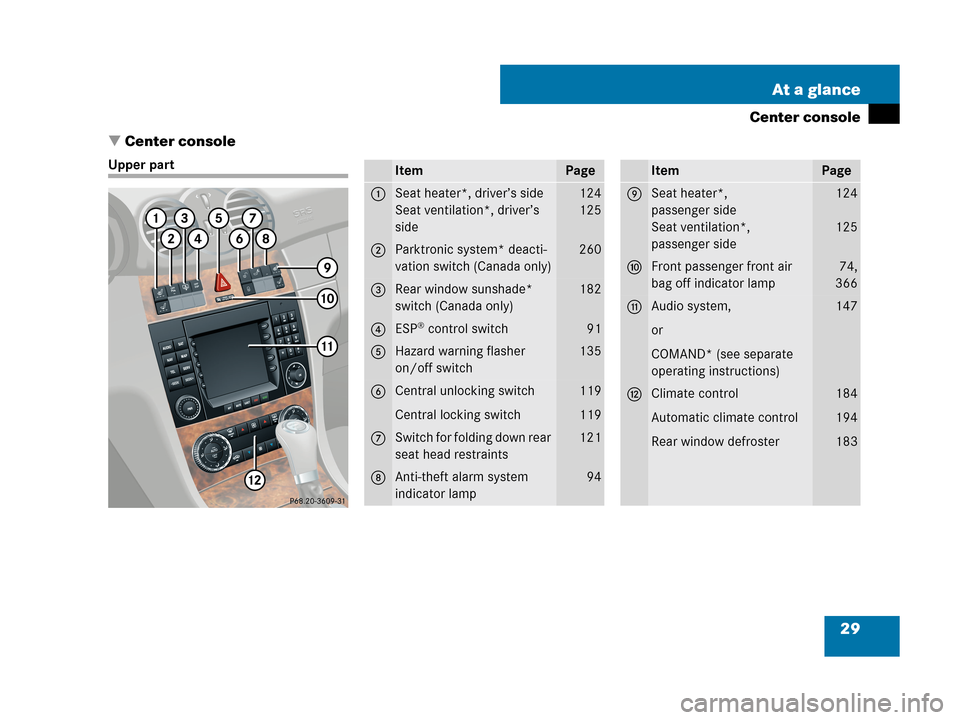

29 At a glance
Center console
Center console
Upper partItemPage
1Seat heater*, driver’s side
Seat ventilation*, driver’s
side124
125
2Parktronic system* deacti-
vation switch (Canada only)260
3Rear window sunshade*
switch (Canada only)182
4ESP® control switch91
5Hazard warning flasher
on/off switch135
6Central unlocking switch
Central locking switch119
119
7Switch for folding down rear
seat head restraints121
8Anti-theft alarm system
indicator lamp94
ItemPage
9Seat heater*,
passenger side
Seat ventilation*,
passenger side124
125
aFront passenger front air
bag off indicator lamp 74,
366
bAudio system,
or
COMAND* (see separate
operating instructions)147
cClimate control
Automatic climate control
Rear window defroster 184
194
183

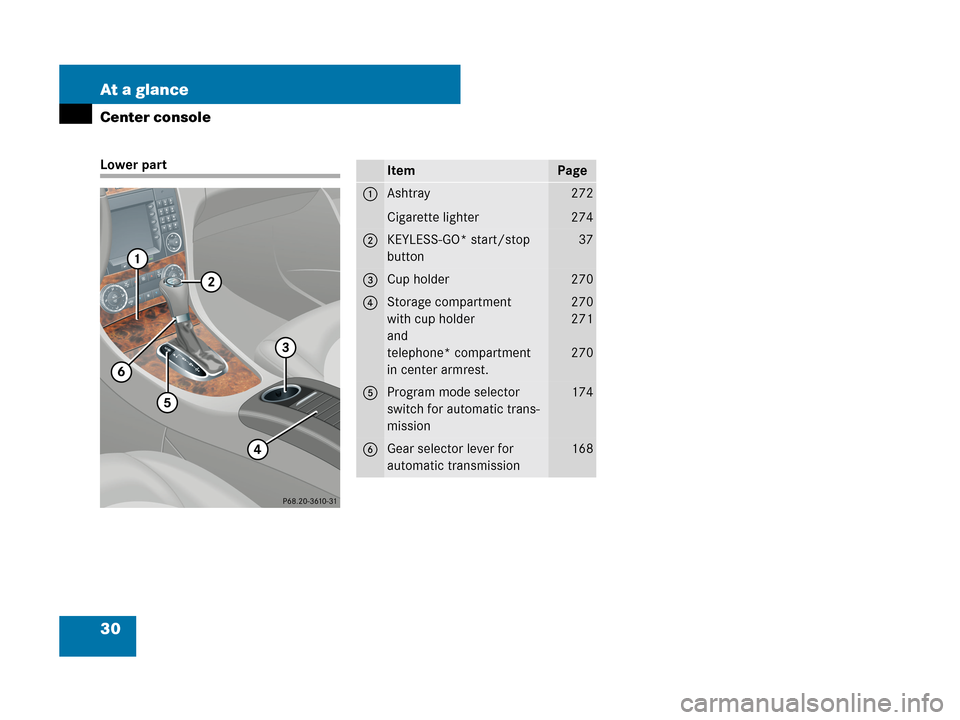

30 At a glance
Center console
Lower partItemPage
1Ashtray
Cigarette lighter272
274
2KEYLESS-GO* start/stop
button37
3Cup holder270
4Storage compartment
with cup holder
and
telephone* compartment
in center armrest.270
271
270
5Program mode selector
switch for automatic trans-
mission174
6Gear selector lever for
automatic transmission168

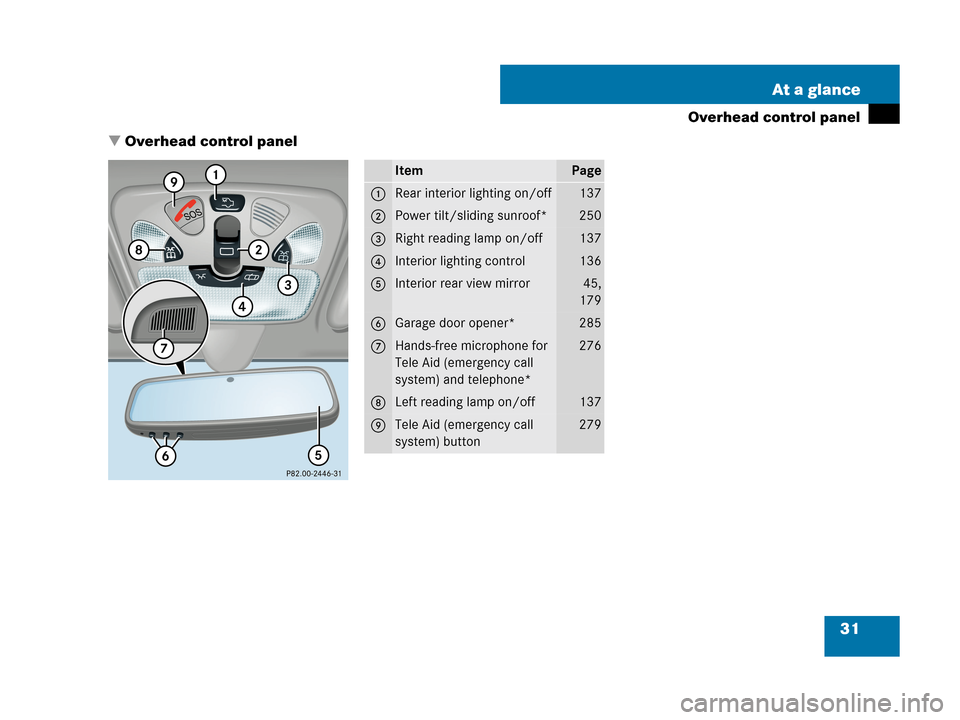

31 At a glance
Overhead control panel
Overhead control panel
ItemPage
1Rear interior lighting on/off137
2Power tilt/sliding sunroof* 250
3Right reading lamp on/off137
4Interior lighting control136
5Interior rear view mirror45,
179
6Garage door opener*285
7Hands-free microphone for
Tele Aid (emergency call
system) and telephone*276
8Left reading lamp on/off137
9Tele Aid (emergency call
system) button279
