2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

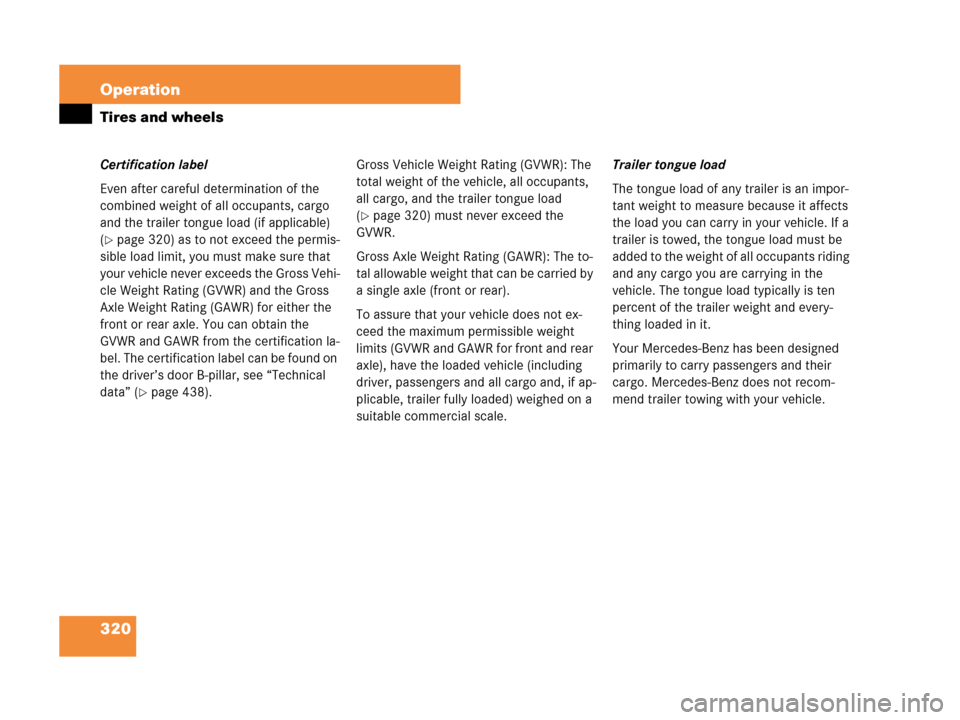

320 Operation
Tires and wheels
Certification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(
page 320) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the certification la-
bel. The certification label can be found on
the driver’s door B-pillar, see “Technical
data” (
page 438).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 320) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is ten
percent of the trailer weight and every-
thing loaded in it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

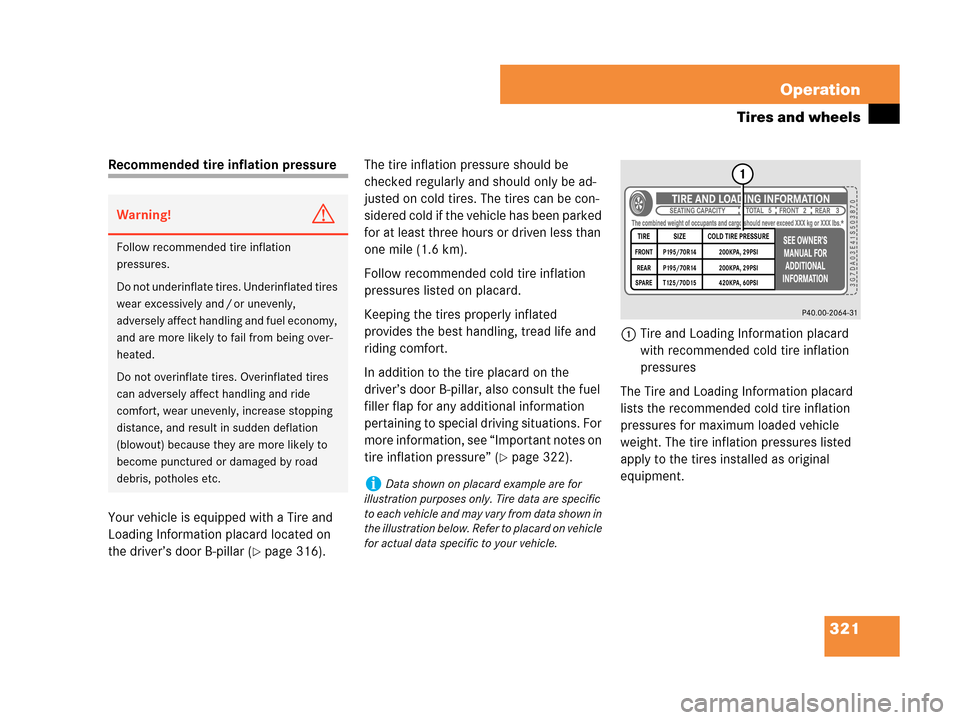

321 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with a Tire and
Loading Information placard located on
the driver’s door B-pillar (
page 316).The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least three hours or driven less than
one mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on placard.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.
In addition to the tire placard on the
driver’s door B-pillar, also consult the fuel
filler flap for any additional information
pertaining to special driving situations. For
more information, see “Important notes on
tire inflation pressure” (
page 322).1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and / or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
iData shown on placard example are for
illustration purposes only. Tire data are specific
to each vehicle and may vary from data shown in
the illustration below. Refer to placard on vehicle
for actual data specific to your vehicle.

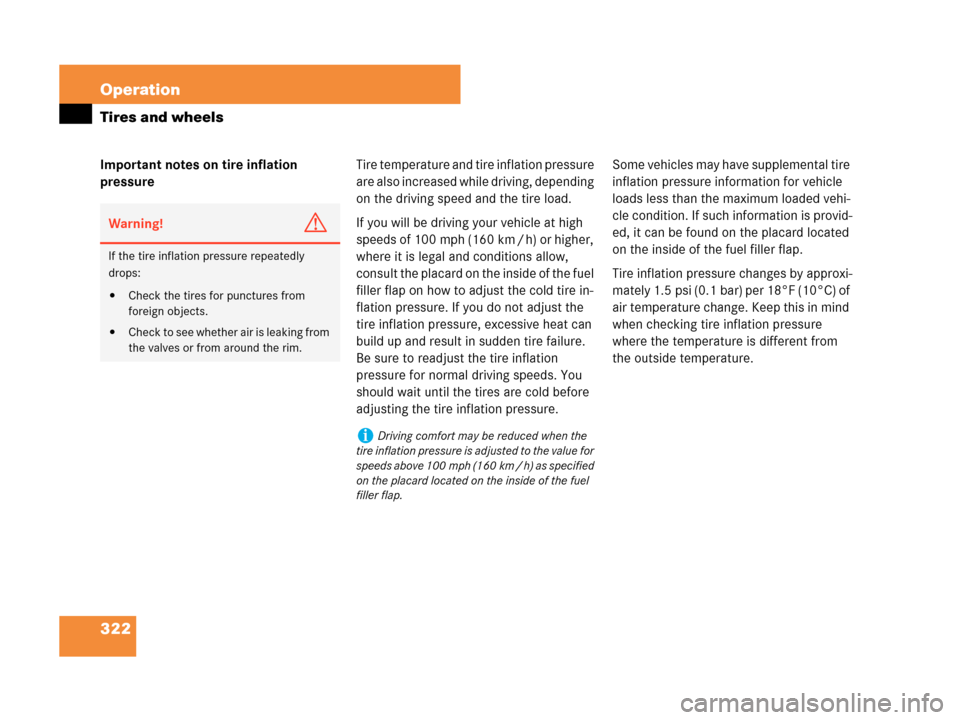

322 Operation
Tires and wheels
Important notes on tire inflation
pressureTire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160 km / h) or higher,
where it is legal and conditions allow,
consult the placard on the inside of the fuel
filler flap on how to adjust the cold tire in-
flation pressure. If you do not adjust the
tire inflation pressure, excessive heat can
build up and result in sudden tire failure.
Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure. Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition. If such information is provid-
ed, it can be found on the placard located
on the inside of the fuel filler flap.
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Warning!G
If the tire inflation pressure repeatedly
drops:

Check the tires for punctures from
foreign objects.

Check to see whether air is leaking from
the valves or from around the rim.
iDriving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 100 mph (160 km / h) as specified
on the placard located on the inside of the fuel
filler flap.

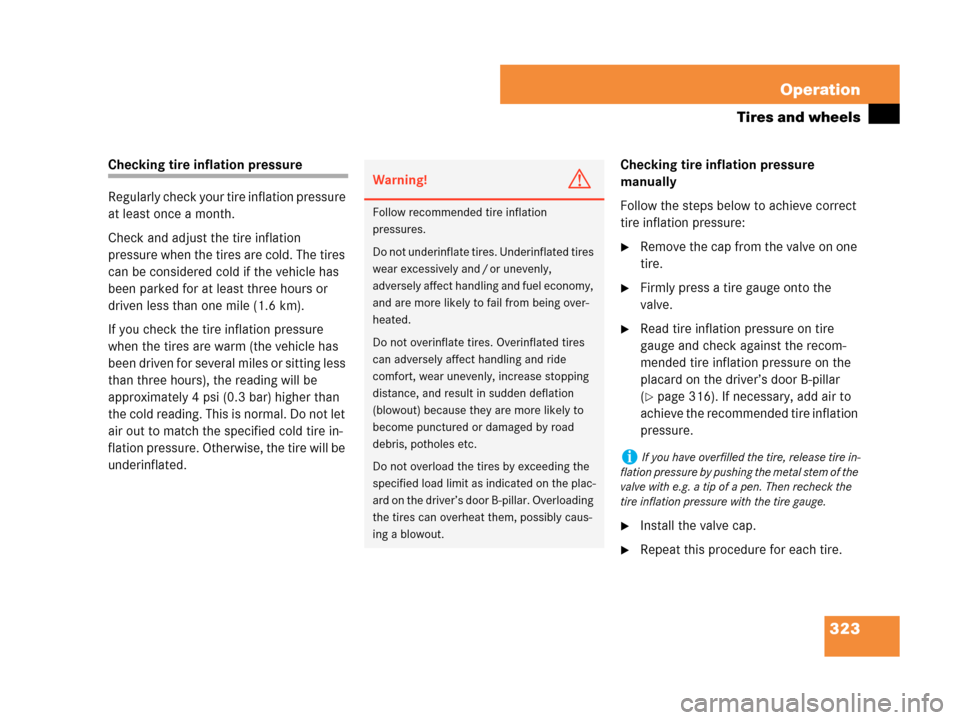

323 Operation
Tires and wheels
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least three hours or
driven less than one mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than three hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.
Firmly press a tire gauge onto the
valve.
Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(
page 316). If necessary, add air to
achieve the recommended tire inflation
pressure.
Install the valve cap.
Repeat this procedure for each tire.
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and / or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the plac-
ard on the driver’s door B-pillar. Overloading
the tires can overheat them, possibly caus-
ing a blowout.
iIf you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.

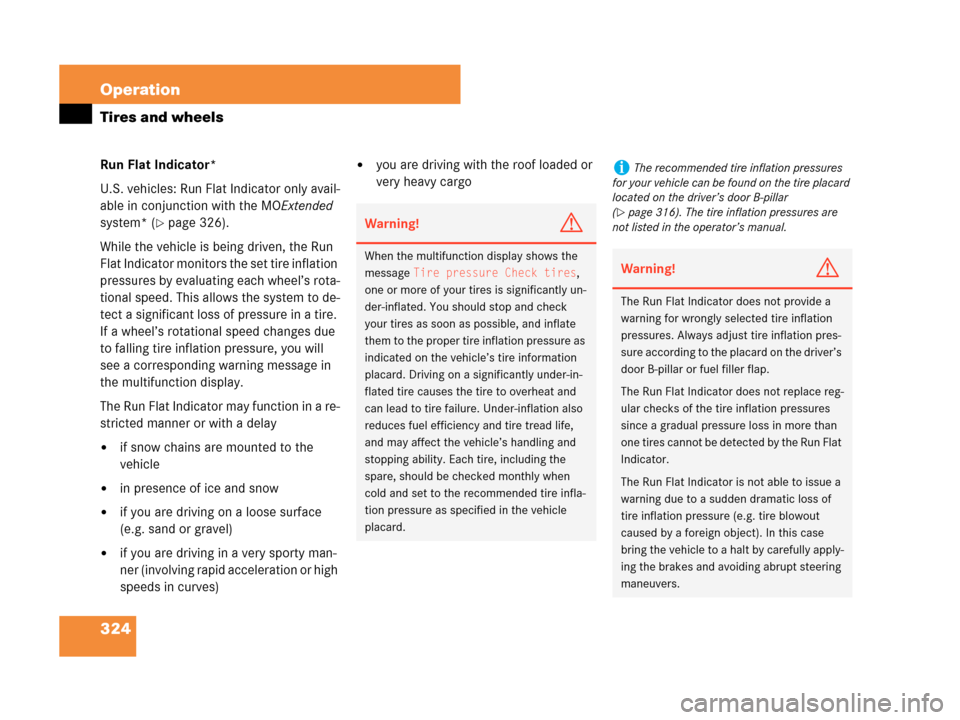

324 Operation
Tires and wheels
Run Flat Indicator*
U.S. vehicles: Run Flat Indicator only avail-
able in conjunction with the MOExtended
system* (
page 326).
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a re-
stricted manner or with a delay

if snow chains are mounted to the
vehicle

in presence of ice and snow

if you are driving on a loose surface
(e.g. sand or gravel)

if you are driving in a very sporty man-
ner (involving rapid acceleration or high
speeds in curves)

you are driving with the roof loaded or
very heavy cargo
Warning!G
When the multifunction display shows the
message
Tire pressure Check tires,
one or more of your tires is significantly un-
der-inflated. You should stop and check
your tires as soon as possible, and inflate
them to the proper tire inflation pressure as
indicated on the vehicle’s tire information
placard. Driving on a significantly under-in-
flated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Each tire, including the
spare, should be checked monthly when
cold and set to the recommended tire infla-
tion pressure as specified in the vehicle
placard.
iThe recommended tire inflation pressures
for your vehicle can be found on the tire placard
located on the driver’s door B-pillar
(
page 316). The tire inflation pressures are
not listed in the operator’s manual.
Warning!G
The Run Flat Indicator does not provide a
warning for wrongly selected tire inflation
pressures. Always adjust tire inflation pres-
sure according to the placard on the driver’s
door B-pillar or fuel filler flap.
The Run Flat Indicator does not replace reg-
ular checks of the tire inflation pressures
since a gradual pressure loss in more than
one tires cannot be detected by the Run Flat
Indicator.
The Run Flat Indicator is not able to issue a
warning due to a sudden dramatic loss of
tire inflation pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.

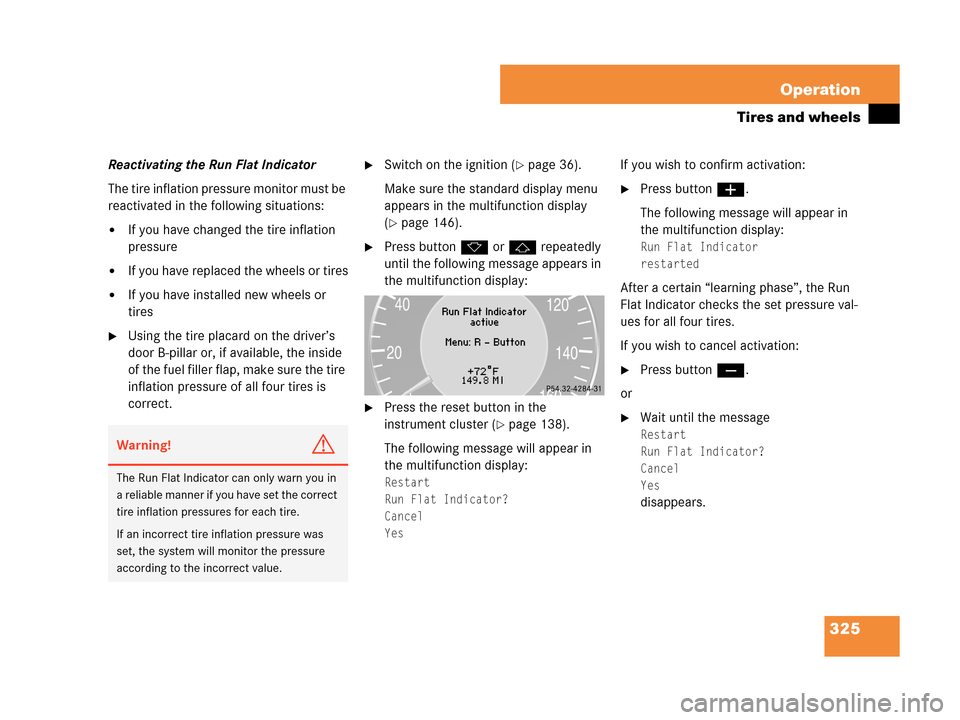

325 Operation
Tires and wheels
Reactivating the Run Flat Indicator
The tire inflation pressure monitor must be
reactivated in the following situations:

If you have changed the tire inflation
pressure

If you have replaced the wheels or tires

If you have installed new wheels or
tires
Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is
correct.
Switch on the ignition (page 36).
Make sure the standard display menu
appears in the multifunction display
(
page 146).
Press buttonk orj repeatedly
until the following message appears in
the multifunction display:
Press the reset button in the
instrument cluster (
page 138).
The following message will appear in
the multifunction display:
Restart
Run Flat Indicator?
Cancel
Yes
If you wish to confirm activation:
Press buttonæ.
The following message will appear in
the multifunction display:
Run Flat Indicator
restarted
After a certain “learning phase”, the Run
Flat Indicator checks the set pressure val-
ues for all four tires.
If you wish to cancel activation:
Press buttonç.
or
Wait until the message
Restart
Run Flat Indicator?
Cancel
Yes
disappears.
Warning!G
The Run Flat Indicator can only warn you in
a reliable manner if you have set the correct
tire inflation pressures for each tire.
If an incorrect tire inflation pressure was
set, the system will monitor the pressure
according to the incorrect value.

326 Operation
Tires and wheels

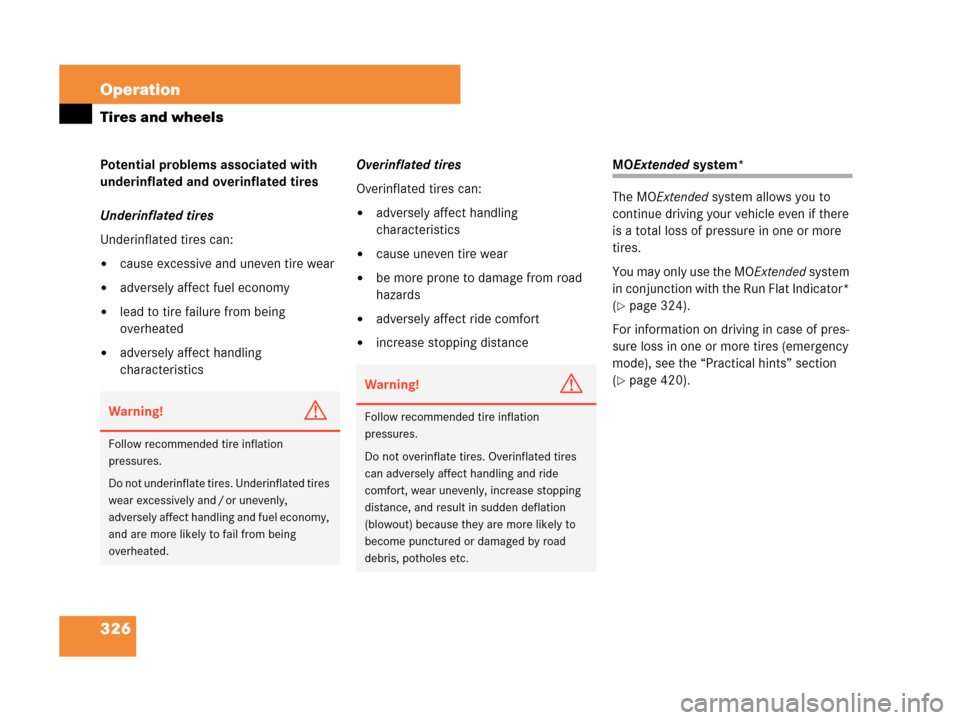

Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:

cause excessive and uneven tire wear

adversely affect fuel economy

lead to tire failure from being
overheated

adversely affect handling
characteristicsOverinflated tires
Overinflated tires can:

adversely affect handling
characteristics

cause uneven tire wear

be more prone to damage from road
hazards

adversely affect ride comfort

increase stopping distance
MOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
in conjunction with the Run Flat Indicator*
(
page 324).
For information on driving in case of pres-
sure loss in one or more tires (emergency
mode), see the “Practical hints” section
(
page 420).
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and / or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.

327 Operation
Tires and wheels

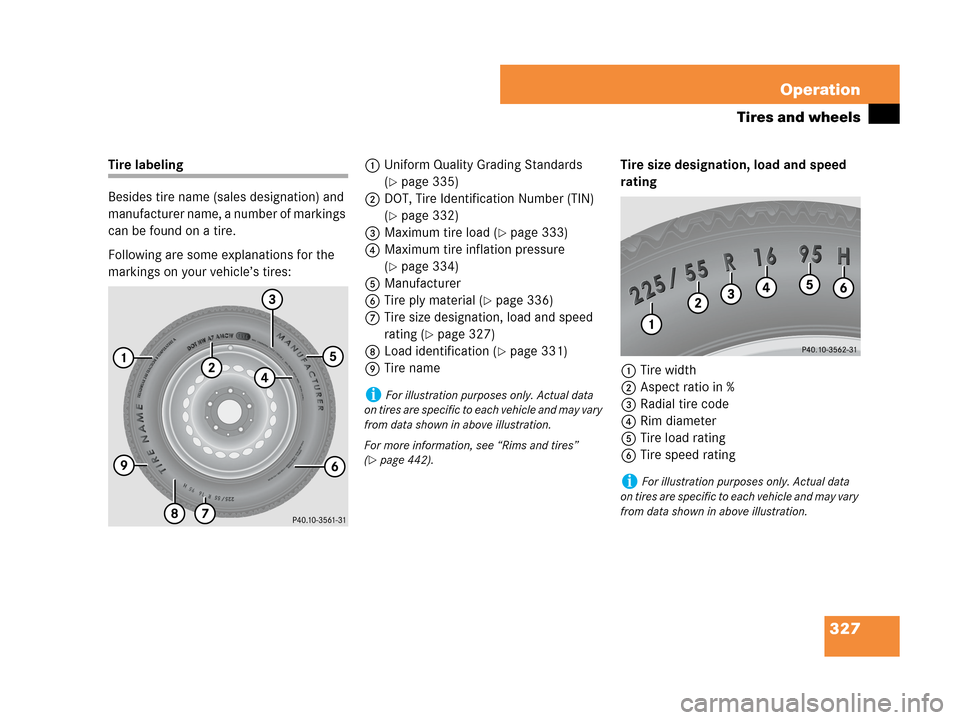

Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 335)
2DOT, Tire Identification Number (TIN)
(
page 332)
3Maximum tire load (
page 333)
4Maximum tire inflation pressure
(
page 334)
5Manufacturer
6Tire ply material (
page 336)
7Tire size designation, load and speed
rating (
page 327)
8Load identification (
page 331)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 442).
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
