2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

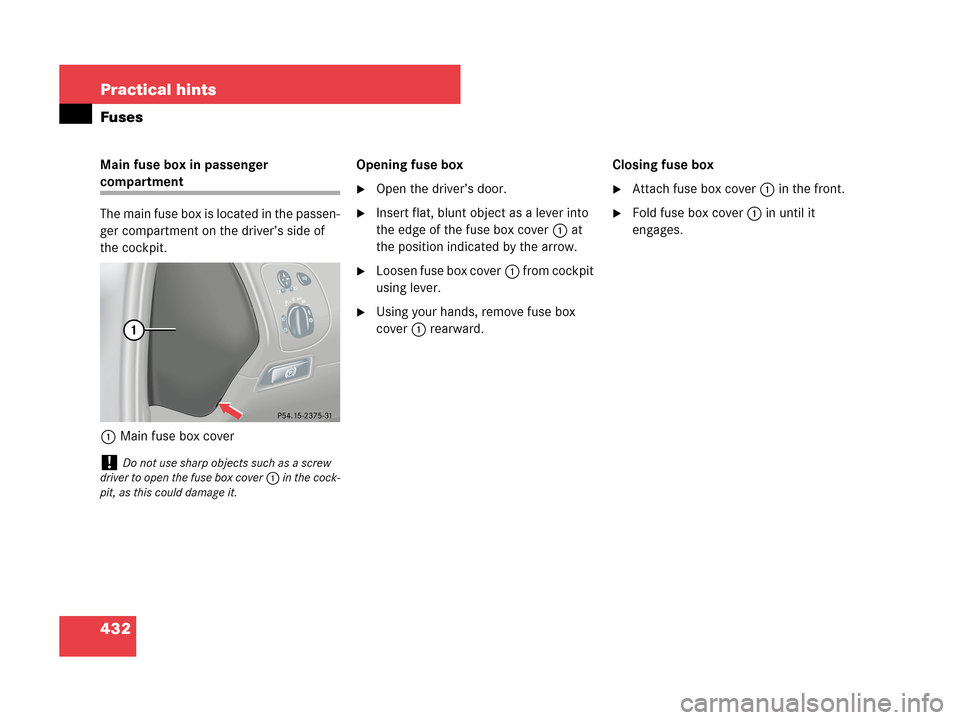

432 Practical hints
Fuses
Main fuse box in passenger
compartment
The main fuse box is located in the passen-
ger compartment on the driver’s side of
the cockpit.
1Main fuse box coverOpening fuse boxOpen the driver’s door.
Insert flat, blunt object as a lever into
the edge of the fuse box cover1 at
the position indicated by the arrow.
Loosen fuse box cover1 from cockpit
using lever.
Using your hands, remove fuse box
cover1 rearward.Closing fuse box
Attach fuse box cover1 in the front.
Fold fuse box cover1 in until it
engages.
!Do not use sharp objects such as a screw
driver to open the fuse box cover1 in the cock-
pit, as this could damage it.

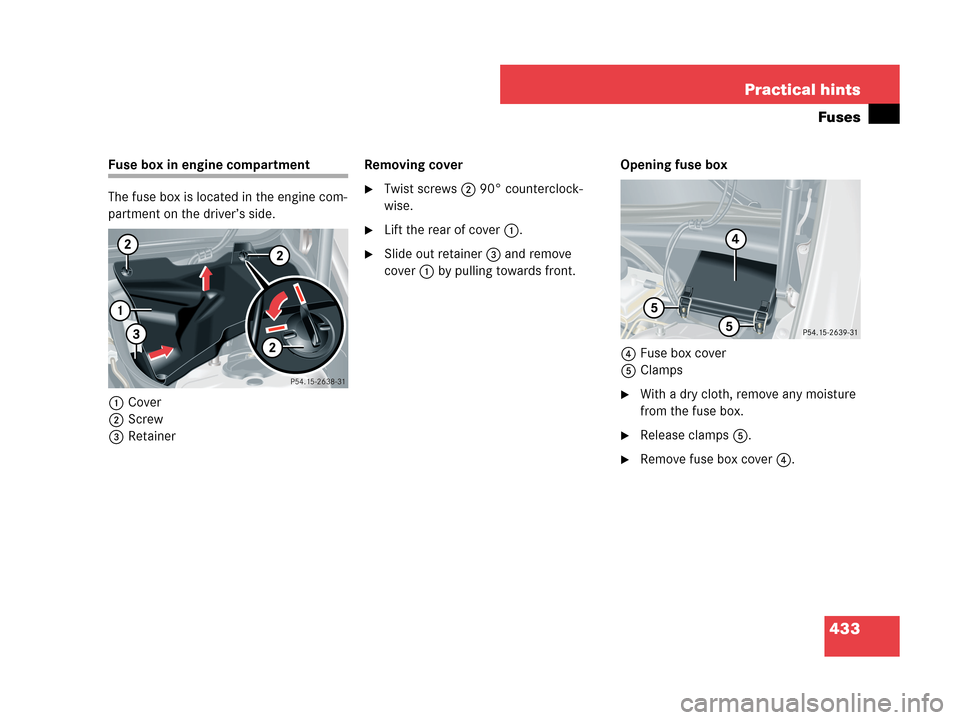

433 Practical hints
Fuses
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the driver’s side.
1Cover
2Screw
3RetainerRemoving cover
Twist screws2 90° counterclock-
wise.
Lift the rear of cover1.
Slide out retainer3 and remove
cover1 by pulling towards front.Opening fuse box
4Fuse box cover
5Clamps
With a dry cloth, remove any moisture
from the fuse box.
Release clamps5.
Remove fuse box cover4.

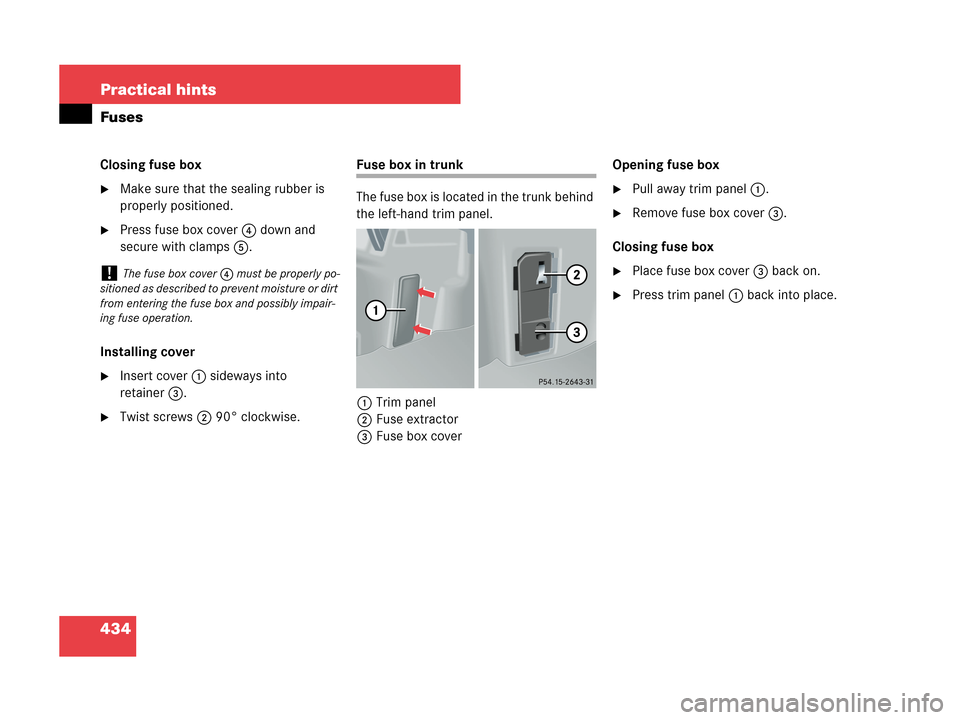

434 Practical hints
Fuses
Closing fuse box
Make sure that the sealing rubber is
properly positioned.
Press fuse box cover4 down and
secure with clamps5.
Installing cover
Insert cover1 sideways into
retainer3.
Twist screws2 90° clockwise.
Fuse box in trunk
The fuse box is located in the trunk behind
the left-hand trim panel.
1Trim panel
2Fuse extractor
3Fuse box coverOpening fuse box
Pull away trim panel1.
Remove fuse box cover3.
Closing fuse box
Place fuse box cover3 back on.
Press trim panel1 back into place.
!The fuse box cover4 must be properly po-
sitioned as described to prevent moisture or dirt
from entering the fuse box and possibly impair-
ing fuse operation.

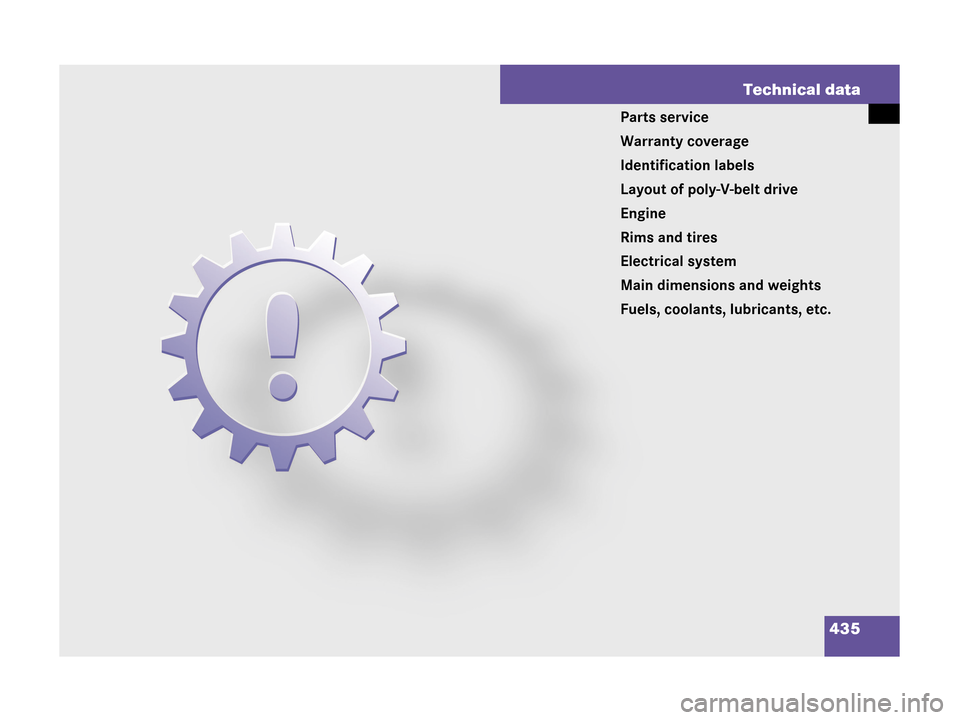

435 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

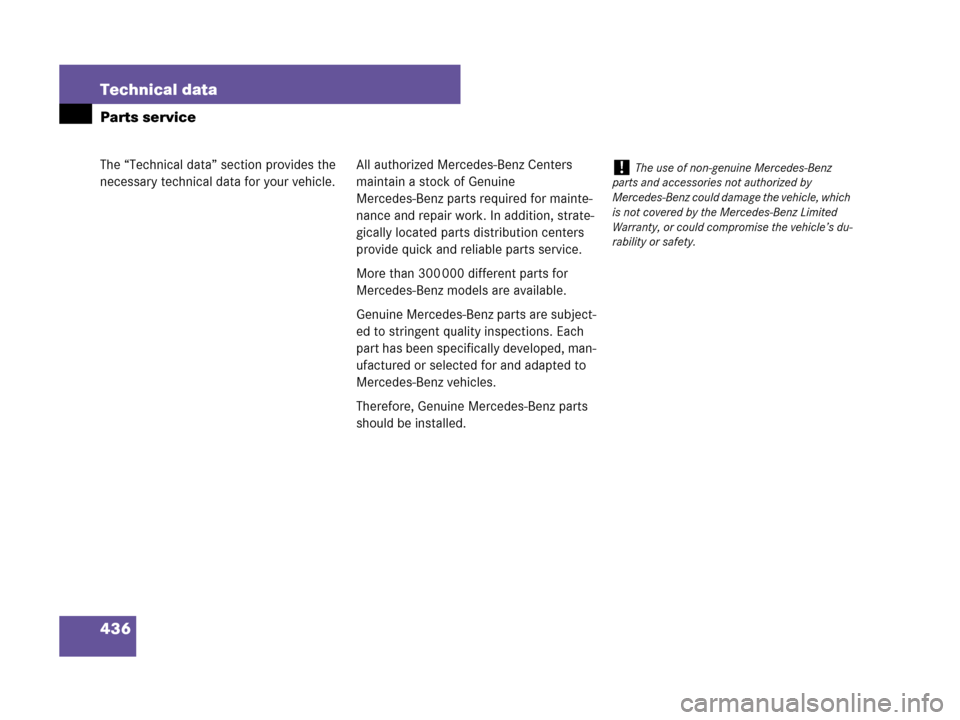

436 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

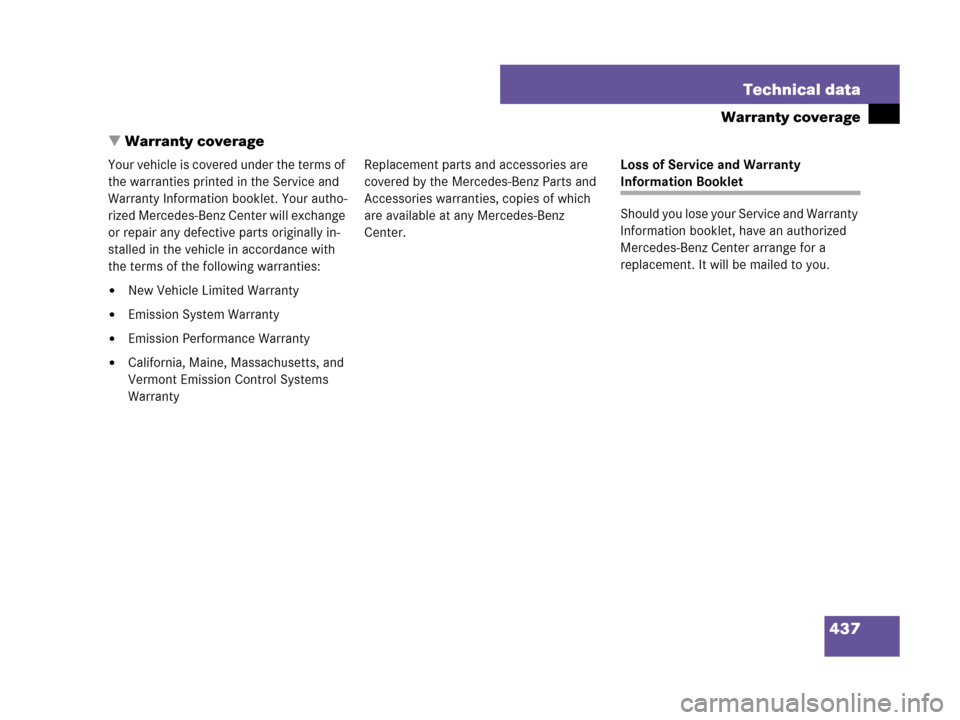

437 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled in the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

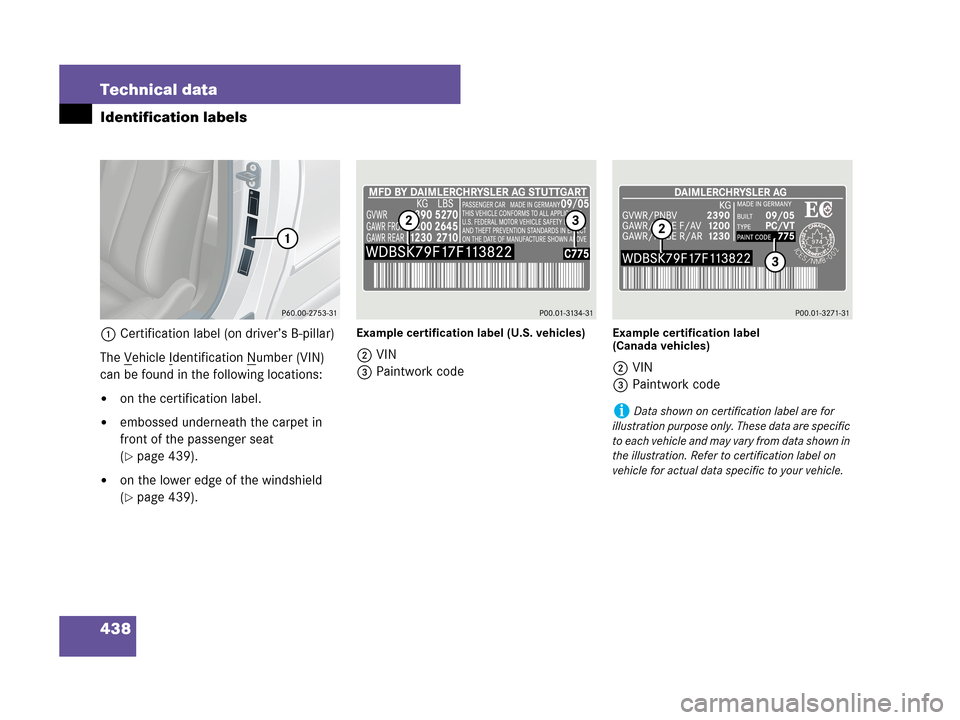

438 Technical data
Identification labels
1Certification label (on driver’s B-pillar)
The V
ehicle Identification Number (VIN)
can be found in the following locations:

on the certification label.

embossed underneath the carpet in
front of the passenger seat
(
page 439).

on the lower edge of the windshield
(
page 439).
Example certification label (U.S. vehicles)
2VIN
3Paintwork code
Example certification label
(Canada vehicles)
2VIN
3Paintwork code
iData shown on certification label are for
illustration purpose only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to certification label on
vehicle for actual data specific to your vehicle.

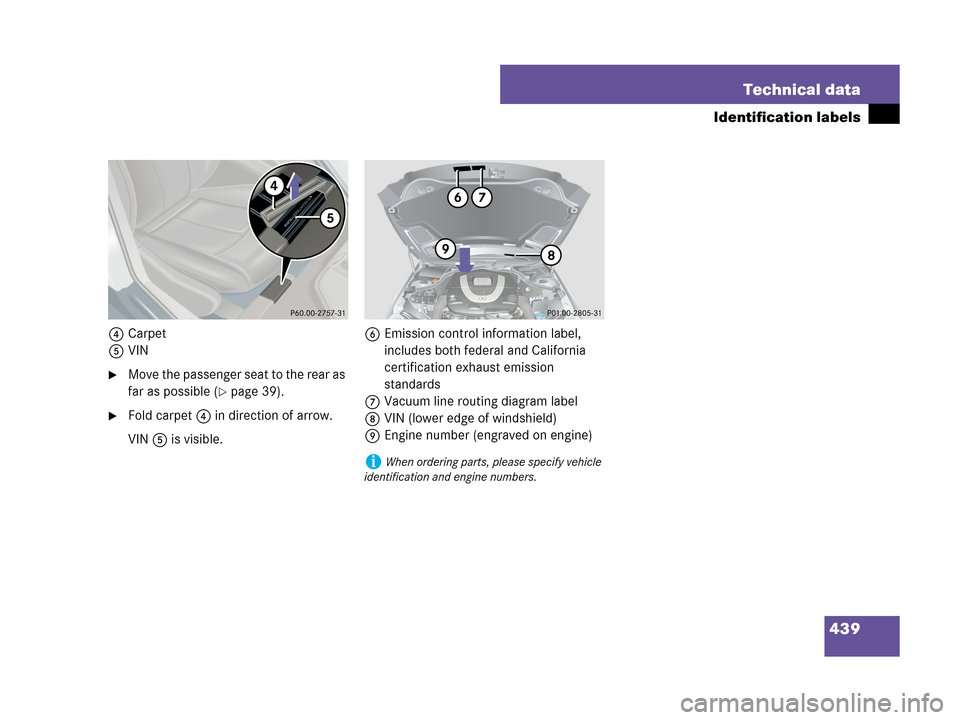

439 Technical data
Identification labels
4Carpet
5VIN
Move the passenger seat to the rear as
far as possible (
page 39).
Fold carpet4 in direction of arrow.
VIN5 is visible.6Emission control information label,
includes both federal and California
certification exhaust emission
standards
7Vacuum line routing diagram label
8VIN (lower edge of windshield)
9Engine number (engraved on engine)
iWhen ordering parts, please specify vehicle
identification and engine numbers.
