2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

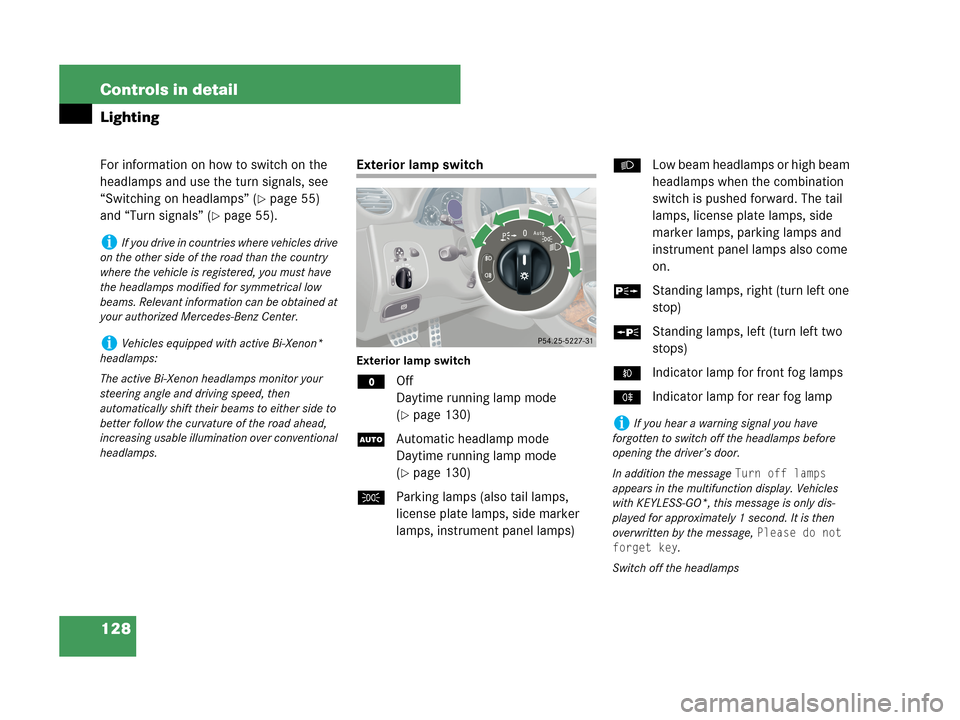

128 Controls in detail
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 55)
and “Turn signals” (
page 55).
Exterior lamp switch
Exterior lamp switch
MOff
Daytime running lamp mode
(
page 130)
UAutomatic headlamp mode
Daytime running lamp mode
(
page 130)
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)BLow beam headlamps or high beam
headlamps when the combination
switch is pushed forward. The tail
lamps, license plate lamps, side
marker lamps, parking lamps and
instrument panel lamps also come
on.
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles drive
on the other side of the road than the country
where the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.
iVehicles equipped with active Bi-Xenon*
headlamps:
The active Bi-Xenon headlamps monitor your
steering angle and driving speed, then
automatically shift their beams to either side to
better follow the curvature of the road ahead,
increasing usable illumination over conventional
headlamps.
iIf you hear a warning signal you have
forgotten to switch off the headlamps before
opening the driver’s door.
In addition the message
Turn off lamps
appears in the multifunction display. Vehicles
with KEYLESS-GO*, this message is only dis-
played for approximately 1 second. It is then
overwritten by the message,
Please do not
forget key
.
Switch off the headlamps

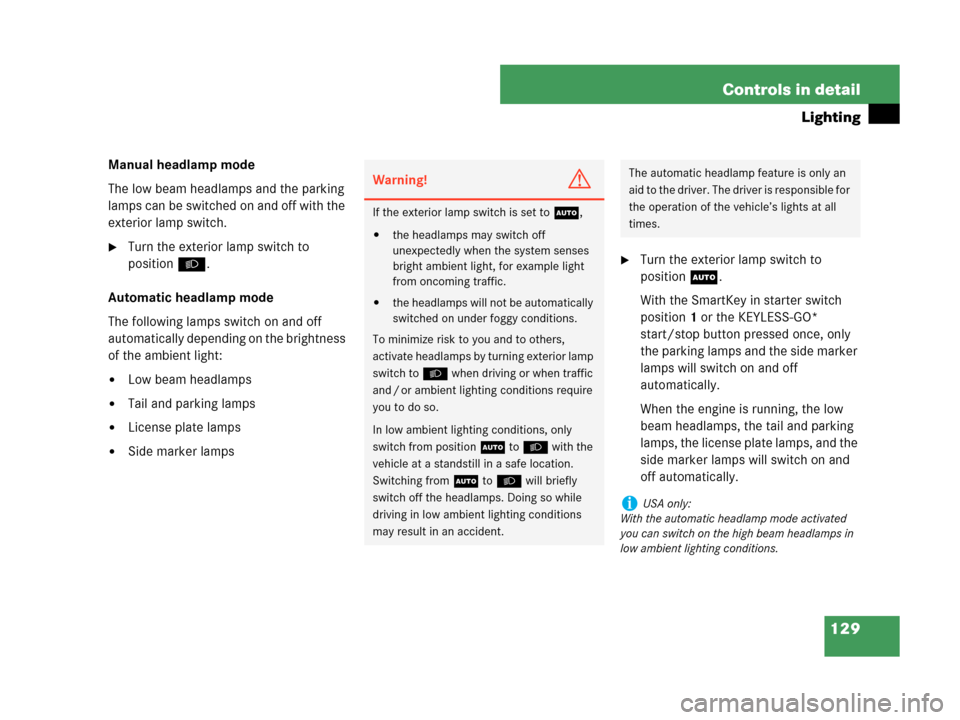

129 Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Turn the exterior lamp switch to
positionB.
Automatic headlamp mode
The following lamps switch on and off
automatically depending on the brightness
of the ambient light:

Low beam headlamps

Tail and parking lamps

License plate lamps

Side marker lamps
Turn the exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1 or the KEYLESS-GO*
start/stop button pressed once, only
the parking lamps and the side marker
lamps will switch on and off
automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.
Warning!G
If the exterior lamp switch is set toU,

the headlamps may switch off
unexpectedly when the system senses
bright ambient light, for example light
from oncoming traffic.

the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch to B when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill in a safe location.
Switching from U to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
iUSA only:
With the automatic headlamp mode activated
you can switch on the high beam headlamps in
low ambient lighting conditions.

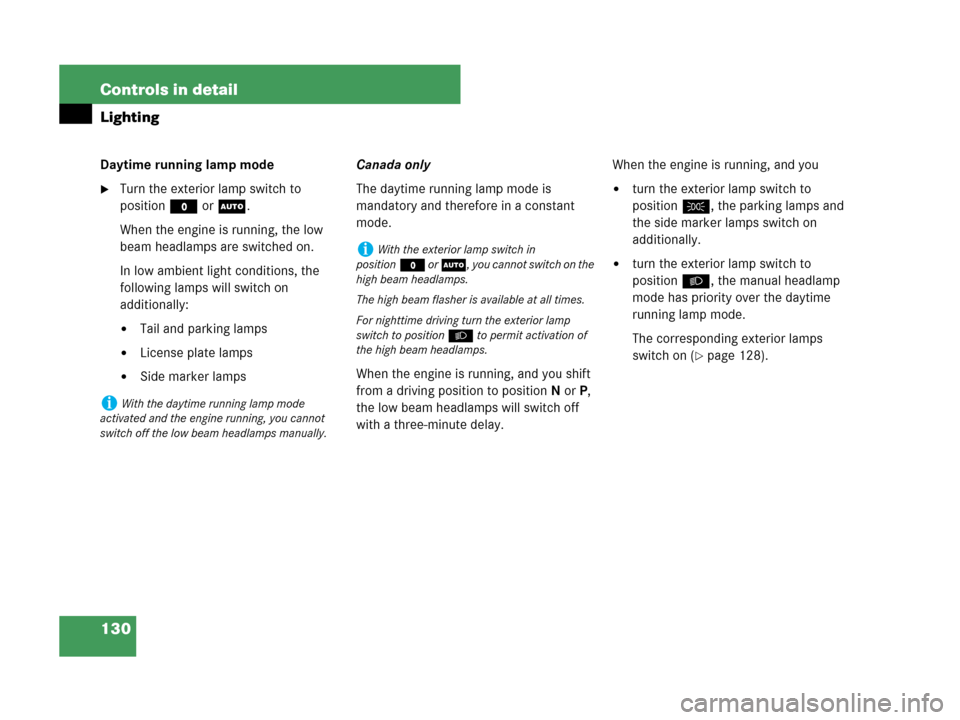

130 Controls in detail
Lighting
Daytime running lamp mode
Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the
following lamps will switch on
additionally:

Tail and parking lamps

License plate lamps

Side marker lampsCanada only
The daytime running lamp mode is
mandatory and therefore in a constant
mode.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.When the engine is running, and you

turn the exterior lamp switch to
positionC, the parking lamps and
the side marker lamps switch on
additionally.

turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps
switch on (
page 128).
iWith the daytime running lamp mode
activated and the engine running, you cannot
switch off the low beam headlamps manually.
iWith the exterior lamp switch in
positionM or U, you cannot switch on the
high beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB to permit activation of
the high beam headlamps.

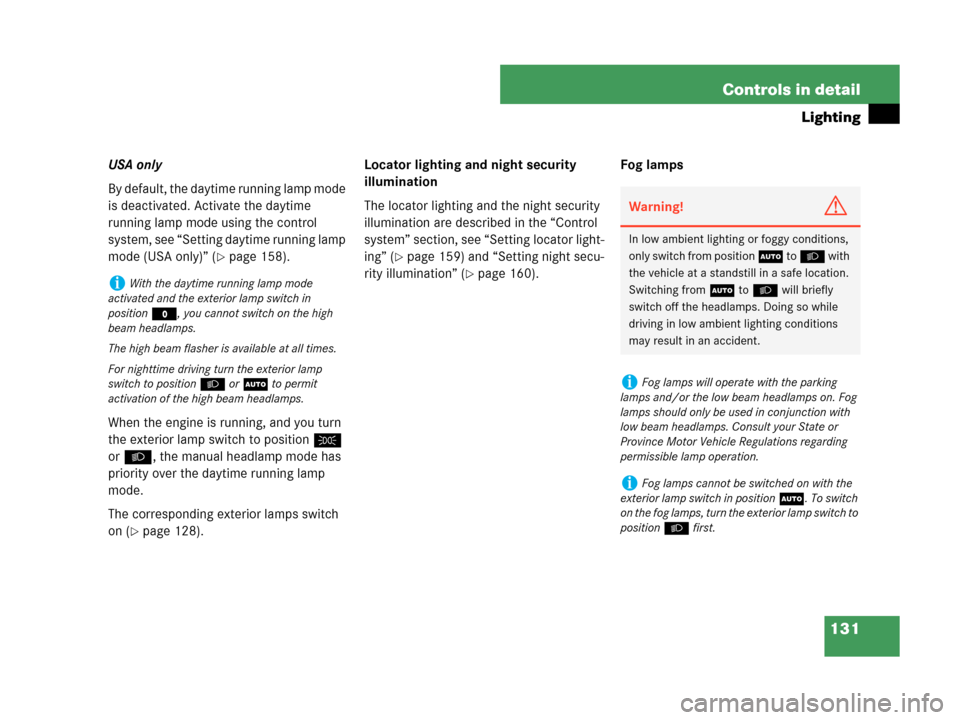

131 Controls in detail
Lighting
USA only
By default, the daytime running lamp mode
is deactivated. Activate the daytime
running lamp mode using the control
system, see “Setting daytime running lamp
mode (USA only)” (
page 158).
When the engine is running, and you turn
the exterior lamp switch to positionC
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 128).Locator lighting and night security
illumination
The locator lighting and the night security
illumination are described in the “Control
system” section, see “Setting locator light-
ing” (
page 159) and “Setting night secu-
rity illumination” (
page 160).Fog lampsiWith the daytime running lamp mode
activated and the exterior lamp switch in
positionM, you cannot switch on the high
beam headlamps.
The high beam flasher is available at all times.
For nighttime driving turn the exterior lamp
switch to positionB or U to permit
activation of the high beam headlamps.
Warning!G
In low ambient lighting or foggy conditions,
only switch from position U to B with
the vehicle at a standstill in a safe location.
Switching fromU to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps on. Fog
lamps should only be used in conjunction with
low beam headlamps. Consult your State or
Province Motor Vehicle Regulations regarding
permissible lamp operation.
iFog lamps cannot be switched on with the
exterior lamp switch in positionU. To switch
on the fog lamps, turn the exterior lamp switch to
positionB first.

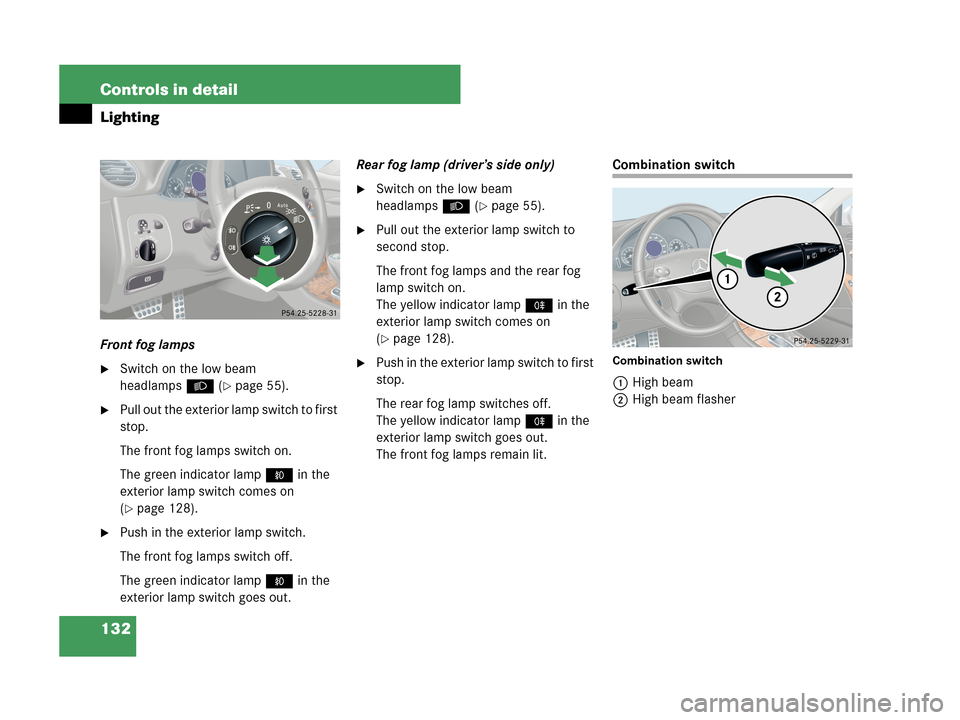

132 Controls in detail
Lighting
Front fog lamps
Switch on the low beam
headlampsB (
page 55).
Pull out the exterior lamp switch to first
stop.
The front fog lamps switch on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(
page 128).
Push in the exterior lamp switch.
The front fog lamps switch off.
The green indicator lamp‡ in the
exterior lamp switch goes out.Rear fog lamp (driver’s side only)
Switch on the low beam
headlampsB (
page 55).
Pull out the exterior lamp switch to
second stop.
The front fog lamps and the rear fog
lamp switch on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(
page 128).
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Combination switch
Combination switch
1High beam
2High beam flasher

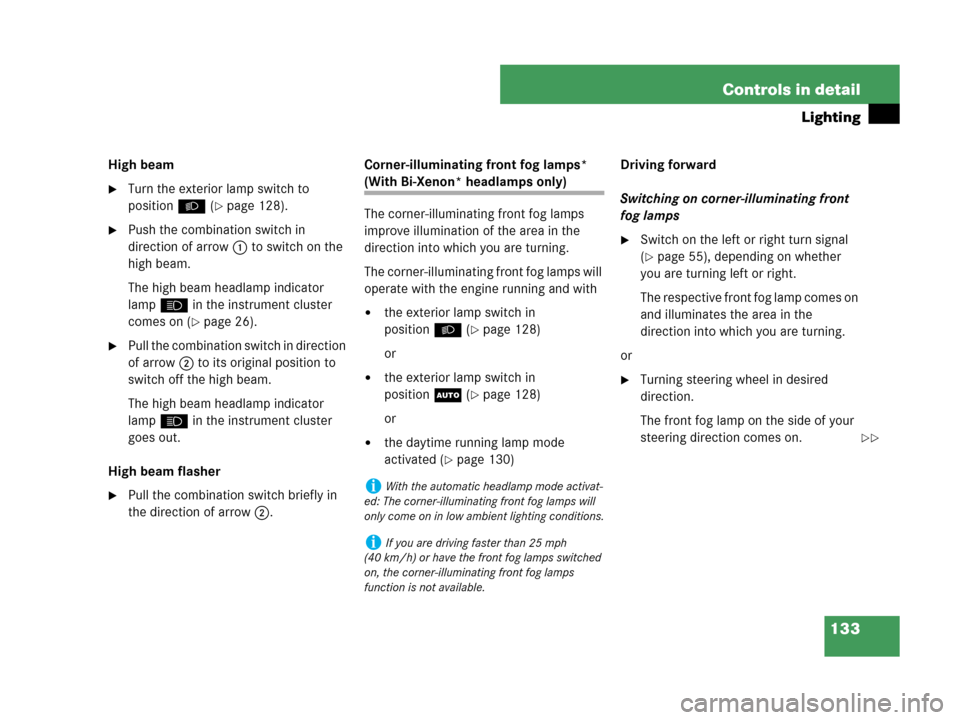

133 Controls in detail
Lighting
High beam
Turn the exterior lamp switch to
positionB (
page 128).
Push the combination switch in
direction of arrow1 to switch on the
high beam.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 26).
Pull the combination switch in direction
of arrow2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lampA in the instrument cluster
goes out.
High beam flasher
Pull the combination switch briefly in
the direction of arrow2.Corner-illuminating front fog lamps*
(With Bi-Xenon* headlamps only)
The corner-illuminating front fog lamps
improve illumination of the area in the
direction into which you are turning.
The corner-illuminating front fog lamps will
operate with the engine running and with

the exterior lamp switch in
positionB (
page 128)
or

the exterior lamp switch in
positionU (
page 128)
or

the daytime running lamp mode
activated (
page 130)Driving forward
Switching on corner-illuminating front
fog lamps
Switch on the left or right turn signal
(
page 55), depending on whether
you are turning left or right.
The respective front fog lamp comes on
and illuminates the area in the
direction into which you are turning.
or
Turning steering wheel in desired
direction.
The front fog lamp on the side of your
steering direction comes on.
iWith the automatic headlamp mode activat-
ed: The corner-illuminating front fog lamps will
only come on in low ambient lighting conditions.
iIf you are driving faster than 25 mph
(40 km/h) or have the front fog lamps switched
on, the corner-illuminating front fog lamps
function is not available.

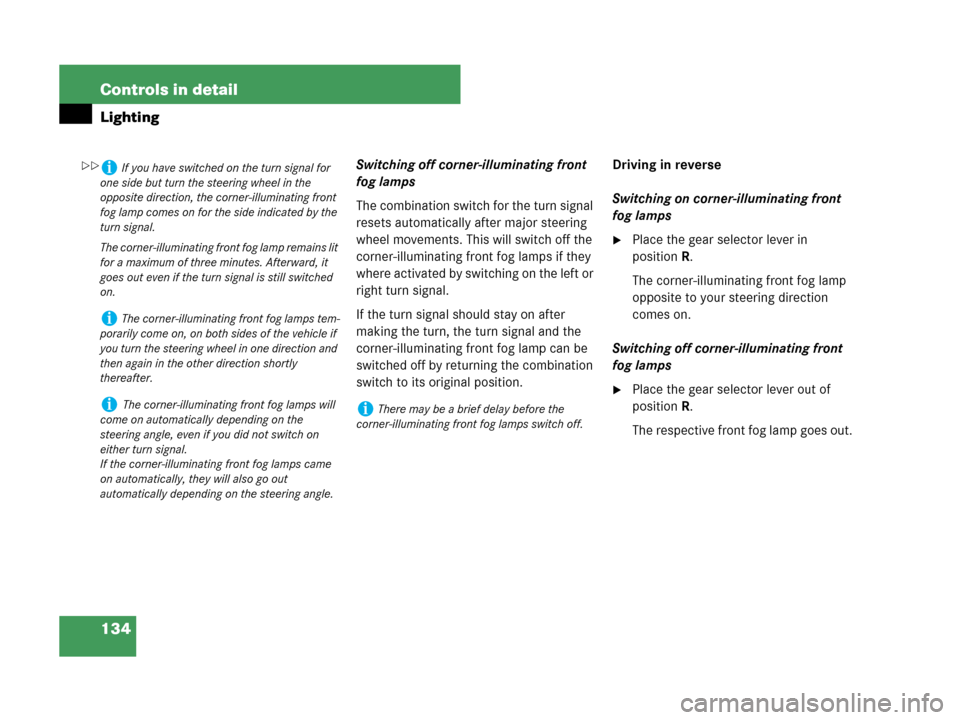

134 Controls in detail
Lighting
Switching off corner-illuminating front
fog lamps
The combination switch for the turn signal
resets automatically after major steering
wheel movements. This will switch off the
corner-illuminating front fog lamps if they
where activated by switching on the left or
right turn signal.
If the turn signal should stay on after
making the turn, the turn signal and the
corner-illuminating front fog lamp can be
switched off by returning the combination
switch to its original position.Driving in reverse
Switching on corner-illuminating front
fog lamps
Place the gear selector lever in
positionR.
The corner-illuminating front fog lamp
opposite to your steering direction
comes on.
Switching off corner-illuminating front
fog lamps
Place the gear selector lever out of
positionR.
The respective front fog lamp goes out.
iIf you have switched on the turn signal for
one side but turn the steering wheel in the
opposite direction, the corner-illuminating front
fog lamp comes on for the side indicated by the
turn signal.
The corner-illuminating front fog lamp remains lit
for a maximum of three minutes. Afterward, it
goes out even if the turn signal is still switched
on.
iThe corner-illuminating front fog lamps tem-
porarily come on, on both sides of the vehicle if
you turn the steering wheel in one direction and
then again in the other direction shortly
thereafter.
iThe corner-illuminating front fog lamps will
come on automatically depending on the
steering angle, even if you did not switch on
either turn signal.
If the corner-illuminating front fog lamps came
on automatically, they will also go out
automatically depending on the steering angle.iThere may be a brief delay before the
corner-illuminating front fog lamps switch off.

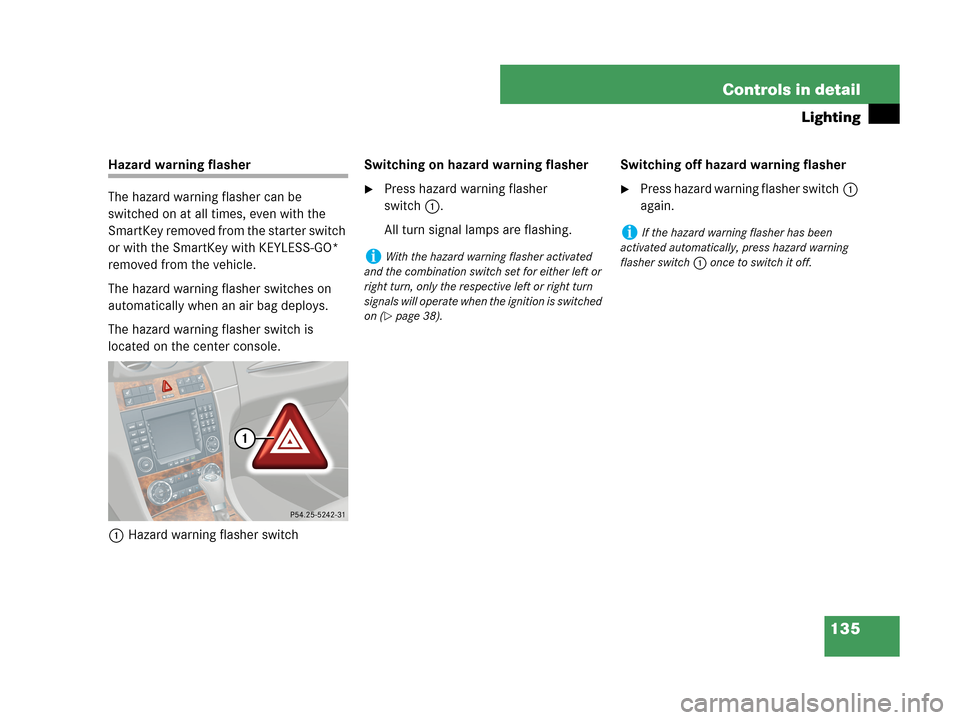

135 Controls in detail
Lighting
Hazard warning flasher
The hazard warning flasher can be
switched on at all times, even with the
SmartKey removed from the starter switch
or with the SmartKey with KEYLESS-GO*
removed from the vehicle.
The hazard warning flasher switches on
automatically when an air bag deploys.
The hazard warning flasher switch is
located on the center console.
1Hazard warning flasher switchSwitching on hazard warning flasher
Press hazard warning flasher
switch1.
All turn signal lamps are flashing.Switching off hazard warning flasherPress hazard warning flasher switch1
again.
iWith the hazard warning flasher activated
and the combination switch set for either left or
right turn, only the respective left or right turn
signals will operate when the ignition is switched
on (
page 38).
iIf the hazard warning flasher has been
activated automatically, press hazard warning
flasher switch1 once to switch it off.
