2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

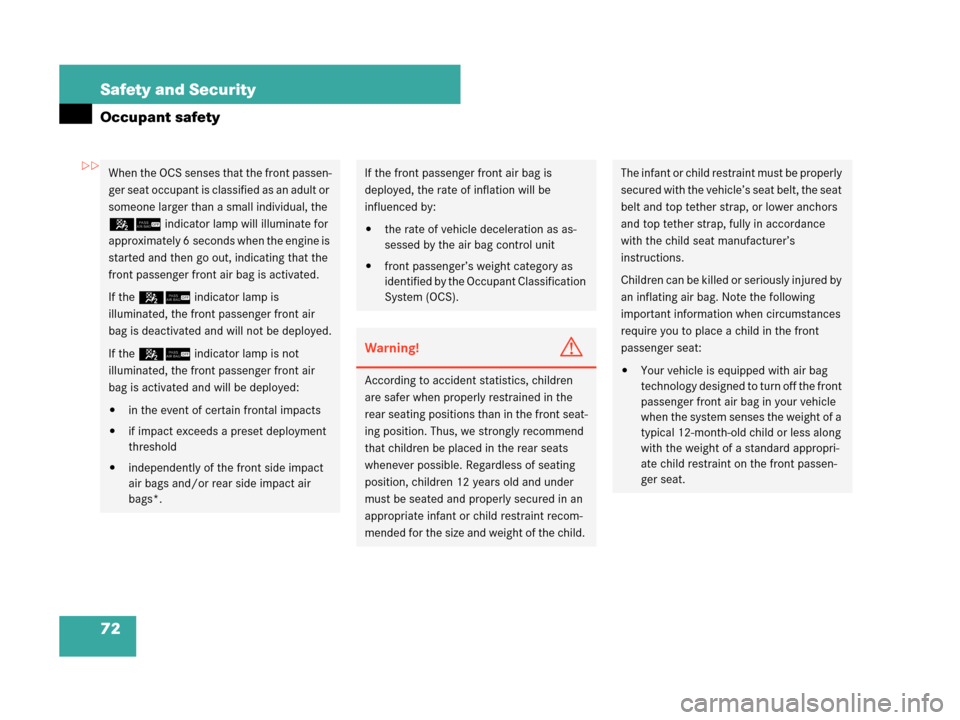

72 Safety and Security
Occupant safety
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
56 indicator lamp will illuminate for
approximately 6 seconds when the engine is
started and then go out, indicating that the
front passenger front air bag is activated.
If the 56 indicator lamp is
illuminated, the front passenger front air
bag is deactivated and will not be deployed.
If the 56 indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the front side impact
air bags and/or rear side impact air
bags*.
If the front passenger front air bag is
deployed, the rate of inflation will be
influenced by:

the rate of vehicle deceleration as as-
sessed by the air bag control unit

front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

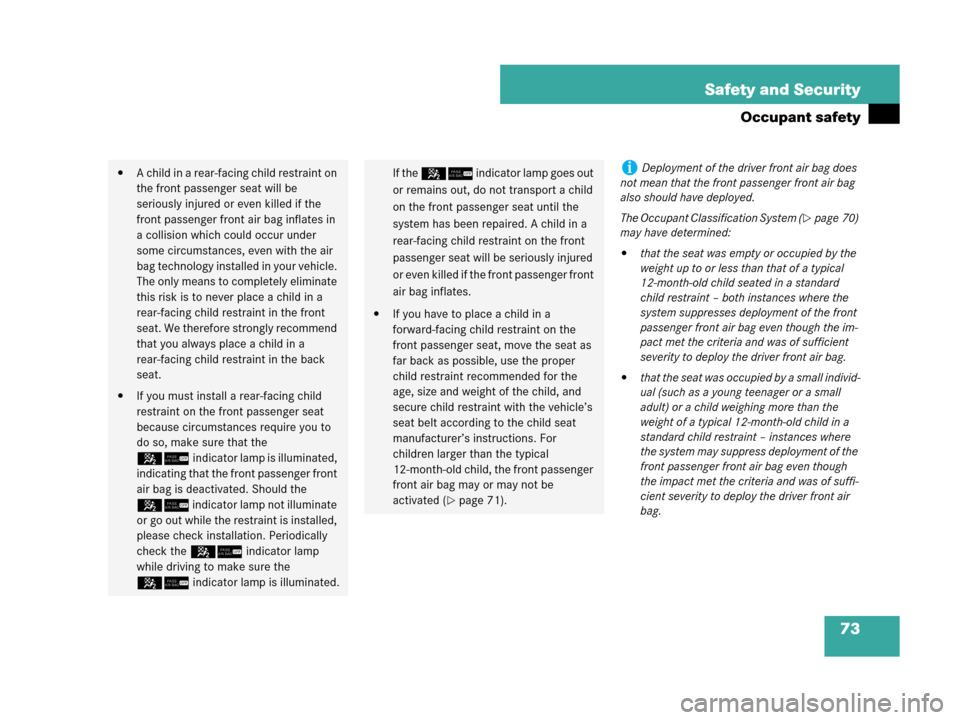

73 Safety and Security
Occupant safety

A child in a rear-facing child restraint on
the front passenger seat will be
seriously injured or even killed if the
front passenger front air bag inflates in
a collision which could occur under
some circumstances, even with the air
bag technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a
rear-facing child restraint in the back
seat.

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
56indicator lamp is illuminated,
indicating that the front passenger front
air bag is deactivated. Should the
56 indicator lamp not illuminate
or go out while the restraint is installed,
please check installation. Periodically
check the 56 indicator lamp
while driving to make sure the
56 indicator lamp is illuminated.
If the 56 indicator lamp goes out
or remains out, do not transport a child
on the front passenger seat until the
system has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.

If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and
secure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 71).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 70)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.

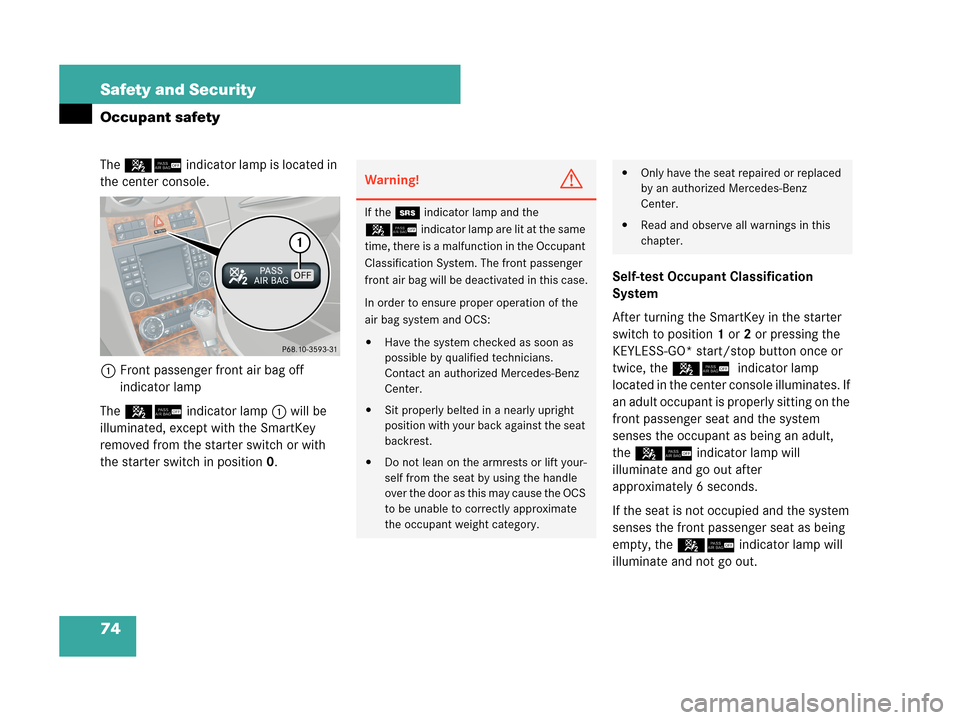

74 Safety and Security
Occupant safety
The 56indicator lamp is located in
the center console.
1Front passenger front air bag off
indicator lamp
The 56indicator lamp1 will be
illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0.Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 56 indicator lamp
located in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system
senses the occupant as being an adult,
the56 indicator lamp will
illuminate and go out after
approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 56 indicator lamp will
illuminate and not go out.
Warning!G
If the 1indicator lamp and the
56indicator lamp are lit at the same
time, there is a malfunction in the Occupant
Classification System. The front passenger
front air bag will be deactivated in this case.
In order to ensure proper operation of the
air bag system and OCS:

Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.

Sit properly belted in a nearly upright
position with your back against the seat
backrest.

Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.

Only have the seat repaired or replaced
by an authorized Mercedes-Benz
Center.

Read and observe all warnings in this
chapter.

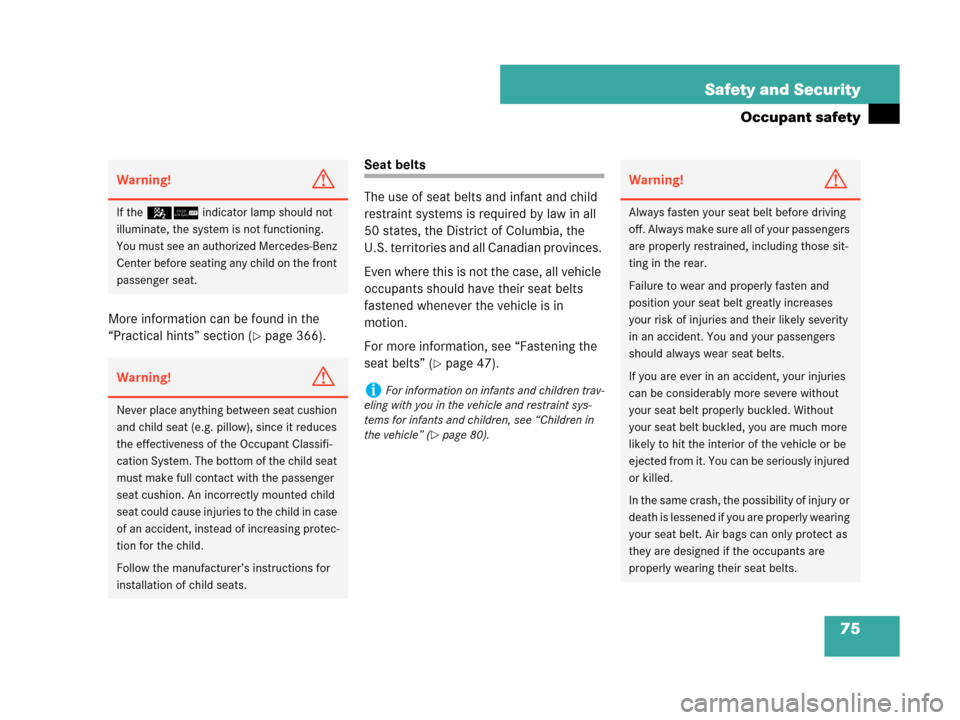

75 Safety and Security
Occupant safety
More information can be found in the
“Practical hints” section (
page 366).
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts
fastened whenever the vehicle is in
motion.
For more information, see “Fastening the
seat belts” (
page 47).
Warning!G
If the 56 indicator lamp should not
illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Center before seating any child on the front
passenger seat.
Warning!G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.
iFor information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 80).
Warning!G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, including those sit-
ting in the rear.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are
properly wearing their seat belts.

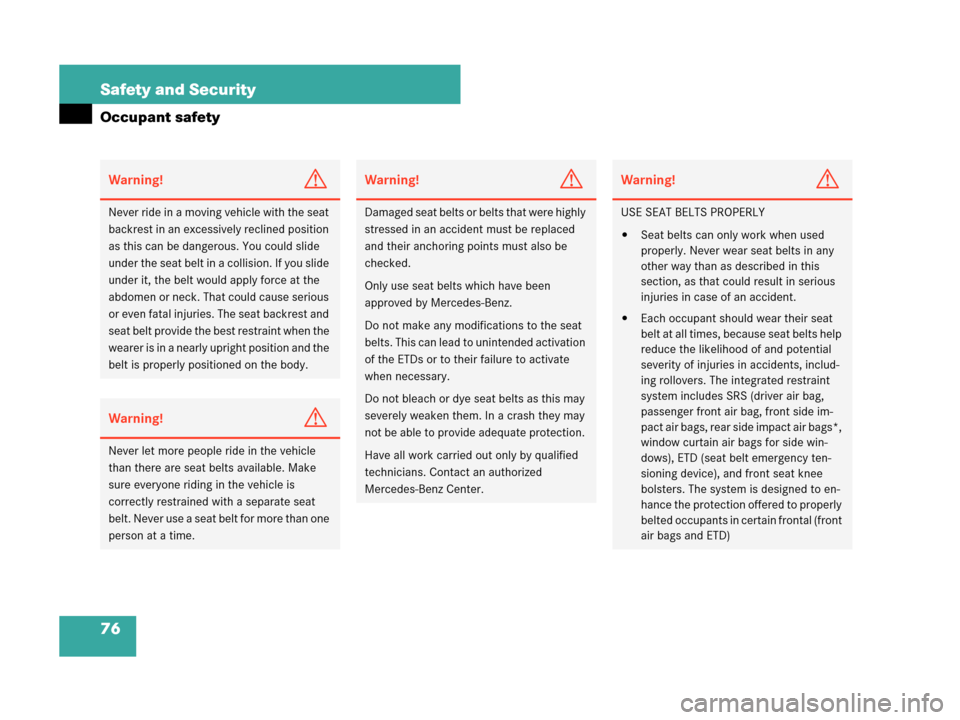

76 Safety and Security
Occupant safety
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is
correctly restrained with a separate seat
belt. Never use a seat belt for more than one
person at a time.
Warning!G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to their failure to activate
when necessary.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this
section, as that could result in serious
injuries in case of an accident.

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, front side im-
pact air bags, rear side impact air bags*,
window curtain air bags for side win-
dows), ETD (seat belt emergency ten-
sioning device), and front seat knee
bolsters. The system is designed to en-
hance the protection offered to properly
belted occupants in certain frontal (front
air bags and ETD)

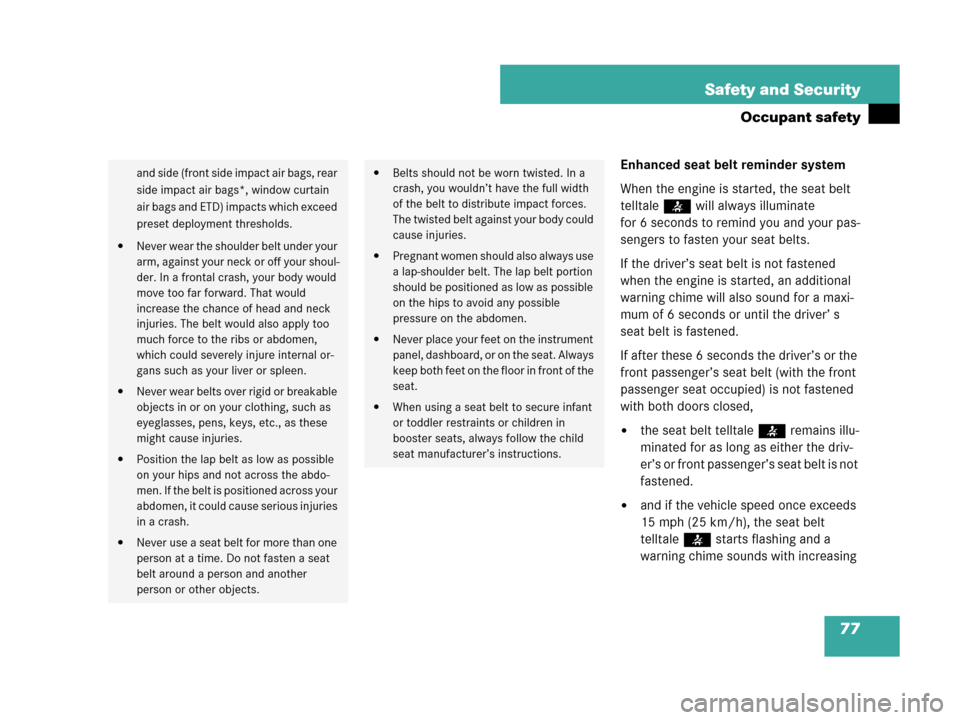

77 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your pas-
sengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with both doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened.

and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
and side (front side impact air bags, rear
side impact air bags*, window curtain
air bags and ETD) impacts which exceed
preset deployment thresholds.

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would
increase the chance of head and neck
injuries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.

Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.

Position the lap belt as low as possible
on your hips and not across the abdo-
m e n . I f t h e b e l t i s p o s i t i o n e d a c r o s s y o u r
abdomen, it could cause serious injuries
in a crash.

Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another
person or other objects.

Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.

Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible
pressure on the abdomen.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

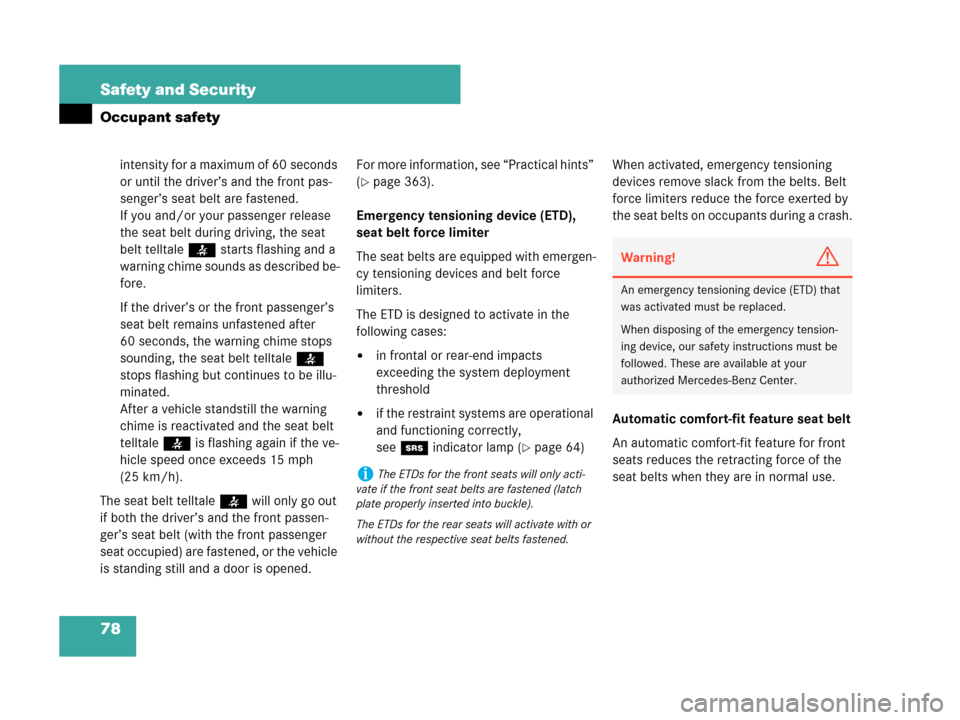

78 Safety and Security
Occupant safety
intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.
If you and/or your passenger release
the seat belt during driving, the seat
belt telltale < starts flashing and a
warning chime sounds as described be-
fore.
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
After a vehicle standstill the warning
chime is reactivated and the seat belt
telltale < is flashing again if the ve-
hicle speed once exceeds 15 mph
(25 km/h).
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a door is opened.For more information, see “Practical hints”
(
page 363).
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts are equipped with emergen-
cy tensioning devices and belt force
limiters.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts
exceeding the system deployment
threshold

if the restraint systems are operational
and functioning correctly,
see1indicator lamp (
page 64)When activated, emergency tensioning
devices remove slack from the belts. Belt
force limiters reduce the force exerted by
the seat belts on occupants during a crash.
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for front
seats reduces the retracting force of the
seat belts when they are in normal use.
iThe ETDs for the front seats will only acti-
vate if the front seat belts are fastened (latch
plate properly inserted into buckle).
The ETDs for the rear seats will activate with or
without the respective seat belts fastened.
Warning!G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your
authorized Mercedes-Benz Center.

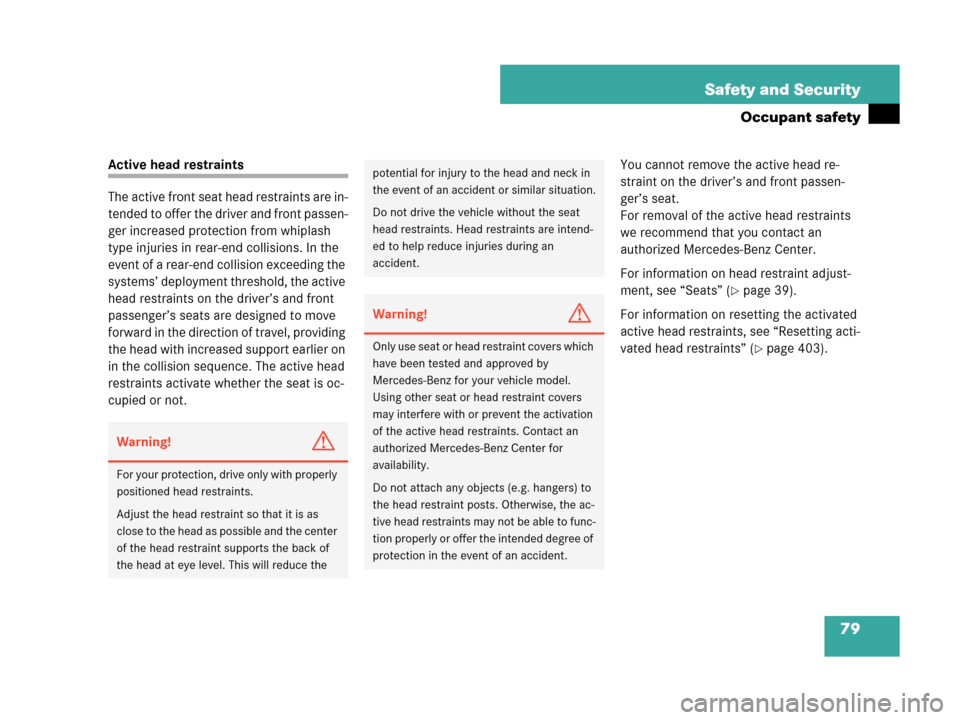

79 Safety and Security
Occupant safety
Active head restraints
The active front seat head restraints are in-
tended to offer the driver and front passen-
ger increased protection from whiplash
type injuries in rear-end collisions. In the
event of a rear-end collision exceeding the
systems’ deployment threshold, the active
head restraints on the driver’s and front
passenger’s seats are designed to move
forward in the direction of travel, providing
the head with increased support earlier on
in the collision sequence. The active head
restraints activate whether the seat is oc-
cupied or not.You cannot remove the active head re-
straint on the driver’s and front passen-
ger’s seat.
For removal of the active head restraints
we recommend that you contact an
authorized Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Seats” (
page 39).
For information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 403).
Warning!G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the
potential for injury to the head and neck in
the event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
Warning!G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact an
authorized Mercedes-Benz Center for
availability.
Do not attach any objects (e.g. hangers) to
the head restraint posts. Otherwise, the ac-
tive head restraints may not be able to func-
tion properly or offer the intended degree of
protection in the event of an accident.
