2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

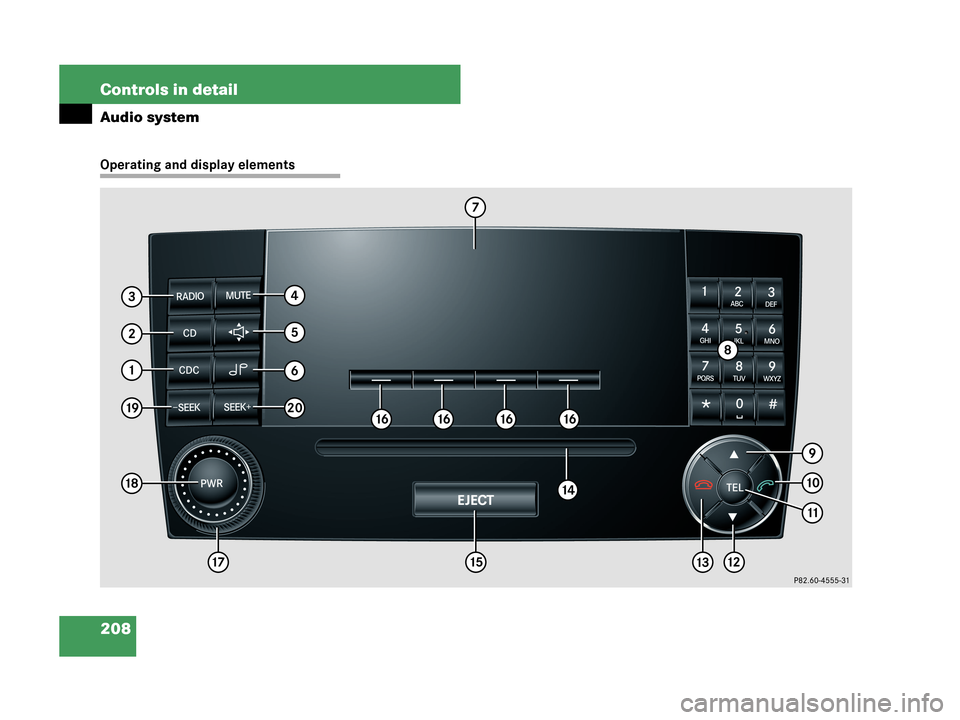

208 Controls in detail
Audio system
Operating and display elements

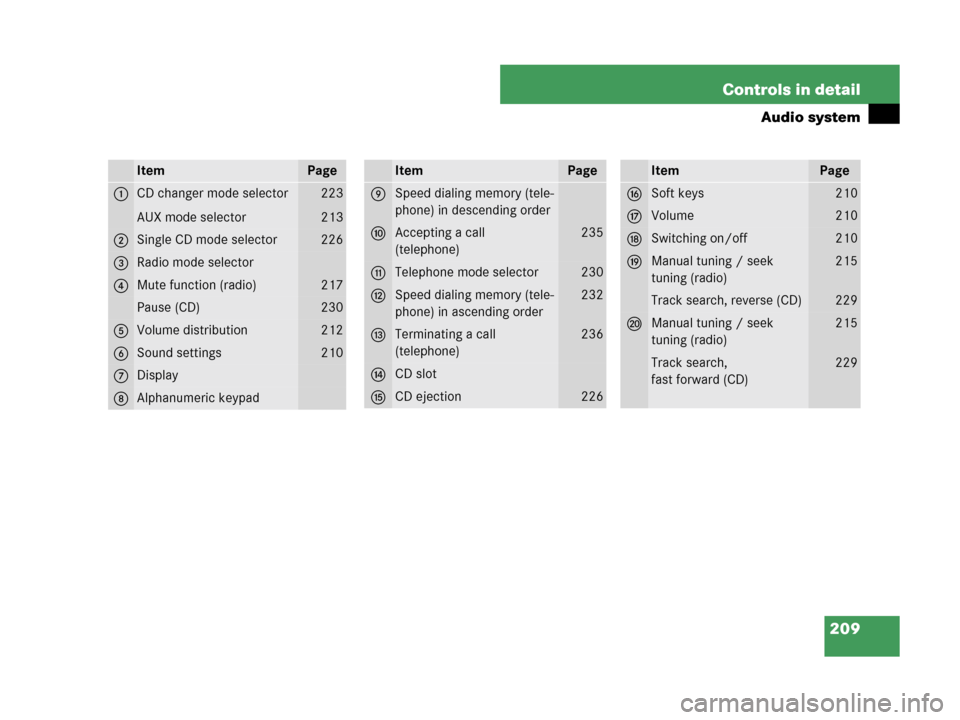

209 Controls in detail
Audio system
ItemPage
1CD changer mode selector
AUX mode selector223
213
2Single CD mode selector 226
3Radio mode selector
4Mute function (radio)217
Pause (CD)230
5Volume distribution212
6Sound settings210
7Display
8Alphanumeric keypad
ItemPage
9Speed dialing memory (tele-
phone) in descending order
aAccepting a call
(telephone)235
bTelephone mode selector230
cSpeed dialing memory (tele-
phone) in ascending order232
dTerminating a call
(telephone)236
eCD slot
fCD ejection226
ItemPage
gSoft keys210
hVolume210
jSwitching on/off210
kManual tuning / seek
tuning (radio)215
Track search, reverse (CD)229
lManual tuning / seek
tuning (radio)215
Track search,
fast forward (CD)229

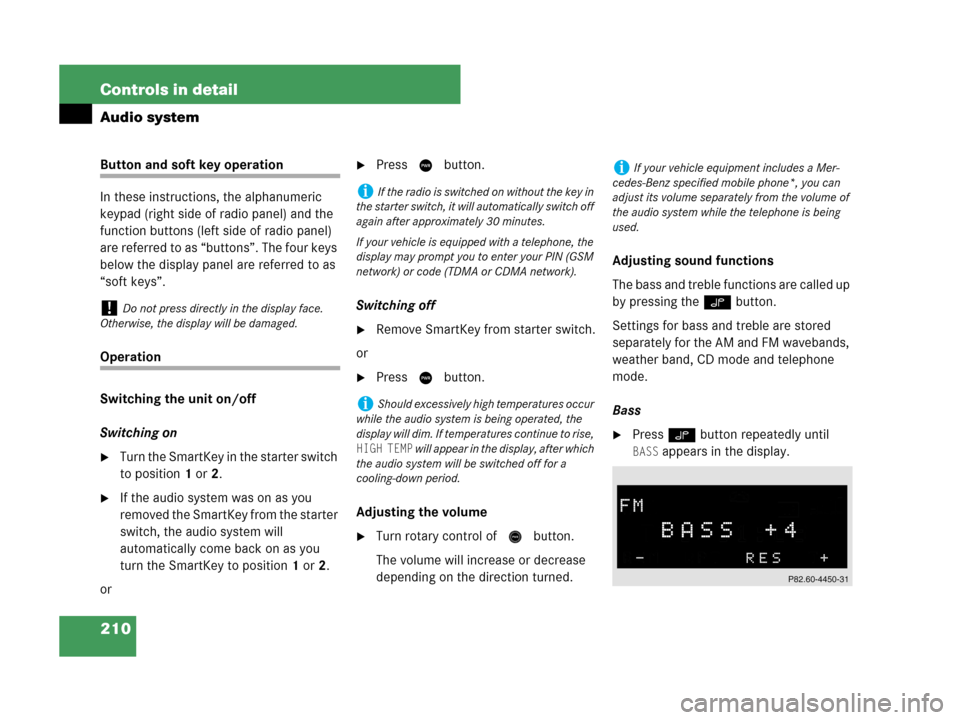

210 Controls in detail
Audio system
Button and soft key operation
In these instructions, the alphanumeric
keypad (right side of radio panel) and the
function buttons (left side of radio panel)
are referred to as “buttons”. The four keys
below the display panel are referred to as
“soft keys”.
Operation
Switching the unit on/off
Switching on
Turn the SmartKey in the starter switch
to position 1 or 2.
If the audio system was on as you
removed the SmartKey from the starter
switch, the audio system will
automatically come back on as you
turn the SmartKey to position 1 or 2.
or
Press M button.
Switching off
Remove SmartKey from starter switch.
or
Press M button.
Adjusting the volume
Turn rotary control of N button.
The volume will increase or decrease
depending on the direction turned.Adjusting sound functions
The bass and treble functions are called up
by pressing the O button.
Settings for bass and treble are stored
separately for the AM and FM wavebands,
weather band, CD mode and telephone
mode.
Bass
Press O button repeatedly until
BASS appears in the display.
!Do not press directly in the display face.
Otherwise, the display will be damaged.
iIf the radio is switched on without the key in
the starter switch, it will automatically switch off
again after approximately 30 minutes.
If your vehicle is equipped with a telephone, the
display may prompt you to enter your PIN (GSM
network) or code (TDMA or CDMA network).
iShould excessively high temperatures occur
while the audio system is being operated, the
display will dim. If temperatures continue to rise,
HIGH TEMP will appear in the display, after which
the audio system will be switched off for a
cooling-down period.
iIf your vehicle equipment includes a Mer-
cedes-Benz specified mobile phone*, you can
adjust its volume separately from the volume of
the audio system while the telephone is being
used.

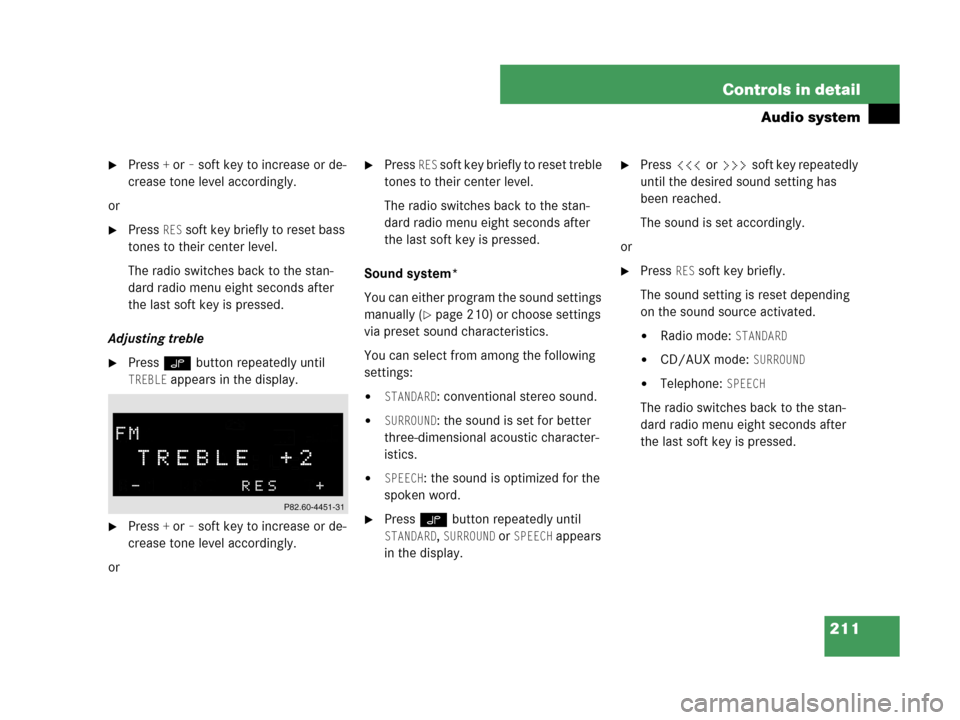

211 Controls in detail
Audio system
Press + or– soft key to increase or de-
crease tone level accordingly.
or
Press RES soft key briefly to reset bass
tones to their center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.
Adjusting treble
Press O button repeatedly until
TREBLE appears in the display.
Press + or– soft key to increase or de-
crease tone level accordingly.
or
Press RES soft key briefly to reset treble
tones to their center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.
Sound system*
You can either program the sound settings
manually (
page 210) or choose settings
via preset sound characteristics.
You can select from among the following
settings:

STANDARD: conventional stereo sound.

SURROUND: the sound is set for better
three-dimensional acoustic character-
istics.

SPEECH: the sound is optimized for the
spoken word.
Press O button repeatedly until
STANDARD, SURROUND or SPEECH appears
in the display.
Press X or Y soft key repeatedly
until the desired sound setting has
been reached.
The sound is set accordingly.
or
Press RES soft key briefly.
The sound setting is reset depending
on the sound source activated.

Radio mode: STANDARD

CD/AUX mode: SURROUND

Telephone: SPEECH
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.

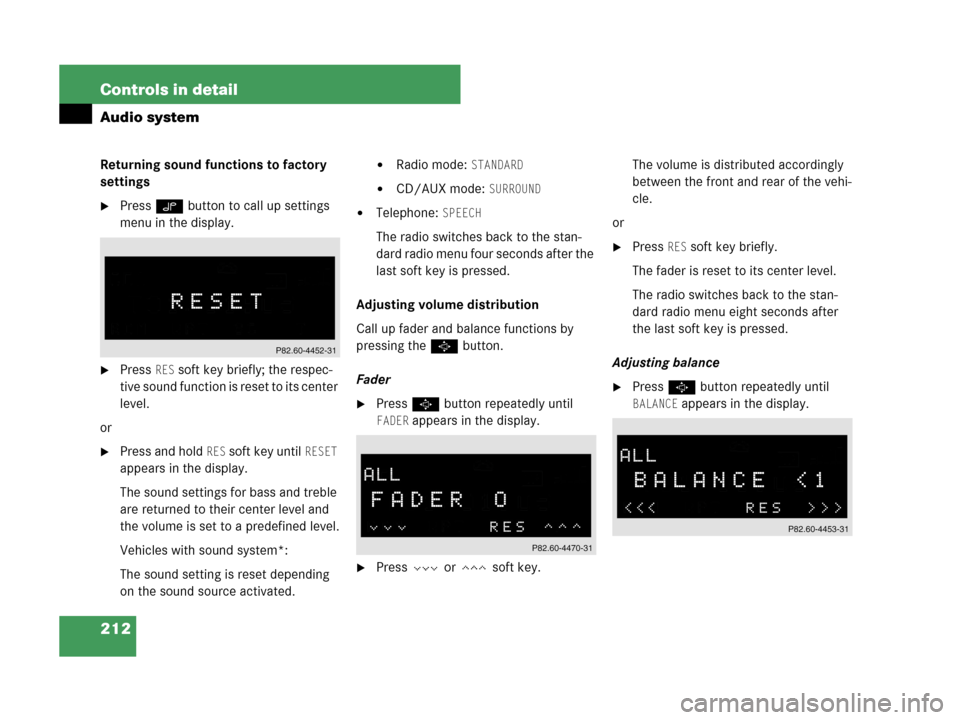

212 Controls in detail
Audio system
Returning sound functions to factory
settings
Press O button to call up settings
menu in the display.
Press RES soft key briefly; the respec-
tive sound function is reset to its center
level.
or
Press and hold RES soft key until RESET
appears in the display.
The sound settings for bass and treble
are returned to their center level and
the volume is set to a predefined level.
Vehicles with sound system*:
The sound setting is reset depending
on the sound source activated.

Radio mode: STANDARD

CD/AUX mode: SURROUND

Telephone: SPEECH
The radio switches back to the stan-
dard radio menu four seconds after the
last soft key is pressed.
Adjusting volume distribution
Call up fader and balance functions by
pressing the P button.
Fader
Press P button repeatedly until
FADER appears in the display.
Press V or W soft key.The volume is distributed accordingly
between the front and rear of the vehi-
cle.
or
Press RES soft key briefly.
The fader is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.
Adjusting balance
Press P button repeatedly until
BALANCE appears in the display.

213 Controls in detail
Audio system
Press X or Y soft key.
The volume is distributed between the
left and right sides of the vehicle.
or
Press RES soft key briefly.
The balance is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last button is pressed.
Returning volume distribution to facto-
ry settings
Press P button to call up settings
menu in the display.
Press RES soft key briefly; the respec-
tive volume distribution is reset to its
center (flat) level.
or
Press and hold RES soft key until RESET
appears in the display.
The volume distribution settings for
fader and balance are set to their cen-
ter level.
The radio switches back to the stan-
dard radio menu four seconds after the
last soft key is pressed.
Telephone* muting
If your vehicle equipment includes a
Mercedes-Benz specified mobile phone*,
you can adjust its volume separately from
the volume of the audio system while the
telephone is being used.Connecting an external audio source
(AUX) to the radio*
An optional dealer-installed cinch-connec-
tor* for connecting an external audio
source may become available for your ve-
hicle model. Feature description is based
on preliminary information at time of print-
ing. Contact an authorized Mercedes-Benz
Center for availability.
You can adjust the volume (
page 210),
the sound settings (
page 210) and the
volume distribution (
page 212) for the
AUX input.
Calling up AUX mode
Press and hold Q button until AUX
appears in the display.
Canceling AUX mode
Press any audio source button.

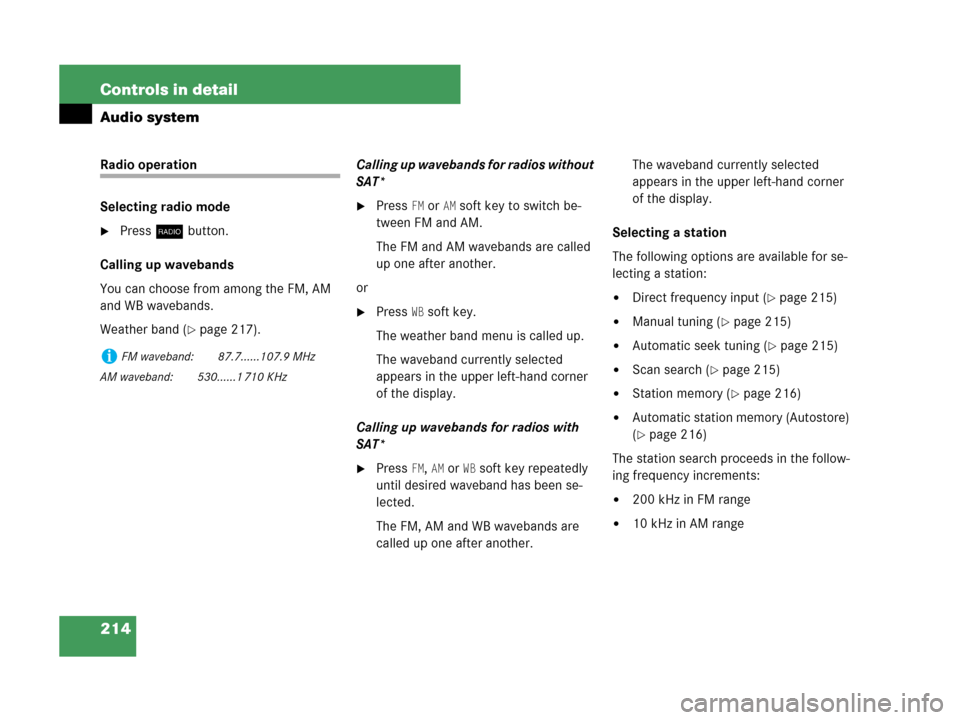

214 Controls in detail
Audio system
Radio operation
Selecting radio mode
Press b button.
Calling up wavebands
You can choose from among the FM, AM
and WB wavebands.
Weather band (
page 217).Calling up wavebands for radios without
SAT*
Press FM or AM soft key to switch be-
tween FM and AM.
The FM and AM wavebands are called
up one after another.
or
Press WB soft key.
The weather band menu is called up.
The waveband currently selected
appears in the upper left-hand corner
of the display.
Calling up wavebands for radios with
SAT*
Press FM, AM or WB soft key repeatedly
until desired waveband has been se-
lected.
The FM, AM and WB wavebands are
called up one after another.The waveband currently selected
appears in the upper left-hand corner
of the display.
Selecting a station
The following options are available for se-
lecting a station:

Direct frequency input (page 215)

Manual tuning (page 215)

Automatic seek tuning (page 215)

Scan search (page 215)

Station memory (page 216)

Automatic station memory (Autostore)
(
page 216)
The station search proceeds in the follow-
ing frequency increments:

200 kHz in FM range

10 kHz in AM range
iFM waveband: 87.7......107.9 MHz
AM waveband: 530......1 710 KHz

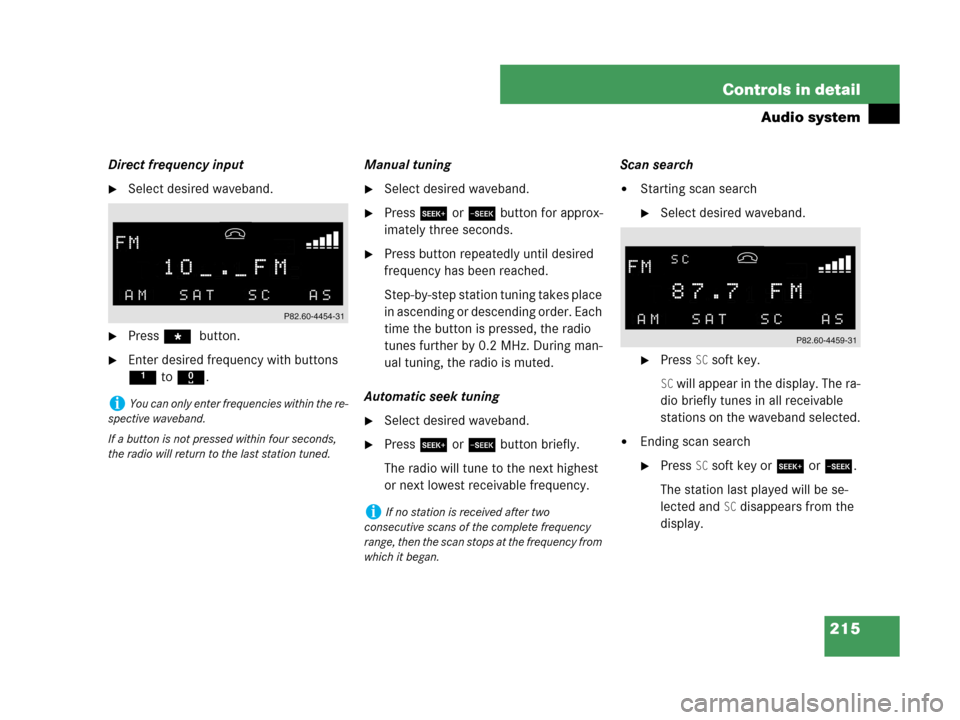

215 Controls in detail
Audio system
Direct frequency input
Select desired waveband.
Press * button.
Enter desired frequency with buttons
1to R.Manual tuning
Select desired waveband.
Press S or Tbutton for approx-
imately three seconds.
Press button repeatedly until desired
frequency has been reached.
Step-by-step station tuning takes place
in ascending or descending order. Each
time the button is pressed, the radio
tunes further by 0.2 MHz. During man-
ual tuning, the radio is muted.
Automatic seek tuning
Select desired waveband.
Press S or T button briefly.
The radio will tune to the next highest
or next lowest receivable frequency.Scan search

Starting scan search
Select desired waveband.
Press SC soft key.
SC will appear in the display. The ra-
dio briefly tunes in all receivable
stations on the waveband selected.

Ending scan search
Press SC soft key or S or T.
The station last played will be se-
lected and
SC disappears from the
display.
iYou can only enter frequencies within the re-
spective waveband.
If a button is not pressed within four seconds,
the radio will return to the last station tuned.
iIf no station is received after two
consecutive scans of the complete frequency
range, then the scan stops at the frequency from
which it began.
