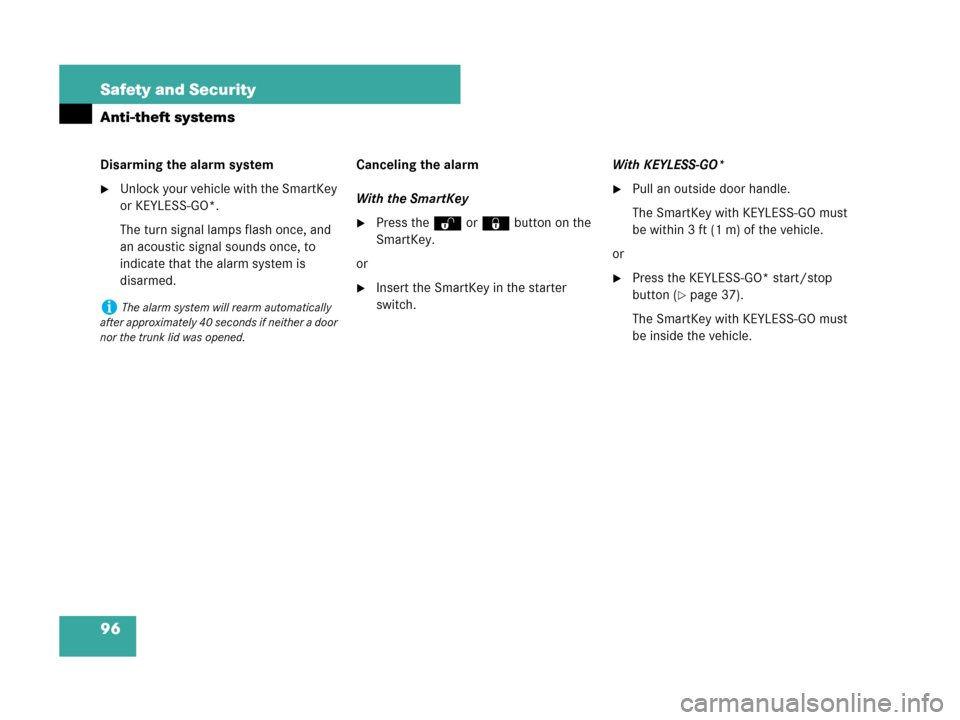

96 Safety and Security
Anti-theft systems
Disarming the alarm system
Unlock your vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once, and
an acoustic signal sounds once, to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey
Press the Œ or ‹button on the
SmartKey.
or
Insert the SmartKey in the starter
switch.With KEYLESS-GO*
Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO* start/stop
button (
page 37).
The SmartKey with KEYLESS-GO must
be inside the vehicle.iThe alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the trunk lid was opened.

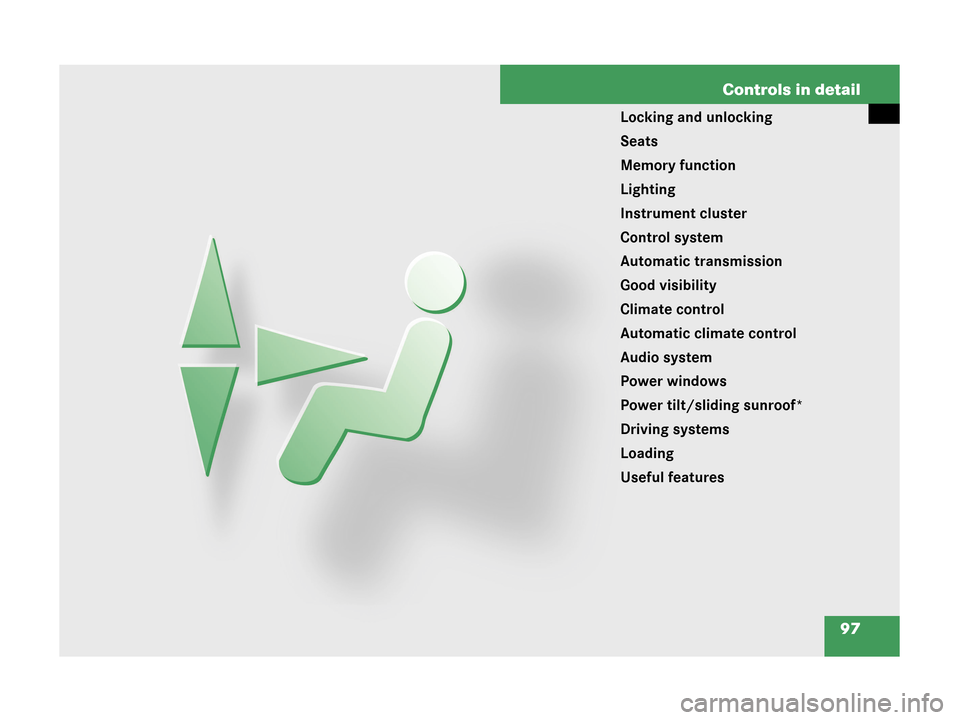

97 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Climate control
Automatic climate control
Audio system
Power windows
Power tilt/sliding sunroof*
Driving systems
Loading
Useful features

98 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the
basic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
Locking and unlocking
For more information on locking and
unlocking, see “Getting started”
(
page 34) and (page 59).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a
different color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the trunk

the fuel filler flap
SmartKey with remote control
1‹Lock button
2Š Opening button for trunk
(
page 101)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 87)
!To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.

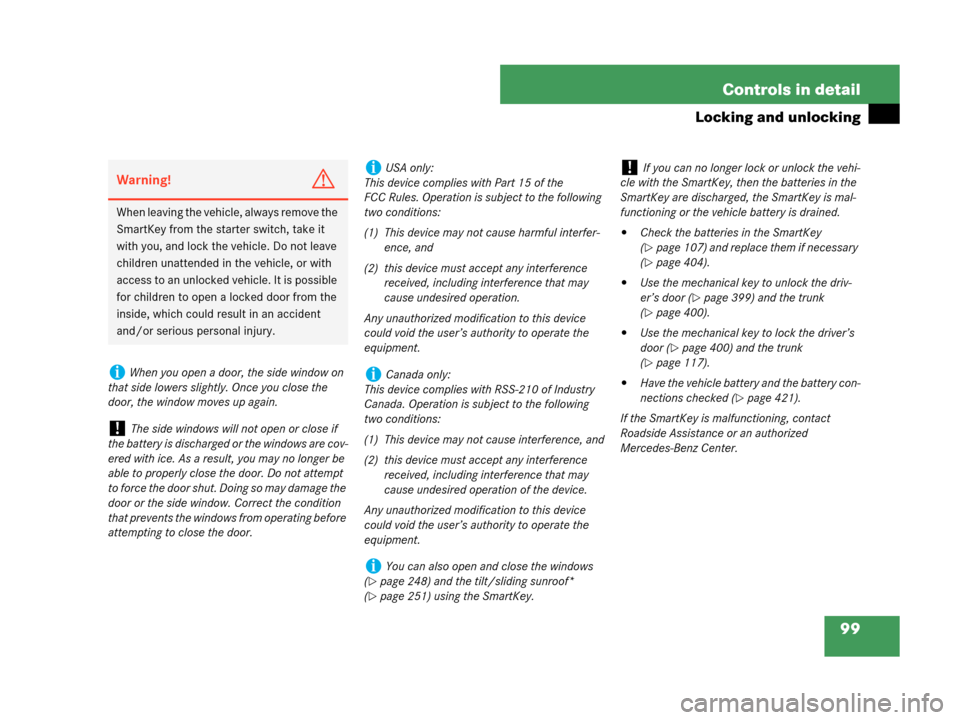

99 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
iWhen you open a door, the side window on
that side lowers slightly. Once you close the
door, the window moves up again.
!The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close the windows
(
page 248) and the tilt/sliding sunroof*
(
page 251) using the SmartKey.
!If you can no longer lock or unlock the vehi-
cle with the SmartKey, then the batteries in the
SmartKey are discharged, the SmartKey is mal-
functioning or the vehicle battery is drained.

Check the batteries in the SmartKey
(
page 107) and replace them if necessary
(
page 404).

Use the mechanical key to unlock the driv-
er’s door (
page 399) and the trunk
(
page 400).

Use the mechanical key to lock the driver’s
door (
page 400) and the trunk
(
page 117).

Have the vehicle battery and the battery con-
nections checked (
page 421).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Center.

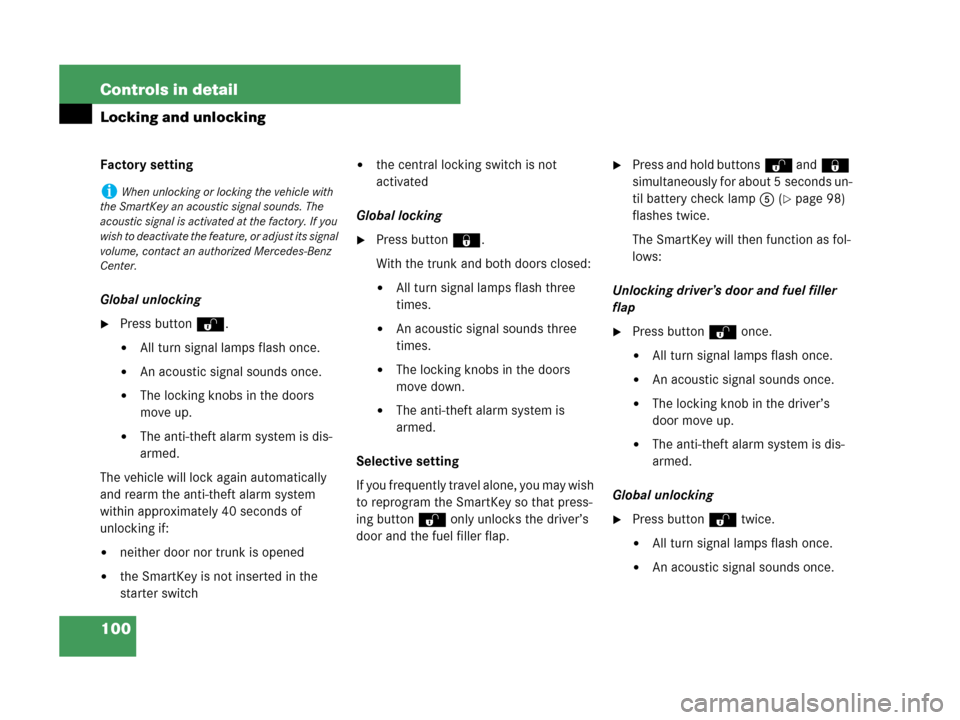

100 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press buttonŒ.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and rearm the anti-theft alarm system
within approximately 40 seconds of
unlocking if:

neither door nor trunk is opened

the SmartKey is not inserted in the
starter switch

the central locking switch is not
activated
Global locking
Press button‹.
With the trunk and both doors closed:

All turn signal lamps flash three
times.

An acoustic signal sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 98)
flashes twice.
The SmartKey will then function as fol-
lows:
Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knob in the driver’s
door move up.

The anti-theft alarm system is dis-
armed.
Global unlocking
Press buttonΠtwice.

All turn signal lamps flash once.

An acoustic signal sounds once.
iWhen unlocking or locking the vehicle with
the SmartKey an acoustic signal sounds. The
acoustic signal is activated at the factory. If you
wish to deactivate the feature, or adjust its signal
volume, contact an authorized Mercedes-Benz
Center.

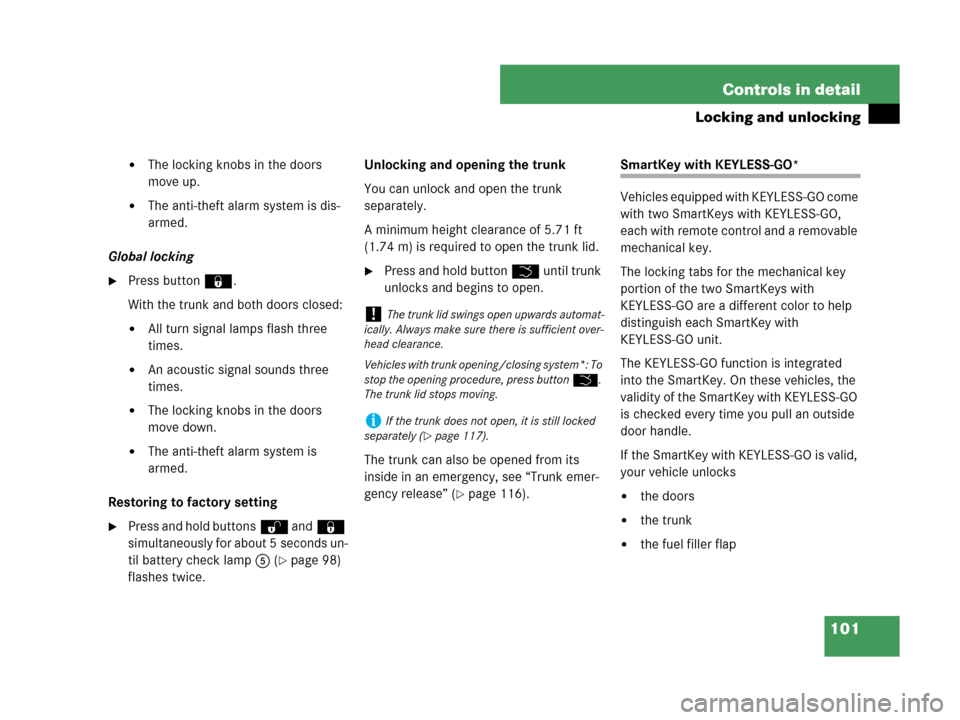

101 Controls in detail
Locking and unlocking

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Global locking
Press button‹.
With the trunk and both doors closed:

All turn signal lamps flash three
times.

An acoustic signal sounds three
times.

The locking knobs in the doors
move down.

The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 98)
flashes twice.Unlocking and opening the trunk
You can unlock and open the trunk
separately.
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.
Press and hold button Š until trunk
unlocks and begins to open.
The trunk can also be opened from its
inside in an emergency, see “Trunk emer-
gency release” (
page 116).
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are a different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you pull an outside
door handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks

the doors

the trunk

the fuel filler flap
!The trunk lid swings open upwards automat-
ically. Always make sure there is sufficient over-
head clearance.
Vehicles with trunk opening/closing system*: To
stop the opening procedure, press button Š.
The trunk lid stops moving.
iIf the trunk does not open, it is still locked
separately (
page 117).

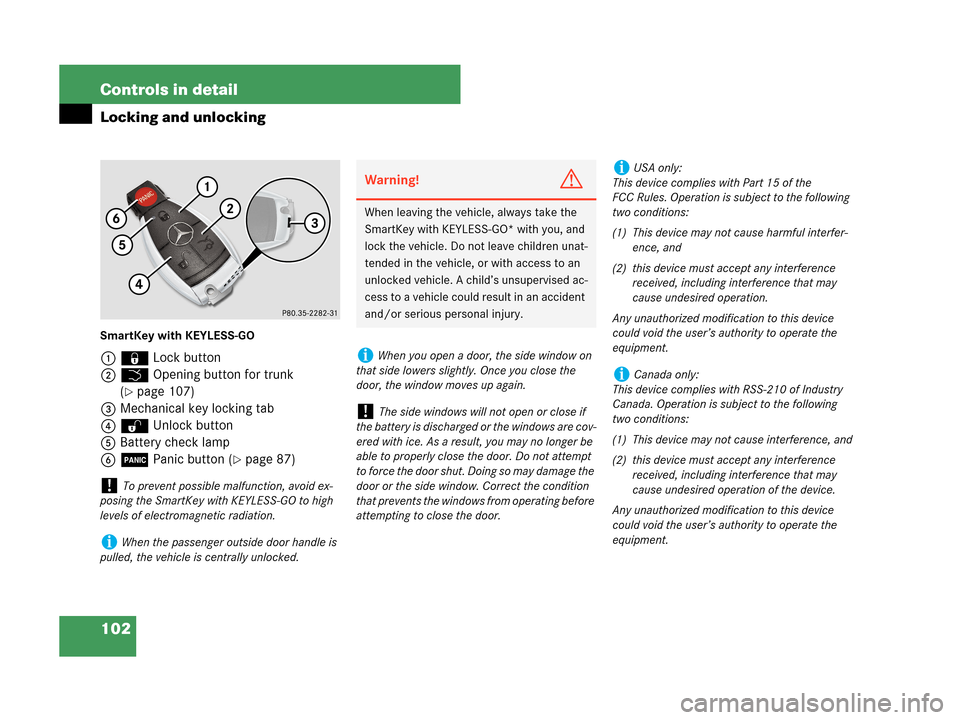

102 Controls in detail
Locking and unlocking
SmartKey with KEYLESS-GO
1‹Lock button
2Š Opening button for trunk
(
page 107)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 87)
!To prevent possible malfunction, avoid ex-
posing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.
iWhen the passenger outside door handle is
pulled, the vehicle is centrally unlocked.
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iWhen you open a door, the side window on
that side lowers slightly. Once you close the
door, the window moves up again.
!The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

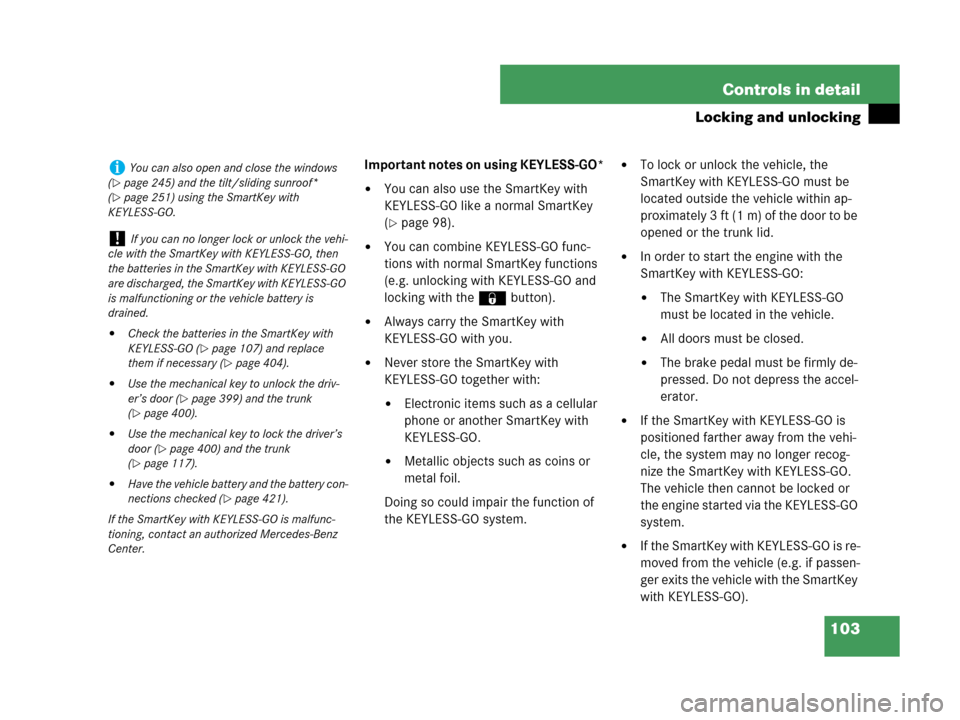

103 Controls in detail
Locking and unlocking
Important notes on using KEYLESS-GO*

You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(
page 98).

You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with the‹button).

Always carry the SmartKey with
KEYLESS-GO with you.

Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO.

Metallic objects such as coins or
metal foil.
Doing so could impair the function of
the KEYLESS-GO system.

To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft (1 m) of the door to be
opened or the trunk lid.

In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.

All doors must be closed.

The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.

If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle then cannot be locked or
the engine started via the KEYLESS-GO
system.

If the SmartKey with KEYLESS-GO is re-
moved from the vehicle (e.g. if passen-
ger exits the vehicle with the SmartKey
with KEYLESS-GO).
iYou can also open and close the windows
(
page 245) and the tilt/sliding sunroof*
(
page 251) using the SmartKey with
KEYLESS-GO.
!If you can no longer lock or unlock the vehi-
cle with the SmartKey with KEYLESS-GO, then
the batteries in the SmartKey with KEYLESS-GO
are discharged, the SmartKey with KEYLESS-GO
is malfunctioning or the vehicle battery is
drained.

Check the batteries in the SmartKey with
KEYLESS-GO (
page 107) and replace
them if necessary (
page 404).

Use the mechanical key to unlock the driv-
er’s door (
page 399) and the trunk
(
page 400).

Use the mechanical key to lock the driver’s
door (
page 400) and the trunk
(
page 117).

Have the vehicle battery and the battery con-
nections checked (
page 421).
If the SmartKey with KEYLESS-GO is malfunc-
tioning, contact an authorized Mercedes-Benz
Center.
