Page 417 of 481

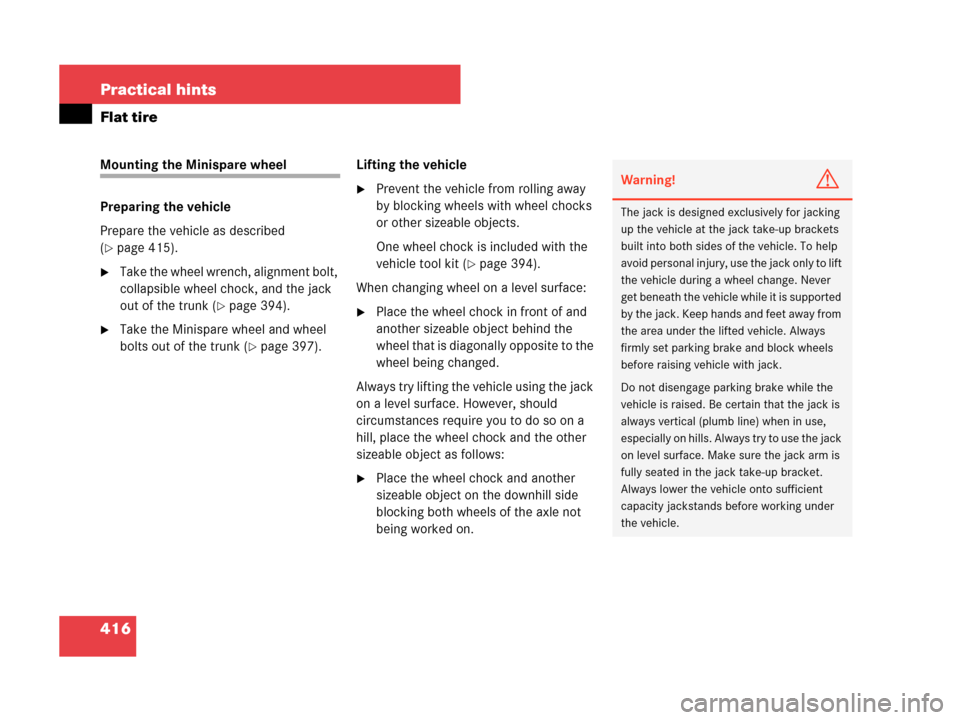

416 Practical hints
Flat tire
Mounting the Minispare wheel
Preparing the vehicle
Prepare the vehicle as described
(
page 415).
Take the wheel wrench, alignment bolt,
collapsible wheel chock, and the jack
out of the trunk (
page 394).
Take the Minispare wheel and wheel
bolts out of the trunk (
page 397).Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 394).
When changing wheel on a level surface:
Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
hill, place the wheel chock and the other
sizeable object as follows:
Place the wheel chock and another
sizeable object on the downhill side
blocking both wheels of the axle not
being worked on.
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Page 418 of 481

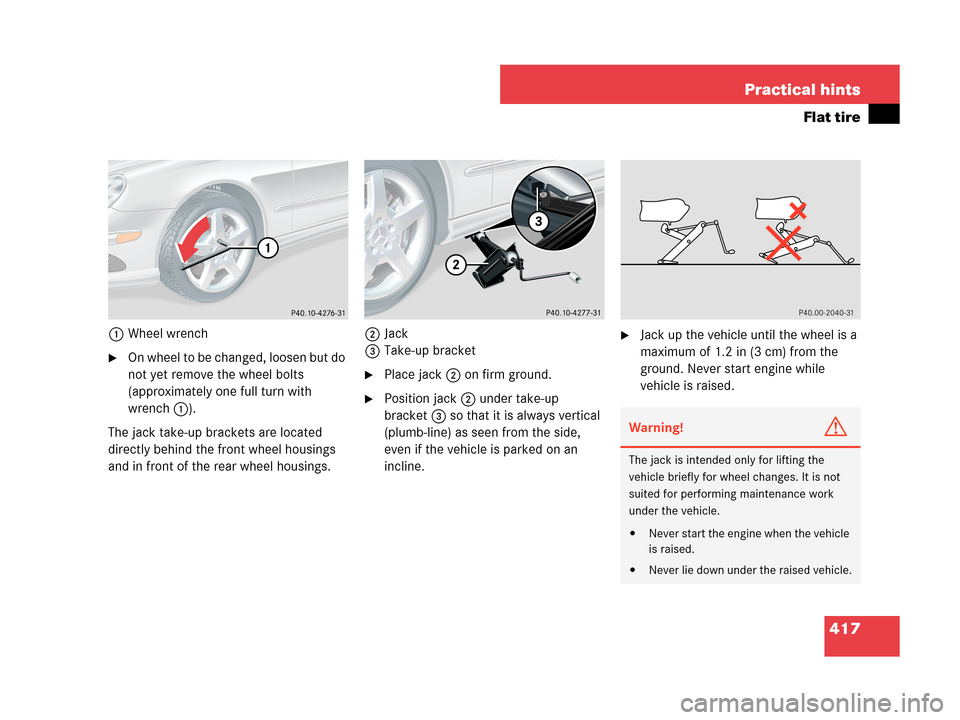

417 Practical hints
Flat tire
1Wheel wrench
On wheel to be changed, loosen but do
not yet remove the wheel bolts
(approximately one full turn with
wrench 1).
The jack take-up brackets are located
directly behind the front wheel housings
and in front of the rear wheel housings.2Jack
3Take-up bracket
Place jack2 on firm ground.
Position jack2 under take-up
bracket3 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.
Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.
Warning!G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.
Never start the engine when the vehicle
is raised.
Never lie down under the raised vehicle.
Page 419 of 481

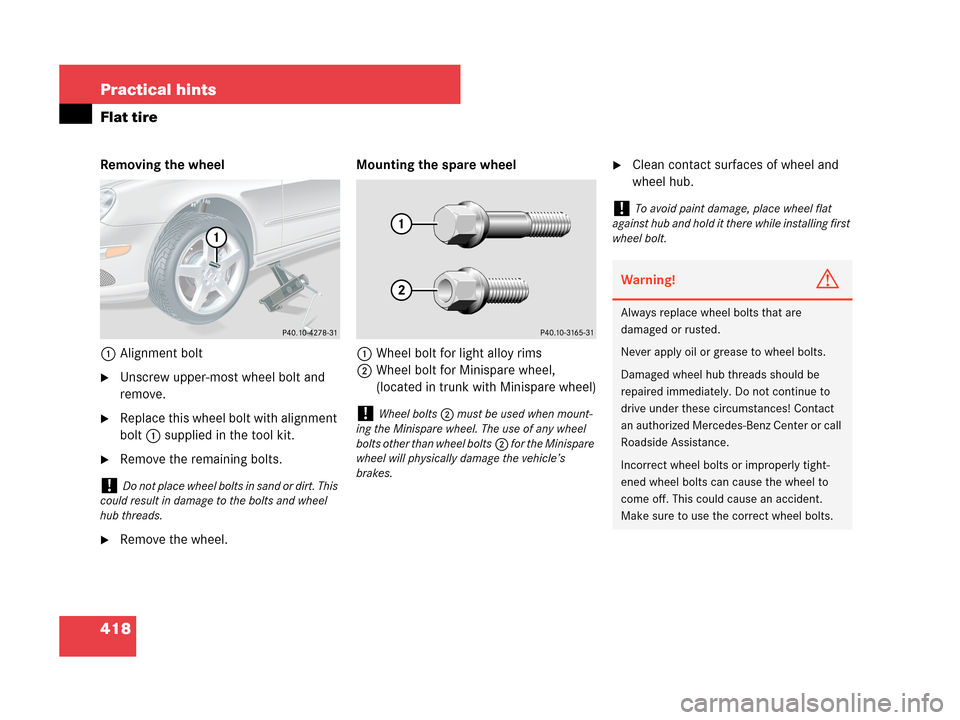

418 Practical hints
Flat tire
Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and
remove.
Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.
Remove the remaining bolts.
Remove the wheel.Mounting the spare wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel,
(located in trunk with Minispare wheel)
Clean contact surfaces of wheel and
wheel hub.
!Do not place wheel bolts in sand or dirt. This
could result in damage to the bolts and wheel
hub threads.
!Wheel bolts2 must be used when mount-
ing the Minispare wheel. The use of any wheel
bolts other than wheel bolts2 for the Minispare
wheel will physically damage the vehicle’s
brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while installing first
wheel bolt.
Warning!G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.
Page 420 of 481

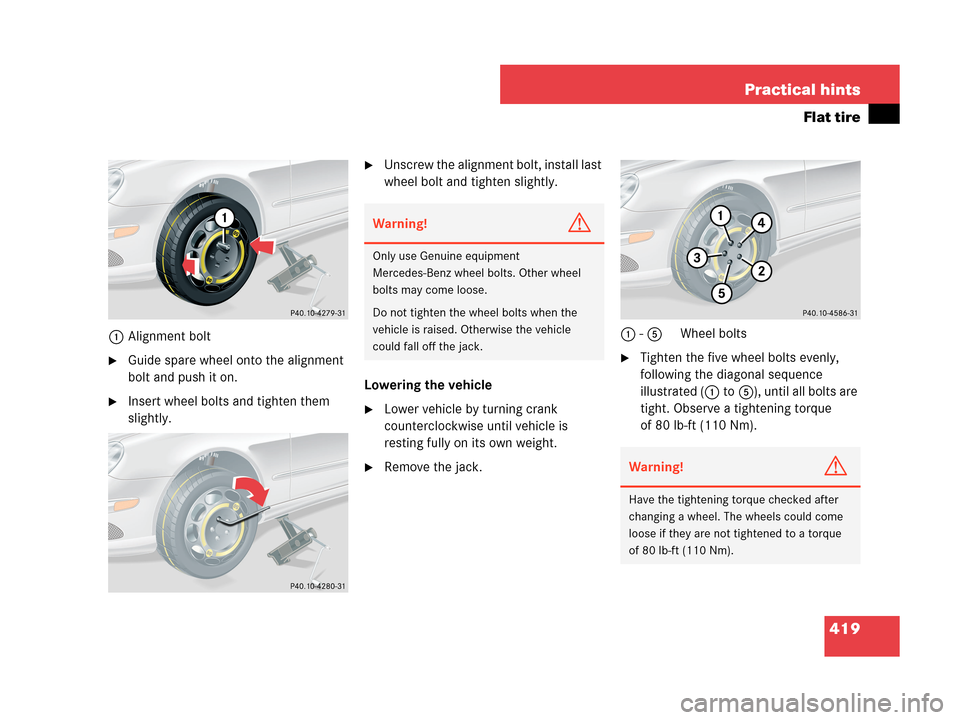

419 Practical hints
Flat tire
1Alignment bolt
Guide spare wheel onto the alignment
bolt and push it on.
Insert wheel bolts and tighten them
slightly.
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.
Lowering the vehicle
Lower vehicle by turning crank
counterclockwise until vehicle is
resting fully on its own weight.
Remove the jack.1 - 5Wheel bolts
Tighten the five wheel bolts evenly,
following the diagonal sequence
illustrated (1to5), until all bolts are
tight. Observe a tightening torque
of 80 lb-ft (110 Nm).
Warning!G
Only use Genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could fall off the jack.
Warning!G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).
Page 421 of 481

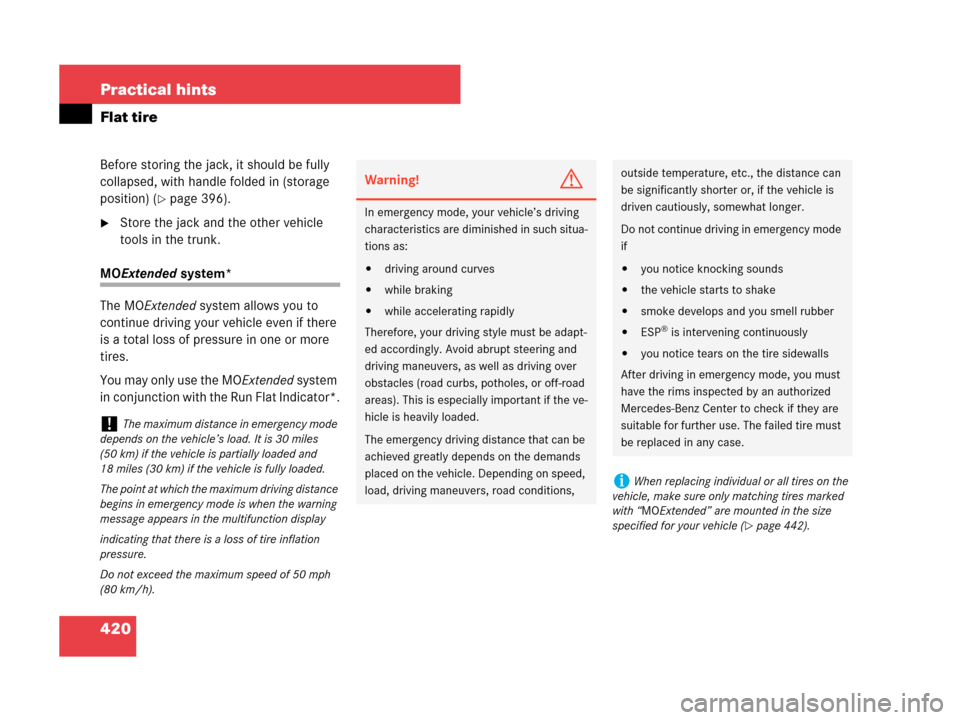

420 Practical hints
Flat tire
Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 396).
Store the jack and the other vehicle
tools in the trunk.
MOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
in conjunction with the Run Flat Indicator*.
!The maximum distance in emergency mode
depends on the vehicle’s load. It is 30 miles
(50 km) if the vehicle is partially loaded and
18 miles (30 km) if the vehicle is fully loaded.
The point at which the maximum driving distance
begins in emergency mode is when the warning
message appears in the multifunction display
indicating that there is a loss of tire inflation
pressure.
Do not exceed the maximum speed of 50 mph
(80 km/h).
Warning!G
In emergency mode, your vehicle’s driving
characteristics are diminished in such situa-
tions as:
driving around curves
while braking
while accelerating rapidly
Therefore, your driving style must be adapt-
ed accordingly. Avoid abrupt steering and
driving maneuvers, as well as driving over
obstacles (road curbs, potholes, or off-road
areas). This is especially important if the ve-
hicle is heavily loaded.
The emergency driving distance that can be
achieved greatly depends on the demands
placed on the vehicle. Depending on speed,
load, driving maneuvers, road conditions,
outside temperature, etc., the distance can
be significantly shorter or, if the vehicle is
driven cautiously, somewhat longer.
Do not continue driving in emergency mode
if
you notice knocking sounds
the vehicle starts to shake
smoke develops and you smell rubber
ESP® is intervening continuously
you notice tears on the tire sidewalls
After driving in emergency mode, you must
have the rims inspected by an authorized
Mercedes-Benz Center to check if they are
suitable for further use. The failed tire must
be replaced in any case.
iWhen replacing individual or all tires on the
vehicle, make sure only matching tires marked
with “MOExtended” are mounted in the size
specified for your vehicle (
page 442).
Page 422 of 481

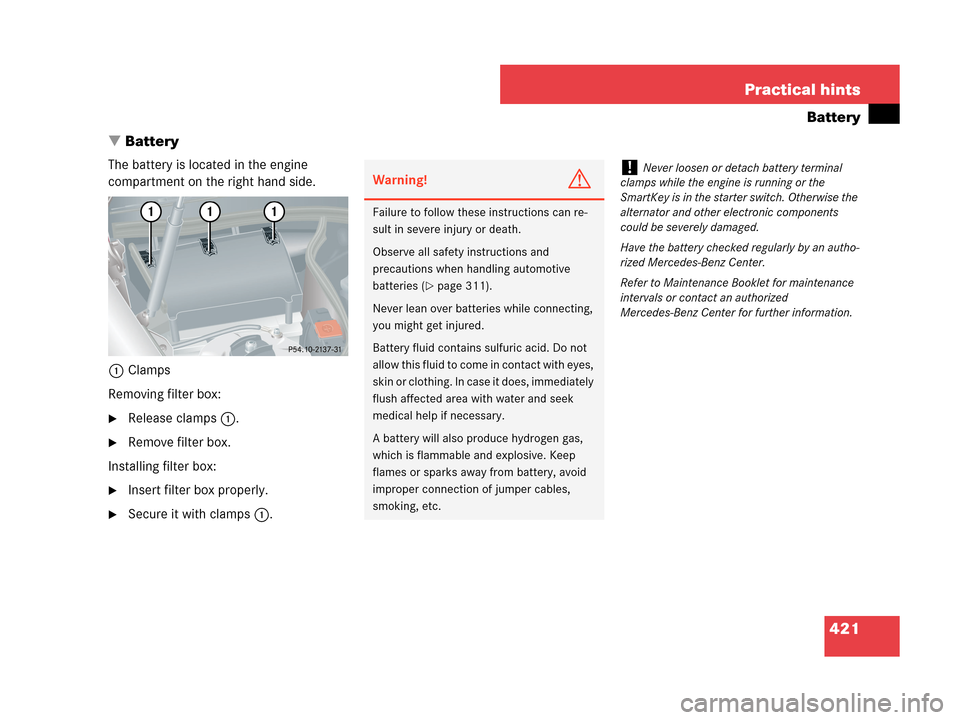

421 Practical hints
Battery
Battery
The battery is located in the engine
compartment on the right hand side.
1Clamps
Removing filter box:
Release clamps1.
Remove filter box.
Installing filter box:
Insert filter box properly.
Secure it with clamps1.
Warning!G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries (
page 311).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Center.
Refer to Maintenance Booklet for maintenance
intervals or contact an authorized
Mercedes-Benz Center for further information.
Page 423 of 481

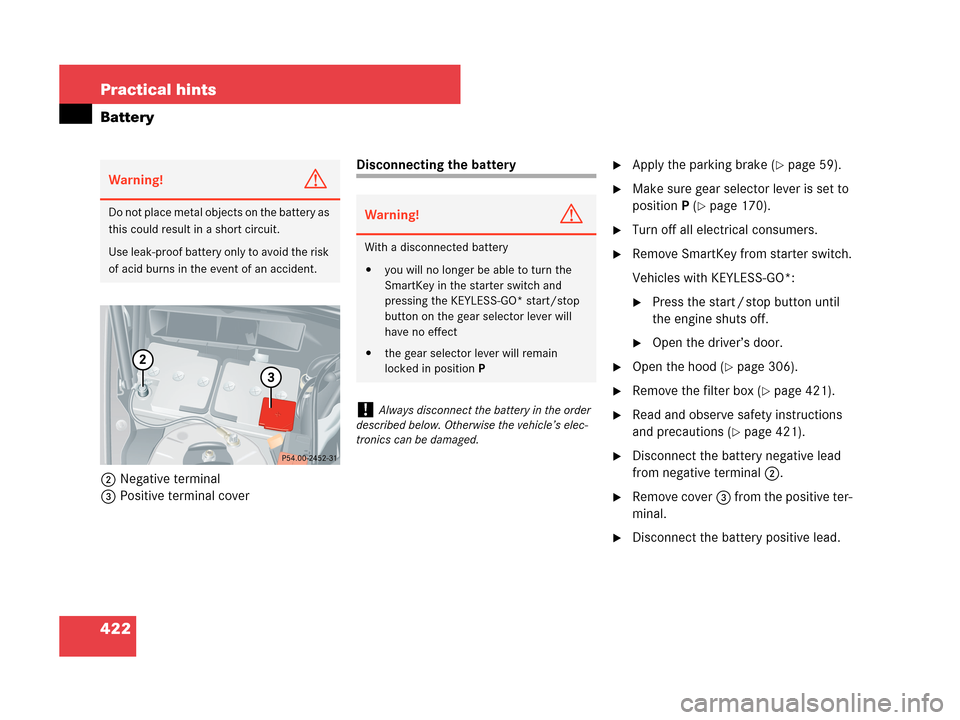

422 Practical hints
Battery
2Negative terminal
3Positive terminal cover
Disconnecting the batteryApply the parking brake (page 59).
Make sure gear selector lever is set to
positionP (
page 170).
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Press the start / stop button until
the engine shuts off.
Open the driver’s door.
Open the hood (page 306).
Remove the filter box (page 421).
Read and observe safety instructions
and precautions (
page 421).
Disconnect the battery negative lead
from negative terminal2.
Remove cover3 from the positive ter-
minal.
Disconnect the battery positive lead.
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.Warning!G
With a disconnected battery
you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button on the gear selector lever will
have no effect
the gear selector lever will remain
locked in positionP
!Always disconnect the battery in the order
described below. Otherwise the vehicle’s elec-
tronics can be damaged.
Page 424 of 481

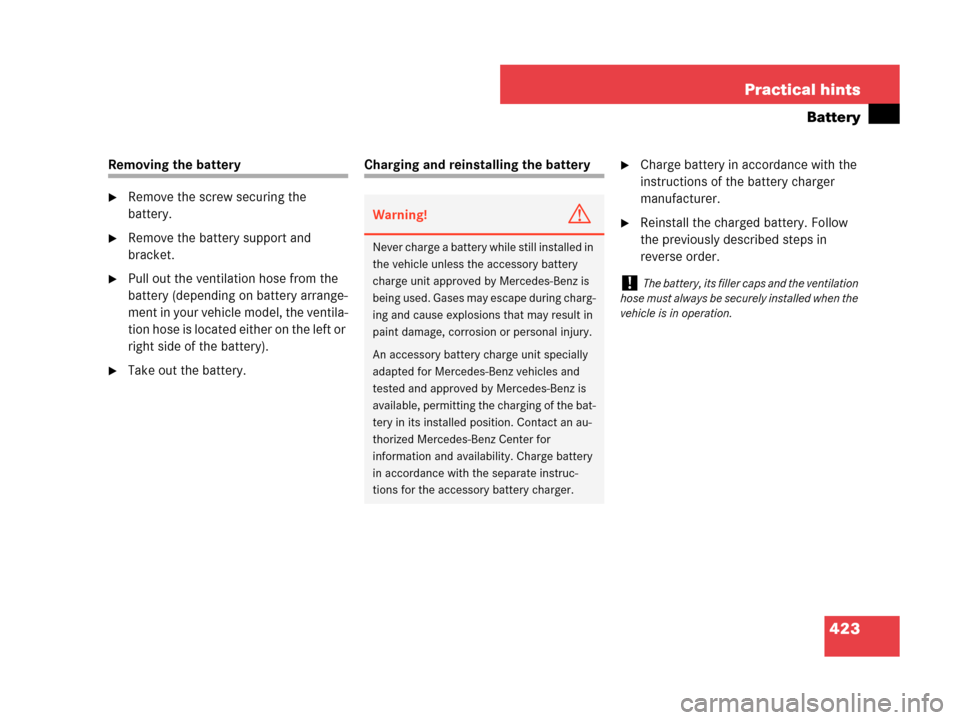

423 Practical hints
Battery
Removing the battery
Remove the screw securing the
battery.
Remove the battery support and
bracket.
Pull out the ventilation hose from the
battery (depending on battery arrange-
ment in your vehicle model, the ventila-
tion hose is located either on the left or
right side of the battery).
Take out the battery.
Charging and reinstalling the batteryCharge battery in accordance with the
instructions of the battery charger
manufacturer.
Reinstall the charged battery. Follow
the previously described steps in
reverse order.Warning!G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the bat-
tery in its installed position. Contact an au-
thorized Mercedes-Benz Center for
information and availability. Charge battery
in accordance with the separate instruc-
tions for the accessory battery charger.
!The battery, its filler caps and the ventilation
hose must always be securely installed when the
vehicle is in operation.
