2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

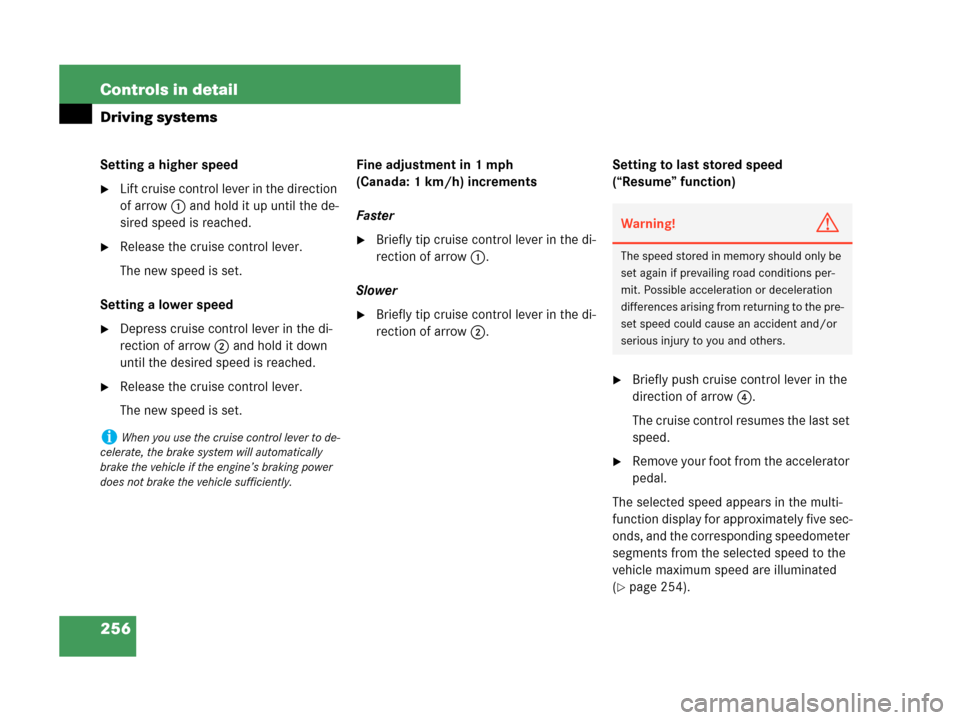

256 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever in the direction
of arrow1 and hold it up until the de-
sired speed is reached.
Release the cruise control lever.
The new speed is set.
Setting a lower speed
Depress cruise control lever in the di-
rection of arrow2 and hold it down
until the desired speed is reached.
Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster
Briefly tip cruise control lever in the di-
rection of arrow1.
Slower
Briefly tip cruise control lever in the di-
rection of arrow2.Setting to last stored speed
(“Resume” function)
Briefly push cruise control lever in the
direction of arrow4.
The cruise control resumes the last set
speed.
Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated
(
page 254).
iWhen you use the cruise control lever to de-
celerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
Warning!G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

257 Controls in detail
Driving systems
Parktronic system (Parking assist)*,
Canada only
The Parktronic system is an electronic aid
designed to assist the driver during park-
ing maneuvers. It visually and audibly indi-
cates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically ac-
tivated when you switch on the ignition
(
page 36) and placed the gear selector
lever in positionD,R,orN.The Parktronic system deactivates at
speeds over approximately 11 mph
(18 km/h). At lower speeds the Parktronic
system turns on again.
The Parktronic system also deactivates
when you place the gear selector lever in
positionP.
The Parktronic system monitors the sur-
roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumper
Warning!G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors, es-
pecially at times of snow and ice, see
“Cleaning the Parktronic system* sensors
(Canada only)” (
page 350).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers, car wash,
or the air brakes of trucks) can cause the
system to send erratic indications, and
should be taken into consideration.
Warning!G
Make sure no persons or animals are in the
area in which you are maneuvering. You
could otherwise injure them.

258 Controls in detail
Driving systems
Range of the sensors
To function properly, the sensors must be
free of dirt, ice, snow and slush. Clean the
sensors regularly, being careful not to
scratch or damage the sensors, see
“Cleaning the Parktronic system* sensors
(Canada only)” (
page 350).
Front sensors
Rear sensorsMinimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warning signal. If
the obstacle is closer than the minimum
distance, the actual distance may no long-
er be indicated by the system.
Centerapprox. 40 in (100 cm)
Cornersapprox. 24 in (60 cm)
Centerapprox. 48 in (120 cm)
Cornersapprox. 32 in (80 cm)
!During parking maneuvers, pay special at-
tention to objects located above or below the
height of the sensors (e.g. planters or trailer
hitches). The Parktronic system will not detect
such objects at close range and damage to your
vehicle or the object may result.
Ultrasonic signals from outside sources (e.g.
truck air brakes, car wash, or jackhammers) may
impair the operation of the Parktronic system.
Centerapprox. 8 in (20 cm)
Cornersapprox. 6 in (15 cm)

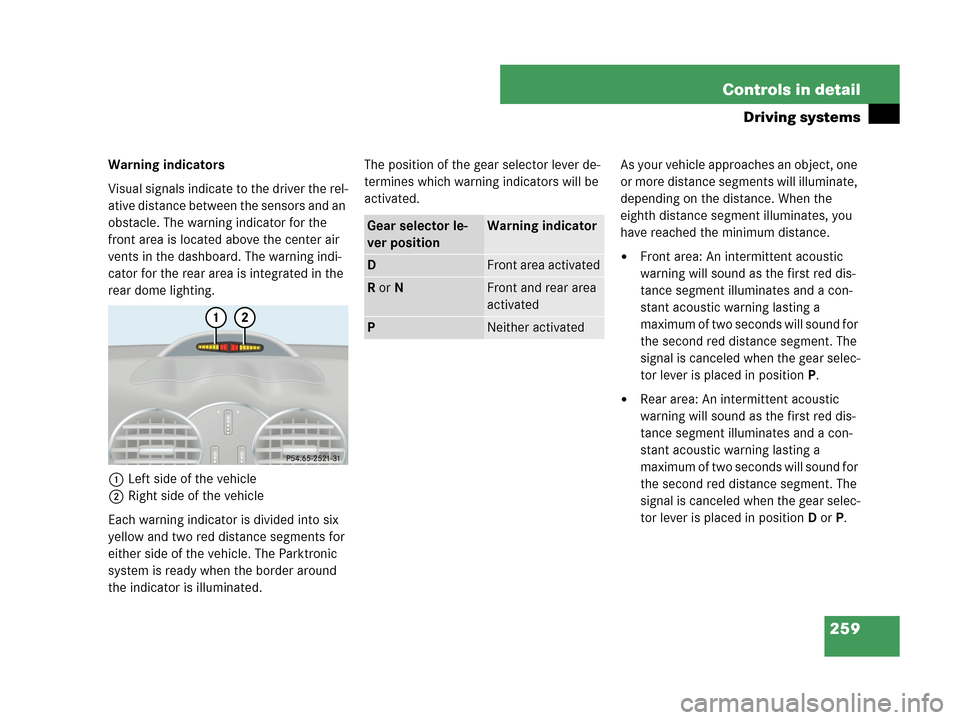

259 Controls in detail
Driving systems
Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicator for the
front area is located above the center air
vents in the dashboard. The warning indi-
cator for the rear area is integrated in the
rear dome lighting.
1Left side of the vehicle
2Right side of the vehicle
Each warning indicator is divided into six
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the border around
the indicator is illuminated.The position of the gear selector lever de-
termines which warning indicators will be
activated.As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
eighth distance segment illuminates, you
have reached the minimum distance.

Front area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in positionP.

Rear area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in position DorP.
Gear selector le-
ver positionWarning indicator
DFront area activated
R or NFront and rear area
activated
PNeither activated

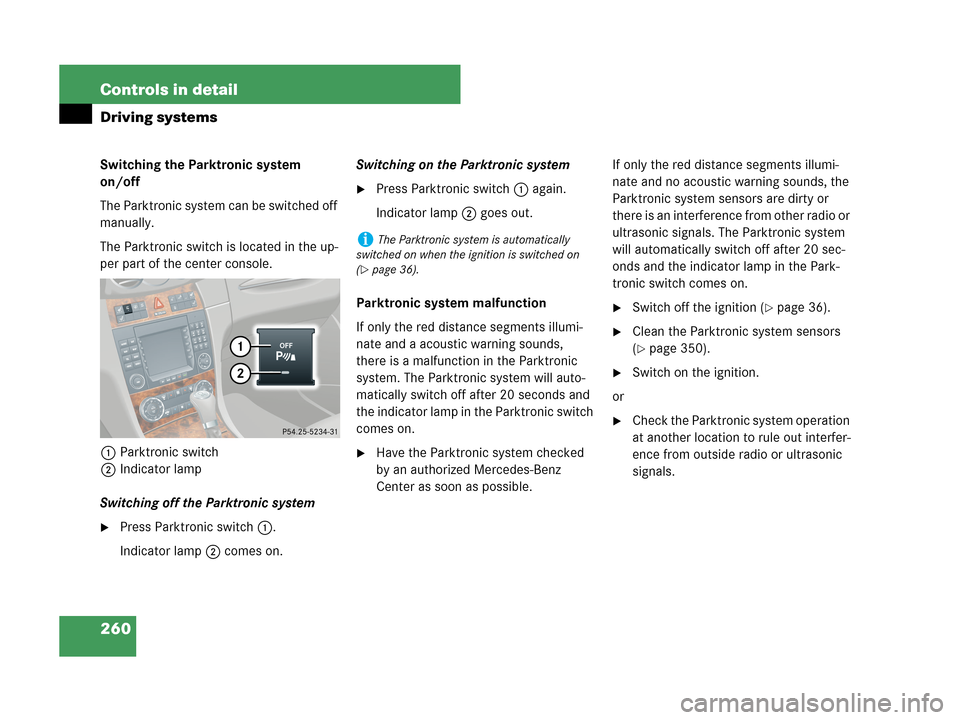

260 Controls in detail
Driving systems
Switching the Parktronic system
on/off
The Parktronic system can be switched off
manually.
The Parktronic switch is located in the up-
per part of the center console.
1Parktronic switch
2Indicator lamp
Switching off the Parktronic system
Press Parktronic switch1.
Indicator lamp2 comes on.Switching on the Parktronic system
Press Parktronic switch1 again.
Indicator lamp2 goes out.
Parktronic system malfunction
If only the red distance segments illumi-
nate and a acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.
Have the Parktronic system checked
by an authorized Mercedes-Benz
Center as soon as possible.If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after 20 sec-
onds and the indicator lamp in the Park-
tronic switch comes on.
Switch off the ignition (page 36).
Clean the Parktronic system sensors
(
page 350).
Switch on the ignition.
or
Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.
iThe Parktronic system is automatically
switched on when the ignition is switched on
(
page 36).

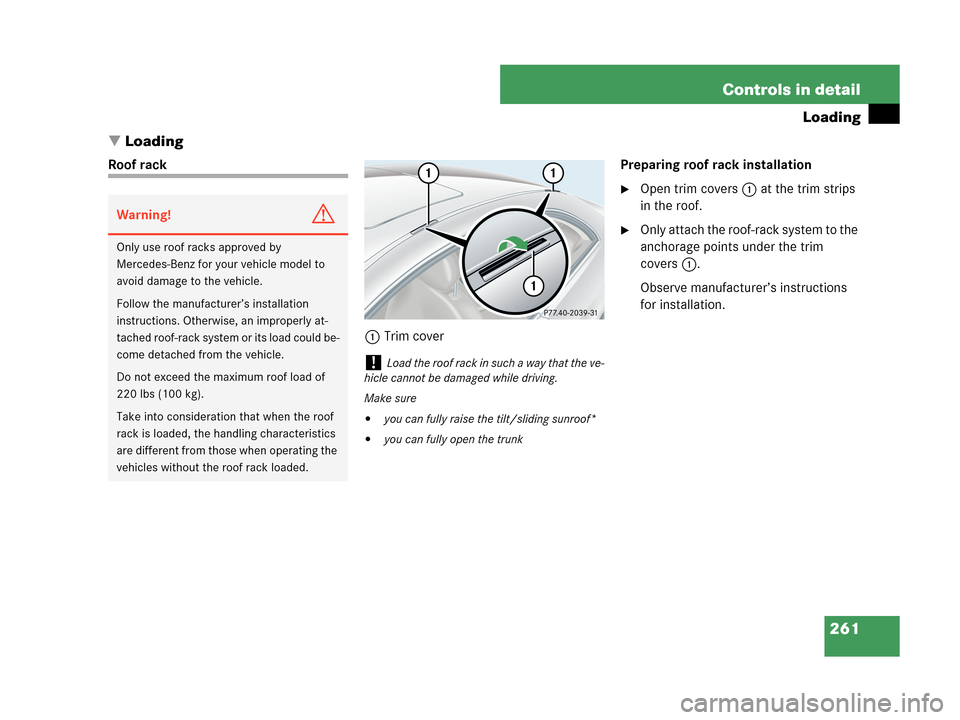

261 Controls in detail
Loading
Loading
Roof rack
1Trim coverPreparing roof rack installation
Open trim covers1 at the trim strips
in the roof.
Only attach the roof-rack system to the
anchorage points under the trim
covers1.
Observe manufacturer’s instructions
for installation.
Warning!G
Only use roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle.
Follow the manufacturer’s installation
instructions. Otherwise, an improperly at-
tached roof-rack system or its load could be-
come detached from the vehicle.
Do not exceed the maximum roof load of
220 lbs (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
!Load the roof rack in such a way that the ve-
hicle cannot be damaged while driving.
Make sure

you can fully raise the tilt/sliding sunroof*

you can fully open the trunk

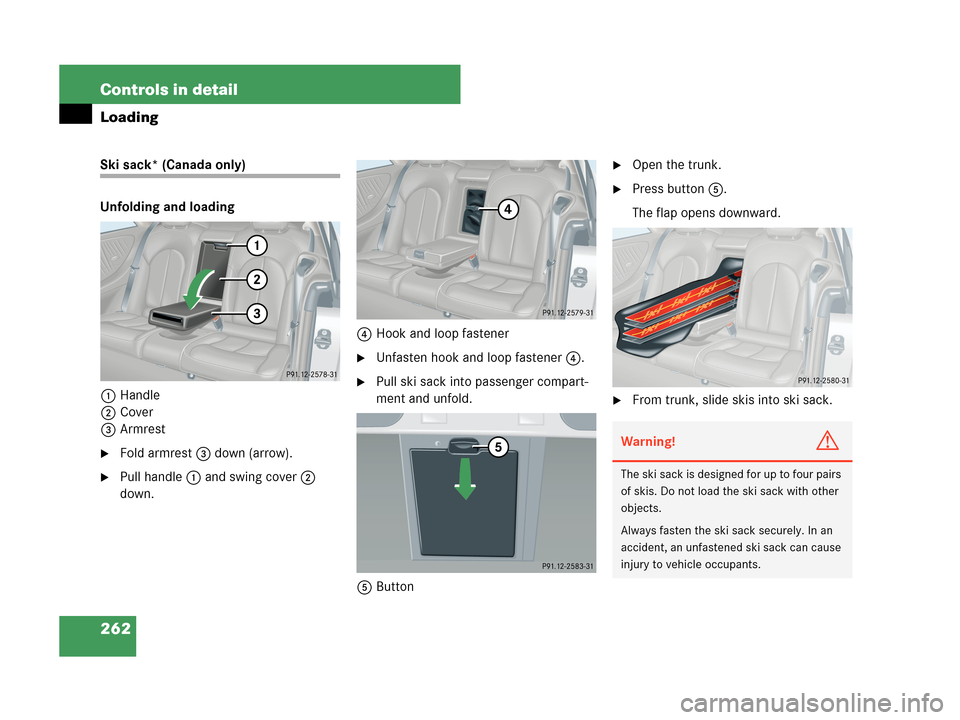

262 Controls in detail
Loading
Ski sack* (Canada only)
Unfolding and loading
1Handle
2Cover
3Armrest
Fold armrest3 down (arrow).
Pull handle1 and swing cover2
down.4Hook and loop fastener
Unfasten hook and loop fastener4.
Pull ski sack into passenger compart-
ment and unfold.
5Button
Open the trunk.
Press button5.
The flap opens downward.
From trunk, slide skis into ski sack.
Warning!G
The ski sack is designed for up to four pairs
of skis. Do not load the ski sack with other
objects.
Always fasten the ski sack securely. In an
accident, an unfastened ski sack can cause
injury to vehicle occupants.

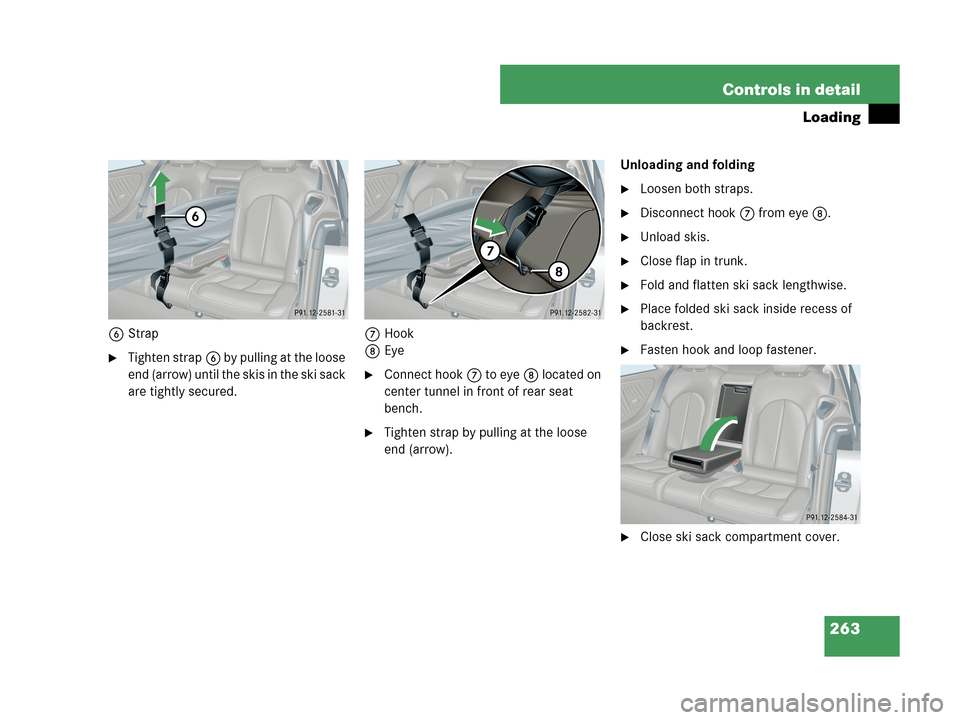

263 Controls in detail
Loading
6Strap
Tighten strap6 by pulling at the loose
end (arrow) until the skis in the ski sack
are tightly secured.7Hook
8Eye
Connect hook7 to eye8 located on
center tunnel in front of rear seat
bench.
Tighten strap by pulling at the loose
end (arrow).Unloading and folding
Loosen both straps.
Disconnect hook7 from eye8.
Unload skis.
Close flap in trunk.
Fold and flatten ski sack lengthwise.
Place folded ski sack inside recess of
backrest.
Fasten hook and loop fastener.
Close ski sack compartment cover.
