2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

184 Controls in detail
Climate control

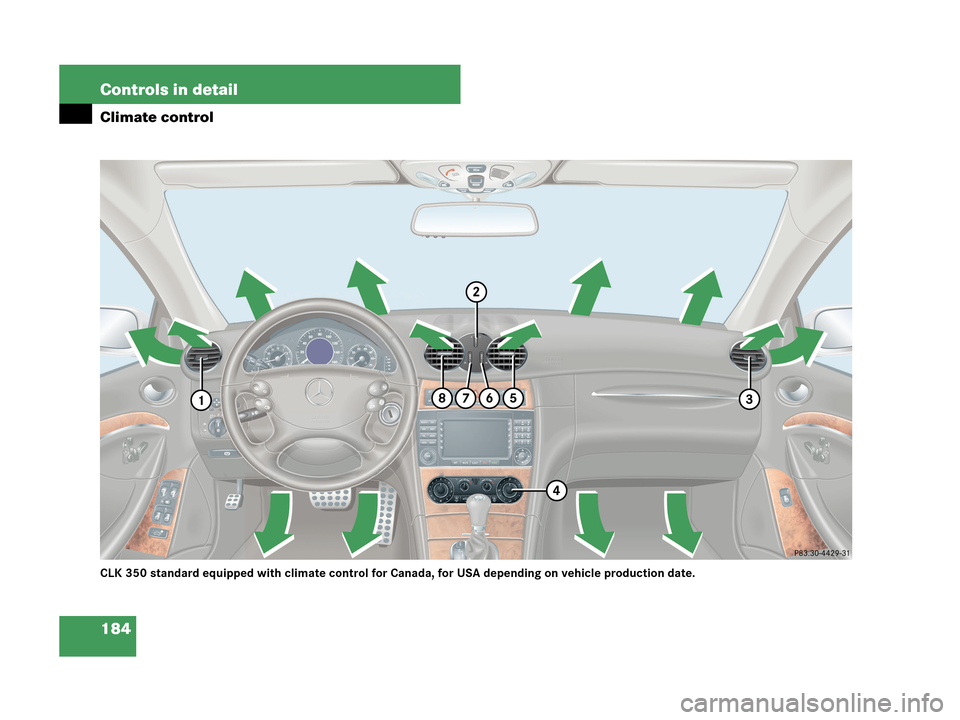

CLK 350 standard equipped with climate control for Canada, for USA depending on vehicle production date.

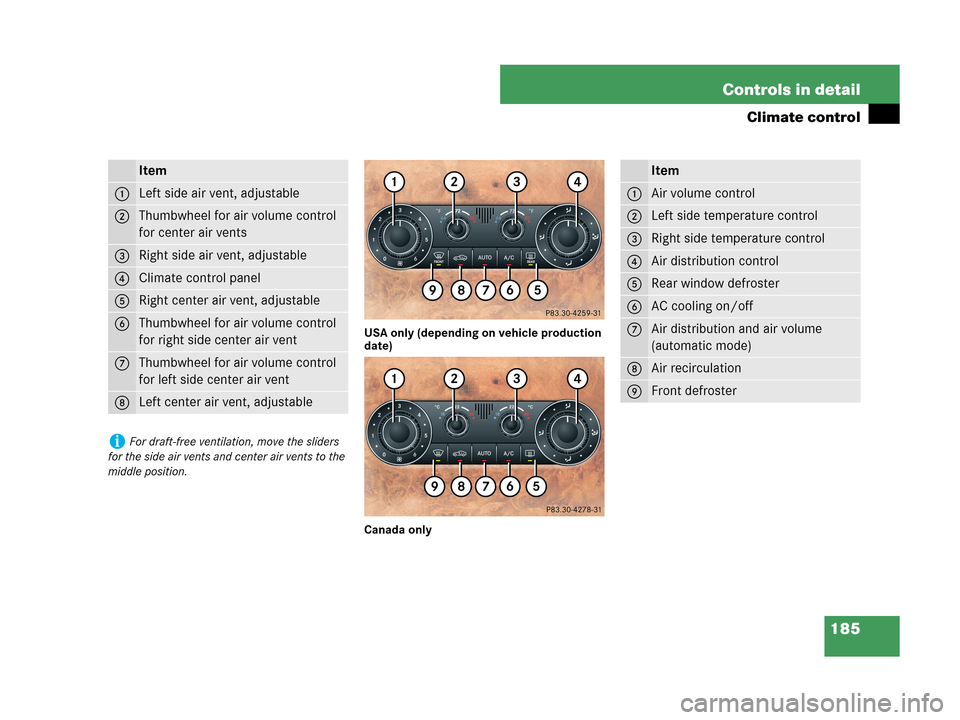

185 Controls in detail
Climate control
USA only (depending on vehicle production
date)
Canada only
Item
1Left side air vent, adjustable
2Thumbwheel for air volume control
for center air vents
3Right side air vent, adjustable
4Climate control panel
5Right center air vent, adjustable
6Thumbwheel for air volume control
for right side center air vent
7Thumbwheel for air volume control
for left side center air vent
8Left center air vent, adjustable
iFor draft-free ventilation, move the sliders
for the side air vents and center air vents to the
middle position.
Item
1Air volume control
2Left side temperature control
3Right side temperature control
4Air distribution control
5Rear window defroster
6AC cooling on/off
7Air distribution and air volume
(automatic mode)
8Air recirculation
9Front defroster

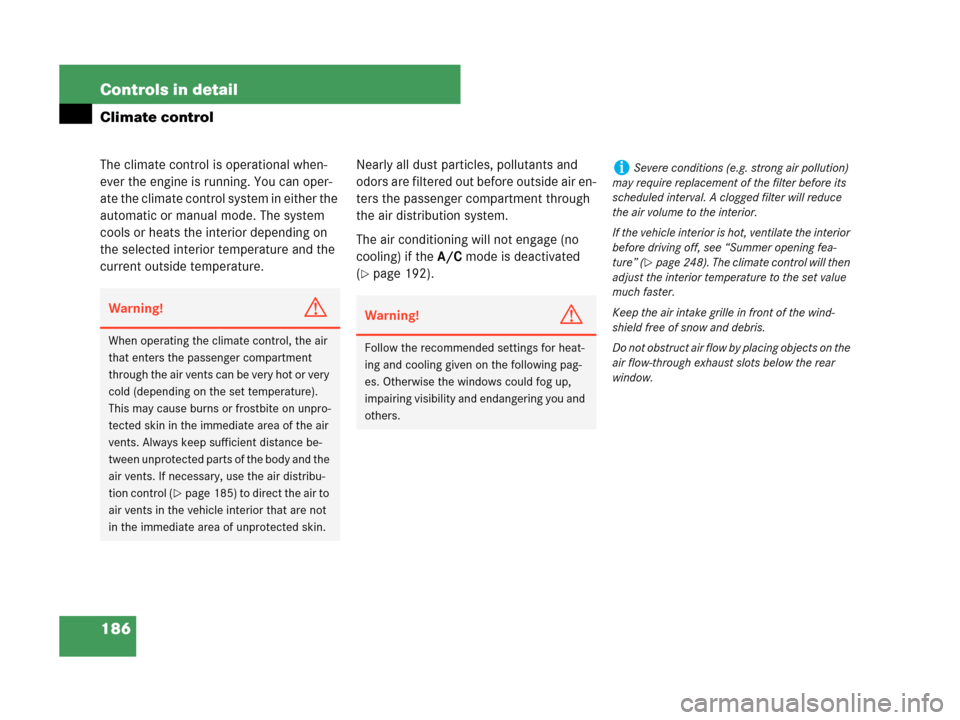

186 Controls in detail
Climate control
The climate control is operational when-
ever the engine is running. You can oper-
ate the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 192).
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite on unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion control (
page 185) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (
page 248). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
Do not obstruct air flow by placing objects on the
air flow-through exhaust slots below the rear
window.

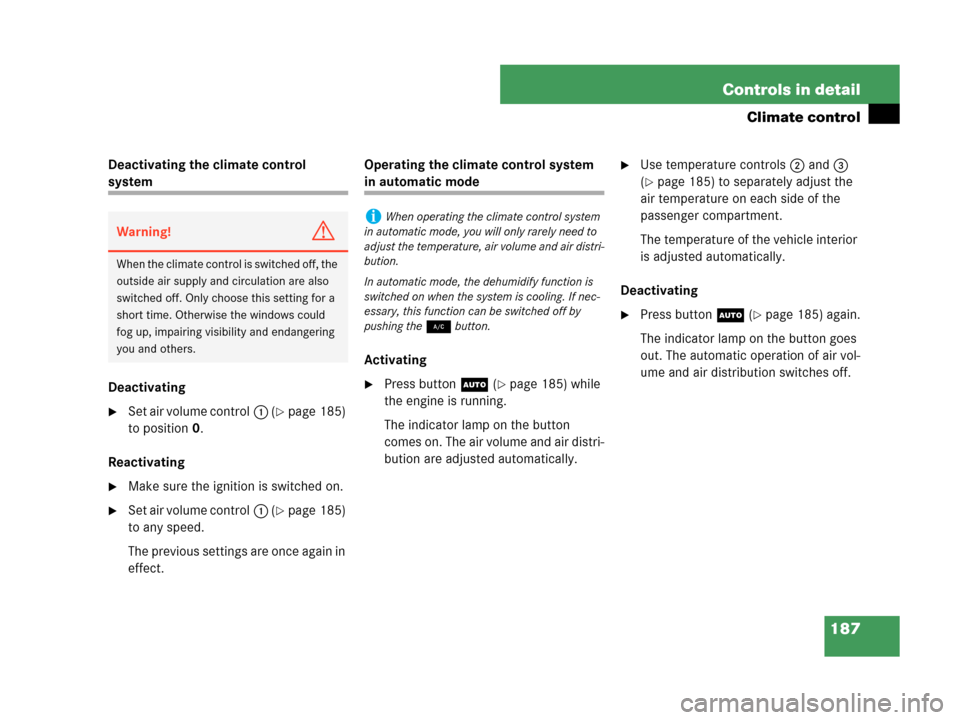

187 Controls in detail
Climate control
Deactivating the climate control
system
Deactivating
Set air volume control1 (page 185)
to position0.
Reactivating
Make sure the ignition is switched on.
Set air volume control1 (page 185)
to any speed.
The previous settings are once again in
effect.Operating the climate control system
in automatic mode
Activating
Press buttonU (page 185) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
Use temperature controls2 and3
(
page 185) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the vehicle interior
is adjusted automatically.
Deactivating
Press buttonU (page 185) again.
The indicator lamp on the button goes
out. The automatic operation of air vol-
ume and air distribution switches off.
Warning!G
When the climate control is switched off, the
outside air supply and circulation are also
switched off. Only choose this setting for a
short time. Otherwise the windows could
fog up, impairing visibility and endangering
you and others.
iWhen operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, the dehumidify function is
switched on when the system is cooling. If nec-
essary, this function can be switched off by
pushing the2 button.

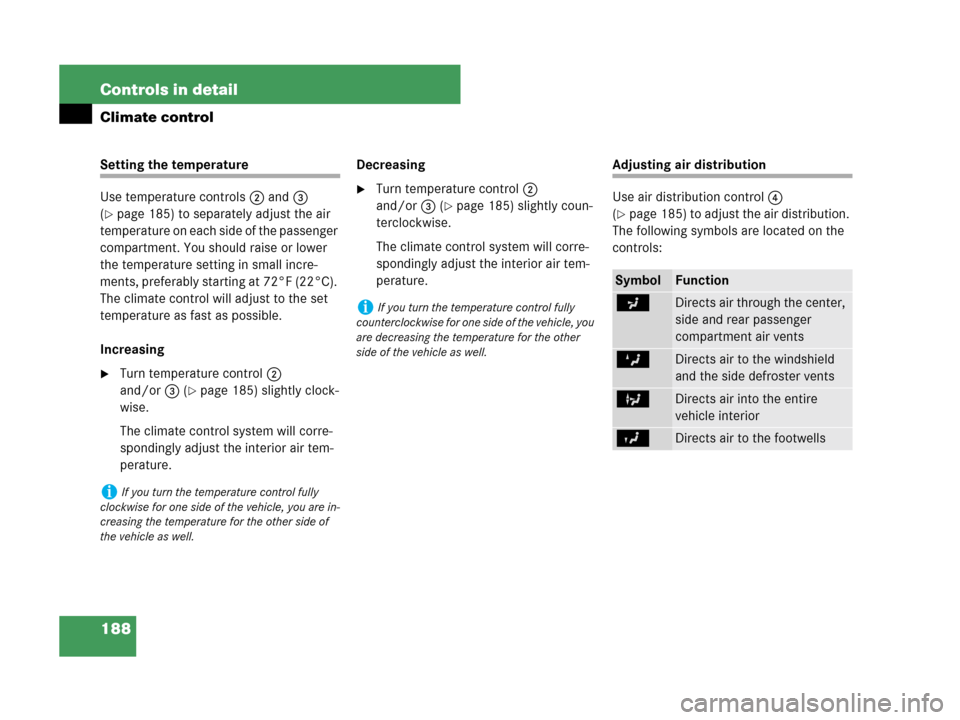

188 Controls in detail
Climate control
Setting the temperature
Use temperature controls2 and3
(
page 185) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control2
and/or3 (
page 185) slightly clock-
wise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.Decreasing
Turn temperature control2
and/or3 (
page 185) slightly coun-
terclockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air distribution
Use air distribution control4
(
page 185) to adjust the air distribution.
The following symbols are located on the
controls:
iIf you turn the temperature control fully
clockwise for one side of the vehicle, you are in-
creasing the temperature for the other side of
the vehicle as well.
iIf you turn the temperature control fully
counterclockwise for one side of the vehicle, you
are decreasing the temperature for the other
side of the vehicle as well.
SymbolFunction
aDirects air through the center,
side and rear passenger
compartment air vents
ZDirects air to the windshield
and the side defroster vents
bDirects air into the entire
vehicle interior
YDirects air to the footwells

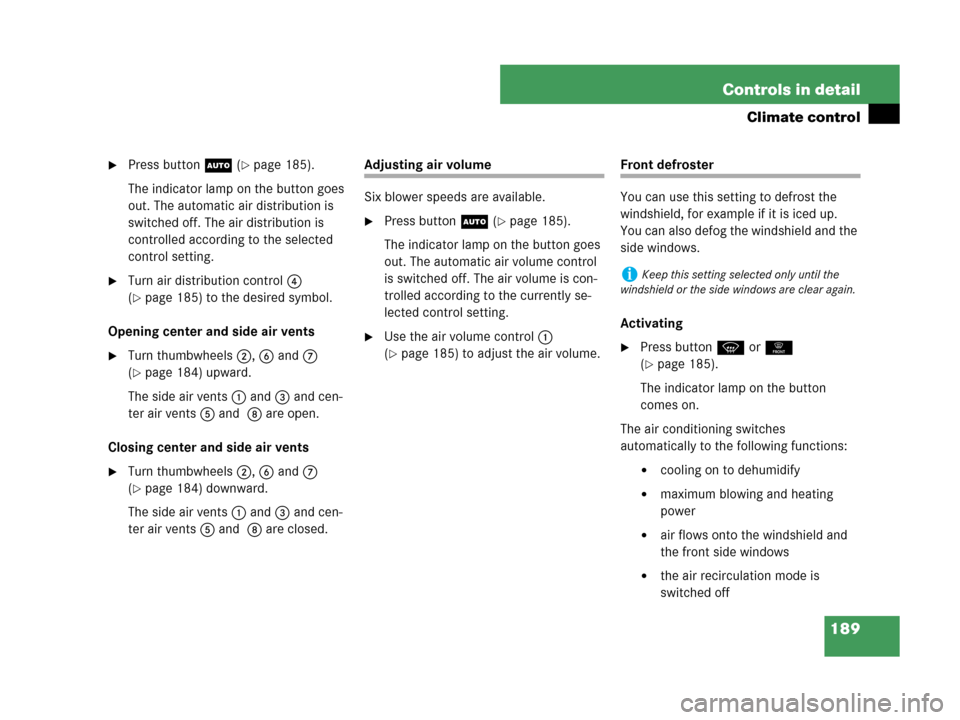

189 Controls in detail
Climate control
Press buttonU (page 185).
The indicator lamp on the button goes
out. The automatic air distribution is
switched off. The air distribution is
controlled according to the selected
control setting.
Turn air distribution control 4
(
page 185) to the desired symbol.
Opening center and side air vents
Turn thumbwheels 2, 6and7
(
page 184) upward.
The side air vents1 and3 and cen-
ter air vents5 and 8 are open.
Closing center and side air vents
Turn thumbwheels 2, 6and7
(
page 184) downward.
The side air vents1 and3 and cen-
ter air vents5 and 8 are closed.
Adjusting air volume
Six blower speeds are available.
Press buttonU (page 185).
The indicator lamp on the button goes
out. The automatic air volume control
is switched off. The air volume is con-
trolled according to the currently se-
lected control setting.
Use the air volume control1
(
page 185) to adjust the air volume.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.
Activating
Press buttonPor0
(
page 185).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following functions:

cooling on to dehumidify

maximum blowing and heating
power

air flows onto the windshield and
the front side windows

the air recirculation mode is
switched off
iKeep this setting selected only until the
windshield or the side windows are clear again.

190 Controls in detail
Climate control
Deactivating
Press buttonP or0
(
page 185) again.
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are once again in
effect.
Windshield fogged on the outside
Switch the windshield wipers on
(
page 56).
If the automatic mode of the climate con-
trol is switched off:
Turn air distribution control4
toaorY(
page 185).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating
Press button, (page 185).
The indicator lamp on the button
comes on.
iIf you have switched on the defrost function
using thePor0 button, you cannot
make any other settings.
iThe cooling remains switched on.
iKeep this setting selected only until the
windshield is clear again.
Warning!G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 192) is activated, or
press buttonP or0.
iThe air recirculation mode is activated auto-
matically at high outside temperatures.
The indicator lamp on button, is not lit when
the air recirculation mode is automatically
switched on.
A quantity of outside air is added after approxi-
mately 30 minutes.

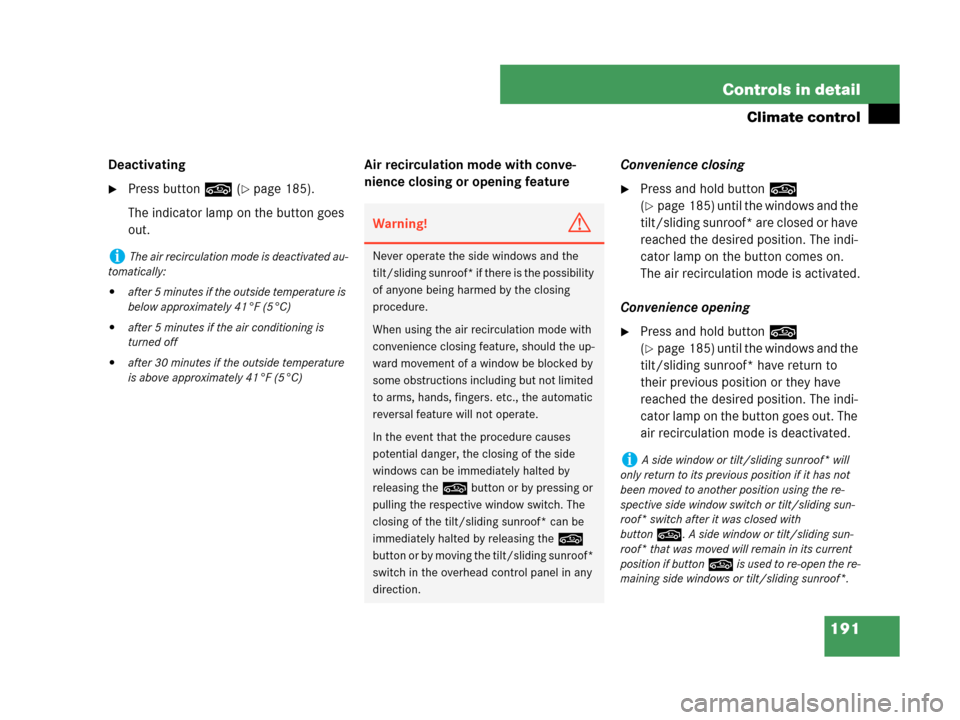

191 Controls in detail
Climate control
Deactivating
Press button, (page 185).
The indicator lamp on the button goes
out.Air recirculation mode with conve-
nience closing or opening featureConvenience closingPress and hold button,
(
page 185) until the windows and the
tilt/sliding sunroof* are closed or have
reached the desired position. The indi-
cator lamp on the button comes on.
The air recirculation mode is activated.
Convenience opening
Press and hold button,
(
page 185) until the windows and the
tilt/sliding sunroof* have return to
their previous position or they have
reached the desired position. The indi-
cator lamp on the button goes out. The
air recirculation mode is deactivated.
iThe air recirculation mode is deactivated au-
tomatically:

after 5 minutes if the outside temperature is
below approximately 41°F (5°C)

after 5 minutes if the air conditioning is
turned off

after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
Warning!G
Never operate the side windows and the
tilt/sliding sunroof* if there is the possibility
of anyone being harmed by the closing
procedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstructions including but not limited
to arms, hands, fingers. etc., the automatic
reversal feature will not operate.
In the event that the procedure causes
potential danger, the closing of the side
windows can be immediately halted by
releasing the, button or by pressing or
pulling the respective window switch. The
closing of the tilt/sliding sunroof* can be
immediately halted by releasing the,
button or by moving the tilt/sliding sunroof*
switch in the overhead control panel in any
direction.
iA side window or tilt/sliding sunroof* will
only return to its previous position if it has not
been moved to another position using the re-
spective side window switch or tilt/sliding sun-
roof* switch after it was closed with
button,. A side window or tilt/sliding sun-
roof* that was moved will remain in its current
position if button, is used to re-open the re-
maining side windows or tilt/sliding sunroof*.
