2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

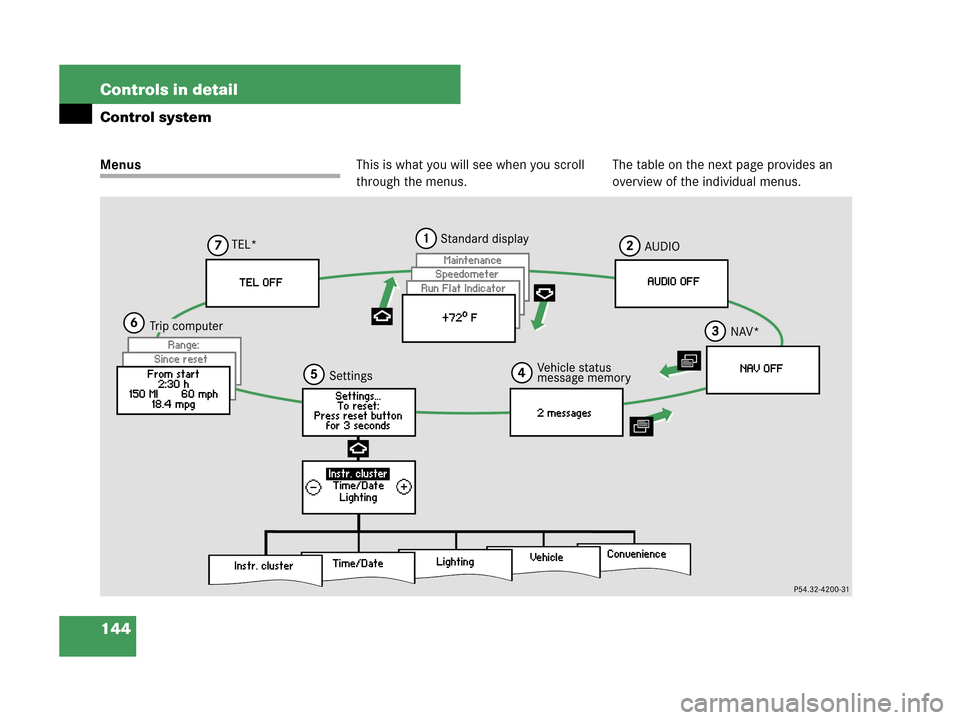

144 Controls in detail
Control system
MenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

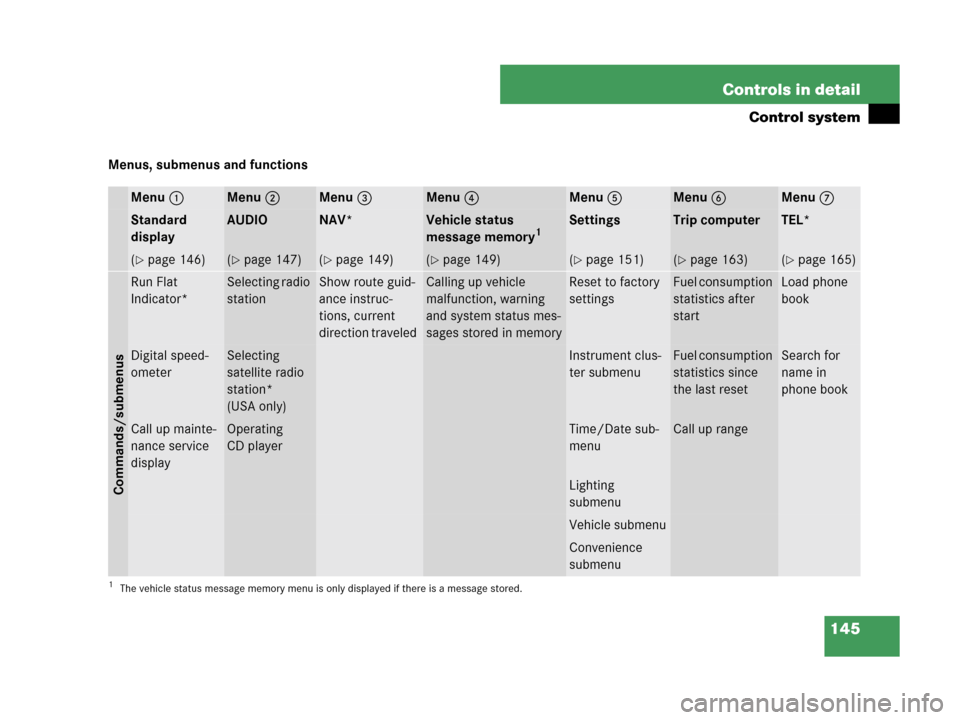

145 Controls in detail
Control system
Menus, submenus and functions
Menu1Menu2Menu3Menu4Menu5Menu6Menu7
Standard
displayAUDIONAV*Vehicle status
message memory1
1The vehicle status message memory menu is only displayed if there is a message stored.
SettingsTrip computerTEL*
(page 146)(page 147)(page 149)(page 149)(page 151)(page 163)(page 165)
Commands/submenus
Run Flat
Indicator*Selecting radio
stationShow route guid-
ance instruc-
tions, current
direction traveled Calling up vehicle
malfunction, warning
and system status mes-
sages stored in memoryReset to factory
settingsFuel consumption
statistics after
startLoad phone
book
Digital speed-
ometerSelecting
satellite radio
station*
(USA only)Instrument clus-
ter submenuFuel consumption
statistics since
the last resetSearch for
name in
phone book
Call up mainte-
nance service
displayOperating
CD playerTime/Date sub-
menuCall up range
Lighting
submenu
Vehicle submenu
Convenience
submenu

146 Controls in detail
Control system
Standard display menu
In the standard display, the outside tem-
perature and the trip odometer are shown
in the multifunction display.1Outside temperature
2Trip odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.
Press buttonk orjto select
the functions in the standard display
menu.
The following functions are available:Display digital speedometer
Press buttonj ork until the
digital speedometer appears in the
multifunction display.
The current vehicle speed is shown in
the multifunction display and the sta-
tus line appears.
1Digital Speedometer
2Status line with outside temperature
3Trip odometer
iThe headings used in the menus table are
designed to facilitate navigation within the sys-
tem and are not necessarily identical to those
shown in the control system displays.
The first function displayed in each menu will au-
tomatically show you which part of the system
you are in.
iYou can have the digital speedometer dis-
played instead of the outside temperature in the
standard display. You can select the setting in
the submenu
Instr. cluster via the function
Basic display (page 155).FunctionPage
Run Flat Indicator*324
Call up digital speedometer 146
Call up maintenance service
display345
iYou can have the digital speedometer dis-
played instead of the outside temperature in the
status line. You can select the setting in the sub-
menu
Instr. cluster via the function Status
line display
(page 155).

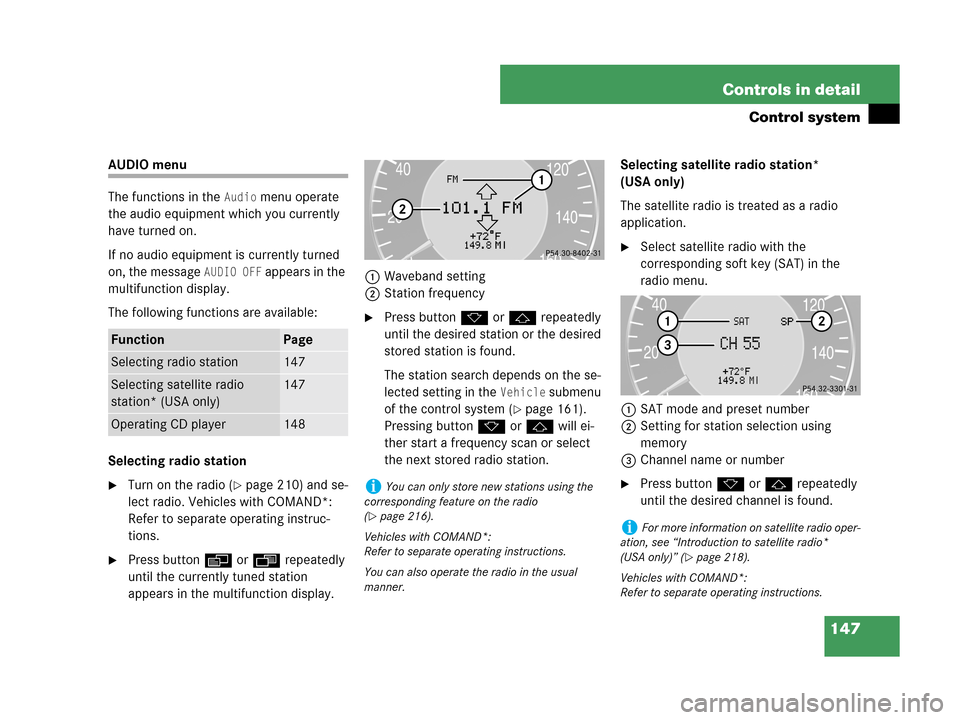

147 Controls in detail
Control system
AUDIO menu
The functions in the
Audio menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF appears in the
multifunction display.
The following functions are available:
Selecting radio station
Turn on the radio (page 210) and se-
lect radio. Vehicles with COMAND*:
Refer to separate operating instruc-
tions.
Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.1Waveband setting
2Station frequency
Press buttonk orj repeatedly
until the desired station or the desired
stored station is found.
The station search depends on the se-
lected setting in the
Vehicle submenu
of the control system (
page 161).
Pressing buttonk orj will ei-
ther start a frequency scan or select
the next stored radio station.Selecting satellite radio station*
(USA only)
The satellite radio is treated as a radio
application.
Select satellite radio with the
corresponding soft key (SAT) in the
radio menu.
1SAT mode and preset number
2Setting for station selection using
memory
3Channel name or number
Press buttonk orj repeatedly
until the desired channel is found.
FunctionPage
Selecting radio station147
Selecting satellite radio
station* (USA only)147
Operating CD player148
iYou can only store new stations using the
corresponding feature on the radio
(
page 216).
Vehicles with COMAND*:
Refer to separate operating instructions.
You can also operate the radio in the usual
manner.iFor more information on satellite radio oper-
ation, see “Introduction to satellite radio*
(USA only)” (
page 218).
Vehicles with COMAND*:
Refer to separate operating instructions.

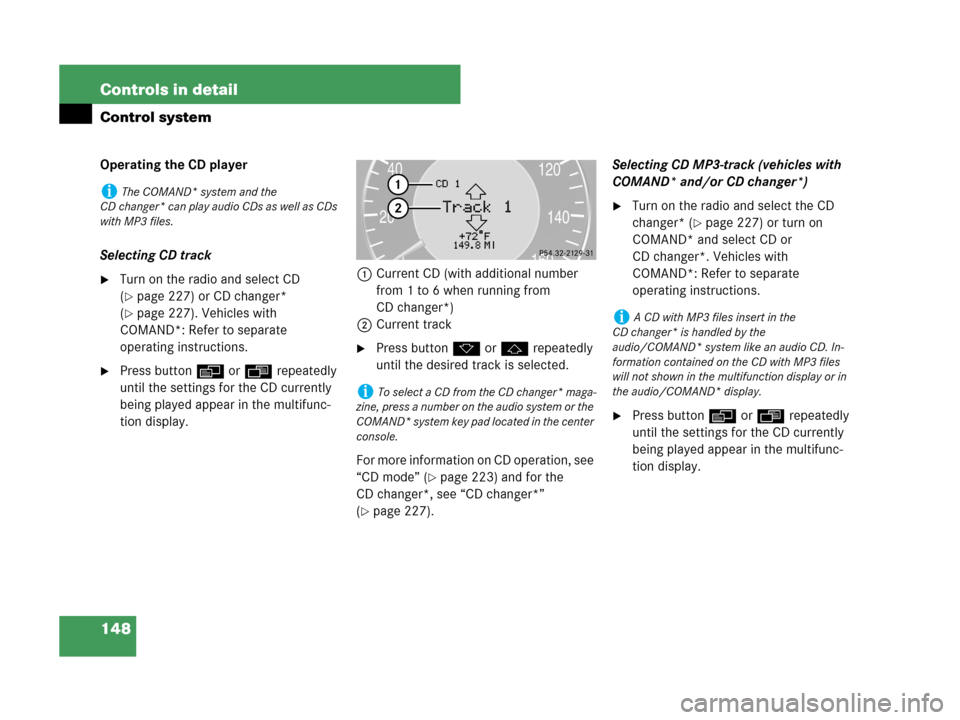

148 Controls in detail
Control system
Operating the CD player
Selecting CD track
Turn on the radio and select CD
(
page 227) or CD changer*
(
page 227). Vehicles with
COMAND*: Refer to separate
operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.1Current CD (with additional number
from 1 to 6 when running from
CD changer*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on CD operation, see
“CD mode” (
page 223) and for the
CD changer*, see “CD changer*”
(
page 227).Selecting CD MP3-track (vehicles with
COMAND* and/or CD changer*)
Turn on the radio and select the CD
changer* (
page 227) or turn on
COMAND* and select CD or
CD changer*. Vehicles with
COMAND*: Refer to separate
operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.
iThe COMAND* system and the
CD changer* can play audio CDs as well as CDs
with MP3 files.
iTo select a CD from the CD changer* maga-
zine, press a number on the audio system or the
COMAND* system key pad located in the center
console.
iA CD with MP3 files insert in the
CD changer* is handled by the
audio/COMAND* system like an audio CD. In-
formation contained on the CD with MP3 files
will not shown in the multifunction display or in
the audio/COMAND* display.

149 Controls in detail
Control system
1MP3 mode (vehicles with COMAND*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on MP3, see “MP3
notes” (
page 224), and for operating,
see “MP3 playback” (
page 225)
NAV* menu
The
NAV menu contains the functions
needed to operate your navigation system.
Press buttonè orÿ repeatedly
until the message
NAV appears in the
multifunction display.

If COMAND* is switched off, the mes-
sage
Nav off appears in the multifunc-
tion display.

With COMAND* switched on but route
guidance not activated, the direction of
travel and, if available, the name of the
street currently traveld on appear in
the multifunction display.

With COMAND* switched on and route
guidance activated, the direction of
travel and maneuver instructions ap-
pear in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the
multifunction display and are based on
conditions or system status the vehicle’s
system recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
iLevel of information displayed will vary de-
pending on the information contained on the CD
with MP3 files insert in the single CD player of
the COMAND* system.
To select a CD from the CD changer* magazine,
press a number on the audio system or the
COMAND* system key pad located in the center
console.

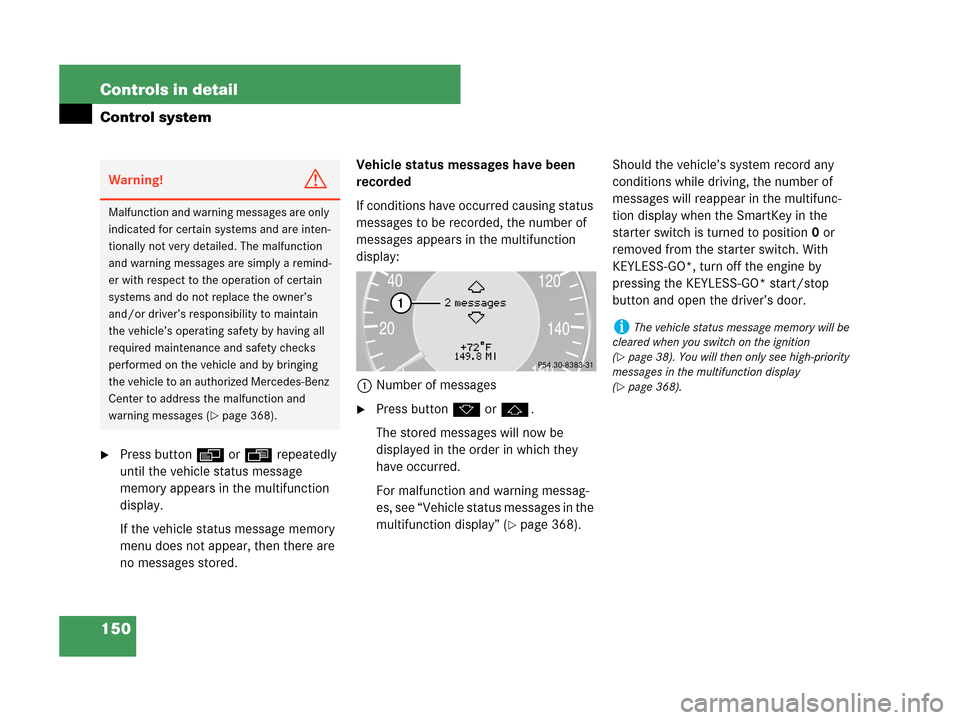

150 Controls in detail
Control system
Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display.
If the vehicle status message memory
menu does not appear, then there are
no messages stored.Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages
Press buttonk orj.
The stored messages will now be
displayed in the order in which they
have occurred.
For malfunction and warning messag-
es, see “Vehicle status messages in the
multifunction display” (
page 368).Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch. With
KEYLESS-GO*, turn off the engine by
pressing the KEYLESS-GO* start/stop
button and open the driver’s door.
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 368).
iThe vehicle status message memory will be
cleared when you switch on the ignition
(
page 38). You will then only see high-priority
messages in the multifunction display
(
page 368).

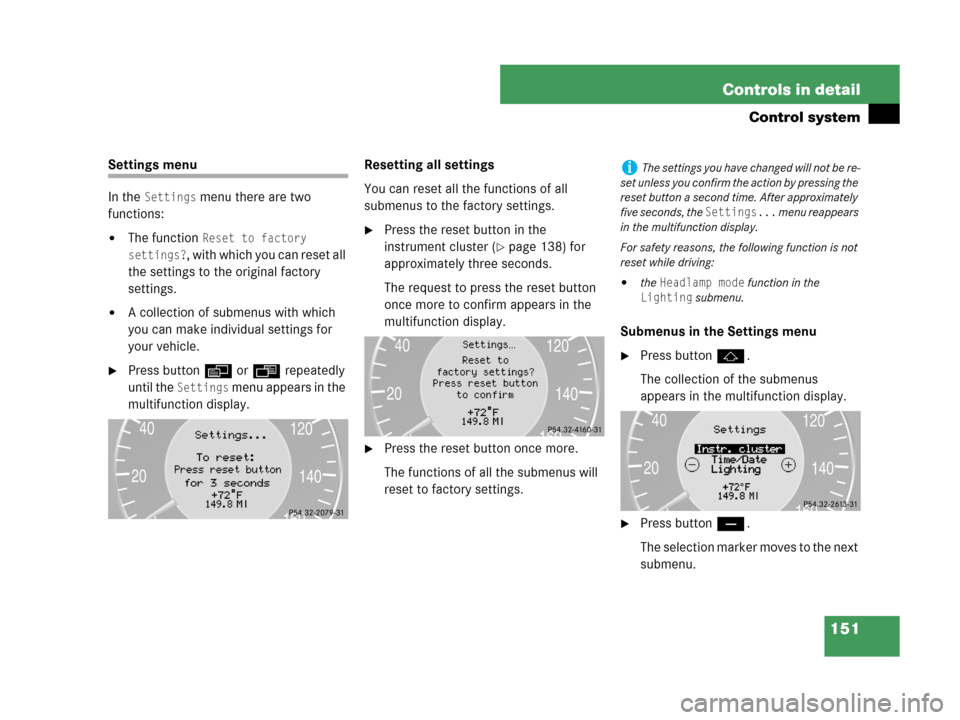

151 Controls in detail
Control system
Settings menu
In the
Settings menu there are two
functions:

The function Reset to factory
settings?
, with which you can reset all
the settings to the original factory
settings.

A collection of submenus with which
you can make individual settings for
your vehicle.
Press buttonè orÿ repeatedly
until the
Settings menu appears in the
multifunction display.Resetting all settings
You can reset all the functions of all
submenus to the factory settings.
Press the reset button in the
instrument cluster (
page 138) for
approximately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.
Press the reset button once more.
The functions of all the submenus will
reset to factory settings.Submenus in the Settings menu
Press buttonj.
The collection of the submenus
appears in the multifunction display.
Press buttonç.
The selection marker moves to the next
submenu.
iThe settings you have changed will not be re-
set unless you confirm the action by pressing the
reset button a second time. After approximately
five seconds, the
Settings... menu reappears
in the multifunction display.
For safety reasons, the following function is not
reset while driving:

the Headlamp mode function in the
Lighting submenu.
