2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

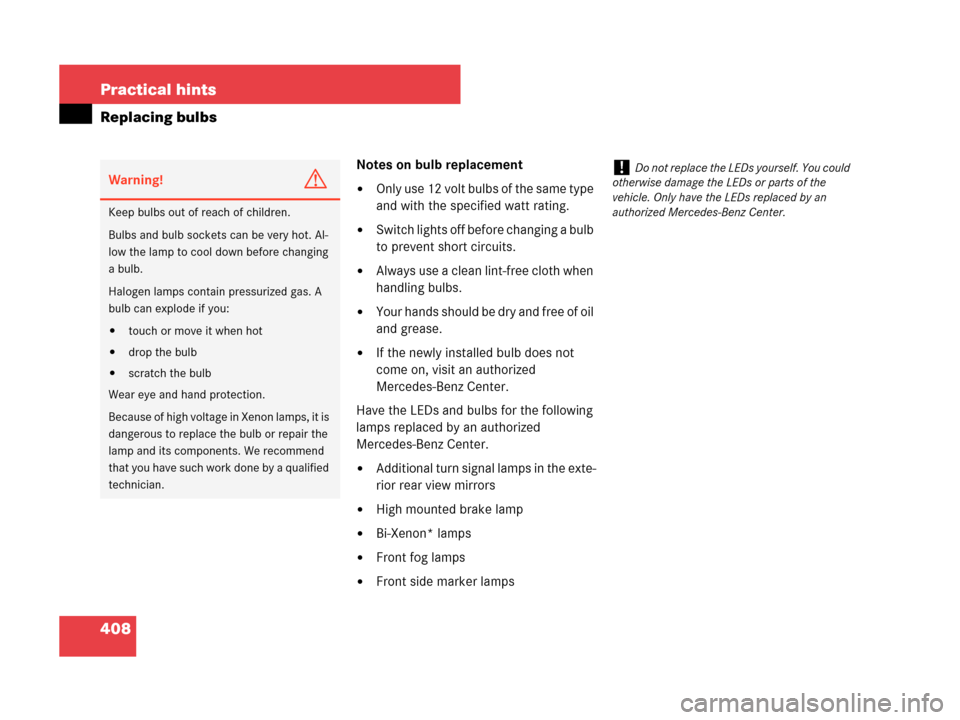

408 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12 volt bulbs of the same type
and with the specified watt rating.

Switch lights off before changing a bulb
to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signal lamps in the exte-
rior rear view mirrors

High mounted brake lamp

Bi-Xenon* lamps

Front fog lamps

Front side marker lamps
Warning!G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the
vehicle. Only have the LEDs replaced by an
authorized Mercedes-Benz Center.

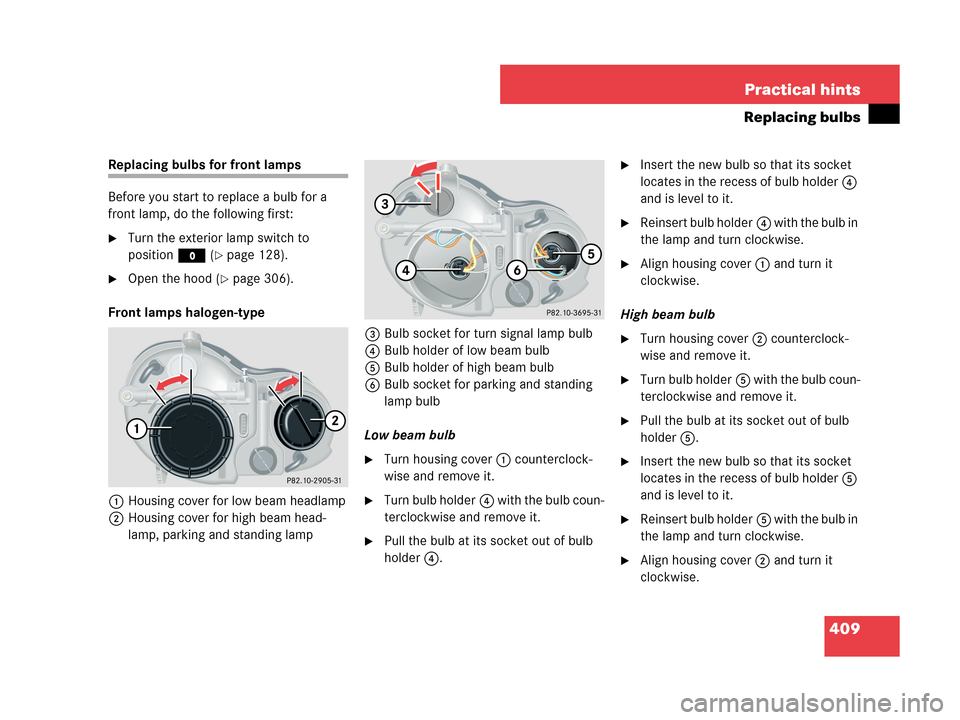

409 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 128).
Open the hood (page 306).
Front lamps halogen-type
1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb holder of low beam bulb
5Bulb holder of high beam bulb
6Bulb socket for parking and standing
lamp bulb
Low beam bulb
Turn housing cover1 counterclock-
wise and remove it.
Turn bulb holder4 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder4.
Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.
Reinsert bulb holder4 with the bulb in
the lamp and turn clockwise.
Align housing cover1 and turn it
clockwise.
High beam bulb
Turn housing cover2 counterclock-
wise and remove it.
Turn bulb holder5 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder5.
Insert the new bulb so that its socket
locates in the recess of bulb holder5
and is level to it.
Reinsert bulb holder5 with the bulb in
the lamp and turn clockwise.
Align housing cover2 and turn it
clockwise.

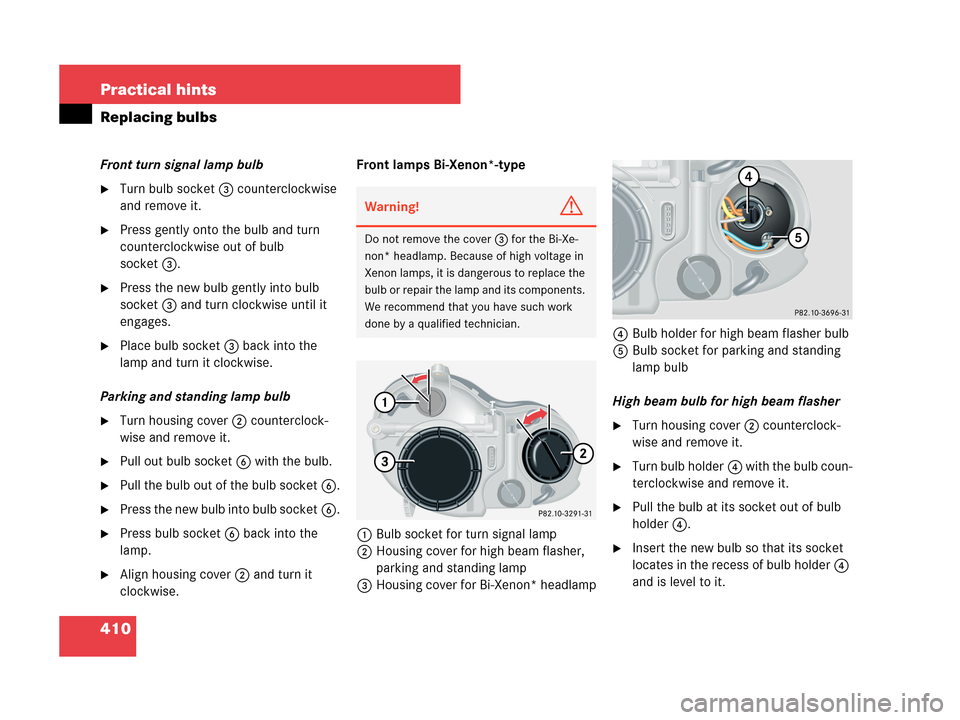

410 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Turn bulb socket3 counterclockwise
and remove it.
Press gently onto the bulb and turn
counterclockwise out of bulb
socket3.
Press the new bulb gently into bulb
socket3 and turn clockwise until it
engages.
Place bulb socket3 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb
Turn housing cover2 counterclock-
wise and remove it.
Pull out bulb socket6 with the bulb.
Pull the bulb out of the bulb socket6.
Press the new bulb into bulb socket6.
Press bulb socket6 back into the
lamp.
Align housing cover2 and turn it
clockwise.Front lamps Bi-Xenon*-type
1Bulb socket for turn signal lamp
2Housing cover for high beam flasher,
parking and standing lamp
3Housing cover for Bi-Xenon* headlamp4Bulb holder for high beam flasher bulb
5Bulb socket for parking and standing
lamp bulb
High beam bulb for high beam flasher
Turn housing cover2 counterclock-
wise and remove it.
Turn bulb holder4 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder4.
Insert the new bulb so that its socket
locates in the recess of bulb holder4
and is level to it.
Warning!G
Do not remove the cover 3 for the Bi-Xe-
non* headlamp. Because of high voltage in
Xenon lamps, it is dangerous to replace the
bulb or repair the lamp and its components.
We recommend that you have such work
done by a qualified technician.

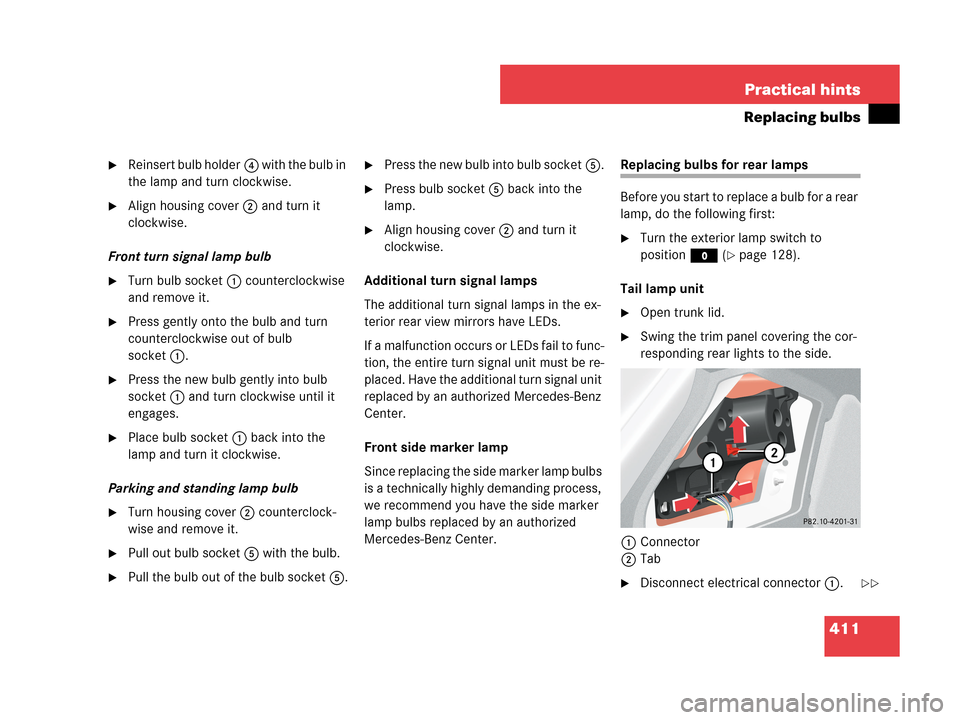

411 Practical hints
Replacing bulbs
Reinsert bulb holder4 w i t h t h e b u l b i n
the lamp and turn clockwise.
Align housing cover2 and turn it
clockwise.
Front turn signal lamp bulb
Turn bulb socket1 counterclockwise
and remove it.
Press gently onto the bulb and turn
counterclockwise out of bulb
socket1.
Press the new bulb gently into bulb
socket1 and turn clockwise until it
engages.
Place bulb socket1 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb
Turn housing cover2 counterclock-
wise and remove it.
Pull out bulb socket5 with the bulb.
Pull the bulb out of the bulb socket5.
Press the new bulb into bulb socket5.
Press bulb socket5 back into the
lamp.
Align housing cover2 and turn it
clockwise.
Additional turn signal lamps
The additional turn signal lamps in the ex-
terior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the additional turn signal unit
replaced by an authorized Mercedes-Benz
Center.
Front side marker lamp
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 128).
Tail lamp unit
Open trunk lid.
Swing the trim panel covering the cor-
responding rear lights to the side.
1Connector
2Tab
Disconnect electrical connector1.

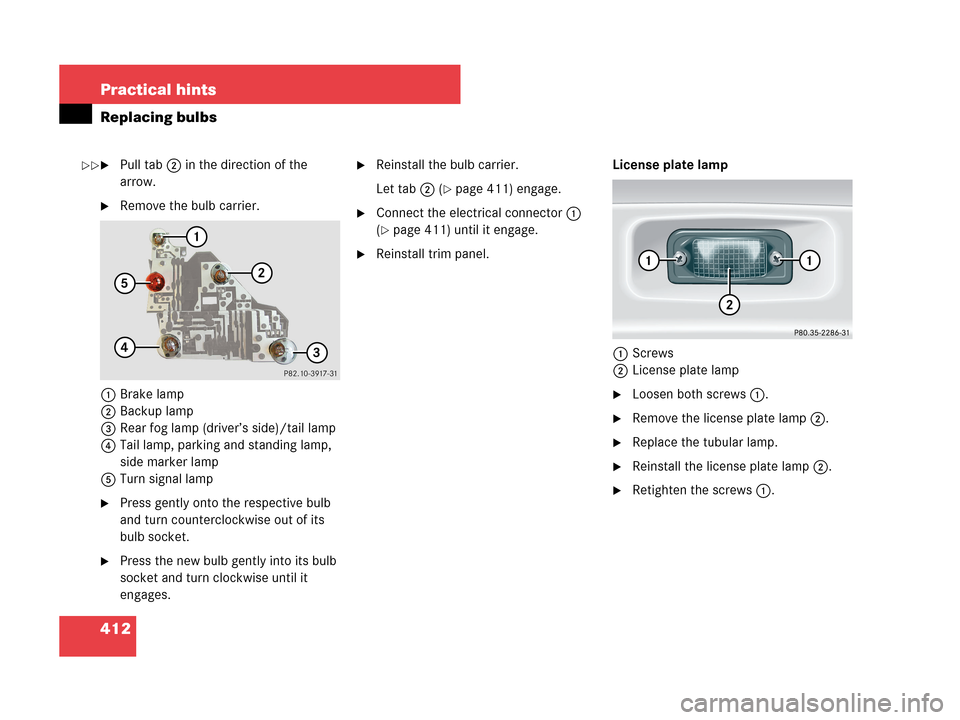

412 Practical hints
Replacing bulbs
Pull tab2 in the direction of the
arrow.
Remove the bulb carrier.
1Brake lamp
2Backup lamp
3Rear fog lamp (driver’s side)/tail lamp
4Tail lamp, parking and standing lamp,
side marker lamp
5Turn signal lamp
Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.
Press the new bulb gently into its bulb
socket and turn clockwise until it
engages.
Reinstall the bulb carrier.
Let tab2 (
page 411) engage.
Connect the electrical connector1
(
page 411) until it engage.
Reinstall trim panel.License plate lamp
1Screws
2License plate lamp
Loosen both screws1.
Remove the license plate lamp2.
Replace the tubular lamp.
Reinstall the license plate lamp2.
Retighten the screws1.

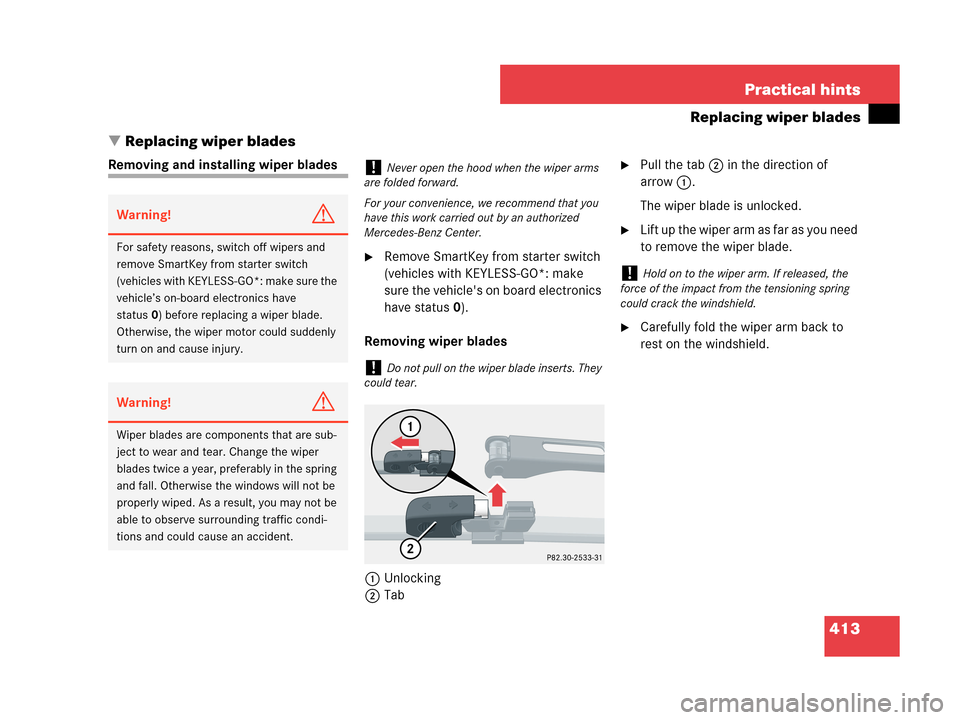

413 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing and installing wiper blades
Remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: make
sure the vehicle's on board electronics
have status 0).
Removing wiper blades
1Unlocking
2Tab
Pull the tab2 in the direction of
arrow1.
The wiper blade is unlocked.
Lift up the wiper arm as far as you need
to remove the wiper blade.
Carefully fold the wiper arm back to
rest on the windshield.
Warning!G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise, the wiper motor could suddenly
turn on and cause injury.
Warning!G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!Never open the hood when the wiper arms
are folded forward.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.
!Do not pull on the wiper blade inserts. They
could tear.
!Hold on to the wiper arm. If released, the
force of the impact from the tensioning spring
could crack the windshield.

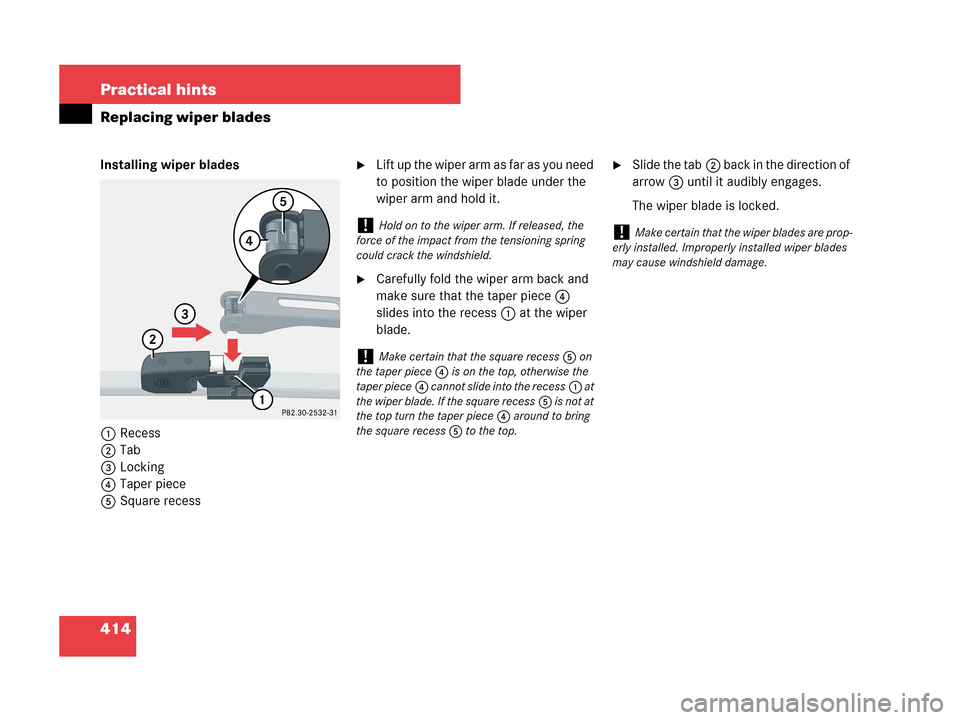

414 Practical hints
Replacing wiper blades
Installing wiper blades
1Recess
2Tab
3Locking
4Taper piece
5Square recessLift up the wiper arm as far as you need
to position the wiper blade under the
wiper arm and hold it.
Carefully fold the wiper arm back and
make sure that the taper piece4
slides into the recess1 at the wiper
blade.
Slide the tab2 back in the direction of
arrow3 until it audibly engages.
The wiper blade is locked.
!Hold on to the wiper arm. If released, the
force of the impact from the tensioning spring
could crack the windshield.
!Make certain that the square recess5 on
the taper piece4 is on the top, otherwise the
taper piece4 cannot slide into the recess1 at
the wiper blade. If the square recess5 is not at
the top turn the taper piece4 around to bring
the square recess5 to the top.
!Make certain that the wiper blades are prop-
erly installed. Improperly installed wiper blades
may cause windshield damage.

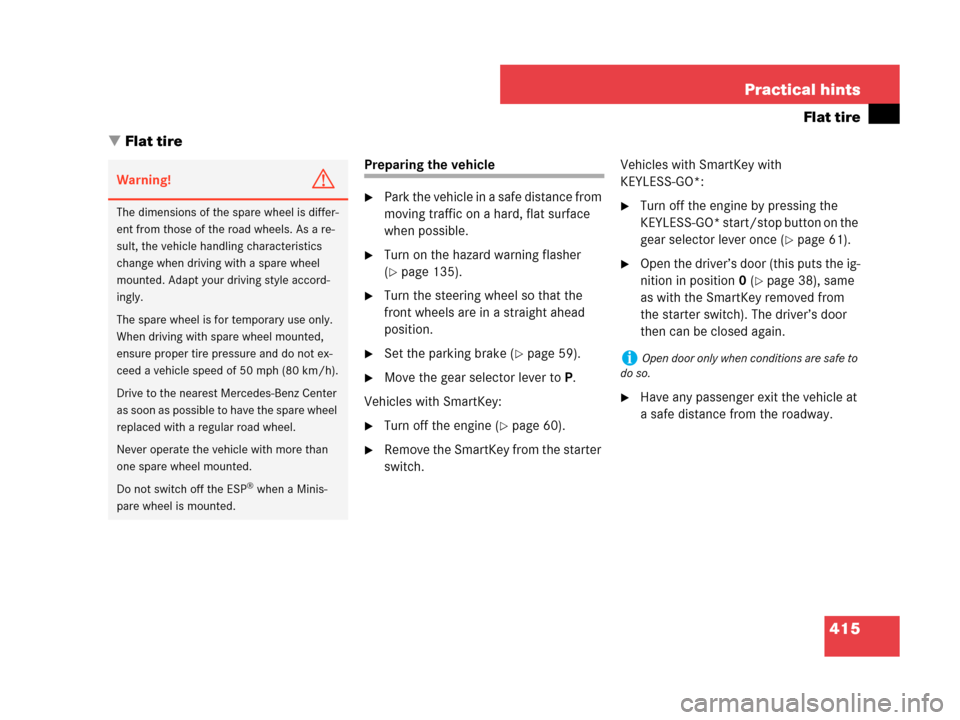

415 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.
Turn on the hazard warning flasher
(
page 135).
Turn the steering wheel so that the
front wheels are in a straight ahead
position.
Set the parking brake (page 59).
Move the gear selector lever toP.
Vehicles with SmartKey:
Turn off the engine (page 60).
Remove the SmartKey from the starter
switch.Vehicles with SmartKey with
KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO* start/stop button on the
gear selector lever once (
page 61).
Open the driver’s door (this puts the ig-
nition in position0 (
page 38), same
as with the SmartKey removed from
the starter switch). The driver’s door
then can be closed again.
Have any passenger exit the vehicle at
a safe distance from the roadway.
Warning!G
The dimensions of the spare wheel is differ-
ent from those of the road wheels. As a re-
sult, the vehicle handling characteristics
change when driving with a spare wheel
mounted. Adapt your driving style accord-
ingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted,
ensure proper tire pressure and do not ex-
ceed a vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a Minis-
pare wheel is mounted.
iOpen door only when conditions are safe to
do so.
