2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

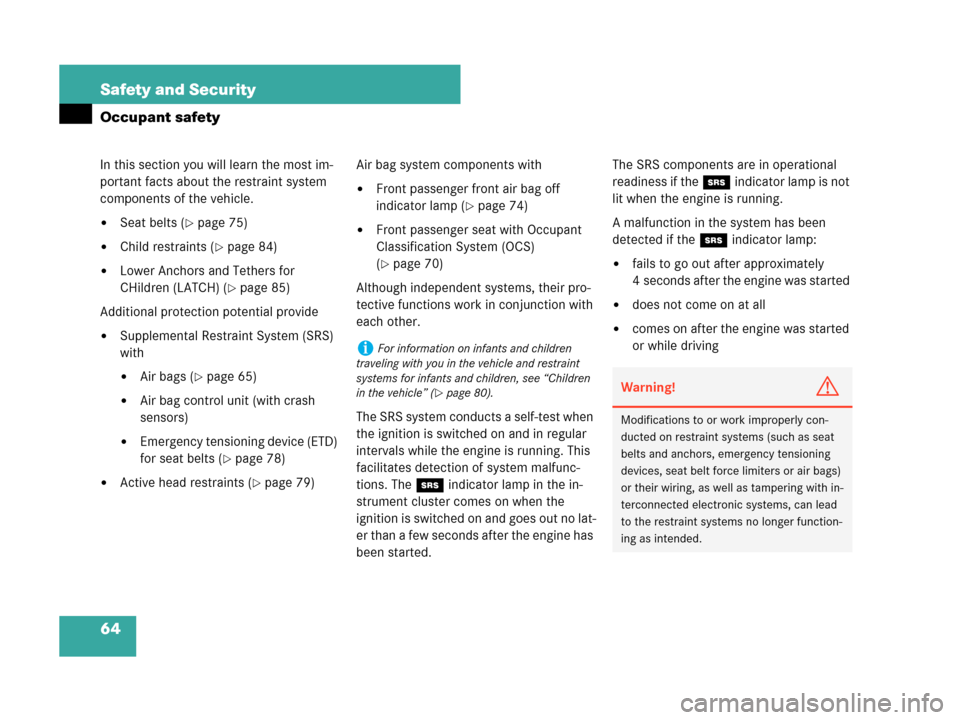

64 Safety and Security
Occupant safety
In this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.

Seat belts (page 75)

Child restraints (page 84)

Lower Anchors and Tethers for
CHildren (LATCH) (
page 85)
Additional protection potential provide

Supplemental Restraint System (SRS)
with

Air bags (page 65)

Air bag control unit (with crash
sensors)

Emergency tensioning device (ETD)
for seat belts (
page 78)

Active head restraints (page 79)Air bag system components with

Front passenger front air bag off
indicator lamp (
page 74)

Front passenger seat with Occupant
Classification System (OCS)
(
page 70)
Although independent systems, their pro-
tective functions work in conjunction with
each other.
The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of system malfunc-
tions. The1indicator lamp in the in-
strument cluster comes on when the
ignition is switched on and goes out no lat-
er than a few seconds after the engine has
been started.The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:
fails to go out after approximately
4 seconds after the engine was started

does not come on at all

comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 80).Warning!G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with in-
terconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.

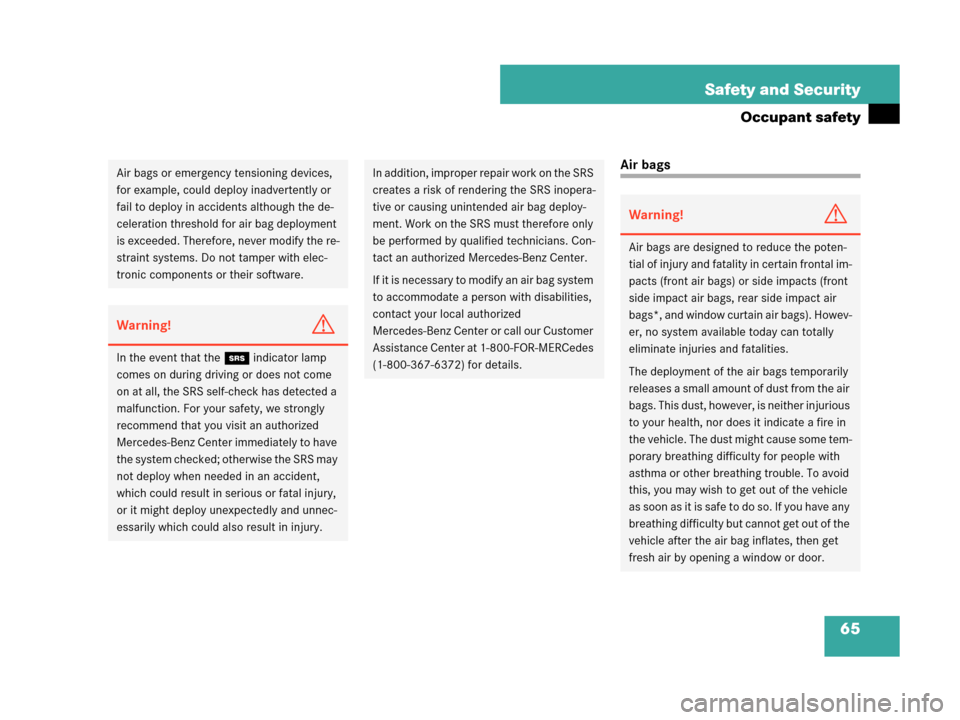

65 Safety and Security
Occupant safety
Air bagsAir bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the de-
celeration threshold for air bag deployment
is exceeded. Therefore, never modify the re-
straint systems. Do not tamper with elec-
tronic components or their software.
Warning!G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags) or side impacts (front
side impact air bags, rear side impact air
bags*, and window curtain air bags). Howev-
er, no system available today can totally
eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

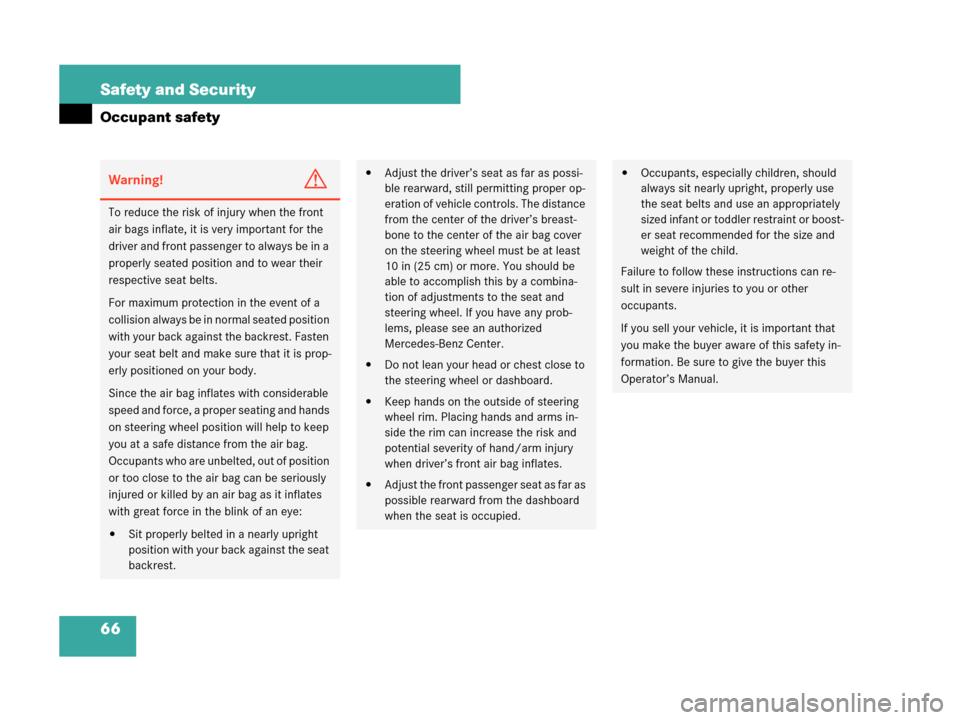

66 Safety and Security
Occupant safety
Warning!G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.

Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.

Do not lean your head or chest close to
the steering wheel or dashboard.

Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.

Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.

Occupants, especially children, should
always sit nearly upright, properly use
the seat belts and use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this
Operator’s Manual.

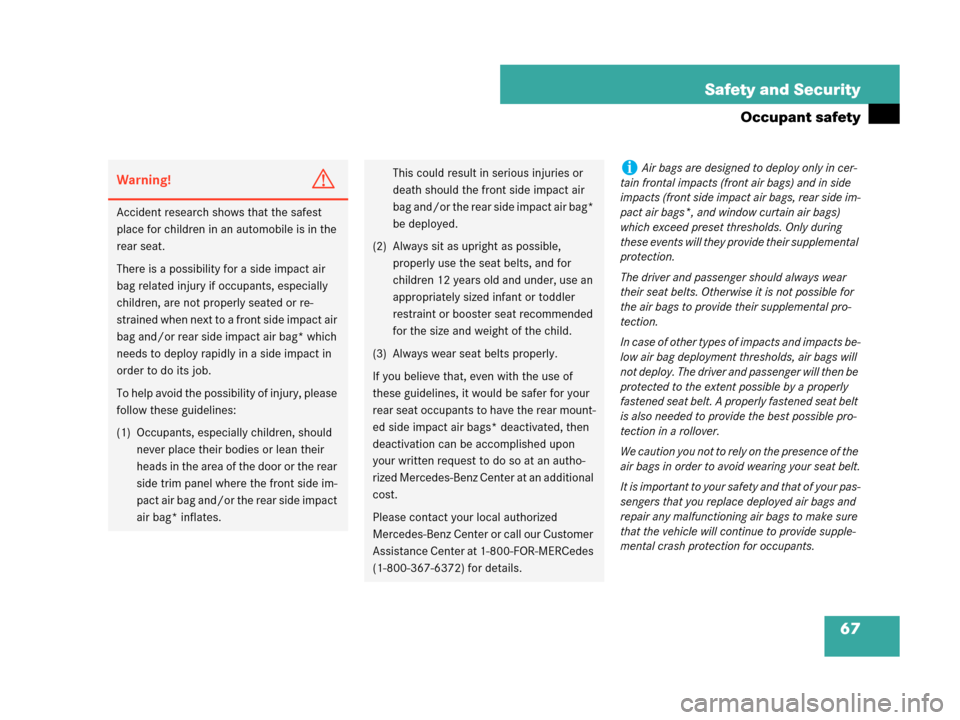

67 Safety and Security
Occupant safety
Warning!G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
There is a possibility for a side impact air
bag related injury if occupants, especially
children, are not properly seated or re-
strained when next to a front side impact air
bag and/or rear side impact air bag* which
needs to deploy rapidly in a side impact in
order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the front side im-
pact air bag and/or the rear side impact
air bag* inflates.
This could result in serious injuries or
death should the front side impact air
bag and/or the rear side impact air bag*
be deployed.
(2) Always sit as upright as possible,
properly use the seat belts, and for
children 12 years old and under, use an
appropriately sized infant or toddler
restraint or booster seat recommended
for the size and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags* deactivated, then
deactivation can be accomplished upon
your written request to do so at an autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.iAir bags are designed to deploy only in cer-
tain frontal impacts (front air bags) and in side
impacts (front side impact air bags, rear side im-
pact air bags*, and window curtain air bags)
which exceed preset thresholds. Only during
these events will they provide their supplemental
protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible for
the air bags to provide their supplemental pro-
tection.
In case of other types of impacts and impacts be-
low air bag deployment thresholds, air bags will
not deploy. The driver and passenger will then be
protected to the extent possible by a properly
fastened seat belt. A properly fastened seat belt
is also needed to provide the best possible pro-
tection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
sengers that you replace deployed air bags and
repair any malfunctioning air bags to make sure
that the vehicle will continue to provide supple-
mental crash protection for occupants.

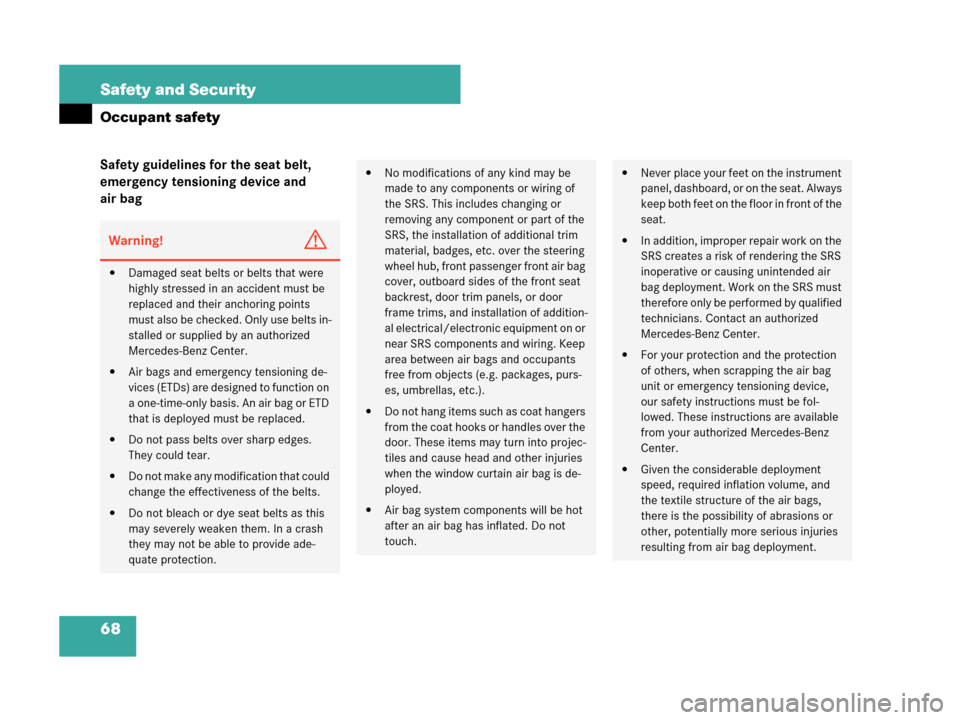

68 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag
Warning!G

Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.

Air bags and emergency tensioning de-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that is deployed must be replaced.

Do not pass belts over sharp edges.
They could tear.

Do not make any modification that could
change the effectiveness of the belts.

Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.

No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the front seat
backrest, door trim panels, or door
frame trims, and installation of addition-
al electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).

Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when the window curtain air bag is de-
ployed.

Air bag system components will be hot
after an air bag has inflated. Do not
touch.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.

For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.

Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.

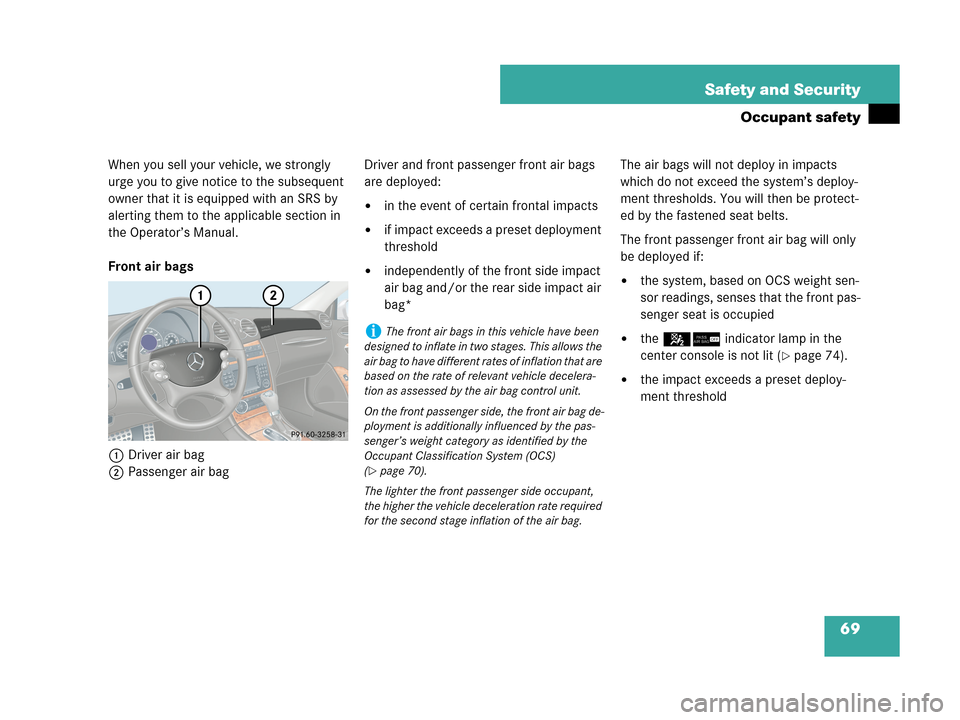

69 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.
Front air bags
1Driver air bag
2Passenger air bagDriver and front passenger front air bags
are deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the front side impact
air bag and/or the rear side impact air
bag*The air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The front passenger front air bag will only
be deployed if:
the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied

the 56 indicator lamp in the
center console is not lit (
page 74).

the impact exceeds a preset deploy-
ment threshold
iThe front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of relevant vehicle decelera-
tion as assessed by the air bag control unit.
On the front passenger side, the front air bag de-
ployment is additionally influenced by the pas-
senger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 70).
The lighter the front passenger side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.

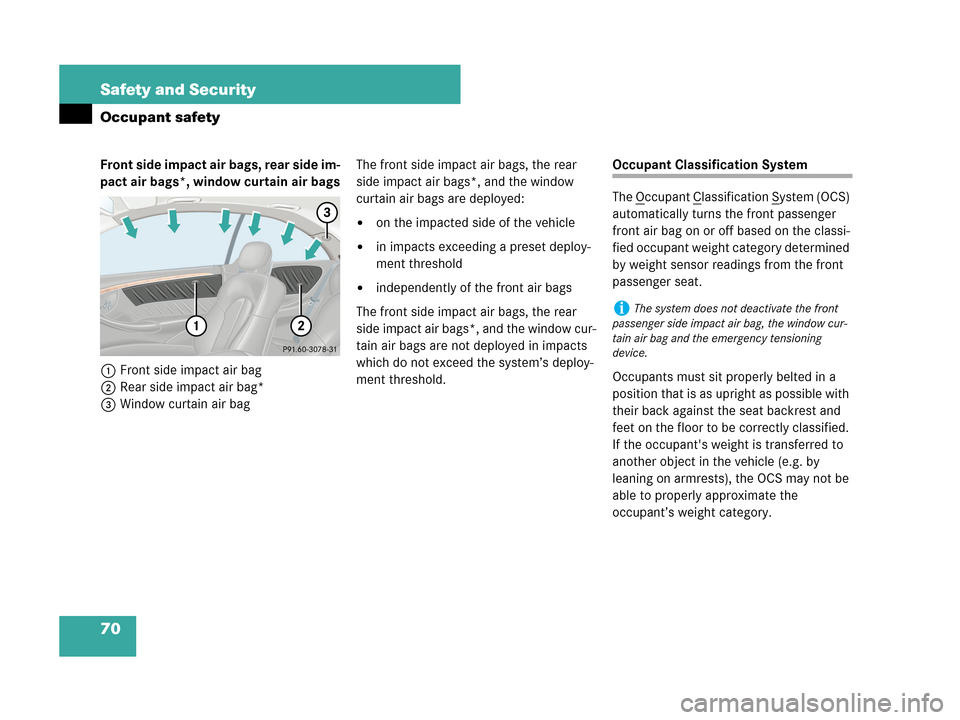

70 Safety and Security
Occupant safety
Front side impact air bags, rear side im-
pact air bags*, window curtain air bags
1Front side impact air bag
2Rear side impact air bag*
3Window curtain air bagThe front side impact air bags, the rear
side impact air bags*, and the window
curtain air bags are deployed:

on the impacted side of the vehicle

in impacts exceeding a preset deploy-
ment threshold

independently of the front air bags
The front side impact air bags, the rear
side impact air bags*, and the window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.
Occupant Classification System
The O
ccupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
position that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant's weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category.
iThe system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag and the emergency tensioning
device.

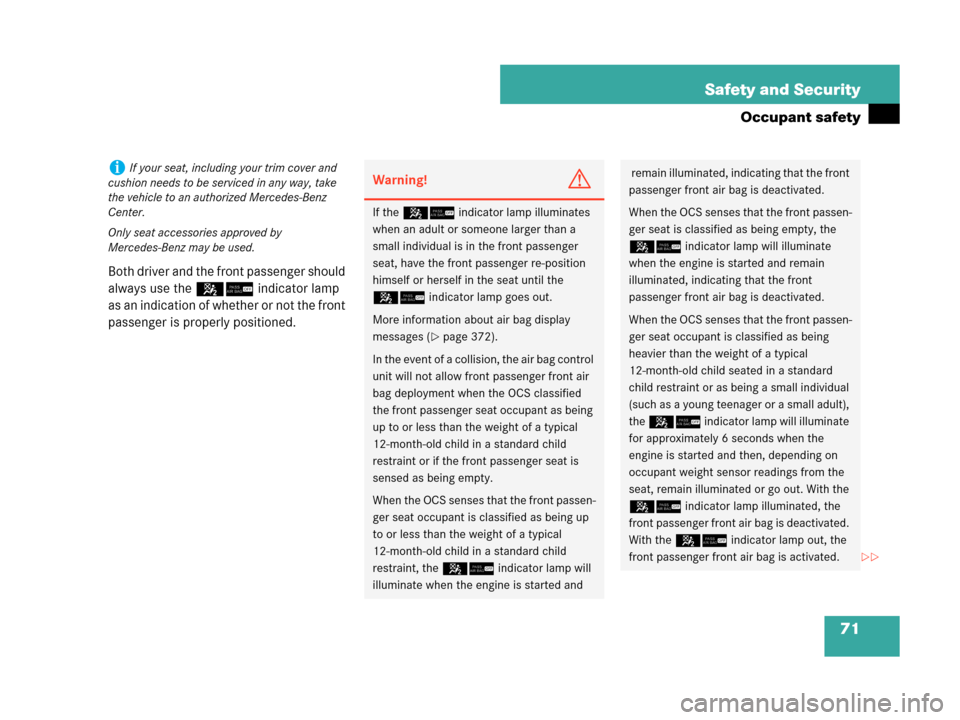

71 Safety and Security
Occupant safety
Both driver and the front passenger should
always use the 56 indicator lamp
as an indication of whether or not the front
passenger is properly positioned.
iIf your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used. Warning!G
If the 56 indicator lamp illuminates
when an adult or someone larger than a
small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
56 indicator lamp goes out.
More information about air bag display
messages (
page 372).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child
restraint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 56 indicator lamp will
illuminate when the engine is started and
remain illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
56 indicator lamp will illuminate
when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 56 indicator lamp will illuminate
for approximately 6 seconds when the
engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
56 indicator lamp illuminated, the
front passenger front air bag is deactivated.
With the 56 indicator lamp out, the
front passenger front air bag is activated.
