2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

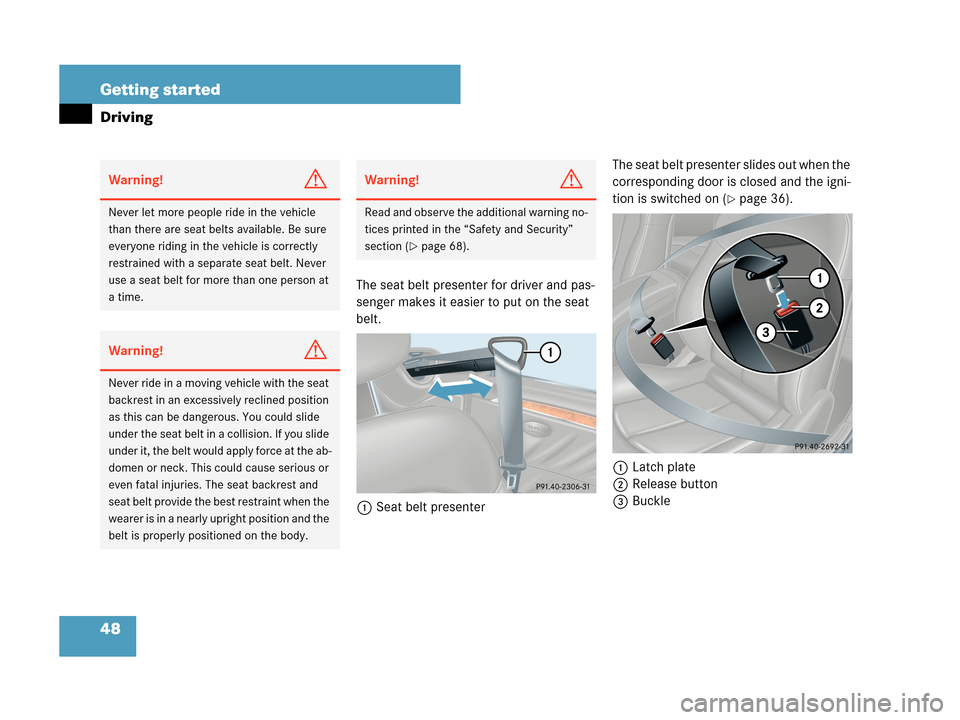

48 Getting started
Driving
The seat belt presenter for driver and pas-
senger makes it easier to put on the seat
belt.
1Seat belt presenterThe seat belt presenter slides out when the
corresponding door is closed and the igni-
tion is switched on (
page 36).
1Latch plate
2Release button
3Buckle
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. This could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 68).

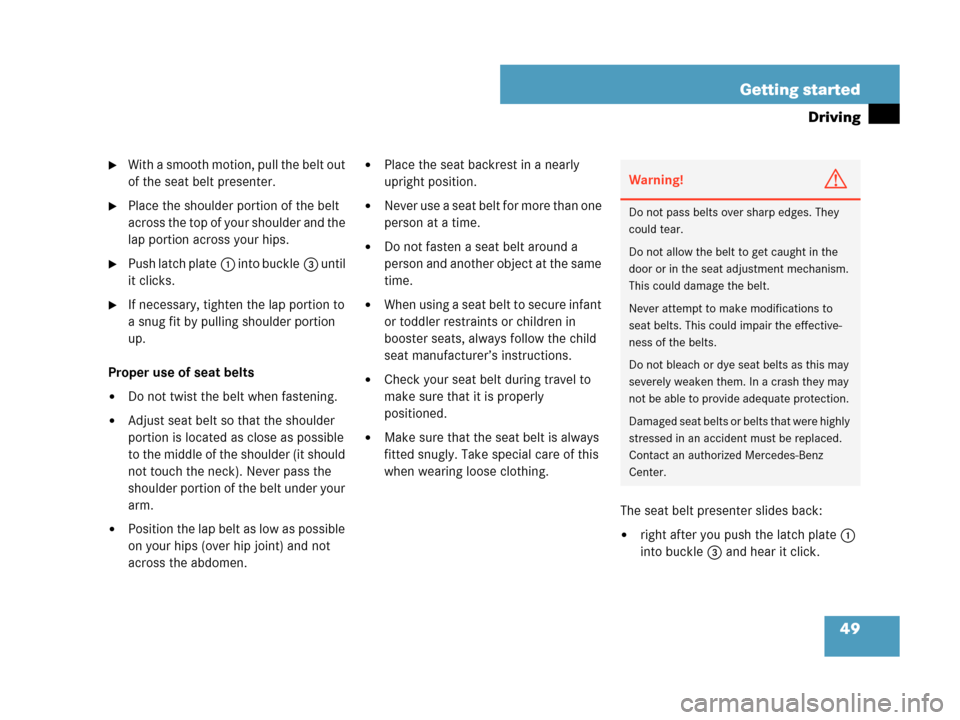

49 Getting started
Driving
With a smooth motion, pull the belt out
of the seat belt presenter.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Proper use of seat belts

Do not twist the belt when fastening.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a nearly
upright position.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a
person and another object at the same
time.

When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

Check your seat belt during travel to
make sure that it is properly
positioned.

Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.
The seat belt presenter slides back:

right after you push the latch plate1
into buckle3 and hear it click.
Warning!G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

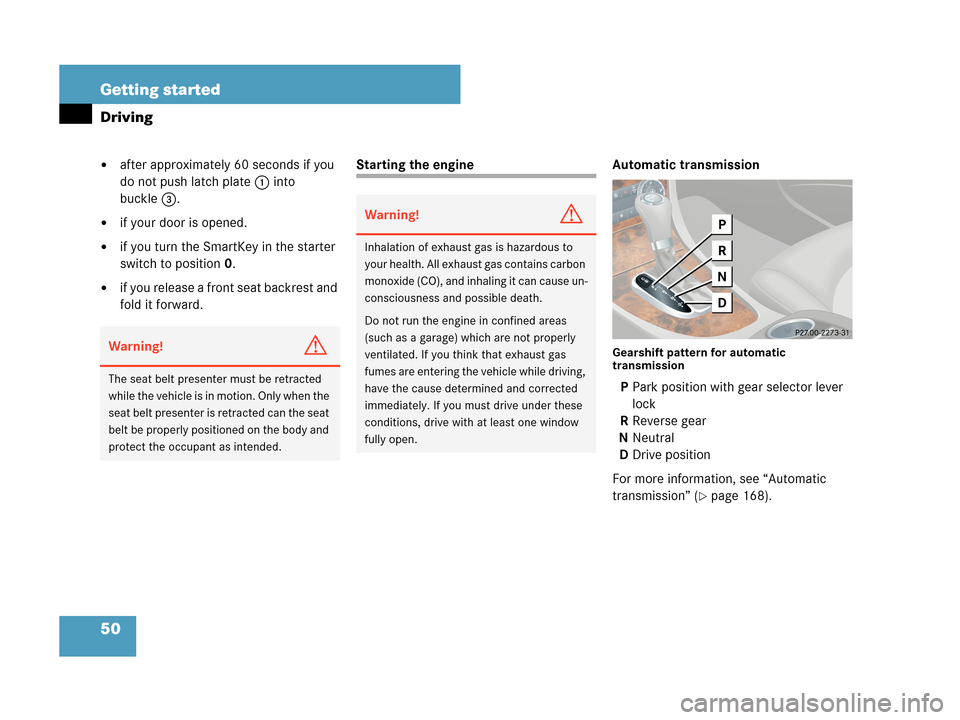

50 Getting started
Driving

after approximately 60 seconds if you
do not push latch plate 1 into
buckle3.

if your door is opened.

if you turn the SmartKey in the starter
switch to position 0.

if you release a front seat backrest and
fold it forward.
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmission
PPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission” (
page 168).
Warning!G
The seat belt presenter must be retracted
while the vehicle is in motion. Only when the
seat belt presenter is retracted can the seat
belt be properly positioned on the body and
protect the occupant as intended.
Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open.

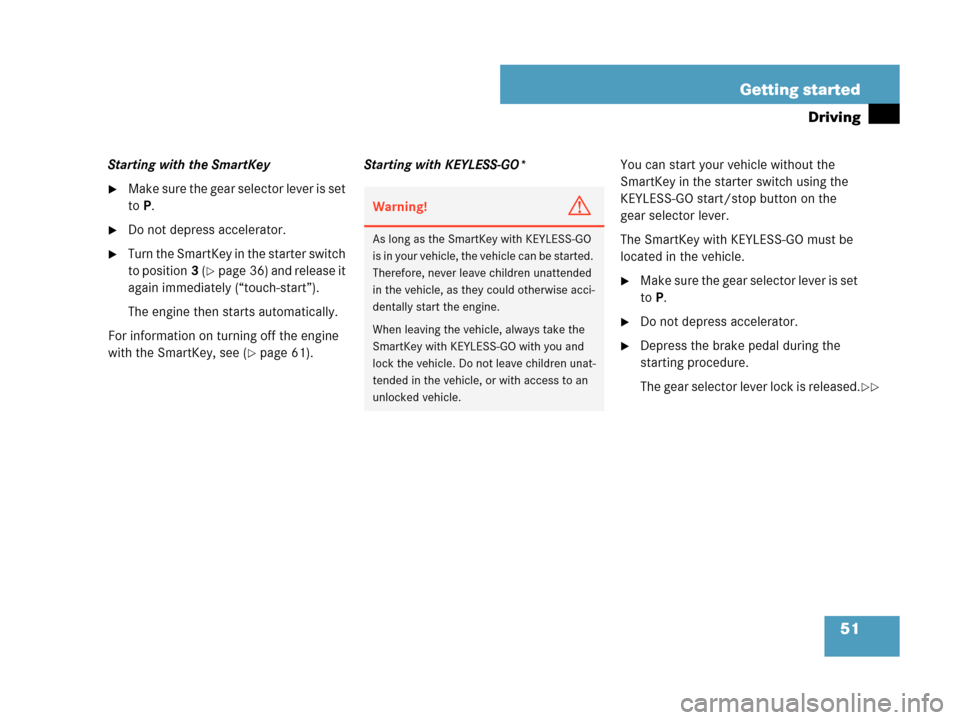

51 Getting started
Driving
Starting with the SmartKey
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 36) and release it
again immediately (“touch-start”).
The engine then starts automatically.
For information on turning off the engine
with the SmartKey, see (
page 61).Starting with KEYLESS-GO*You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Depress the brake pedal during the
starting procedure.
The gear selector lever lock is released.
Warning!G
As long as the SmartKey with KEYLESS-GO
i s i n y o u r v e h i c l e , t h e v e h i c l e c a n b e s t a rt e d .
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.

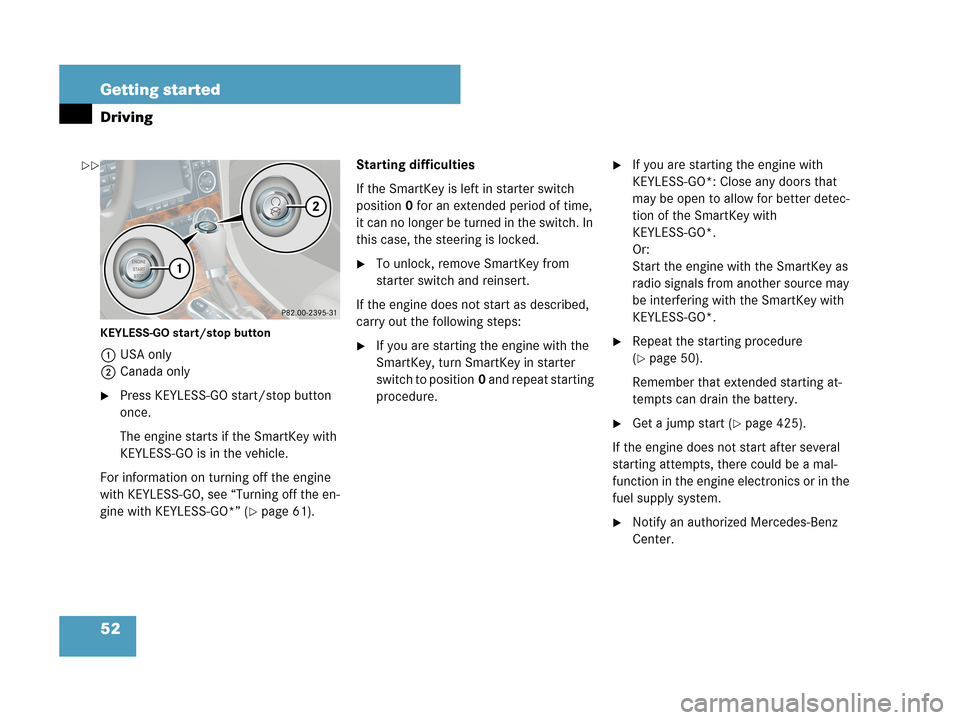

52 Getting started
Driving
KEYLESS-GO start/stop button
1USA only
2Canada only
Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.
For information on turning off the engine
with KEYLESS-GO, see “Turning off the en-
gine with KEYLESS-GO*” (
page 61).Starting difficulties
If the SmartKey is left in starter switch
position0 for an extended period of time,
it can no longer be turned in the switch. In
this case, the steering is locked.
To unlock, remove SmartKey from
starter switch and reinsert.
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO*.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.
Repeat the starting procedure
(
page 50).
Remember that extended starting at-
tempts can drain the battery.
Get a jump start (page 425).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Center.

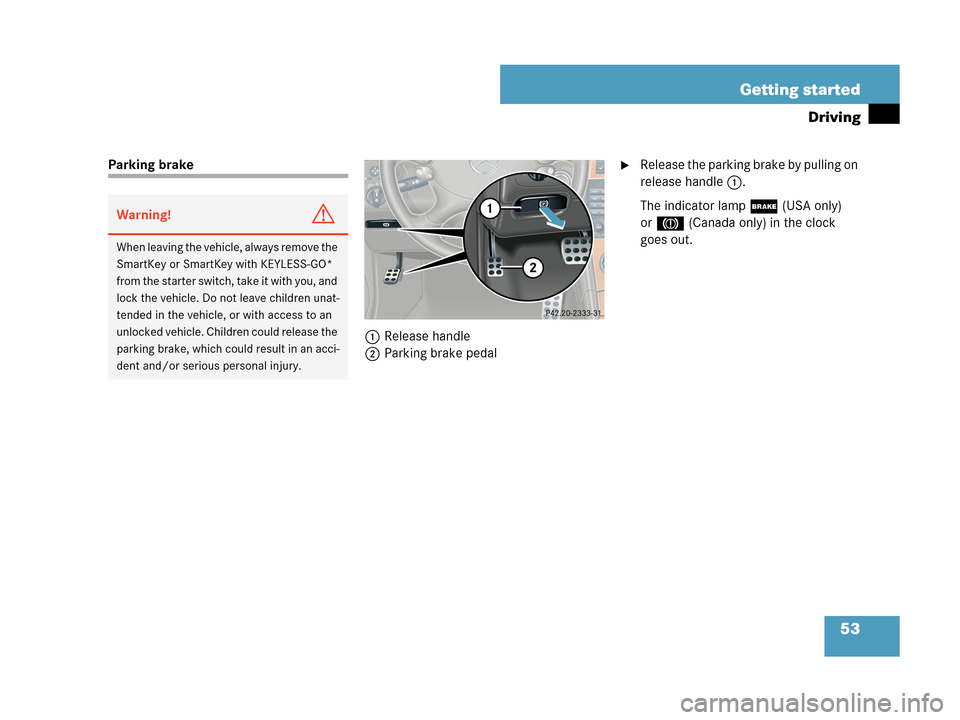

53 Getting started
Driving
Parking brake
1Release handle
2Parking brake pedalRelease the parking brake by pulling on
release handle1.
The indicator lamp; (USA only)
or3 (Canada only) in the clock
goes out.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious personal injury.

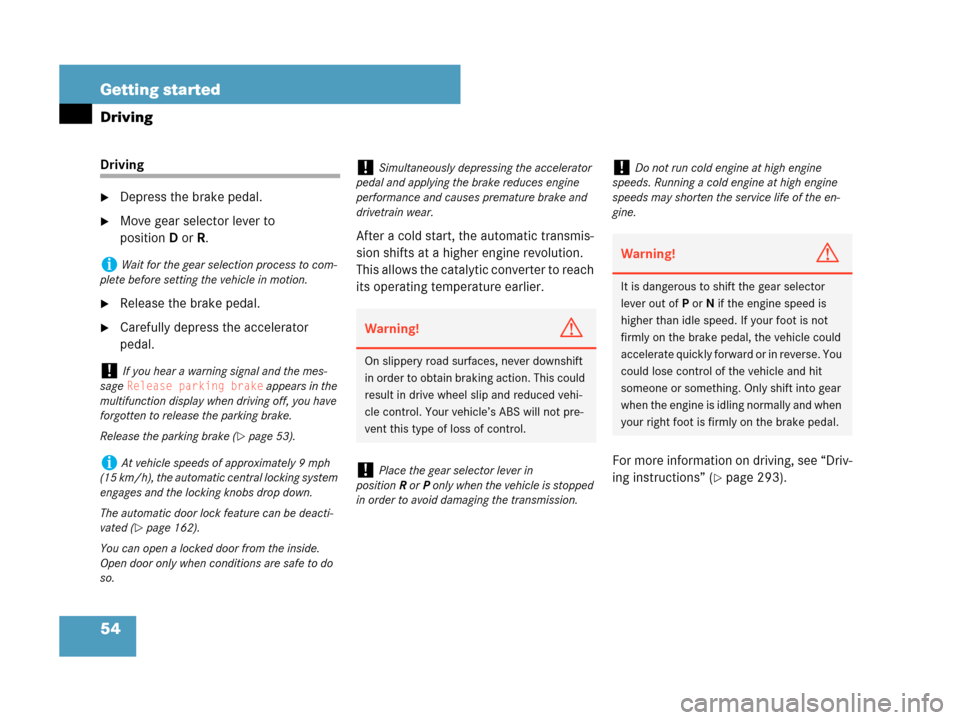

54 Getting started
Driving
Driving
Depress the brake pedal.
Move gear selector lever to
positionDorR.
Release the brake pedal.
Carefully depress the accelerator
pedal.After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.
For more information on driving, see “Driv-
ing instructions” (
page 293).
iWait for the gear selection process to com-
plete before setting the vehicle in motion.
!If you hear a warning signal and the mes-
sage
Release parking brake appears in the
multifunction display when driving off, you have
forgotten to release the parking brake.
Release the parking brake (
page 53).
iAt vehicle speeds of approximately 9 mph
(15 km/h), the automatic central locking system
engages and the locking knobs drop down.
The automatic door lock feature can be deacti-
vated (
page 162).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.
!Simultaneously depressing the accelerator
pedal and applying the brake reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
!Place the gear selector lever in
positionRorP only when the vehicle is stopped
in order to avoid damaging the transmission.
!Do not run cold engine at high engine
speeds. Running a cold engine at high engine
speeds may shorten the service life of the en-
gine.
Warning!G
It is dangerous to shift the gear selector
lever out ofPorN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

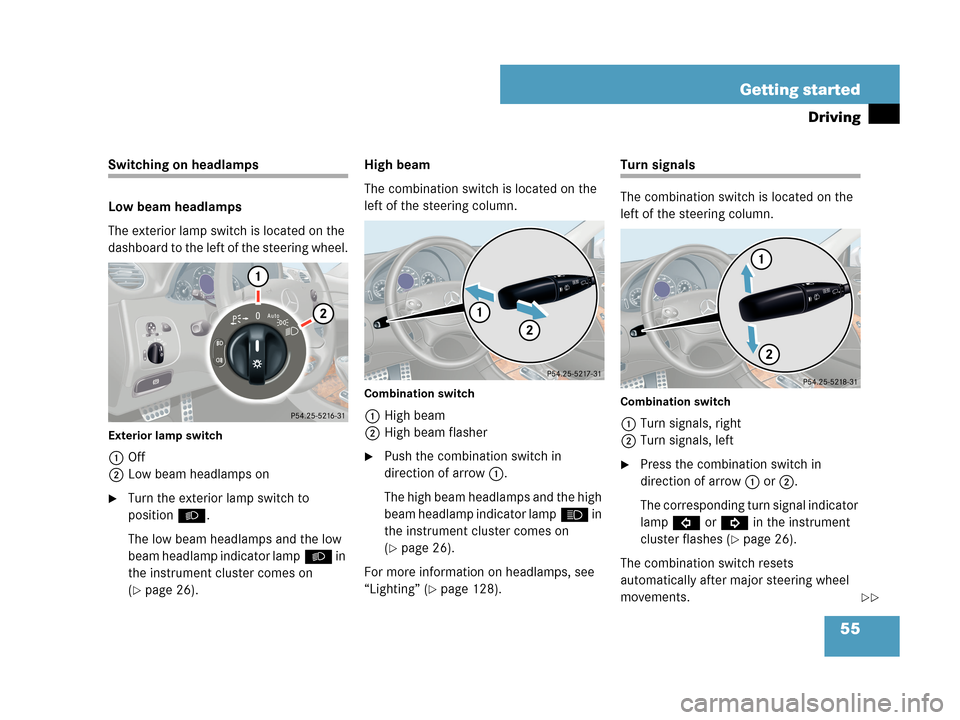

55 Getting started
Driving
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch
1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamps and the low
beam headlamp indicator lampB in
the instrument cluster comes on
(
page 26).High beam
The combination switch is located on the
left of the steering column.
Combination switch
1High beam
2High beam flasher
Push the combination switch in
direction of arrow1.
The high beam headlamps and the high
beam headlamp indicator lampA in
the instrument cluster comes on
(
page 26).
For more information on headlamps, see
“Lighting” (
page 128).
Turn signals
The combination switch is located on the
left of the steering column.
Combination switch
1Turn signals, right
2Turn signals, left
Press the combination switch in
direction of arrow1or2.
The corresponding turn signal indicator
lampLorK in the instrument
cluster flashes (
page 26).
The combination switch resets
automatically after major steering wheel
movements.
