2007 MERCEDES-BENZ CLK350 COUPE Owner's Manual

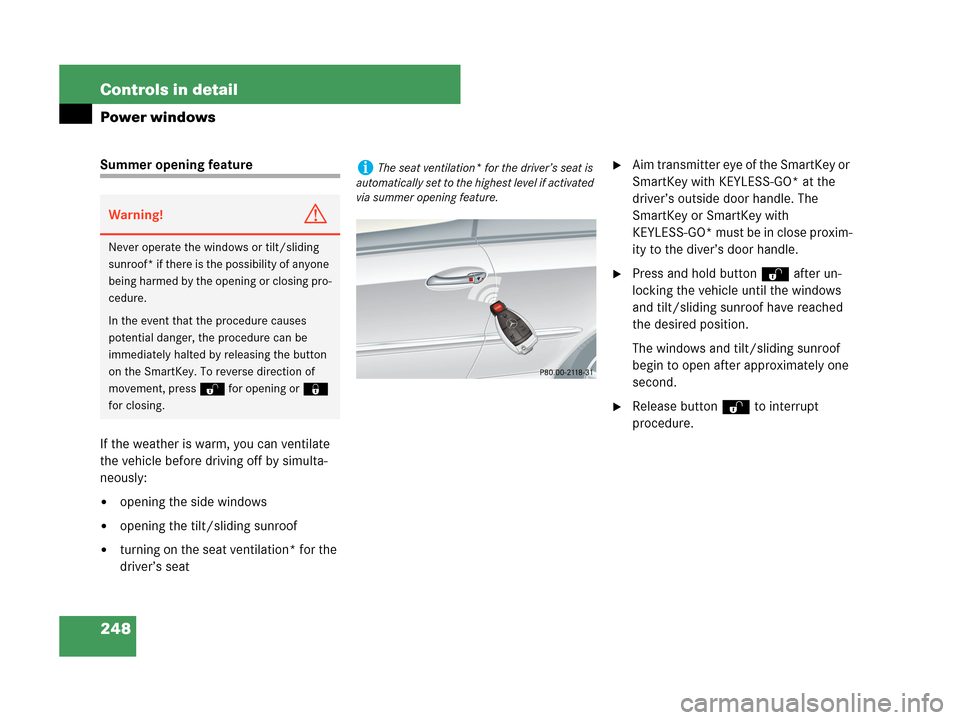

248 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the tilt/sliding sunroof

turning on the seat ventilation* for the
driver’s seat
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the diver’s door handle.
Press and hold button Πafter un-
locking the vehicle until the windows
and tilt/sliding sunroof have reached
the desired position.
The windows and tilt/sliding sunroof
begin to open after approximately one
second.
Release button Πto interrupt
procedure.
Warning!G
Never operate the windows or tilt/sliding
sunroof* if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
In the event that the procedure causes
potential danger, the procedure can be
immediately halted by releasing the button
on the SmartKey. To reverse direction of
movement, press Œ for opening or ‹
for closing.
iThe seat ventilation* for the driver’s seat is
automatically set to the highest level if activated
via summer opening feature.

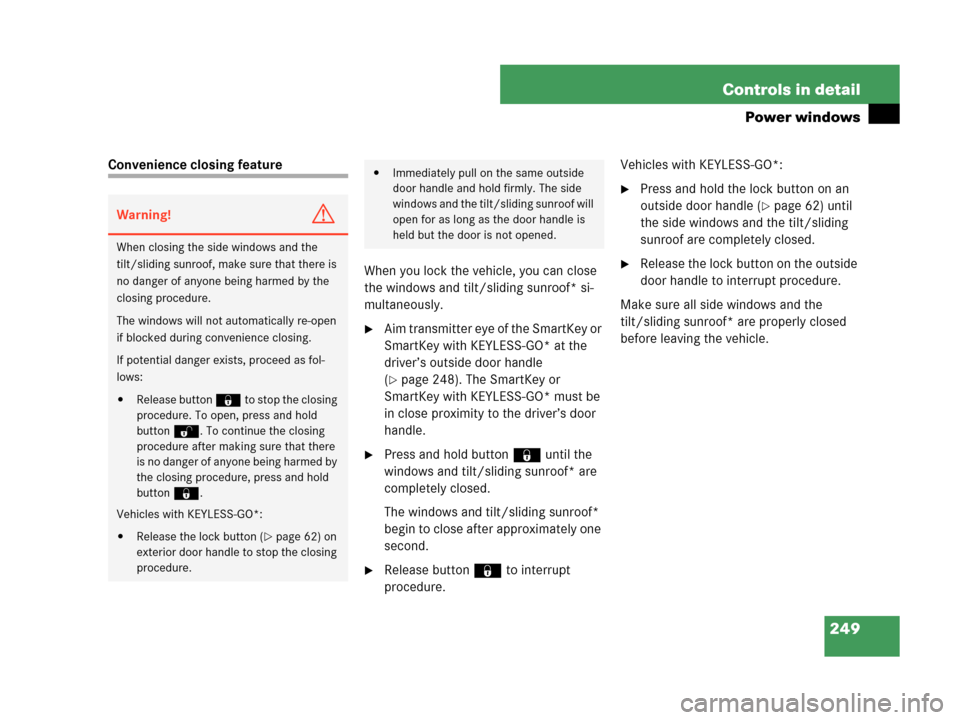

249 Controls in detail
Power windows
Convenience closing feature
When you lock the vehicle, you can close
the windows and tilt/sliding sunroof* si-
multaneously.
Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle
(
page 248). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s door
handle.
Press and hold button ‹until the
windows and tilt/sliding sunroof* are
completely closed.
The windows and tilt/sliding sunroof*
begin to close after approximately one
second.
Release button ‹to interrupt
procedure.Vehicles with KEYLESS-GO*:
Press and hold the lock button on an
outside door handle (
page 62) until
the side windows and the tilt/sliding
sunroof are completely closed.
Release the lock button on the outside
door handle to interrupt procedure.
Make sure all side windows and the
tilt/sliding sunroof* are properly closed
before leaving the vehicle.
Warning!G
When closing the side windows and the
tilt/sliding sunroof, make sure that there is
no danger of anyone being harmed by the
closing procedure.
The windows will not automatically re-open
if blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:

Release button ‹to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button ‹.
Vehicles with KEYLESS-GO*:

Release the lock button (page 62) on
exterior door handle to stop the closing
procedure.

Immediately pull on the same outside
door handle and hold firmly. The side
windows and the tilt/sliding sunroof will
open for as long as the door handle is
held but the door is not opened.

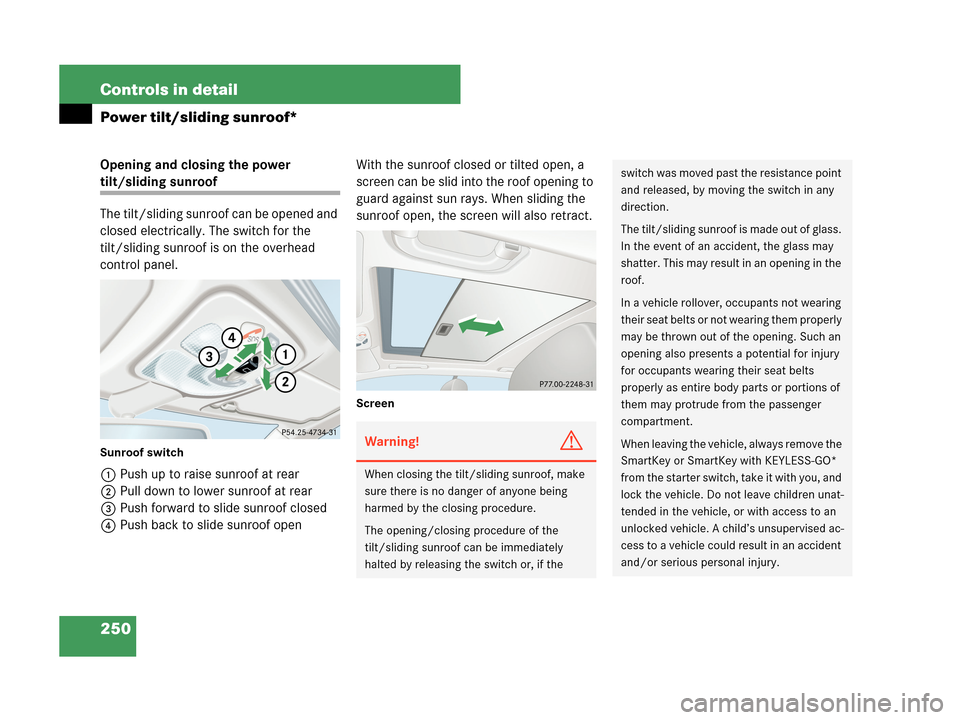

250 Controls in detail
Power tilt/sliding sunroof*
Opening and closing the power
tilt/sliding sunroof
The tilt/sliding sunroof can be opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead
control panel.
Sunroof switch
1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof openWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
sunroof open, the screen will also retract.
Screen
Warning!G
When closing the tilt/sliding sunroof, make
sure there is no danger of anyone being
harmed by the closing procedure.
The opening/closing procedure of the
tilt/sliding sunroof can be immediately
halted by releasing the switch or, if the
switch was moved past the resistance point
and released, by moving the switch in any
direction.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts
properly as entire body parts or portions of
them may protrude from the passenger
compartment.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

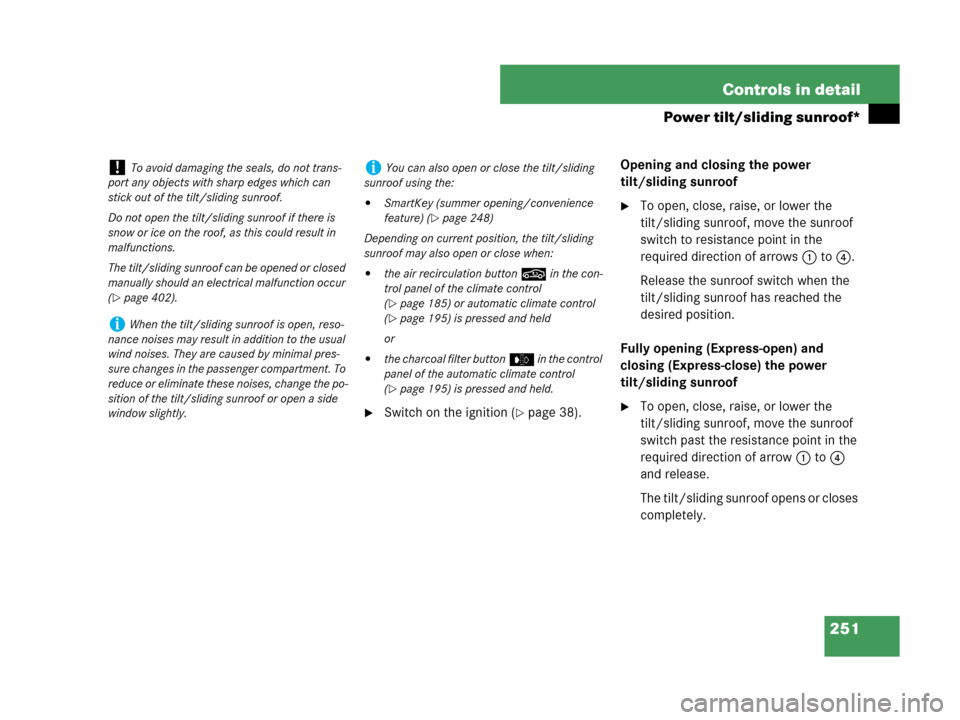

251 Controls in detail
Power tilt/sliding sunroof*
Switch on the ignition (page 38).Opening and closing the power
tilt/sliding sunroof
To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the
required direction of arrows1 to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the
desired position.
Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof
To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch past the resistance point in the
required direction of arrow1 to4
and release.
The tilt/sliding sunroof opens or closes
completely.
!To avoid damaging the seals, do not trans-
port any objects with sharp edges which can
stick out of the tilt/sliding sunroof.
Do not open the tilt/sliding sunroof if there is
snow or ice on the roof, as this could result in
malfunctions.
The tilt/sliding sunroof can be opened or closed
manually should an electrical malfunction occur
(
page 402).
iWhen the tilt/sliding sunroof is open, reso-
nance noises may result in addition to the usual
wind noises. They are caused by minimal pres-
sure changes in the passenger compartment. To
reduce or eliminate these noises, change the po-
sition of the tilt/sliding sunroof or open a side
window slightly.
iYou can also open or close the tilt/sliding
sunroof using the:

SmartKey (summer opening/convenience
feature) (
page 248)
Depending on current position, the tilt/sliding
sunroof may also open or close when:

the air recirculation button, in the con-
trol panel of the climate control
(
page 185) or automatic climate control
(
page 195) is pressed and held
or

the charcoal filter buttone in the control
panel of the automatic climate control
(
page 195) is pressed and held.

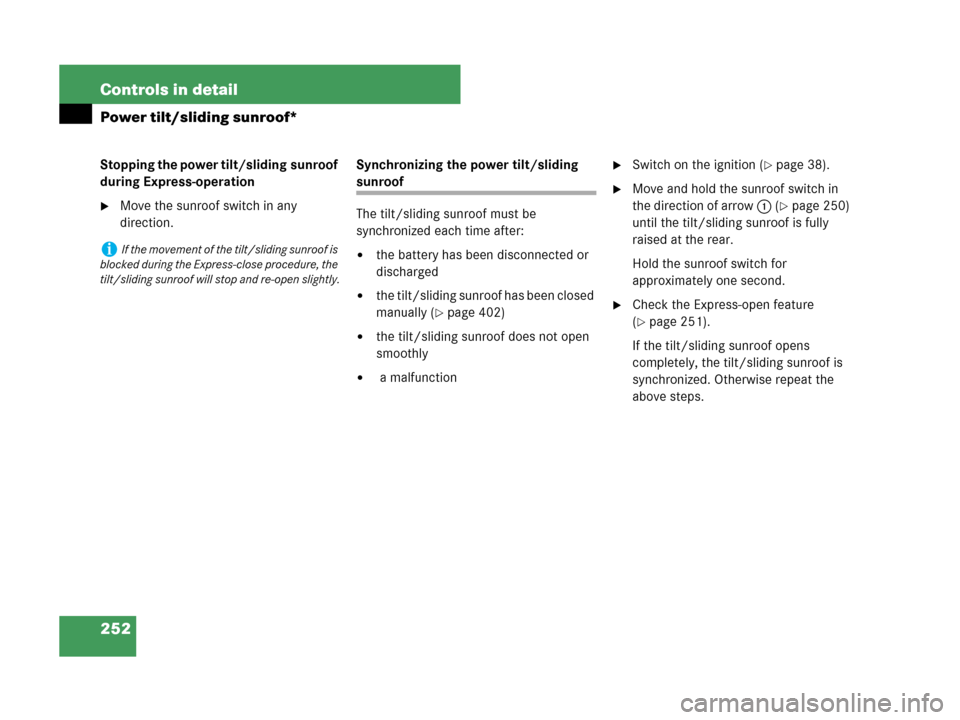

252 Controls in detail
Power tilt/sliding sunroof*
Stopping the power tilt/sliding sunroof
during Express-operation
Move the sunroof switch in any
direction.Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be
synchronized each time after:

the battery has been disconnected or
discharged

the tilt/sliding sunroof has been closed
manually (
page 402)

the tilt/sliding sunroof does not open
smoothly

a malfunction
Switch on the ignition (page 38).
Move and hold the sunroof switch in
the direction of arrow 1 (
page 250)
until the tilt/sliding sunroof is fully
raised at the rear.
Hold the sunroof switch for
approximately one second.
Check the Express-open feature
(
page 251).
If the tilt/sliding sunroof opens
completely, the tilt/sliding sunroof is
synchronized. Otherwise repeat the
above steps.
iIf the movement of the tilt/sliding sunroof is
blocked during the Express-close procedure, the
tilt/sliding sunroof will stop and re-open slightly.

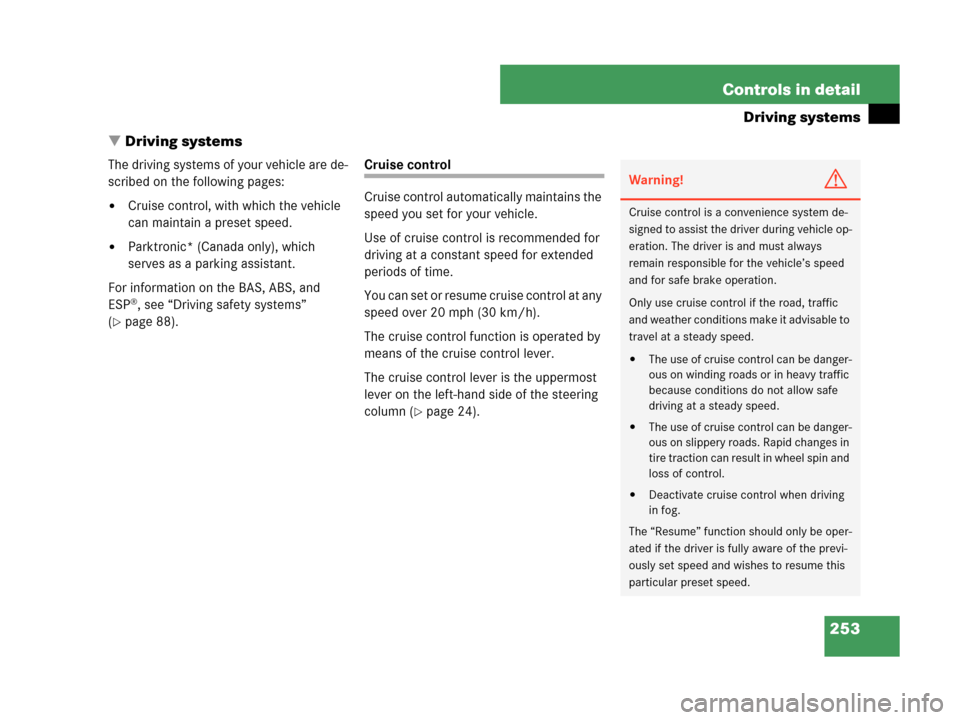

253 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.

Parktronic* (Canada only), which
serves as a parking assistant.
For information on the BAS, ABS, and
ESP
®, see “Driving safety systems”
(
page 88).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time.
You can set or resume cruise control at any
speed over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 24).
Warning!G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must always
remain responsible for the vehicle’s speed
and for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.

The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.

Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

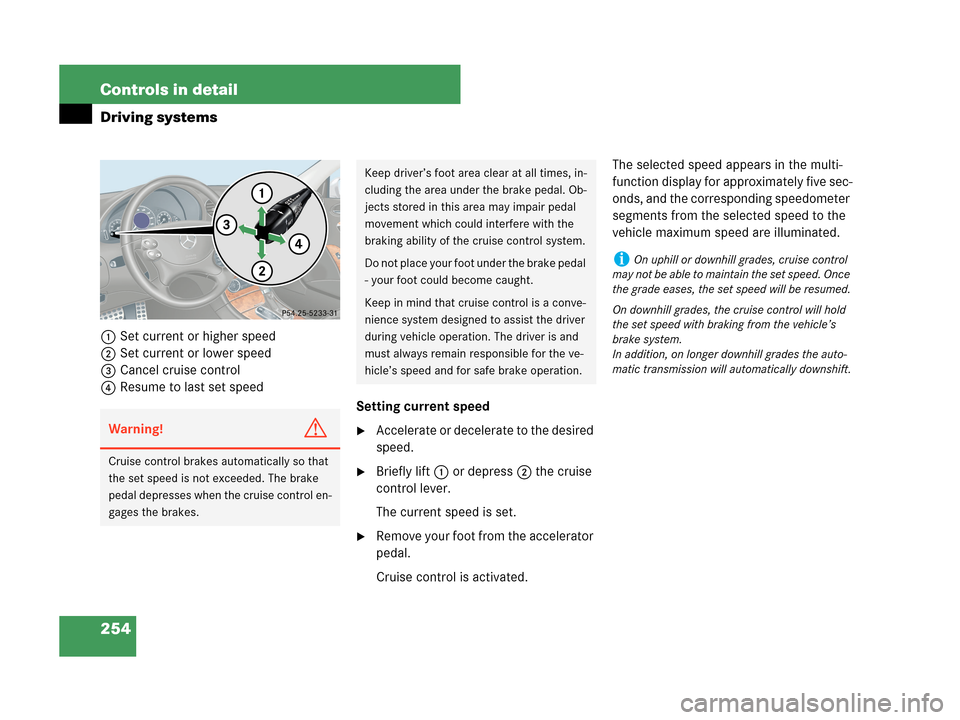

254 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume to last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.
Remove your foot from the accelerator
pedal.
Cruise control is activated.The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.
Warning!G
Cruise control brakes automatically so that
the set speed is not exceeded. The brake
pedal depresses when the cruise control en-
gages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
- your foot could become caught.
Keep in mind that cruise control is a conve-
nience system designed to assist the driver
during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.
iOn uphill or downhill grades, cruise control
may not be able to maintain the set speed. Once
the grade eases, the set speed will be resumed.
On downhill grades, the cruise control will hold
the set speed with braking from the vehicle’s
brake system.
In addition, on longer downhill grades the auto-
matic transmission will automatically downshift.

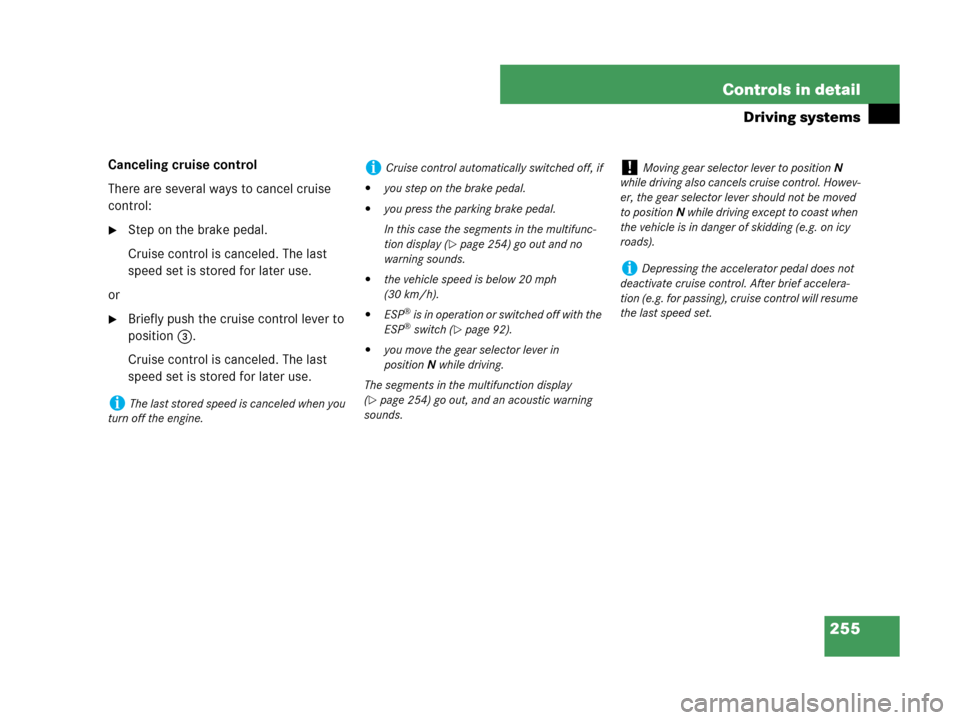

255 Controls in detail
Driving systems
Canceling cruise control
There are several ways to cancel cruise
control:
Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or
Briefly push the cruise control lever to
position3.
Cruise control is canceled. The last
speed set is stored for later use.
iThe last stored speed is canceled when you
turn off the engine.
iCruise control automatically switched off, if

you step on the brake pedal.

you press the parking brake pedal.
In this case the segments in the multifunc-
tion display (
page 254) go out and no
warning sounds.

the vehicle speed is below 20 mph
(30 km/h).

ESP® is in operation or switched off with the
ESP® switch (page 92).

you move the gear selector lever in
positionN while driving.
The segments in the multifunction display
(
page 254) go out, and an acoustic warning
sounds.
!Moving gear selector lever to positionN
while driving also cancels cruise control. Howev-
er, the gear selector lever should not be moved
to positionN while driving except to coast when
the vehicle is in danger of skidding (e.g. on icy
roads).
iDepressing the accelerator pedal does not
deactivate cruise control. After brief accelera-
tion (e.g. for passing), cruise control will resume
the last speed set.
