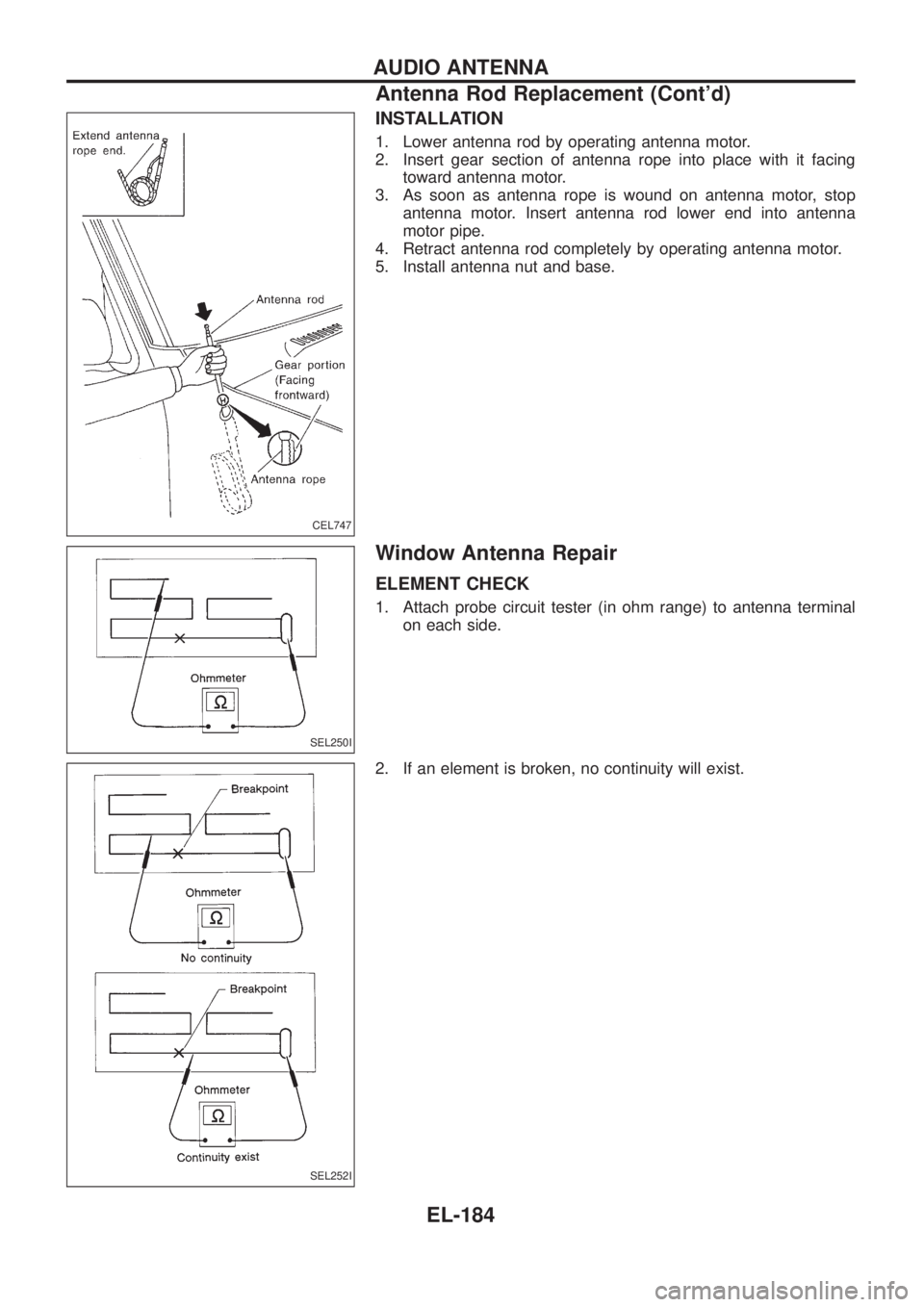

INSTALLATION
1. Lower antenna rod by operating antenna motor.
2. Insert gear section of antenna rope into place with it facing
toward antenna motor.
3. As soon as antenna rope is wound on antenna motor, stop
antenna motor. Insert antenna rod lower end into antenna
motor pipe.
4. Retract antenna rod completely by operating antenna motor.
5. Install antenna nut and base.
Window Antenna Repair
ELEMENT CHECK
1. Attach probe circuit tester (in ohm range) to antenna terminal
on each side.
2. If an element is broken, no continuity will exist.
CEL747
SEL250I
SEL252I
AUDIO ANTENNA
Antenna Rod Replacement (Cont'd)
EL-184

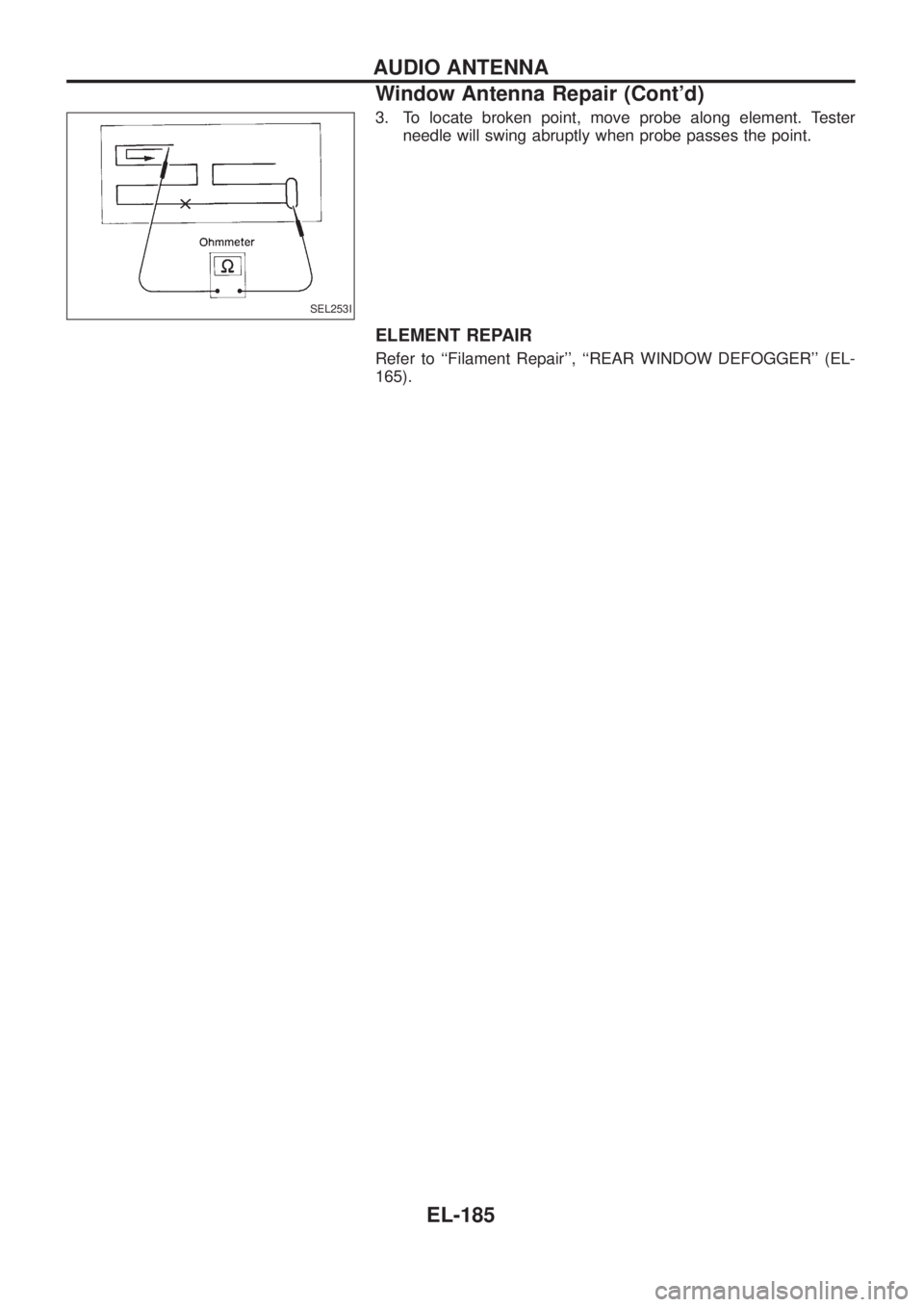

3. To locate broken point, move probe along element. Tester
needle will swing abruptly when probe passes the point.
ELEMENT REPAIR
Refer to ``Filament Repair'', ``REAR WINDOW DEFOGGER'' (EL-
165).
SEL253I
AUDIO ANTENNA
Window Antenna Repair (Cont'd)
EL-185

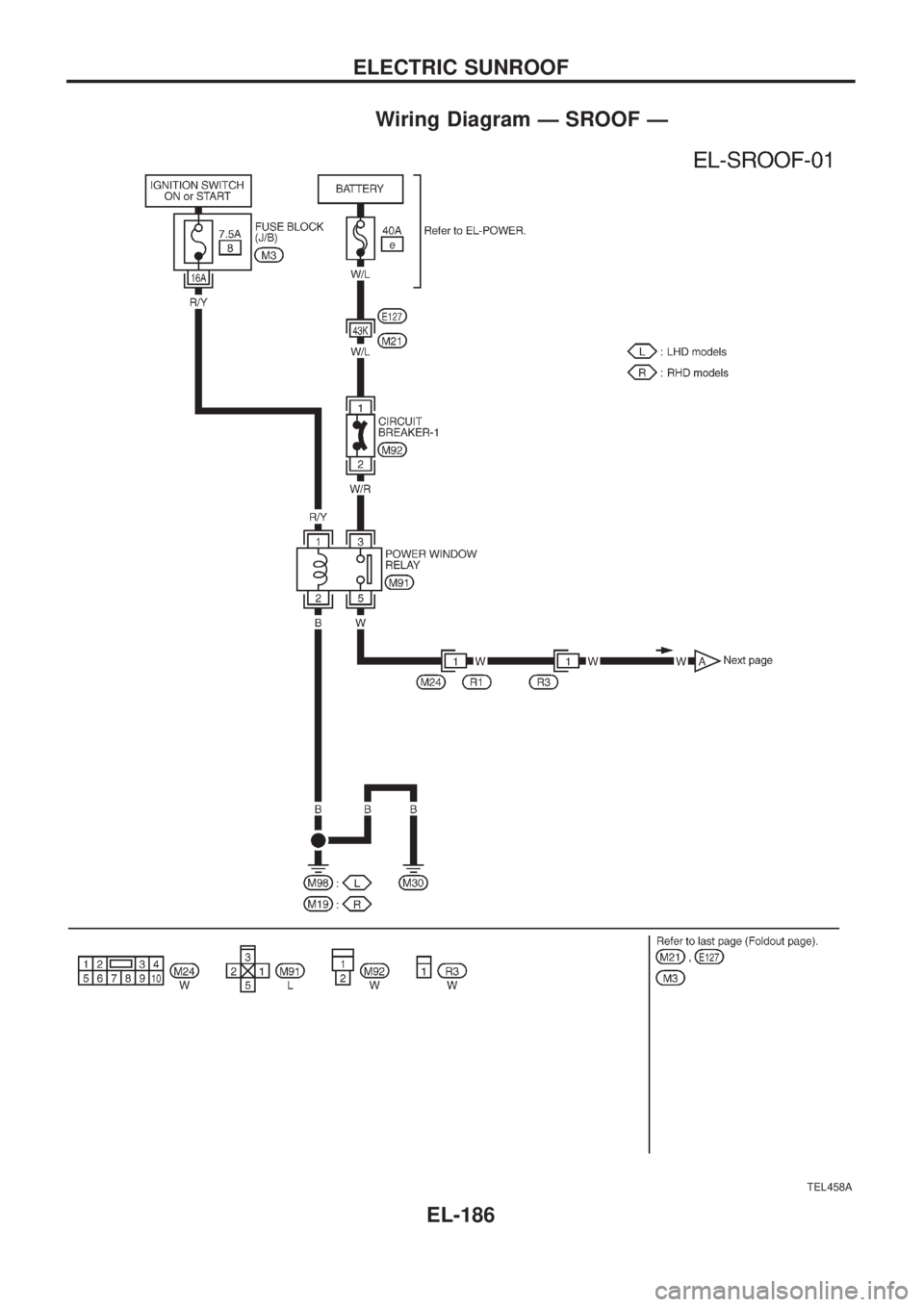

Wiring Diagram Ð SROOF Ð
TEL458A
ELECTRIC SUNROOF
EL-186

TEL459A
ELECTRIC SUNROOF

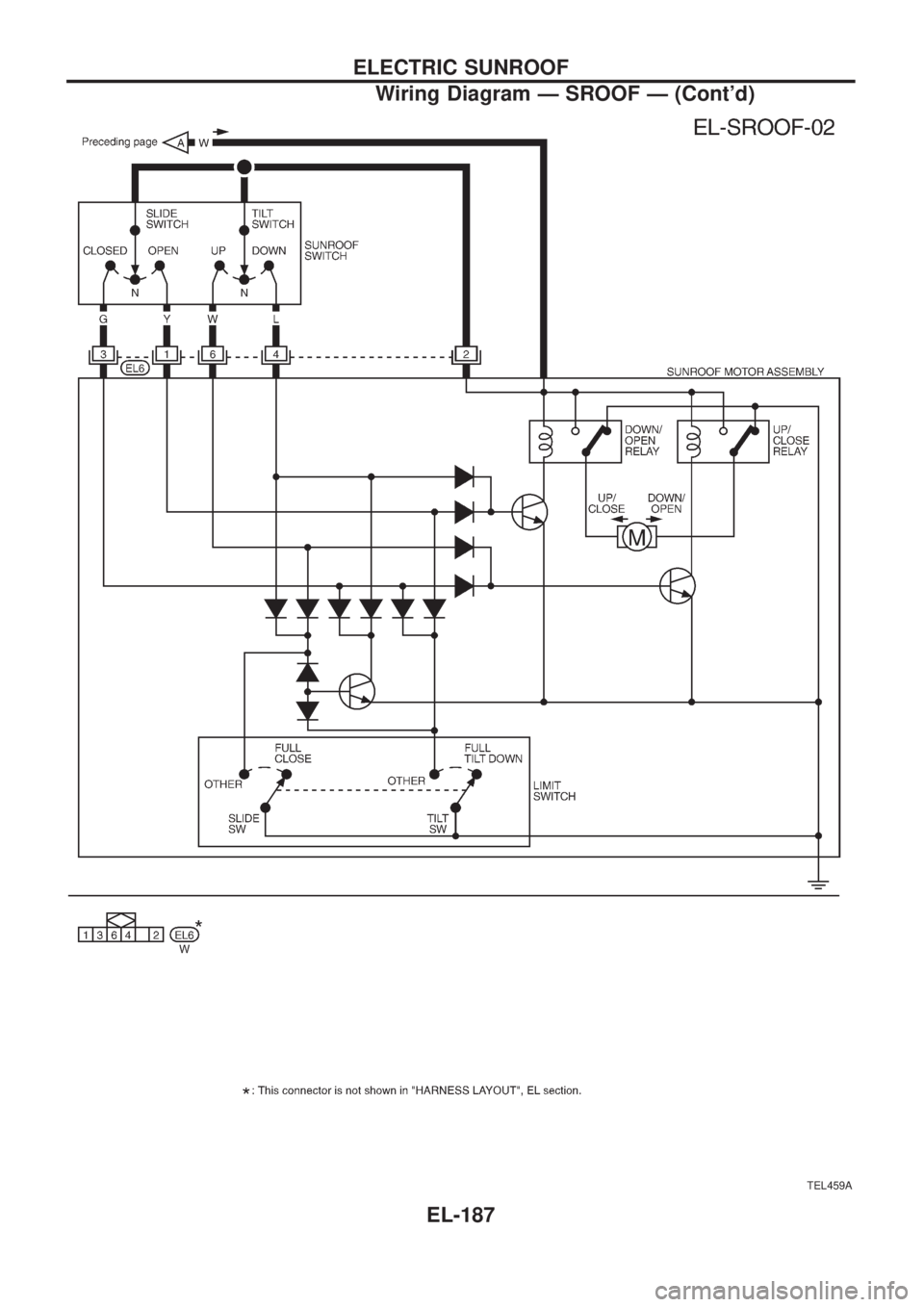

Wiring Diagram Ð SROOF Ð (Cont'd)
EL-187

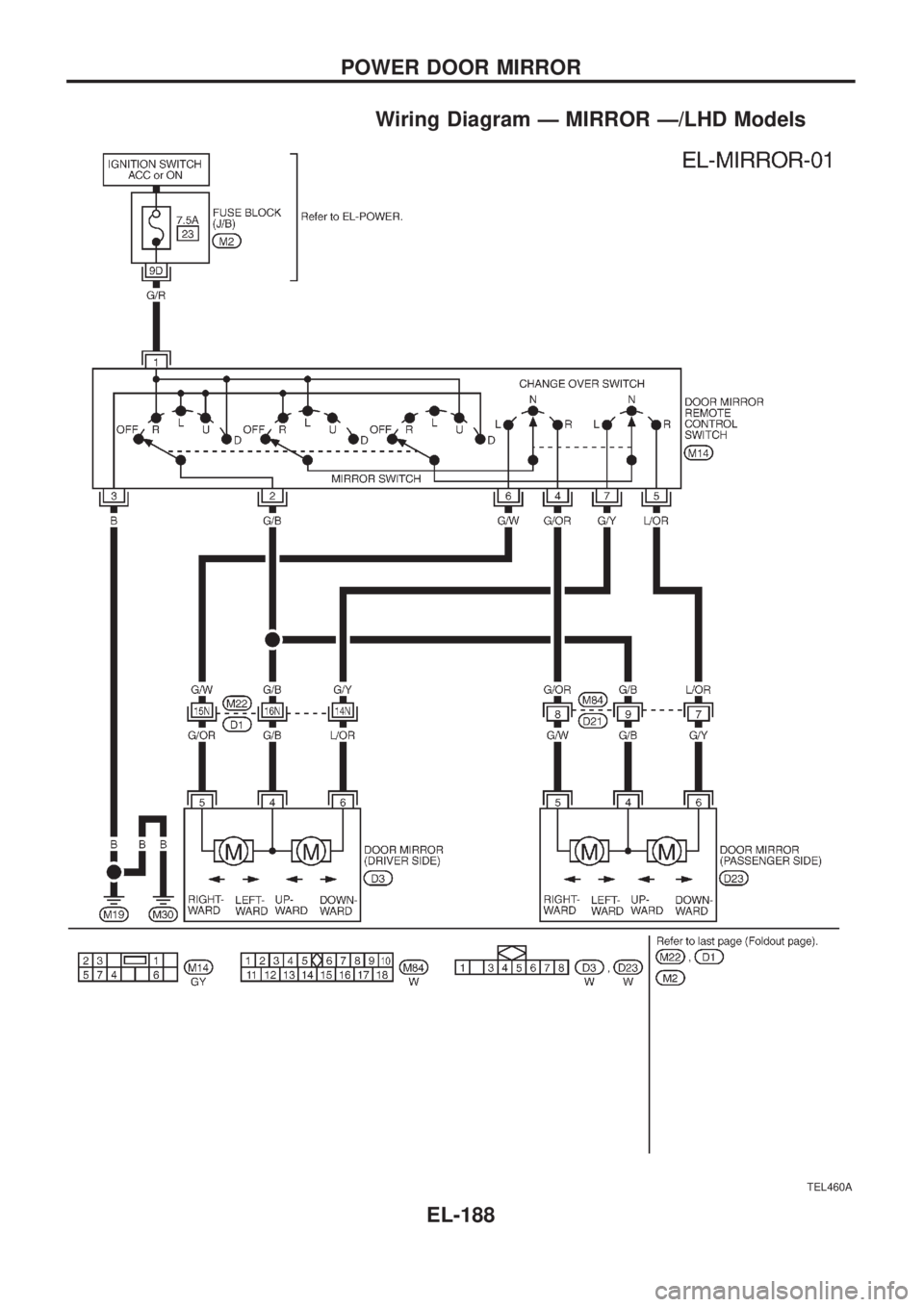

Wiring Diagram Ð MIRROR Ð/LHD Models
TEL460A
POWER DOOR MIRROR
EL-188

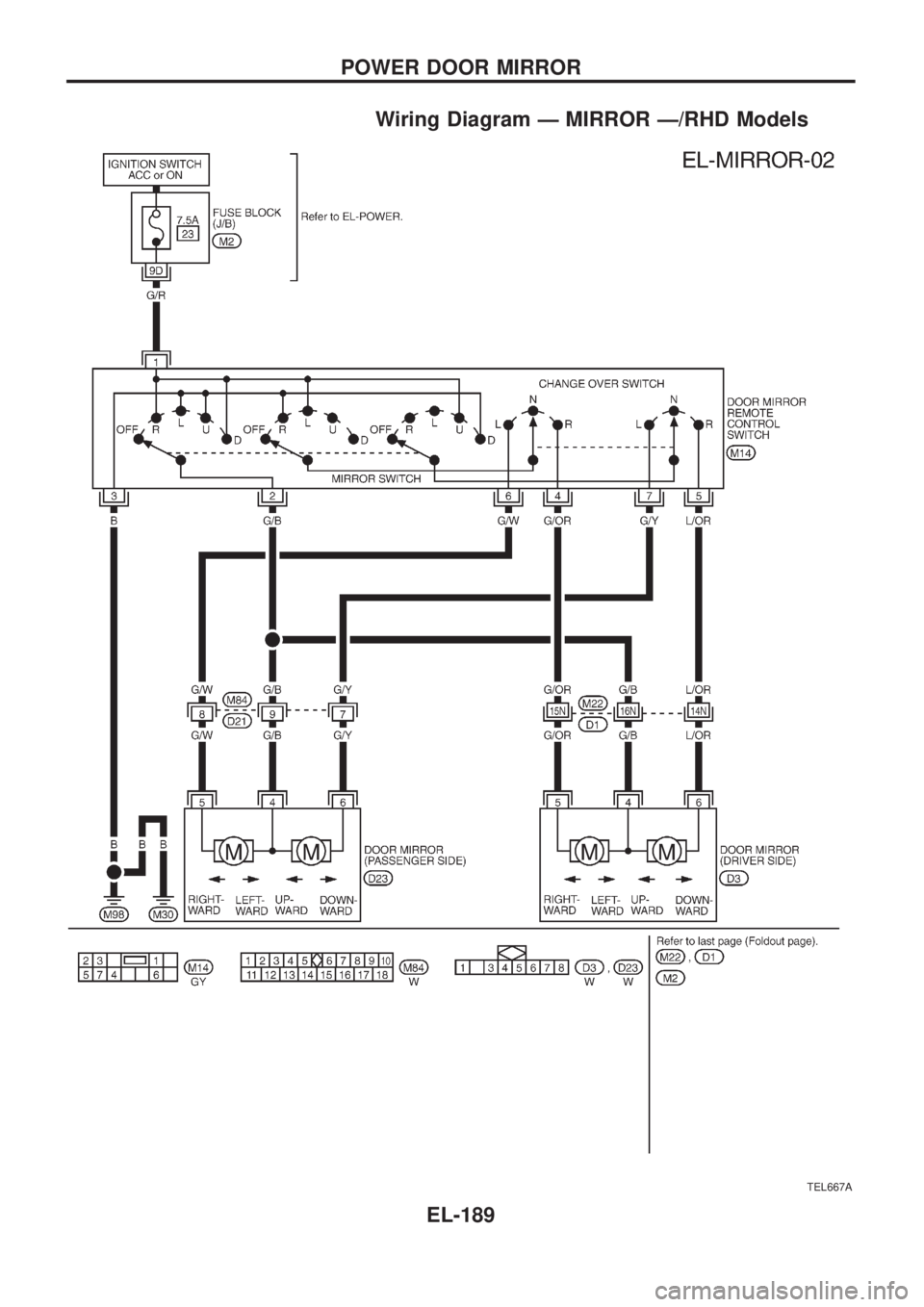

Wiring Diagram Ð MIRROR Ð/RHD Models
TEL667A
POWER DOOR MIRROR
EL-189

Wiring Diagram Ð SEAT Ð/LHD Models
TEL461A
POWER SEAT
EL-190

TEL462A
POWER SEAT

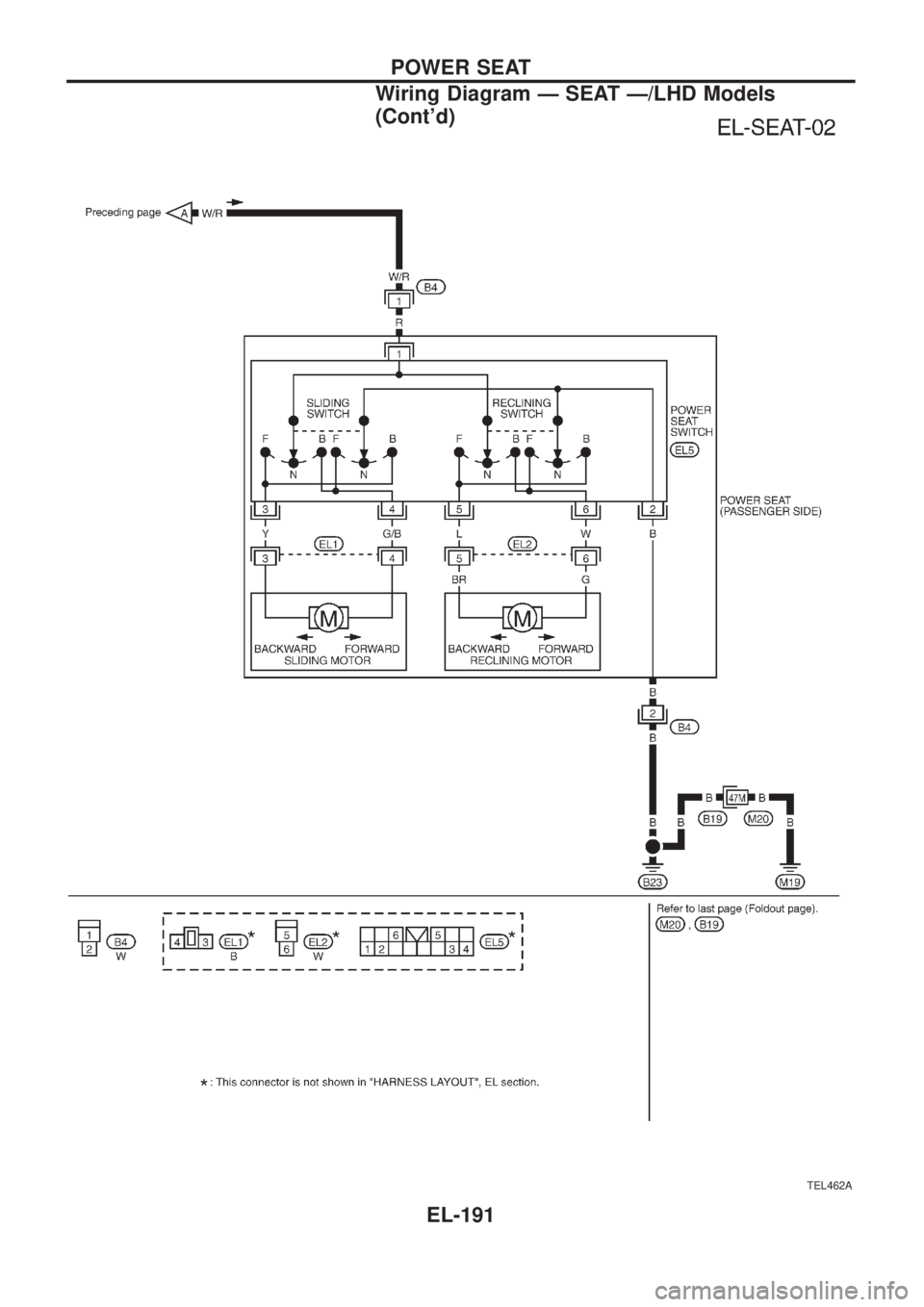

Wiring Diagram Ð SEAT Ð/LHD Models
