2006 NISSAN PATROL Service Manual

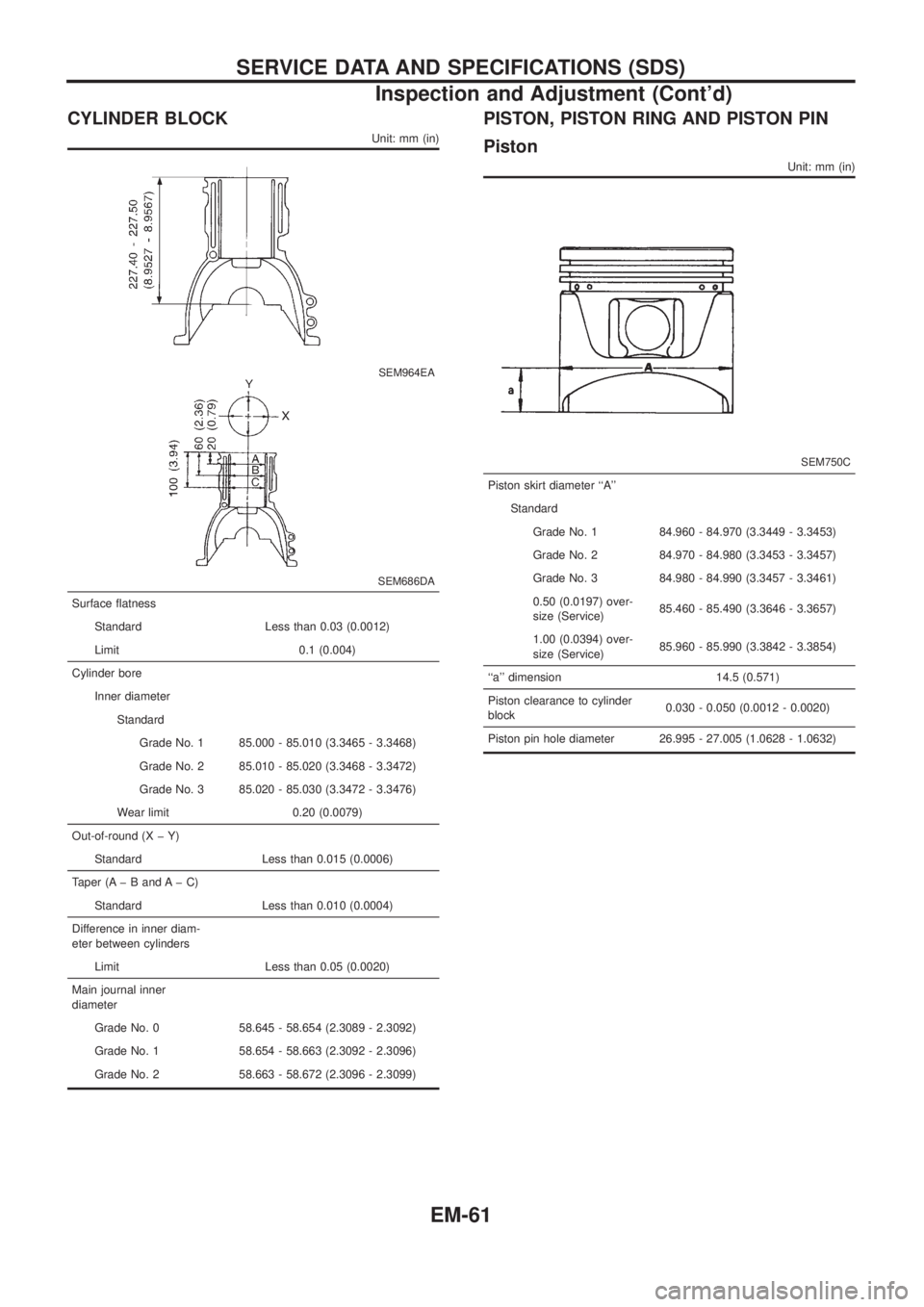

CYLINDER BLOCK
Unit: mm (in)
SEM964EA
SEM686DA
Surface ¯atness
Standard Less than 0.03 (0.0012)
Limit 0.1 (0.004)
Cylinder bore
Inner diameter
Standard
Grade No. 1 85.000 - 85.010 (3.3465 - 3.3468)
Grade No. 2 85.010 - 85.020 (3.3468 - 3.3472)
Grade No. 3 85.020 - 85.030 (3.3472 - 3.3476)
Wear limit 0.20 (0.0079)
Out-of-round (X þ Y)
Standard Less than 0.015 (0.0006)
Taper (A þ B and A þ C)
Standard Less than 0.010 (0.0004)
Difference in inner diam-
eter between cylinders
Limit Less than 0.05 (0.0020)
Main journal inner
diameter
Grade No. 0 58.645 - 58.654 (2.3089 - 2.3092)
Grade No. 1 58.654 - 58.663 (2.3092 - 2.3096)
Grade No. 2 58.663 - 58.672 (2.3096 - 2.3099)
PISTON, PISTON RING AND PISTON PIN
Piston
Unit: mm (in)
SEM750C
Piston skirt diameter ``A''
Standard
Grade No. 1 84.960 - 84.970 (3.3449 - 3.3453)
Grade No. 2 84.970 - 84.980 (3.3453 - 3.3457)
Grade No. 3 84.980 - 84.990 (3.3457 - 3.3461)
0.50 (0.0197) over-
size (Service)85.460 - 85.490 (3.3646 - 3.3657)
1.00 (0.0394) over-
size (Service)85.960 - 85.990 (3.3842 - 3.3854)
``a'' dimension 14.5 (0.571)
Piston clearance to cylinder
block0.030 - 0.050 (0.0012 - 0.0020)
Piston pin hole diameter 26.995 - 27.005 (1.0628 - 1.0632)
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment (Cont'd)
EM-61

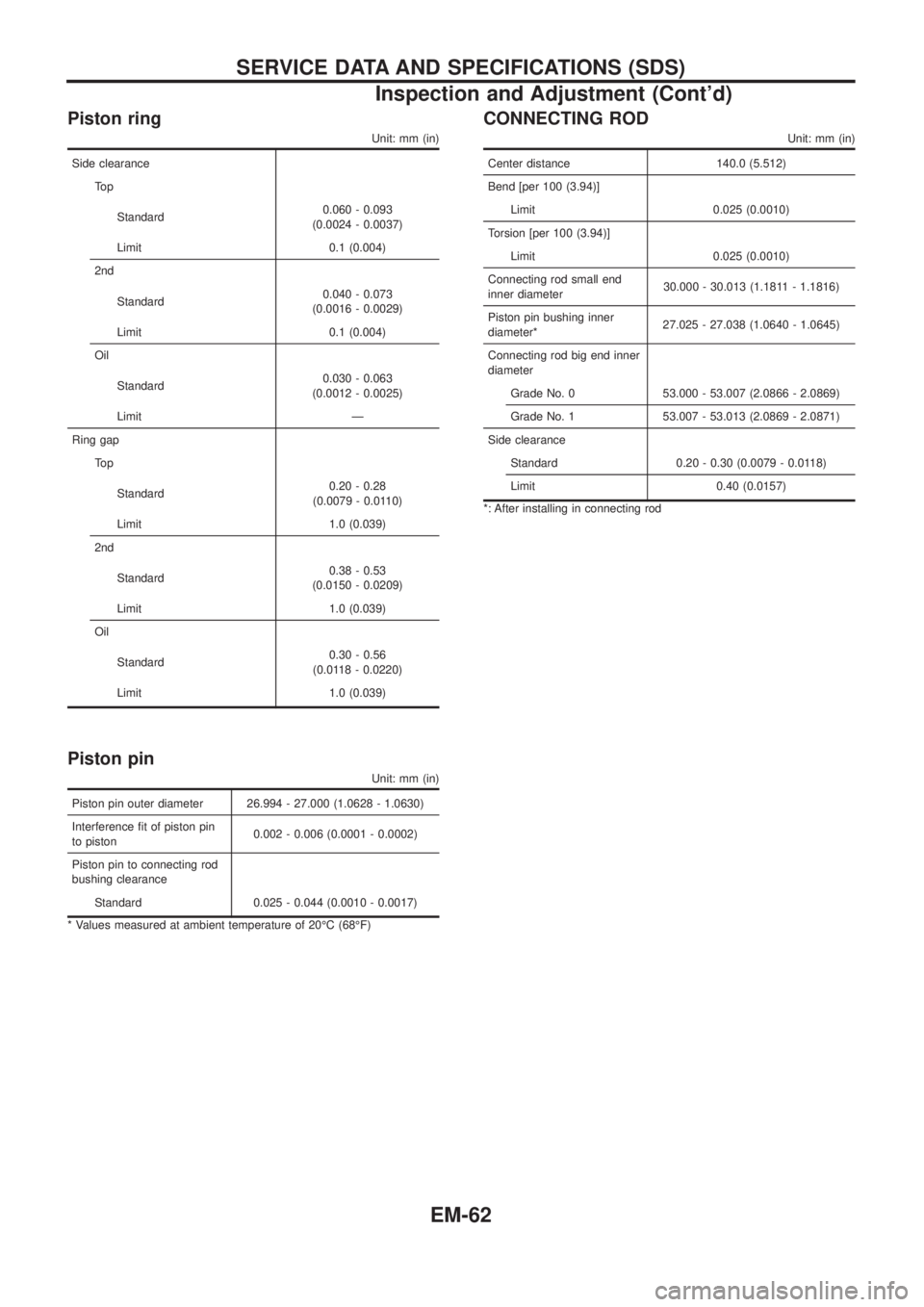

Piston ring
Unit: mm (in)
Side clearance
To p
Standard0.060 - 0.093
(0.0024 - 0.0037)
Limit 0.1 (0.004)
2nd
Standard0.040 - 0.073
(0.0016 - 0.0029)
Limit 0.1 (0.004)
Oil
Standard0.030 - 0.063
(0.0012 - 0.0025)
Limit Ð
Ring gap
To p
Standard0.20 - 0.28
(0.0079 - 0.0110)
Limit 1.0 (0.039)
2nd
Standard0.38 - 0.53
(0.0150 - 0.0209)
Limit 1.0 (0.039)
Oil
Standard0.30 - 0.56
(0.0118 - 0.0220)
Limit 1.0 (0.039)
Piston pin
Unit: mm (in)
Piston pin outer diameter 26.994 - 27.000 (1.0628 - 1.0630)
Interference ®t of piston pin
to piston0.002 - 0.006 (0.0001 - 0.0002)
Piston pin to connecting rod
bushing clearance
Standard 0.025 - 0.044 (0.0010 - 0.0017)
* Values measured at ambient temperature of 20ÉC (68ÉF)
CONNECTING ROD
Unit: mm (in)
Center distance 140.0 (5.512)
Bend [per 100 (3.94)]
Limit 0.025 (0.0010)
Torsion [per 100 (3.94)]
Limit 0.025 (0.0010)
Connecting rod small end
inner diameter30.000 - 30.013 (1.1811 - 1.1816)
Piston pin bushing inner
diameter*27.025 - 27.038 (1.0640 - 1.0645)
Connecting rod big end inner
diameter
Grade No. 0 53.000 - 53.007 (2.0866 - 2.0869)
Grade No. 1 53.007 - 53.013 (2.0869 - 2.0871)
Side clearance
Standard 0.20 - 0.30 (0.0079 - 0.0118)
Limit 0.40 (0.0157)
*: After installing in connecting rod
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment (Cont'd)
EM-62

CRANKSHAFT
Unit: mm (in)
Main journal dia. ``Dm''
Grade No. 0 54.967 - 54.975 (2.1641 - 2.1644)
Grade No. 1 54.959 - 54.967 (2.1637 - 2.1641)
Grade No. 2 54.951 - 54.959 (2.1634 - 2.1637)
Pin journal dia. ``Dp''
Grade No. 0 49.968 - 49.974 (1.9672 - 1.9675)
Grade No. 1 49.961 - 49.968 (1.9670 - 1.9672)
Center distance ``r'' 41.47 - 41.53 (1.6327 - 1.6350)
Out-of-round (X þ Y)
Standard
Main journal Less than 0.005 (0.0002)
Pin journal Less than 0.0025 (0.0001)
Taper (A þ B)
Standard
Main journal Less than 0.005 (0.0002)
Pin journal Less than 0.0025 (0.0001)
Runout [TIR]
Standard Less than 0.025 (0.0010)
Limit Less than 0.05 (0.0020)
Free end play
Standard 0.05 - 0.18 (0.0020 - 0.0071)
Limit 0.30 (0.0118)
SEM645
EM715
MAIN BEARING
SEM157B
Standard
Unit: mm (in)
Grade
numberThickness ``T'' Width ``W''Identi®cation
color
01.813 - 1.817
(0.0714 - 0.0715)
19.7 - 19.9
(0.776 - 0.783)Black
11.817 - 1.821
(0.0715 - 0.0717)Brown
21.821 - 1.825
(0.0717 - 0.0719)Ð
31.825 - 1.829
(0.0719 - 0.0720)Yellow
41.829 - 1.833
(0.0720 - 0.0722)Blue
Undersize
Unit: mm (in)
Undersize Thickness ``T''Main journal
diameter ``Dm''
0.25 (0.0098)2.109 - 2.117
(0.0830 - 0.0833)Grind so that bearing
clearance is the
speci®ed value.
CONNECTING ROD BEARING
Connecting rod bearing
Standard size
Unit: mm (in)
Grade
numberThickness ``T'' Width ``W''Identi®cation
color
01.492 - 1.496
(0.0587 - 0.0589)
19.9 - 20.1
(0.783 - 0.791)Black
11.496 - 1.500
(0.0589 - 0.0591)Yellow
21.500 - 1.504
(0.0591 - 0.0592)Brown
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment (Cont'd)
EM-63

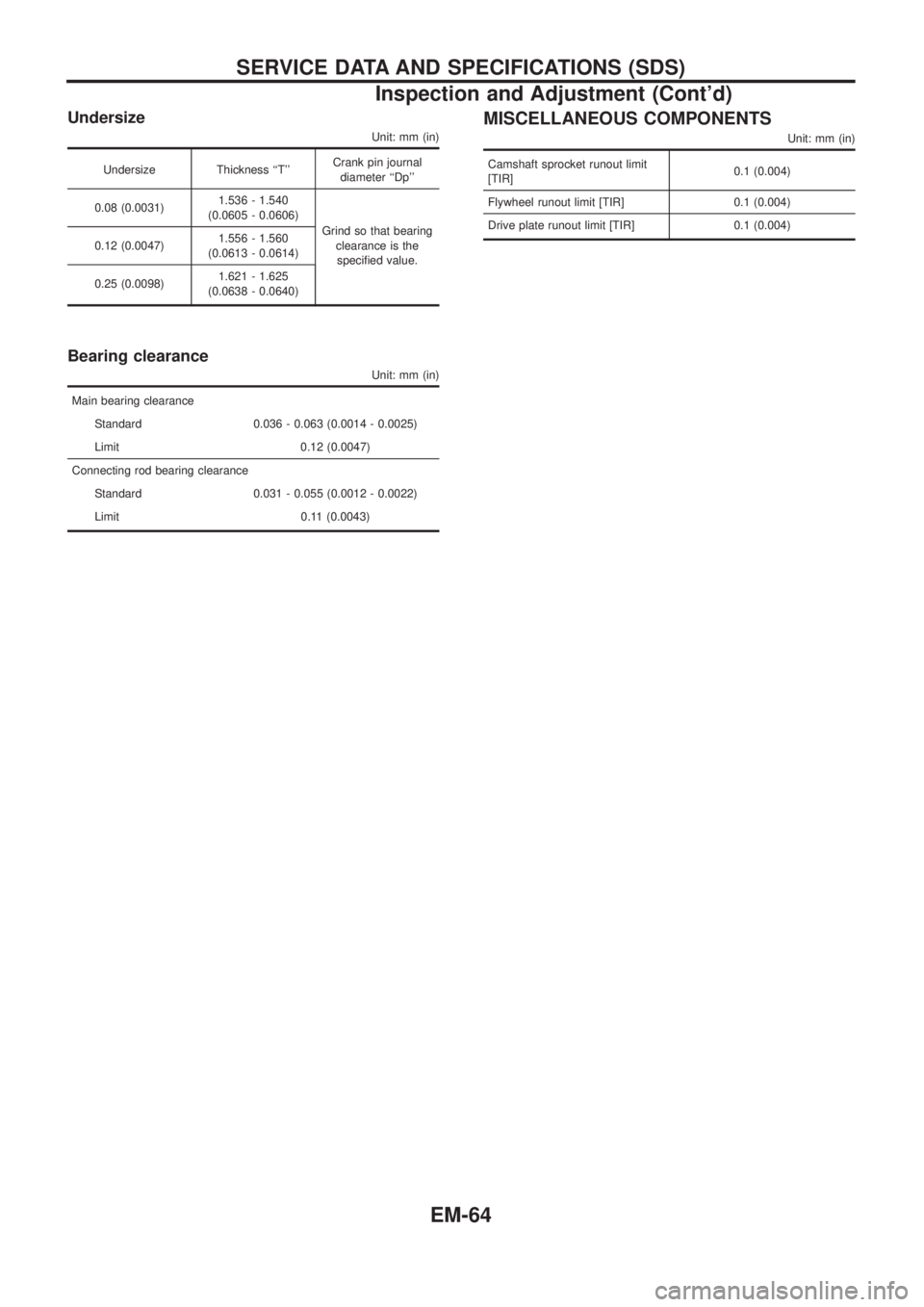

Undersize
Unit: mm (in)
Undersize Thickness ``T''Crank pin journal
diameter ``Dp''
0.08 (0.0031)1.536 - 1.540
(0.0605 - 0.0606)
Grind so that bearing
clearance is the
speci®ed value. 0.12 (0.0047)1.556 - 1.560
(0.0613 - 0.0614)
0.25 (0.0098)1.621 - 1.625
(0.0638 - 0.0640)
Bearing clearance
Unit: mm (in)
Main bearing clearance
Standard 0.036 - 0.063 (0.0014 - 0.0025)
Limit 0.12 (0.0047)
Connecting rod bearing clearance
Standard 0.031 - 0.055 (0.0012 - 0.0022)
Limit 0.11 (0.0043)
MISCELLANEOUS COMPONENTS
Unit: mm (in)
Camshaft sprocket runout limit
[TIR]0.1 (0.004)
Flywheel runout limit [TIR] 0.1 (0.004)
Drive plate runout limit [TIR] 0.1 (0.004)
SERVICE DATA AND SPECIFICATIONS (SDS)
Inspection and Adjustment (Cont'd)
EM-64

FRONT AXLE &
FRONT SUSPENSION
SECTION
FA
CONTENTS
PRECAUTIONS AND PREPARATION............................1
Precautions ..................................................................1
Special Service Tools ..................................................1
Commercial Service Tools ...........................................2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING.....................................................3
NVH Troubleshooting Chart.........................................3
FRONT AXLE AND FRONT SUSPENSION...................4
ON-VEHICLE SERVICE..................................................5
Front Axle and Front Suspension Parts ......................5
Front Wheel Bearing....................................................5
Front Wheel Alignment ................................................8
FRONT AXLE Ð Drive ¯ange and Free-running
Hub.................................................................................10
FRONT AXLE Ð Manual-lock Free-running Hub...... 11
Removal ..................................................................... 11
Installation ..................................................................12
Inspection...................................................................12
FRONT AXLE Ð Auto-lock Free-running Hub..........13
Removal .....................................................................13
Installation ..................................................................13FRONT AXLE Ð Wheel Hub and Rotor Disc............14
Removal and Installation ...........................................14
Inspection...................................................................15
Assembly ...................................................................15
FRONT AXLE Ð Knuckle Flange................................17
Removal .....................................................................17
Inspection...................................................................19
Installation ..................................................................19
Knuckle Flange Grease Seal.....................................21
FRONT AXLE Ð Drive Shaft.......................................23
Inspection...................................................................23
Installation ..................................................................23
FRONT SUSPENSION..................................................24
Shock Absorber .........................................................25
Stabilizer Bar .............................................................25
Coil Spring .................................................................25
Leading Arm...............................................................26
Panhard Rod..............................................................26
SERVICE DATA AND SPECIFICATIONS (SDS)..........27
General Speci®cations ...............................................27
Inspection and Adjustment ........................................27
FA

Precautions
+When installing rubber parts, ®nal tightening must be car-
ried out under unladen condition* with tires on ground.
* Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.
+Use ¯are nut wrench when removing and installing brake
tubes.
+After installing removed suspension parts, check wheel
alignment and adjust if necessary.
+Always torque brake lines when installing.
Special Service Tools
Tool number
Tool nameDescription
ST29020001
Gear arm puller
NT551
Removing tie-rod and drag link
a: 34 mm (1.34 in)
b: 6.5 mm (0.256 in)
c: 61.5 mm (2.421 in)
KV401021S0
Bearing race drift
NT153
Installing wheel bearing outer race
KV40105400
Wheel bearing
lock nut wrench
NT154
Removing and installing wheel bearing lock
nut
GG94310000
Flare nut torque wrench
NT406
Removing and installing brake piping
a: 10 mm (0.39 in)
SBR820BA
PRECAUTIONS AND PREPARATION
FA-1

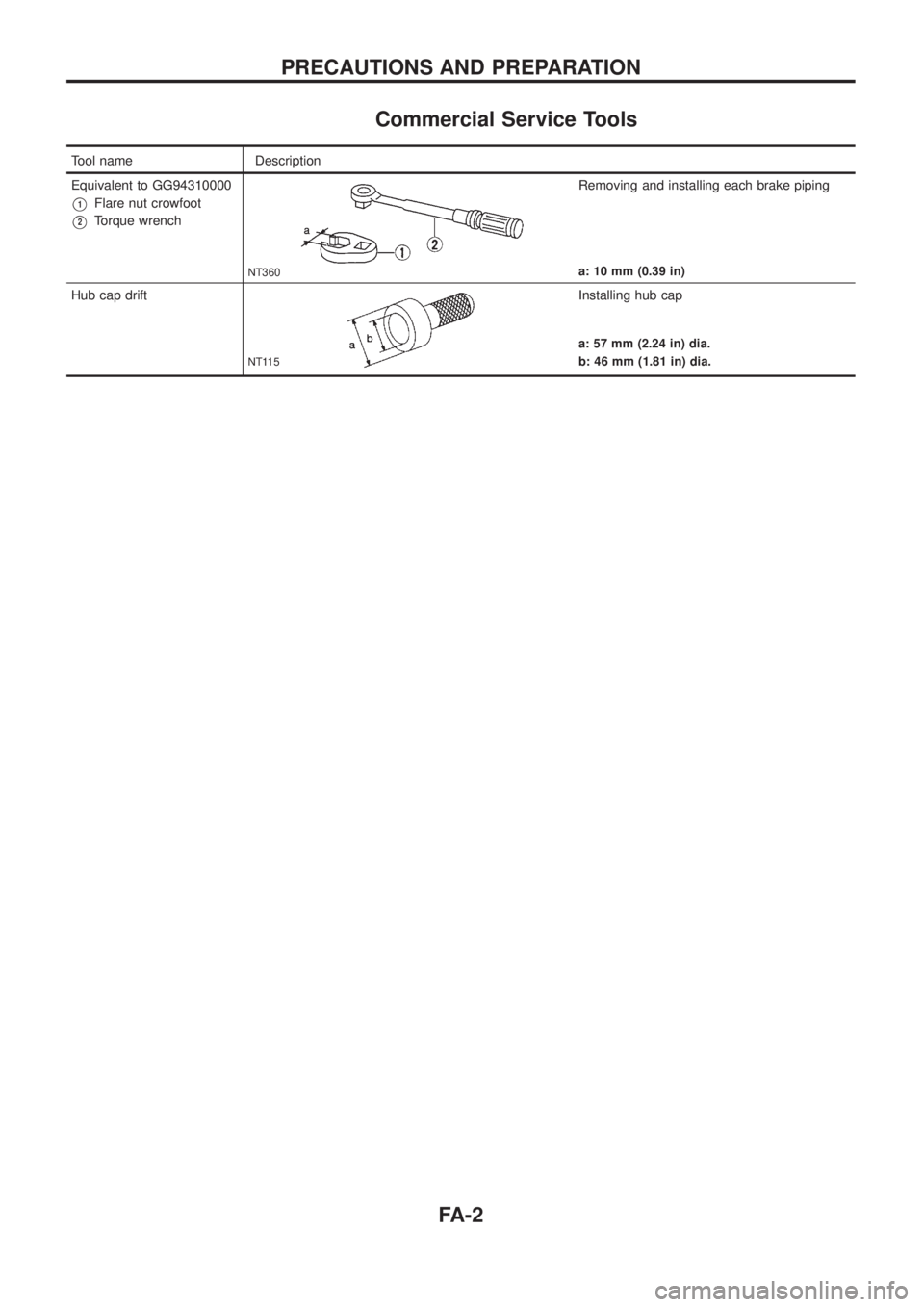

Commercial Service Tools
Tool name Description
Equivalent to GG94310000
V1Flare nut crowfoot
V2Torque wrench
NT360
Removing and installing each brake piping
a: 10 mm (0.39 in)
Hub cap drift
NT115
Installing hub cap
a: 57 mm (2.24 in) dia.
b: 46 mm (1.81 in) dia.
PRECAUTIONS AND PREPARATION
FA-2

NVH Troubleshooting Chart
Use the chart below to help you ®nd the cause of the symptom. If necessary, repair or replace these parts.
Reference pageFA-4
FA-25
Ð
Ð
Ð
FA-24
FA-8
FA-25
FA-5
FA-8
Ð
Ð
Ð
Ð
Ð
Ð
Ð
FA-23
Ð
NVH in PD section
NVH in PD section
Refer to FRONT AXLE AND FRONT SUSPENSION in this chart.
NVH in RA section
Refer to TIRES in this chart.
Refer to ROAD WHEEL in this chart.
Refer to AXLE SHAFT in this chart.
NVH in BR section
NVH in ST section
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Shock absorber deformation, damage or de¯ection
Bushing or mounting deterioration
Parts interference
Spring fatigue
Suspension looseness
Incorrect wheel alignment
Stabilizer bar fatigue
Wheel bearing damage
Out-of-round
Imbalance
Incorrect air pressure
Uneven tire wear
Deformation or damage
Non-uniformity
Incorrect tire size
Excessive joint angle
Joint sliding resistance
Imbalance
PROPELLER SHAFT
DIFFERENTIAL
FRONT AXLE AND FRONT SUSPENSION
REAR AXLE AND REAR SUSPENSION
TIRES
ROAD WHEEL
AXLE SHAFT
BRAKES
STEERING
SymptomFRONT
AXLE AND
FRONT
SUSPEN-
SIONNoiseXXXXXX XX XXXXXX
ShakeXXXX X X XXXXXX
VibrationXXXXX X XX X X
ShimmyXXXX X XXX XX
Judder X X XXXX XX
Poor quality ride
or handlingXXXXX XXX XXX
TIRESNoise XXXXXXX XXXX XXXX
Shake XXXXXX X X XX XXXX
Vibration X X X X X X X
Shimmy XXXXXXXX XX X XX
Judder XXXXXX X XX X XX
Poor quality ride
or handlingX XXXXX X XX X
ROAD
WHEELNoise X X X XXXXXX XXX
Shake X X X X X X X X X X X
Shimmy, judder X X X X X X X X X
Poor quality ride
or handlingX XX X XXX
AXLE
SHAFTNoise, vibration X XXXXXXX XX
ShakeX XX XXXX XX
X: Applicable
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
FA-3
