HOW TO CHANGE SELF-DIAGNOSIS MODE
With CONSULT
From User mode to Diagnosis mode
After selecting AIR BAG on the ``SELECT SYSTEM'' screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis mode to User mode
To return to User mode from diagnosis mode, touch ``BACK'' key of CONSULT until ``SELECT SYSTEM''
appears. Diagnosis mode automatically changes to User mode.
Without CONSULT
From User mode to Diagnosis mode
Diagnosis mode activates only when a malfunction is detected, by
pressing the driver's door switch at least 5 times within 7 seconds
after turning the ignition ``ON''. SRS will not enter Diagnosis mode
if no malfunction is detected.
From Diagnosis mode to User mode
After a malfunction is repaired, switch the ignition ``OFF'' for at least 1 second, then back ``ON''. Diagnosis
mode returns to User mode. If switching from Diagnosis mode to User mode is required while malfunction is
being detected, switch the ignition ``OFF'', then back ``ON'' and press the driver's door switch at least 5 times
within 7 seconds.
SRS391
SRS392
SRS465
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses Introduction (Cont'd)
RS-23

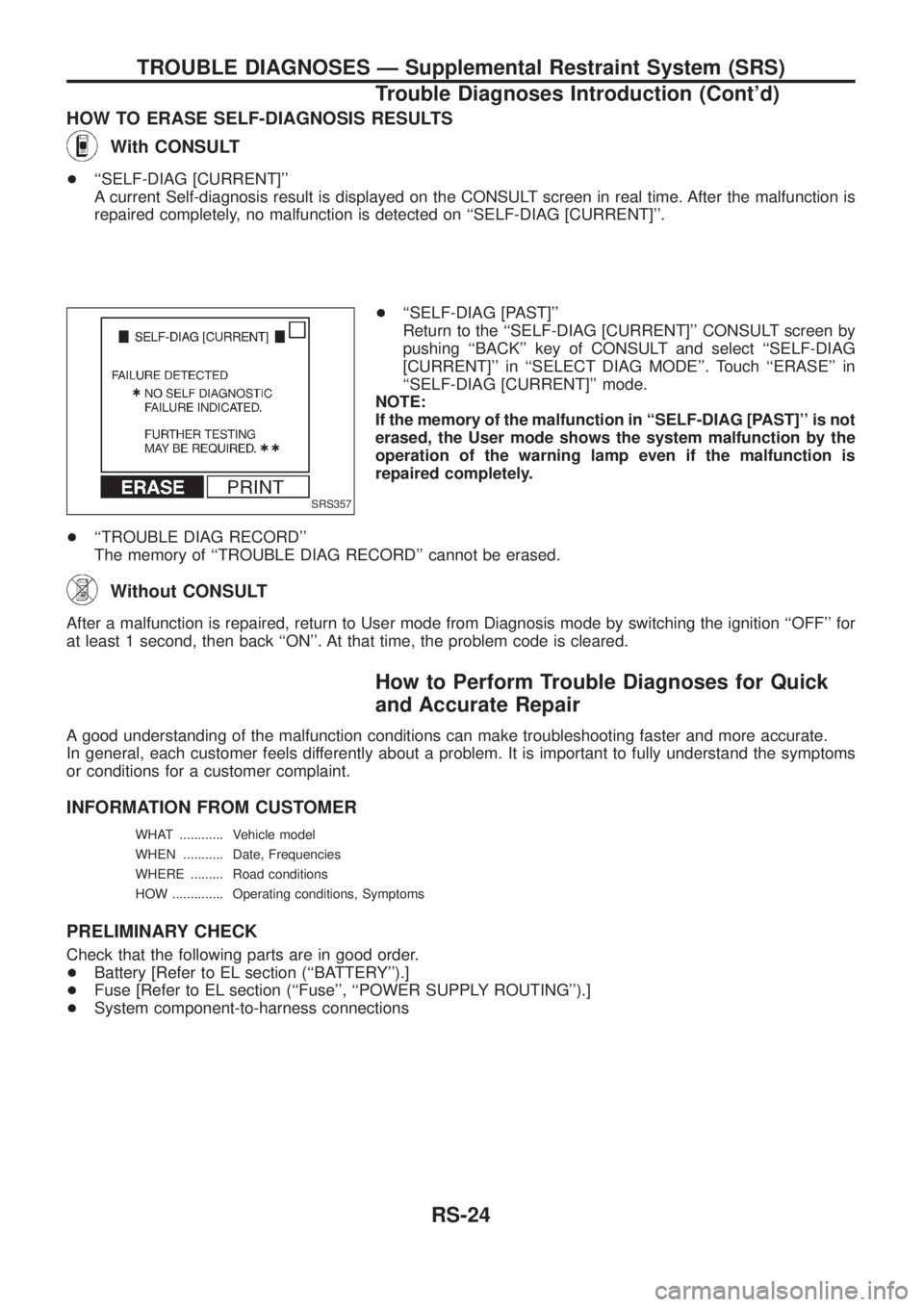

HOW TO ERASE SELF-DIAGNOSIS RESULTS
With CONSULT
+``SELF-DIAG [CURRENT]''
A current Self-diagnosis result is displayed on the CONSULT screen in real time. After the malfunction is
repaired completely, no malfunction is detected on ``SELF-DIAG [CURRENT]''.
+``SELF-DIAG [PAST]''
Return to the ``SELF-DIAG [CURRENT]'' CONSULT screen by
pushing ``BACK'' key of CONSULT and select ``SELF-DIAG
[CURRENT]'' in ``SELECT DIAG MODE''. Touch ``ERASE'' in
``SELF-DIAG [CURRENT]'' mode.
NOTE:
If the memory of the malfunction in ``SELF-DIAG [PAST]'' is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is
repaired completely.
+``TROUBLE DIAG RECORD''
The memory of ``TROUBLE DIAG RECORD'' cannot be erased.
Without CONSULT
After a malfunction is repaired, return to User mode from Diagnosis mode by switching the ignition ``OFF'' for
at least 1 second, then back ``ON''. At that time, the problem code is cleared.
How to Perform Trouble Diagnoses for Quick
and Accurate Repair
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a problem. It is important to fully understand the symptoms
or conditions for a customer complaint.
INFORMATION FROM CUSTOMER
WHAT ............ Vehicle model
WHEN ........... Date, Frequencies
WHERE ......... Road conditions
HOW .............. Operating conditions, Symptoms
PRELIMINARY CHECK
Check that the following parts are in good order.
+Battery [Refer to EL section (``BATTERY'').]
+Fuse [Refer to EL section (``Fuse'', ``POWER SUPPLY ROUTING'').]
+System component-to-harness connections
SRS357
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Trouble Diagnoses Introduction (Cont'd)
RS-24

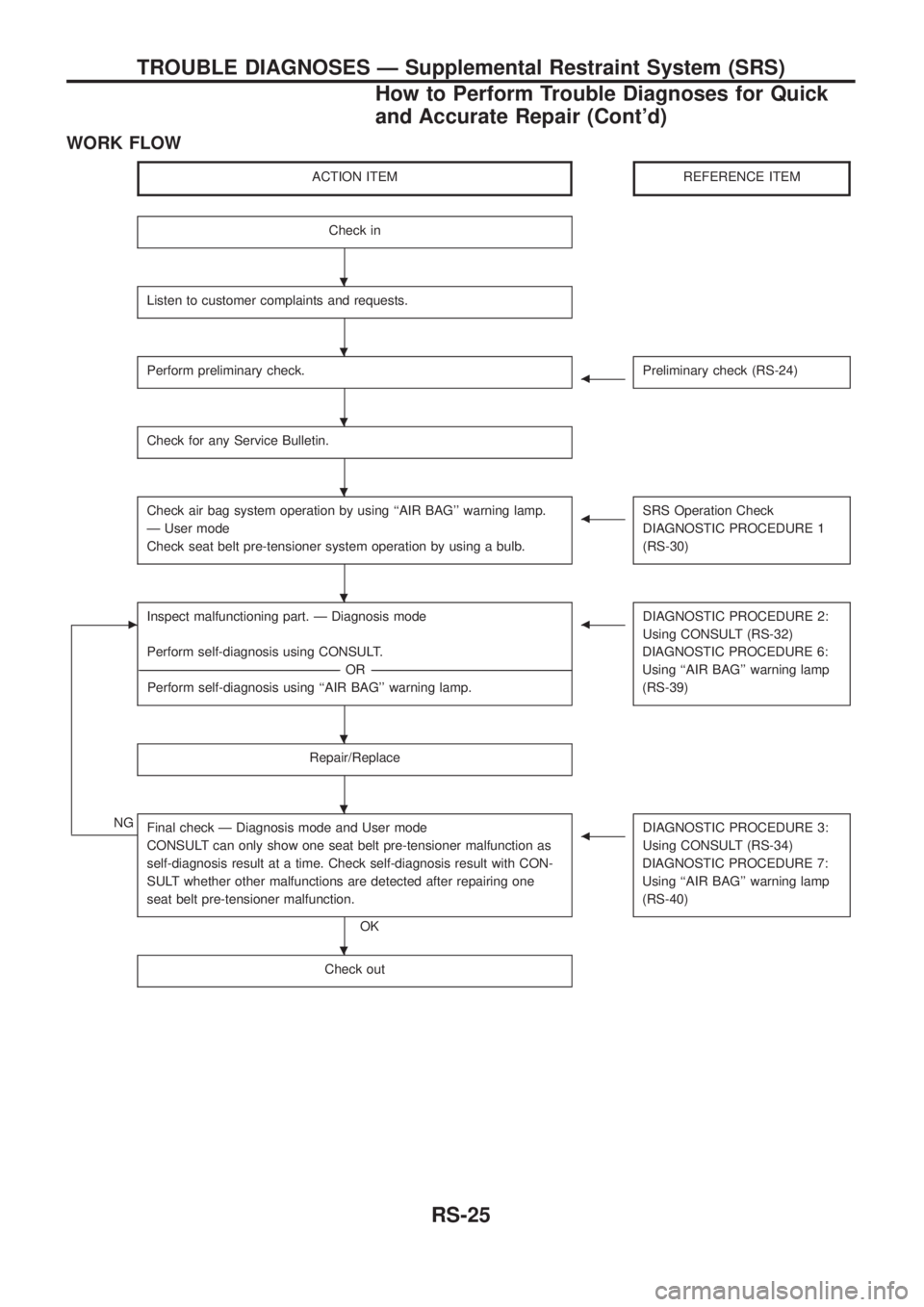

WORK FLOW
ACTION ITEMREFERENCE ITEM
Check in
Listen to customer complaints and requests.
Perform preliminary check.bPreliminary check (RS-24)
Check for any Service Bulletin.
Check air bag system operation by using ``AIR BAG'' warning lamp.
Ð User mode
Check seat belt pre-tensioner system operation by using a bulb.bSRS Operation Check
DIAGNOSTIC PROCEDURE 1
(RS-30)
cInspect malfunctioning part. Ð Diagnosis mode
Perform self-diagnosis using CONSULT.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------OR ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Perform self-diagnosis using ``AIR BAG'' warning lamp.bDIAGNOSTIC PROCEDURE 2:
Using CONSULT (RS-32)
DIAGNOSTIC PROCEDURE 6:
Using ``AIR BAG'' warning lamp
(RS-39)
Repair/Replace
NGFinal check Ð Diagnosis mode and User mode
CONSULT can only show one seat belt pre-tensioner malfunction as
self-diagnosis result at a time. Check self-diagnosis result with CON-
SULT whether other malfunctions are detected after repairing one
seat belt pre-tensioner malfunction.
OK
bDIAGNOSTIC PROCEDURE 3:
Using CONSULT (RS-34)
DIAGNOSTIC PROCEDURE 7:
Using ``AIR BAG'' warning lamp
(RS-40)
Check out
.
.
.
.
.
.
.
.
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
How to Perform Trouble Diagnoses for Quick
and Accurate Repair (Cont'd)
RS-25

Schematic
TRS073
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-26

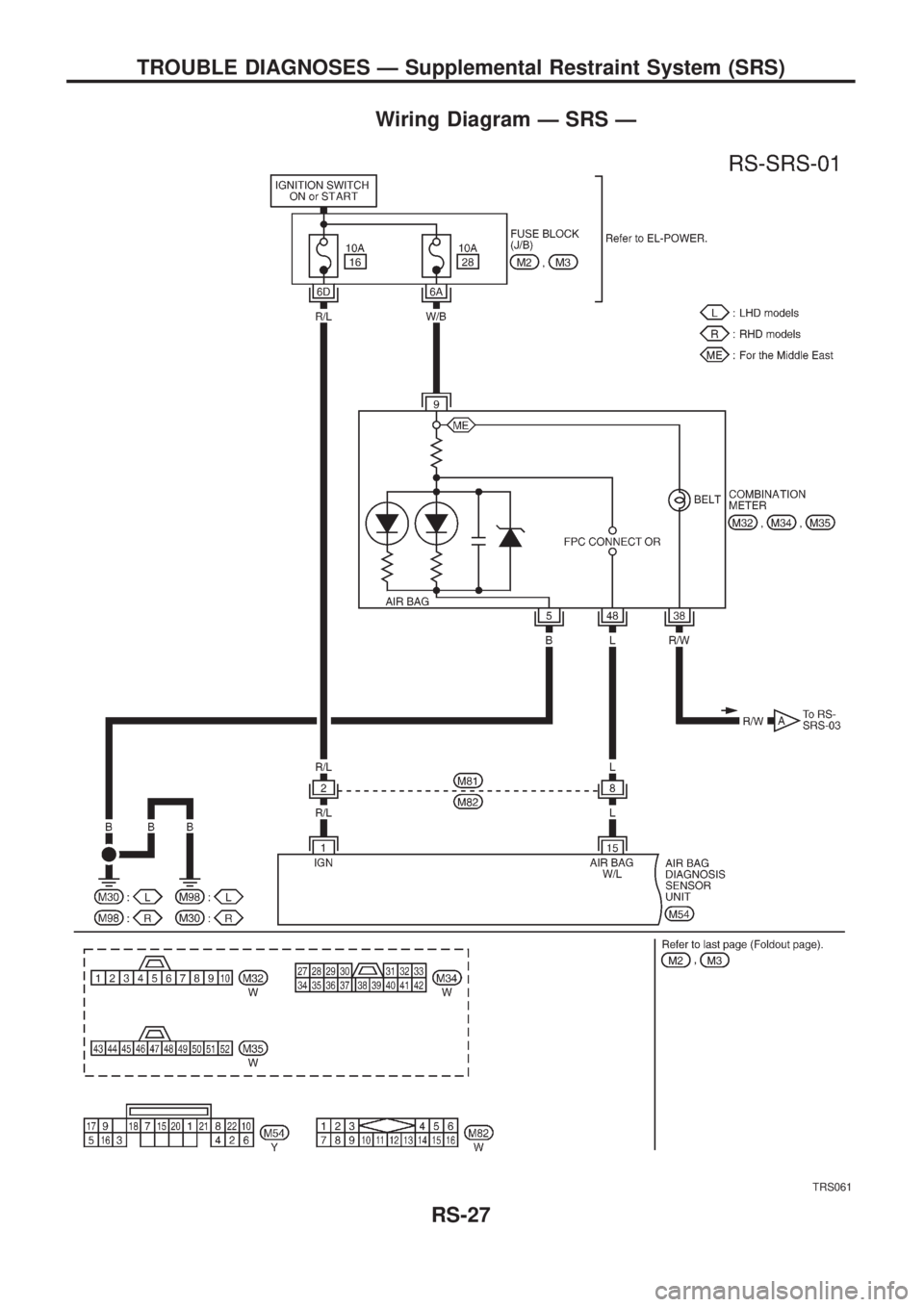

Wiring Diagram Ð SRS Ð
TRS061
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
RS-27

TRS062
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)

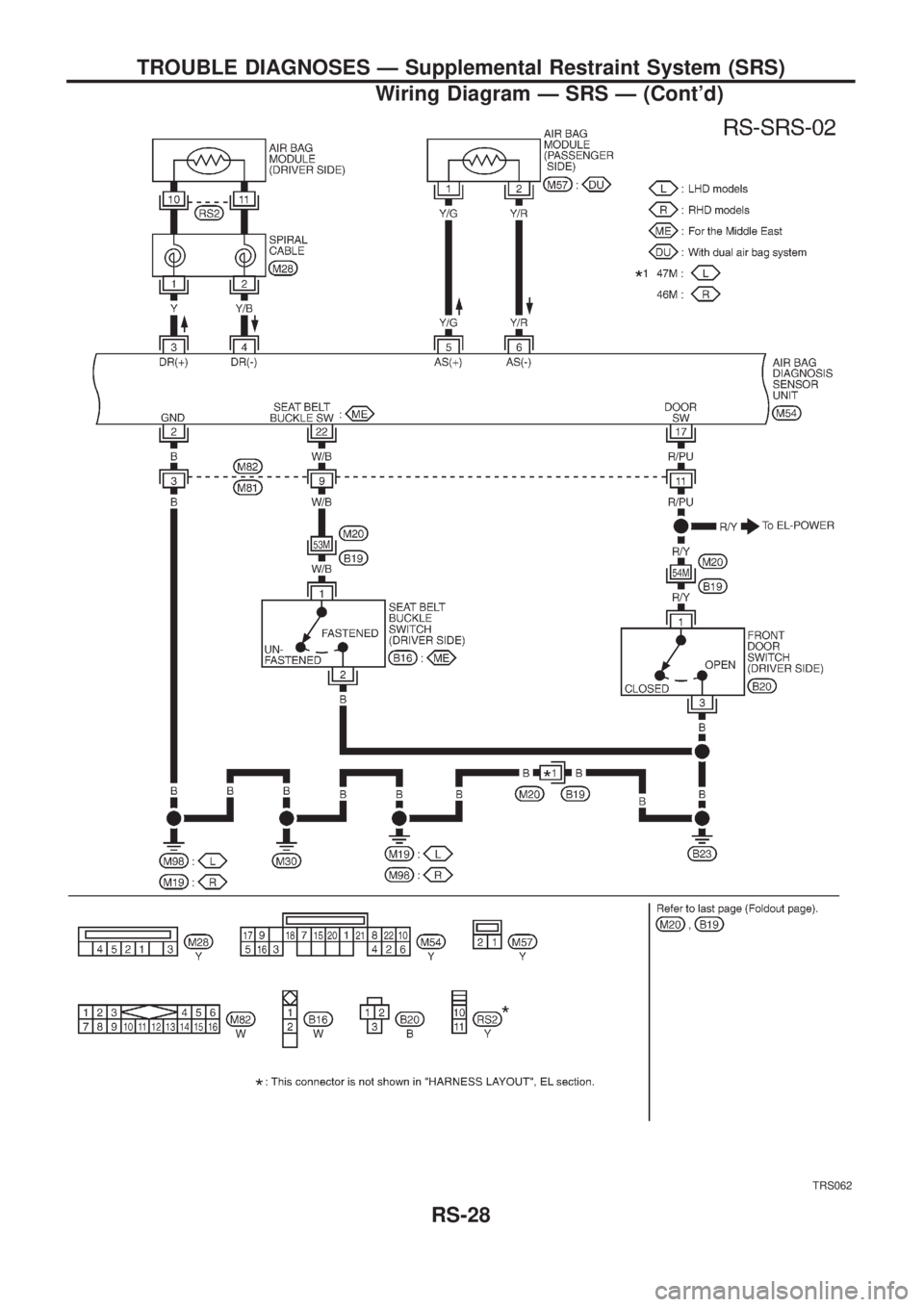

Wiring Diagram Ð SRS Ð (Cont'd)
RS-28

TRS063
TROUBLE DIAGNOSES Ð Supplemental Restraint System (SRS)
Wiring Diagram Ð SRS Ð (Cont'd)
RS-29

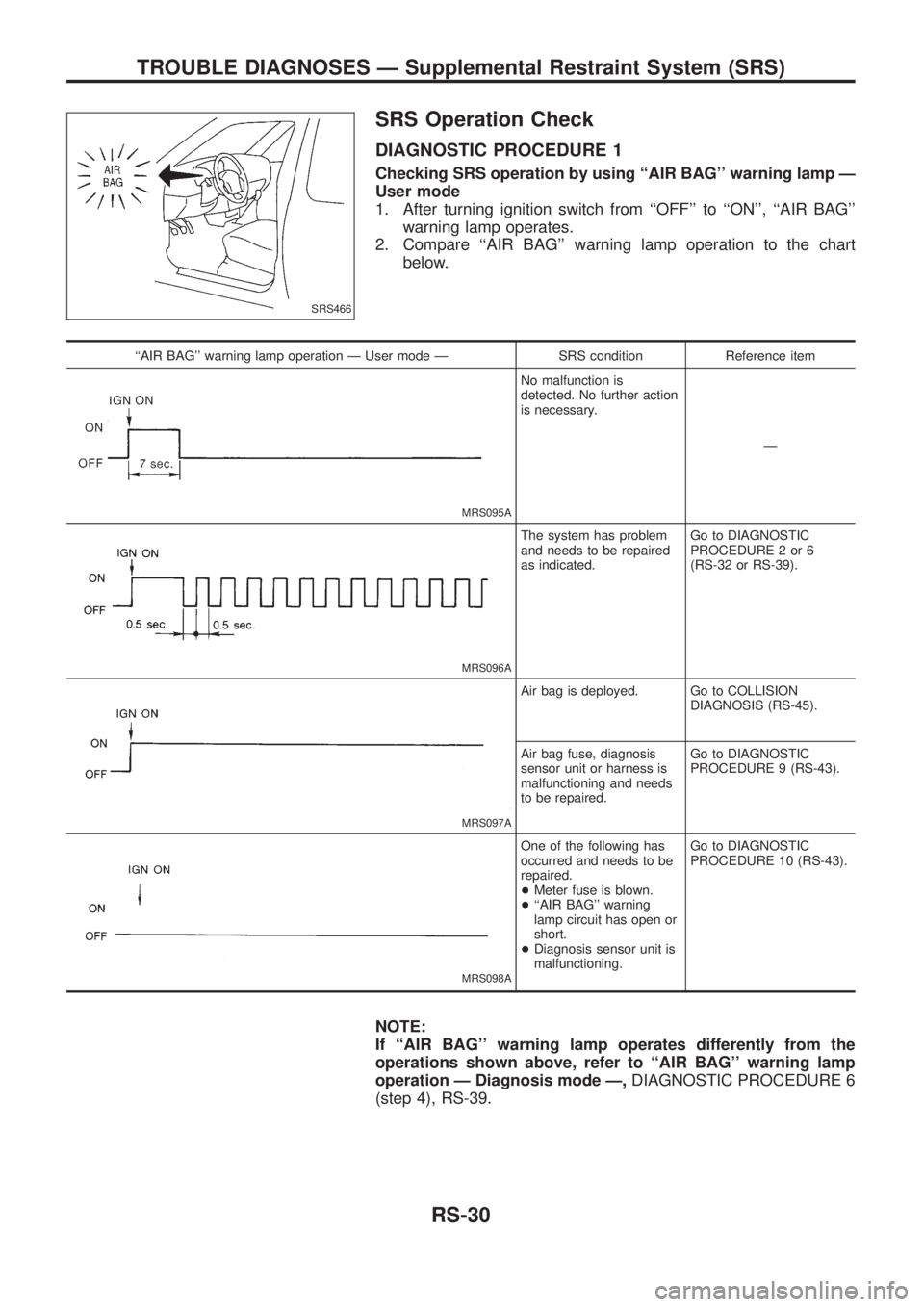

SRS Operation Check
DIAGNOSTIC PROCEDURE 1
Checking SRS operation by using ``AIR BAG'' warning lamp Ð
User mode
1. After turning ignition switch from ``OFF'' to ``ON'', ``AIR BAG''
warning lamp operates.
2. Compare ``AIR BAG'' warning lamp operation to the chart
below.
``AIR BAG'' warning lamp operation Ð User mode Ð SRS condition Reference item
MRS095A
No malfunction is
detected. No further action
is necessary.
Ð
MRS096A
The system has problem
and needs to be repaired
as indicated.Go to DIAGNOSTIC
PROCEDURE 2 or 6
(RS-32 or RS-39).
MRS097A
Air bag is deployed. Go to COLLISION
DIAGNOSIS (RS-45).
Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.Go to DIAGNOSTIC
PROCEDURE 9 (RS-43).
MRS098A
One of the following has
occurred and needs to be
repaired.
+Meter fuse is blown.
+``AIR BAG'' warning
lamp circuit has open or
short.
+Diagnosis sensor unit is
malfunctioning.Go to DIAGNOSTIC
PROCEDURE 10 (RS-43).
NOTE:
If ``AIR BAG'' warning lamp operates differently from the
operations shown above, refer to ``AIR BAG'' warning lamp
operation Ð Diagnosis mode Ð,DIAGNOSTIC PROCEDURE 6
(step 4), RS-39.
SRS466
