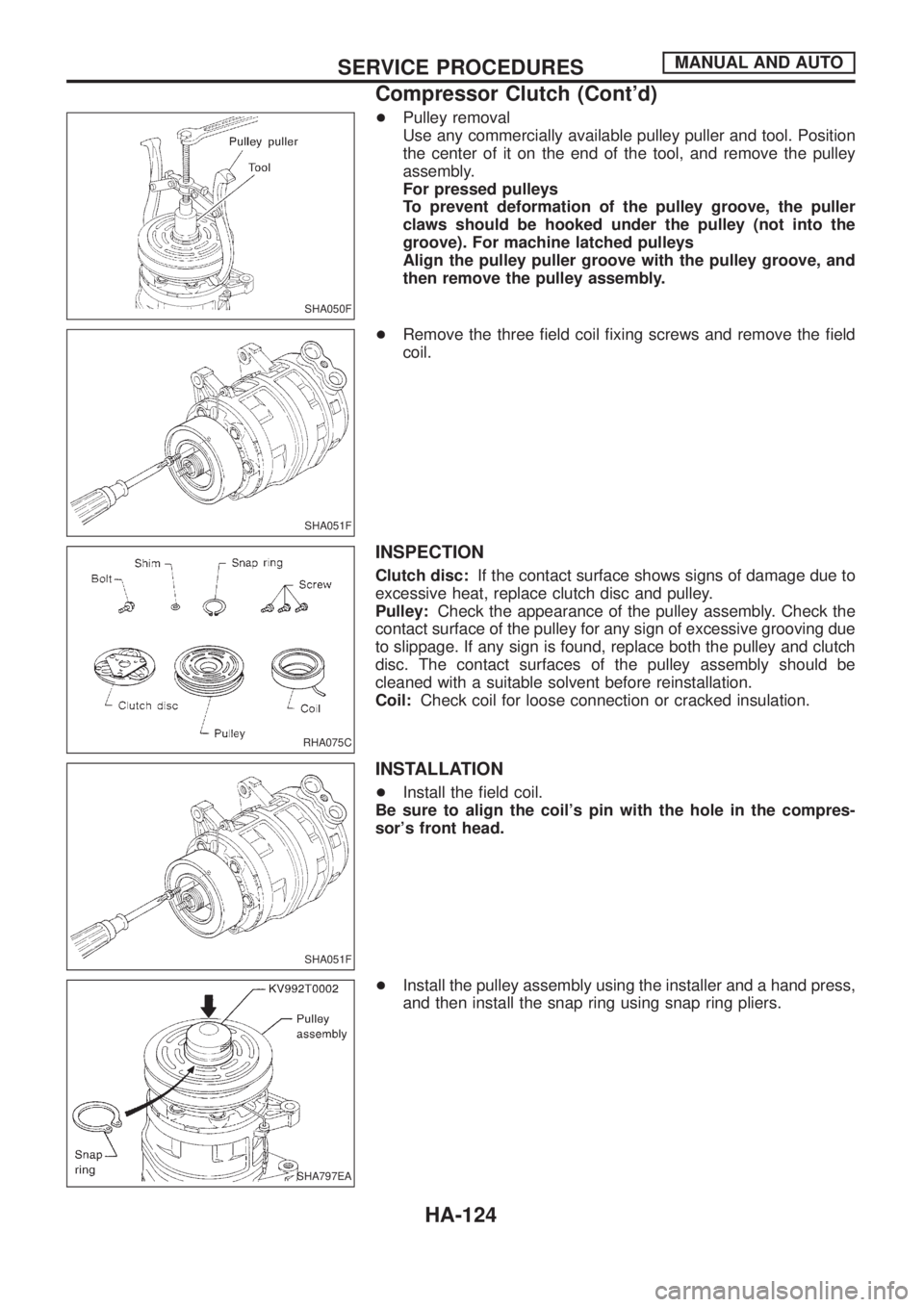

+Pulley removal
Use any commercially available pulley puller and tool. Position
the center of it on the end of the tool, and remove the pulley
assembly.
For pressed pulleys
To prevent deformation of the pulley groove, the puller
claws should be hooked under the pulley (not into the
groove). For machine latched pulleys
Align the pulley puller groove with the pulley groove, and
then remove the pulley assembly.
+Remove the three ®eld coil ®xing screws and remove the ®eld
coil.
INSPECTION
Clutch disc:If the contact surface shows signs of damage due to
excessive heat, replace clutch disc and pulley.
Pulley:Check the appearance of the pulley assembly. Check the
contact surface of the pulley for any sign of excessive grooving due
to slippage. If any sign is found, replace both the pulley and clutch
disc. The contact surfaces of the pulley assembly should be
cleaned with a suitable solvent before reinstallation.
Coil:Check coil for loose connection or cracked insulation.
INSTALLATION
+Install the ®eld coil.
Be sure to align the coil's pin with the hole in the compres-
sor's front head.
+Install the pulley assembly using the installer and a hand press,
and then install the snap ring using snap ring pliers.
SHA050F
SHA051F
RHA075C
SHA051F
SHA797EA
SERVICE PROCEDURESMANUAL AND AUTO
Compressor Clutch (Cont'd)
HA-124

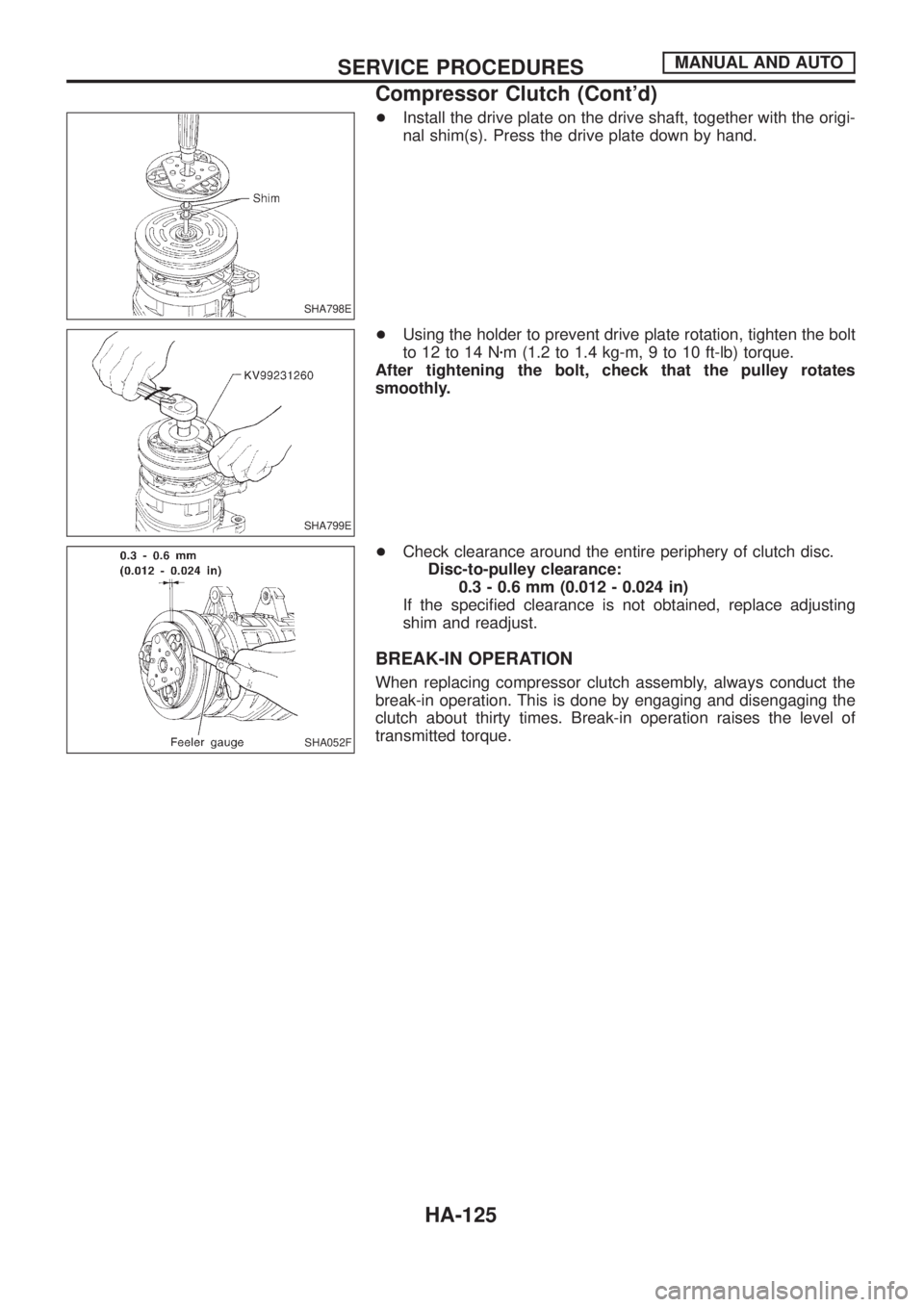

+Install the drive plate on the drive shaft, together with the origi-
nal shim(s). Press the drive plate down by hand.
+Using the holder to prevent drive plate rotation, tighten the bolt
to 12 to 14 Nzm (1.2 to 1.4 kg-m, 9 to 10 ft-lb) torque.
After tightening the bolt, check that the pulley rotates
smoothly.
+Check clearance around the entire periphery of clutch disc.
Disc-to-pulley clearance:
0.3 - 0.6 mm (0.012 - 0.024 in)
If the speci®ed clearance is not obtained, replace adjusting
shim and readjust.
BREAK-IN OPERATION
When replacing compressor clutch assembly, always conduct the
break-in operation. This is done by engaging and disengaging the
clutch about thirty times. Break-in operation raises the level of
transmitted torque.
SHA798E
SHA799E
SHA052F
SERVICE PROCEDURESMANUAL AND AUTO
Compressor Clutch (Cont'd)
HA-125

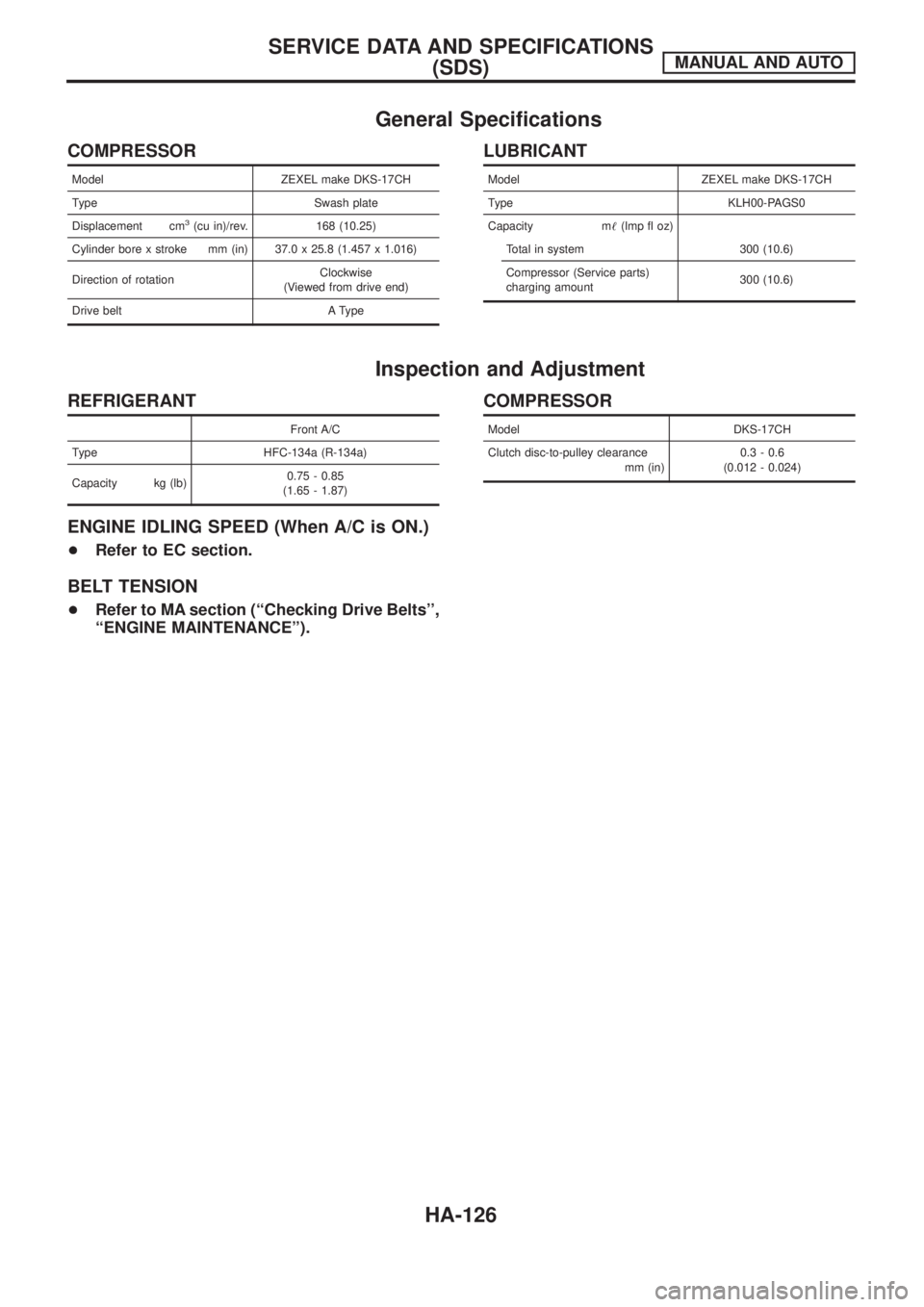

General Speci®cations
COMPRESSOR
Model ZEXEL make DKS-17CH
Type Swash plate
Displacement cm
3(cu in)/rev. 168 (10.25)
Cylinder bore x stroke mm (in) 37.0 x 25.8 (1.457 x 1.016)
Direction of rotationClockwise
(Viewed from drive end)
Drive belt A Type
LUBRICANT
Model ZEXEL make DKS-17CH
Type KLH00-PAGS0
Capacity m!(lmp ¯ oz)
Total in system 300 (10.6)
Compressor (Service parts)
charging amount300 (10.6)
Inspection and Adjustment
REFRIGERANT
Front A/C
Type HFC-134a (R-134a)
Capacity kg (lb)0.75 - 0.85
(1.65 - 1.87)
ENGINE IDLING SPEED (When A/C is ON.)
+Refer to EC section.
BELT TENSION
+Refer to MA section (``Checking Drive Belts'',
``ENGINE MAINTENANCE'').
COMPRESSOR
Model DKS-17CH
Clutch disc-to-pulley clearance
mm (in)0.3 - 0.6
(0.012 - 0.024)
SERVICE DATA AND SPECIFICATIONS
(SDS)MANUAL AND AUTO
HA-126
