2006 NISSAN PATROL Service Manual

TEL407A
HEADLAMP Ð Headlamp Aiming Control Ð
Wiring Diagram Ð H/AIM Ð (Cont'd)
EL-72

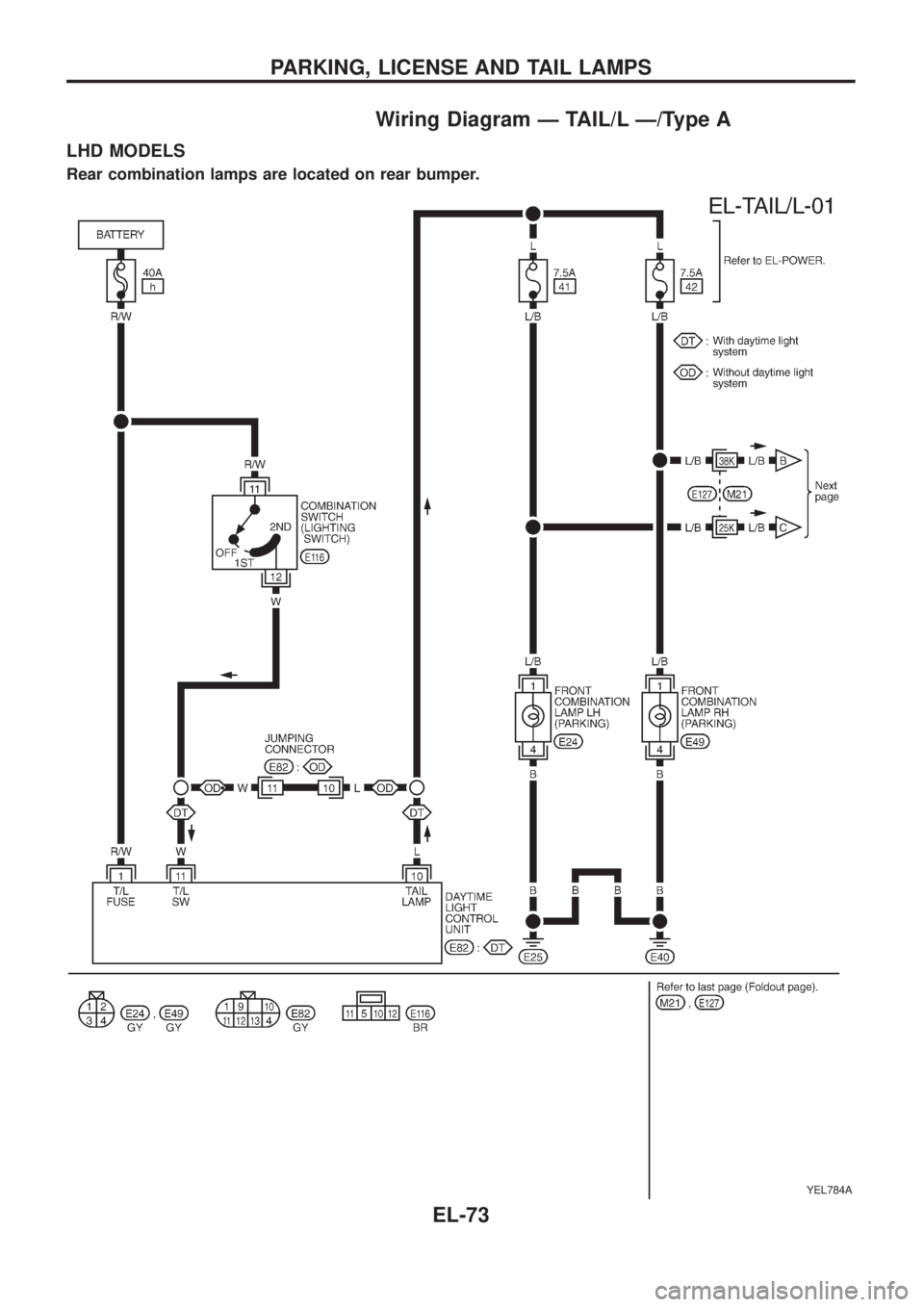

Wiring Diagram Ð TAIL/L Ð/Type A
LHD MODELS
Rear combination lamps are located on rear bumper.
YEL784A
PARKING, LICENSE AND TAIL LAMPS
EL-73

YEL785A
PARKING, LICENSE AND TAIL LAMPS

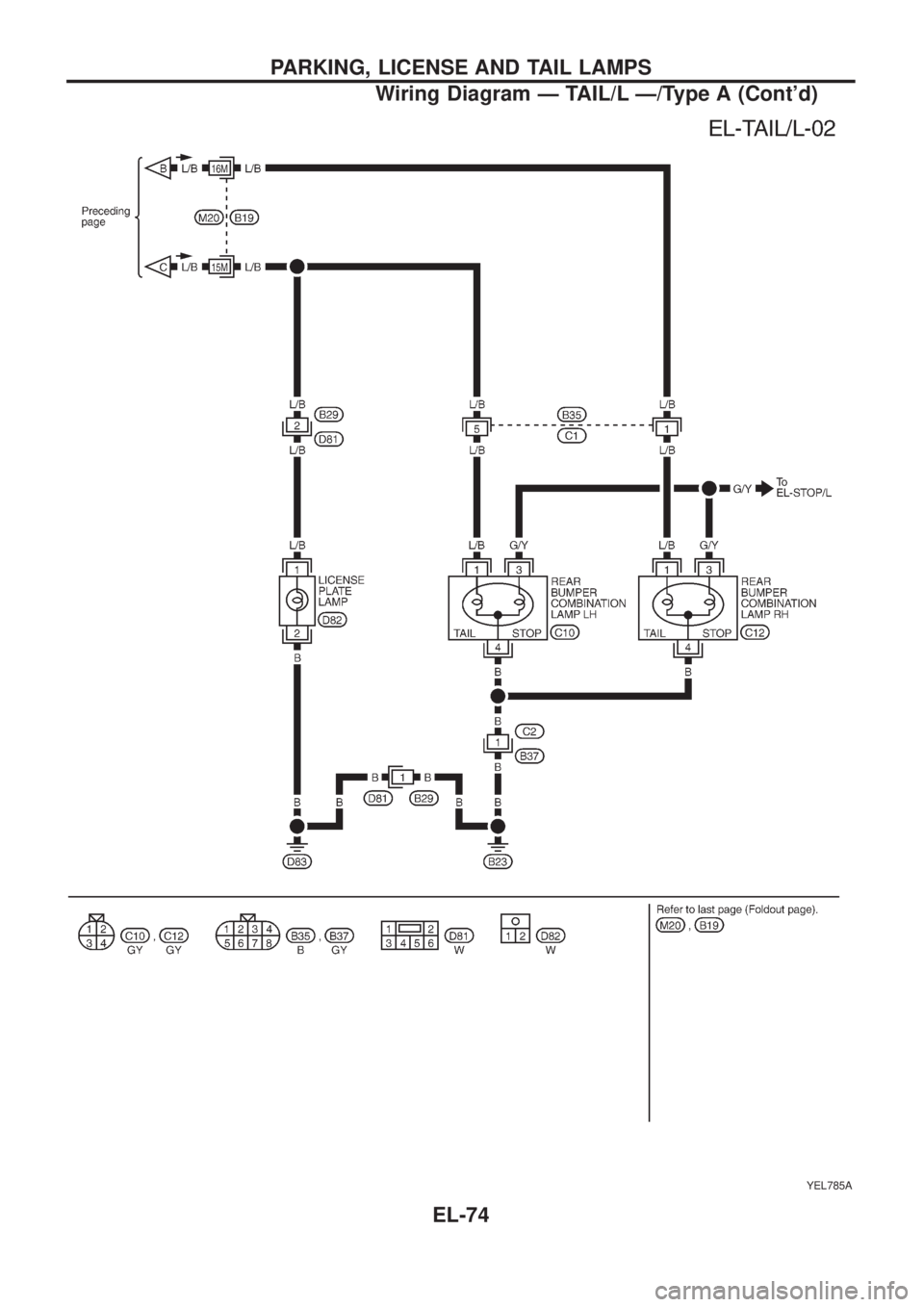

Wiring Diagram Ð TAIL/L Ð/Type A (Cont'd)
EL-74

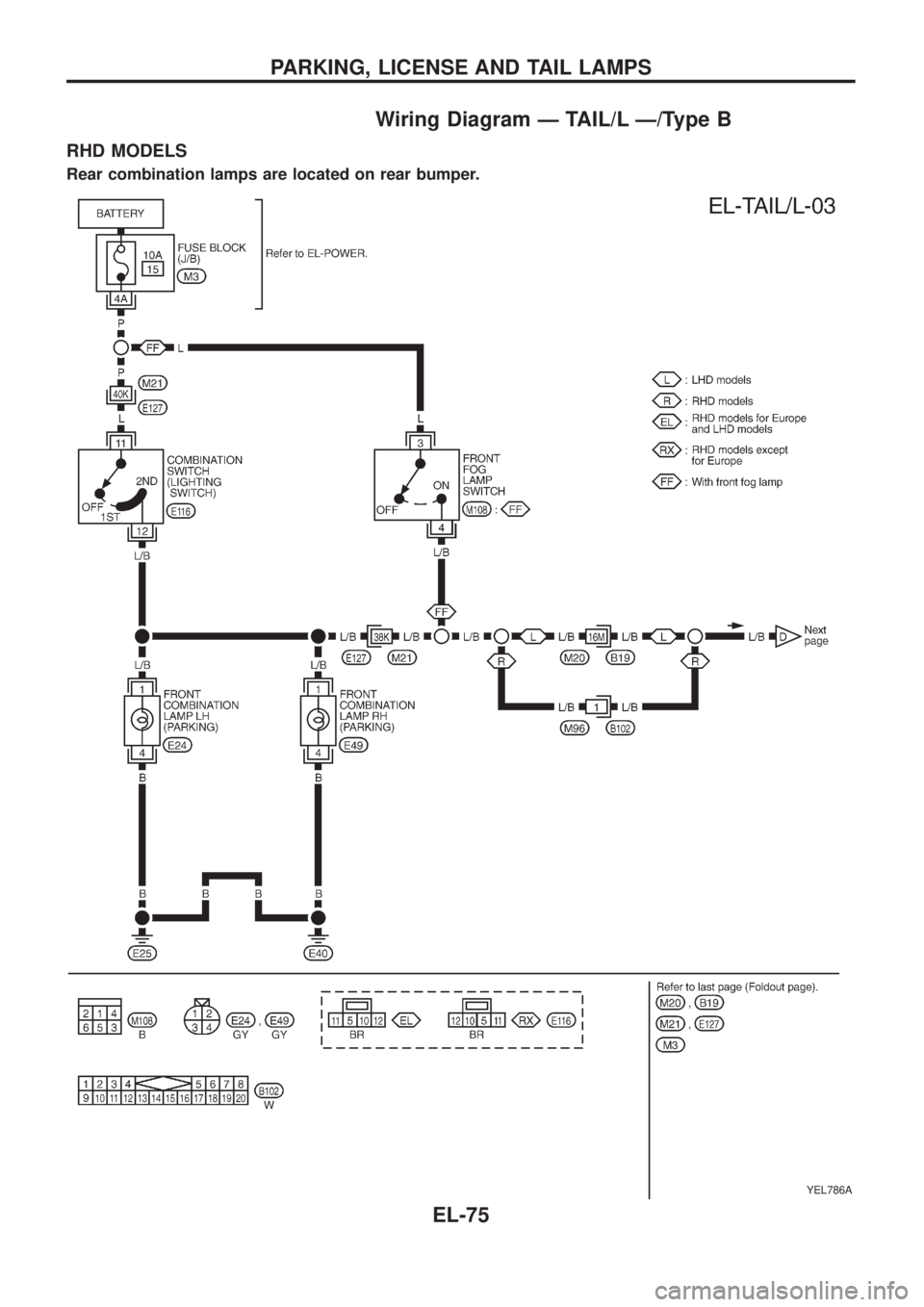

Wiring Diagram Ð TAIL/L Ð/Type B
RHD MODELS
Rear combination lamps are located on rear bumper.
YEL786A
PARKING, LICENSE AND TAIL LAMPS
EL-75

YEL787A
PARKING, LICENSE AND TAIL LAMPS

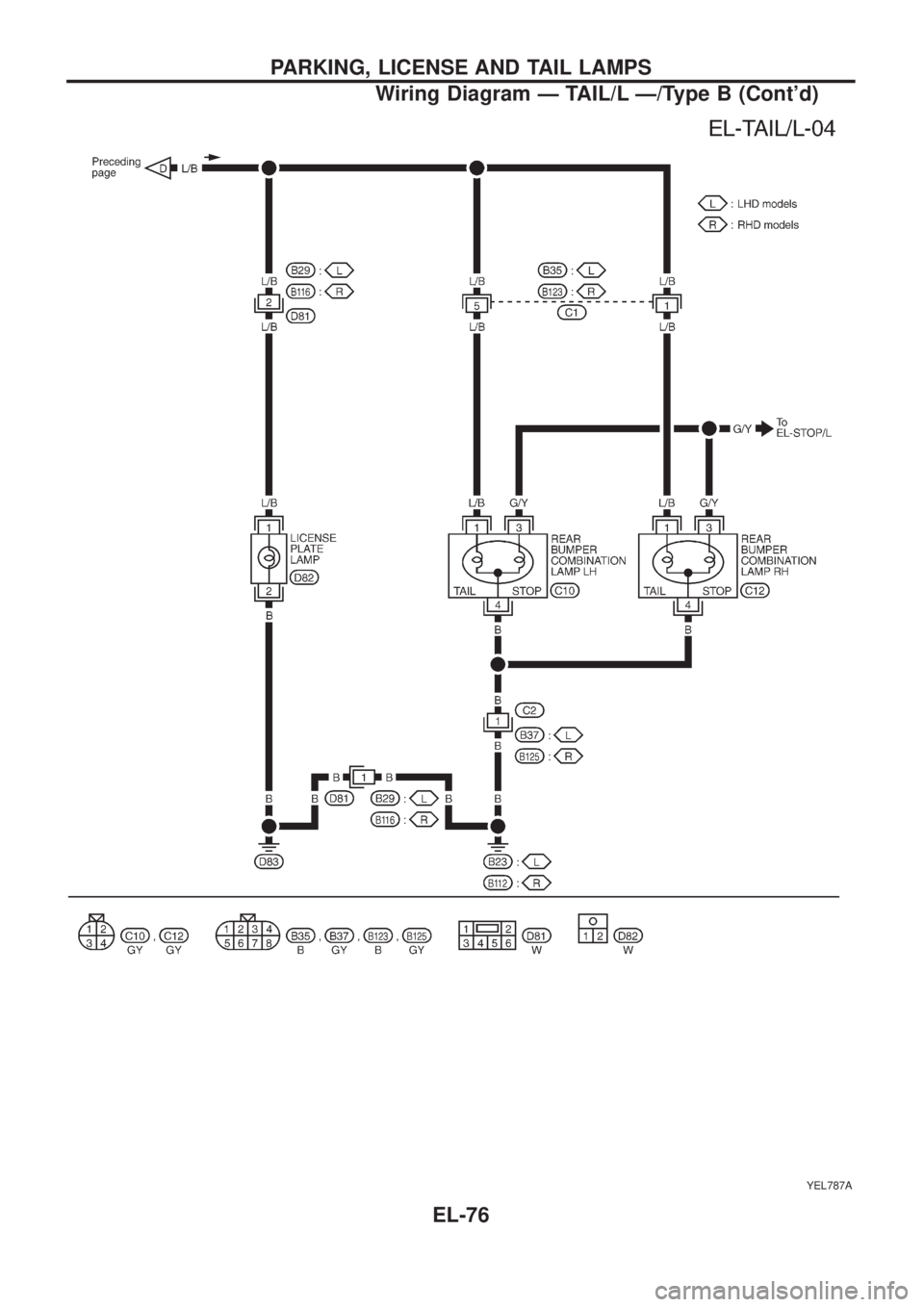

Wiring Diagram Ð TAIL/L Ð/Type B (Cont'd)
EL-76

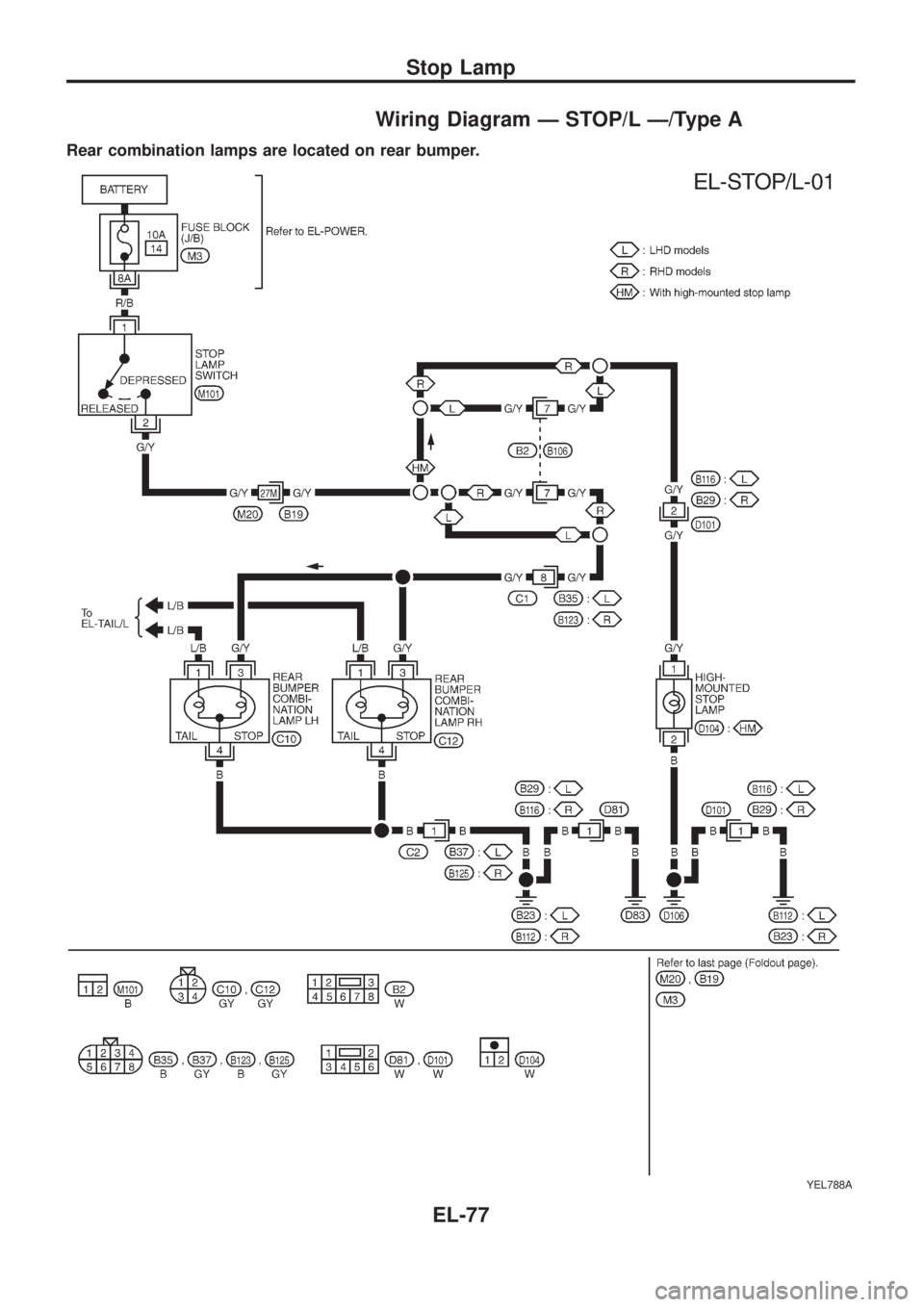

Wiring Diagram Ð STOP/L Ð/Type A
Rear combination lamps are located on rear bumper.
YEL788A
Stop Lamp
EL-77

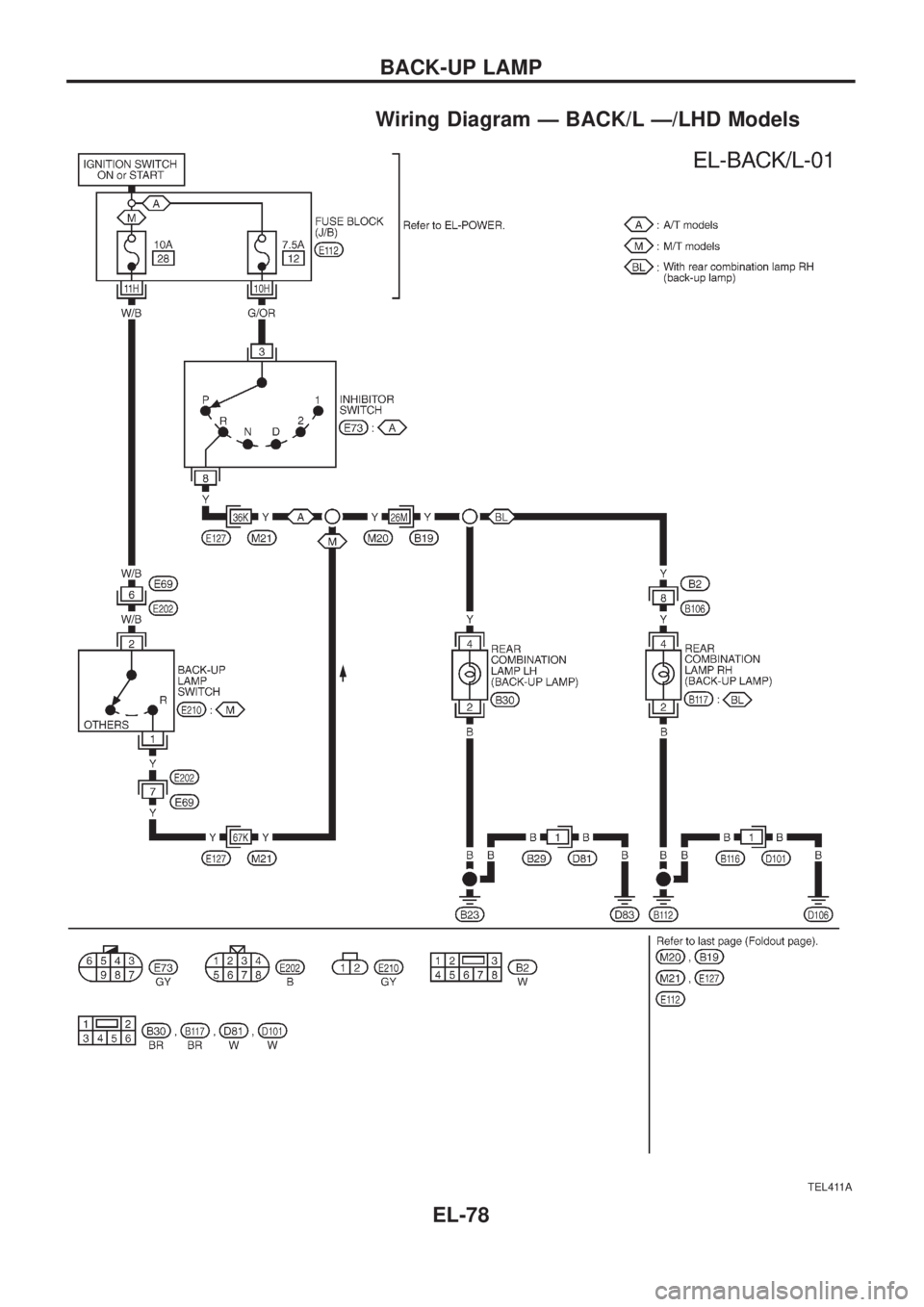

Wiring Diagram Ð BACK/L Ð/LHD Models
TEL411A
BACK-UP LAMP
EL-78

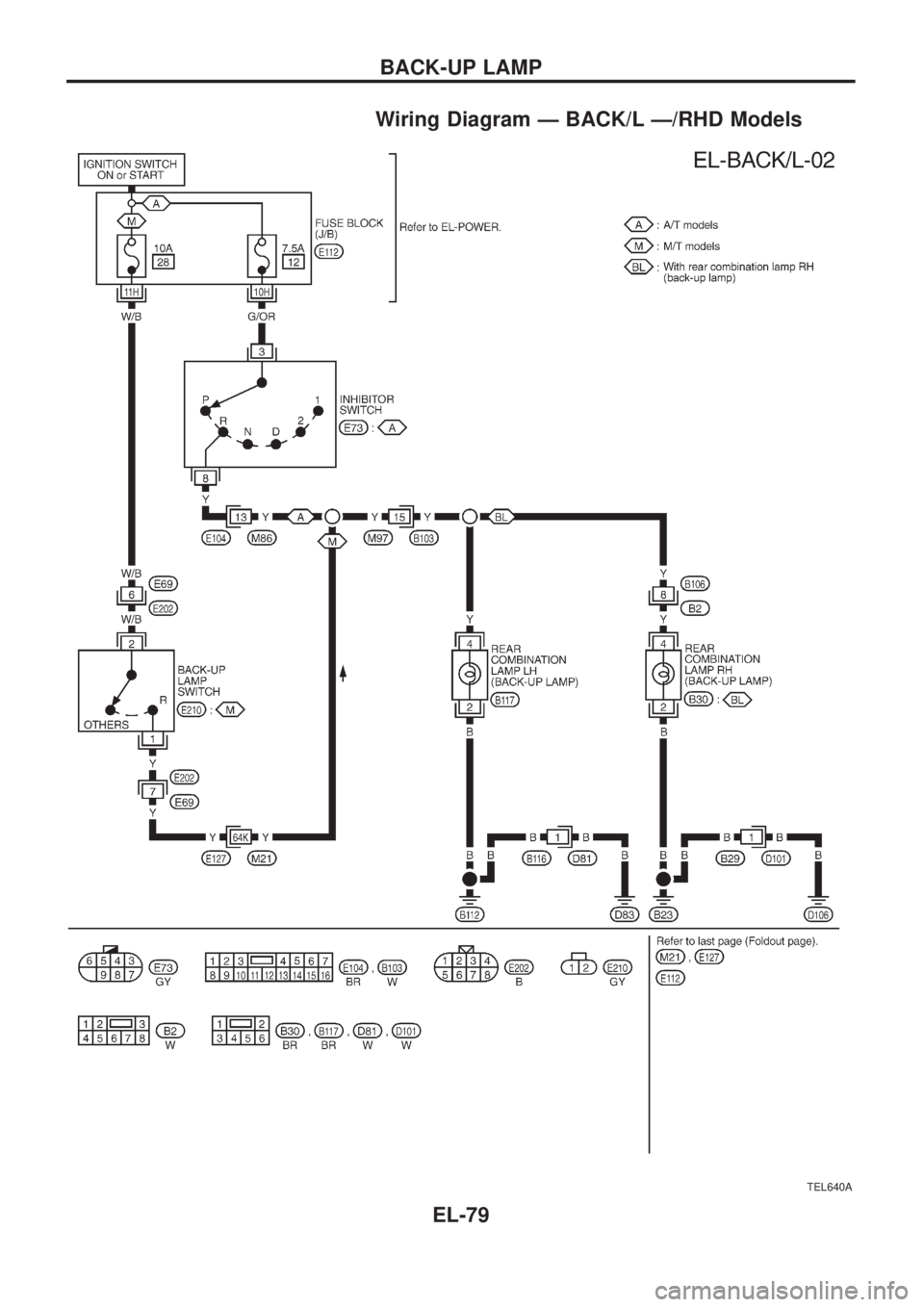

Wiring Diagram Ð BACK/L Ð/RHD Models
TEL640A
BACK-UP LAMP
EL-79
