2006 NISSAN PATROL Service Manual

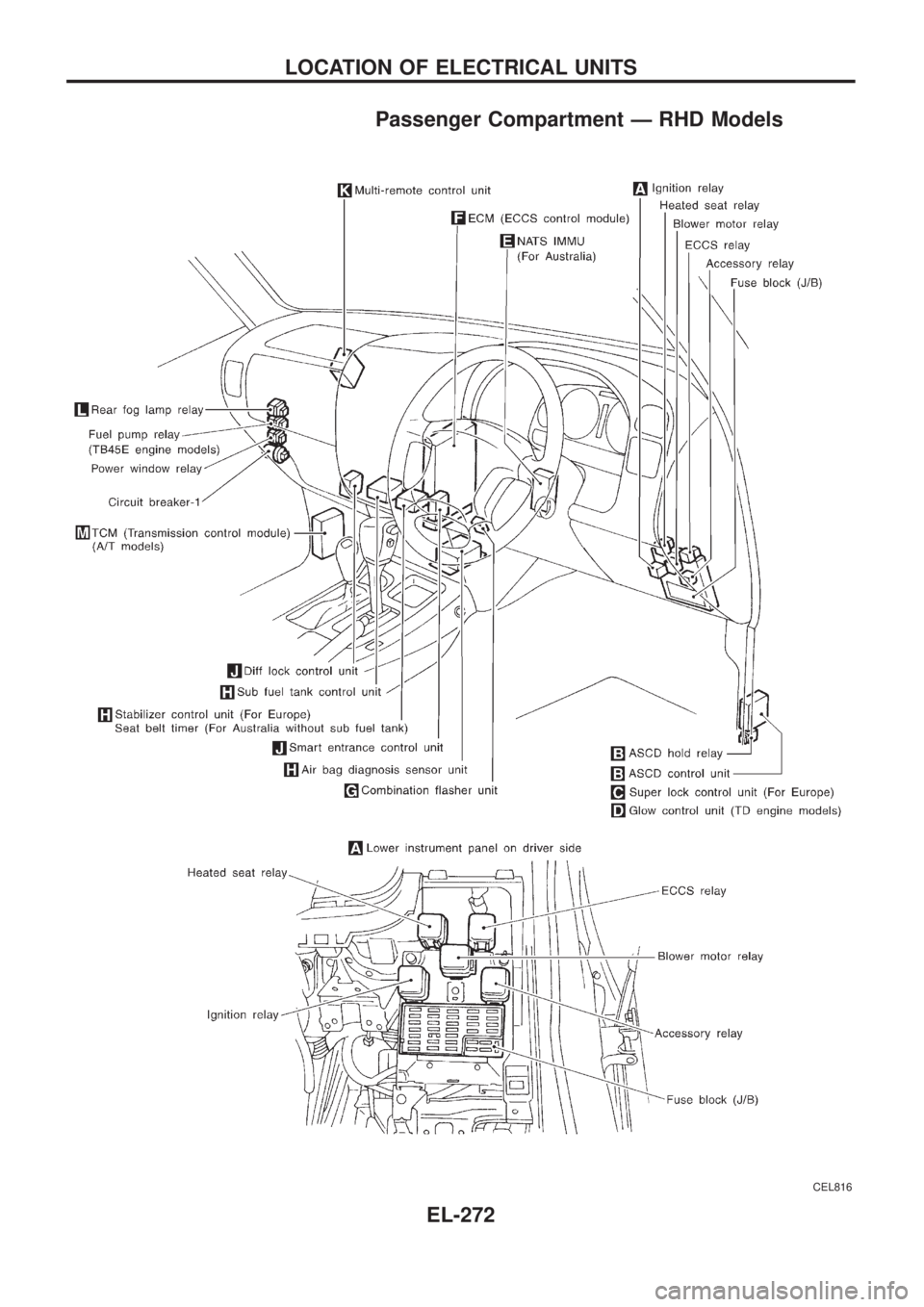

Passenger Compartment Ð RHD Models
CEL816
LOCATION OF ELECTRICAL UNITS
EL-272

CEL817
LOCATION OF ELECTRICAL UNITS

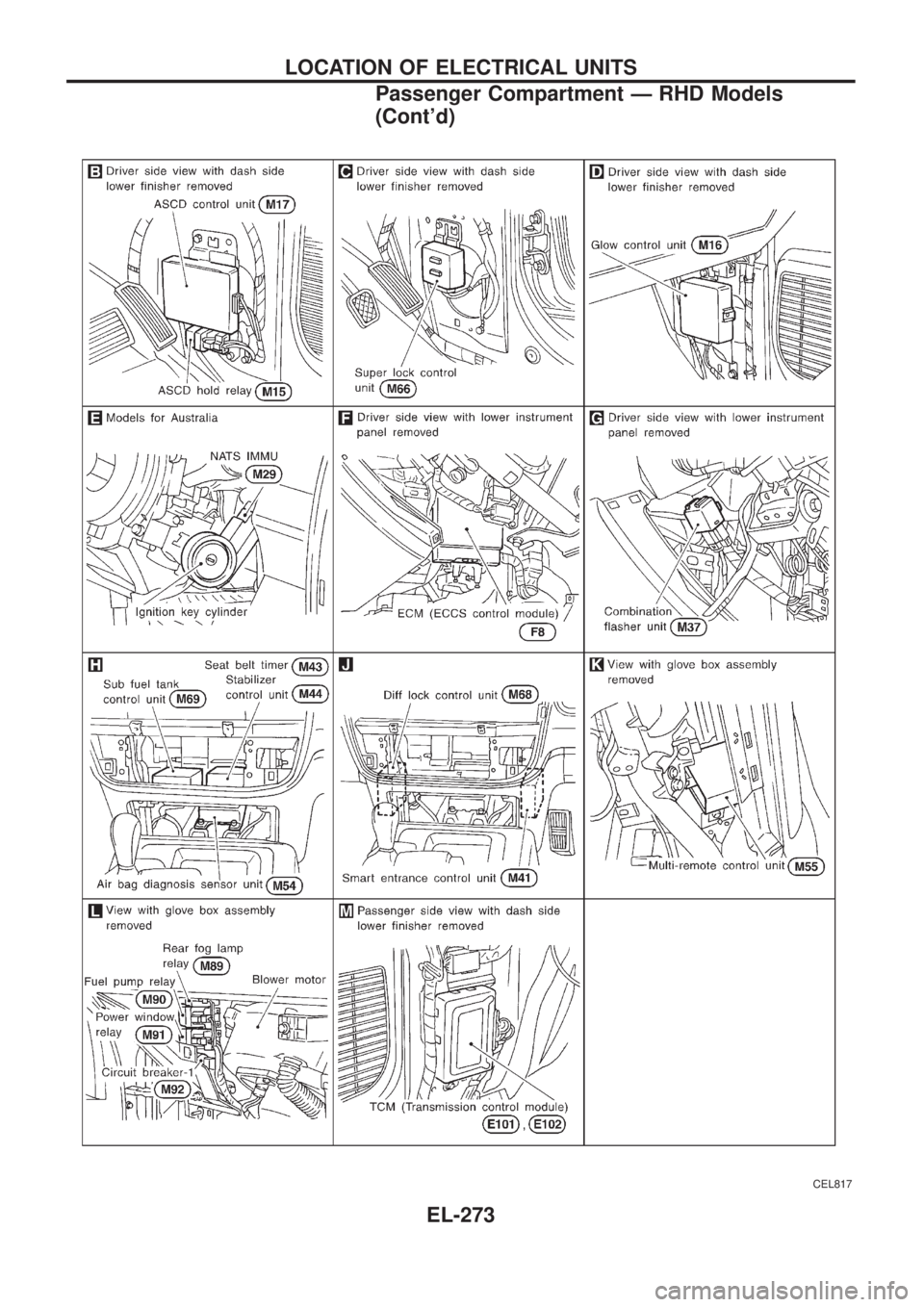

Passenger Compartment Ð RHD Models
(Cont'd)
EL-273

NOTE
LOCATION OF ELECTRICAL UNITS
EL-274

How to Read Harness Layout
Example:
G2E1B/6: ASCD ACTUATOR
Connector color / Cavity
Connector number
Grid reference
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
To use the grid reference
1) Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, ®nd the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
ÐÐ
+Ground terminal etc.
Ð
HARNESS LAYOUT
EL-275

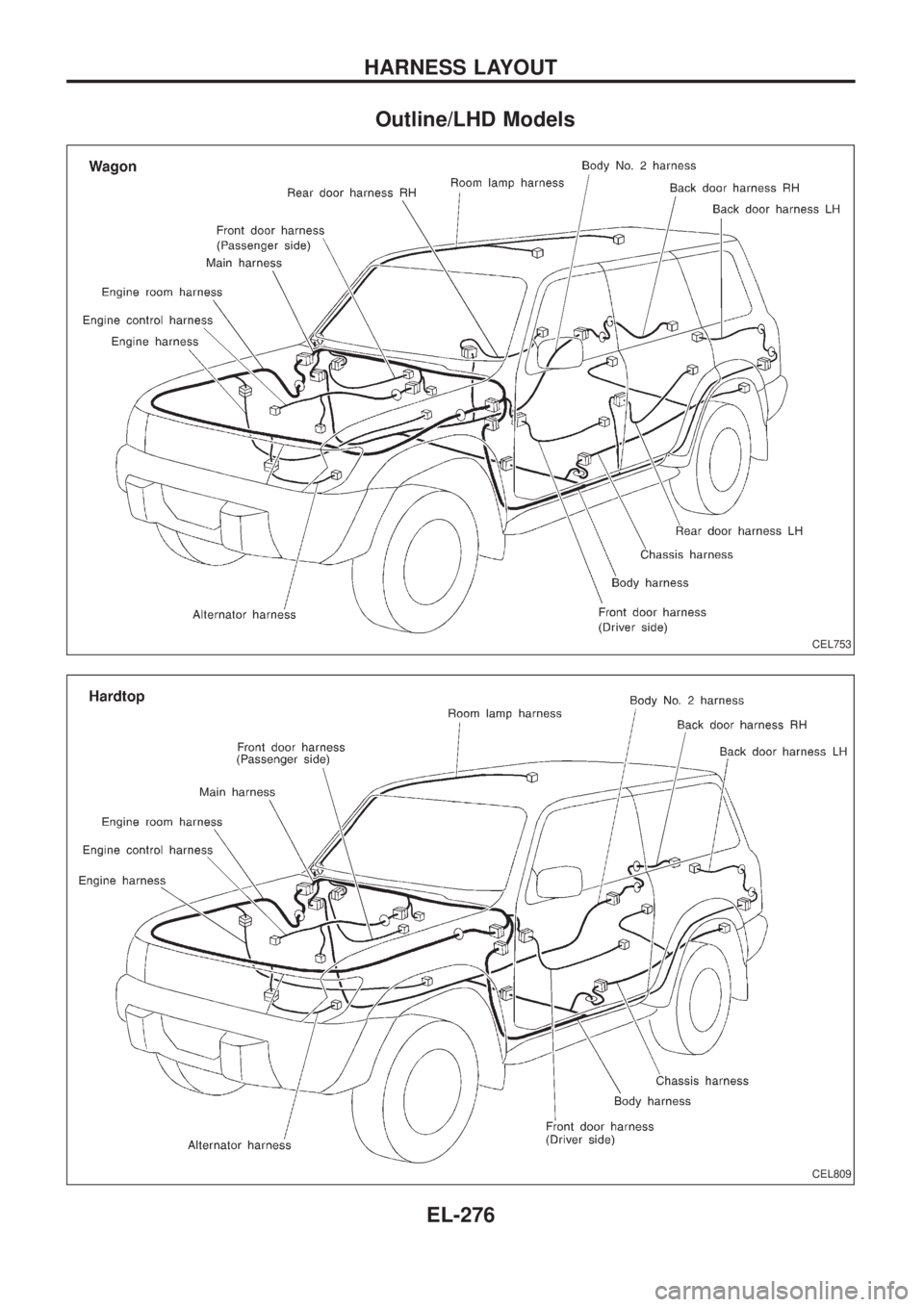

Outline/LHD Models
CEL753
CEL809
HARNESS LAYOUT
EL-276

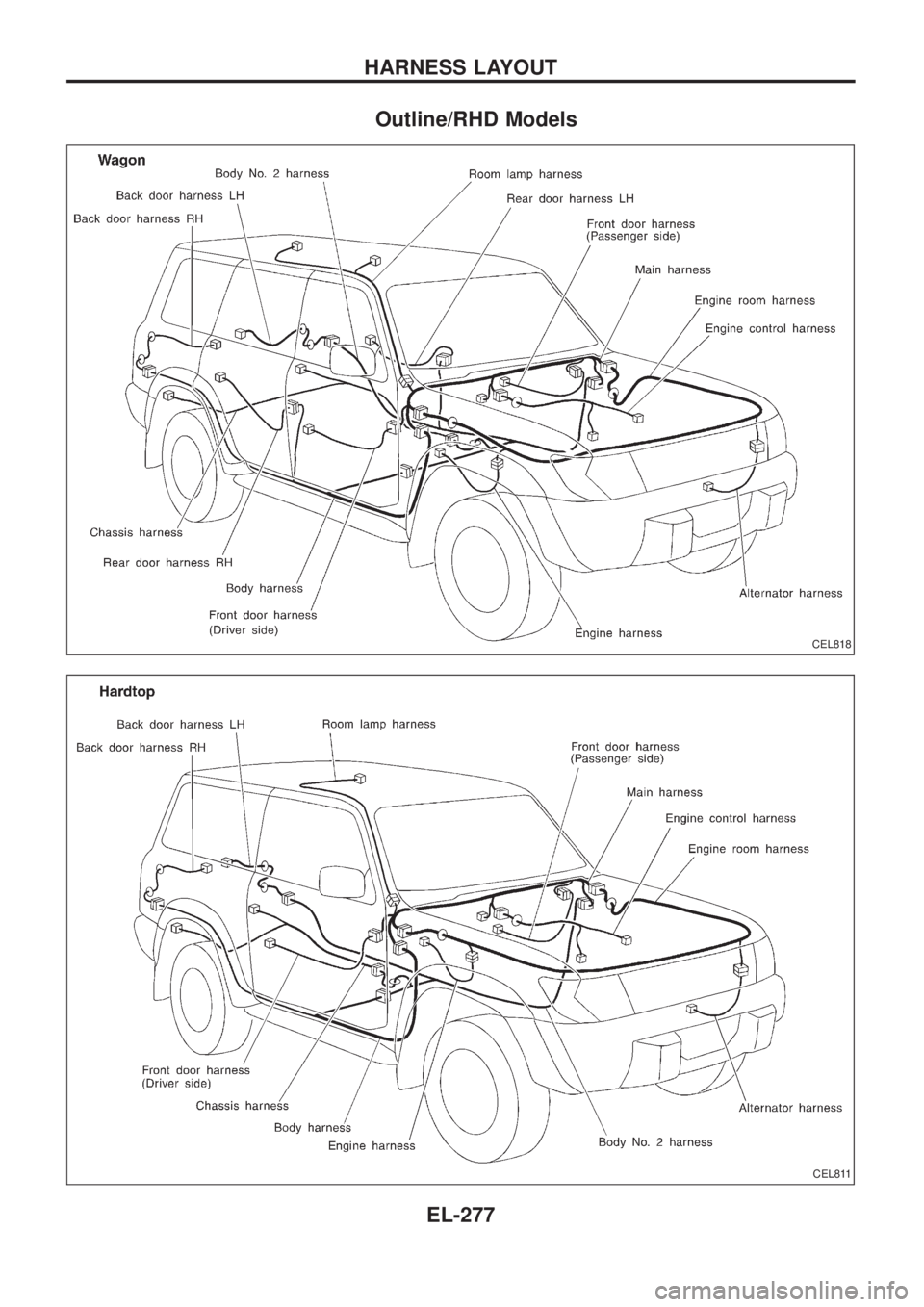

Outline/RHD Models
CEL818
CEL811
HARNESS LAYOUT
EL-277

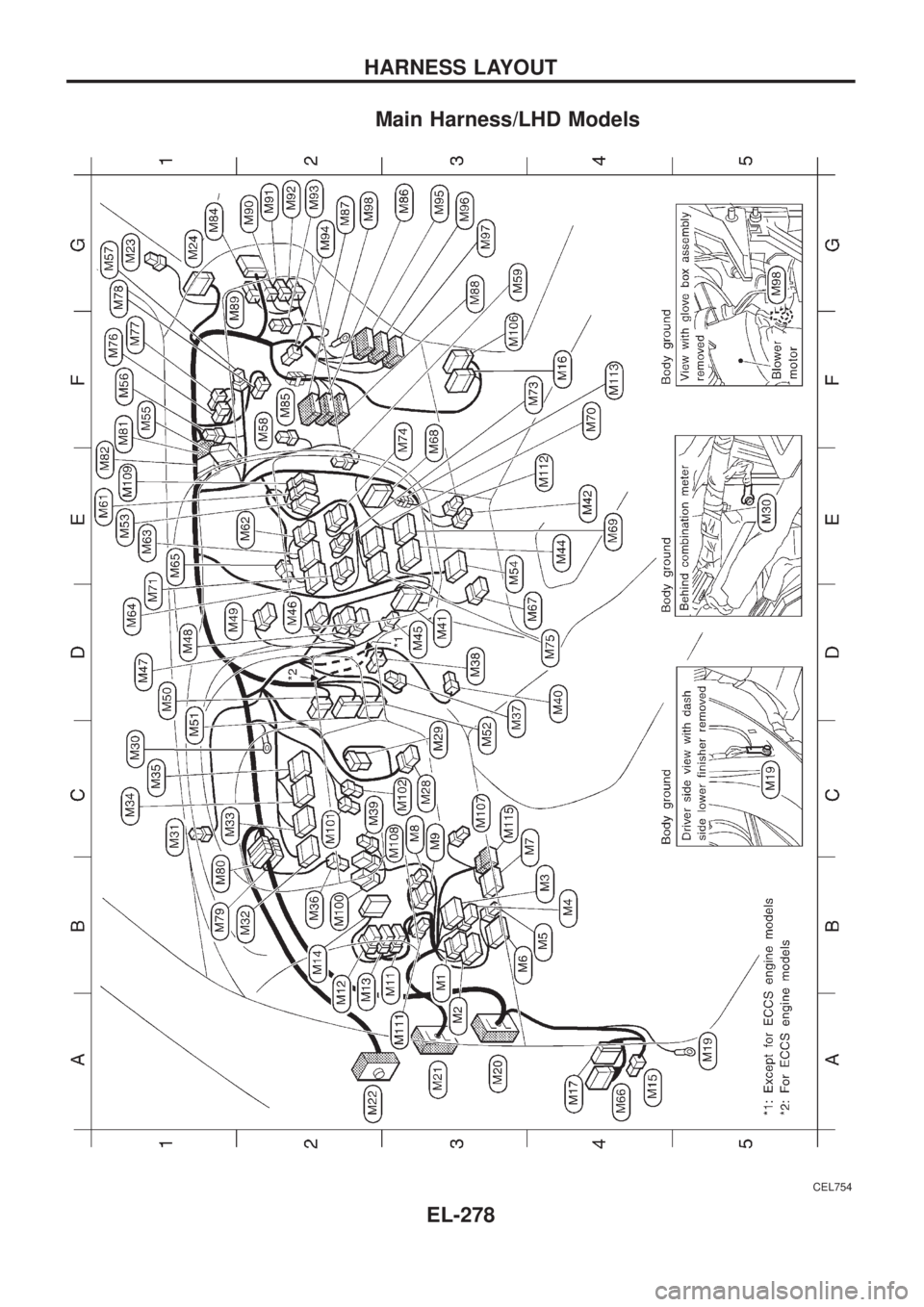

Main Harness/LHD Models
CEL754
HARNESS LAYOUT
EL-278

CEL755
HARNESS LAYOUT
Main Harness/LHD Models (Cont'd)
EL-279
