2006 NISSAN PATROL Service Manual

Tool number
Tool nameDescription
ST37750000
Drift
NT065
Removing and installing mainshaft
rear bearing
Removing counter gear rear bearing
Installing OD gear bushing
Installing reverse cone
Installing reverse counter gear
Installing counter gear rear end bearing
a: 40 mm (1.57 in) dia.
b: 31 mm (1.22 in) dia.
ST22452000
Drift
NT065
Installing reverse hub
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
Commercial Service Tools
Tool name Description
Puller
NT077
Removing counter gear rear end bearing
Removing reverse synchronizer hub
Removing reverse counter gear
Drift
NT065
V1Installing sub-gear snap ring
V2Installing OD main gear
V1a: 44.5 mm (1.752 in) dia.
b: 38.5 mm (1.516 in) dia.
V2a: 44.5 mm (1.752 in) dia.
b: 40.5 mm (1.594 in) dia.
PREPARATION

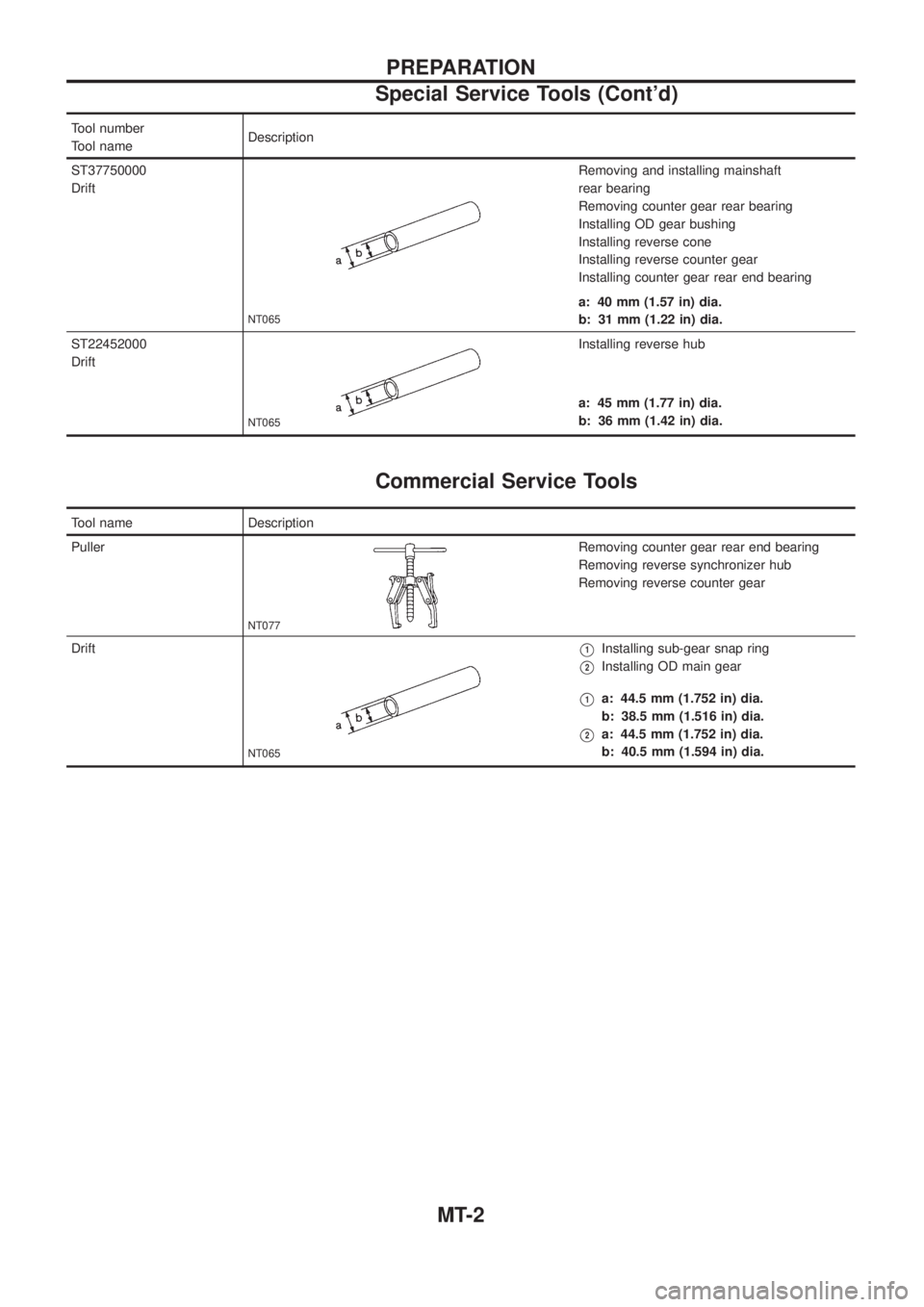

Special Service Tools (Cont'd)
MT-2

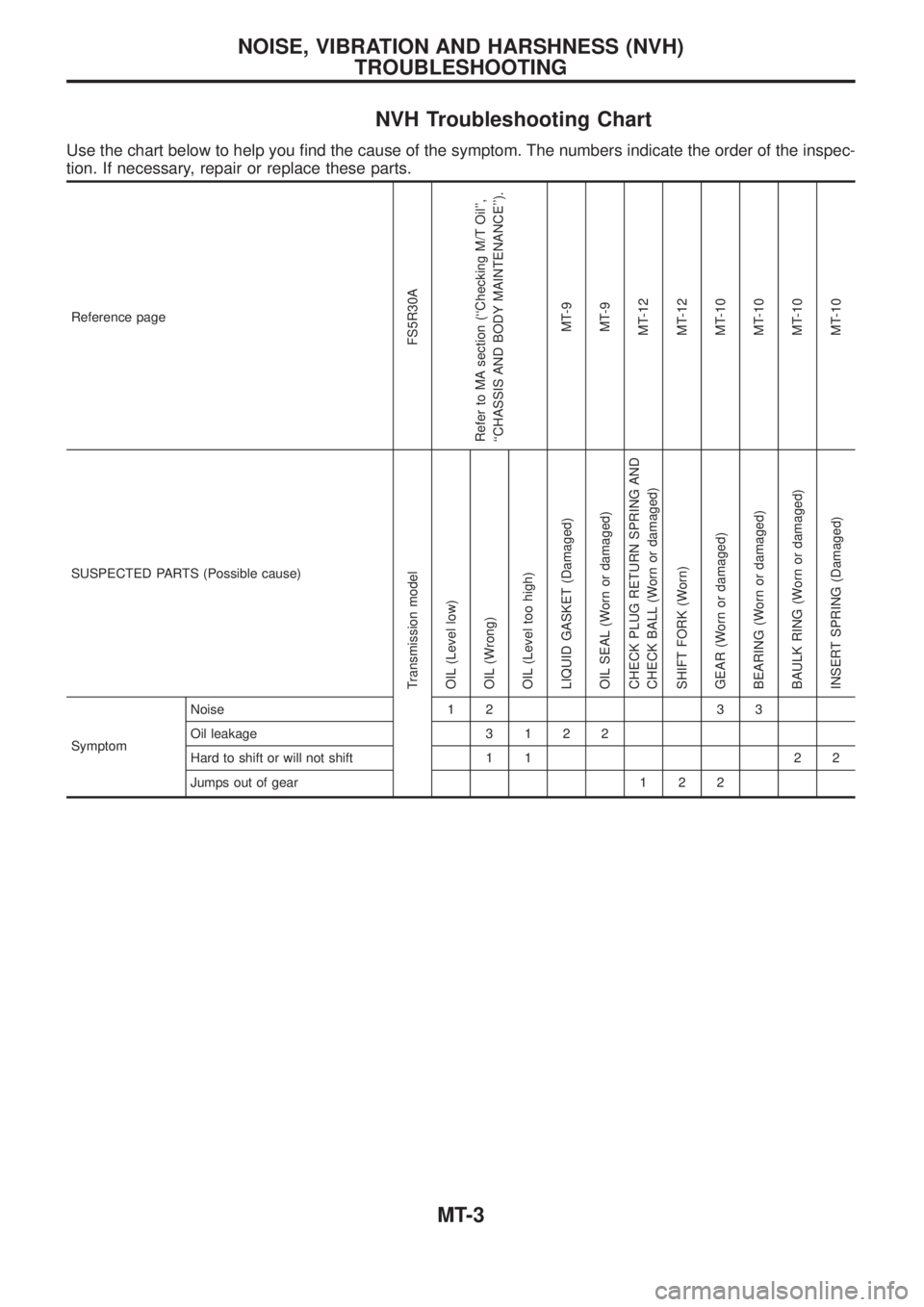

NVH Troubleshooting Chart
Use the chart below to help you ®nd the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.
Reference page
FS5R30A
Refer to MA section (``Checking M/T Oil'',
``CHASSIS AND BODY MAINTENANCE'').
MT-9
MT-9
MT-12
MT-12
MT-10
MT-10
MT-10
MT-10
SUSPECTED PARTS (Possible cause)
Transmission model
OIL (Level low)
OIL (Wrong)
OIL (Level too high)
LIQUID GASKET (Damaged)
OIL SEAL (Worn or damaged)
CHECK PLUG RETURN SPRING AND
CHECK BALL (Worn or damaged)
SHIFT FORK (Worn)
GEAR (Worn or damaged)
BEARING (Worn or damaged)
BAULK RING (Worn or damaged)
INSERT SPRING (Damaged)
SymptomNoise 1 2 3 3
Oil leakage3122
Hard to shift or will not shift 1 1 2 2
Jumps out of gear 1 2 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING
MT-3

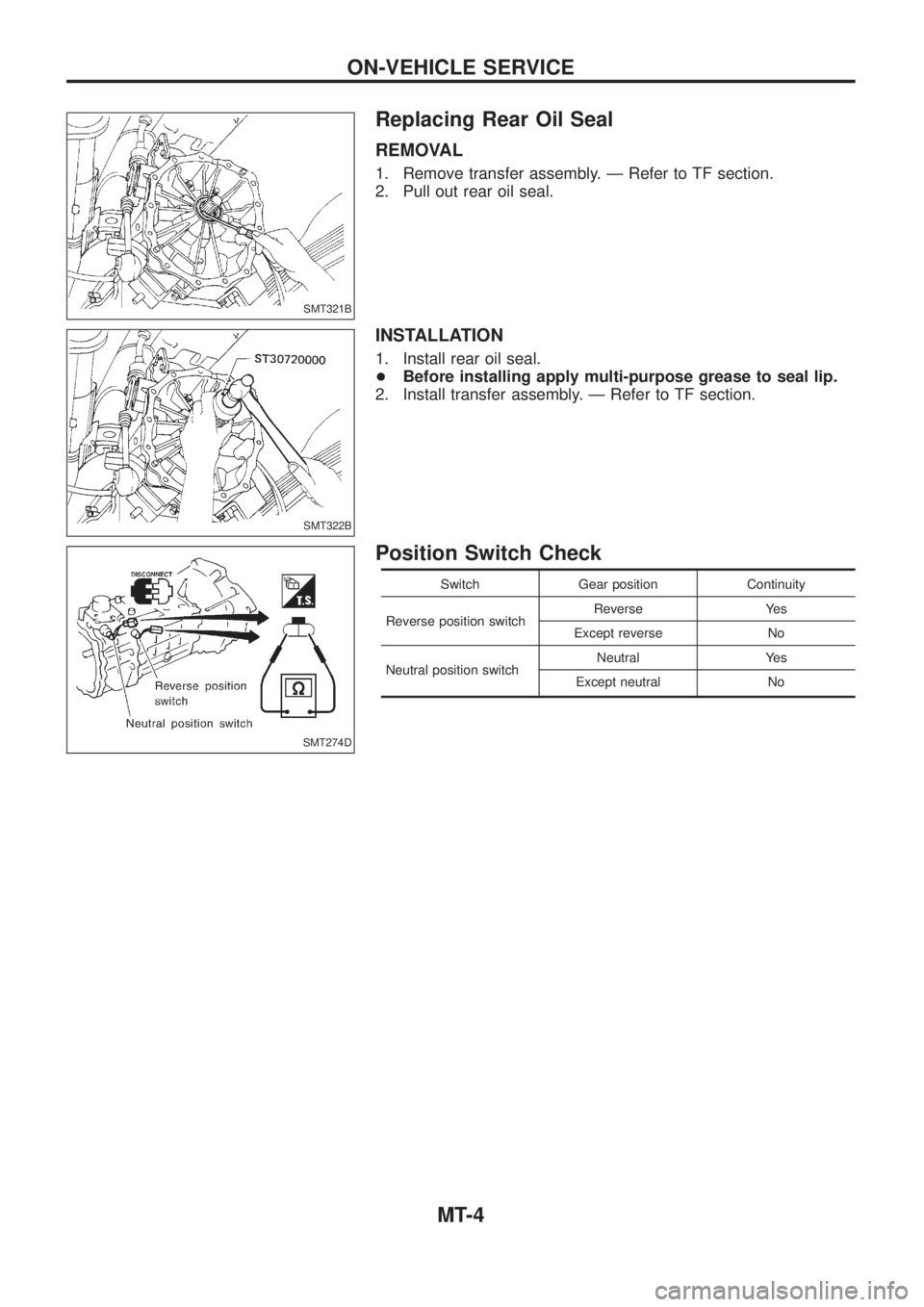

Replacing Rear Oil Seal
REMOVAL
1. Remove transfer assembly. Ð Refer to TF section.
2. Pull out rear oil seal.
INSTALLATION
1. Install rear oil seal.
+Before installing apply multi-purpose grease to seal lip.
2. Install transfer assembly. Ð Refer to TF section.
Position Switch Check
Switch Gear position Continuity
Reverse position switchReverse Yes
Except reverse No
Neutral position switchNeutral Yes
Except neutral No
SMT321B
SMT322B
SMT274D
ON-VEHICLE SERVICE
MT-4

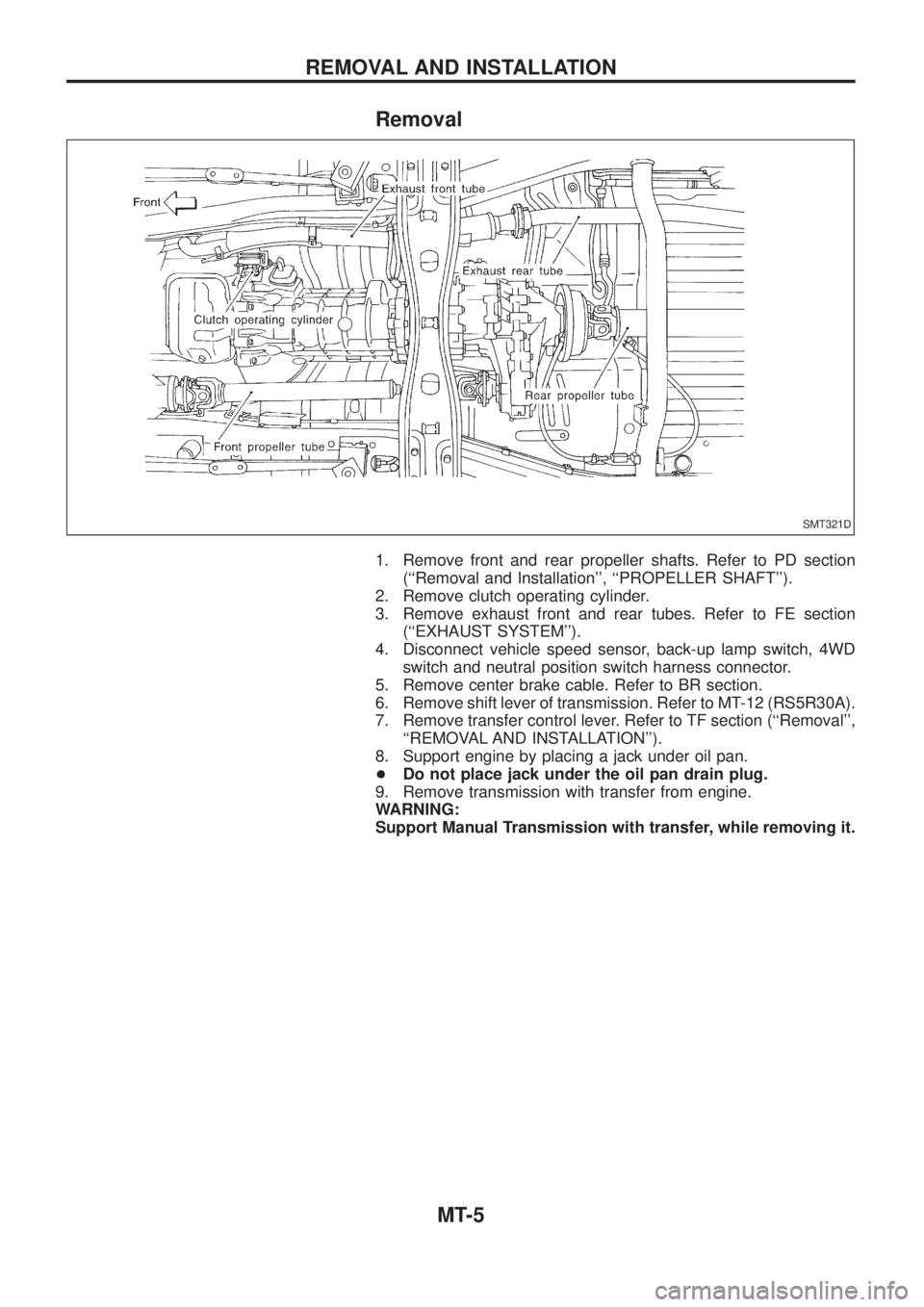

Removal
1. Remove front and rear propeller shafts. Refer to PD section
(``Removal and Installation'', ``PROPELLER SHAFT'').
2. Remove clutch operating cylinder.
3. Remove exhaust front and rear tubes. Refer to FE section
(``EXHAUST SYSTEM'').
4. Disconnect vehicle speed sensor, back-up lamp switch, 4WD
switch and neutral position switch harness connector.
5. Remove center brake cable. Refer to BR section.
6. Remove shift lever of transmission. Refer to MT-12 (RS5R30A).
7. Remove transfer control lever. Refer to TF section (``Removal'',
``REMOVAL AND INSTALLATION'').
8. Support engine by placing a jack under oil pan.
+Do not place jack under the oil pan drain plug.
9. Remove transmission with transfer from engine.
WARNING:
Support Manual Transmission with transfer, while removing it.
SMT321D
REMOVAL AND INSTALLATION
MT-5

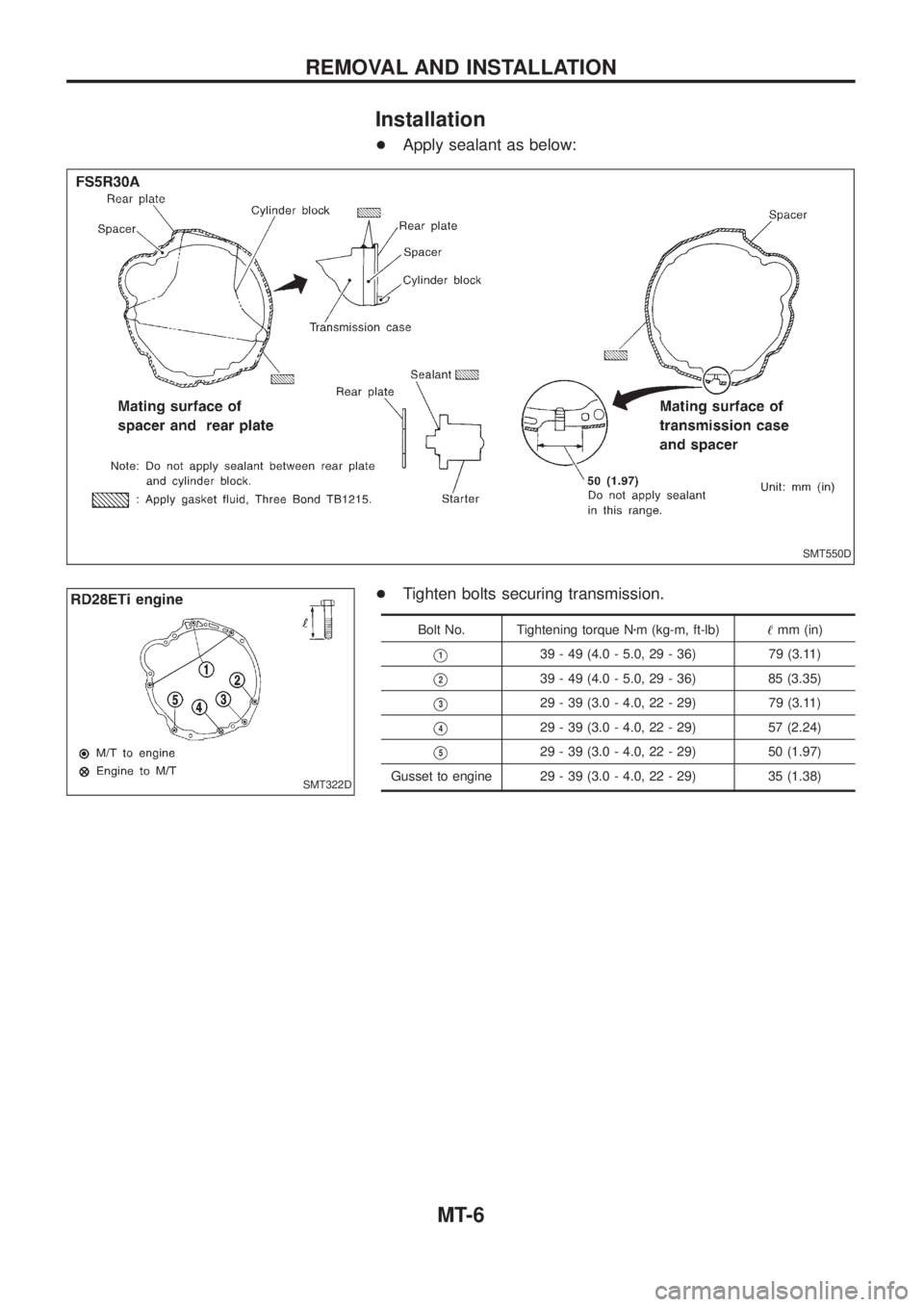

Installation
+Apply sealant as below:
+Tighten bolts securing transmission.
Bolt No. Tightening torque Nzm (kg-m, ft-lb)!mm (in)
V139 - 49 (4.0 - 5.0, 29 - 36) 79 (3.11)
V239 - 49 (4.0 - 5.0, 29 - 36) 85 (3.35)
V329 - 39 (3.0 - 4.0, 22 - 29) 79 (3.11)
V429 - 39 (3.0 - 4.0, 22 - 29) 57 (2.24)
V529 - 39 (3.0 - 4.0, 22 - 29) 50 (1.97)
Gusset to engine 29 - 39 (3.0 - 4.0, 22 - 29) 35 (1.38)
SMT550D
SMT322D
REMOVAL AND INSTALLATION
MT-6

Cross-sectional View
SMT320D
DESCRIPTION
MT-7

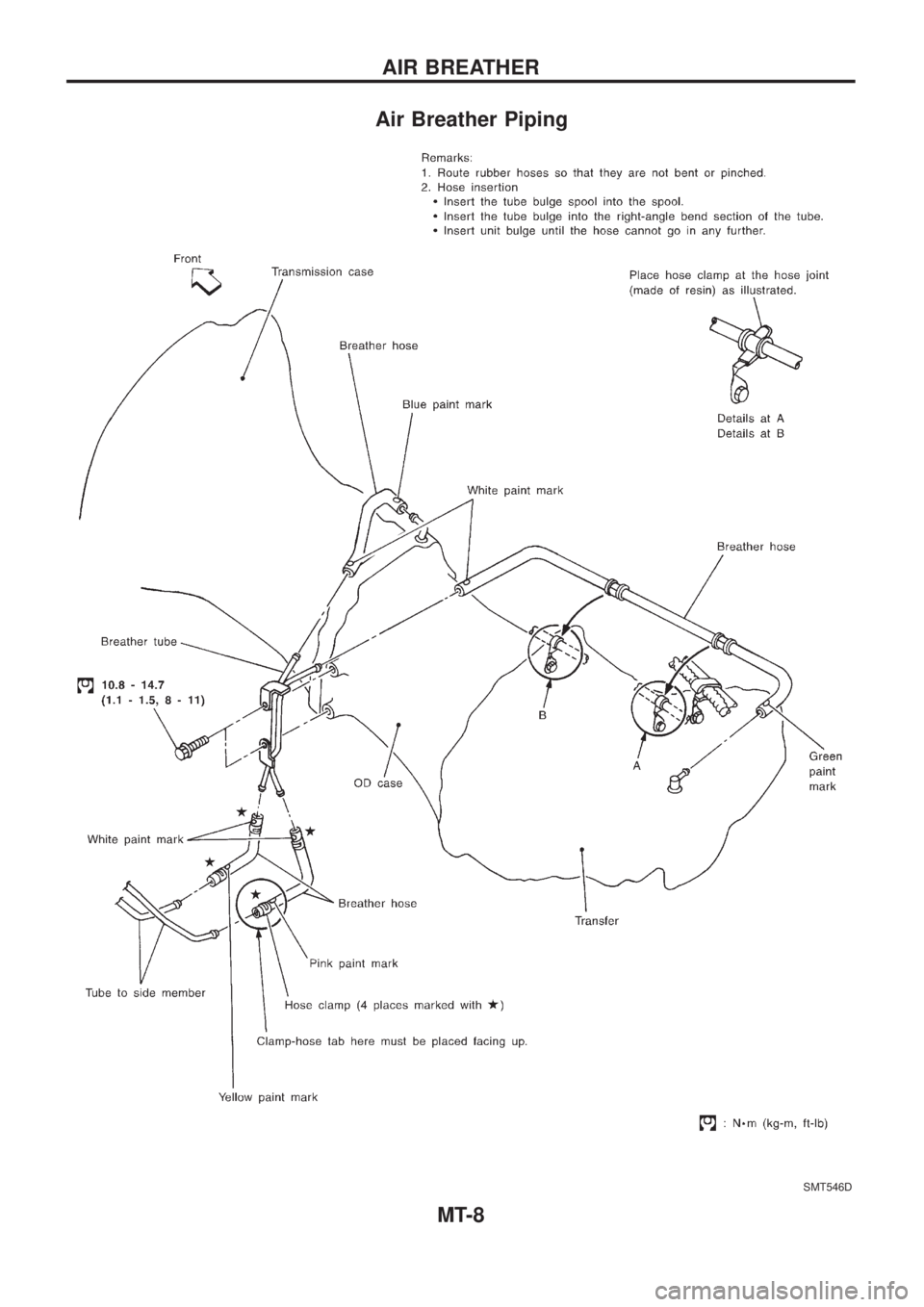

Air Breather Piping
SMT546D
AIR BREATHER
MT-8

Case Components
SMT544D
MAJOR OVERHAUL
MT-9
