2006 NISSAN PATROL Service Manual

SEL427V
COMPASS AND THERMOMETER

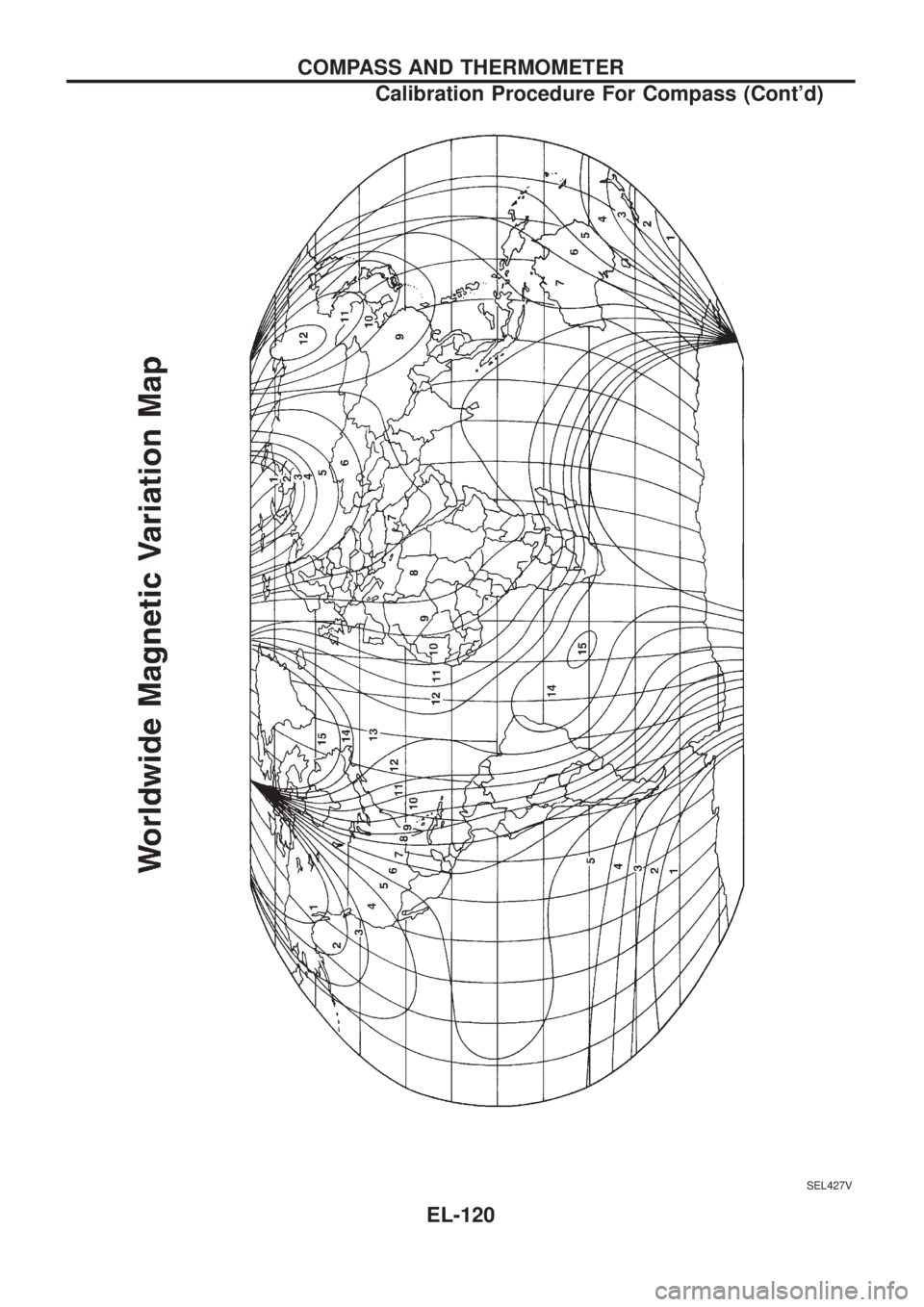

Calibration Procedure For Compass (Cont'd)
EL-120

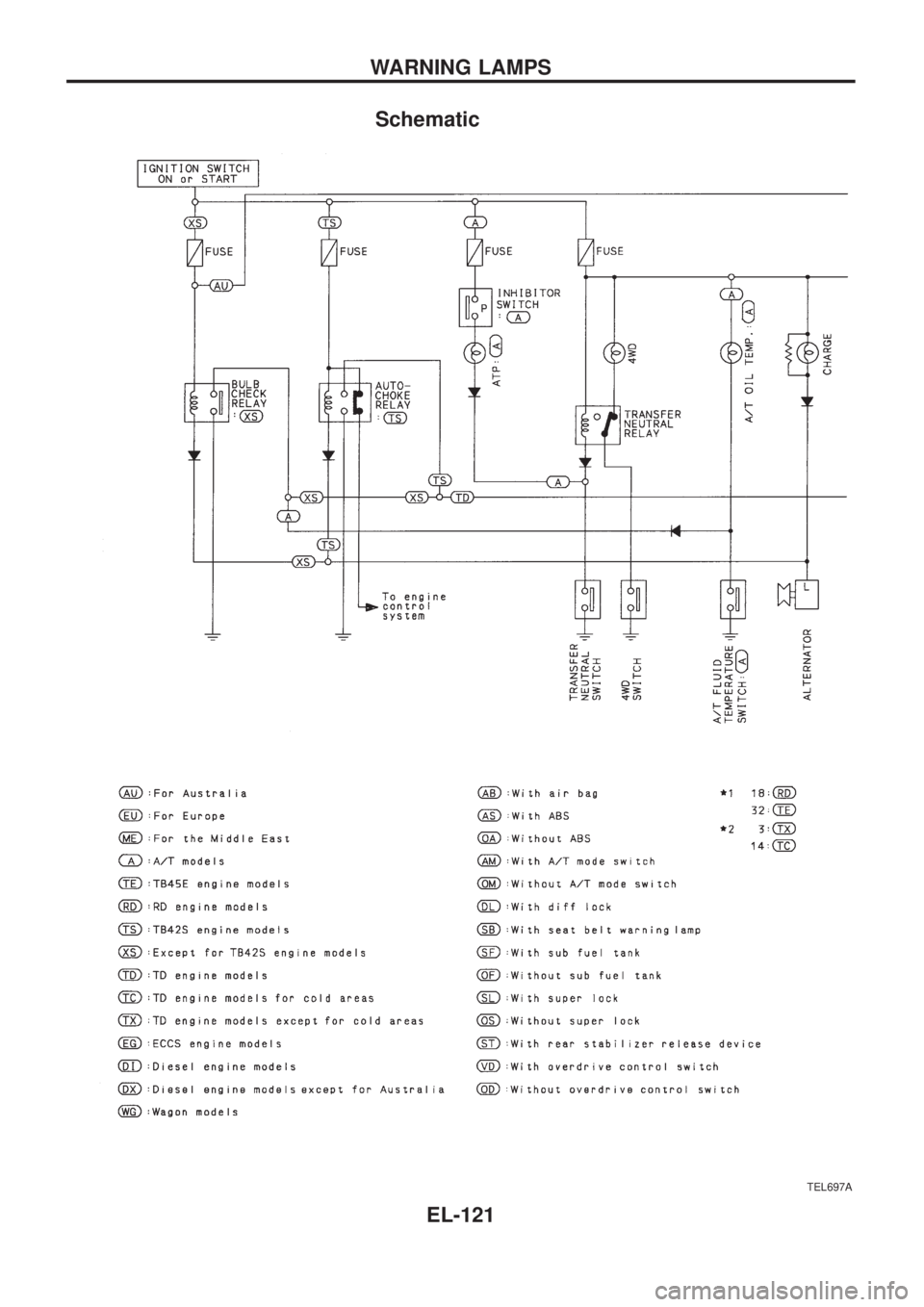

Schematic
TEL697A
WARNING LAMPS
EL-121

TEL698A
WARNING LAMPS

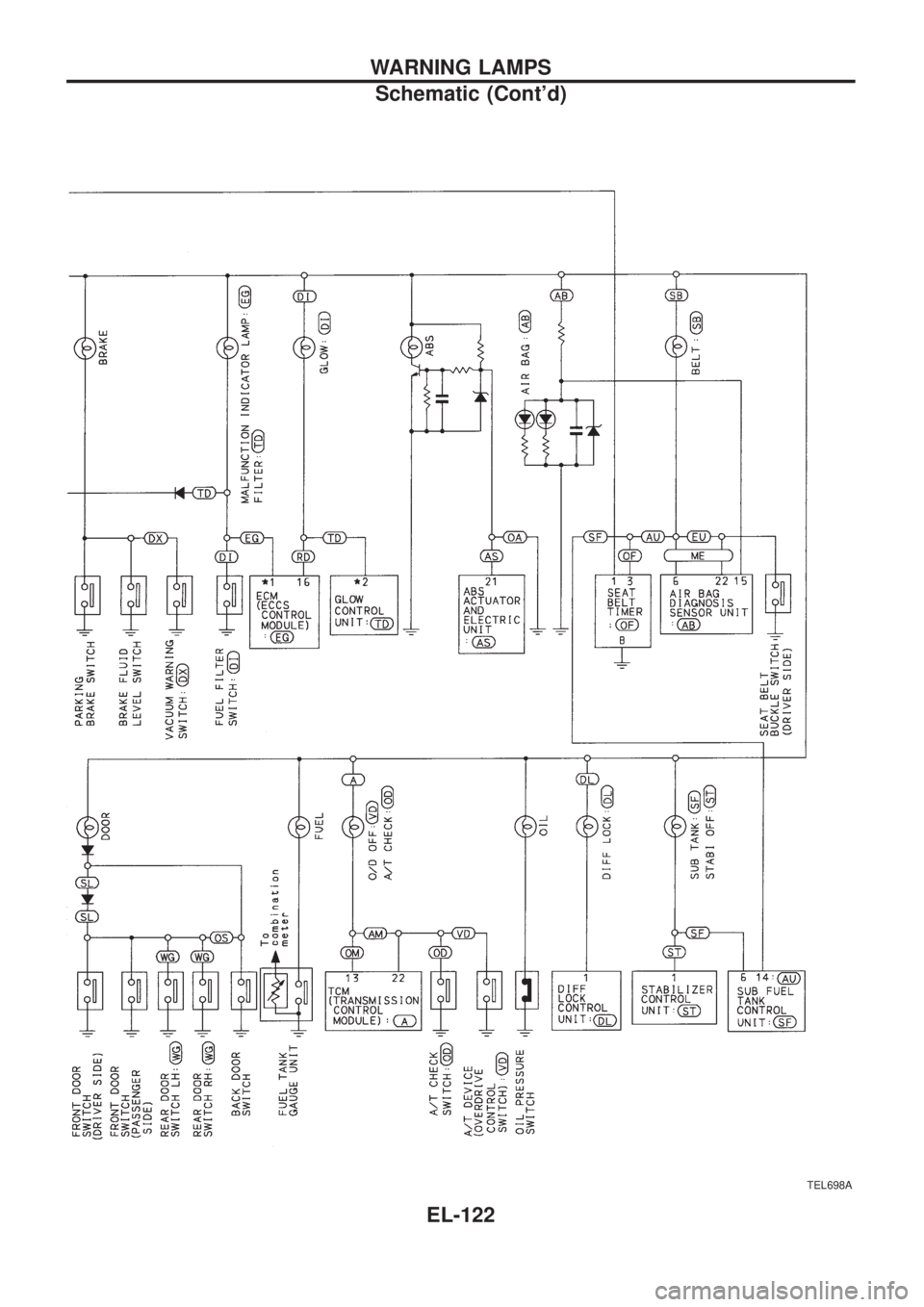

Schematic (Cont'd)
EL-122

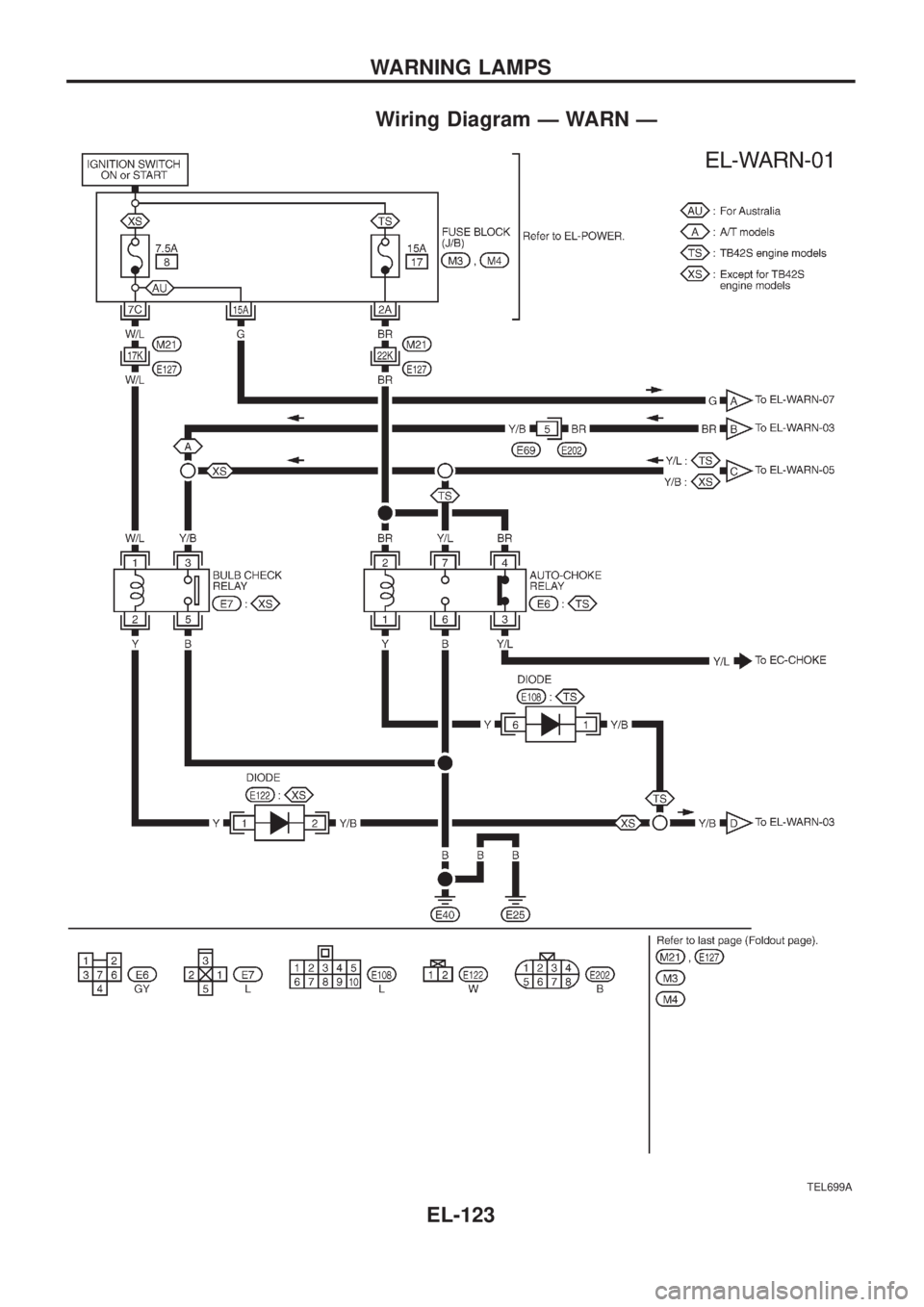

Wiring Diagram Ð WARN Ð
TEL699A

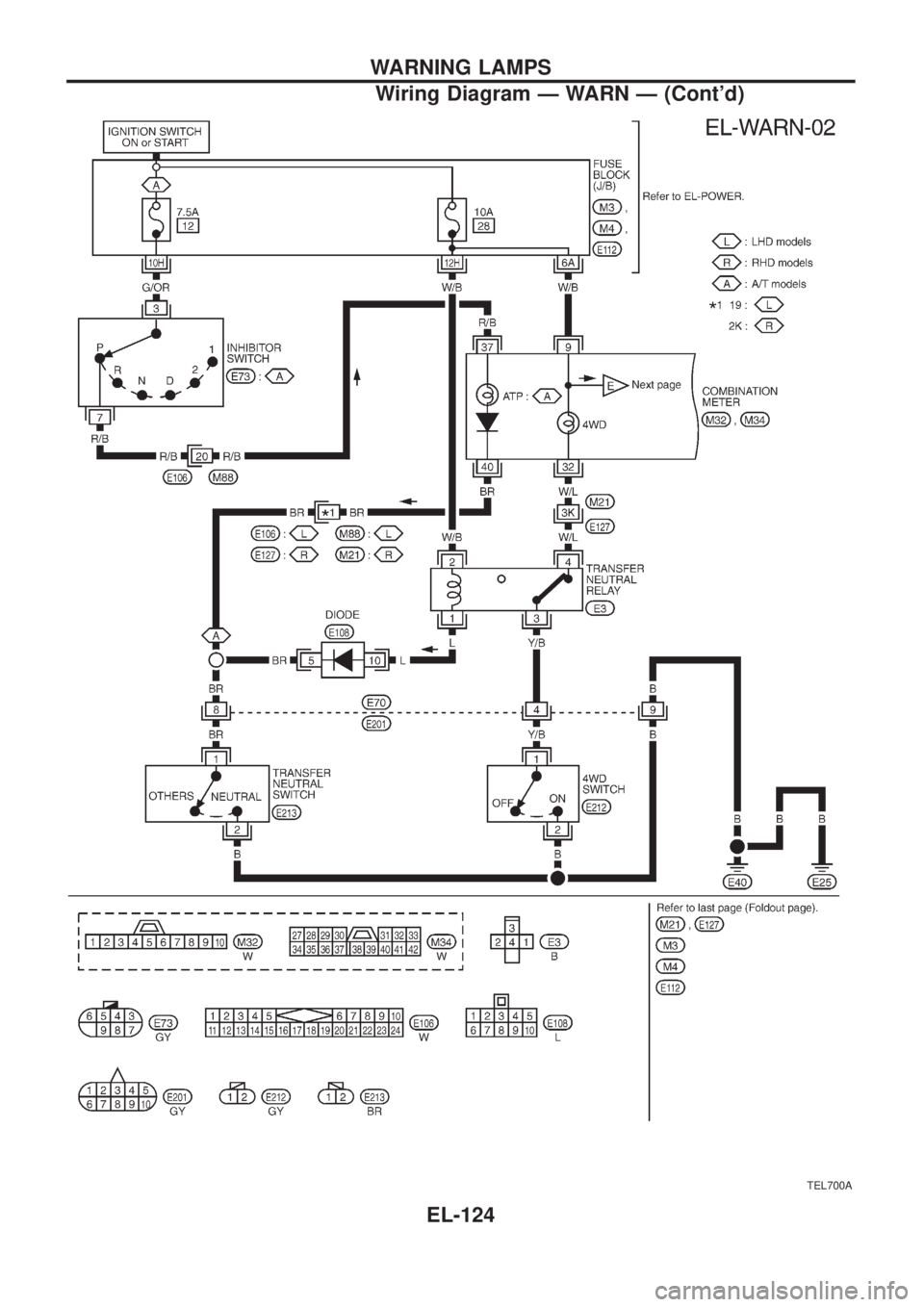

WARNING LAMPS
EL-123

TEL700A
WARNING LAMPS

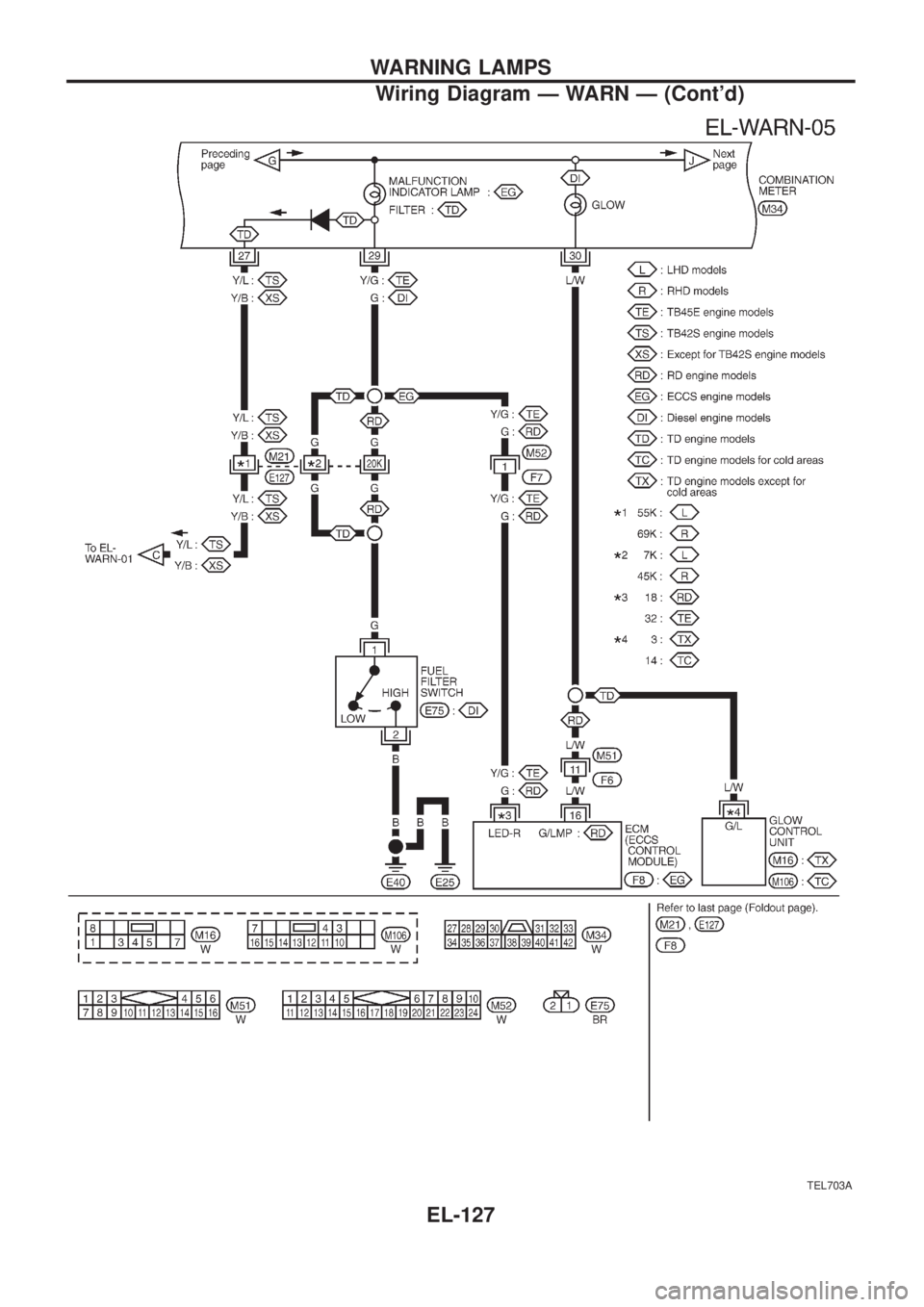

Wiring Diagram Ð WARN Ð (Cont'd)
EL-124

TEL701A
WARNING LAMPS

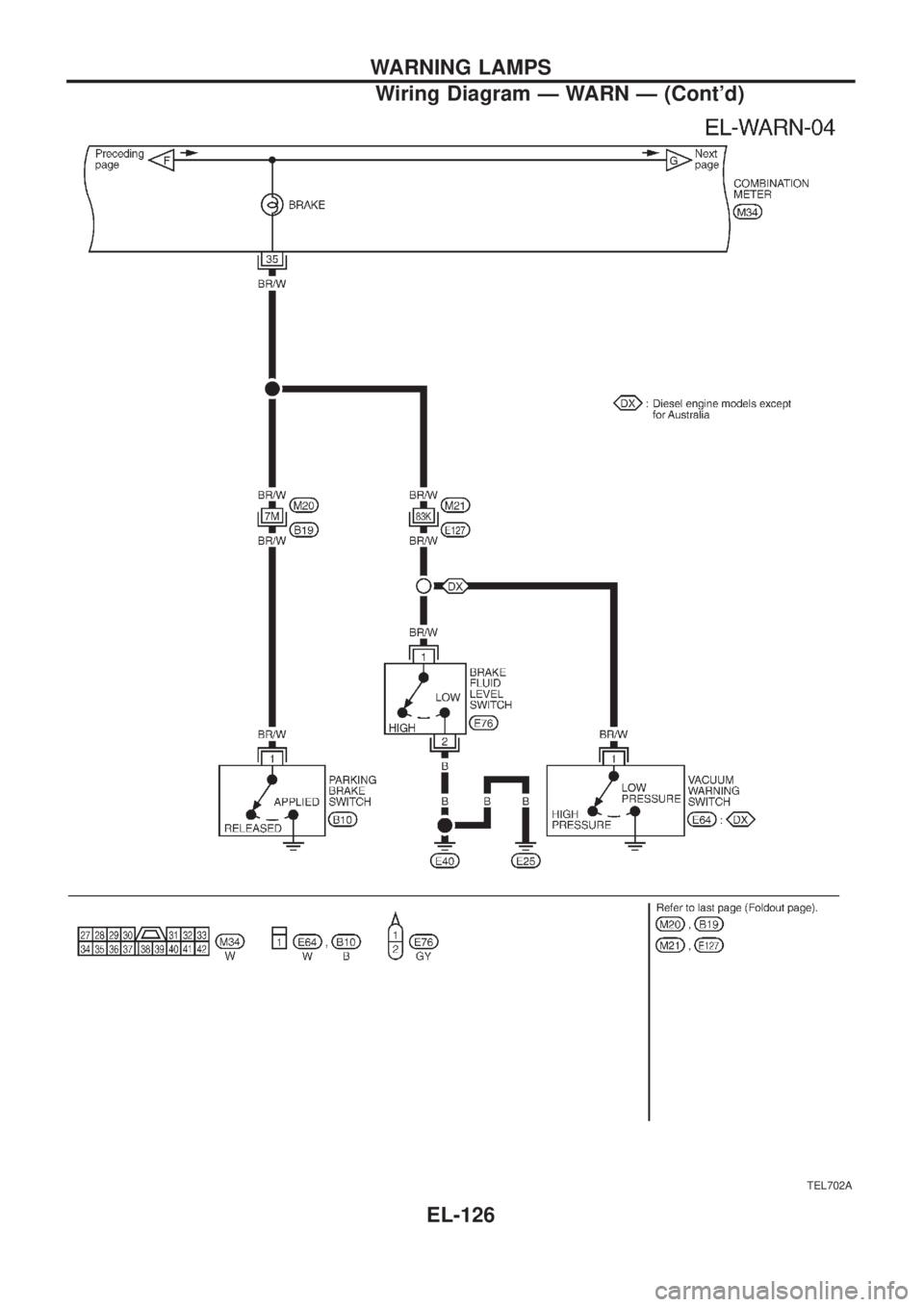

Wiring Diagram Ð WARN Ð (Cont'd)
EL-125

TEL702A
WARNING LAMPS

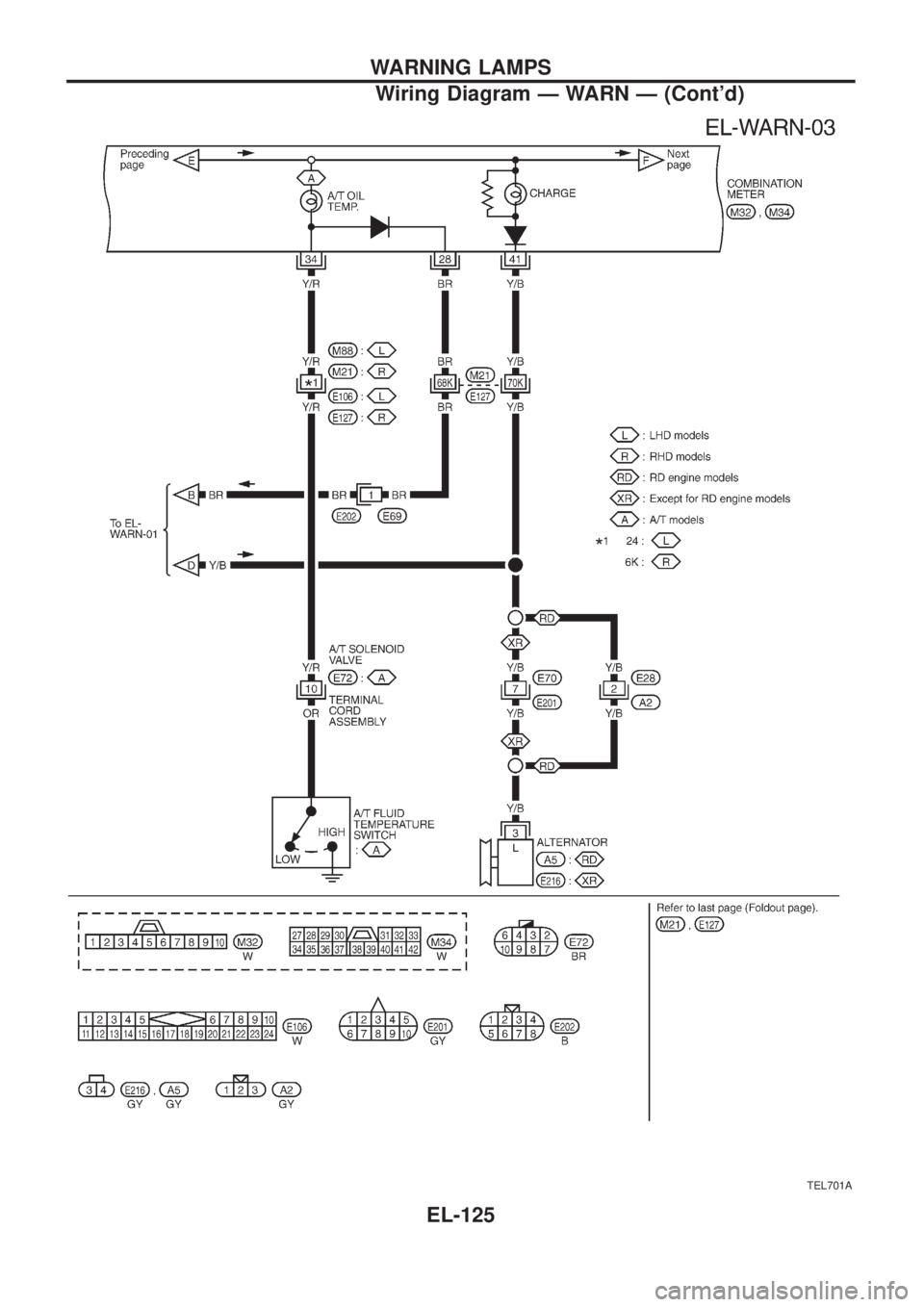

Wiring Diagram Ð WARN Ð (Cont'd)
EL-126

TEL703A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-127
