2006 NISSAN PATROL Service Manual

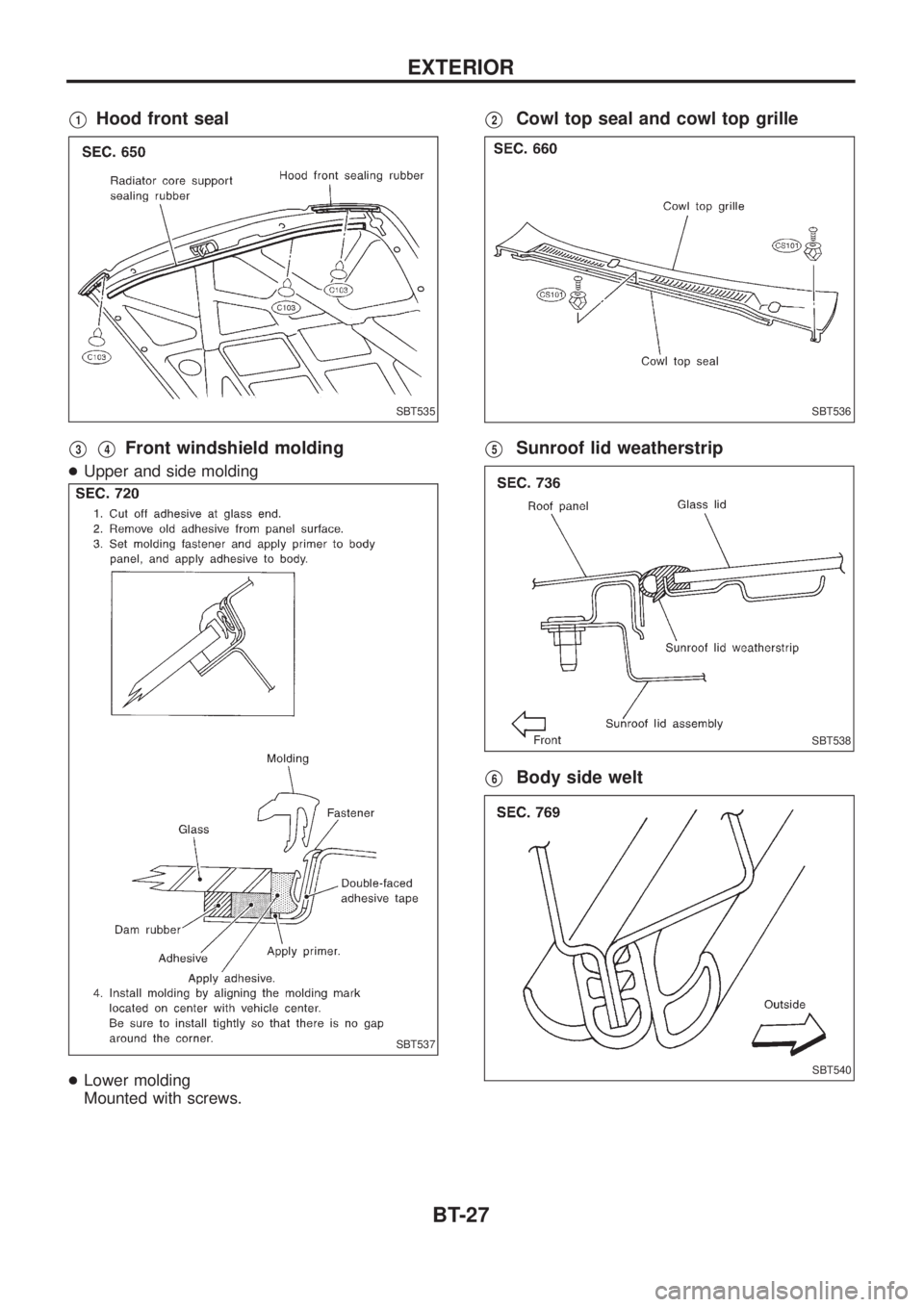

V1Hood front seal
V3V4Front windshield molding
+Upper and side molding
+Lower molding
Mounted with screws.
V2Cowl top seal and cowl top grille
V5Sunroof lid weatherstrip
V6Body side welt
SBT535
SBT537
SBT536
SBT538
SBT540
EXTERIOR
BT-27

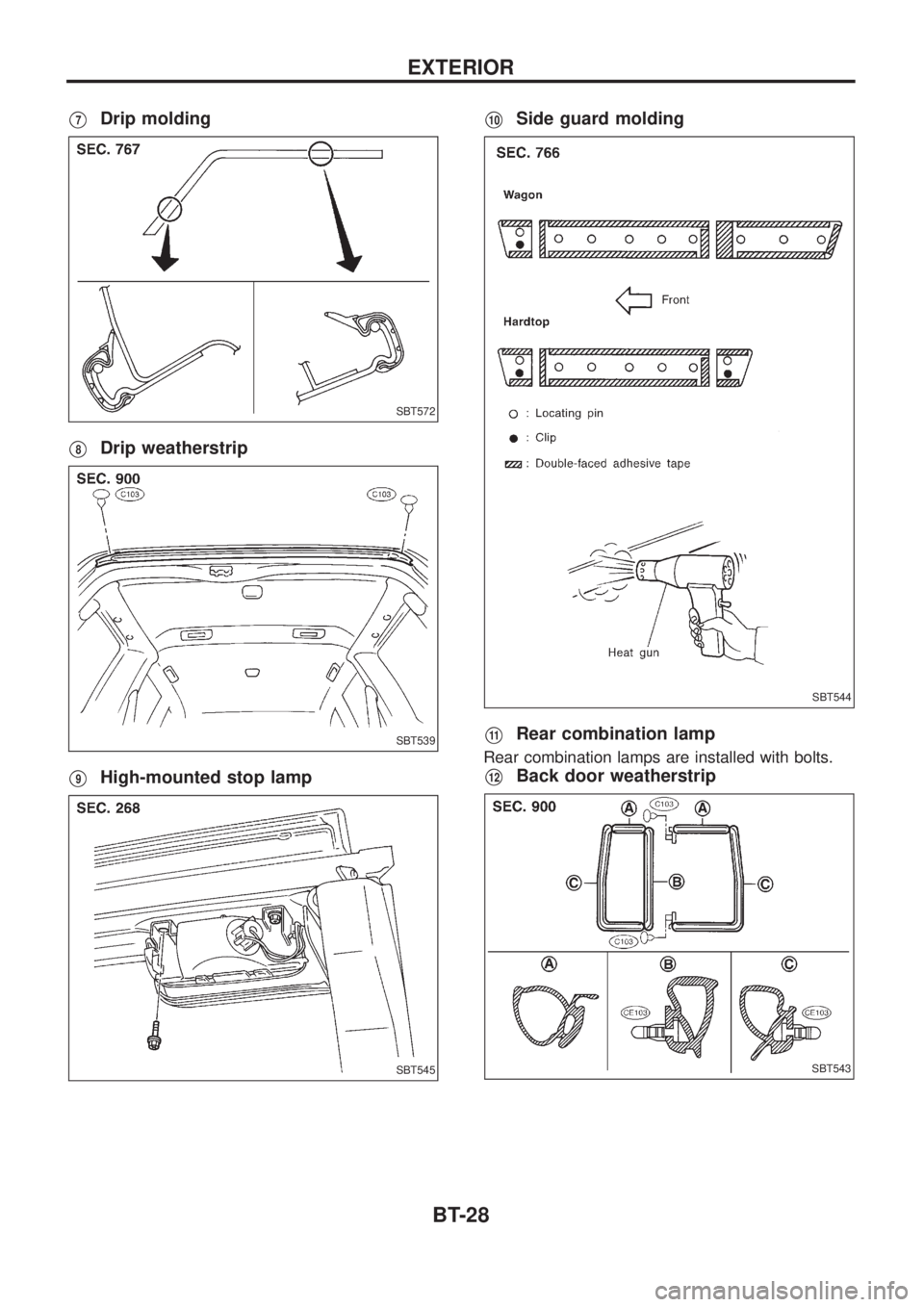

V7Drip molding
V8Drip weatherstrip
V9High-mounted stop lamp
V10Side guard molding
V11Rear combination lamp
Rear combination lamps are installed with bolts.
V12Back door weatherstrip
SBT572
SBT539
SBT545
SBT544
SBT543
EXTERIOR
BT-28

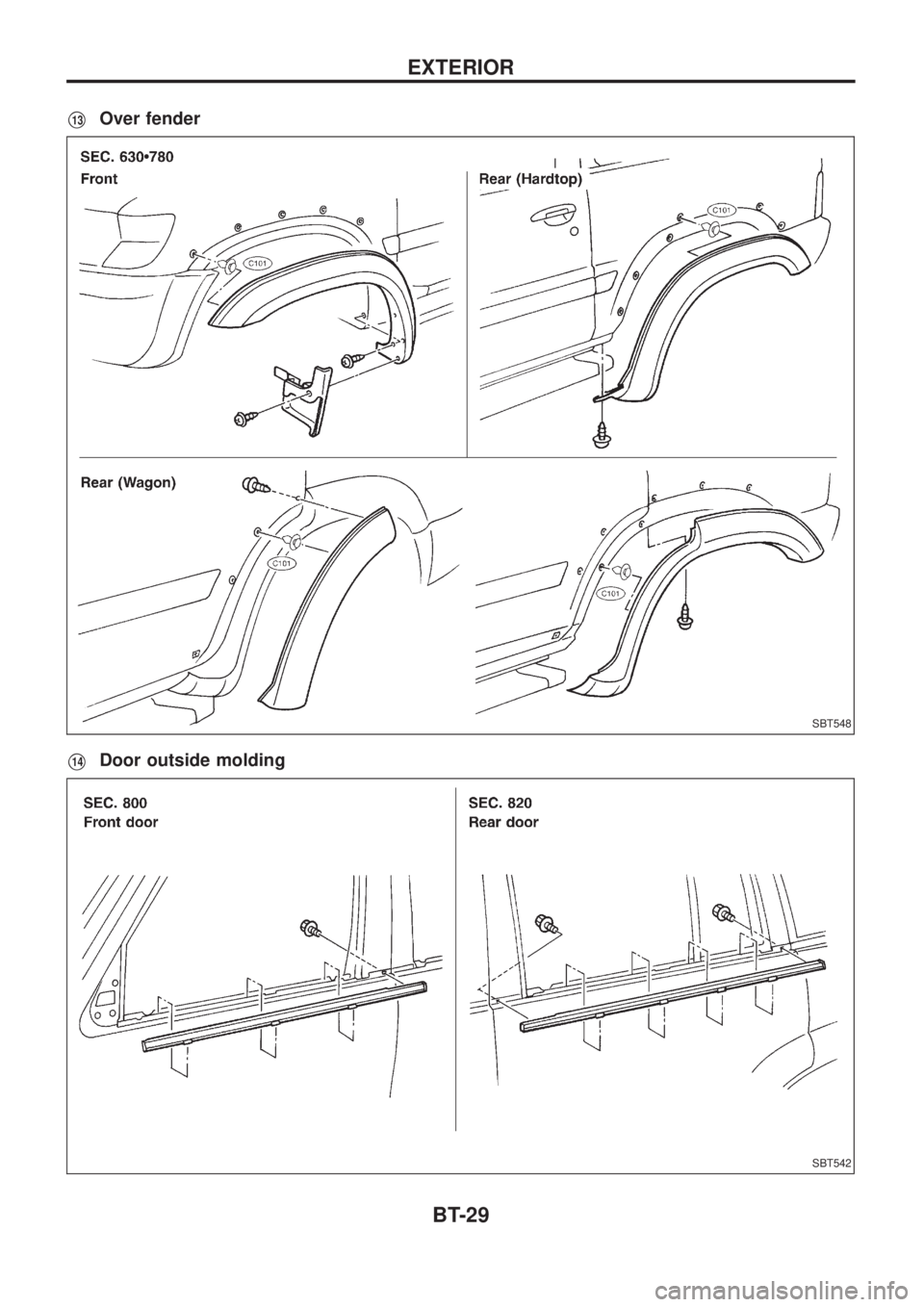

V13Over fender
V14Door outside molding
SBT548
SBT542
EXTERIOR
BT-29

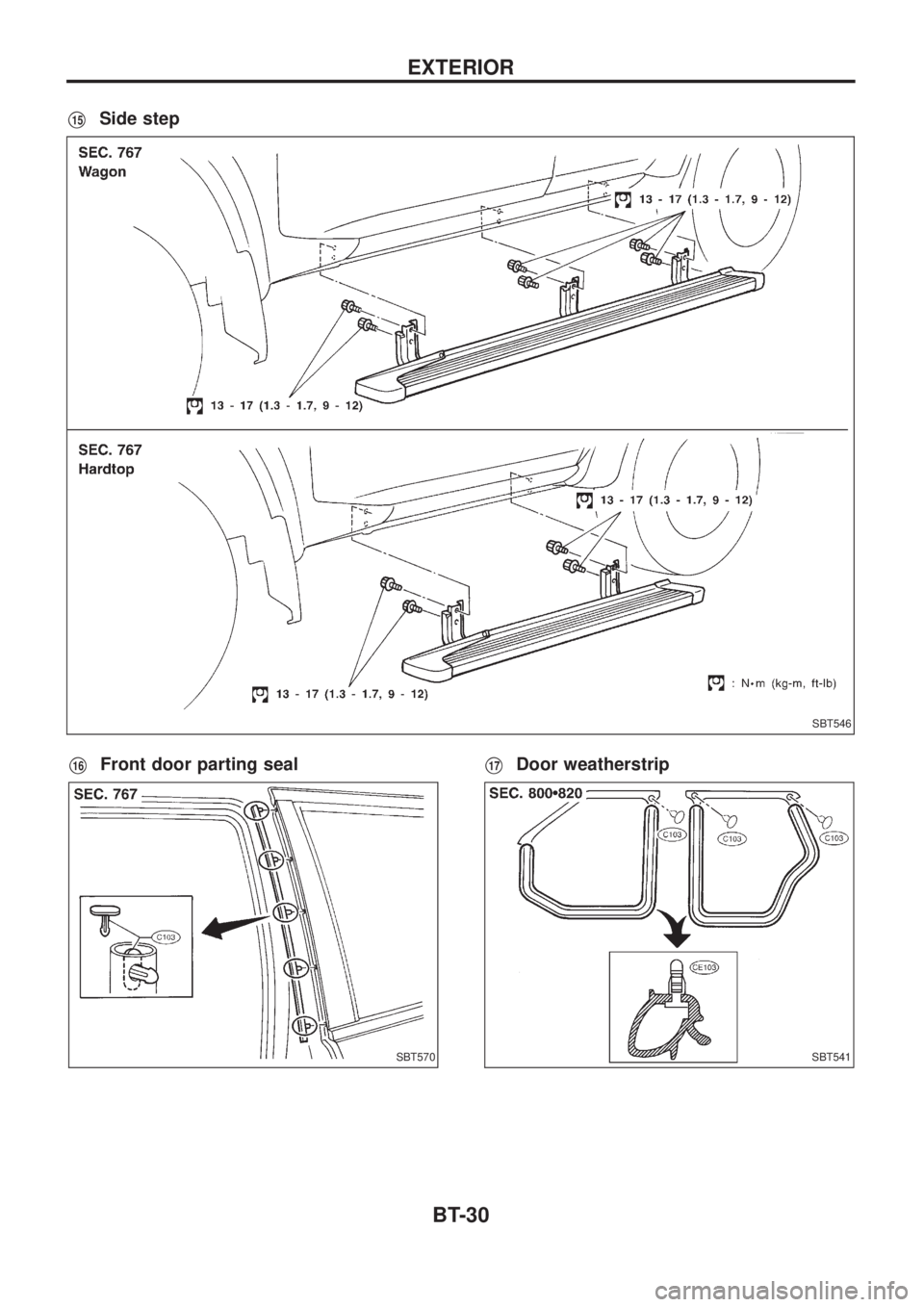

V15Side step
V16Front door parting sealV17Door weatherstrip
SBT546
SBT570SBT541
EXTERIOR
BT-30

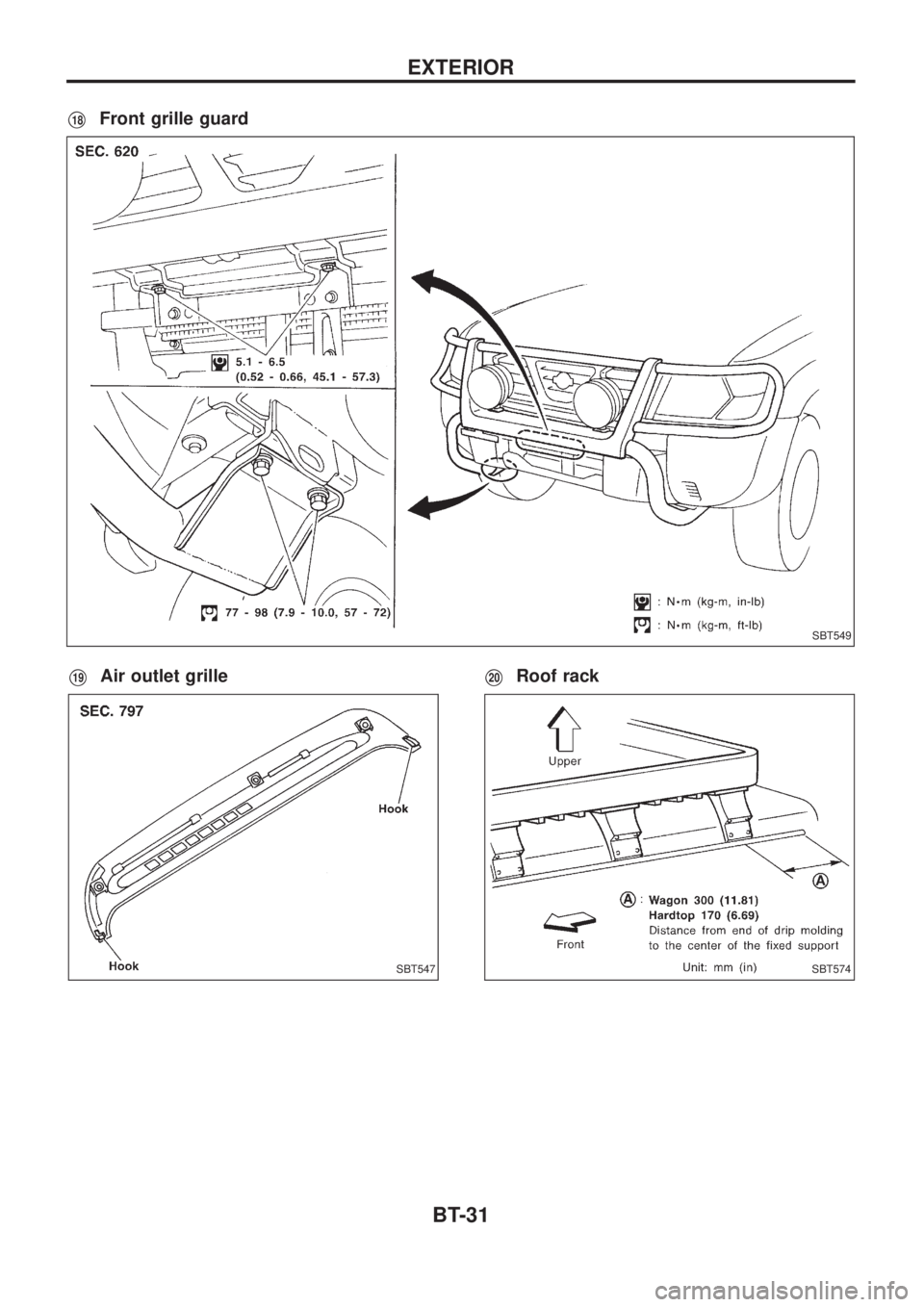

V18Front grille guard
V19Air outlet grilleV20Roof rack
SBT549
SBT547SBT574
EXTERIOR
BT-31

Front Seat
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

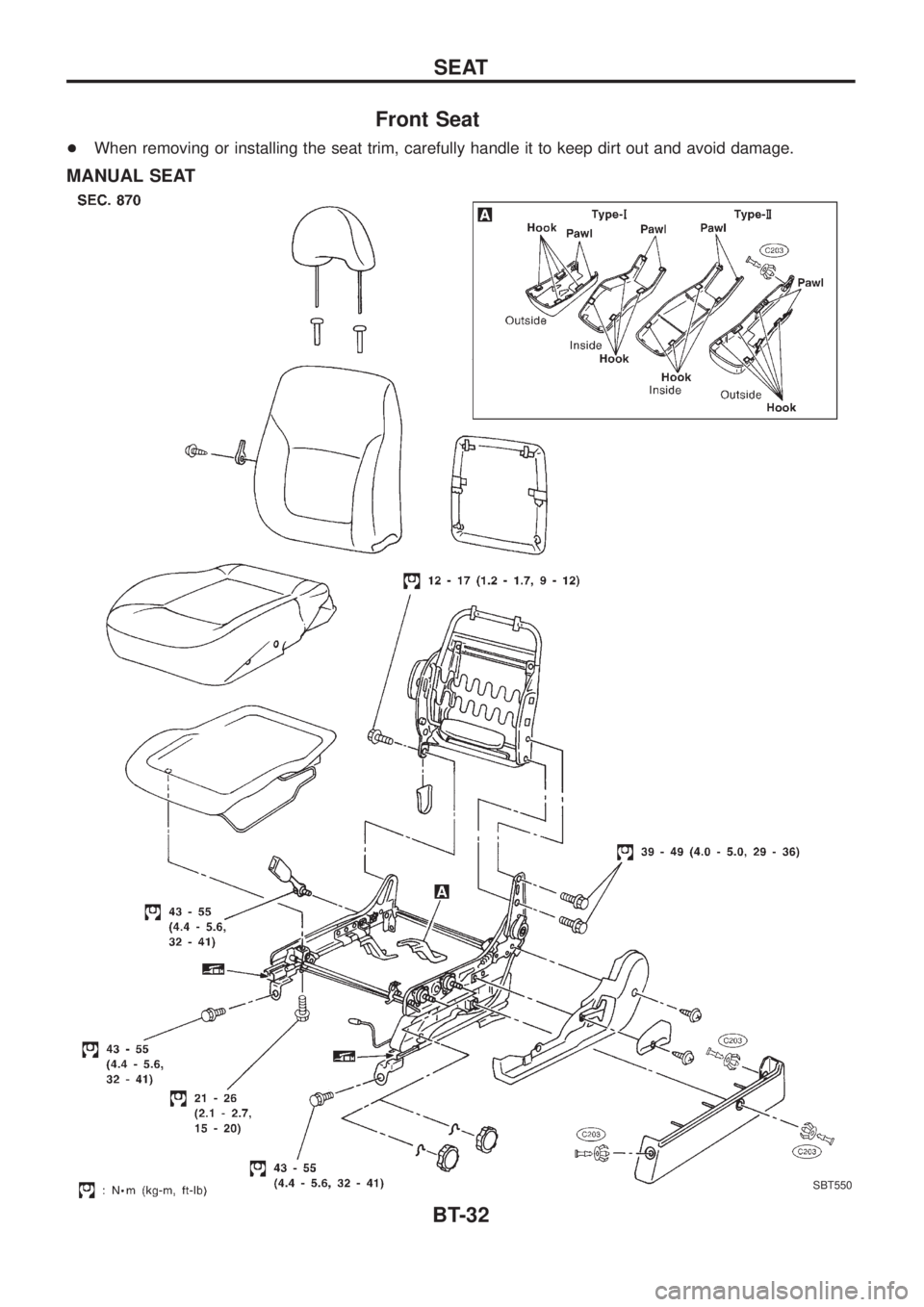

MANUAL SEAT
SBT550
SEAT
BT-32

+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

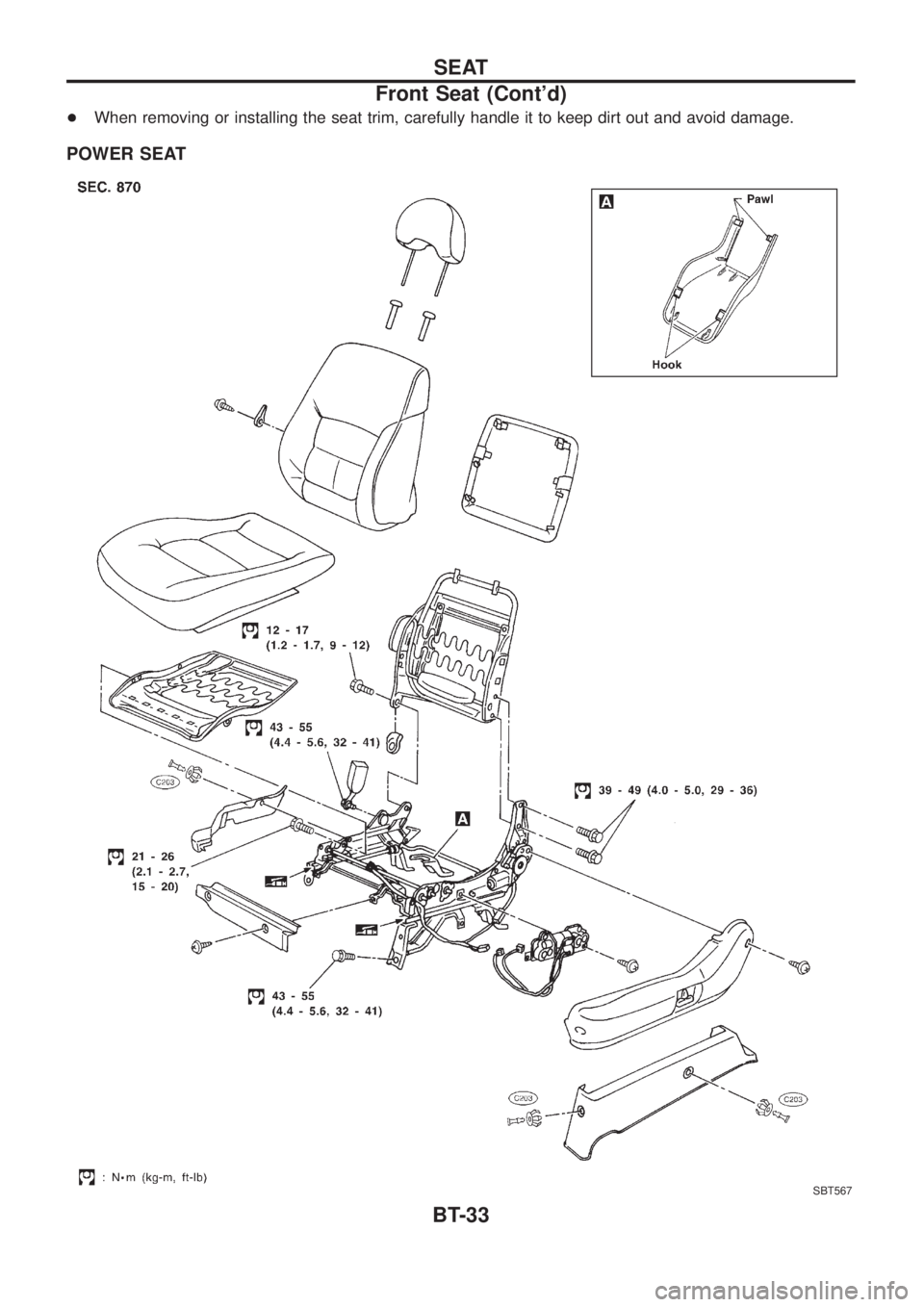

POWER SEAT
SBT567
SEAT
Front Seat (Cont'd)
BT-33

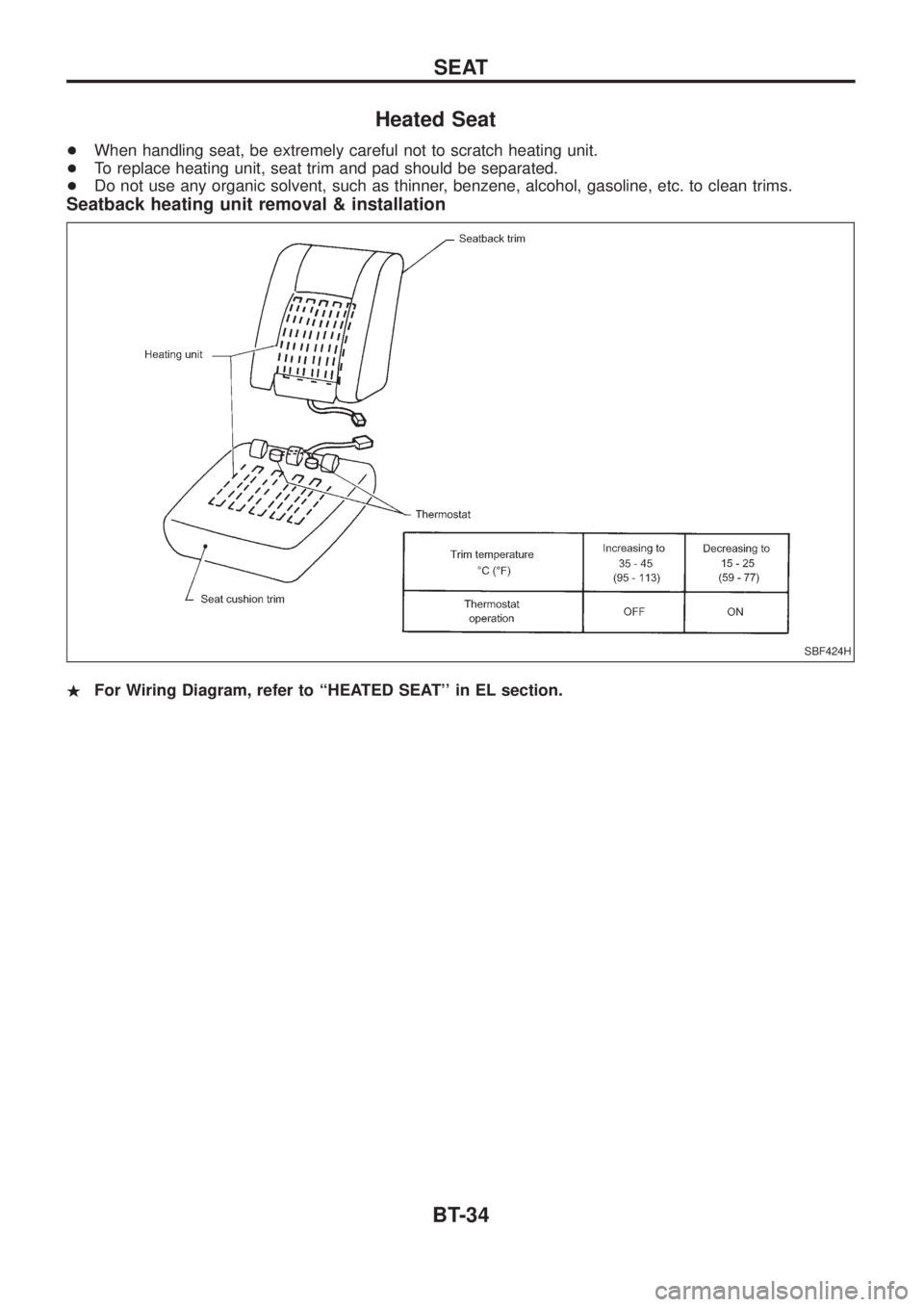

Heated Seat
+When handling seat, be extremely careful not to scratch heating unit.
+To replace heating unit, seat trim and pad should be separated.
+Do not use any organic solvent, such as thinner, benzene, alcohol, gasoline, etc. to clean trims.
Seatback heating unit removal & installation
.For Wiring Diagram, refer to ``HEATED SEAT'' in EL section.
SBF424H
SEAT
BT-34
