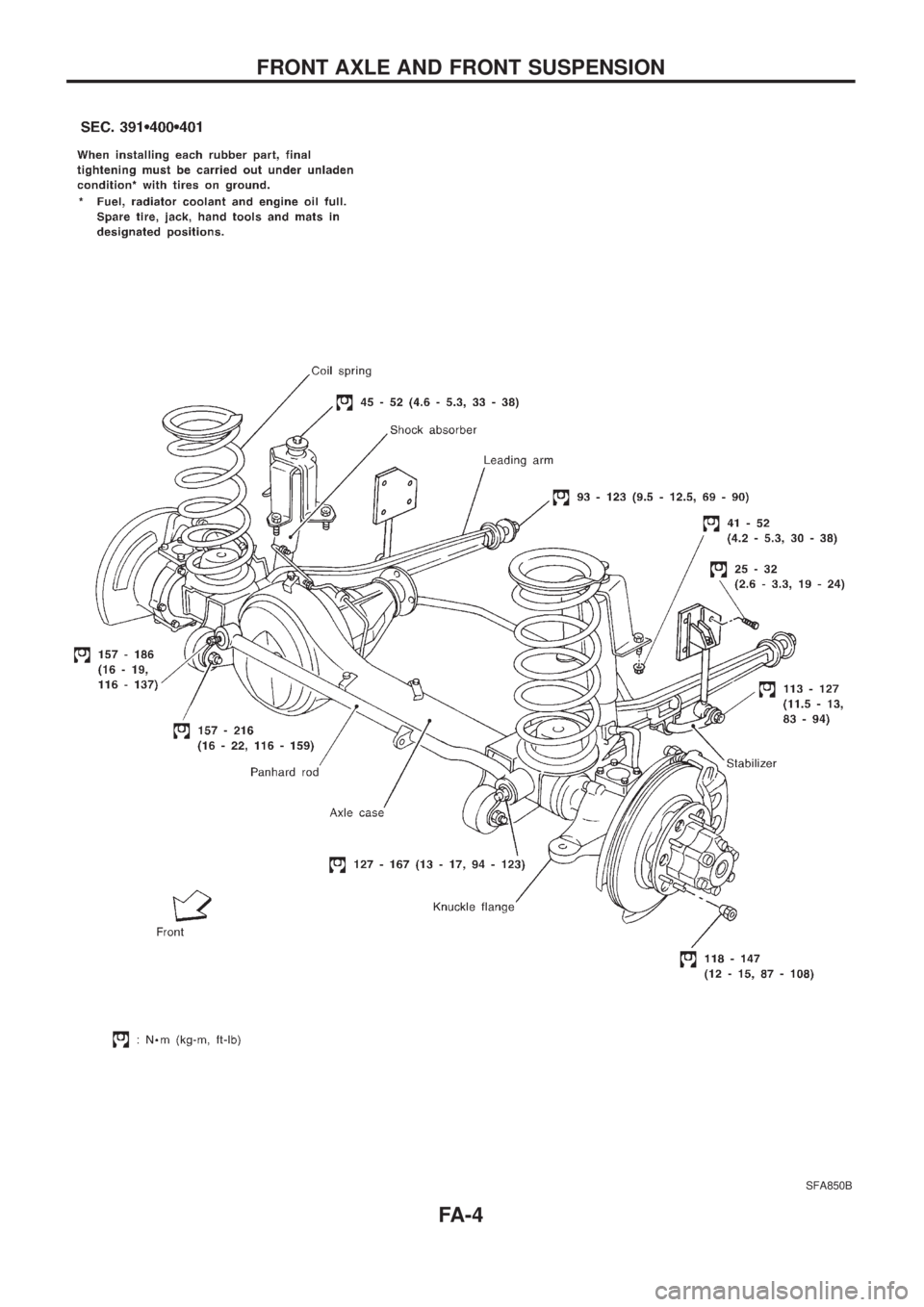

FRONT AXLE AND FRONT SUSPENSION
FA-4

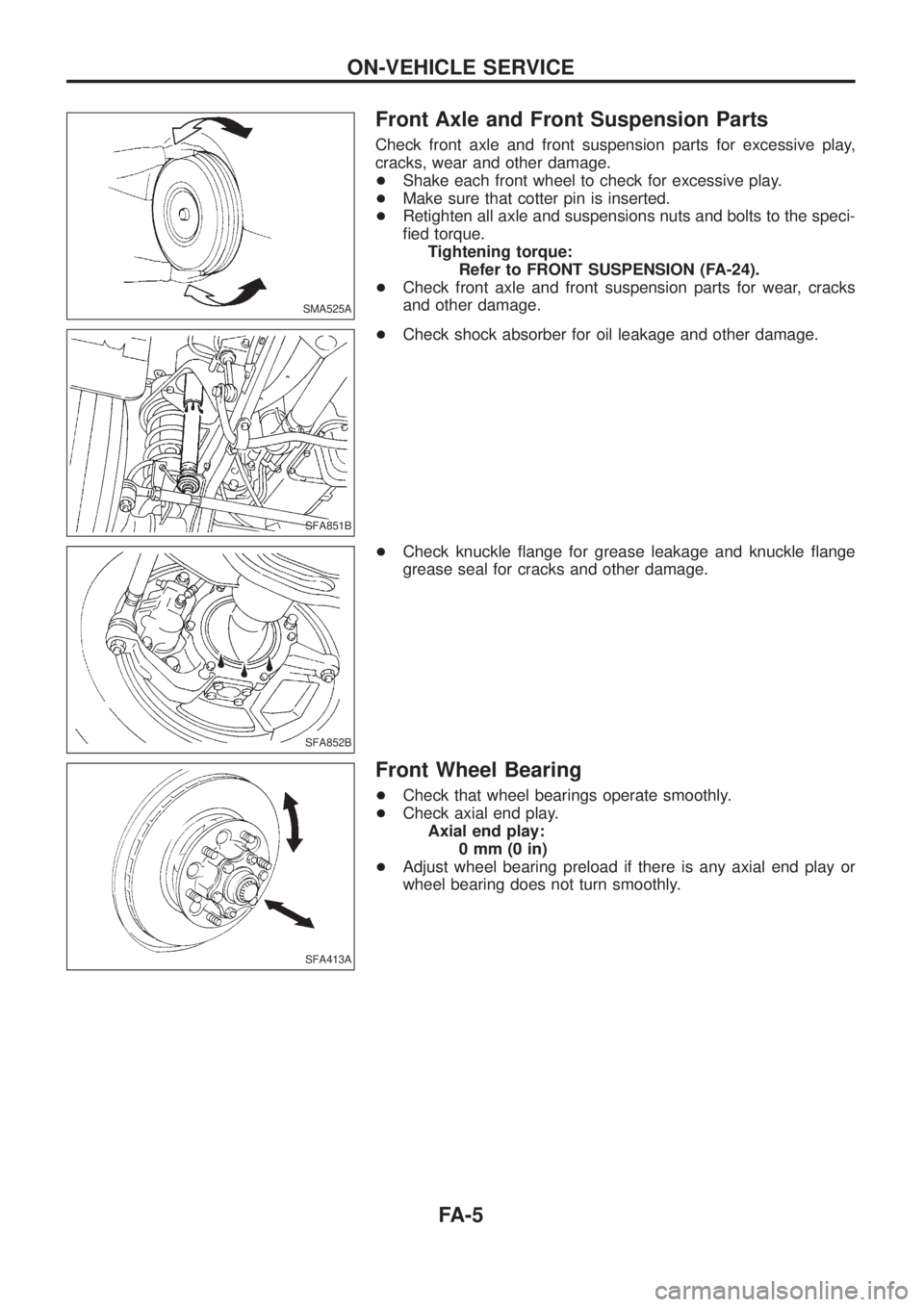

Front Axle and Front Suspension Parts
Check front axle and front suspension parts for excessive play,
cracks, wear and other damage.
+Shake each front wheel to check for excessive play.
+Make sure that cotter pin is inserted.
+Retighten all axle and suspensions nuts and bolts to the speci-
®ed torque.
Tightening torque:
Refer to FRONT SUSPENSION (FA-24).
+Check front axle and front suspension parts for wear, cracks
and other damage.
+Check shock absorber for oil leakage and other damage.
+Check knuckle ¯ange for grease leakage and knuckle ¯ange
grease seal for cracks and other damage.
Front Wheel Bearing
+Check that wheel bearings operate smoothly.
+Check axial end play.
Axial end play:
0mm(0in)
+Adjust wheel bearing preload if there is any axial end play or
wheel bearing does not turn smoothly.
SMA525A
SFA851B
SFA852B
SFA413A
ON-VEHICLE SERVICE
FA-5

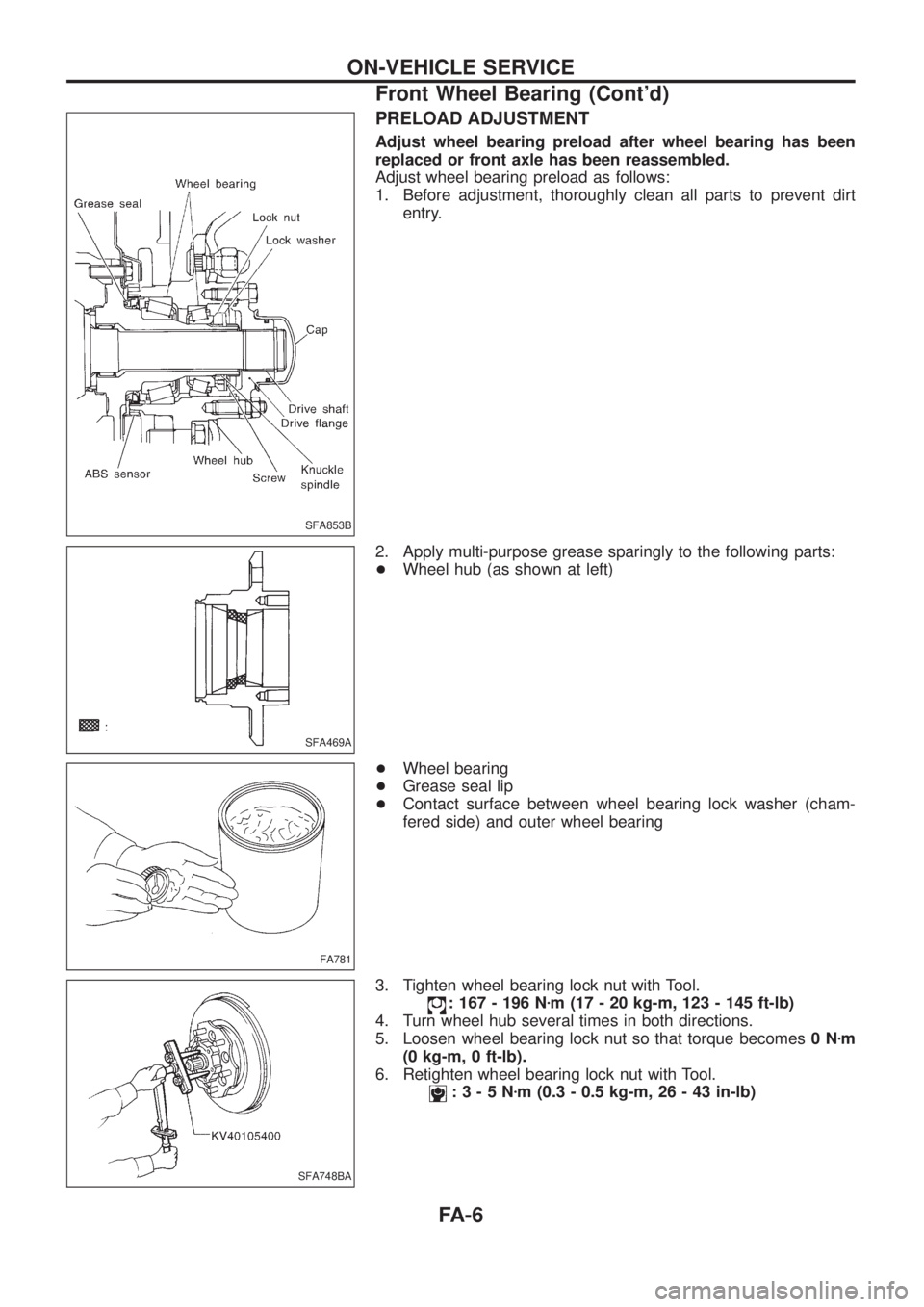

PRELOAD ADJUSTMENT
Adjust wheel bearing preload after wheel bearing has been
replaced or front axle has been reassembled.
Adjust wheel bearing preload as follows:
1. Before adjustment, thoroughly clean all parts to prevent dirt
entry.
2. Apply multi-purpose grease sparingly to the following parts:
+Wheel hub (as shown at left)
+Wheel bearing
+Grease seal lip
+Contact surface between wheel bearing lock washer (cham-
fered side) and outer wheel bearing
3. Tighten wheel bearing lock nut with Tool.
: 167 - 196 Nzm (17 - 20 kg-m, 123 - 145 ft-lb)
4. Turn wheel hub several times in both directions.
5. Loosen wheel bearing lock nut so that torque becomes0Nzm
(0 kg-m, 0 ft-lb).
6. Retighten wheel bearing lock nut with Tool.
:3-5Nzm (0.3 - 0.5 kg-m, 26 - 43 in-lb)
SFA853B
SFA469A
FA781
SFA748BA
ON-VEHICLE SERVICE
Front Wheel Bearing (Cont'd)
FA-6

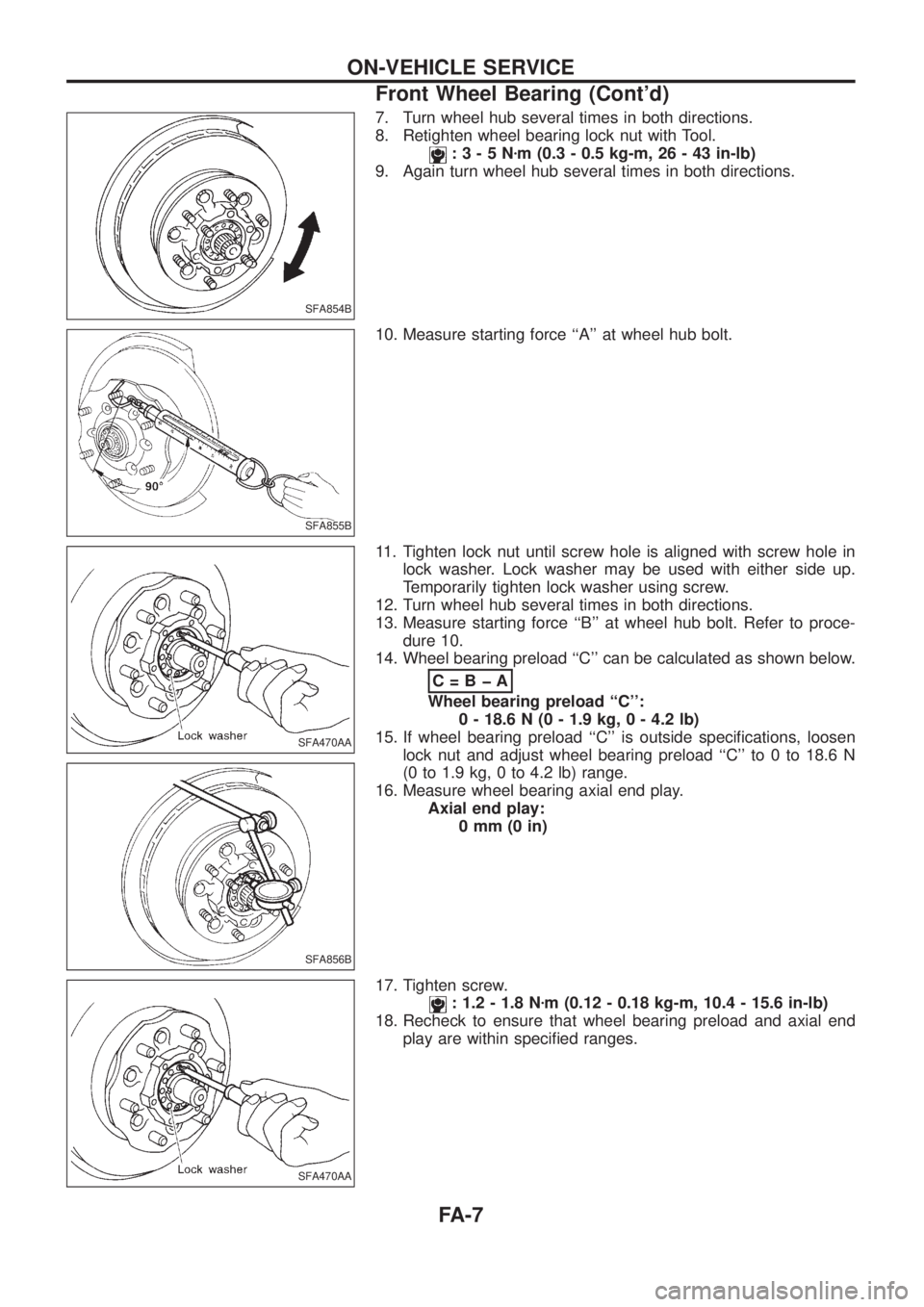

7. Turn wheel hub several times in both directions.
8. Retighten wheel bearing lock nut with Tool.
:3-5Nzm (0.3 - 0.5 kg-m, 26 - 43 in-lb)
9. Again turn wheel hub several times in both directions.
10. Measure starting force ``A'' at wheel hub bolt.
11. Tighten lock nut until screw hole is aligned with screw hole in
lock washer. Lock washer may be used with either side up.
Temporarily tighten lock washer using screw.
12. Turn wheel hub several times in both directions.
13. Measure starting force ``B'' at wheel hub bolt. Refer to proce-
dure 10.
14. Wheel bearing preload ``C'' can be calculated as shown below.
C=BþA
Wheel bearing preload ``C'':
0 - 18.6 N (0 - 1.9 kg, 0 - 4.2 lb)
15. If wheel bearing preload ``C'' is outside speci®cations, loosen
lock nut and adjust wheel bearing preload ``C'' to 0 to 18.6 N
(0 to 1.9 kg, 0 to 4.2 lb) range.
16. Measure wheel bearing axial end play.
Axial end play:
0mm(0in)
17. Tighten screw.
: 1.2 - 1.8 Nzm (0.12 - 0.18 kg-m, 10.4 - 15.6 in-lb)
18. Recheck to ensure that wheel bearing preload and axial end
play are within speci®ed ranges.
SFA854B
SFA855B
SFA470AA
SFA856B
SFA470AA
ON-VEHICLE SERVICE
Front Wheel Bearing (Cont'd)
FA-7

19. Pack drive ¯ange groove with grease, apply grease to O-ring
and mating surface of drive ¯ange, and install ¯ange.
20. Place snap ring in drive shaft groove. Choose snap ring so that
the gap between groove and snap ring is 0.4 mm (0.016 in) or
less.
Refer to SDS for selection of snap ring.
Front Wheel Alignment
Before checking front wheel alignment, be sure to make a prelimi-
nary inspection (Unladen*).
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand
tools and mats in designated positions.
PRELIMINARY INSPECTION
1. Check tires for wear and improper in¯ation.
2. Check wheel runout on outside and inside.
Wheel runout average
[(Outside runout value + Inside runout value) x 0.5]:
Refer to SDS (FA-27).
3. Check front wheel bearings for looseness.
4. Check front suspension for looseness.
5. Check steering linkage for looseness.
6. Check that shock absorbers work properly.
7. Check vehicle posture (Unladen).
CAMBER, CASTER AND KINGPIN INCLINATION
Camber, caster and kingpin inclination are preset at factory
and cannot be adjusted.
1. Measure camber, caster and kingpin inclination of both right
and left wheels with a suitable alignment gauge.
Camber, Caster and Kingpin inclination:
Refer to SDS (FA-27).
2. If camber, caster or kingpin inclination is not within
speci®cation, inspect front suspension parts. Replace damaged
or worn out parts.
SFA417A
SFA418AA
SFA356B
SFA894
ON-VEHICLE SERVICE
Front Wheel Bearing (Cont'd)
FA-8

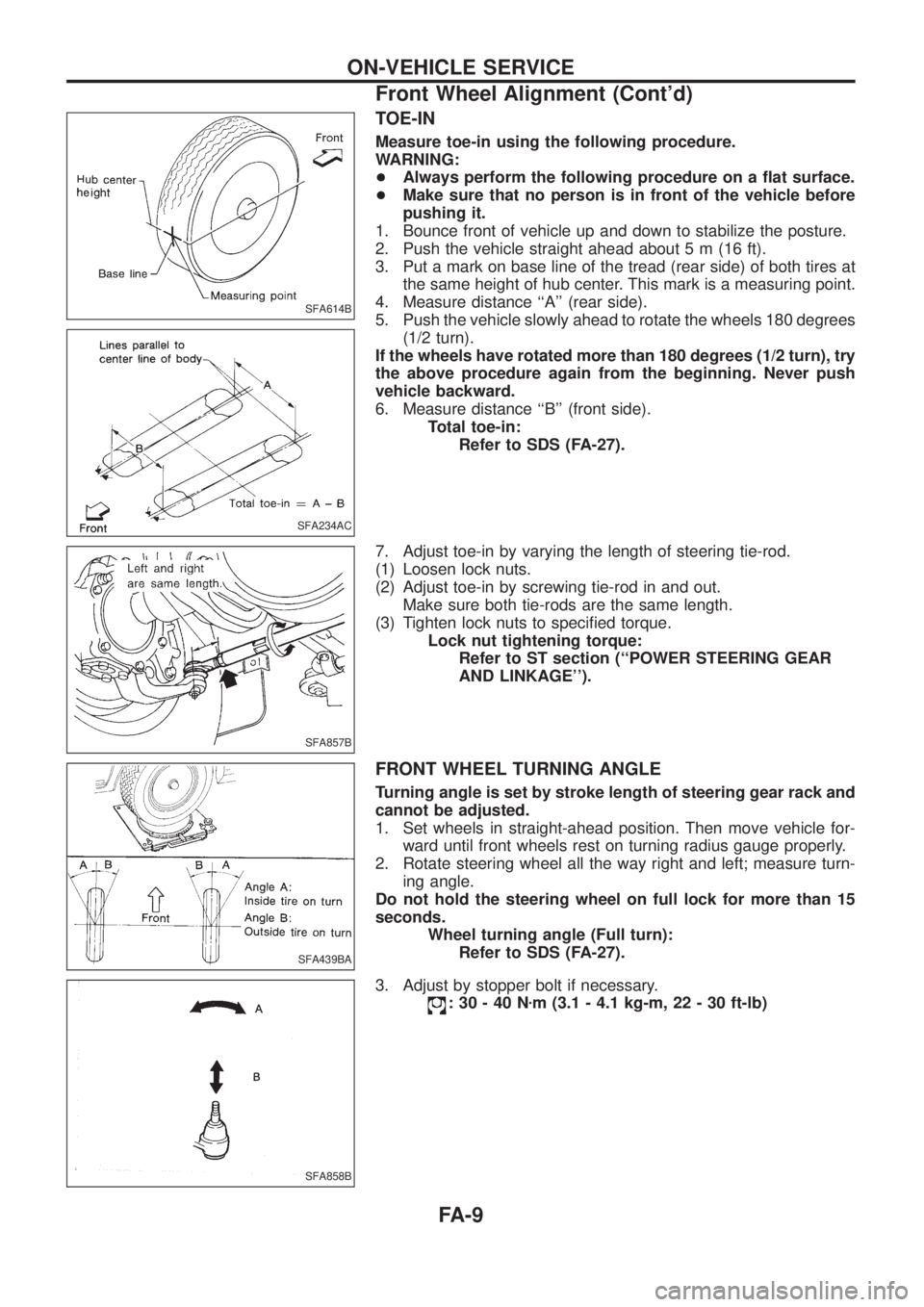

TOE-IN
Measure toe-in using the following procedure.
WARNING:
+Always perform the following procedure on a ¯at surface.
+Make sure that no person is in front of the vehicle before
pushing it.
1. Bounce front of vehicle up and down to stabilize the posture.
2. Push the vehicle straight ahead about 5 m (16 ft).
3. Put a mark on base line of the tread (rear side) of both tires at
the same height of hub center. This mark is a measuring point.
4. Measure distance ``A'' (rear side).
5. Push the vehicle slowly ahead to rotate the wheels 180 degrees
(1/2 turn).
If the wheels have rotated more than 180 degrees (1/2 turn), try
the above procedure again from the beginning. Never push
vehicle backward.
6. Measure distance ``B'' (front side).
Total toe-in:
Refer to SDS (FA-27).
7. Adjust toe-in by varying the length of steering tie-rod.
(1) Loosen lock nuts.
(2) Adjust toe-in by screwing tie-rod in and out.
Make sure both tie-rods are the same length.
(3) Tighten lock nuts to speci®ed torque.
Lock nut tightening torque:
Refer to ST section (``POWER STEERING GEAR
AND LINKAGE'').
FRONT WHEEL TURNING ANGLE
Turning angle is set by stroke length of steering gear rack and
cannot be adjusted.
1. Set wheels in straight-ahead position. Then move vehicle for-
ward until front wheels rest on turning radius gauge properly.
2. Rotate steering wheel all the way right and left; measure turn-
ing angle.
Do not hold the steering wheel on full lock for more than 15
seconds.
Wheel turning angle (Full turn):
Refer to SDS (FA-27).
3. Adjust by stopper bolt if necessary.
:30-40Nzm (3.1 - 4.1 kg-m, 22 - 30 ft-lb)
SFA614B
SFA234AC
SFA857B
SFA439BA
SFA858B
ON-VEHICLE SERVICE
Front Wheel Alignment (Cont'd)
FA-9

SFA859B

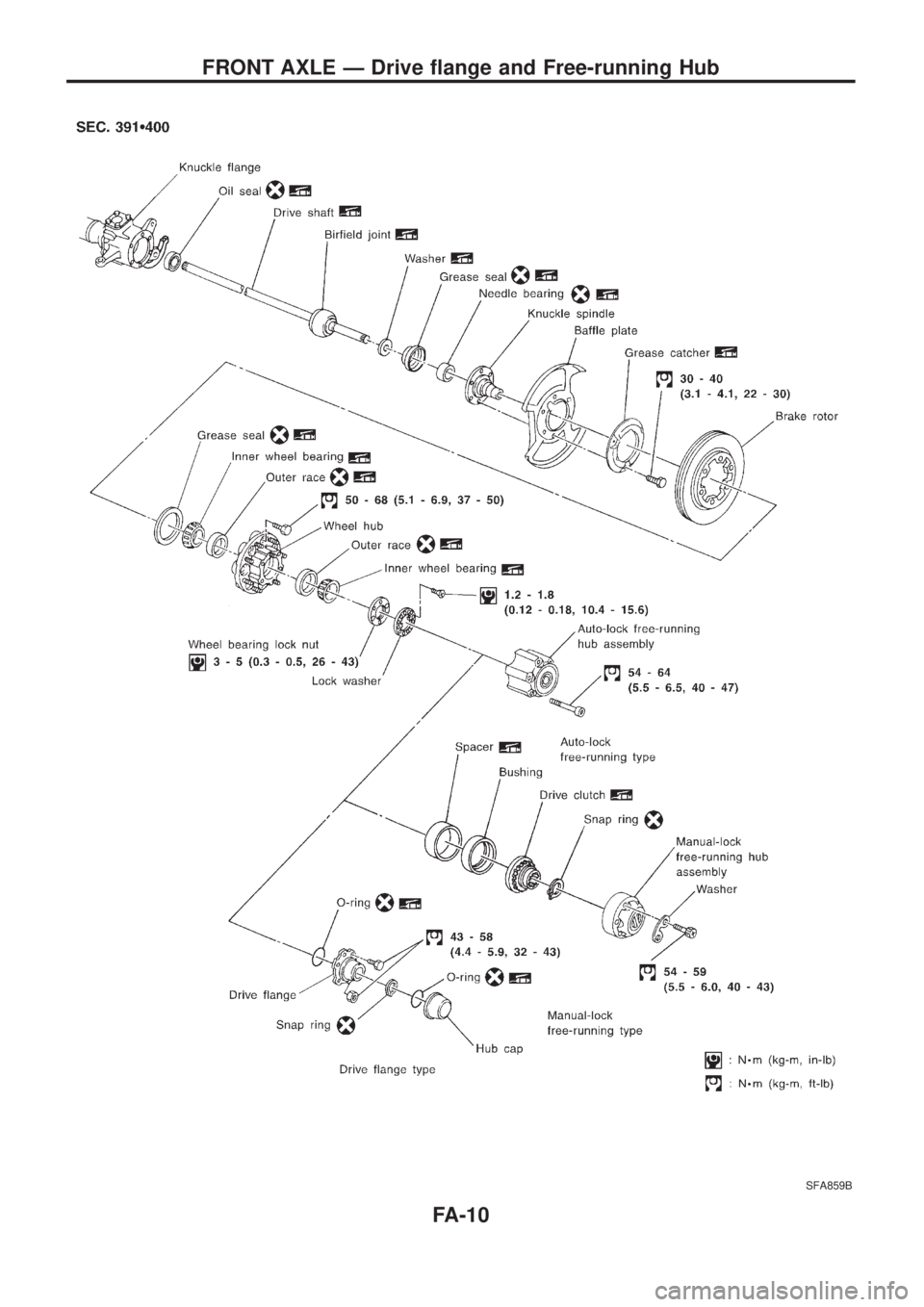

FRONT AXLE Ð Drive ¯ange and Free-running Hub
FA-10

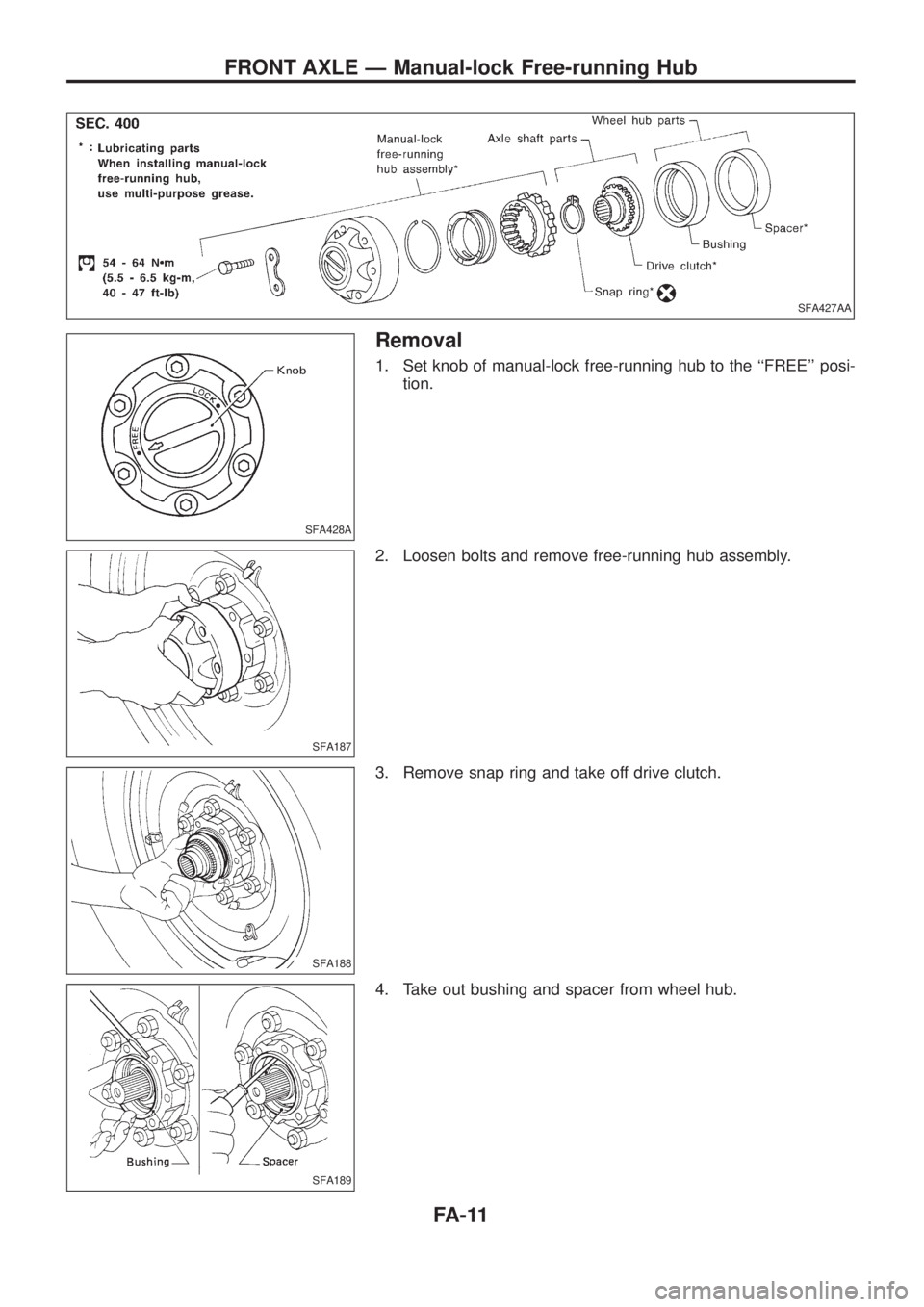

Removal
1. Set knob of manual-lock free-running hub to the ``FREE'' posi-
tion.
2. Loosen bolts and remove free-running hub assembly.
3. Remove snap ring and take off drive clutch.
4. Take out bushing and spacer from wheel hub.
SFA427AA
SFA428A
SFA187
SFA188
SFA189
FRONT AXLE Ð Manual-lock Free-running Hub
FA-11
