Page 833 of 1226

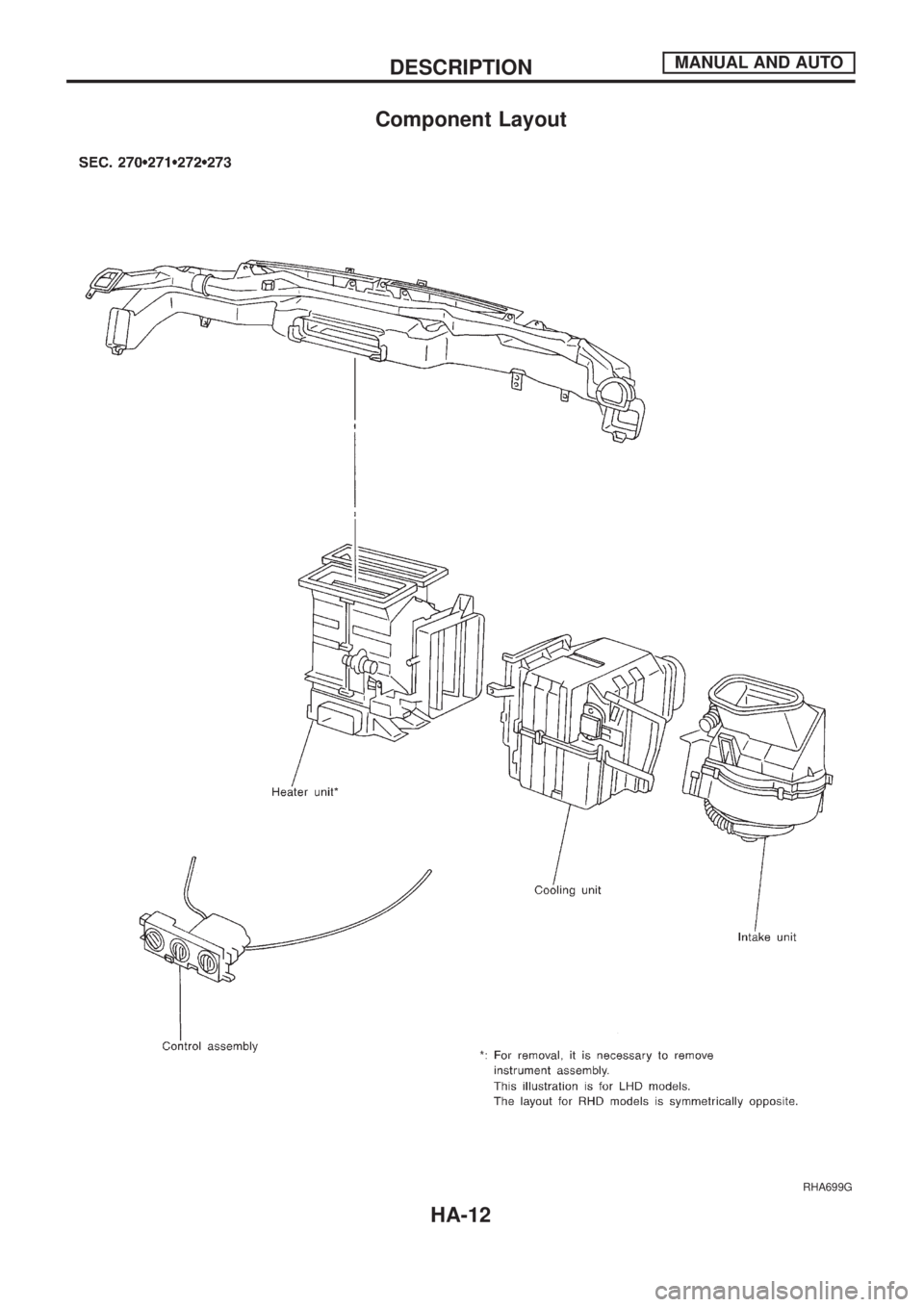

Component Layout
RHA699G
DESCRIPTIONMANUAL AND AUTO
HA-12
Page 834 of 1226

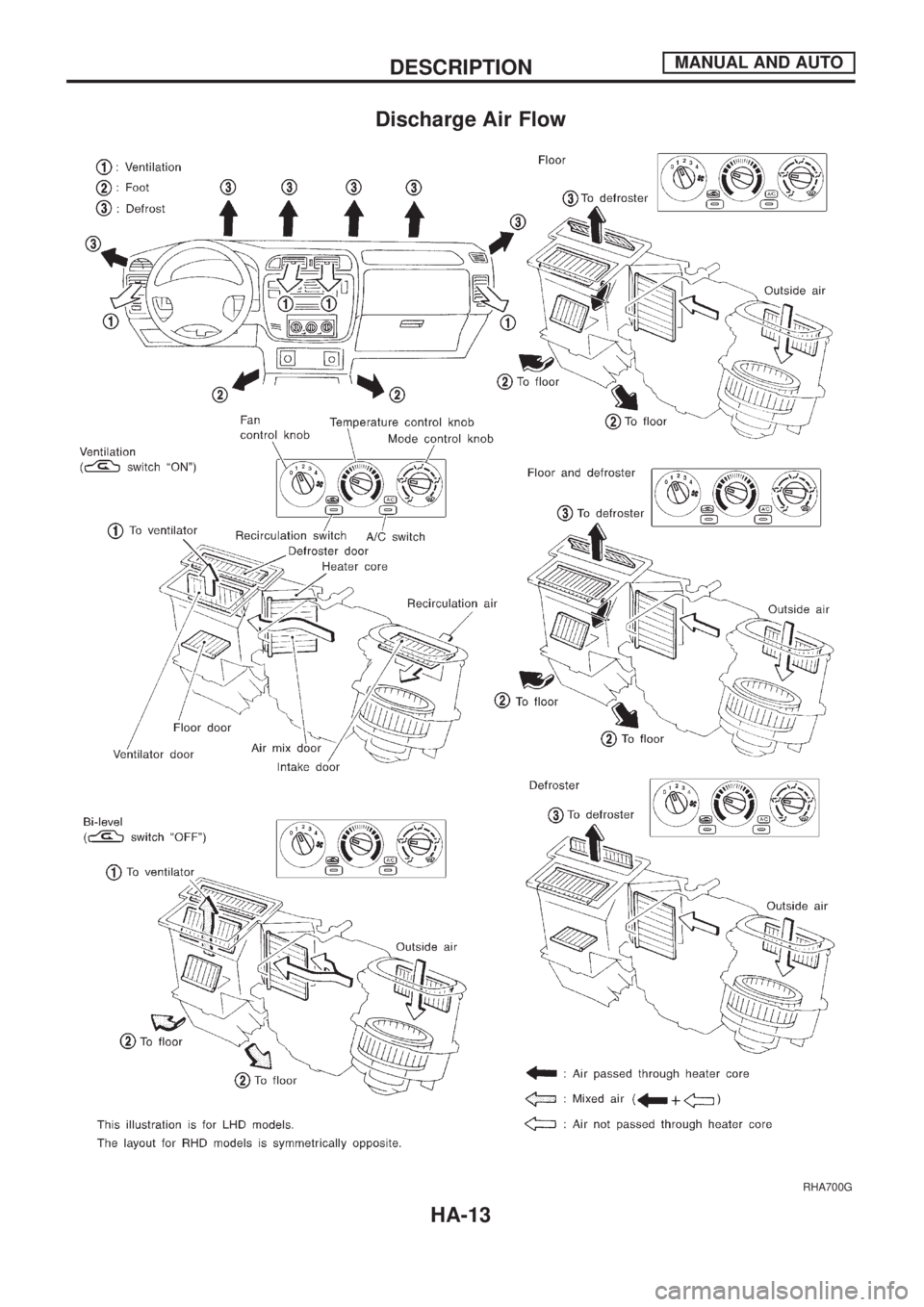

Discharge Air Flow
RHA700G
DESCRIPTIONMANUAL AND AUTO
HA-13
Page 835 of 1226

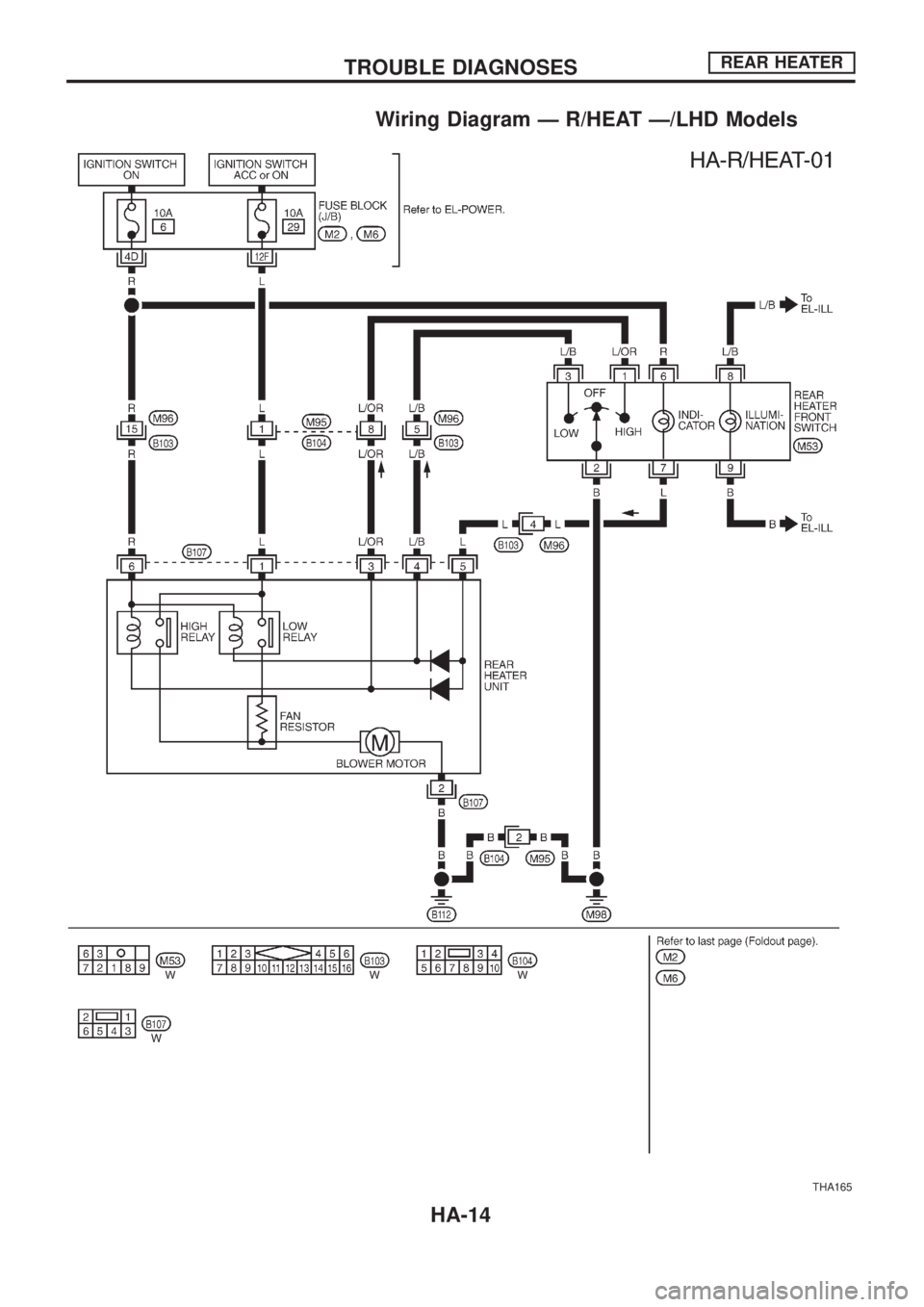

Wiring Diagram Ð R/HEAT Ð/LHD Models
THA165
TROUBLE DIAGNOSESREAR HEATER
HA-14
Page 836 of 1226

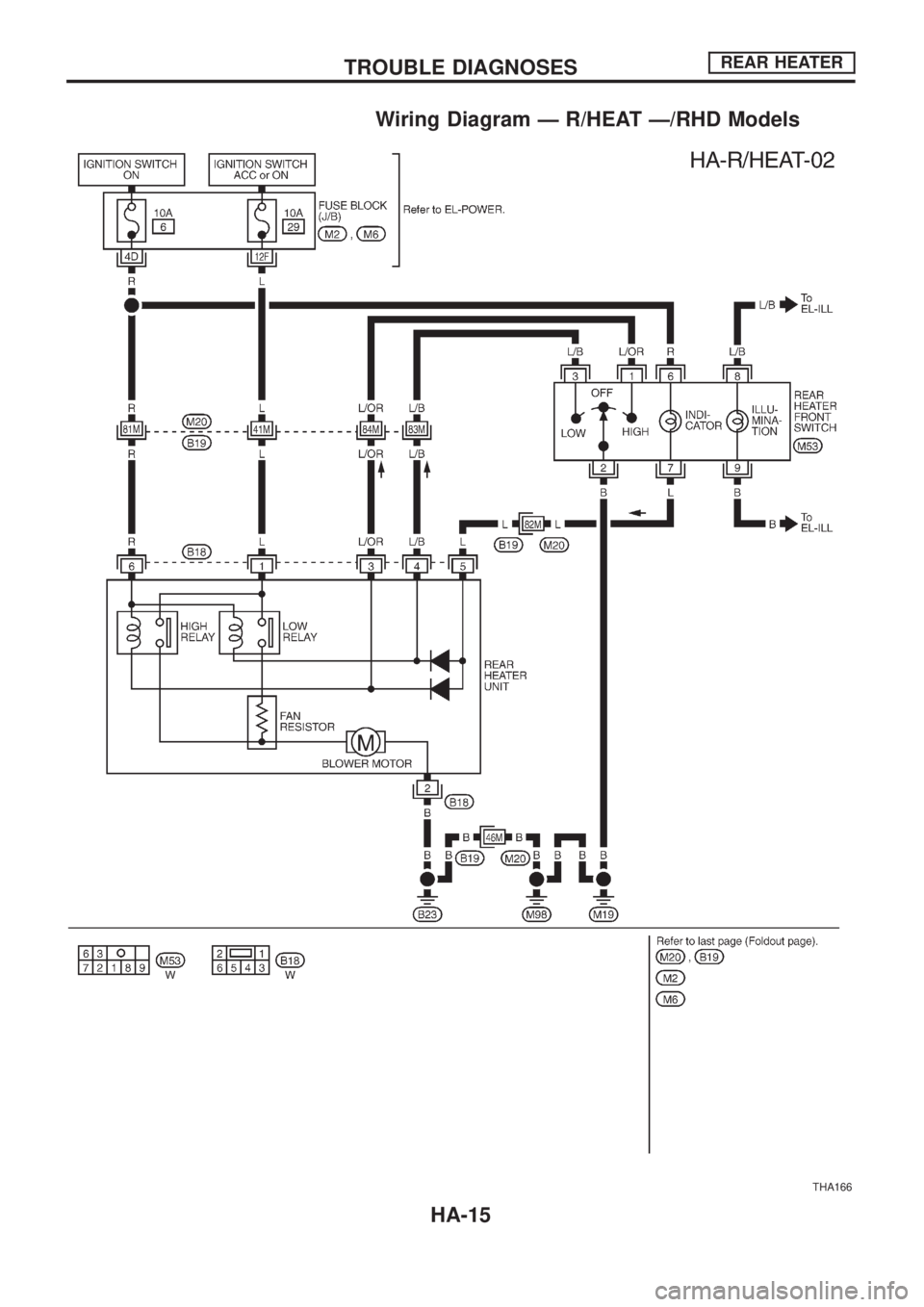

Wiring Diagram Ð R/HEAT Ð/RHD Models
THA166
TROUBLE DIAGNOSESREAR HEATER
HA-15
Page 837 of 1226

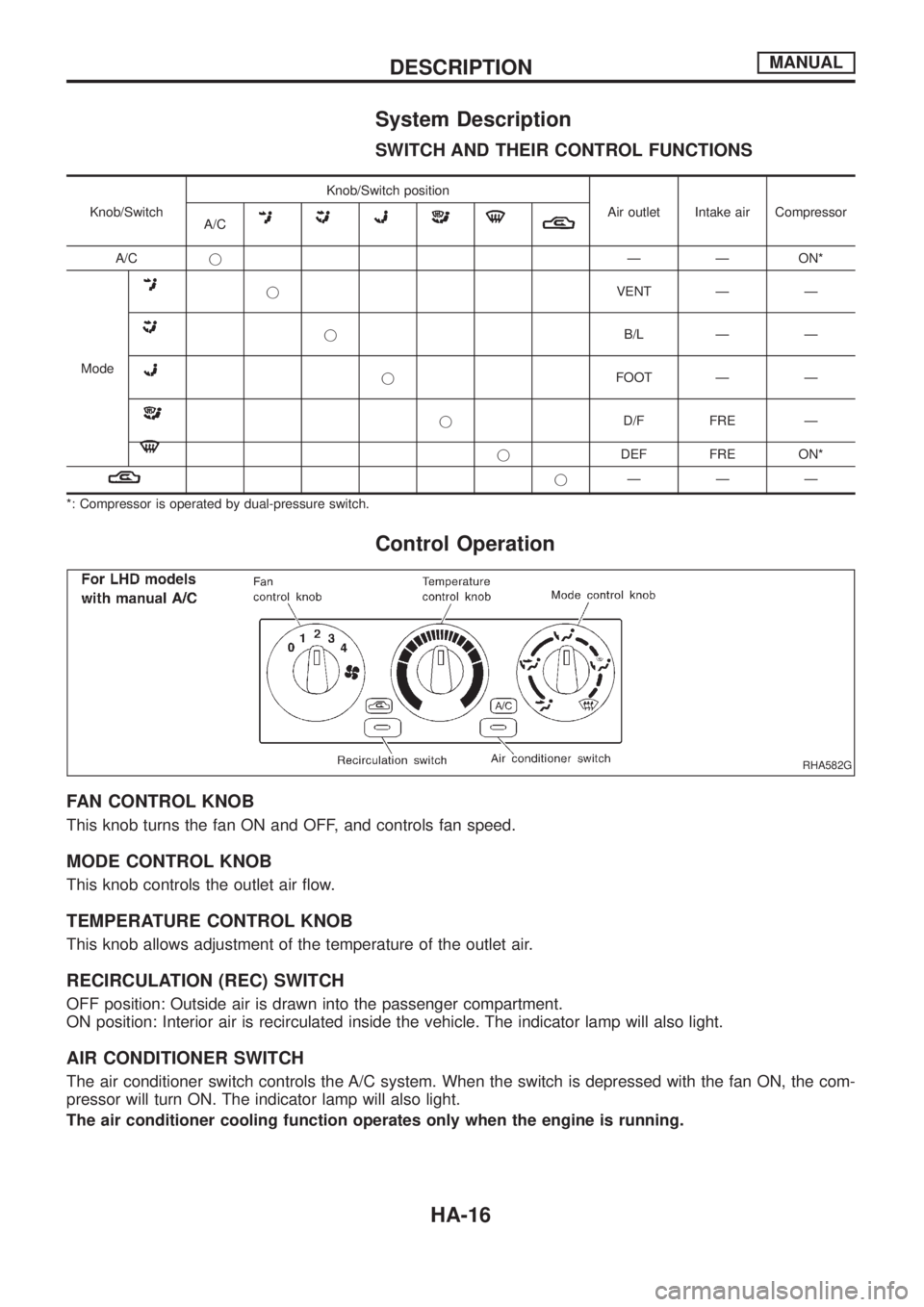

System Description
SWITCH AND THEIR CONTROL FUNCTIONS
Knob/SwitchKnob/Switch position
Air outlet Intake air Compressor
A/C
A/CjÐ Ð ON*
Mode
jVENT Ð Ð
jB/L Ð Ð
jFOOT Ð Ð
jD/F FRE Ð
jDEF FRE ON*
jÐÐÐ
*: Compressor is operated by dual-pressure switch.
Control Operation
FAN CONTROL KNOB
This knob turns the fan ON and OFF, and controls fan speed.
MODE CONTROL KNOB
This knob controls the outlet air ¯ow.
TEMPERATURE CONTROL KNOB
This knob allows adjustment of the temperature of the outlet air.
RECIRCULATION (REC) SWITCH
OFF position: Outside air is drawn into the passenger compartment.
ON position: Interior air is recirculated inside the vehicle. The indicator lamp will also light.
AIR CONDITIONER SWITCH
The air conditioner switch controls the A/C system. When the switch is depressed with the fan ON, the com-
pressor will turn ON. The indicator lamp will also light.
The air conditioner cooling function operates only when the engine is running.
RHA582G
DESCRIPTIONMANUAL
HA-16
Page 838 of 1226

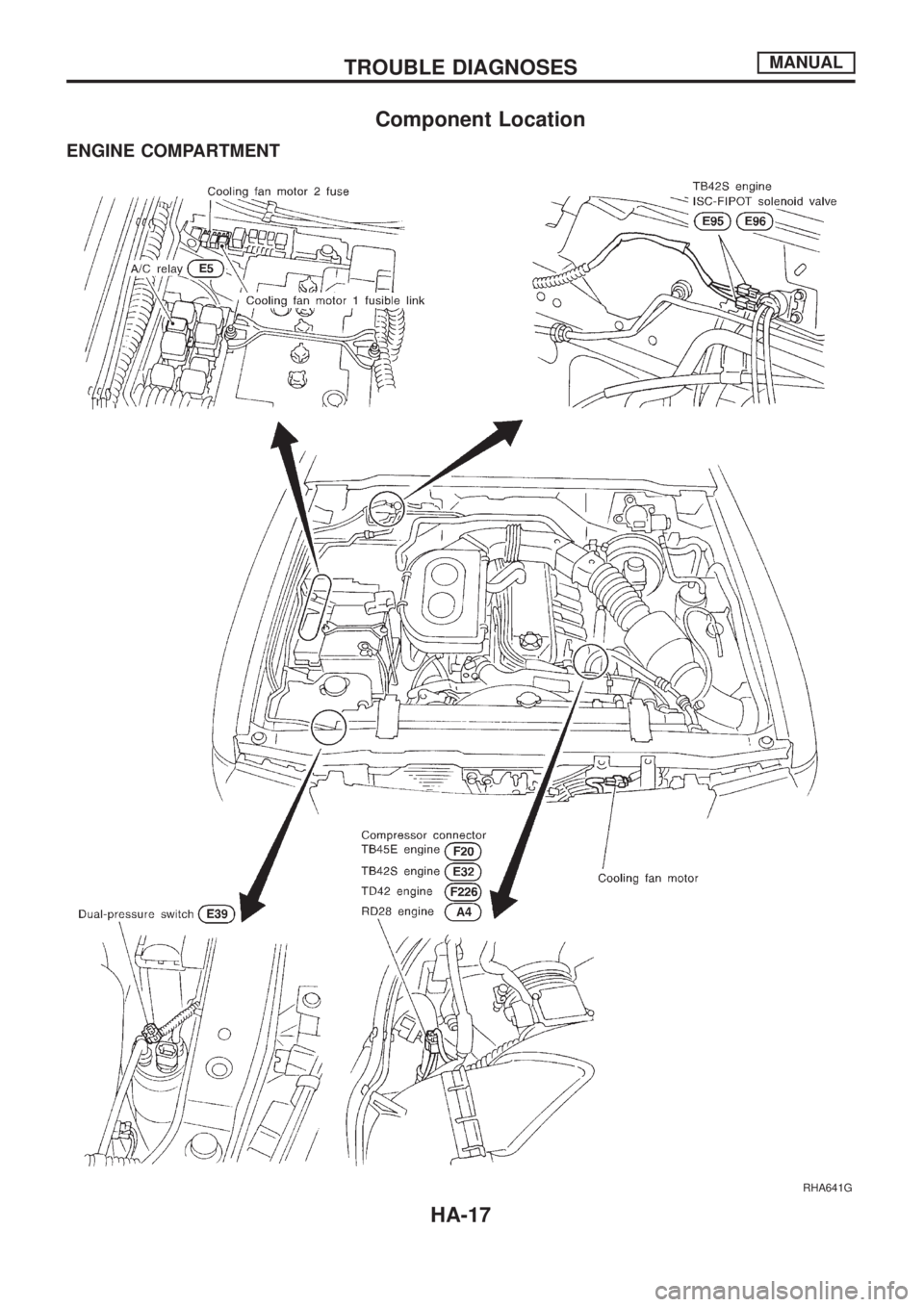

Component Location
ENGINE COMPARTMENT
RHA641G
TROUBLE DIAGNOSESMANUAL
HA-17
Page 839 of 1226

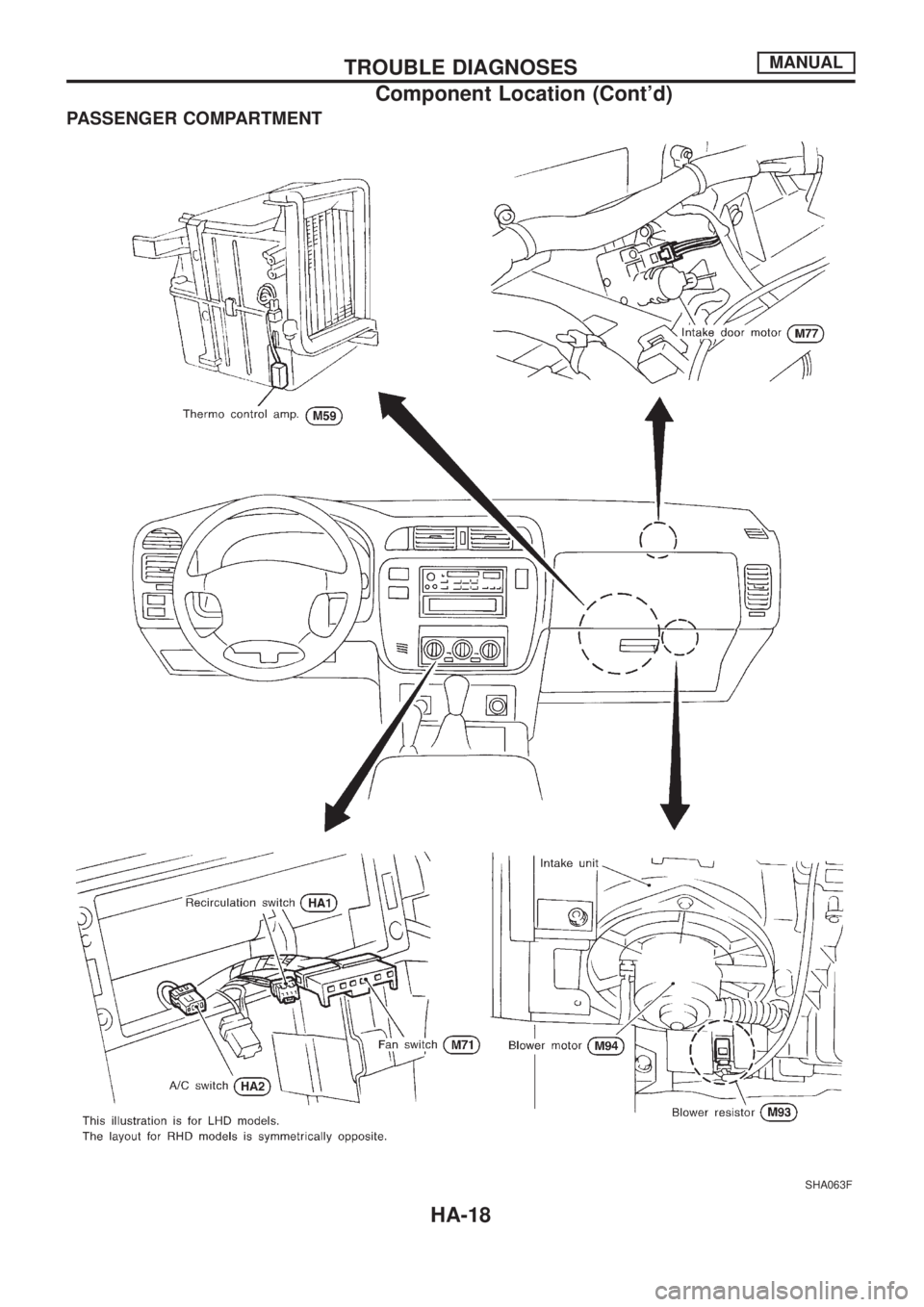

PASSENGER COMPARTMENT
SHA063F
TROUBLE DIAGNOSESMANUAL
Component Location (Cont'd)
HA-18
Page 840 of 1226

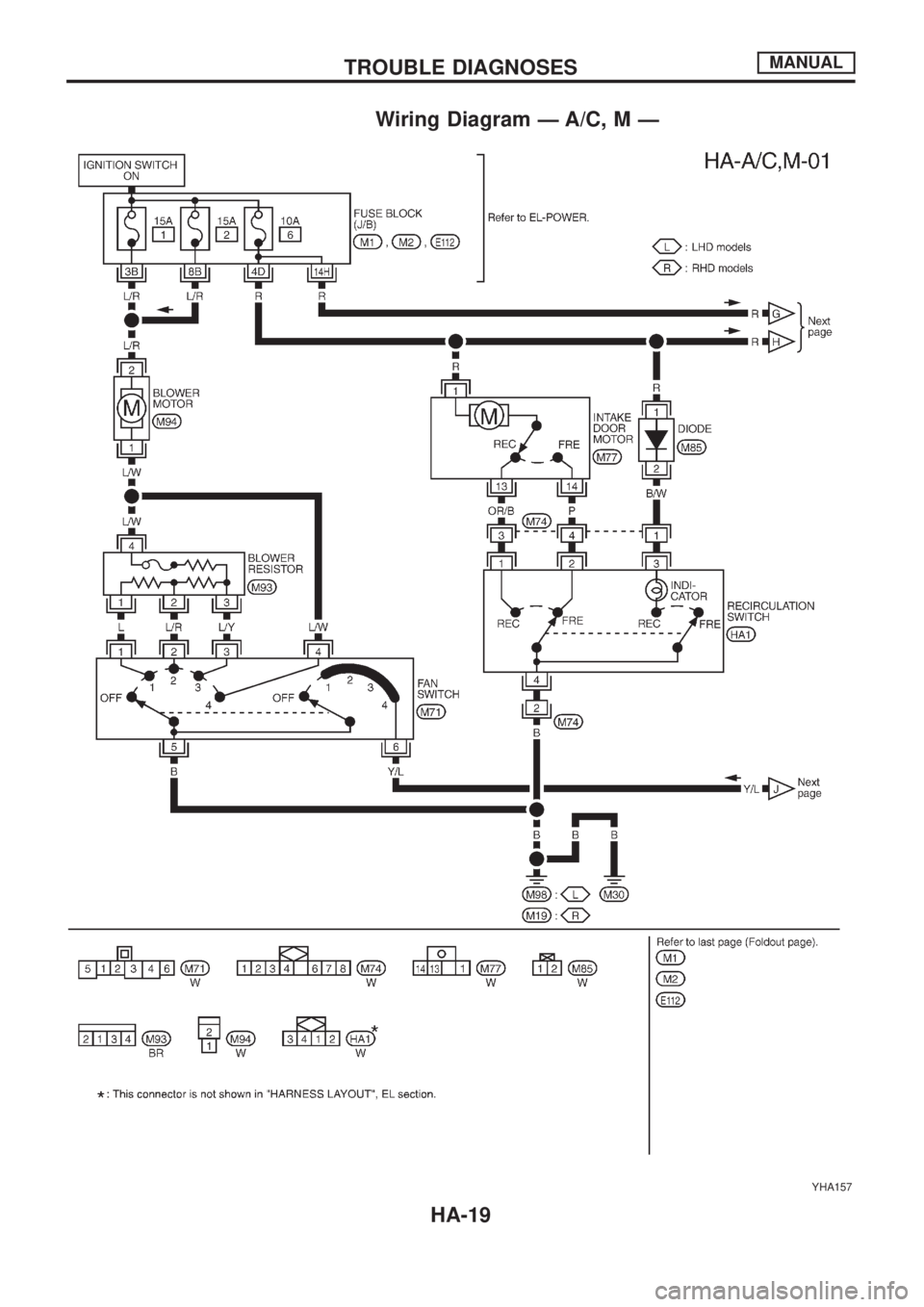

Wiring Diagram Ð A/C, M Ð
YHA157
TROUBLE DIAGNOSESMANUAL
HA-19
