MAINTENANCE SPECIFICATIONS
Item Standard
Lubrication chart:
Pressure feed
Splashed scavenge
Oil strainer
Oil pan Oil pump rotor 2
Oil pump rotor 1
Oil tank
Oil filter
Check ball
Cylinder head
Crank pinPiston pinPiston
Drive axleMain axleTransmission gears
Camshaft
Valve lifter

SPEC

2 - 11
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Spark plug M10S
×
1.0 1 13 1.3 9.4
Camshaft cap M6
×
1.0 10 10 1.0 7.2
Cylinder head blind plug screw M12
×
1.0 1 37 3.7 27
Cylinder head (stud bolt) M6
×
1.0 2 7 0.7 5.1
M8
×
1.25 1 15 1.5 11
(bolt) M10
×
1.25 4 Refer to NOTE.*
1

(nut) M6
×
1.0 2 10 1.0 7.2
Cylinder head cover M6
×
1.0 2 10 1.0 7.2
Cylinder M6
×
1.0 1 10 1.0 7.2
Timing chain tensioner M6
×
1.0 2 10 1.0 7.2
Tensioner cap bolt M6
×
1.0 1 7 0.7 5.1
Timing chain guide (rear) M6
×
1.0 2 10 1.0 7.2
Exhaust pipe (nut) M8
×
1.25 1 13 1.3 9.4
(bolt) M8
×
1.25 1 24 2.4 17
Silencer M8
×
1.25 2 35 3.5 25
Silencer clamp M8
×
1.25 1 20 2.0 14
Exhaust pipe protector M6
×
1.0 3 10 1.0 7.2
Clamp (cylinder head side) M5
×
0.8 1 3 0.3 2.2
Clamp (carburetor side) M4
×
0.7 1 3 0.3 2.2
Air filter case M6
×
1.0 2 8 0.8 5.8
Air filter joint clamp M6
×
1.0 1 3 0.3 2.2
Air filter joint and air filter case M5
×
0.8 1 4 0.4 2.9
Throttle cable cover M5
×
0.8 2 4 0.4 2.9
Hot starter plunger M12
×
1.0 1 2 0.2 1.4
Air filter element M6
×
1.0 1 2 0.2 1.4
Radiator panel (upper) M6
×
1.0 2 10 1.0 7.2
Radiator M6
×
1.0 6 10 1.0 7.2
Radiator hose clamp M6
×
1.0 8 2 0.2 1.4
Radiator pipe 1, 2 M10
×
1.0 2 10 1.0 7.2
Impeller M8
×
1.25 1 14 1.4 10
Water pump housing cover M6
×
1.0 3 10 1.0 7.2
Coolant drain bolt M6
×
1.0 1 10 1.0 7.2
Oil pump cover M4
×
0.7 1 3 0.3 2.2
Oil pump M6
×
1.0 3 10 1.0 7.2
Engine oil drain bolt (oil filter) M6
×
1.0 1 10 1.0 7.2
Oil filter cover M6
×
1.0 2 10 1.0 7.2
Oil delivery pipe 1 M10
×
1.25 1 20 2.0 14
M8
×
1.25 2 18 1.8 13
Oil delivery pipe 2 M6
×
1.0 1 10 1.0 7.2
Oil hose M6
×
1.0 2 10 1.0 7.2
Oil check bolt M6
×
1.0 1 10 1.0 7.2
Oil hose clamp–2 2 0.2 1.4
Clutch cover M6 × 1.0 7 10 1.0 7.2

SPEC
2 - 12
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.
NOTE:
*1: Tighten the cylinder head bolts to 30 Nm (3.0 m · kg, 22 ft · lb) in the proper tightening sequence,
remove and retighten the cylinder head bolts to 20 Nm (2.0 m · kg, 14 ft · lb) in the proper tightening
sequence, and then tighten the cylinder head bolts further to reach the specified angle 180˚ in the
proper tightening sequence.Crankcase cover (right) M6 × 1.0 10 10 1.0 7.2
Crankcase cover (left) M6 × 1.0 8 10 1.0 7.2
Crankcase M6 × 1.0 12 12 1.2 8.7
Clutch cable holder M6 × 1.0 1 10 1.0 7.2
Oil drain bolt (crankcase rear) M10 × 1.25 1 20 2.0 1.4
(crankcase left) M6 × 1.0 1 10 1.0 7.2
Oil drain bolt (frame) M8 × 1.25 1 23 2.3 17
Oil strainer (frame) M18 × 1.5 1 90 9.0 65
Crankcase bearing stopper M6 × 1.0 15 10 1.0 7.2
Drive axle oil seal stopper M6 × 1.0 2 10 1.0 7.2
Ratchet wheel guide M6 × 1.0 2 12 1.2 8.7
Stopper plate M6 × 1.0 2 12 1.2 8.7
Kick starter M8 × 1.25 1 33 3.3 24
Screw (kick starter) M6 × 1.0 1 7 0.7 5.1
Primary drive gear M20 × 1.0 1 75 7.5 54
Clutch boss M20 × 1.0 1 75 7.5 54
Push lever M6 × 1.0 1 10 1.0 7.2
Clutch spring M6 × 1.0 6 8 0.8 5.8
Balancer driven gear M14 × 1.0 1 50 5.0 36
Balancer weight plate M6 × 1.0 3 10 1.0 7.2
Drive sprocket M20 × 1.0 1 75 7.5 54
Drive sprocket cover M6 × 1.0 2 8 0.8 5.8
Shift pedal M6 × 1.0 1 12 1.2 8.7
Shift guide M6 × 1.0 2 10 1.0 7.2
Stopper lever M6 × 1.0 1 10 1.0 7.2
Segment M8 × 1.25 1 30 3.0 22 Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb

SPEC
2 - 13
MAINTENANCE SPECIFICATIONS
EC212201
CHASSIS
Item Standard Limit
Steering system:
Steering bearing type Taper roller bearing ----
Front suspension:
Front fork travel 300 mm (11.8 in) ----
Fork spring free length 460 mm (18.1 in) 455 mm (17.9 in)
Spring rate, STD K = 4.51 N/mm
(0.46 kg/mm, 25.8 lb/in)----
Optional spring/spacer Yes ----
Oil capacity 568 cm
3
(20.0 Imp oz, 19.2 US oz) ----
Oil level 135 mm (5.31 in) ----

(From top of outer tube with inner
tube and damper rod fully com-
pressed without spring.)80 ~ 150 mm (3.15 ~ 5.91 in) ----
Oil grade Suspension oil “01”----
Inner tube outer diameter 46 mm (1.81 in) ----
Front fork top endZero mm (Zero in)----
Rear suspension: USA, CDN,
AUS, NZ, ZAEUROPE
Shock absorber travel 132 mm
(5.20 in)←----
Spring free length 260 mm
(10.24 in)275 mm
(10.83 in)----
Fitting length 249 mm
(9.80 in)264 mm
(10.39 in)----
240.5 ~ 258.5 mm
(9.47 ~ 10.18 in)255.5 ~ 273.5mm
(10.06 ~ 10.77 in)----
Spring rate, STD K = 52.0 N/mm
(5.30 kg/mm,
296.8 lb/in)K = Approx.
52.0 N/mm
(5.30 kg/mm,
296.8 lb/in)----
Optional spring Yes←----
Enclosed gas pressure 1,000 kPa
(10 kg/cm
2,
142 psi)←----
Swingarm:
Swingarm free play limit
End ---- 1.0 mm (0.04 in)

SPEC
2 - 14

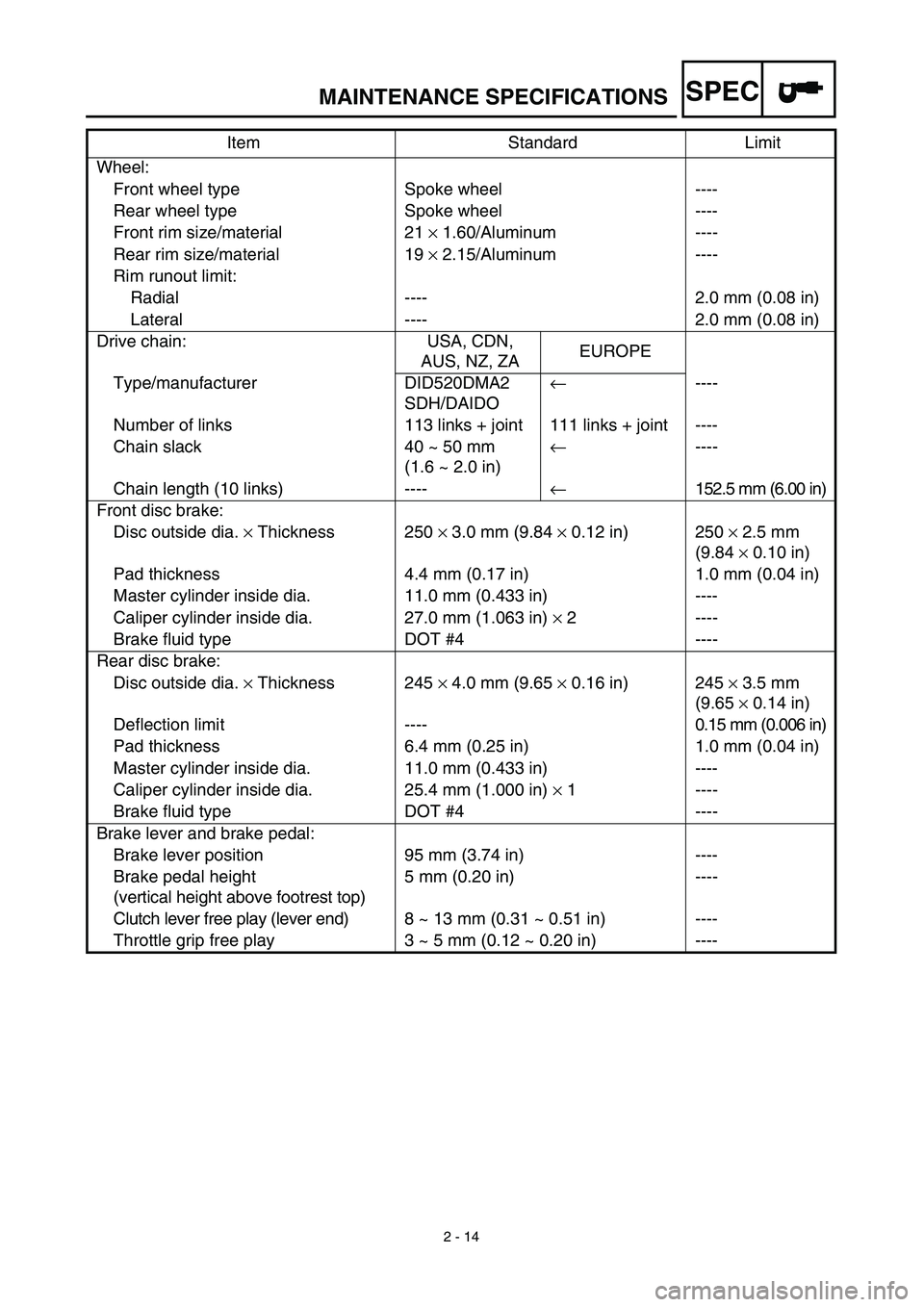

MAINTENANCE SPECIFICATIONS
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 21 × 1.60/Aluminum ----
Rear rim size/material 19 × 2.15/Aluminum ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)
Drive chain: USA, CDN,
AUS, NZ, ZAEUROPE
Type/manufacturer DID520DMA2
SDH/DAIDO←----
Number of links 113 links + joint 111 links + joint ----
Chain slack 40 ~ 50 mm
(1.6 ~ 2.0 in)←----
Chain length (10 links) ----←152.5 mm (6.00 in)
Front disc brake:
Disc outside dia. × Thickness 250 × 3.0 mm (9.84 × 0.12 in) 250 × 2.5 mm
(9.84 × 0.10 in)
Pad thickness 4.4 mm (0.17 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia. × Thickness 245 × 4.0 mm (9.65 × 0.16 in) 245 × 3.5 mm
(9.65 × 0.14 in)
Deflection limit ----0.15 mm (0.006 in)
Pad thickness 6.4 mm (0.25 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 25.4 mm (1.000 in) × 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 95 mm (3.74 in) ----
Brake pedal height
(vertical height above footrest top)5 mm (0.20 in) ----
Clutch lever free play (lever end) 8 ~ 13 mm (0.31 ~ 0.51 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

SPEC
2 - 15
MAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m • kg, 27 ft • lb) by using the ring nut
wrench, then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m • kg, 5.1 ft • lb). Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Handle crown and outer tube M8 × 1.25 4 23 2.3 17
Under bracket and outer tube M8 × 1.25 4 20 2.0 14
Handle crown and steering shaft M24 × 1.0 1 145 14.5 105
Handlebar holder (upper) M8 × 1.25 4 28 2.8 20
Steering ring nut M28 × 1.0 1 Refer to NOTE.
Front fork and cap bolt M48 × 1.0 2 30 3.0 22
Front fork and base valve M30 × 1.0 2 55 5.5 40
Cap bolt and damper rod (front fork) M12 × 1.25 2 29 2.9 21
Bleed screw (front fork) and cap bolt M5 × 0.8 2 1 0.1 0.7
Front fork and protector M6 × 1.0 6 10 1.0 7.2
Front fork and brake hose holder M6 × 1.0 2 10 1.0 7.2
Front fork and hose cover M8 × 1.25 1 16 1.6 11
Front fork and hose cover M6 × 1.0 1 7 0.7 5.1
Throttle cable cap M5 × 0.8 2 4 0.4 2.9
Clutch lever holder mounting M5 × 0.8 2 4 0.4 2.9
Clutch lever mounting M6 × 1.0 1 2 0.2 1.4
Hot starter lever holder mounting M5 × 0.8 2 4 0.4 2.9
Front brake master cylinder and bracket M6 × 1.0 2 9 0.9 6.5
Front brake master cylinder cap M4 × 0.7 2 2 0.2 1.4
Brake lever mounting (bolt) M6 × 1.0 1 6 0.6 4.3
Brake lever mounting (nut) M6 × 1.0 1 6 0.6 4.3
Brake lever position locknut M6 × 1.0 1 5 0.5 3.6
Cable guide (front brake hose) and guide stay M5 × 0.8 1 4 0.4 2.9
Front brake hose union bolt (master cylinder) M10 × 1.25 1 30 3.0 22
Front brake hose union bolt (caliper) M10 × 1.25 1 30 3.0 22
Front brake caliper and front fork M8 × 1.25 2 23 2.3 17
Brake caliper (front and rear) and pad pin plug M10 × 1.0 1 3 0.3 2.2
Brake caliper (front and rear) and pad pin M10 × 1.0 1 18 1.8 13
Brake caliper (front and rear) and bleed screw M8 × 1.25 1 6 0.6 4.3
Front wheel axle and nut M16 × 1.5 1 105 10.5 75
Front wheel axle holder M8 × 1.25 4 23 2.3 17
Front brake disc and wheel hub M6 × 1.0 6 12 1.2 8.7
Rear brake disc and wheel hub M6 × 1.0 6 14 1.4 10
Brake pedal mounting M8 × 1.25 1 26 2.6 19
Rear brake master cylinder and frame M6 × 1.0 2 11 1.1 8.0
Rear brake master cylinder cap M4 × 0.7 2 2 0.2 1.4
Rear brake hose union bolt (caliper) M10 × 1.25 1 30 3.0 22
Rear brake hose union bolt (master cylinder) M10 × 1.25 1 30 3.0 22

SPEC
2 - 16
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Rear wheel axle and nut M20 × 1.5 1 125 12.5 90
Driven sprocket and wheel hub M8 × 1.25 6 42 4.2 30
Nipple (spoke)–72 3 0.3 2.2
Disc cover and rear brake caliper M6 × 1.0 2 7 0.7 5.1
Protector and rear brake caliper M6 × 1.0 2 7 0.7 5.1
Chain puller adjust bolt and locknut M8 × 1.25 2 16 1.6 11
Engine mounting:
Engine upper bracket and frame M10 × 1.25 2 55 5.5 40
Engine lower bracket and frame M8 × 1.25 4 34 3.4 24
Engine and frame (front) M10 × 1.25 1 65 6.5 47
Engine and frame (upper) M10 × 1.25 1 55 5.5 40
Engine and frame (lower) M10 × 1.25 1 69 6.9 50
Engine guard (lower) M8 × 1.25 1 23 2.3 17
Engine skid plate mounting M6 × 1.0 6 10 1.0 7.2
CDI unit bracket mounting M6 × 1.0 1 10 1.0 7.2
Pivot shaft and nut M16 × 1.5 1 85 8.5 61
Relay arm and swingarm M14 × 1.5 1 80 8.0 58
Relay arm and connecting rod M14 × 1.5 1 80 8.0 58
Connecting rod and frame M14 × 1.5 1 80 8.0 58
Rear shock absorber and frame M10 × 1.25 1 56 5.6 40
Rear shock absorber and relay arm M10 × 1.25 1 53 5.3 38
Rear frame and frame (upper) M8 × 1.25 1 32 3.2 23
Rear frame and frame (lower) M8 × 1.25 2 29 2.9 21
Swingarm and brake hose holder M5 × 0.8 4 1 0.1 0.7
Swingarm and patch M4 × 0.7 4 2 0.2 1.4
Drive chain tensioner mounting (upper) M8 × 1.25 1 19 1.9 13
Drive chain tensioner mounting (lower) M8 × 1.25 1 20 2.0 14
Chain support and swingarm M6 × 1.0 3 7 0.7 5.1
Seal guard and swingarm M5 × 0.8 4 6 0.6 4.3
Fuel tank mounting M6 × 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 × 1.0 2 7 0.7 5.1
Fuel tank and seat set bracket M6 × 1.0 1 7 0.7 5.1
Fuel tank and hooking screw (fitting band) M6 × 1.0 1 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Seat mounting M8 × 1.25 2 23 2.3 17
Side cover mounting M6 × 1.0 2 7 0.7 5.1
Air scoop and fuel tank M6 × 1.0 6 4 0.4 2.9
Air scoop and radiator panel (lower) M6 × 1.0 2 4 0.4 2.9
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting (front) M6 × 1.0 2 7 0.7 5.1
Rear fender mounting (rear) M6 × 1.0 2 10 1.0 7.2
Number plate M6 × 1.0 1 7 0.7 5.1

SPEC
2 - 17
MAINTENANCE SPECIFICATIONS
EC212300
ELECTRICAL
Item Standard Limit
Ignition system:
Advancer type Electrical ----
C.D.I.:
Magneto-model (stator)/manufacturer 5SF-00/YAMAHA ----
Source coil 1 resistance (color) 720 ~ 1,080 Ω at 20 ˚C (68 ˚F)
(Green – Brown)----
Source coil 2 resistance (color) 44 ~ 66 Ω at 20 ˚C (68 ˚F)
(Black – Pink)----
Pickup coil resistance (color) 248 ~ 372 Ω at 20 ˚C (68 ˚F)
(White – Red)----
CDI unit-model/manufacturer 5TA-00/YAMAHA ----
Ignition coil:
Model/manufacturer 5TA-00/DENSO ----
Minimum spark gap 6 mm (0.24 in) ----
Primary winding resistance 0.08 ~ 0.10 Ω at 20 ˚C (68 ˚F) ----
Secondary winding resistance 4.6 ~ 6.8 kΩ at 20 ˚C (68 ˚F) ----
Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Stator M6 × 1.0 3 10 1.0 7.2
Rotor M12 × 1.25 1 56 5.6 40
Neutral switch M5 × 0.8 2 4 0.4 2.9
