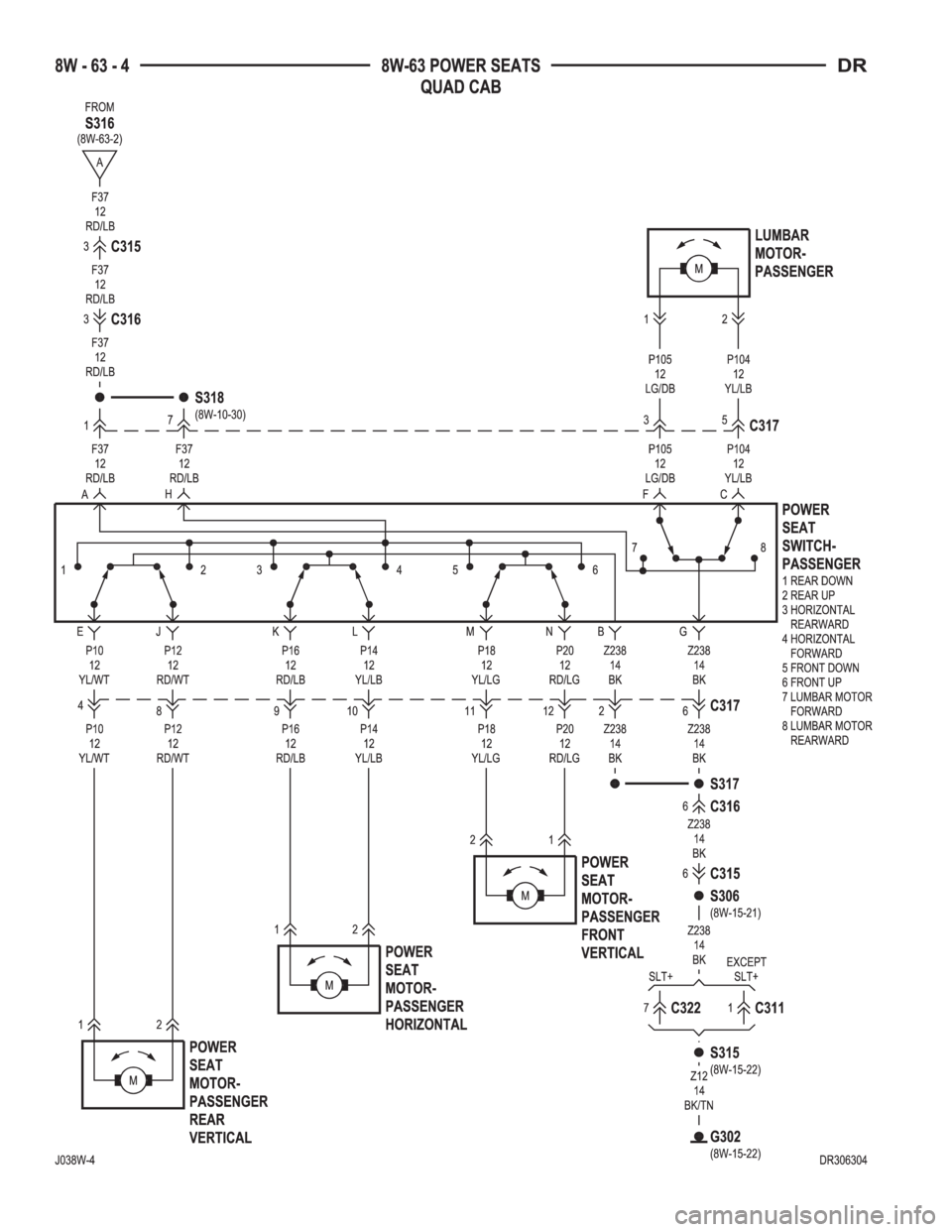

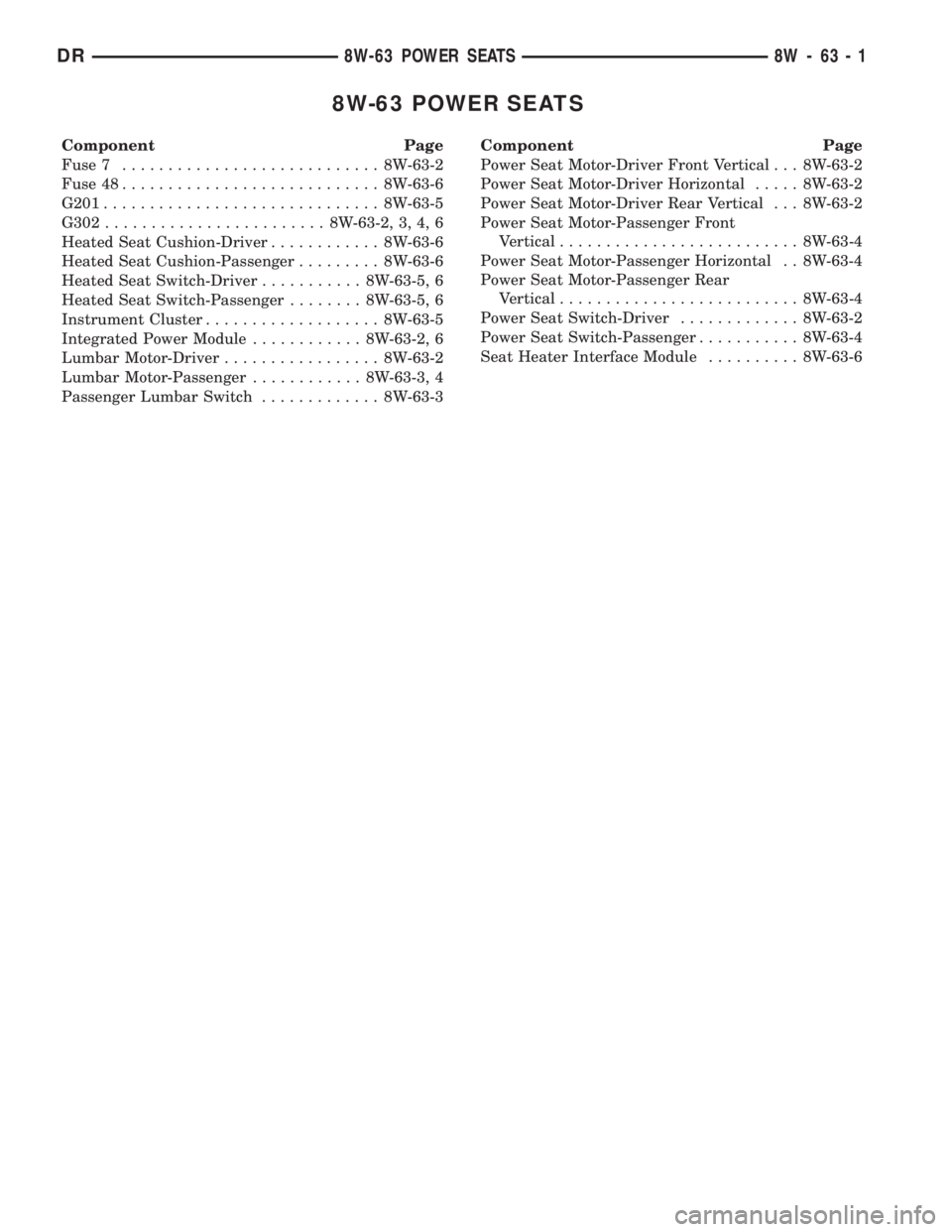

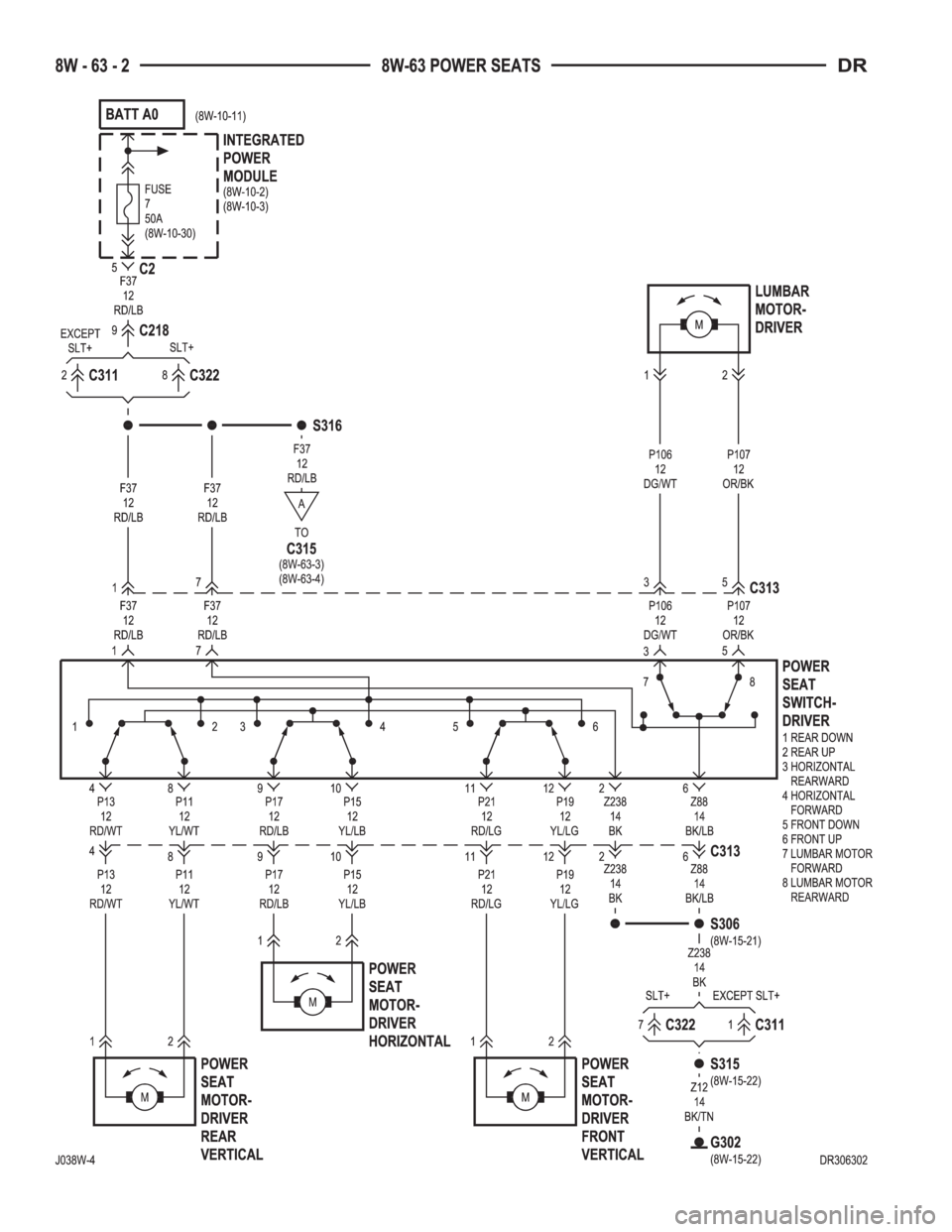

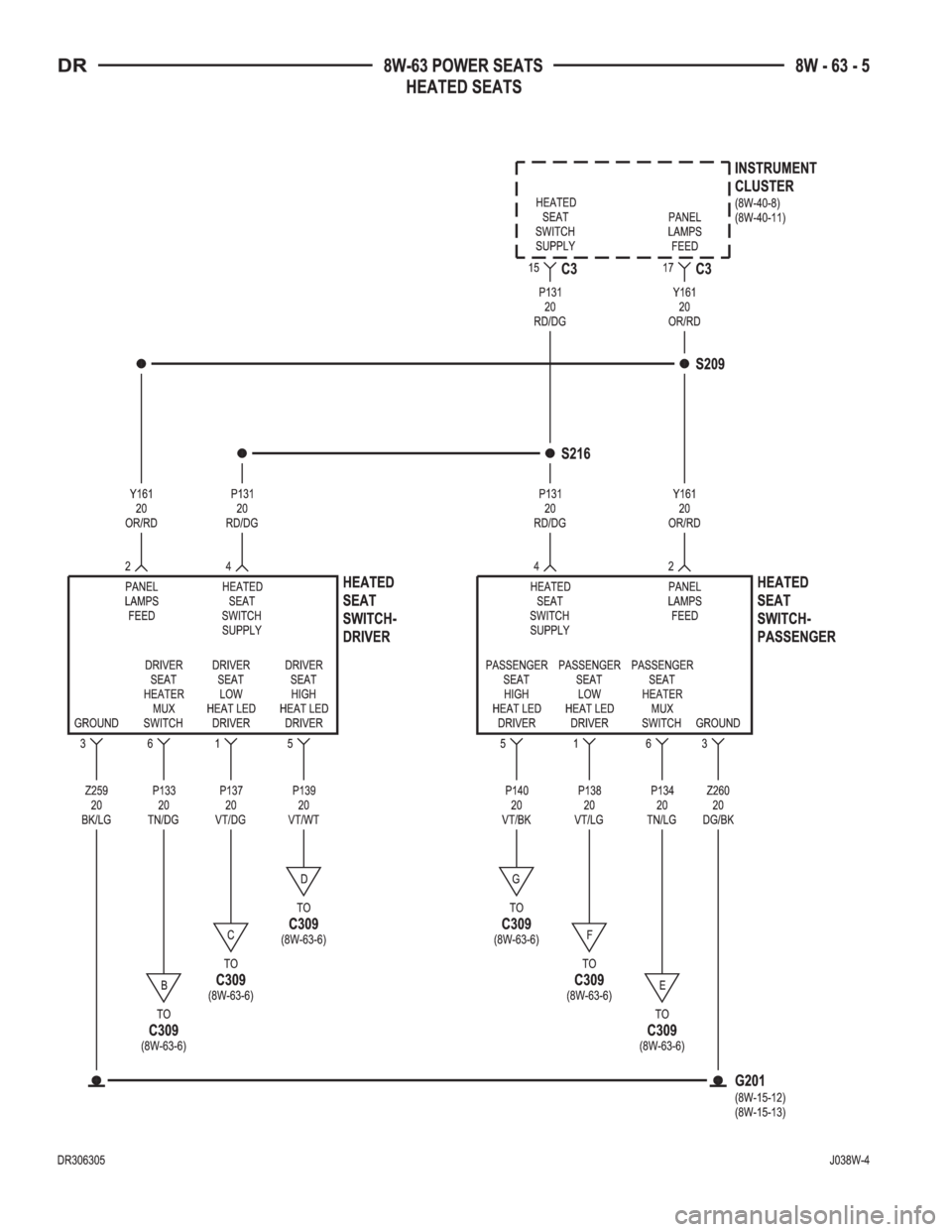

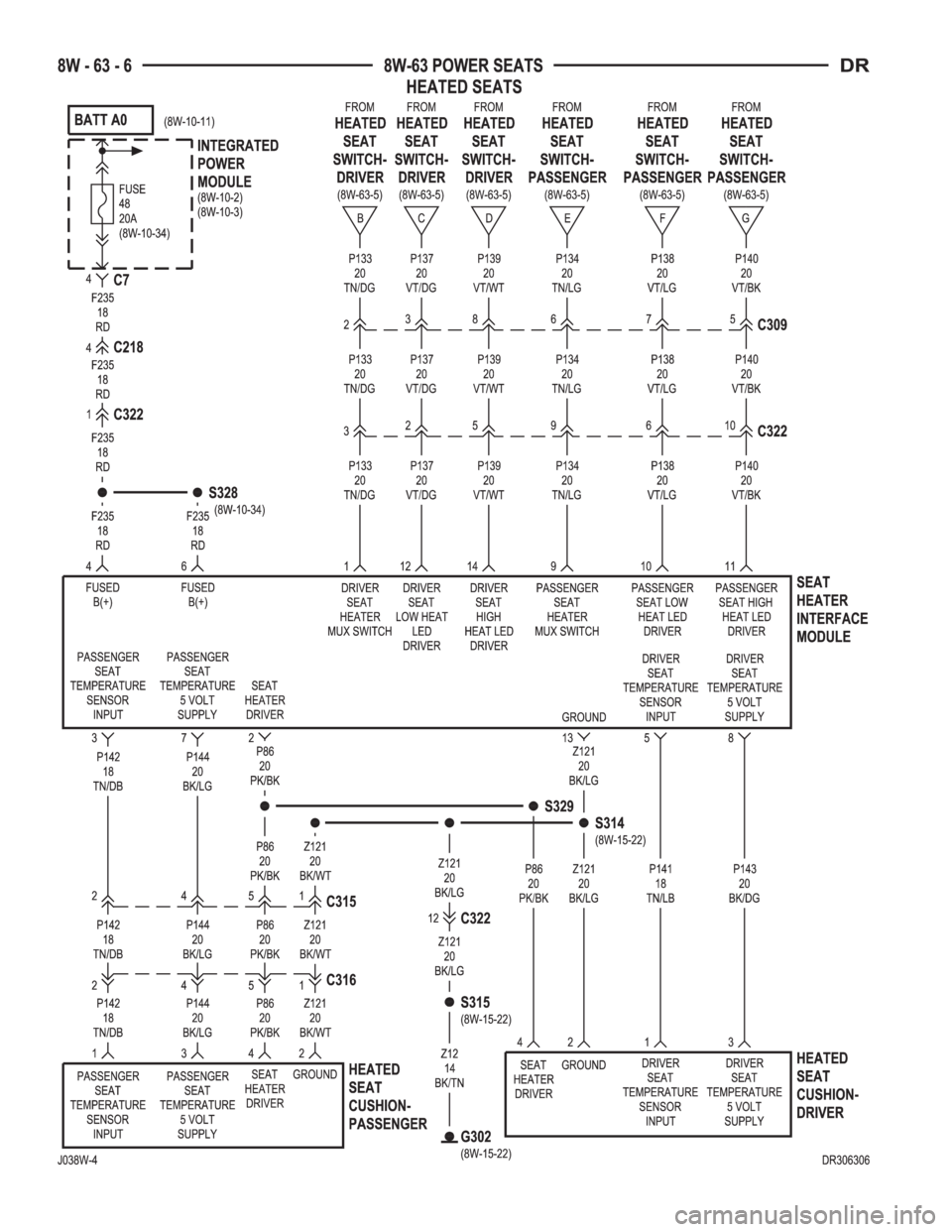

DODGE RAM 2003 Service Repair Manual 8W-63 POWER SEATS
Component Page
Fuse 7............................ 8W-63-2
Fuse 48............................ 8W-63-6
G201.............................. 8W-63-5
G302........................ 8W-63-2,

Page 1051 of 2895

Page 1052 of 2895

Page 1053 of 2895

Page 1054 of 2895

Page 1055 of 2895

Page 1056 of 2895

DODGE RAM 2003 Service Repair Manual 8W-70 SPLICE INFORMATION
Component PageS101................................8W-15-7
S102...............................8W-10-36
S103................................8W-70-2
S104.........................

8W-70 SPLICE INFORMATION
Component PageS101................................8W-15-7
S102...............................8W-10-36
S103................................8W-70-2
S104...............................8W-10-38
S105................................8W-15-2
S106...............................8W-10-36
S107...............................8W-10-38
S108................................8W-33-6
S109...............................8W-10-38
S110 ...............................8W-10-33
S111 ................................8W-20-2
S112 ...............................8W-10-23
S114 ...............................8W-10-30
S117 ................................8W-34-2
S119 ...............................8W-10-54
S120...............................8W-10-52
S121................................8W-33-6
S122...............................8W-10-39
S123................................8W-21-4
S124................................8W-21-4
S125.............................8W-10-27, 29
S126...............................8W-10-41
S127...............................8W-30-82
S129...............................8W-30-82
S130..........................8W-70-3, 4, 5, 6, 8
S131..............................8W-70-3, 4
S132..........................8W-70-3, 4, 5, 6, 8
S133.............................8W-30-20, 21
S134...........................8W-31-6, 14, 49
S135...............................8W-10-18
S136.............................8W-10-43, 44
S137...............................8W-10-21
S138...............................8W-10-25
S139...............................8W-10-25
S140...............................8W-10-58
S141...............................8W-10-21
S142...............................8W-10-24
S143.............................8W-10-21, 23
S144........................8W-70-3, 4, 5, 6, 7, 8
S145...............................8W-10-32
S146...............................8W-10-46
S147...............................8W-10-24
S148...............................8W-10-22
S149...............................8W-10-22
S150..............................8W-70-10, 9
S152...............................8W-30-23
S154...............................8W-30-55
S155.............................8W-10-19, 58
S156...............................8W-10-43
S157...............................8W-30-72
S158...............................8W-30-68
S159...............................8W-30-67
S160.............................8W-10-20, 67
S162...............................8W-10-19
S163.............................8W-10-20, 65
S164...............................8W-15-11
S165................................8W-20-4
S166................................8W-20-4
S168...............................8W-30-45
S169...............................8W-30-47
S170...............................8W-30-69
S171...............................8W-30-67
S172...............................8W-70-12
S173.............................8W-70-11, 68
S174...............................8W-30-69
S175...............................8W-30-69
S176...............................8W-15-11
S178...............................8W-30-17
S179................................8W-31-9
S181...............................8W-30-16Component PageS182...............................8W-10-25
S183..............................8W-15-9, 16
S184...............................8W-30-16
S186...............................8W-10-44
S191...............................8W-10-49
S201...............................8W-10-42
S202................................8W-44-2
S204...............................8W-10-32
S205...............................8W-10-45
S206..............................8W-33-3, 4
S207..............................8W-33-3, 4
S208...............................8W-15-15
S209................................8W-63-5
S210...............................8W-40-13
S212...............................8W-10-50
S213...............................8W-10-33
S214................................8W-33-6
S216................................8W-63-5
S217................................8W-47-4
S218................................8W-47-4
S219................................8W-47-7
S220................................8W-47-7
S221...............................8W-10-33
S222...............................8W-10-46
S224................................8W-42-2
S225...............................8W-10-46
S226..............................8W-42-5, 6
S228...........................8W-33-4, 18, 90
S230................................8W-18-4
S231..............................8W-18-5, 6
S301...............................8W-10-42
S302................................8W-44-2
S304...............................8W-10-45
S305..............................8W-18-5, 6
S306...............................8W-15-21
S307...............................8W-15-15
S308................................8W-15-3
S309.............................8W-15-3, 4, 6
S310...............................8W-15-18
S311 ...............................8W-15-20
S312...............................8W-15-19
S313...............................8W-15-19
S314...............................8W-15-22
S315...............................8W-15-22
S316..............................8W-63-2, 30
S317............................8W-63-3, 4, 21
S318...............................8W-10-30
S319...............................8W-15-21
S320................................8W-40-2
S321................................8W-40-7
S322................................8W-61-4
S323..............................8W-61-4, 8
S324...............................8W-10-36
S325...............................8W-10-52
S326...............................8W-10-37
S327...............................8W-10-36
S328...............................8W-10-34
S329................................8W-63-6
S330...............................8W-10-35
S331...............................8W-10-35
S332................................8W-62-2
S333................................8W-60-4
S334..............................8W-62-3, 47
S335...............................8W-10-46
S336..............................8W-50-6, 37
S337..............................8W-50-6, 16
S340................................8W-15-3
S341................................8W-15-3
S342...............................8W-10-37
S343...............................8W-10-37
DR8W-70 SPLICE INFORMATION 8W - 70 - 1
