Page 1185 of 2895

DODGE RAM 2003 Service Repair Manual CONNECTOR NAME/NUMBER COLOR LOCATION FIG. Speed Control Switch-Right (ETC) WT At Steering Wheel N/S Tail/Stop/Turn Signal Lamp-Left BK At Lamp N/S Tail/Stop/Turn Signal Lamp-Right BK At Lamp N/S Throt

Page 1186 of 2895

DODGE RAM 2003 Service Repair Manual GROUNDS GROUND NUMBERLOCATION FIG. G100 Left Front Engine N/S G101 Left Front Engine N/S G102 Left Front Chassis N/S G103 Left Front Engine Compartment 26 G104 Left Front Engine Compartment 26 G105 Ri

Page 1187 of 2895

DODGE RAM 2003 Service Repair Manual SPLICE NUMBERLOCATION FIG. S126 Center Rear of Engine Compartment N/S S128 Right Rear of Engine 3, 22 S129 Top Front of Transmission 3, 23 S130 Top Front of Transmission 3, 8, 9, 12, 14, 16, 17, 21, 2

Page 1188 of 2895

DODGE RAM 2003 Service Repair Manual SPLICE NUMBERLOCATION FIG. S183 Top of Transmission 12 S184 Top of Transmission 12 S191 Near Integrated Power Module 29 S197 Left Rear Engine Compartment 23 S201 Left Side of Instrument Panel 37 S204

Page 1189 of 2895

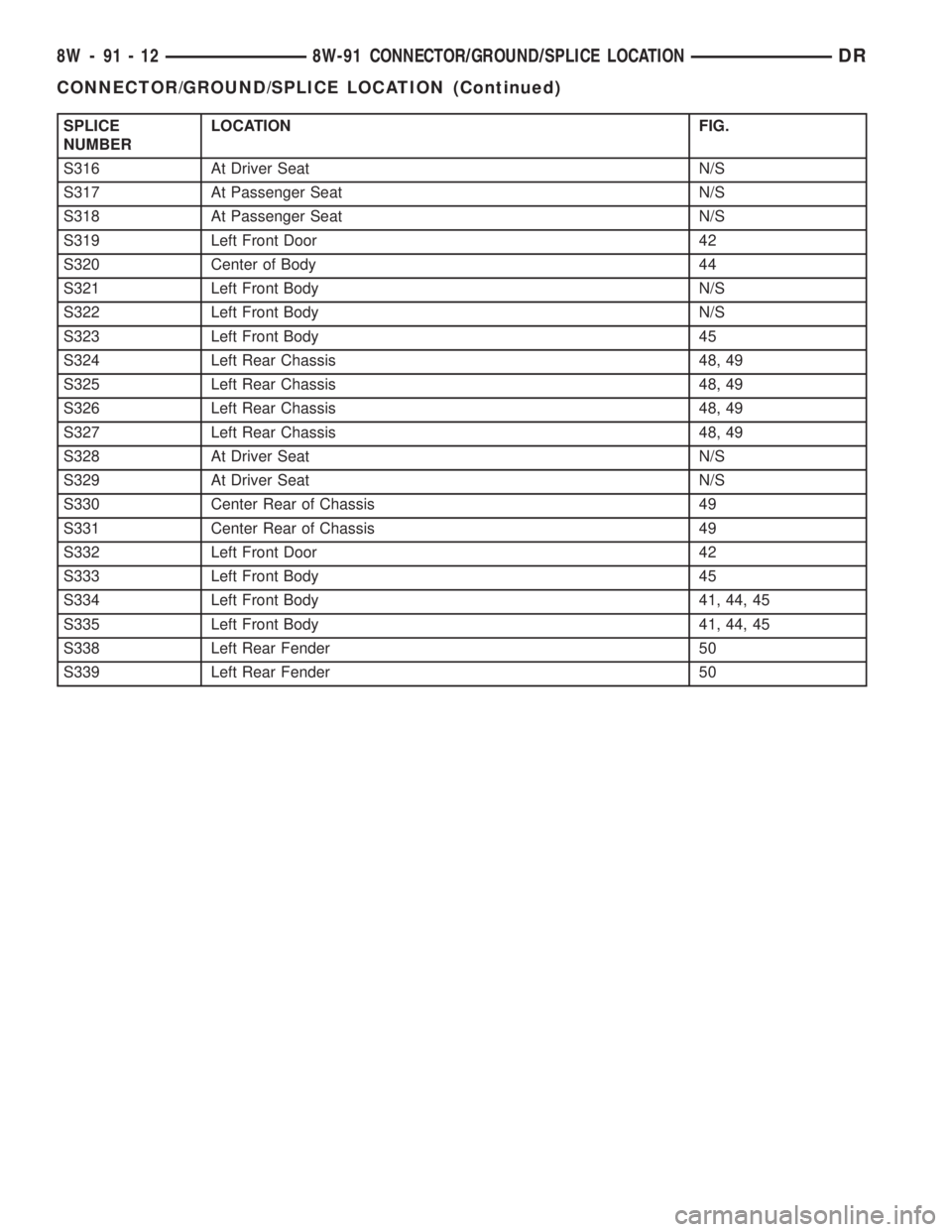

DODGE RAM 2003 Service Repair Manual SPLICE NUMBERLOCATION FIG. S316 At Driver Seat N/S S317 At Passenger Seat N/S S318 At Passenger Seat N/S S319 Left Front Door 42 S320 Center of Body 44 S321 Left Front Body N/S S322 Left Front Body N/

Page 1190 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 1 RIGHT SIDE FRONT LIGHTING Fig. 2 LEFT FRONT BUMPER AND RIGHT BATTERY TRAY DR8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 13 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1191 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 3 RIGHT SIDE ENGINE, 4.7L 8W - 91 - 14 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONDR CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1192 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 4 LEFT SIDE ENGINE, 4.7L DR8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 15 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
