DODGE RAM 2003  Service Repair Manual (7) Install lock ball in dimple at front of shaft.
Hold ball in place with petroleum jelly if desired.
(8) Install front thrust washer on shaft and slide
washer up against gear and over lock ball (Fig

Page 1866 of 2895

DODGE RAM 2003  Service Repair Manual GEARTRAIN ASSEMBLY
(1) Install Adapter 6747-1A on input shaft hub of
Fixture 6747 (Fig. 81). Then install Adapter 6747-2A
on front bearing hub of countershaft. Be sure the
shoulder is seated against t

Page 1867 of 2895

DODGE RAM 2003  Service Repair Manual (6) Install assembled output shaft and geartrain in
input shaft (Fig. 85). Carefully rotate output shaft
until the 3-4 synchro ring seats in synchro hub and
sleeve.
(7) Install Adapter 6747-2A on fron

Page 1868 of 2895

DODGE RAM 2003  Service Repair Manual (11) On 2-wheel drive transmission, thread one
Alignment Pin 8120 in center or passenger side hole
of output shaft bearing retainer. Then position
retainer on fifth gear as shown (Fig. 88).
(12) Assem

Page 1869 of 2895

DODGE RAM 2003  Service Repair Manual (2) Apply liberal quantity of petroleum jelly to
countershaft rear bearing and bearing race.
(3) Install countershaft rear bearing in bearing
race (Fig. 92).
NOTE: Large diameter side of the roller re

Page 1870 of 2895

DODGE RAM 2003  Service Repair Manual (9) Apply Mopar Gasket Maker or equivalent to
housing bolt threads, bolt shanks and under bolt
heads (Fig. 95).
(10) Start first two bolts in retainer (Fig. 96). It
may be necessary to move retainer r

Page 1871 of 2895

DODGE RAM 2003  Service Repair Manual (8) Install adapter housing on geartrain.
(9) Install rear bearing snap ring on output shaft
(Fig. 98).
(10) Lubricate lip of new rear seal (Fig. 99) with
Mopar Door Ease, or transmission fluid.
(11)

Page 1872 of 2895

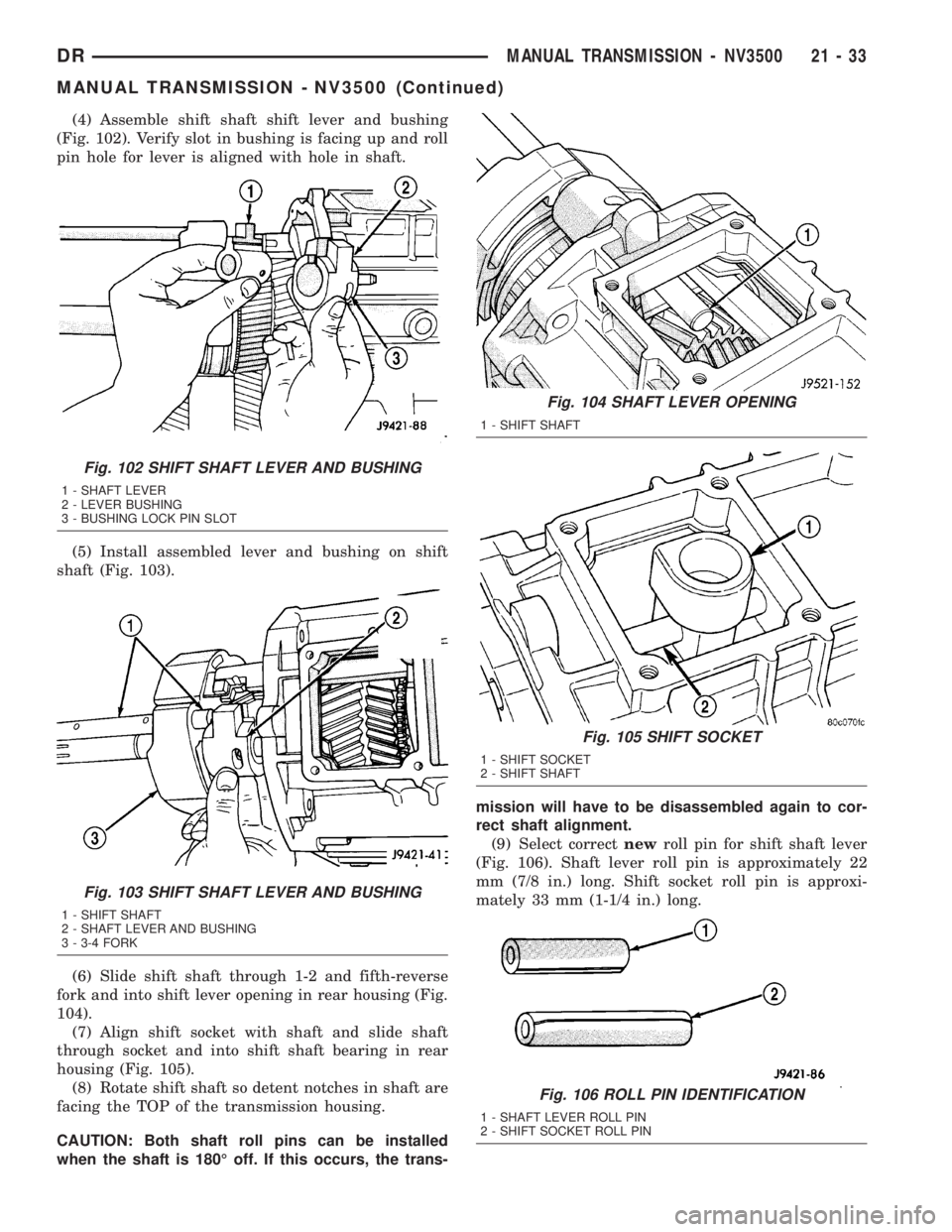

DODGE RAM 2003  Service Repair Manual (4) Assemble shift shaft shift lever and bushing
(Fig. 102). Verify slot in bushing is facing up and roll
pin hole for lever is aligned with hole in shaft.
(5) Install assembled lever and bushing on s
