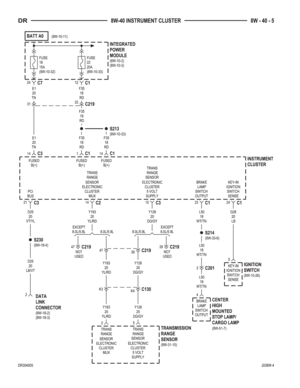

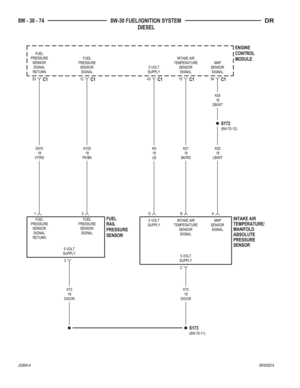

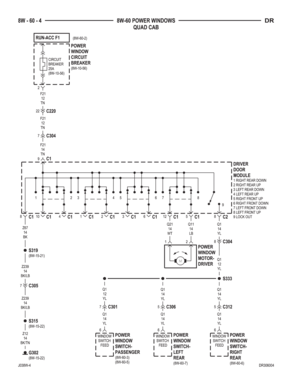

2003 DODGE RAM Service Repair Manual

steering wheel adjustmentgas tank sizeturn signalwinter tiresbrake pads replacementrelay
Popular search:
brakesairbag disableheightcoolant capacityengine oil capacityfuel capfuel additives
Previous
Next

Page 1 of 2895

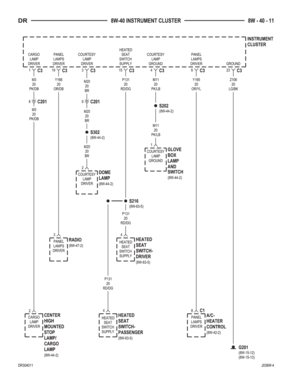

DODGE RAM 2003 Service Repair Manual GROUP TAB LOCATOR Introduction 0Lubrication & Maintenance 2Suspension 3Differential & Driveline 5Brakes 6Clutch 7Cooling 8AAudio 8BChime/Buzzer 8EElectronic Control Modules 8FEngine Systems 8GHeated S

Page 2 of 2895

DODGE RAM 2003 Service Repair Manual INTRODUCTION TABLE OF CONTENTS page page VEHICLE SAFETY CERTIFICATION LABEL DESCRIPTION..........................1 VEHICLE IDENTIFICATION NUMBER DESCRIPTION..........................2 VEHICLE EMISSION

Page 3 of 2895

DODGE RAM 2003 Service Repair Manual VEHICLE IDENTIFICATION NUMBER DESCRIPTION VIN CODING/LOCATIONS The Vehicle Identification Number (VIN) plate is located on the lower windshield fence near the left a-pillar (Fig. 2). The VIN contains

Page 4 of 2895

DODGE RAM 2003 Service Repair Manual POSITION INTERPRETATION CODE = DESCRIPTION 8 Engine K = 3.7L 6 cyl. MPI Gasoline N = 4.7L 8 cyl. MPI Gasoline D = 5.7L 8 cyl. SMPI Gasoline 6 = 5.9L 6 cyl. Turbo Diesel C = 5.9L 6 cyl. Turbo Diesel Hi

Page 5 of 2895

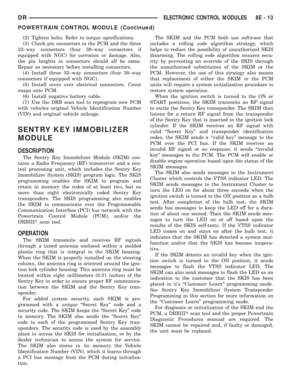

DODGE RAM 2003 Service Repair Manual BODY CODE PLATE DESCRIPTION The Body Code Plate (Fig. 5) is located on the right front hydroform fender rail just behind the headlight assembly (Fig. 4). There are seven lines of informa- tion on the

Page 6 of 2895

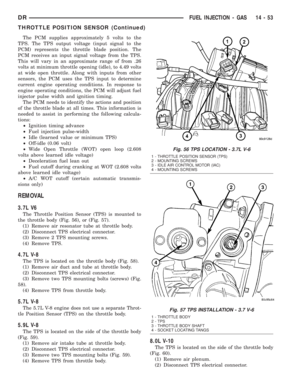

DODGE RAM 2003 Service Repair Manual DIGIT 19 Price Class ²L = Low ²H = Highline DIGITS 20 AND 21 Body Type ²41 = Ram Truck Quad Cab, Short Box ²42 = Ram Truck Quad Cab, Long Box ²61 = Ram Truck Standard Cab, Short Box ²62 = Ram Tr

Page 7 of 2895

DODGE RAM 2003 Service Repair Manual INTERNATIONAL VEHICLE CONTROL & DISPLAY SYMBOLS DESCRIPTION - INTERNATIONAL SYMBOLS The graphic symbols illustrated in the following International Control and Display Symbols Chart are used to identif

Page 8 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 6 FASTENER IDENTIFICATION DRINTRODUCTION 7 FASTENER IDENTIFICATION (Continued)
