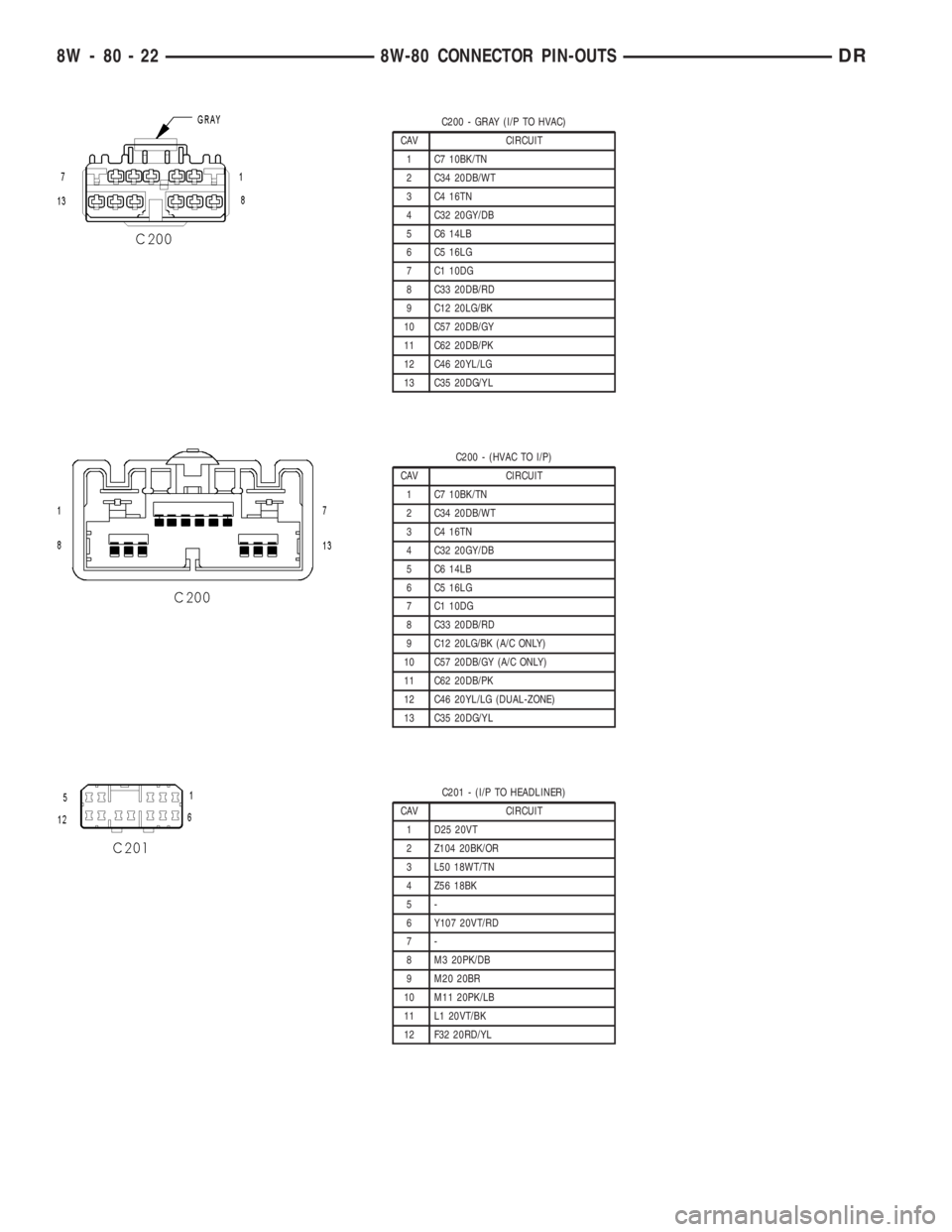

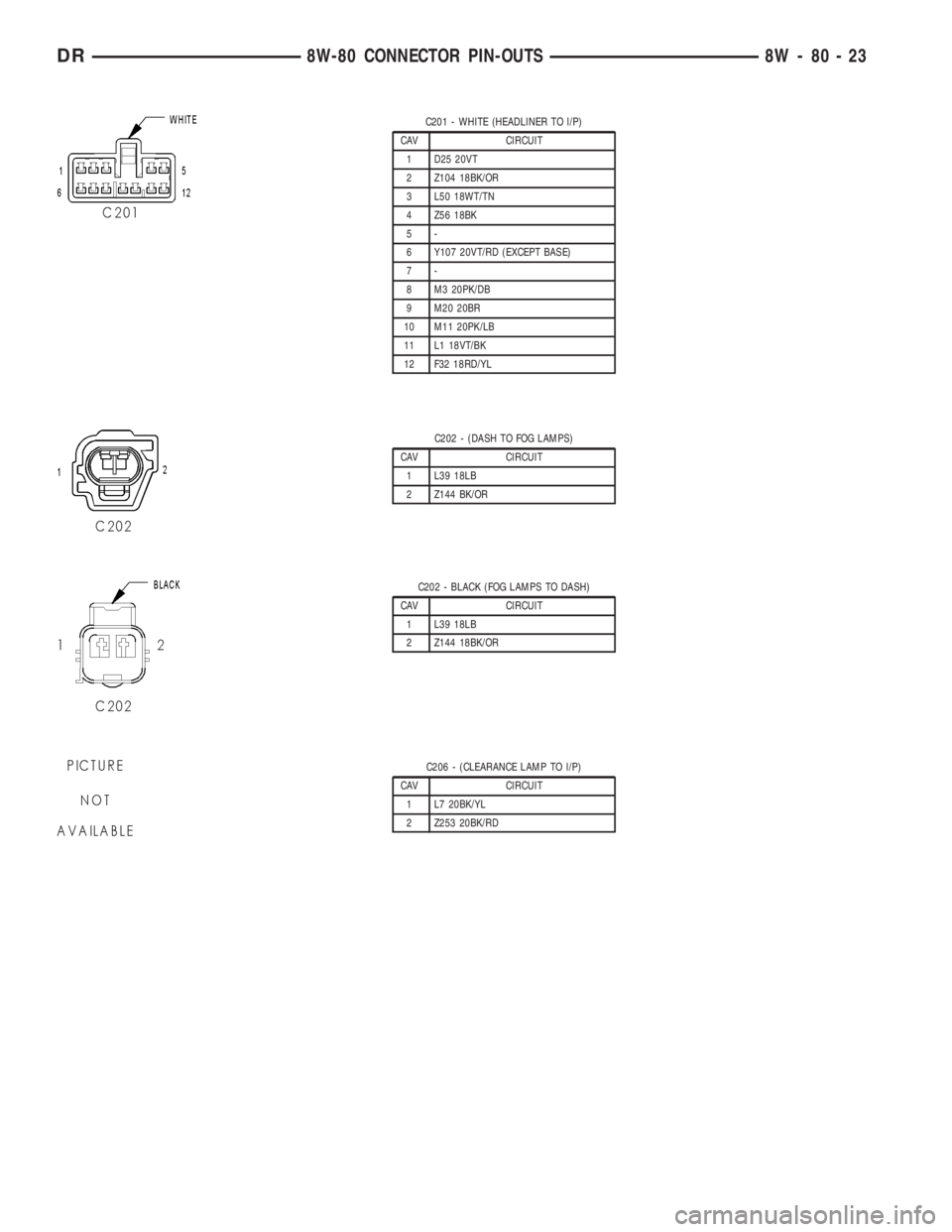

DODGE RAM 2003 Service Repair Manual C200 - GRAY (I/P TO HVAC) CAV CIRCUIT 1 C7 10BK/TN 2 C34 20DB/WT 3 C4 16TN 4 C32 20GY/DB 5 C6 14LB 6 C5 16LG 7 C1 10DG 8 C33 20DB/RD 9 C12 20LG/BK 10 C57 20DB/GY 11 C62 20DB/PK 12 C46 20YL/LG 13 C35 2

Page 1090 of 2895

DODGE RAM 2003 Service Repair Manual C201 - WHITE (HEADLINER TO I/P) CAV CIRCUIT 1 D25 20VT 2 Z104 18BK/OR 3 L50 18WT/TN 4 Z56 18BK 5- 6 Y107 20VT/RD (EXCEPT BASE) 7- 8 M3 20PK/DB 9 M20 20BR 10 M11 20PK/LB 11 L1 18VT/BK 12 F32 18RD/YL C2

Page 1091 of 2895

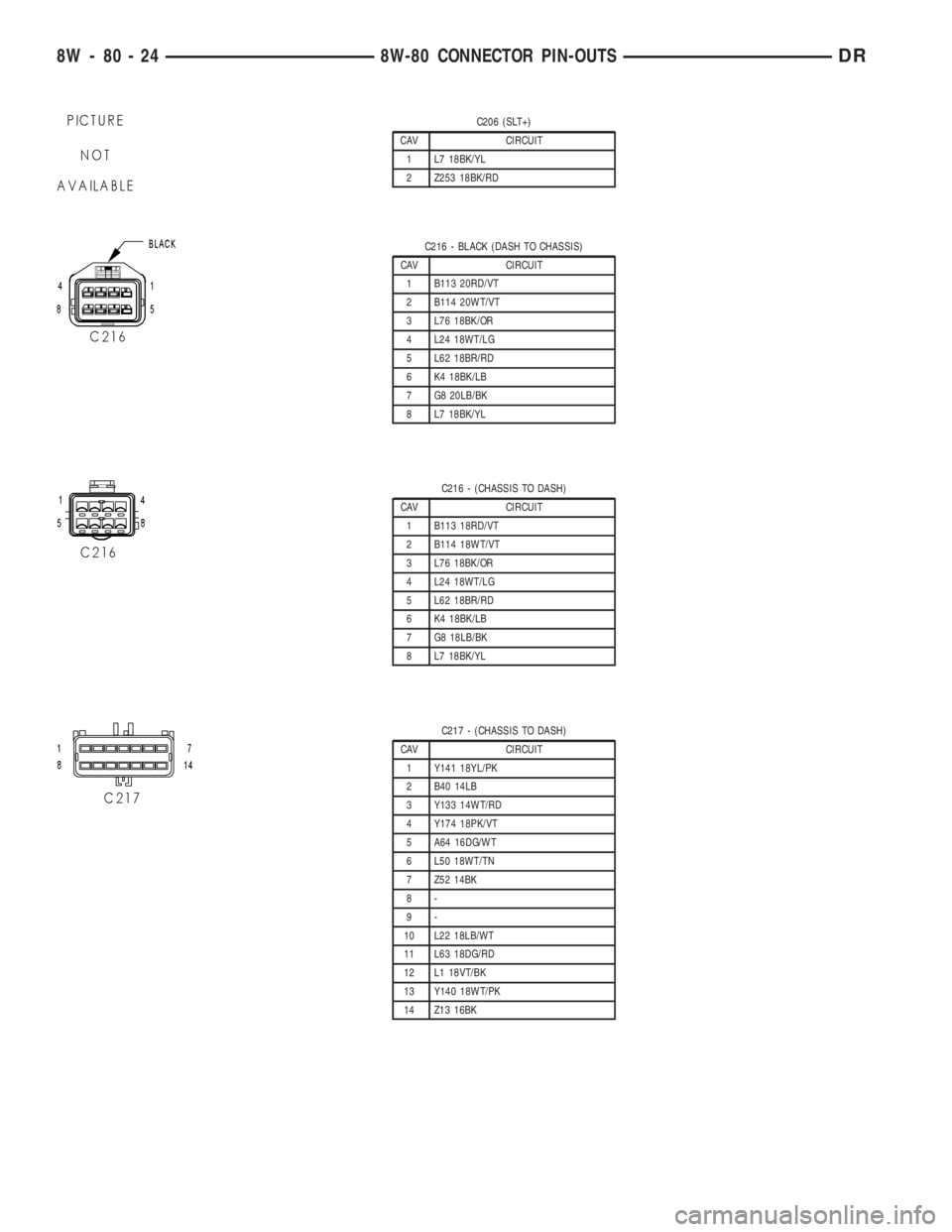

DODGE RAM 2003 Service Repair Manual C206 (SLT+) CAV CIRCUIT 1 L7 18BK/YL 2 Z253 18BK/RD C216 - BLACK (DASH TO CHASSIS) CAV CIRCUIT 1 B113 20RD/VT 2 B114 20WT/VT 3 L76 18BK/OR 4 L24 18WT/LG 5 L62 18BR/RD 6 K4 18BK/LB 7 G8 20LB/BK 8 L7 18

Page 1092 of 2895

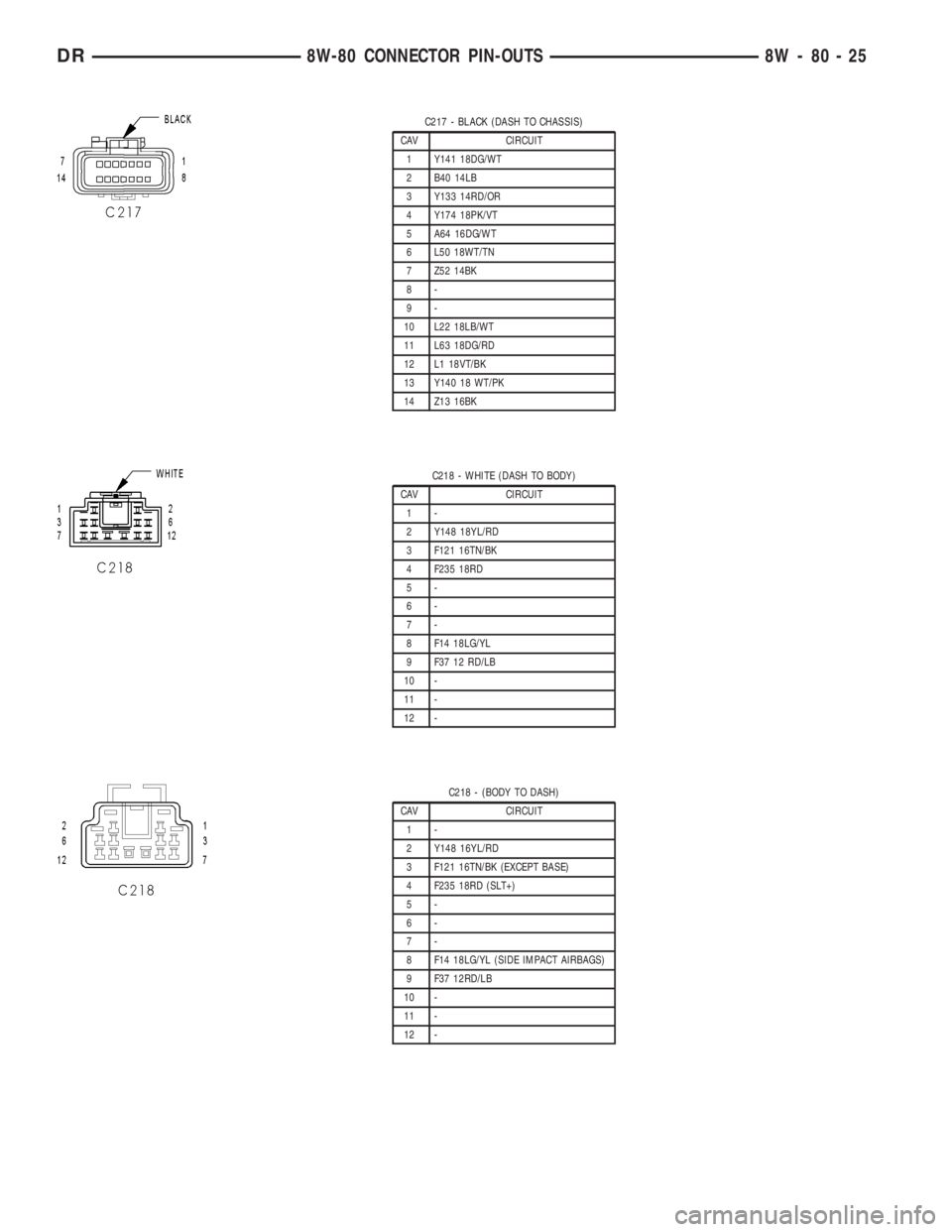

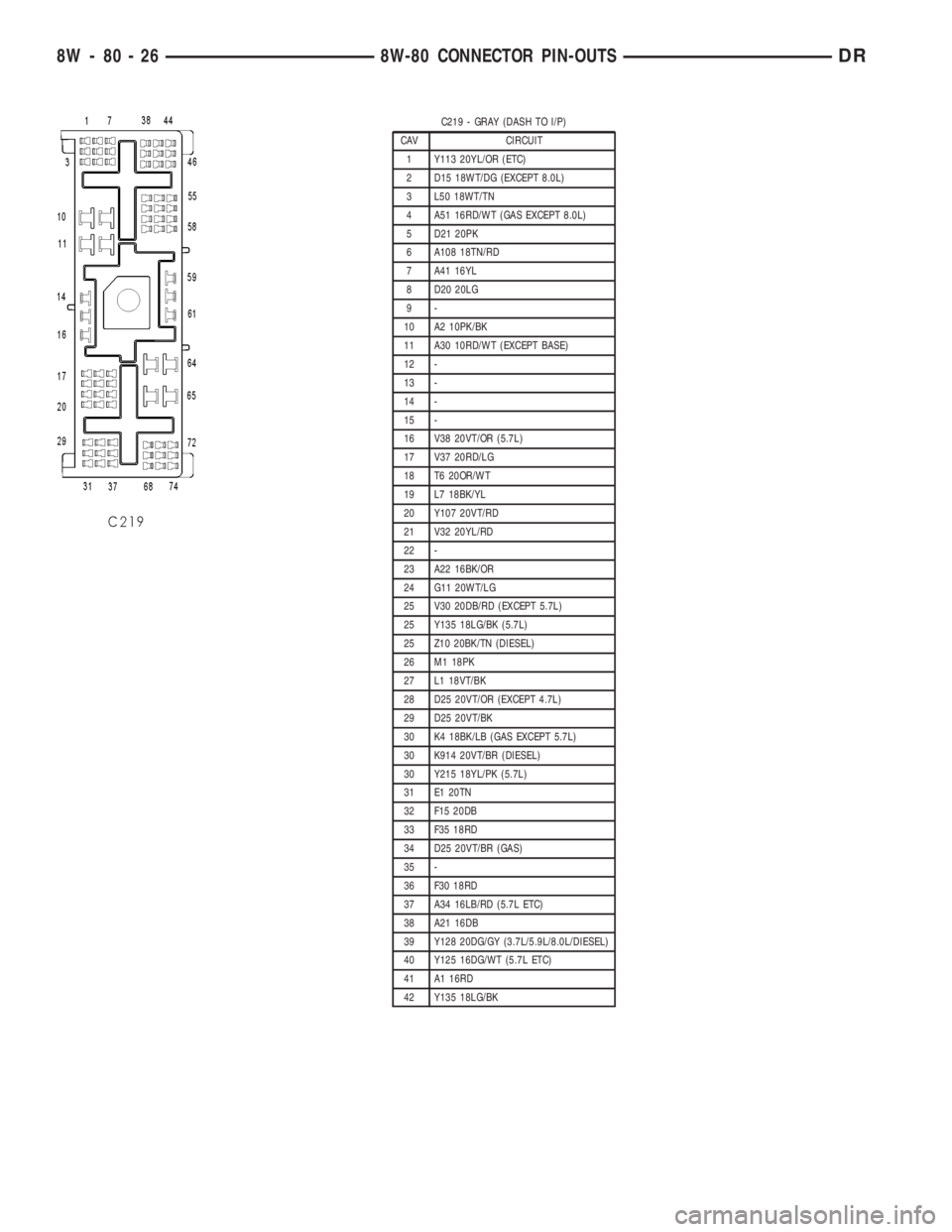

DODGE RAM 2003 Service Repair Manual C217 - BLACK (DASH TO CHASSIS) CAV CIRCUIT 1 Y141 18DG/WT 2 B40 14LB 3 Y133 14RD/OR 4 Y174 18PK/VT 5 A64 16DG/WT 6 L50 18WT/TN 7 Z52 14BK 8- 9- 10 L22 18LB/WT 11 L63 18DG/RD 12 L1 18VT/BK 13 Y140 18 W

Page 1093 of 2895

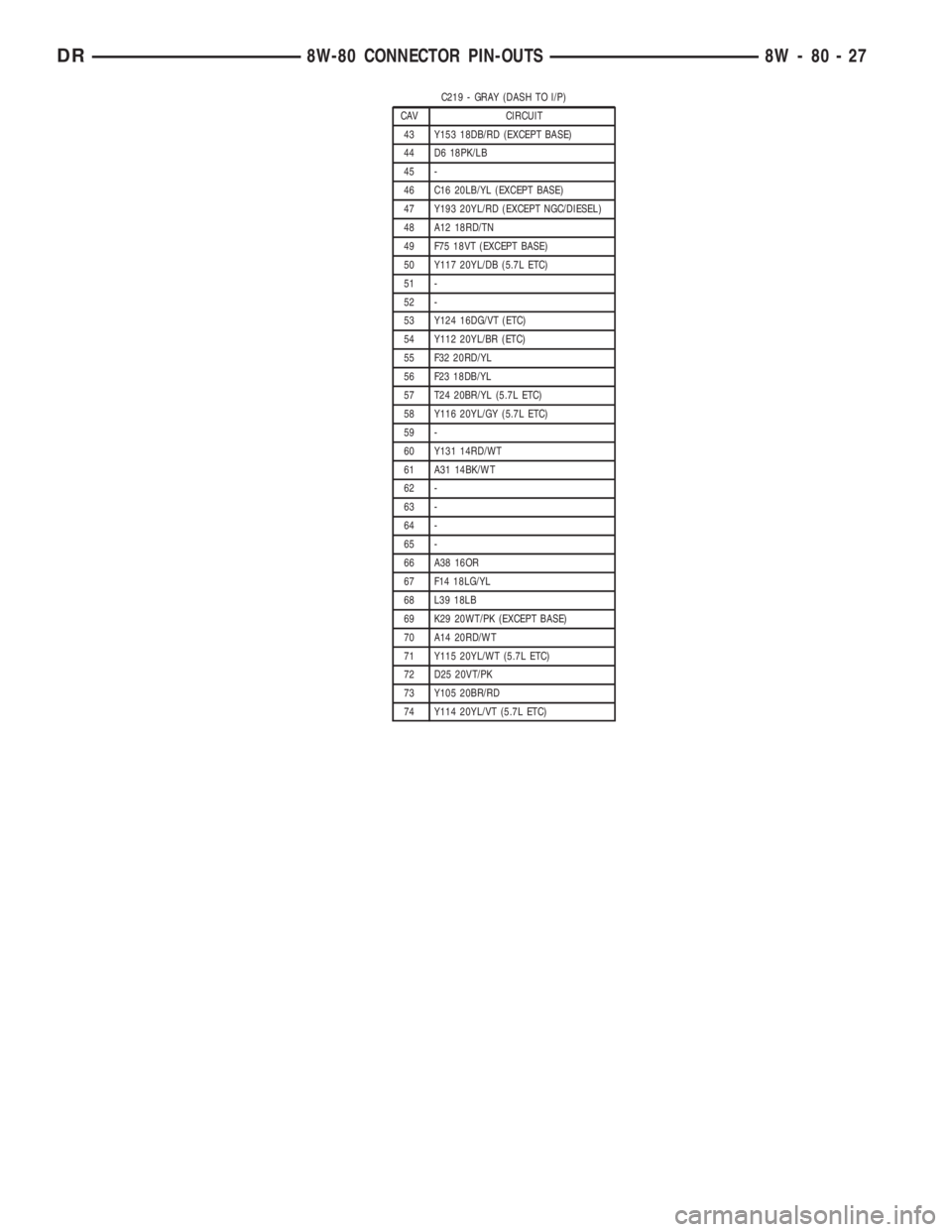

DODGE RAM 2003 Service Repair Manual C219 - GRAY (DASH TO I/P) CAV CIRCUIT 1 Y113 20YL/OR (ETC) 2 D15 18WT/DG (EXCEPT 8.0L) 3 L50 18WT/TN 4 A51 16RD/WT (GAS EXCEPT 8.0L) 5 D21 20PK 6 A108 18TN/RD 7 A41 16YL 8 D20 20LG 9- 10 A2 10PK/BK 11

Page 1094 of 2895

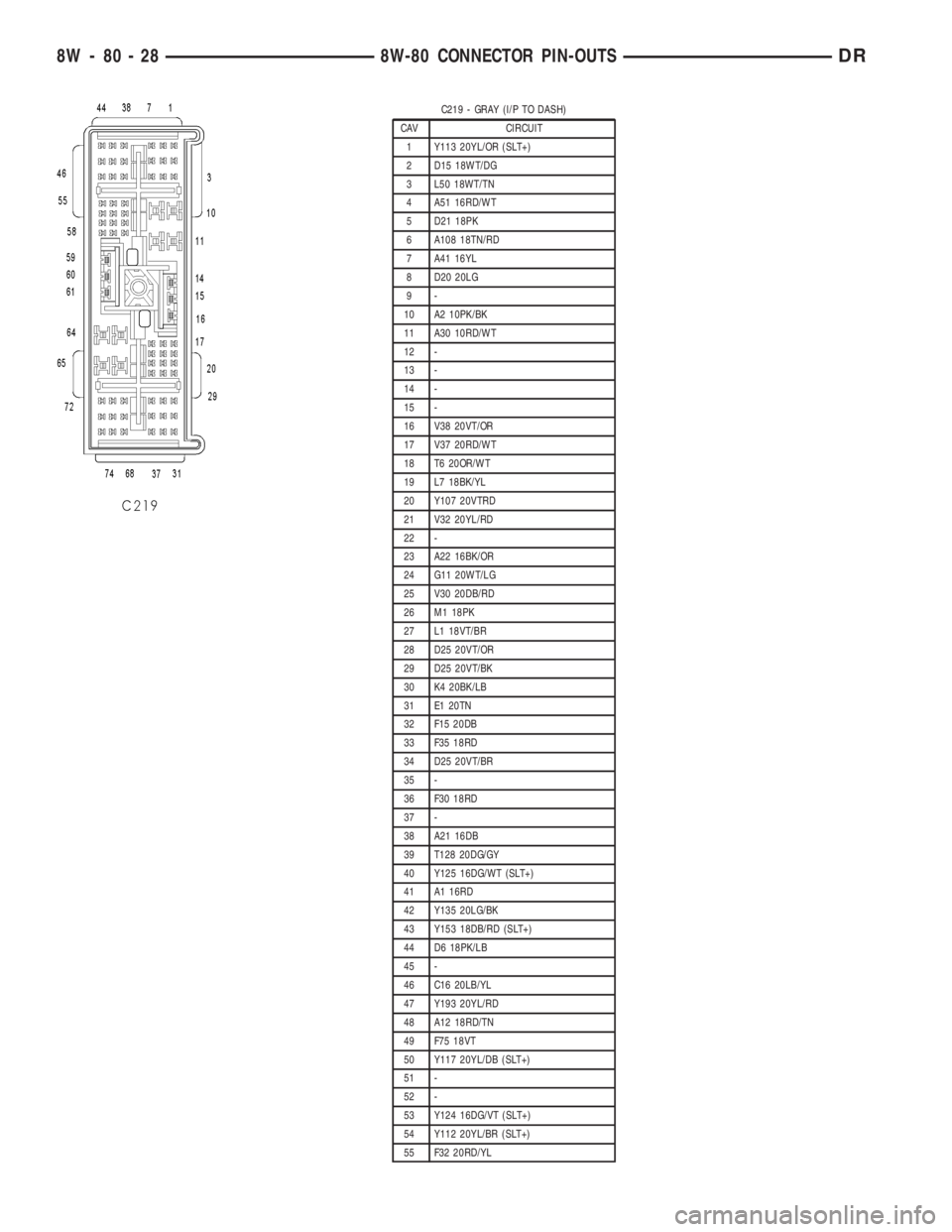

DODGE RAM 2003 Service Repair Manual C219 - GRAY (DASH TO I/P) CAV CIRCUIT 43 Y153 18DB/RD (EXCEPT BASE) 44 D6 18PK/LB 45 - 46 C16 20LB/YL (EXCEPT BASE) 47 Y193 20YL/RD (EXCEPT NGC/DIESEL) 48 A12 18RD/TN 49 F75 18VT (EXCEPT BASE) 50 Y117

Page 1095 of 2895

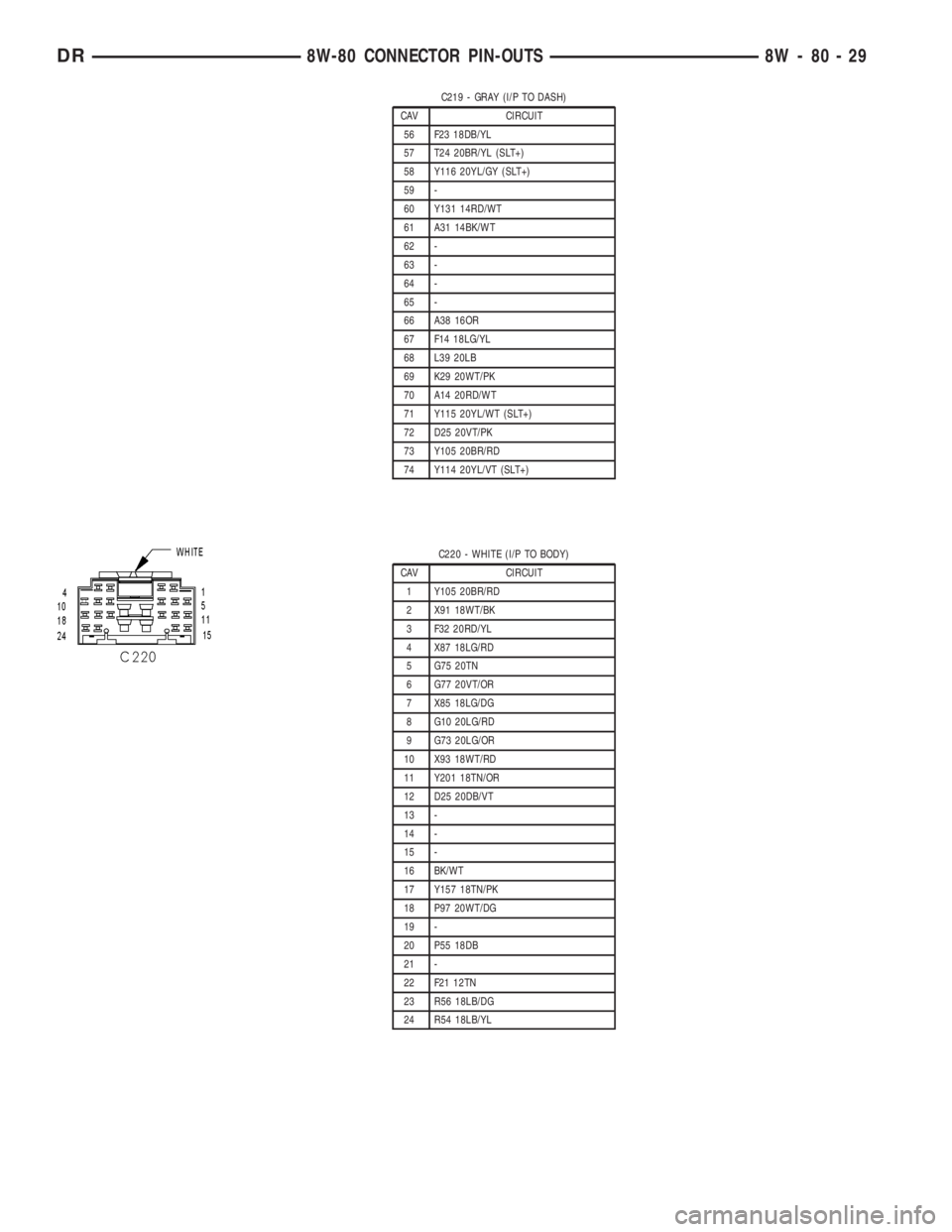

DODGE RAM 2003 Service Repair Manual C219 - GRAY (I/P TO DASH) CAV CIRCUIT 1 Y113 20YL/OR (SLT+) 2 D15 18WT/DG 3 L50 18WT/TN 4 A51 16RD/WT 5 D21 18PK 6 A108 18TN/RD 7 A41 16YL 8 D20 20LG 9- 10 A2 10PK/BK 11 A30 10RD/WT 12 - 13 - 14 - 15

Page 1096 of 2895

DODGE RAM 2003 Service Repair Manual C219 - GRAY (I/P TO DASH) CAV CIRCUIT 56 F23 18DB/YL 57 T24 20BR/YL (SLT+) 58 Y116 20YL/GY (SLT+) 59 - 60 Y131 14RD/WT 61 A31 14BK/WT 62 - 63 - 64 - 65 - 66 A38 16OR 67 F14 18LG/YL 68 L39 20LB 69 K29
