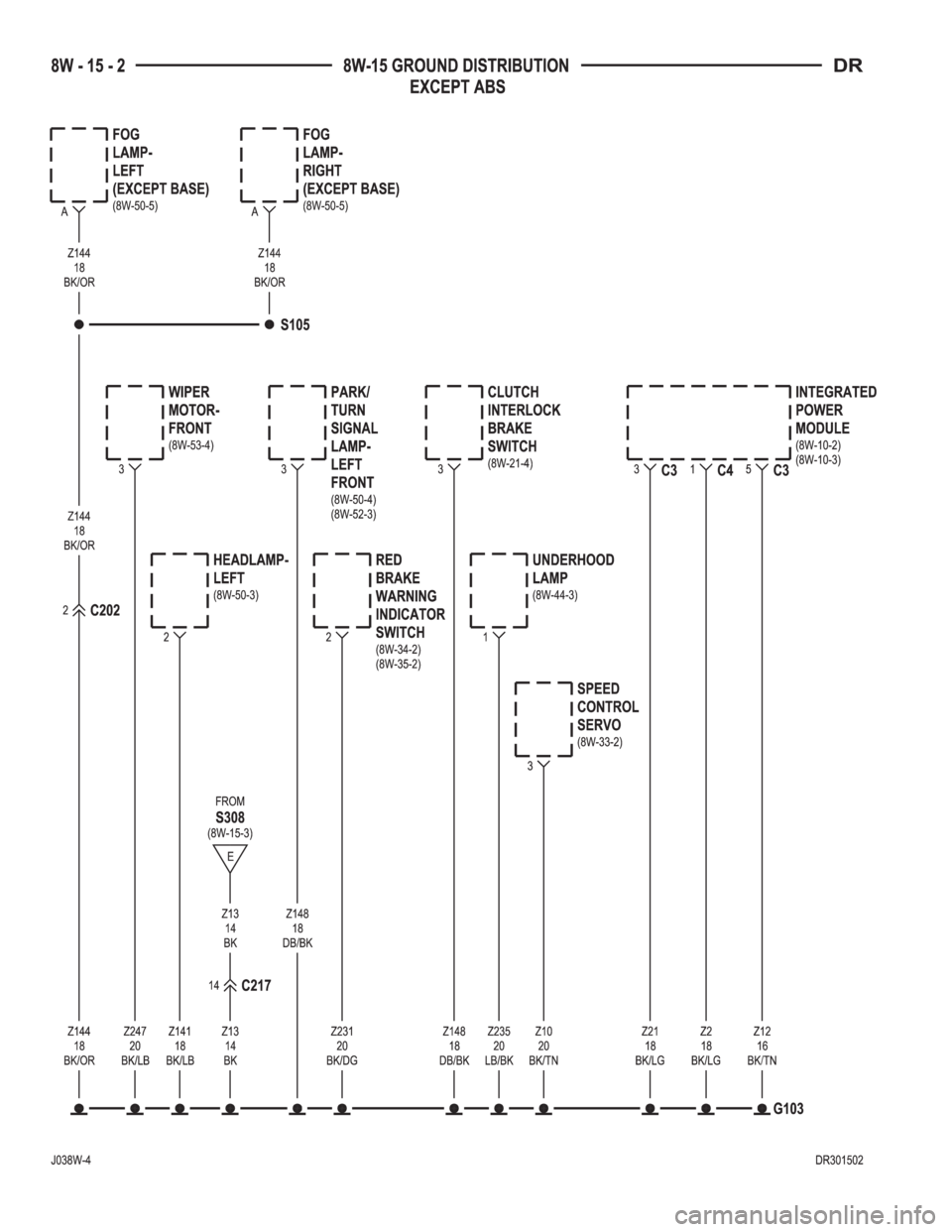

DODGE RAM 2003 Service Repair Manual 8W-15 GROUND DISTRIBUTION
Component Page
A/C Compressor Clutch..................8W-15-9, 11

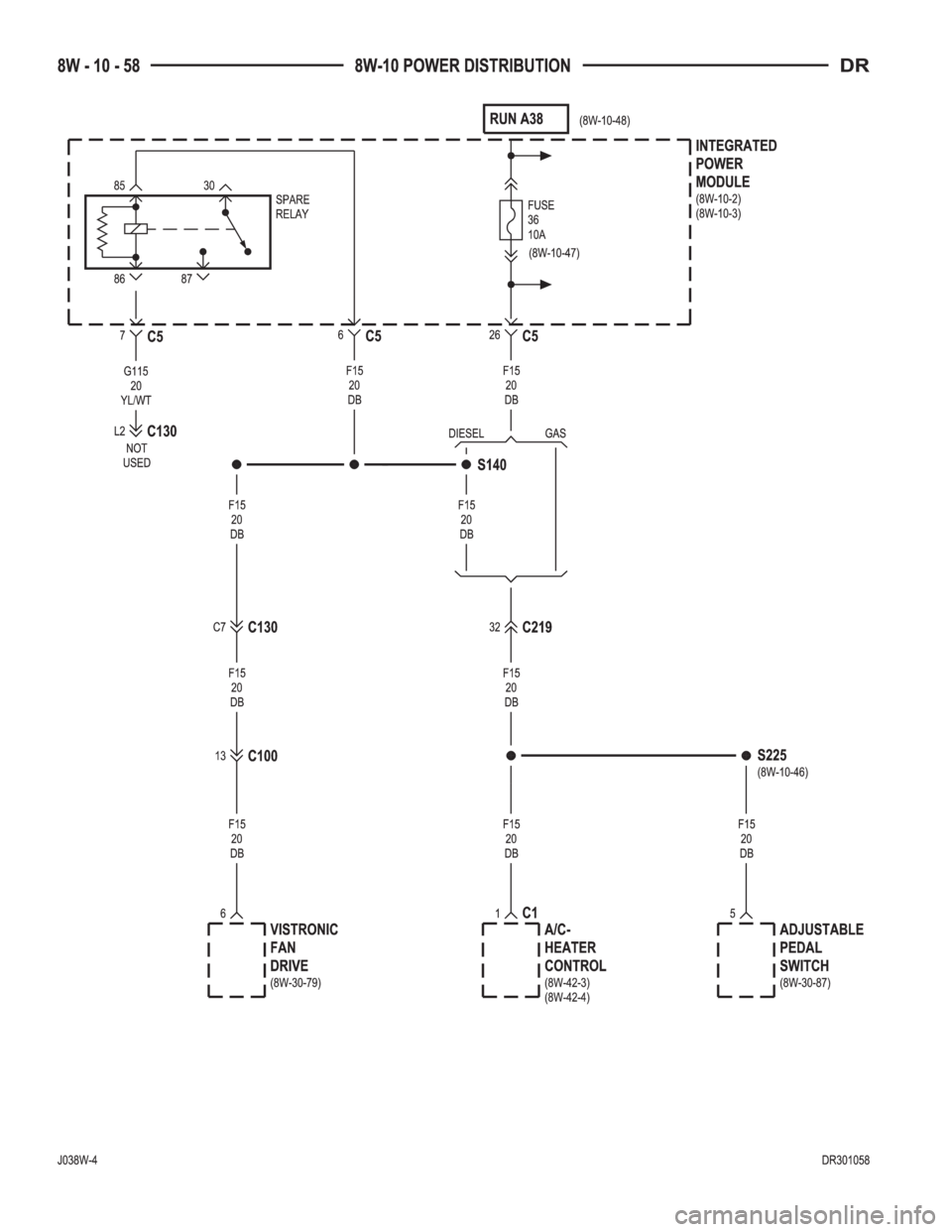

A/C-Heater Control....................8W-15-15, 17
Adjustable Pedal Switch...................8W-15-17
Airbag

8W-15 GROUND DISTRIBUTION
Component Page
A/C Compressor Clutch..................8W-15-9, 11
A/C-Heater Control....................8W-15-15, 17
Adjustable Pedal Switch...................8W-15-17
Airbag Control Module....................8W-15-18
Airbag Control Module-Left Side Impact.........8W-15-18
Airbag Control Module-Right Side Impact........8W-15-18
Amplifier Audio........................8W-15-14
Automatic Day/Night Mirror................8W-15-15
Auxiliary Battery........................8W-15-7
Battery..............................8W-15-7
Brake Lamp Switch......................8W-15-13
Brake Transmission Shift Interlock Solenoid.......8W-15-14
Center High Mounted Stop Lamp/Cargo Lamp.....8W-15-15
Cigar Lighter Outlet.....................8W-15-17
Clearance Lamp No. 1....................8W-15-16
Clearance Lamp No. 2....................8W-15-16
Clearance Lamp No. 3....................8W-15-16
Clearance Lamp No. 4....................8W-15-16
Clearance Lamp No. 5....................8W-15-16
Clockspring...........................8W-15-12
Clutch Interlock Brake Switch..............8W-15-2, 5
Compass/Mini-Trip Computer................8W-15-15
Condenser Fan........................8W-15-4, 6

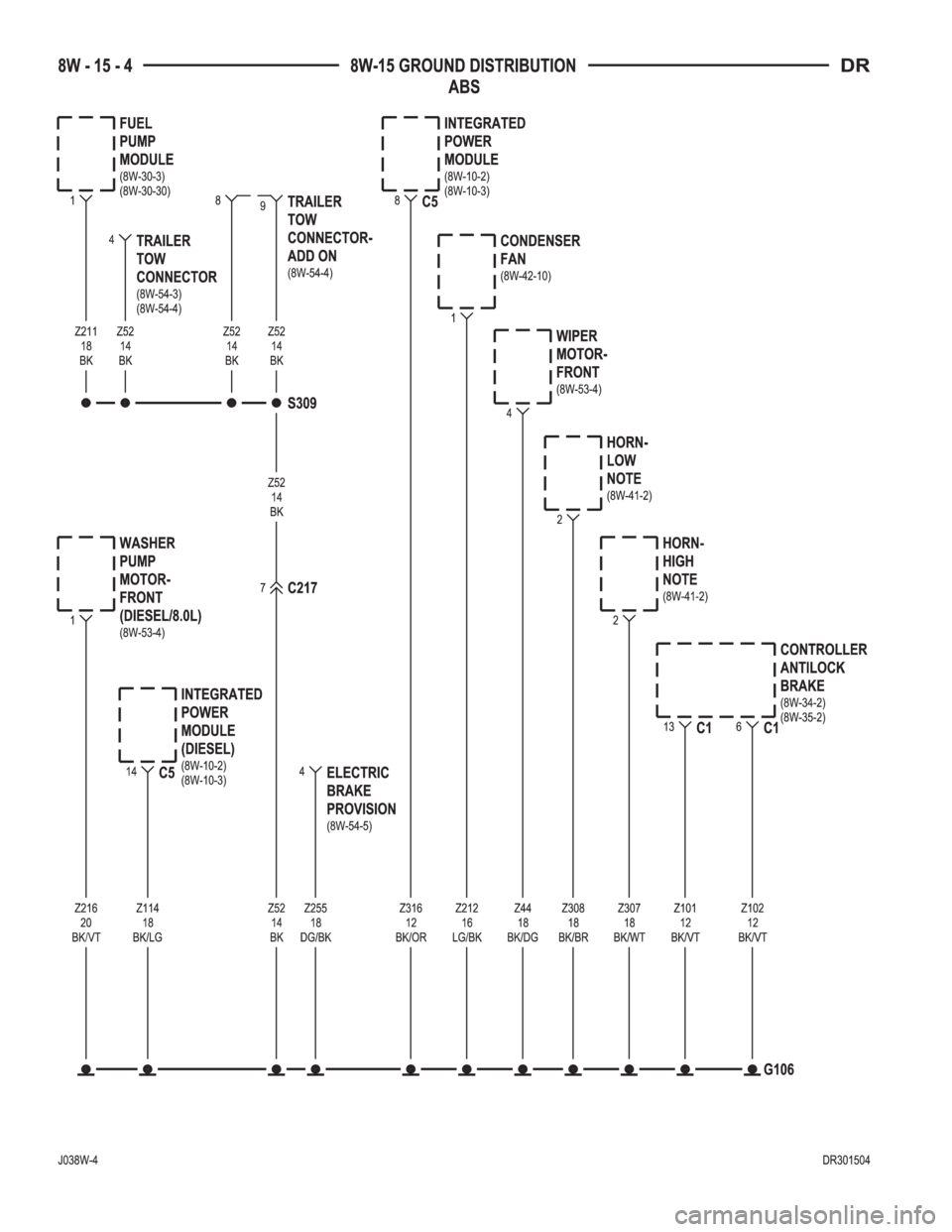

Controller Antilock Brake...................8W-15-4
Cylinder Lock Switch-Driver................8W-15-19
Cylinder Lock Switch-Passenger..............8W-15-19
Data Link Connector.....................8W-15-13
Data Link Connector-Engine................8W-15-11
Door Ajar Switch-Driver...................8W-15-19
Door Ajar Switch-Left Rear.................8W-15-20
Door Ajar Switch-Passenger.................8W-15-19
Door Ajar Switch-Right Rear................8W-15-20
Door Lock Motor/Ajar Switch-Driver............8W-15-19
Door Lock Motor/Ajar Switch-Left Rear..........8W-15-20
Door Lock Motor/Ajar Switch-Passenger.........8W-15-19
Door Lock Motor/Ajar Switch-Right Rear.........8W-15-20
Door Lock Switch-Passenger.................8W-15-19

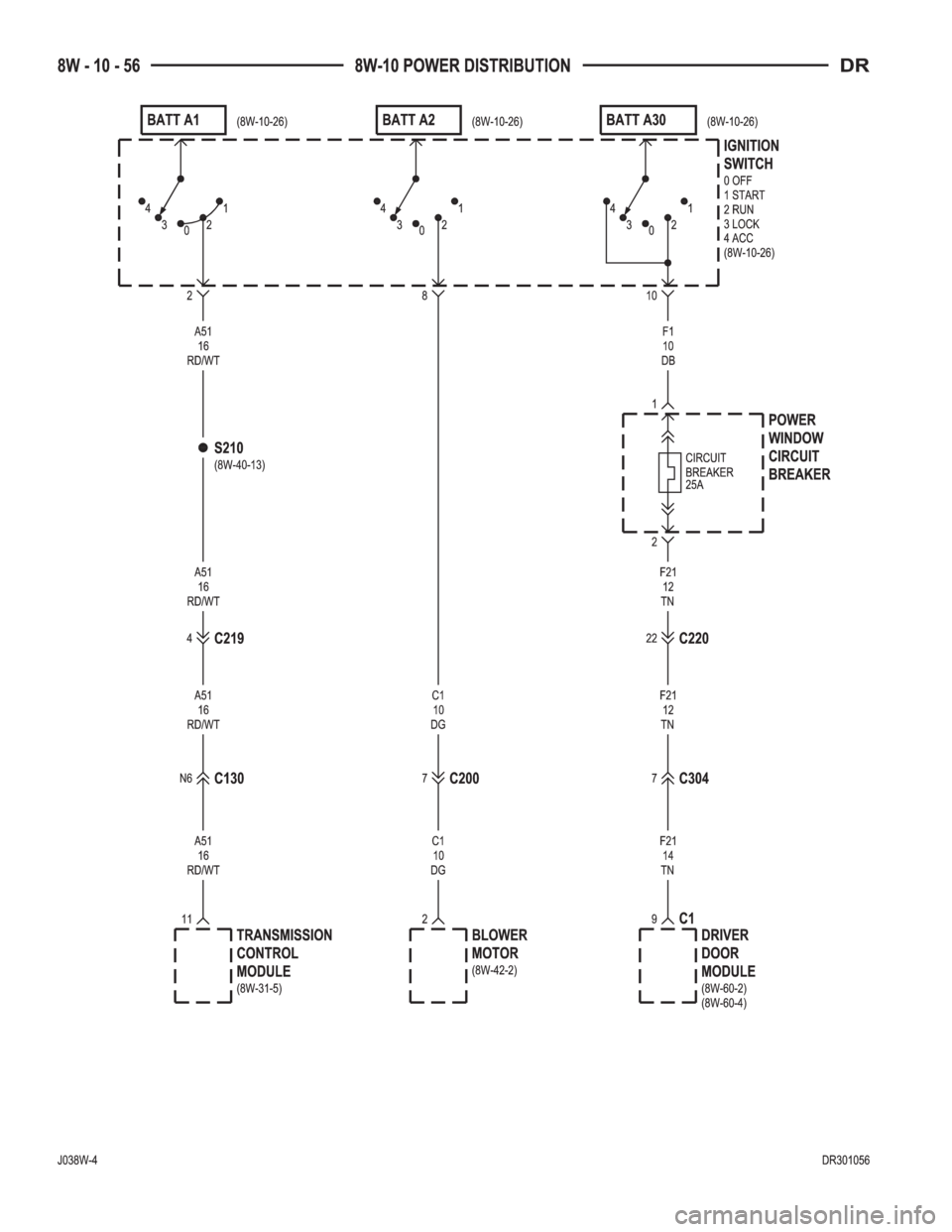

Driver Door Module......................8W-15-21
Electric Brake Provision..................8W-15-4, 6
Engine Control Module....................8W-15-11
Fender Lamp-Front Left....................8W-15-3
Fender Lamp-Front Right...................8W-15-3
Fender Lamp-Rear Left....................8W-15-3
Fender Lamp-Rear Right...................8W-15-3
Fog Lamp-Left........................8W-15-2, 5
Fog Lamp-Right.......................8W-15-2, 5

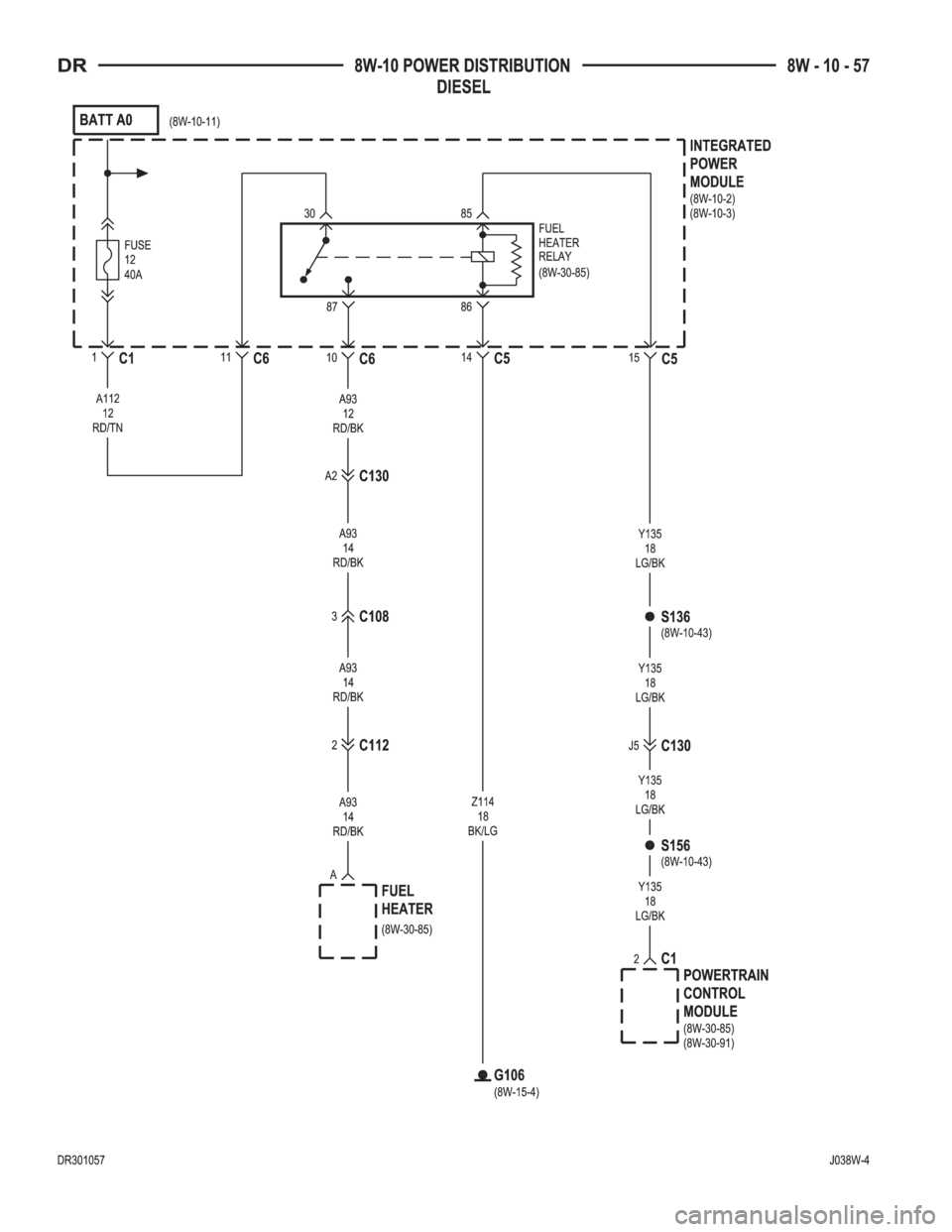

Fuel Heater...........................8W-15-11
Fuel Pump Module....................8W-15-3, 4, 6
G100................................8W-15-7
G101................................8W-15-7
G102................................8W-15-7
G103................................8W-15-2

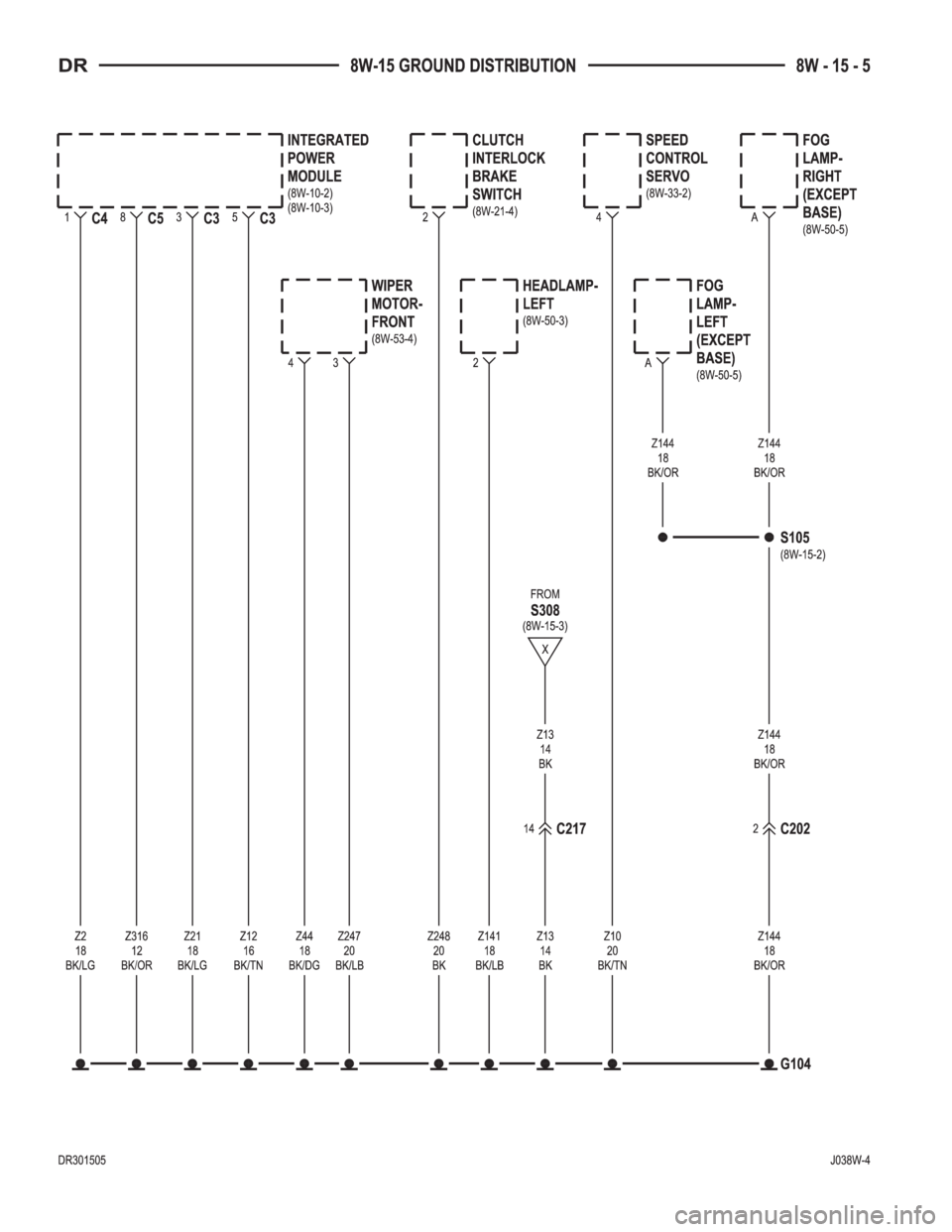

G104..............................8W-15-5, 6
G105................................8W-15-7
G106................................8W-15-4
G107............................8W-15-8, 9, 10
G108................................8W-15-7
G109................................8W-15-7
G114 ...............................8W-15-11
G117 ...............................8W-15-11
Component Page
G120...............................8W-15-11
G201.............................8W-15-12, 13
G202.............................8W-15-14, 15
G203...............................8W-15-17
G204...............................8W-15-18
G301...............................8W-15-20
G302...............................8W-15-22
Generator..........................8W-15-10, 11
Headlamp Switch.......................8W-15-12
Headlamp-Left........................8W-15-2, 5
Headlamp-Right.........................8W-15-7
Heated Seat Cushion-Driver.................8W-15-22
Heated Seat Cushion-Passenger..............8W-15-22
Heated Seat Switch-Driver.................8W-15-13
Heated Seat Switch-Passenger...............8W-15-13
Horn-High Note.......................8W-15-4, 6
Horn-Low Note........................8W-15-4, 6
Ignition Switch.........................8W-15-12
Instrument Cluster....................8W-15-12, 14
Intake Air Heater Relay No. 1................8W-15-7
Intake Air Heater Relay No. 2................8W-15-7
Integrated Power Module..............8W-15-2, 4, 5, 8
Leak Detection Pump.....................8W-15-10
License Lamp-Left.......................8W-15-3
License Lamp-Right......................8W-15-3
Lift Pump Motor........................8W-15-11
Overdrive Switch.......................8W-15-13
Oxygen Sensor 1/1 Upstream................8W-15-10
Oxygen Sensor 1/2 Downstream.............8W-15-9, 10
Oxygen Sensor 2/1 Upstream................8W-15-10
Oxygen Sensor 2/2 Downstream.............8W-15-9, 10
Park/Turn Signal Lamp-Left Front............8W-15-2, 6
Park/Turn Signal Lamp-Right Front............8W-15-7
Power Mirror-Left.......................8W-15-21
Power Mirror-Right......................8W-15-22
Power Outlet..........................8W-15-17
Power Outlet-Console.....................8W-15-21
Power Seat Switch-Driver..................8W-15-21
Power Seat Switch-Passenger................8W-15-21
Power Steering Pressure Switch...............8W-15-9
Powertrain Control Module.............8W-15-8, 10, 11
Radio...............................8W-15-15
Red Brake Warning Indicator Switch..........8W-15-2, 6
Seat Belt Switch-Driver...................8W-15-20
Seat Heater Interface Module................8W-15-22
Sentry Key Immobilizer Module..............8W-15-12
Speed Control Servo.....................8W-15-2, 5
Tail/Stop/Turn Signal Lamp-Left...............8W-15-3
Tail/Stop/Turn Signal Lamp-Right..............8W-15-3
Tailgate Lamp Assembly....................8W-15-3
Trailer Tow Connector..................8W-15-3, 4, 6
Trailer Tow Connector-Add On.............8W-15-3, 4, 6
Transfer Case Control Module...............8W-15-17
Transfer Case Selector Switch................8W-15-13
Transmission Control Module.................8W-15-8
Underhood Lamp.......................8W-15-2, 6
Vacuum Pump..........................8W-15-7
Washer Pump Motor-Front.................8W-15-4, 7
Wiper Motor-Front....................8W-15-2, 4, 5
DR8W-15 GROUND DISTRIBUTION 8W - 15 - 1
