Page 2305 of 2895

DODGE RAM 2003 Service Repair Manual (8) Turn valve body over and remove screws that
attach overdrive/converter solenoid assembly to valve
body (Fig. 279).
(9) Remove solenoid and harness assembly from
valve body (Fig. 280).
(10) Remove

Page 2306 of 2895

DODGE RAM 2003 Service Repair Manual (13) Remove park rod E-clip and separate rod from
manual lever (Fig. 284).
(14) Remove E-clip and washer that retains throt-
tle lever shaft in manual lever (Fig. 285).(15) Remove manual lever and thr

Page 2307 of 2895

DODGE RAM 2003 Service Repair Manual (17) Remove screws attaching pressure adjusting
screw bracket to valve body and transfer plate (Fig.
288). Hold bracket firmly against spring tension
while removing last screw.(18) Remove adjusting sc

Page 2308 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 290 Upper Housing Control Valve Locations
1 - UPPER HOUSING 8 - MANUAL VALVE
2 - REGULATOR VALVE 9 - 1-2 GOVERNOR PLUG
3 - SWITCH VALVE 10 - GOVERNOR PLUG COVER
4 - REGULATOR VALVE SPRING 11 - TH

Page 2309 of 2895

DODGE RAM 2003 Service Repair Manual (23) Remove left-side screw and remove 3-4 accu-
mulator housing from valve body (Fig. 293).
(24) Bend back tabs on boost valve tube brace (Fig.
294).
(25) Remove boost valve connecting tube (Fig.
295

Page 2310 of 2895

DODGE RAM 2003 Service Repair Manual (29) Remove the Number 10 check ball from the
transfer plate (Fig. 297). The check ball is approxi-
mately 4.8 mm (3/16 in.) in diameter.
(30) Remove transfer plate from upper housing
(Fig. 298).
(31)

Page 2311 of 2895

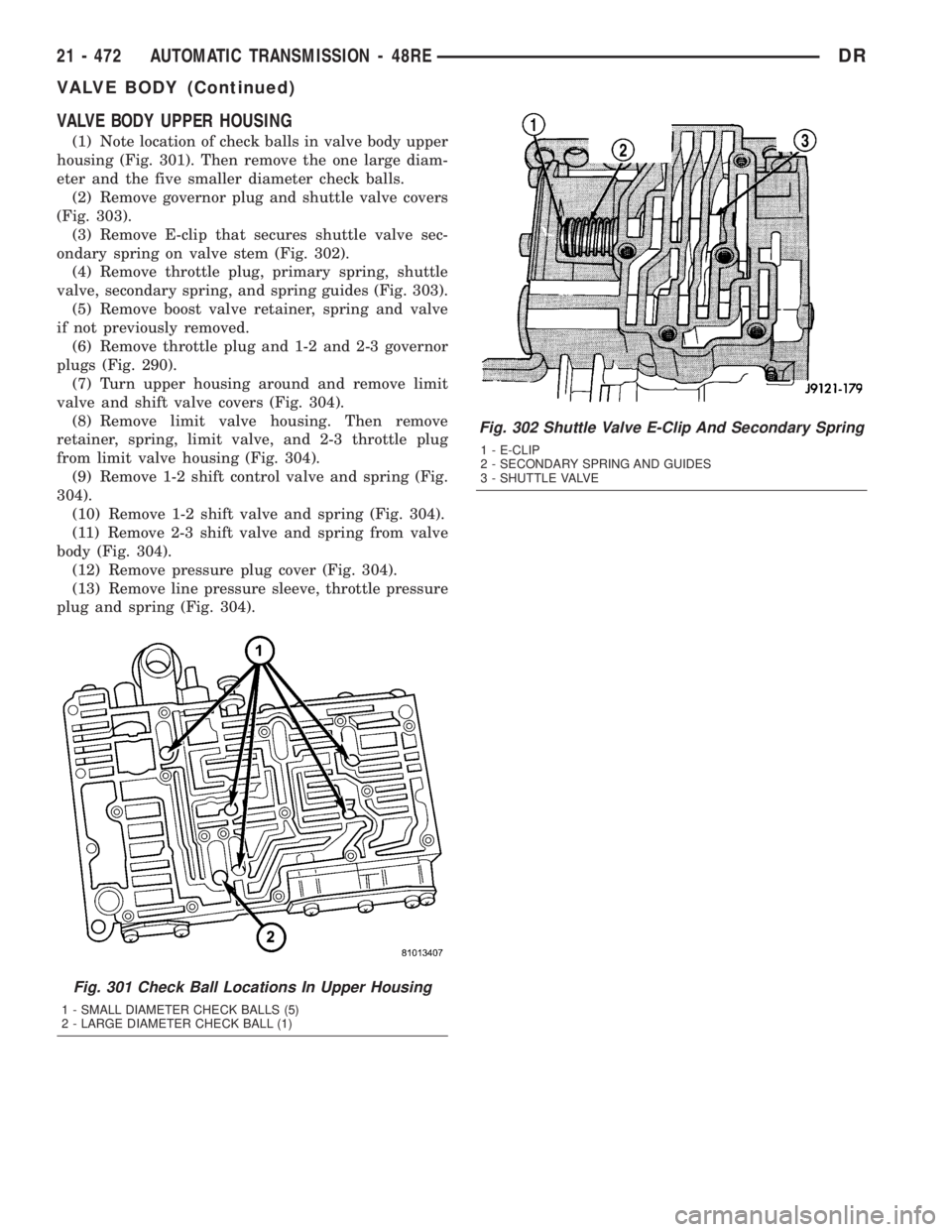

DODGE RAM 2003 Service Repair Manual VALVE BODY UPPER HOUSING
(1) Note location of check balls in valve body upper
housing (Fig. 301). Then remove the one large diam-
eter and the five smaller diameter check balls.
(2) Remove governor pl

Page 2312 of 2895

DODGE RAM 2003 Service Repair Manual Fig. 303 Shuttle and Boost Valve Location
1 - SPRING 8 - SHUTTLE VALVE COVER
2 - RETAINER 9 - SHUTTLE VALVE
3 - BOOST VALVE 10 - SHUTTLE VALVE PRIMARY SPRING
4 - BOOST VALVE PLUG 11 - GOVERNOR PLUG CO
