1994 HONDA INTEGRA Workshop Manual

Seats
Rear Seat Replacement
Hatchback
NOTE: Take care not to scratch the seat covers and
body.
1. Fold the seat-backs {orward.
2. Remove the clips, then fold the trunk mat.
V: Clip locations, 14
I
+ |
v/J
20-108
(see page 20-1Og)
SEAT.BACKS
TRUNK MAT
3. Remove the cliD pin on each side.
Slide the seat-backs outward, then remove the seat-
backs from the pivot bracket.
SEAT.BACK
SEAT-BACK PIVOTBRACKET
CLIP PIN

4.Remove the bolt, then remove the seat cushion.
: Bolt locations, t l--): Xoot locations, 2
6 r 1.0 mm9.8Nm I
SEAT CUSHION
5. lf necessary, remove the seat latch lrom the seat-
back and remove the striker.
CAUTION: Wear gloves to remov€ and install the
soat latch and latch collar.
> : Bolt, sc.€w locrtions
A>: Bolt, 2 8): Screw, 1
^{ll
.,,W '
Gp" I9.8 N.m 11.0 ksf m.I I7 2 tP!ft!---/' ./
LATCH COLLAR
.otc" rtroa El
LATCH COVER
SEAT LATCH
t'
T-8ACK
CUSHION
LATCH COLIAR
SEAT-BACKCOVER
NOTE: When removing the striker, remove
t.im panel (see page 20-91).
> : Bolt locations, 2
the side
.a |tDt@ l 6. Installation is the revelse of the removal procedure.
NOTE:
a Make sure the seat,backs lock securely.a lf necessary, adjust the strikers.a Betore attaching the seat-backs and seat cushion,make sure there are no twists or kinks in the rear
seat belts.
a When installing the seat cushion, stip the seat beltbuckles through the slits in the seat cushion.
REAR SEAT EELT
(cont'd )
STRIKER
20-109

Seats
Rear Seat Replacement (cont'd)
Sedan
NOTE: Take care not to scratch the seal covers and
booy.
1. Fold the seat-back forward.
2. Remove the clips.
V : Clip locations, I
SEAT-8ACK
l
/-.;- I----+tl l---M- I
/ /,/
TRUNK MAT
SEAT-BACK
20-110
3. Detach the hook, then remove the trunk mat.
TRUNKMAT
a-^I{ \
Nry
YHOOK
SEAT.BACK
TRUNKMAT
4. Remove the bolts. then remove the seat-back.
V : Eolt locations, 4
REAR SEAT LAICH/LOCK CYLINDER{see page 2O-'l 1 1l
REAR SEATPIVOT BRACKET(see page 2O-1 1 1)
REAR SEATPIVOT BRACKET
I
I gel?"Til.*,,", i
E 7.2 tbt'trl I" -----r"
SEAT.BACK

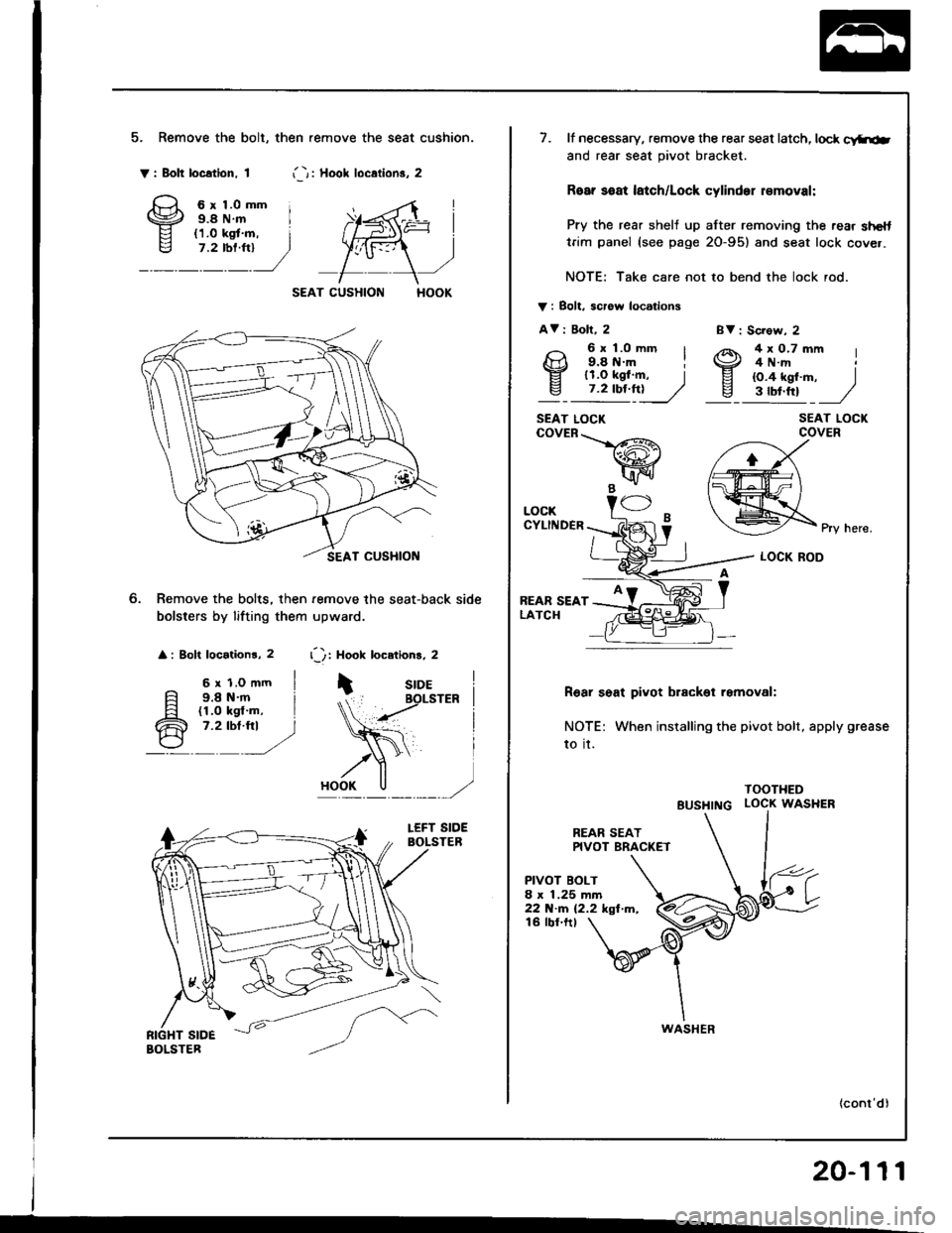

5. Remove the bolt, then .emove the seat cushion.
Y: Bolt location. 1i -r i Hool loc.lion3. 2
6r1.0mm i9.8 N.m I
SEAT CUSHION
Remove the bolts, then remove the seat-back side
bolsters by lifting them upward.
: Bolt locationr, 2 r'): Hook locetions, 2
6 r 1.o mm I9.8 N.m i(1.0 kgl'm, I7.2 tbt.fti )
BV : Sc?ow, 2
SEAT LOCKCOVER
Pry here.
LOCK ROD
R6ar seat pivot brackol removal:
NOTE: When installing the pivot bolt, apply grease
to it.
TOOTHED
BUSHTNG LOCK WASHER
REAR SEATPIVOT BRAC(ET
PIVOT BOLT8 x 1.25 mm22 N.m (2.2 kgf m,16 tbf.ftt
20-111
7. lf necessary, remove the rear seat latch, lock c!ftiab
and rear seat pivot bracket.
Roar soat latch/Lock cylinder r€moval:
Pry the rear shelj up after removing the rear shelttrim panel (see page 2O-95) and seat lock cover.
NOTE: Take care not to bend the lock rod.
V i Bolt. scrow locations
AV i Boll, 2
9: l;o--' I4x0.7mm I4 N.rrt
EI lr.o tgf .m, Iv_ 7.2 tbf.ft!____//
9.8 tt.m il1.O kgf.m, I{O.4 kgf'm, )3tbt.ttt J
SEAT LOCKcovER\-_L/-R\
wB -"1/ -
LOCKCYLINDER
REAR SEATLATCH
WASHER

8. lnstallation is the reverse ot the removal procedure
NOTE:
a Make sure the seat-back locks securely.
a It necessary, adiust the rear seal latch and
seat-back.
a BeJore sttaching the seat-back, side bolsters and
seat cushion, make sure there are no twlsts or
kinks in the rear seat belts and center belt
a When installing the seat cushion, slip the seat belt
buckles through the slits in the seat cushion.
1.
2.
SEAT-BACK
Seats
Rear Seat Replacement (cont'd)Rear Seat Cover RePlacement
CAUTION: Wear glov€s to l€movo and install tho seat
covgls.
NOTE:
a Take care not to tear the seams or damage the seat
covels,
a Remove the cliDs as shown.
Soat-back cover romoval:
Hatchback
Remove the seat-back (see page 20-108).
Remove the latch cover and latch collar (see page
20-109).
Remove allthe clips trom the back of the seat-back,
then loosen the seat-back cover.
SEAT.BACKCOVER
4.Pull back the edge of the seat-back cover all the way
around, then release the clips.
ilg
E
F]
CLIP
SEAT-BACK
CLIP
20-112

Sodan
l. Remove the seat-back (see page 2O-11O1.
2. Remove all the clips from the back of the seat-back,
then loosen the seat-back cover.
3. Pull back the edge of the seat-back cover all the way
around, then release the clios.
SEAT-BACK COVER
CLIP
SEAT-8ACK COVER
CLIPS
Seat cushion cover lsmoval:
Harchbacr(
1. Remove the seat cushion (see page 20-lOg).
2. Remove the cushion center trim panel.
V : Scrow locations, 2
/+r I
YIv ,-.,)
J.Remove all :he clips from under the seat cushion.
then loosen the seat cushion covers.
SEAT CUSHIONcovERs
Pull back the edge of the seat cushion covers allthe
way around, then release the clips.
SEAT CUSHIONcovEBs
4.
CEITTER
CLIP
CLIP
lconl'dl
20-113

Seats
Rear Seat Cover Replacement
the
(cont'd)
S6dan
1.Remove the seat cushion (see page 20-1 1 1).
Remove all the clips from under the seat cushion,
then loosen the seat cushion cover
SEAT CUSHIONCOVER
Pull back the edge of the seat cushion cover all
way around. then release the clips.
SEAT CUSHIONCOVER
Installation is the reverse of the removal procedure.
NOTE:
a To prevent wrinkles when installing a seat cover.
mark sure the material is stretched evenlY over
the pad before securing all the clips.
a Replace the released clips with new ones.
UPHOLSTERY RING PLIERSCommercially available.
{Cover sid6}
)rir
ry"M
CLIP
t)llll
CLIPS
20-114

Seat Belts
Front Seat Belt Replacement
cAUTloN: chock tho tlont seal belts for damage and lsplace them if necessary. B€ carelul not to damag€ then duringromoval and installation.
F.ont seat belt romoval:
Hatchback
1. Remove the following parts, and slide the front seat fo.ward fullv.
a Rear seat (see page 20-1Og)a Side trim panel (see page 2c,-92}
2 Remove all the anchor bolts, the retractor bolt and the retractor mountrng bott, then remove the front seat belt.
NOTE: When removing the anchor bolts and the retractor bolt, use a l7 mm socket or box-end wrench.
3. Check that the retractor locking mechanism functions as described on page 20_122-
Pry the anchor cover.Remove the tront seat belt trom the belt ouide-
UPPER ANCHOR BOLT7/16-20 UNF32 N.m (33 kgl.m,24 tbt.ttlEELT GUIDE
RETRACTOR MOUNTINGBOLT6 x 1.O mm9.8 N.m (1.0 kgt.rn.7.2 tbl.ftl
RETRACTOR
. Rear shelf (see page 20-911. Rear trim panel (see page 20-921
RETRACTOR BOLT7/16-20 UNF32 ltl.m {3.3 kgl,m,24 tbt.ftl
LOWER ANCHOR BOLT7/'16-20 UNF32 N.m 13.3 kgl.m,24 rbf.ft)
{cont'd)
20-115
