1994 HONDA INTEGRA Workshop Manual

Unit Removal
CAUTION:
a All SRS oloctrical wi ng harn.$.s ara covcrrd withyellow insulation.
a B€toro disconnocting any part ot tho SRS wirc hrr-
nosa, connsct tho short conn6ctol(rl.
a Raplaco the sntirs sttoctod SRS hamoas asacmbly it
it has an opon circuil 01 damagod widng.
NOTE: The original radio has a coded theft protection
circuit. Be sure to get the customer's code number b€lore- disconnecting the battery.- removing the No. 32 (7.5 A) fuse in the under-hood
fuse/relay box.- removing the radio.
After ssrvice, reconnect power to the radio and turn it on.
When the word "CODE" is displayed, enter the cus-
tomer's 5-digit code to restore radio operation.
1. Remove the center console (see section 2O).
2, Remove the cigarette lighter assembly {see page
23-205t.
SRS MAII{ HABNESSFRONT CONSOLE
3.Remove the four mounting screws, then remove the
front console.
Loosen the two mounting screws, then disconnect
the 16-P connector and the antenna lead, and oull
out the stereo .adio/cassette player.
4.
16-P COi{i{ECTOR
ANTENlTA SUB-LEAD
23-191

Terminals
Connects to
\
*i,.,-terlll
FO] ANTENNA LEADA
TI!NM[IAL
A9---------+A16
Stereo Sound System
Stereo Radio/Cassette PlayerFront Speaker/Tweeter
Replacement
Front Spoakor:
1. Carefully pry out the speaker cover.
2. Remove the three screws, then disconnect the 2-P
connector Jrom the speaker, and remove the
speaker.
2.P CONNECTOR
Twootor:
1. Remove the door panel and disconnect the tweeter
2-P connector.
2. Remove the two screws, then remove the tweeter
ano covet.
r^l
It
\7
rSPEAKERCOVER
A1RED/GRNFront passenger's door speaker O
A2BLU/GRNDriver's door speaker @
A3RED/BLKLights-on signal
A4WHT/8LUConstant power {Tuning memory)
A5YEL/REDACC (Main stereo powe. supplyl
A6YEL/GRNRadio switched power (To antenna)
A7BLU/YELLeft rear speaker O
A8RED/YELRight rear speaker @
A9BRN/BLKFront passenger's door speaker O
A10GRY/BLKDriver's door speaker O
A lnot used)
412(not used)
A13(not usedl
A14BLKGround (G551)
Al5GRY/WHTLeft rear speaker O
A16BRNAA/HTRight rear speaker e
23-192
IFrIFit

Rear Speaker Replacement
Hatchback:
1. Remove the sDsaker cover.
2. Remove the three screws, then disconngct the 2-P
connocter trom the rear spoakor.
1.Remove the three screws from the trunk side, then
remove the soeaker cover.
Remove the tour screws, then disconnect the 2-P
connector t.om the s9eaker, and remove the
soeake,.
LEFT REARSPEAKER
OUARTER
,r-- I
TRIM PAI{EL
LEFT REARSPEAKEN
2-P CONNECTON
SPEAKER COVER
REAB TRAY
SPEAKER COVER
23-193

Stereo
Power
Sound
Antenna
System
Motor Test
Remove the quarter trim panel (Hatchback) or trunk
side trim panel (Sedan).
Disconnect the 3-P connector from the motor, and
remove the connector from its clamD.
Check for power to the motor at the connector ter-
minals:
a There should be battery voltage between the
WHT/RED (+l and BLK {-} terminals all thetime.a There should be battery voltage between the
YEL/GRN {+) and BLK (-} terminals onlv with the
ignition and radio switched ON.
Test motor oDeration:
3.
4.
EXTEND: Connect battery power to the "A"
"B" terminals and ground the "C" terminal.
8no
"4"RETRACT: Then disconnect power trom the
terminal,
lf the motor fails to run or does not run smoothlv,
reDtace tr.
*ft'^to
?r*
TIFIT*r'
YEL/GRN
AI{TE T{A MAST
AI{TEI{I{ALEAD
C ftYhh lha lnLnn. r.tr.ci.d t|Ilyl
Sticking Ant6nna:
The antenna sticks in either the up or down position.
1.Using the antenna wrench, remove the antenna nut,
spacer (see page 23-195).
Clean the antenna mast housing threads, and rein-
stall the soacer.
PLASTIC SLEEVEAIITENNA MAST
Cloan masthousingthroads.
Use the antenna nut wrench and tighten the anten-
na nut to 2.3 N.m (0.23 kgf-m, 1.7 lbf-tt). lJ you
overtightened the nut. the antenna may stick. lf
sticking occurs, back the nut off a little, then turn
the radio on and off to raise and lower the antenna
again. Repeat until the antenna moves treely.
23-194
fmft,

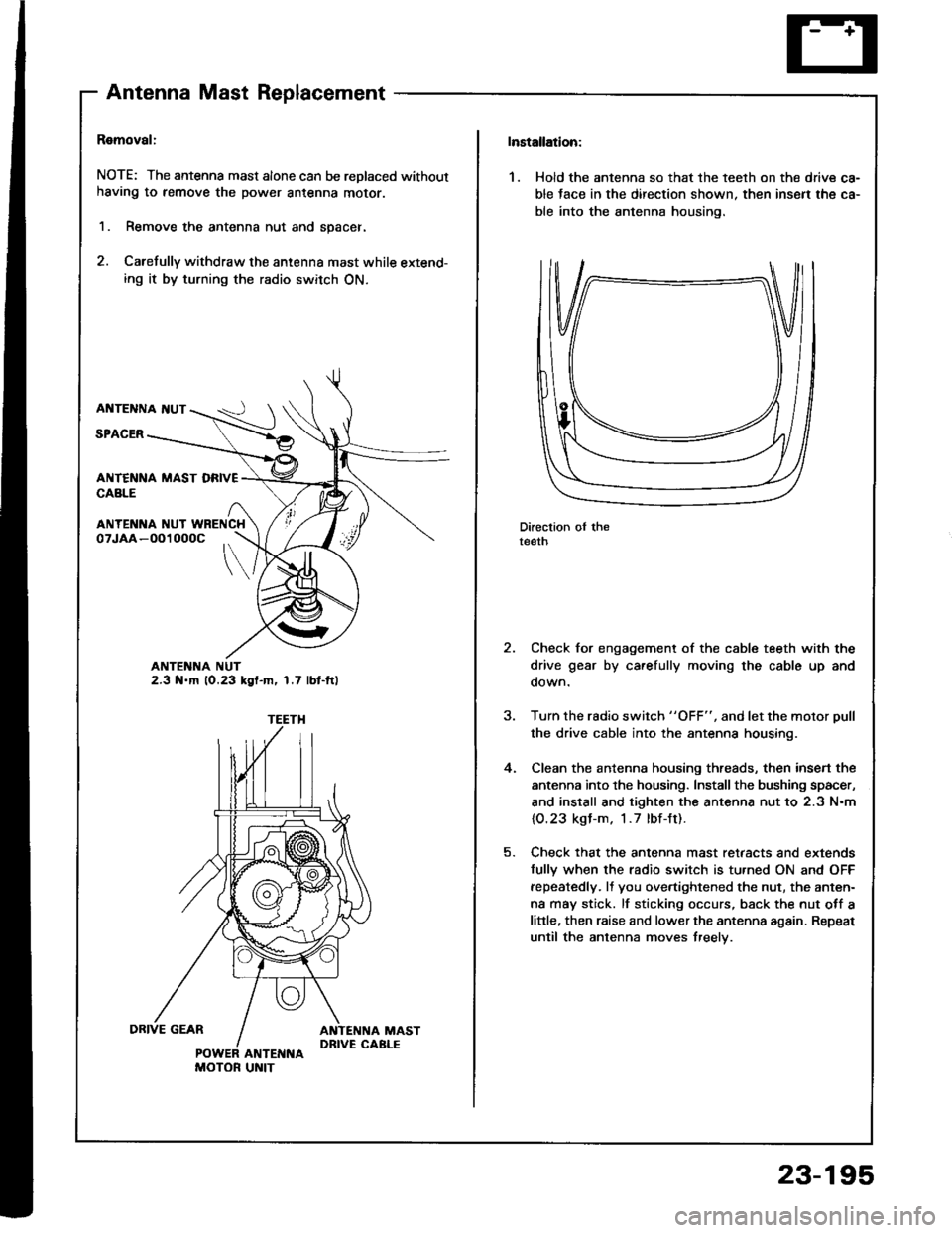

AntennaMastReplacement
Ramoval:
NOTE: The antenna mast alone can be replaced without
having to remove the power antenna moror.
1. Remove the antenna nut and spacer.
2. Carefully withdraw the antenna mast while extend-ing it by turning the radio switch ON.
AI{TENNA I{UT
SPACER
ANTENNA NUT2.3 N.m 10.23 kgl-m, 1.7 lbt-ft)
ANTENI{A NUT WRENCH
POWER ANTENNAMOTOR UNIT
Installation:
1. Hold the antenna so that the teelh on the drive ca-
ble tace in the direction shown. then insen the ca-
ble into the antenna housing.
Direction oI theteeth
Check for engagement of the cable teeth with the
drive gear by carefully moving the cable up and
oown.
Turn the rsdio switch "OFF", and let the motor Dull
the drive cable into the antenna housing.
Clean the antenna housing threads, then insen the
antenna into the housing. Install the bushing spacer,
and install and tighten the antenna nut to 2.3 N.m
{O.23 kgl-m. 1.7 lbf-Jt).
Check that the antenna mast retaacts and extends
fully when the radio switch is tu.ned ON and OFF
fepeatedly. It you overtightened the nut, the anten-
na may stick. lf sticking occurs, back the nut otf a
little, then raise and lower the antenna again. Repeat
until the antenna moves treelv.
,
4.
23-195

Stereo Sound
Power Antenna
System
Motor Replacement
1.Remove tho quart€r trim panel (Hatchback) or trunk
side trim panel (Sedan).
Disconnect the 3-P connector and antenna lead trom
the motor, then remove the antenna nut and motor
bracket nut.
AI{TENNA 1{UT2.3 l{.mAT{TEI{]{A I{UTWBEI{CHoTJAA-OOlo(xrc
3+CO ECTOR
DRAI HOSE
MOTORBRACKETTUT
3.Remove the motor and antenna as an assemblv.
NOTE: Tighten the antenna nut, then tighten tha
motor bracket nut.
23-196

Circuit Diagram
VSTEREO RADIO/CASS€TIE PI-AYER
23-197

Clock
Replacement
CAUTION:
a Pry th6 clock out at th€ left sido,
a Be carsful not to damage the clock and the dashboE d
whon prying the clock out.
1. Pry the clock out from the dashboard, then discon-
nect the 4-P connector.
4-P COI{NECTOR
CLOCK
23-198
Terminals
Torminal WiroConnecta to
ABLKGround
YELplv){Main clock power sup-
RED/BLKLights-on signal
DWHT/BLUConstant power
(Time memory)
