1994 HONDA INTEGRA Workshop Manual

Power Steering Pump
Reassembly (cont'dl
Set the pump cam ring over the two rollers with the"8" mark on the cam ring upward.
Apply clean power steering fluid to the vanes and
cam ring.
Install the 68.5 x 1,9 mm O-ring on the pump cover.
Align the roller set holes in the pump cover with the
rollers.
'16. Align the projection on the pump housing and theprojection on the pump cover, and tighten the four
bolts.
20 N.m{2.0 kg .m, lil lbf.ftl
PUMP COVER
PROJECTIONS
13.
PUMP CAM RING
14.
15.
17 -42
17.
18.
13 x 1.9O.RING
E
Set the 13 x 1.9 mm O-ring on the inlet joint.
Install the inlet joint on the pump housing.
11.1 kgt.m. t lbf.ftl
INLET JOINT
T9

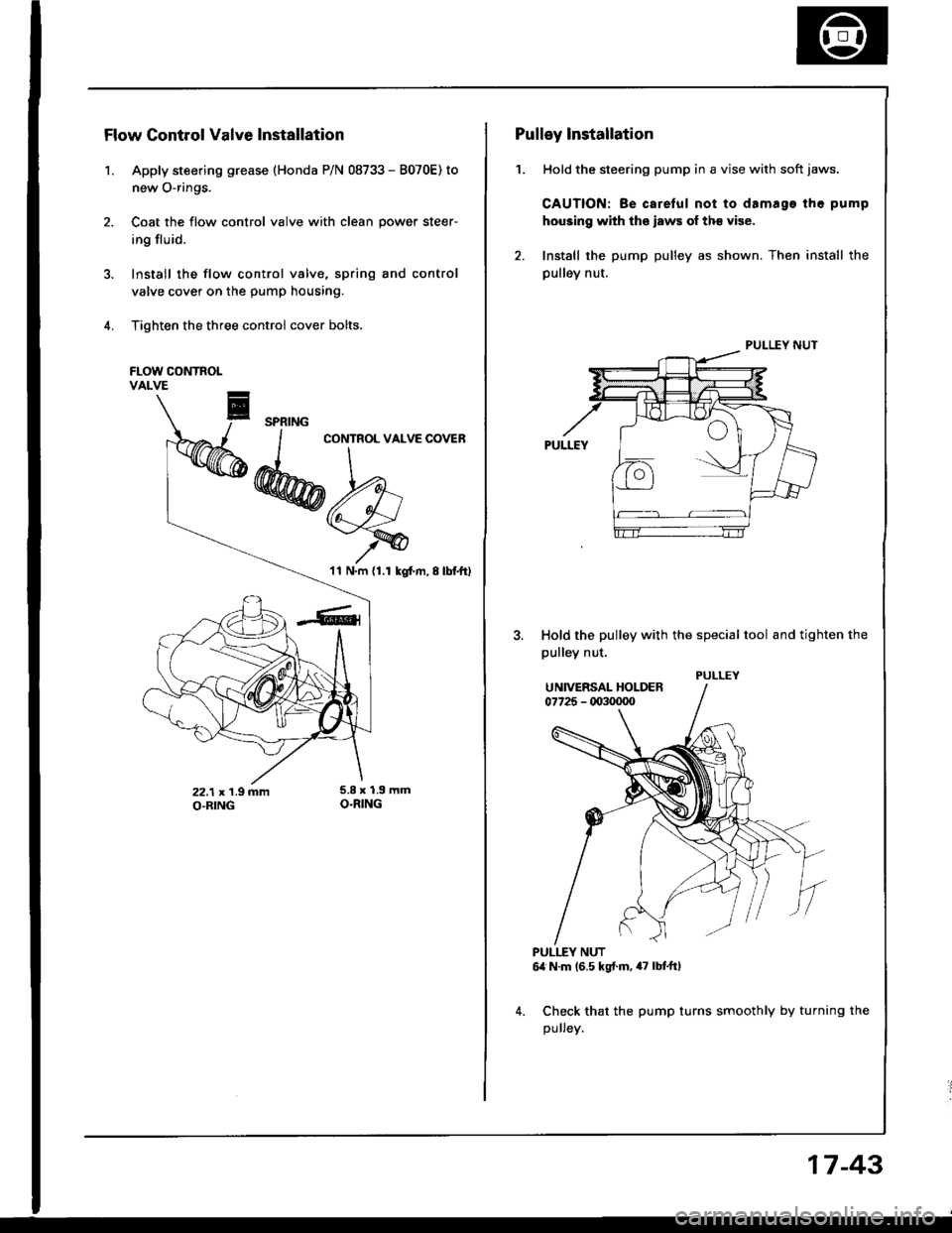

Flow Gontrol Valve Installation
1. Apply steering grease (Honda P/N 08733 - B070E) to
new O-rings.
2. Coat the flow control valve with clean power steer-
ing fluid.
3. Install the flow control valve, spring and control
valve cover on the pump housing.
4. Tighten the three control cover bolts.
FLOW CONTROLVALVE
SPRING
E;W
11 N.m {1.1 kgl.m,8lbtftl
2
Pulley Installation
1. Hold the steering pump in a vise with soft jaws.
CAUTION: Be careful not to damago the pump
hou3ing with the laws ol th€ vise.
2. Install the pump pulley as shown. Then install the
pulley nut.
Hold the pulley with the special tool and tighten the
pulley nut.
PULLEY NUT6ir N.m (6.5 kgt.m,47 lbt tt)
Check that the pump turns smoothly by turning the
pulrey.
PULLEY NUT
PULLEY
17-43

Power Steering Pump
lnstallation
1.Connect the inlet and outlet hoses. Tighten the
pump fiftings securely.
Loosely install the pump in the pump bracket with
mounting bolts.
11N.m11.r kgf.m, 8lbf.ftlOUTIIT HOUSE
INI.TT HOSEO-RINGReplaco.
ADJUSTINGBOLT
PUMP MOUNTING BOLTS2,r N.m {2.4 kgl.m. 17 lbf'ft}
Install the DumD belt.
CAUTION:
. Make surs that thg powor gtooring bslt i!
securgly on the grooyos of ths pulloy!.
. Do not get powor stggring fluid o. groaso in thg
power steering bclt or pulley trc6. Cloan oft 8ny
tluid or groa36 belore installation.
POWER STEERING BELT
PULI..EY
5.
Adjust the pump belt (see page 17-201.
Fill the reservoir to the uoDer level line.
NOTE; Take care not to spill the fluid on the body
and parts. Wipe off the spilled fluid at once.
GAUTION: Uro only Ganuino Honda Powor Stsor.
ing Fluid-V. Using othor tlui& 3uch a3 ATF or oiher
manutacturor's powor steering tluid will drm89e
the rystgm.
SYSTEM CAPACITY:
1.06litor (1.12 US.qt, 0.93 lmp.qt)
RESERVOIR CAPACIW:
0.79 litor (0.1|:| US.qt, 0.?0 lmp.qtl
UP?ER I.fVEL LINE
IEVEI LINE
- Start the engine, let it run at idle, then turn the
steering wheel lock-to-lock severaltimes to bleed
air from the system.
- Recheck the fluid level and add some if neces-
s8ry.
CAUTIONT Do not fill tha .63ervoir boyond th6
upp€r lcvol lino.
17 -44

Steering Gearbox
Removal
NOTE: Using solvent and a brush, wash any oil and dirt
off the valve body unit, its lines, and the end if the gear-
box. Blow dry with compressed air.
1. Drain the power steering fluid as described on page
17 -21.
2. Rsise the front of car, and support on safety stands
in the propsr locations (see section 1).
3. Remove the front wheels.
il. Removs the st€ering joint cove.,
SIEERING JOIi{T COVEB
Remove the steering joint lower bolt, and move thejoint toward the column.
NOTE: Lock the steering shaft with the ignition key
to retain the steering shaft position.
Remove the cotter pin trom the castle nut and
removo the nut.
Installthe 10 mm hex nut on the balljoint.
Be sure that ths 10 mm hex nut is flush with the ball
ioint pin end, or the threaded section of the ball
ioint pin might be damaged by the ball iointremover.
NOTE: Remove the ball joint using the Ball Joint
Remover, 28 mm {07MAC - 5100200}. Refer to page
l8-11 fot how to use the ball joint rcmover,
Separat€ the tie-rod ball joint and knuckle using the
soscialtool.
CAUTION: Avold d.maging th. blllloint boot.
BALL JOlt{T REMOVER. 28 mm07MAC - SLqt2|X)
Disconnect the shift linkage {MfI model: see section
13, A/[ model see section 14).
Disconnect the heated oxygen sensor (H02S) con-
ngctor, and separate the three way catalytic conver-
ter by removing the s€lf-locking nuts.
NOTE: Always replace the gaskets with new ones.
OXycEt{S€NSOnOONNECTOR SELF.LOCKINGNUT
{cont'd)IHREE WAYCA?ALYTIC CONVERTEN
8.
10.
HEATED
Replacs.
17-45

Steering Gearbox
Removal (cont'dl
Remove the return pipe clamp from the left side of
the rear beam. and move the return piDe above the
steering gearbox.
Remove the rear beam brace.
Remove the left tie-rod end, then slide the rack
the way to the right.
11.
12.
RETURN PIPE CLAMP
13.
I.TFT TIE-ROD END
14. Disconnect the two lines from th€ valve bodv unit
on the steering gea.box.
CAUTION: Aftor dkconnccting tho ho3o and pip.,
plug or r.d thc ho3. rnd pipc whh I pioco of tapo
or .quivll.nt to prcvont torcign m!tori!|3 f.om
ritrdng thc vdv. body unit.
NOTE:
. Place the pipe disconnected in the previous step
at the rear side of the gearbox so that they do
not hinder in the gearbox removal.
. Do not loosen the cylinder pipes A and B be-
tween the valve body unit and cylinder,
RETUR]T HOSE
15. Remove the steering gearbox mounting bolts.
GEARBOX MOU NNG BOLTS
17-46

11.
Pull the steering gearbox all the way down to clear
the pinion shaft from the bulkhead, and remove thepinion shaft grommet.
Move the steering gearbox to the right so the left
rack gnd clears the rear beam.
Hold the steering gearbox and slide the rack all the
way to the left, then place the left rack end below
the rear beam.
Move the steering gearbox to the left. and tilr the
left side down to remove it from the car.
18.
19.
PINION SHAFT GROMMET
STEEBING GEARBOX
17-47

Steering Gearbox
Disassembly
Stssring Rack Disassembly
NOTE:
. Before disassembling the gearbox, wash it off with
solvent and a brush.
. Do not dip seals and O-rings in solvent.
1. Remove the steering gearbox (see page 17-45).
2. Remove the air hose and clips.
3. Remove the tie-rod end and locknut.
4. Remove the boot bands and tube clamps. Pull the
boots away from the ends of the gearbox.
CLIP
BOOT
5. Hold the steering rack with a wrench and unscrew
the rack end with a wrench.
Loosen th6 locknut and remove tha rack guide
screw.
Ramove the spring and rack guide from the gear
housing.
7.
LOCKNUTRACK GUIDE
17-48,
TUBE CLAMP

Remove the cylinder pipe A and B from the gear-
box.
Drain the fluid from the cylinder fittings by moving
the steering rack back and forth,
Remove the two flange bolts, then remove the valve
body unit from the gearbox. {See page 17-51 for
valve body unit disassembly.)
FLANGE BOLT
CYLINDER PIPE B
VALVE BODY UNIT
11.Drill a 3 mm {0.12 in) diameter hole approximately
2.5 - 3.5 mm (0.10 - 0.14 in) in depth in the staked-
point on the cylinder.
NOTE: Do not allow metal shavings to enter the
cylinder housing.
STAKEO POINT
D.prh:2.5 - 3,0 mm 10.10 - 0.12 inl
CYUNDER END
12. Install a puller yoke to the stesring gearbox. Clamp
the puller yoke in a vise with soft iaws as shown,
then loosen and remove the cvlinder end.
PULLER YOKE:Commercirlly AvrilabloSn.p-Ono T/N qrie'-1
oTclo T/N 7372
(cont'd)
