CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY AND CHASSIS 12-57

15.
Connect positive lead to battery terminal, lower hood

and test wiper and washer assembly for proper

operation.

WIPER TRANSMISSION

REMOVAL AND INSTALLATION

ELECTRICAL-BODY AND CHASSIS 12-57

15.
Connect positive lead to battery terminal, lower hood

and test wiper and washer assembly for proper

operation.

WIPER TRANSMISSION

REMOVAL AND INSTALLATION

1.
Remove wiper block and arm assembly from trans-

mission.

2.
Remove glove box door and compartment assembly.

Refer to Section 1 for removal procedures.

3.
Remove three transmission-td-cowl retaining

screws.

4.
Remove wiper transmission retaining clip and re-

move transmission from crank arm. Then remove

transmission through the glove box opening.

5.
Reverse removal procedure to install wiper trans-

mission.

Fig.
94 - Wiper and Trans Installed

WIPER ASSEMBLY REPAIRS

The overhaul procedures for the wiper are broken down

into three major areas: The motor section, gear box

section and washer pump section. Each section may be

serviced independently of the other.

MOTOR SECTION

Disassembly

1.
Remove the two motor tie bolts.

2.
Remove the armature end-play adjusting screw (fig.

91).

3.
Strike the steel case lightly with a mallet to partiaUy

loosen it from the die casting housing and motor

field.

4.
Insert a tool through the armature adjusting screw

opening and push against the end of the armature

shaft to back off the case. This will retain the ar-

mature commutator in position between the brushes

until ready to separate the armature from the case.

5.
To separate armature from case while still retaining

the brush springs and brushes in place fashion a

spring similar to that shown in Figure 95 and insert

behind the brush leads as shown.
Fig.
95 - Retaining Armature Brushes

6. Pull the armature out of the case and remove the felt

washer, thrust plate, and rubber thrust disc from the

case assembly bearing as required.

7.
The field windings are pressed into the gear housing

and further disassembly is not recommended; how-

ever, the field leads may be unsoldered from the

brush holders to remove the case.

8. Clean and inspect all parts.

Inspect both the field and armature for damage

due to overheating such as unsoldered electrical

connections.

Check that brush leads are firmly attached both

to the brushes and their connections at the brush

holders.

Check brushes for wear. If brushes are worn to

within 3/16" of brush lead, or pigtail, they should be

replaced.

Check contacts of circuit breaker shown at top of

Figure 95. Clean as required or file lightly to re-

move irregularities.

Inspect all leads from the brush and circuit

breaker plate for worn insulation or tjreaks.

If it was determined by inspection that brush re-

placement was required, proceed as follows:

a. Remove retainer installed during disassembly and

remove brush springs.

b.
Place a hot soldering iron against*brush lead con-

nection on brush holders, remove old bushes, and

nection on brush holders, remove old brushes,

and install new brushes.

c. To reinstall brushes in holders, compress spring

within holder and hold fully compressed with a

thin instrument inserted through the slot in the

brush holder. Then push brush into holder with

lead upward to project through slot in holder, hold

CHEVROLET CHASSIS SERVICE MANUAL

Page 570 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY AND CHASSIS 12-58

RETAINER NUT

.SEAL CAP
THROUGH
BOLT,

CASE

CRANK

ARM

THRUST
BALL

FELT
WASHER

STEEL THRUST PLATE

RUBBER THRUST PLATE

SPACER WASHER

HOUSING

ARMATURE END

Page 571 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY AND CHASSIS 12-59

NOTE: it may be necessary at this point to

rotate the armature slightly before the worm

will engage with the worm gear.

5.
Rotate the case as required to align

ELECTRICAL-BODY AND CHASSIS 12-59

NOTE: it may be necessary at this point to

rotate the armature slightly before the worm

will engage with the worm gear.

5.
Rotate the case as required to align the holes in the

case with those in the housing.

6. Being very careful not to pinch any of the motor

leads between the case and edge of the field, push the

case onto the field until it butts against the housing.

7.
Secure case to housing with two tie bolts.

8. Install end-play adjusting screws and locknut and

adjust end-play by tightening adjusting screw finger

tight; then back off screw 1/4 turn and tighten

locknut.

GEAR BOX SECTION

The gear box section is subdivided into two areas, (A)

the relay control and latching mechanism and (B) the

drive gear mechanism.

A—Relay Control and Latching Mechanism:

Disassembly

1.
Remove four screws which secure the washer pump

assembly to gear box.

2.
Refer to Figure 97. Disconnect coil spring, remove

"E"
ring and lift the latch and follower assembly off

the pivot pin and relay armature.

3.
Remove the stop assembly retaining screw. This

will permit the stop assembly to be moved as neces-

sary to allow clearance for removing the relay con-

trol assembly.
Fig.
100 - Assembly Gear and Eccentric Shaft

4.
Remove the two screws that secure the relay control

assembly.

5.
Lift the relay control assembly out of the gearbox

and unsolder leads as required.

Reassembly

1.
Solder existing green and yellow wiper leads to relay

control switch and solder the relay coil Iea4 to the

wiper unit terminal board as shown in Figure

B—Drive Gear Mechanism:

Disassembly

Refer to Figure 84 unless other wise specified.

1.
Remove the crank arm retaining nut (No. 1).

2.
Remove crank arm (No. 2), snap ring (No. 3) and

rubber seal (No. 4).

3.
Remove the retaining ring (No. 5), end play washers

(No.
6), shield (No. 7) and spacer washer (No. 8).

4.
Follow Steps 1 through 3 under relay control and

latch mechanism disassembly.

Fig.
99 - Lock and Drive Pawi Mechanism
Fig.
101 - Drive Gear Mechanism Installed

CHEVROLET CHASSIS SER\

Page 572 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY AND CHASSIS 12-60

....
£
VALVE ASSEMBLY

mm

BROWN
*yr

RED
WATER

INTAKE

PORT

|f|i

Wjjm WATER

|HP DISCHARGE

W PORTS

WASHER

PUMP

ASSEMBLY

Fig.
102 - Washer Pump Asse

ELECTRICAL-BODY AND CHASSIS 12-60

....
£
VALVE ASSEMBLY

mm

BROWN
*yr

RED '
WATER

INTAKE

PORT

|f|i

Wjjm WATER

|HP DISCHARGE

W PORTS

WASHER

PUMP

ASSEMBLY

Fig.
102 - Washer Pump Assembly

5. Remove gear mechanism from the gear box and slide

spacer washer (No. 9) off the gear assembly eccen-

tric shaft.

6. Slide the drive plate and shaft assembly (No.. 11) out

of the gear, assembly, remove the lock and drive

pawls (Nos. 12 and 13) and remove the coil spring

(No.
14).

Reassembly

1.
Assemble lock and drive pawls to the shaft and drive

plate assembly as shown in Figure 99.

2.
Install the assembled parts from Step 1 in the gear

and eccentric shaft as shown in Figure 100.

3.
Connect the coil tension spring between the lock and

drive pawls (fig. 100).
4.
Reinstall spacer washer on the eccentric shaft of the

gear.

5. Reinstall gear mechanism in the housing as shown in

Figure 101.

6. Reassemble the parts removed in Steps 1 through 4

under drive gear disassembly.

The washer pump and/or valve assembly (fig. 102) may

be removed from the wiper assembly as a unit; therefore

it is- not necessary to remove the. wiper assembly from

the vehicle if only the washer pump and/or valve assem-

bly requires service.

WASHER PUMP SECTION

PUMP REPLACEMENT

. To replace the washer pump assembly proceed as

follows:

1.
Raise vehicle hood and remove engine distributor

shielding and distributor cap.

2.
Remove lead wires from washer pump and disconnect

ground wire from screw retained connector; discon-

nect hoses from valve unit.

3.
Remove four screws which secure the washer pump

assembly to the gear box.

a* The water inlet and outlet valve assembly is

serviced as a unit if required; also the rotor cam

is serviced separately.

4.
Install washer pump and cover assembly so that the

slot in the washer pump cam fits over the pin on the

wiper unit drive plate.

5. Install the four washer pump to gear box retaining

screws, position ground lug under lower screw.

6. Connect valve inlet and outlet hoses, attach ground

lead and washer pump lead wires.

7. Install engine distributor cap and shielding.

8. Lower hood and check operation of wiper unit.

SPECIAL TOOLS

J-21932

BEZEL NUT REMOVER

Fig.
103 - Special Tools

CHEVROLET CHASSIS SERVICE MANUAL

Page 573 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY
AND
CHASSIS
12-61

R.H. FENDER

LAMP (1.6600)

R.H. PARK &
DIR.

S1G. LAMP.

L.H. PARK &
DIR.

SIG. LAMP

L.H. FENDER

LAMP (16600)

Fig.
104 - Front Lighting & Engine Compartme

Page 574 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY
AND
CHASSIS
12-62

BULKHEAD-

CONNECTOR
HEATER

RESISTOR

PANEL ASM.

12 BRN
20
Y

12 BRN

»-67 MOD ONLY

*45 MOD ONLY
14 PPL

DIRSIG.

FLASHER

20 BRN
20 LBL

20
P

16 BRN

Page 575 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual

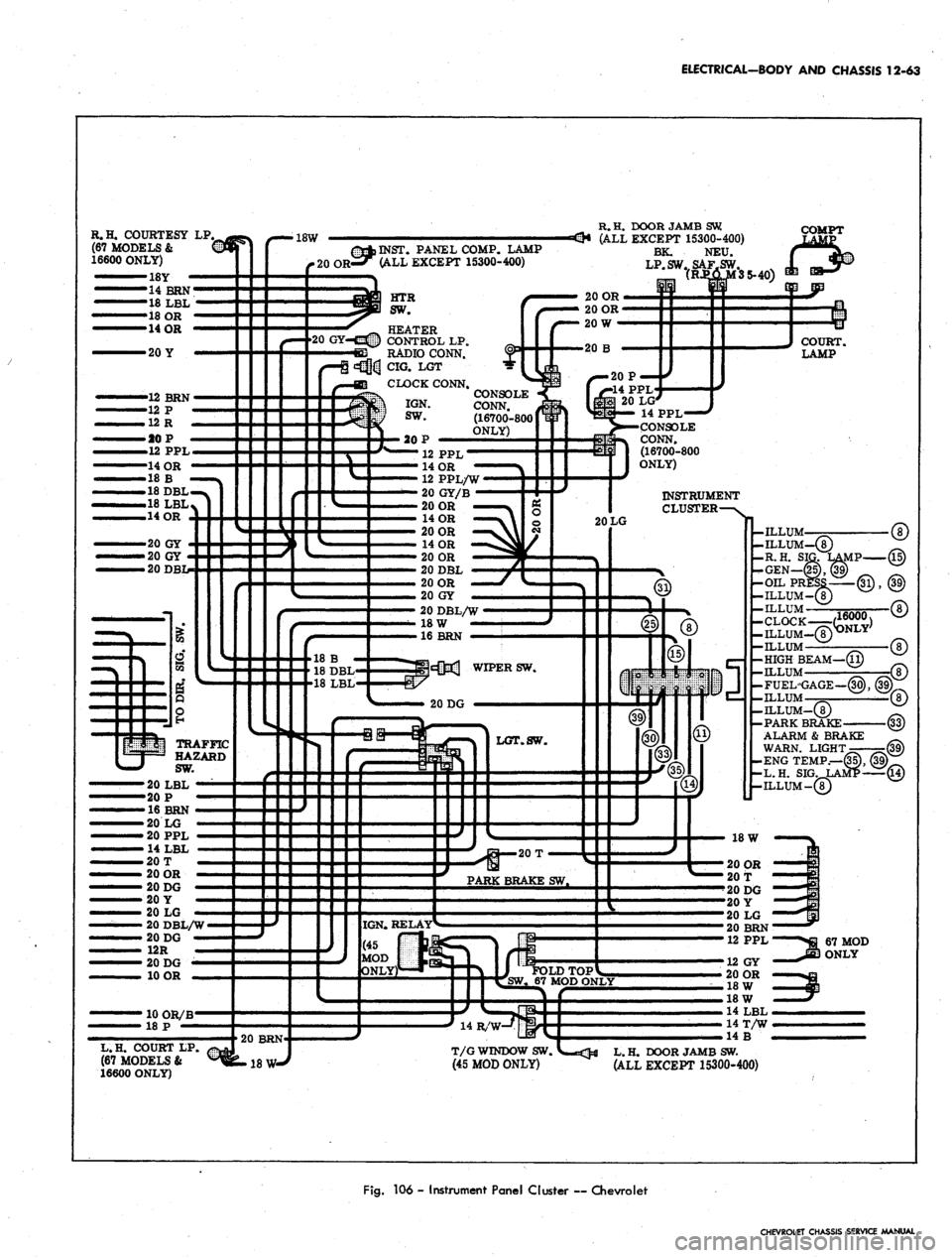

ELECTRICAL-BODY AND CHASSIS 12-63

R.H. COURTESY
LP,

(67 MODELS &

16600 ONLY)

•18Y
R. H. DOOR JAMB
SW

(ALL EXCEPT 15300-400)

BK.
NEU.

LP.SW.SAF.SW.

(RJ»JD^

20 OR

20 OR
COMPT

(U*INST

Page 576 of 659

CHEVROLET CAMARO 1967 1.G Chassis Workshop Manual
ELECTRICAL-BODY AND CHASSIS 12-64

R.H. RR

DR JAMB SW.

(16639 ONLY)

O

is
18
OR

.18
W
RAIL LAMP

(39,47
&
87

MODELS ONLY)

1111 CHEVROLET WRG

M._ FISHER BODY WRG

—-— CHEVROLET RPO WR
