2023 HONDA CIVIC Owners Manual

Continued663
uuBraking uBrake System
Driving

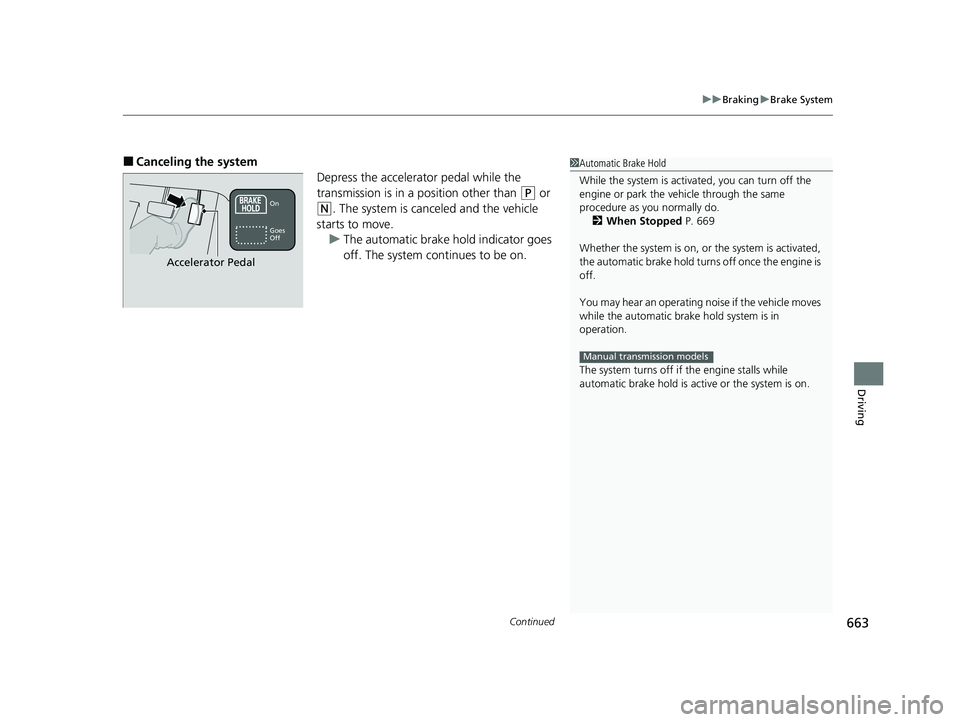

■Canceling the system
Depress the accelerator pedal while the
transmission is in a position other than
(P or
(N. The system is canceled and the vehicle
starts to move. u The automatic brake hold indicator goes
off. The system continues to be on.
1Automatic Brake Hold
While the system is activated, you can turn off the
engine or park the ve hicle through the same
procedure as you normally do. 2 When Stopped P. 669
Whether the system is on, or the system is activated,
the automatic brake hold turn s off once the engine is
off.
You may hear an operating noi se if the vehicle moves
while the automatic brake hold system is in
operation.
The system turns off if the engine stalls while
automatic brake hold is active or the system is on.
Manual transmission models
On
Accelerator Pedal
Goes
Off
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 663 ページ ２０２２年６月２３日　木曜日　午後９時２８分

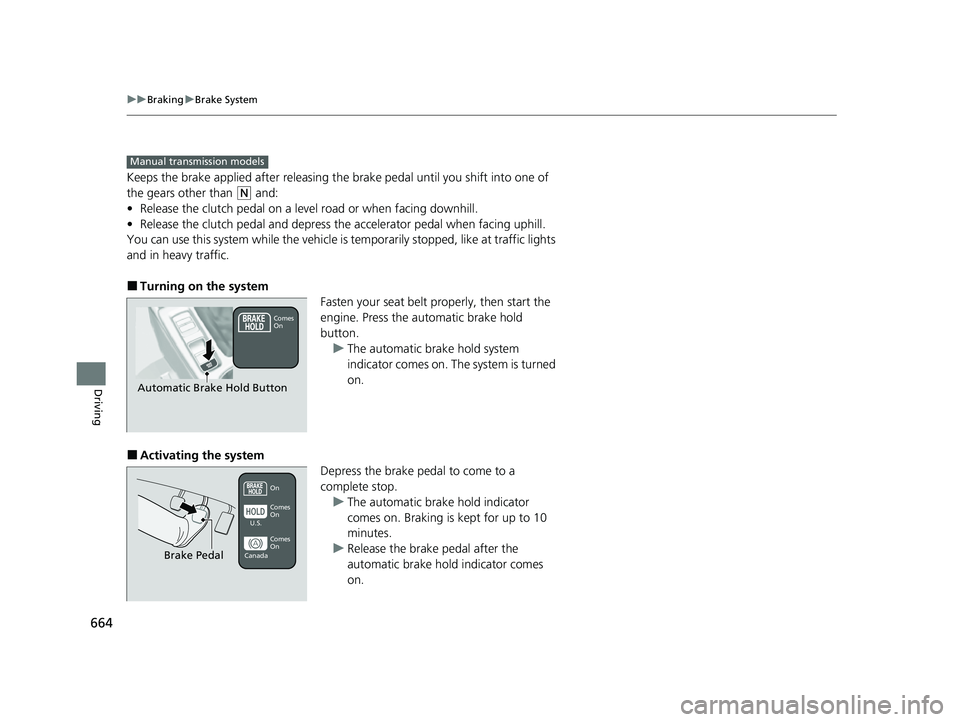

664
uuBraking uBrake System
Driving
Keeps the brake applied after releasing the brake pedal until you shift into one of
the gears other than
(N and:
• Release the clutch pedal on a level road or when facing downhill.
• Release the clutch pedal and depress the accelerator pedal when facing uphill.
You can use this system while the vehicle is temporarily stopped, like at traffic lights
and in heavy traffic.
■Turning on the system Fasten your seat belt properly, then start the
engine. Press the automatic brake hold
button.u The automatic brake hold system
indicator comes on. The system is turned
on.
■Activating the system
Depress the brake pedal to come to a
complete stop.u The automatic brake hold indicator
comes on. Braking is kept for up to 10
minutes.
u Release the brake pedal after the
automatic brake hold indicator comes
on.
Manual transmission models
Comes
On
Automatic Brake Hold Button
On
Brake Pedal
Comes
On Comes
On
U.S.
Canada
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 664 ページ ２０２２年６月２３日　木曜日　午後９時２８分

665
uuBraking uBrake System
Continued
Driving

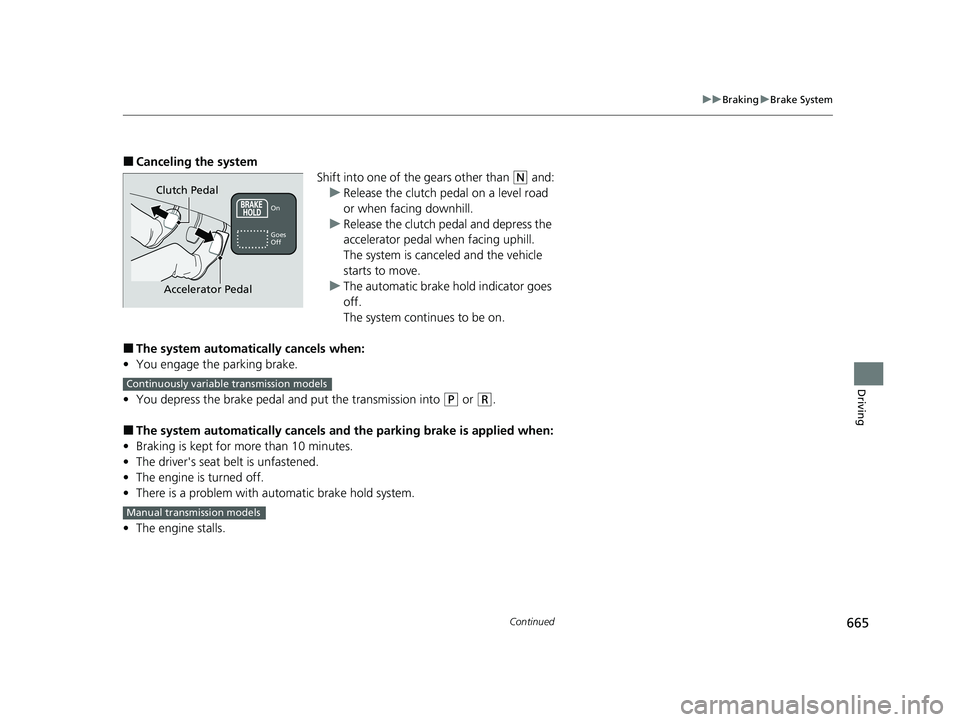

■Canceling the system
Shift into one of the gears other than
(N and:
u Release the clutch pedal on a level road
or when facing downhill.
u Release the clutch pedal and depress the
accelerator pedal when facing uphill.
The system is canceled and the vehicle
starts to move.
u The automatic brake hold indicator goes
off.
The system continues to be on.
■The system automatically cancels when:
• You engage the parking brake.
• You depress the brake pedal an d put the transmission into
(P or (R.
■The system automatically cancels and the parking brake is applied when:
• Braking is kept for more than 10 minutes.
• The driver's seat belt is unfastened.
• The engine is turned off.
• There is a problem with automatic brake hold system.
• The engine stalls.
On
Accelerator Pedal
Goes
Off
Clutch Pedal
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 665 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuBraking uBrake System
666
Driving

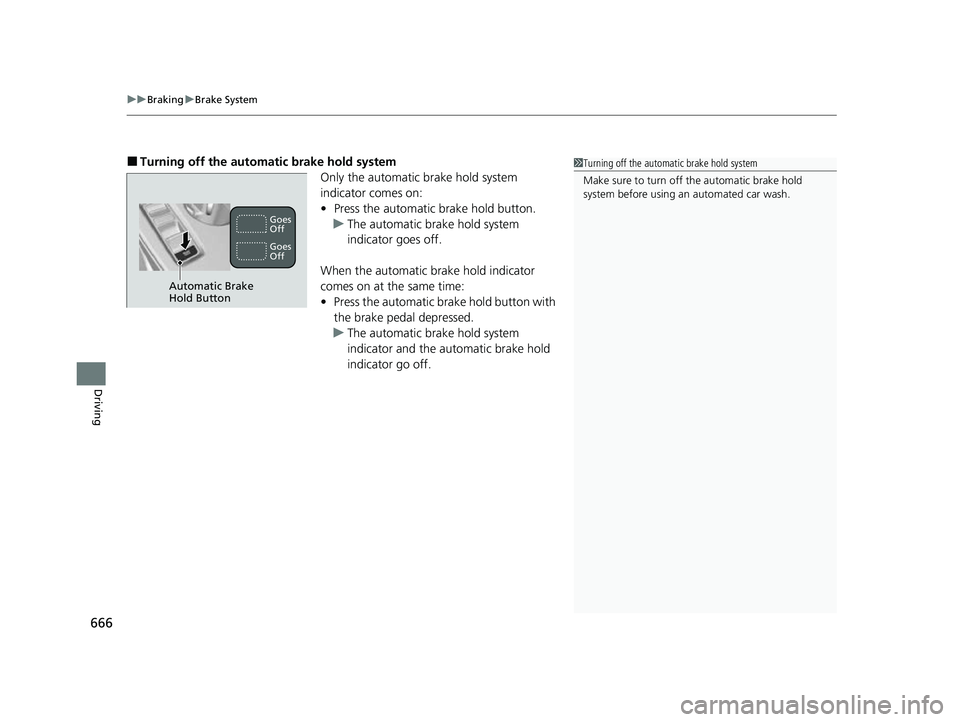

■Turning off the automatic brake hold system
Only the automatic brake hold system
indicator comes on:
•Press the automatic brake hold button.
u The automatic brake hold system
indicator goes off.
When the automatic brake hold indicator
comes on at the same time:
• Press the automatic brake hold button with
the brake pedal depressed.
u The automatic brake hold system
indicator and the automatic brake hold
indicator go off.1Turning off the automatic brake hold system
Make sure to turn off the automatic brake hold
system before using an automated car wash.
Automatic Brake
Hold Button
Goes
Off
Goes
Off
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 666 ページ ２０２２年６月２３日　木曜日　午後９時２８分

667
uuBraking uAnti-lock Brake System (ABS)
Driving

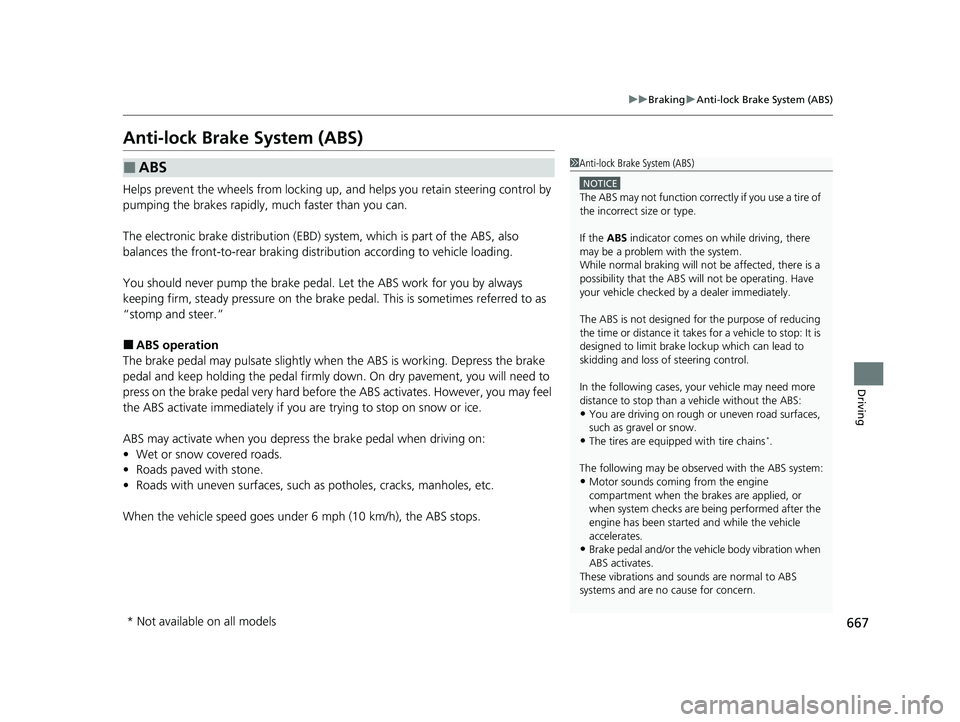

Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you can.
The electronic brake distribu tion (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pu mp the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly do wn. On dry pavement, you will need to
press on the brake pedal very hard before th e ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.
ABS may activate when you depres s the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surf aces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use a tire of
the incorrect size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS wi ll not be operating. Have
your vehicle checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
•You are driving on rough or uneven road surfaces,
such as gravel or snow.
•The tires are equipped with tire chains*.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while the vehicle
accelerates.
•Brake pedal and/or the vehicle body vibration when
ABS activates.
These vibrations and sou nds are normal to ABS
systems and are no cause for concern.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 667 ページ ２０２２年６月２３日　木曜日　午後９時２８分

668
uuBraking uBrake Assist System
Driving

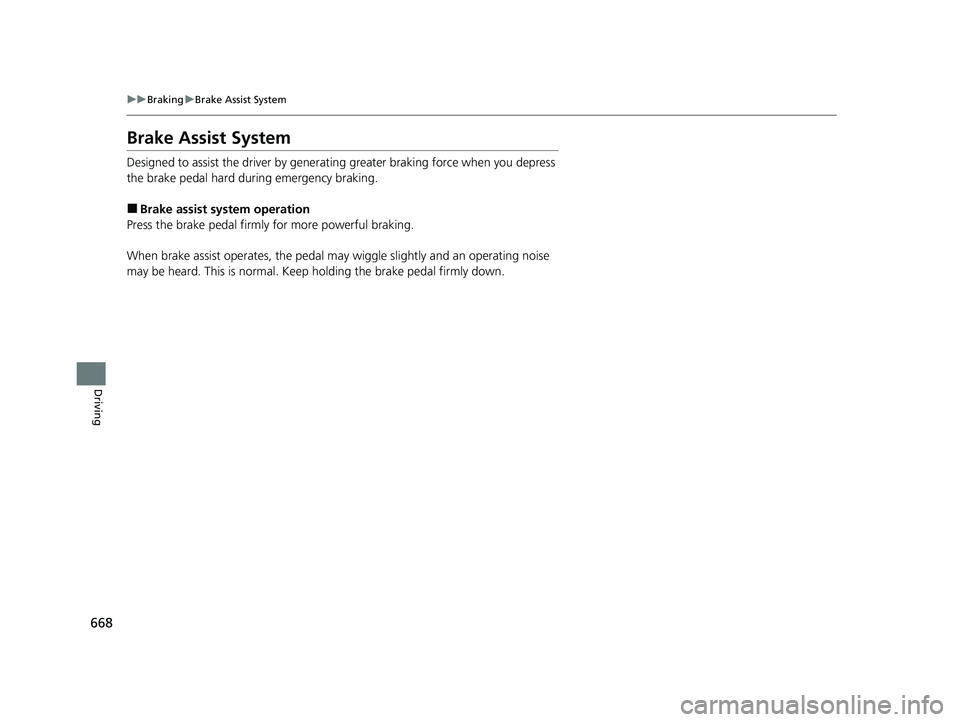

Brake Assist System
Designed to assist the driver by generati ng greater braking force when you depress
the brake pedal hard during emergency braking.
■Brake assist system operation
Press the brake pedal firmly for more powerful braking.
When brake assist operates, the pedal ma y wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 668 ページ ２０２２年６月２３日　木曜日　午後９時２８分

669Continued
Driving

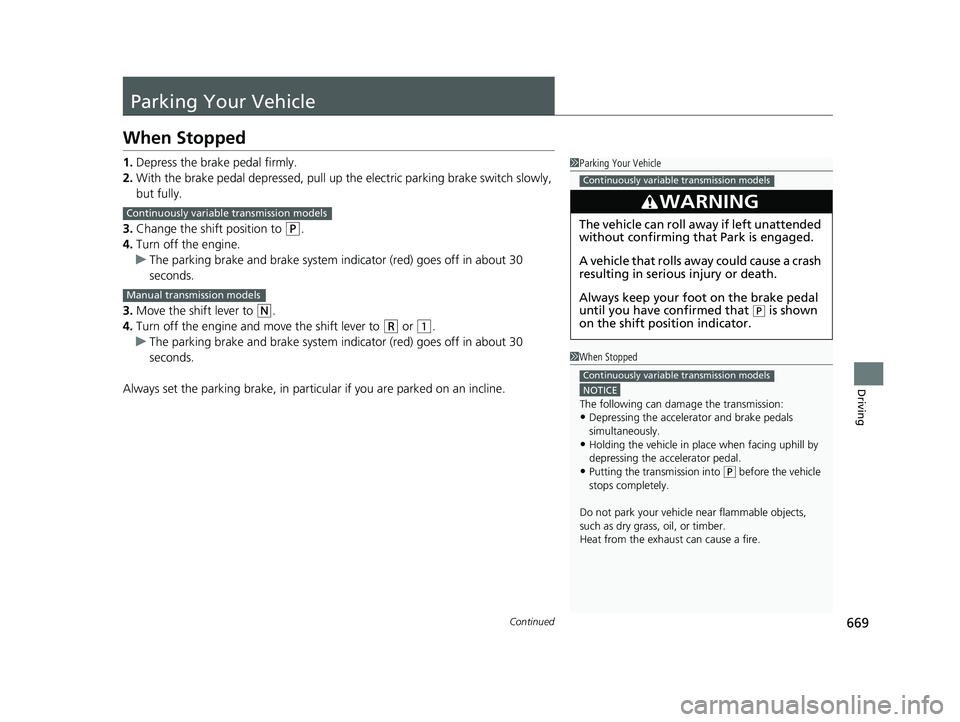

Parking Your Vehicle
When Stopped
1.Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up the electric pa rking brake switch slowly,
but fully.
3. Change the shift position to
(P.
4. Turn off the engine.
u The parking brake and brake system indi cator (red) goes off in about 30
seconds.
3. Move the shift lever to
(N.
4. Turn off the engine and move the shift lever to
(R or (1.
u The parking brake and brake system indi cator (red) goes off in about 30
seconds.
Always set the parking brake, in particu lar if you are parked on an incline.
1Parking Your Vehicle
3WARNING
The vehicle can roll aw ay if left unattended
without confirming th at Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
( P is shown
on the shift posi tion indicator.
Continuously variable transmission models
1When Stopped
NOTICE
The following can dama ge the transmission:
•Depressing the accelerator and brake pedals
simultaneously.
•Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
•Putting the transmission into ( P before the vehicle
stops completely.
Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
Continuously variable transmission models
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 669 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuParking Your Vehicle uWhen Stopped
670
Driving

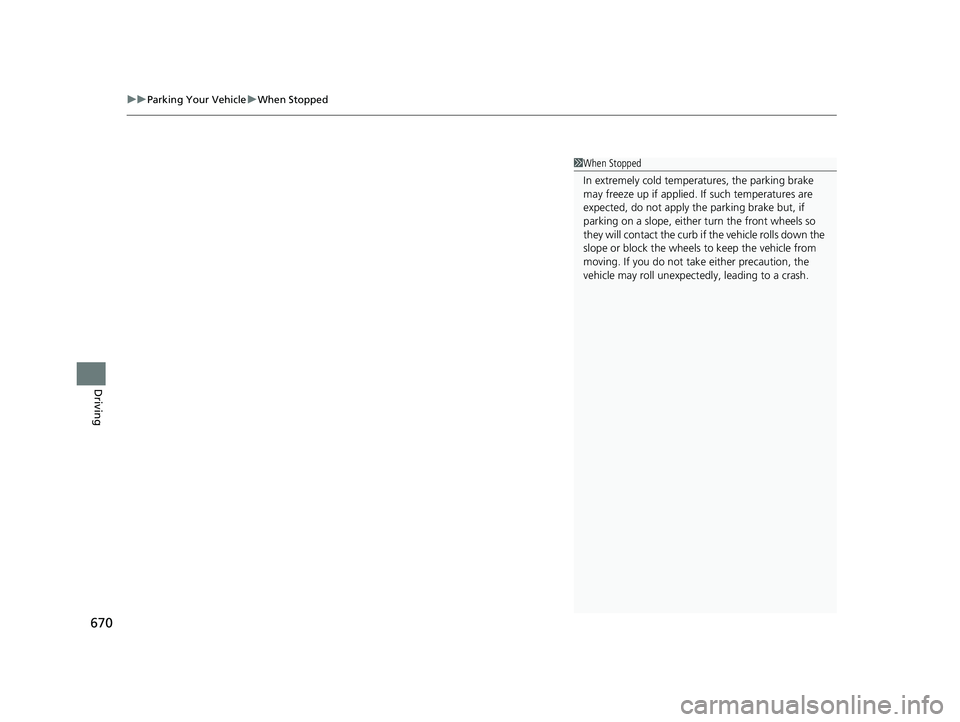

1When Stopped
In extremely cold temper atures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.
